Fulgor Milano F4GK36 1 Series User manual

F4GK24*1
F4GK30*1
F4GK36*1
F4GK42*1
EN INSTALLATION INSTRUCTIONS
FR INSTRUCTIONS D’INSTALLATION
ES INSTRUCCIONES DE INSTALLACIÓN
GAS COOKTOP
PLAQUE DE CUISSON GAZ
PLACA DE COCCIÓN DE GAS

Dear Customer,
Thank you for purchasing a Fulgor Milano product. Fulgor Milano is
committed to excellence and our signature technologies provide you with
professional tools for your kitchen. One of our central philosophies is
continuous investment in research that is rooted in developing life enhancing
technology. Our goal is to deliver products that are worthy of your family
recipes and that will breathe life into your kitchen, the heart of your home.
We invite you to enjoy your new Fulgor Milano product with same amount
of care and attention that we have put into creating it.
Your Life | Our Passion

EN
1
TABLE OF CONTENTS PAGE
1 - Special Warnings 2
Before Starting Installation 2
Cooktop Installed over Oven Installation 2
2 - Product Dimensions and Cutout Requirements 3
Important Preparation Suggestions 3
Mobile Home Installation 6
3 - Cooktop Installation 7
4 - Gas Requirement 9
Gas Connection 10
Pressure Testing 12
Pressure Test Method 12
5 - Electrical Requirements 13
General Information 13
Electrical Connection 13
Electrical Requirements 13
6 - Conversion for LP or NG Gas 15
Converting Appliance for Use with LP Gas 15
Replace injector on (one ring flame burners) 15
Replace injectors on (two rings flame burner) 15
Converting Appliances for Use with NG Gas 16
Pressure regulator conversion 16
Injectors position 17
Low Flame Adjustment 18
Electric gas ignition 19
The Burner Flames 19
IMPORTANT: Save these instructions for the local electrical
inspector use.
INSTALLER: Please leave this manual with owner for future
reference.
OWNER: Please keep this manual for future reference.
Pay attention to these symbols present in this manual:
DANGER
You can be killed or seriously injured if you don’t
IMMEDIATELY follow instructions.
WARNING
• This is the safety alert symbol. This symbol alerts you to
potential hazards that can kill or hurt you and others.
• You can be killed or seriously injured if you don’t follow
these instructions.
READ AND SAVE THESE INSTRUCTIONS.
To installer:
Leave these instructions with the appliance.
To customer:
Retain these instructions for future reference.
WARNING
• If the information in this manual is not followed exactly,
a fire or explosion may result in personal injury or
death.
• Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any other
appliance.

EN
2
1 - Special Warnings
IMPORTANT
Please read all instructions before using this appliance.
Proper installation is your responsibility. Have a qualified
technician install this cooktop.
IMPORTANT
• Observe all governing codes and ordinances.
• Write down the model and serial numbers before
installing the cook top. Both numbers are on the serial
rating plate located on bottom of cooktop box.
Before Starting Installation
• Check location where cooktop will be installed. The
location should be away from strong drafty areas, such
as windows, doors and strong heating vents or fans.
• Electrical grounding is required. See “Electrical
Requirements”
• Assure that electrical installation is adequate and in
conformance with National Electrical Code, ANSI/NFPA
70 - latest edition**, or Canadian Electrical Code, part
1 C22.1 (latest edition)*** and all local codes and
ordinances.
• Assure that gas connection conforms with local codes and
ordinances. In the absence of local codes, installations
must conform with American National Standard, National
Fuel Gas Code ANSI Z223/NFPA 54 - latest edition**
The Natural Gas and Propane Installation Code, CSA
149.1 or CSA B149.2 latest edition***.
Copies of the standards listed may be obtained from:
** National Fire Protection Association One Batterymarch
Park Quincy, Massachusetts 02269
*** CSA International 8501 East Pleasant Valley Rd.
Cleveland, OH 44131-5575
NOTE: This cooktop is manufactured for use with Natural
gas or Propane.
To convert to LP (propane) or NG (natural gas),
see instruction in the gas conversion kit provided
in literature package. Proper gas supply connection
must be available. See gas supply requirements.
WARNING
BEFORE CONNECTING THE APPLIANCE ON THE
GAS LINE SUPPLY, ENSURE THAT ITS GAS SETTING IS
APPROPRIATE.
THE TYPE OF GAS ADJUSTED AND SHIPPED FROM
THE FACTORY IS INDICATED ON THE RATING PLATE
LOCATED ON BOTTOM OF THE BURNER BOX.
Cooktop Installed over Oven Installation
Only certain specified cooktop and oven models are
approved for cooktop over oven installations.
Cooktops approved for this type of installation will have an
approval label located on the outside of the burner box.
If you do not find this label, contact your dealer to confirm
that cooktop is approved.
The label on the bottom of your cooktop lists the cooktop
and oven combinations that are approved for this type of
installation.

EN
3
2 - Product Dimensions and Cutout Requirements
Important Preparation Suggestions
1. Chamfer all exposed edges of decorative laminate to prevent damage from chipping.
2. Radius corners of cutout and file to Insure smooth edges and prevent corner cracking. Recommend 1/4”or 3/8” diameter drill
In each corner.
3. Rough edges, inside corners which have not been rounded and forced fits can contribute to cracking of the countertop
laminate.

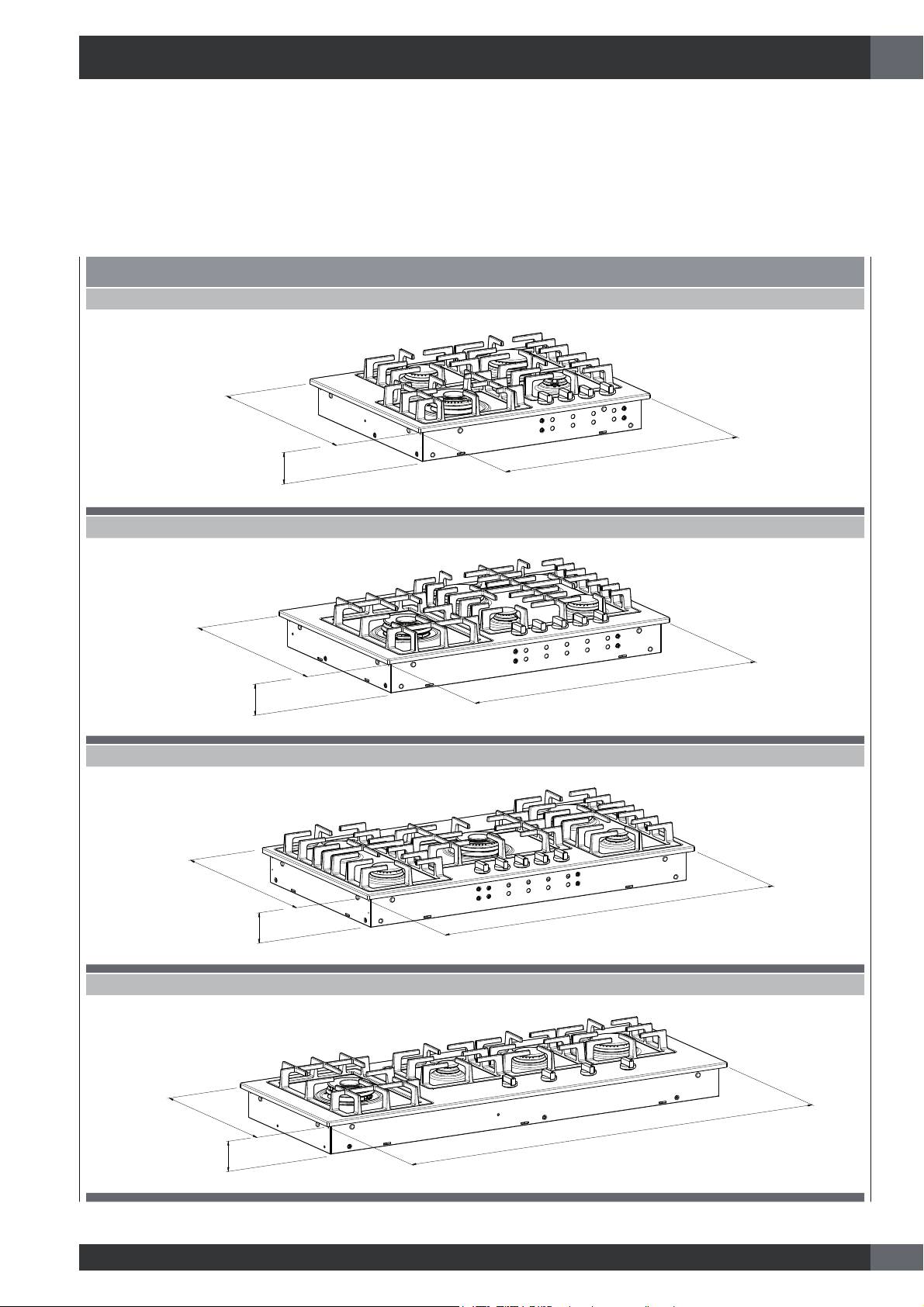

PRODUCT DIMENSIONS
24”
2-15/16”
(7,4 cm)
20-1/16” (51 cm)
24-1/2” (62 cm)
30”
30” (76 cm)
2-15/16”
(7,4 cm)
20-1/16” (51 cm)
36”
36” (91 cm)
2-15/16”
(7,4 cm)
20-1/16” (51 cm)
42”
44” (112 cm)
16-3/4” (42,5 cm)
2-15/16”
(7,4 cm)

EN
4
7-5/8 “ (19,3 cm)
86
5-11/16 “ (14,4 cm)
COUTOUT DIMENSIONS
CUT OUT
WIDTH ABCD
24” MIN. 23-1/2” ( 59,7 cm)
MAX. 23-5/8” ( 60,0 cm) MIN. 19-5/16” (49,0 cm) MAX. 19-3/8” (49,3 cm) 2-1/2” ( 6,35 cm) MIN. 3” (7,62 cm)
30” MIN. 29” ( 73,7 cm)
MAX. 29-1/8” ( 74,0 cm) MIN. 19-5/16” (49,0 cm) MAX. 19-3/8” (49,3 cm) 2-1/2” ( 6,35 cm) MIN. 3” (7,62 cm)
30” MIN. 34-7/8” ( 88,6 cm)
MAX. 35” ( 88,9 cm) MIN. 19-5/16” (49,0 cm) MAX. 19-3/8” (49,3 cm) 2-1/2” ( 6,35 cm) MIN. 3” (7,62 cm)
36” MIN. 43-1/8” (109,6 cm)
MAX. 43-1/4” (109,9 cm) MIN. 15-15/16” (40,5 cm) MAX. 16-1/16” (40,8 cm) 4” (10,16 cm) MIN. 3” (7,62 cm)

EN
5

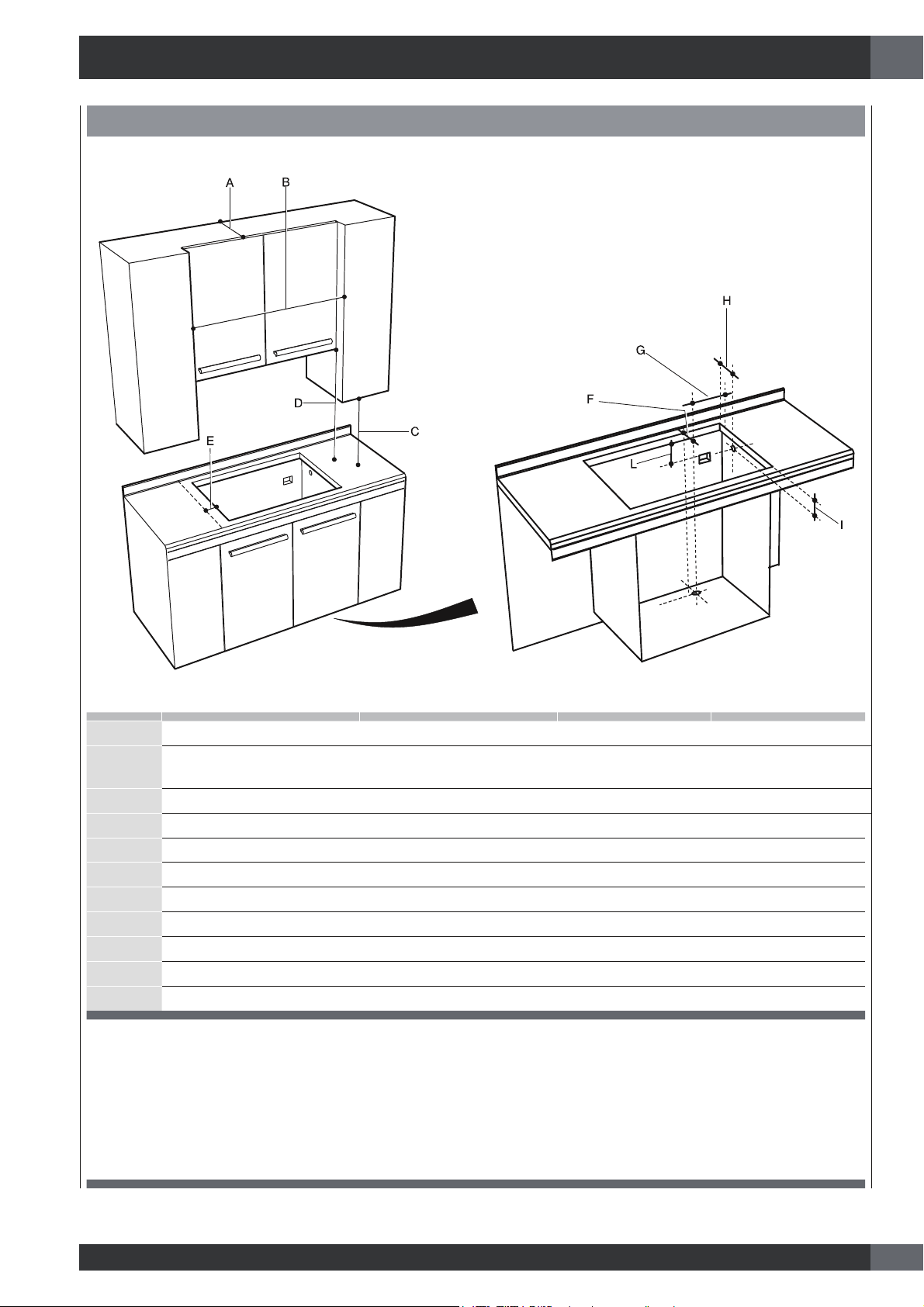

CUTOUT REQUIREMENTS
A13” (33 cm) Depth of unprotected overhead cabinets.
B30” (76.2 cm) MIN. (Model 30“).
36” (91.4 cm) MIN. (Model 36”).
C18” (47.7 cm) MIN. Height from countertop to nearest cabinet on either side of unit.
D36” (91 cm ) MIN. (see Note* Clearance from countertop to unprotected overhead surface. )
E5” (12.7 cm) min Clearance from cut out to side wall on the left and right of the unit.
FFrom the back corner of cut-out to hole center 2-9/32” (5.8 cm).
GFrom the right corner of cut-out to hole center 2-19/32” (6.6 cm).
HFrom the back corner of cut-out to hole center 2-9/32 ” (5.8 cm). Opening with oven under cooktop.
IFrom the top of countertop to hole center 4-25/32 ” (12.2 cm). Opening with oven under cooktop.
LElectric outlet from bottom of counter top and adjacent to the cabinet side 12” (30.5 cm).
-Hole 1-1/5” (3 cm).
* NOTE:
- If cabinet has a drawer, a 5-1/4”(13,35 cm) depth clearance from the top of the countertop to the top of the drawer (or
other obstruction) in base cabinet is required. The drawer depth may need to be shortened to avoid interfering with the
regulator.
- 24” (61 cm) min. clearance if bottom of wood or metal cabinets is protected by not less than 1/4” (0.6 cm) ame
retardant millboard covered with not less than No. 28 MSG sheet steel 0.015” (0.04 cm) stainless steel, or 0.024”
(0.06 cm) aluminium or 0.020” (0.05 cm) copper. 30” (76.2 cm) min. clearance between top of cooking platform and
bottom of unprotected wood or metal cabinet.

EN
6
We recommend to that you consider the minimum dimension
of cut-out size in the case of new installation.
WARNING
The appliance should not be installed with a ventilation
system that blows air downward toward the range.
This type of ventilation system may cause ignition and
combustion problems with the gas cooking appliance
resulting in personal injury or unintended operation.
Mobile Home Installation
The installation of this cooktop must conform to the
Manufactured Home Construction and Safety Standards,
Title 24 CFR, Part 3280 (formerly the Federal Standard for
Mobile Home Construction and Safety;
Title 24 HUD part 280); or when such standard is
not applicable, the Standard for Manufactured Home
Installations (Manufactured Home Sites, Communities and
Setups), ANSI A225.1 - latest edition, or with local codes.
In Canada, the installation of this cooktop must conform
with the current standards CAN/CSA-Z240 - latest edition,
or with local codes.
IMPORTANT
• For solid surface material installations such as Surel™
and Corian®, consult with solid surface manufacturer.
Apply heat reflective tape such as Scotch® Aluminum
Foil Tape #425 or #427 around the cutout so that it
folds over on the top and sides.
• DO NOT WRAP THE TAPE UNDERNEATH THE
COOKTOP.
• Be sure the tape extends beyond the outermost flange
of the cooktop. All corners should be covered with
tape.
SOLID SURFACE COUNTERTOP INSTALLATION

EN
7
WARNING
• Excessive Weight Hazard
Use two or more people to move and install cooktop.
Failure to do so can result in back or other injury.
• Cut Hazard
Beware of sharp edges. Use the polystyrene ends when
carrying the product. Failure to use caution could result in
minor injury or cuts.
• Always consult the countertop manufacturer for specific
instructions.
• Ensure the countertop is square and level and ensure no
structural members interfere with space requirements.
• Prepare the cut-out according to the instructions (see cut-
out dimensions).
• Make sure the wall coverings, countertop and cabinets
around the cooktop can withstand heat (up to 200 °F).

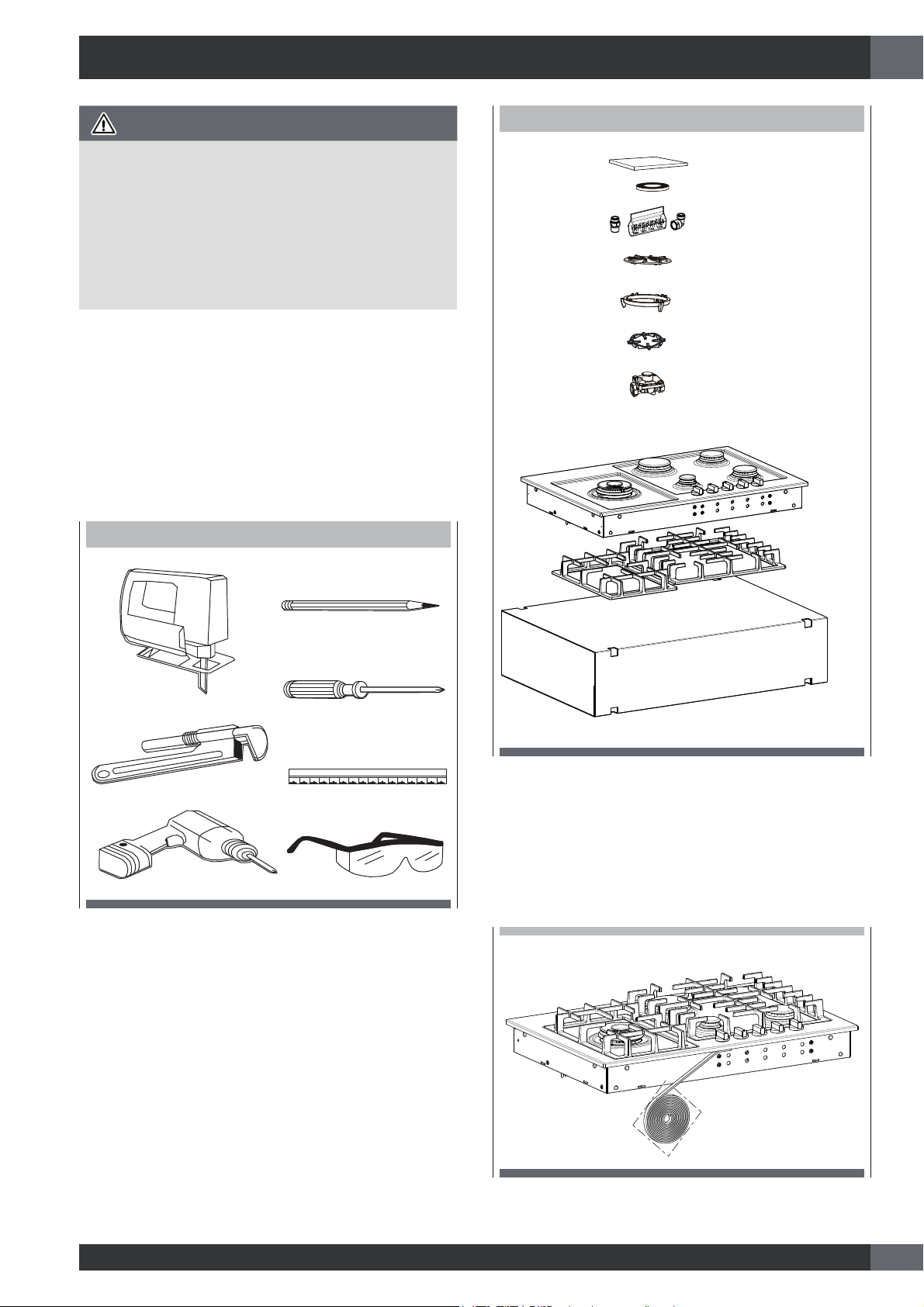

TOOLS YOU WILL NEED
Step 1
Remove packaging materials and literature package from
the cooktop before beginning installation.
Remove Installation Instructions from literature pack and
read them carefully before you begin.
PARTS
COOKTOP
GRID
CARDBOARD
MANUAL
GASKET
GAS CONVERSION KIT
GAS CONNECTION KIT
SIMMER PLATE (if present)
WOK RING (if present)
POT ADAPTER (if present)
PRESSURE
REGULATOR
Step 2
Before installing apply the foam tape.
A tape is provided to seal the cooktop edges to the
countertop. Apply tape near inner underside cooktop edge.
Use tape around the entire cooktop perimeter.
Cut off excess where tape butt ends.
3 - Cooktop Installation

EN
8
Step 3
Insert the cooktop centered into the cutout opening.
Make sure the front edge of the counter top is parallel to
the cooktop. Make final check that all required clearances
are met.
Step 4
Four clamp brackets are provided with your unit.
After cooktop has been installed into the countertop, install
the brackets on the burner box as shown in figure.
Install the clamp brackets on the front and back of the
burner box bottom (if the cabinet construction does not
provide clearance for installing brackets at the burner box
front back install the clamp brackets on the lateral position
of burner box).
step A place the clamping screws into brackets
step B attach brackets by using the attachment screws on the
selected location of burner box, tighten screws just enough
to hold brackets in place step C position brackets so that
they are with the clamp screw in contact with the counter
top bottom
step D tighten attachment screws securely.
step E check that the front edge of the cooktop is parallel to
the front edge of the countertop tighten the screw clamping
against the countertop.
DO NOT OVER TIGHTEN

EN
9
A QUALIFIED SERVICE MAN OR GAS APPLIANCE INSTALLER
MUST MAKE THE GAS SUPPLY CONNECTION.
Leak testing of the appliance shall be conducted by the
installer according to the instructions given.
WARNING
If the line pressure supplying the appliance pressure
regulator exceeds 14 inches W.C. (any gas), an external
regulator must be installed in the gas line ahead of the
appliance regulator to reduce the pressure to no more
than 14 inches W.C. Failure to do this can result in
malfunction and damage to the appliance.
Important Notes for Gas Connection
The appliance and its individual gas shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
1/2 psi (3.5 kPa).
The appliance must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
All supply piping, except as noted, should use common
National Pipe Thread (N.P.T.). For all pipe connections use
an approved pipe joint compound resistant to the action of
LP gas.
This appliance is designed for use with NG gas or LP gas.
The gas pressure regulator is supplied with this appliance.
It must be installed in the gas way ahead of the manifold
entrance. It is pre-set for use with natural gas. To use it with
different gas it must be converted, as described in the Gas
conversion paragraph.
If at any time the appliance is to be used with a different
type of gas, all the conversion adjustments must be made
by a qualified technician before attempting to operate the
cooktop on that gas.
The gas should be supplied to the appliances pressure
regulator, at line pressure between 6 and 14 inches of
water column for NG, and between 11 and 14 inches of
water column for LP.
GAS REQUIREMENTS
NATURAL GAS WC
Manifold Pressure 5" (12.5 mb)
Min Line Pressure 6" (15 mb)
Max Line Pressure 14" (34.9 mb), .5 psi (3.5 kPa)
LP GAS WC
Manifold Pressure 10” (25 mb)
Min Line Pressure 11” (27.4 mb)
Max Line Pressure 14” (34.9 mb), .5 psi (3.5 kPa)
IMPORTANT
• NEVER REUSE OLD CONNECTORS WHEN INSTALLING
THIS COOKTOP.
To reduce the likelihood of gas leaks, apply teflon tape
or a thread compound approved for use with LP or
Natural gases to all threaded connections.
Apply a non-corrosive leak detection fluid to all joints
and fittings in the gas connection between the supply
line shut-off valve and the cooktop inlet.
Check for leaks!
Bubbles appearing around fittings and connections
will indicate a leak. If a leak appears, turn off supply
line gas shut-off valve, tighten connections, turn on
the supply line gas shutoff valve, and retest for leaks.
Never test for gas leaks with an open flame.
• NEVER TIGHTEN TO MORE THAN 35 ft lbs OF TORQUE.
4 - Gas Requirement

EN
10
Gas Connection
• Thread the appliances pressure regulator with 1/2”
male end connection both supplied with this appliance.
• Make the gas connection to the inlet of the pressure
regulator with 1/2” male pipe threads.
• Join the pressure regulator to the entrance threads
of the Gas Manifold with gasket supplied with this
appliance. The regulator is marked with a directional
arrow indicating correct direction of gas flow. Ensure the
appliance regulator is installed with the arrow pointing
toward the gas manifold entrance and make sure the top
of the regulator is facing towards the cabinet front, easily
accessible through the cabinet doors.
• Connect a manual shut-off valve to the gas supply in an
accessible location for turning on or shutting off gas to
the appliance.
• Install a coupling between the regulator and the shutoff
valve to complete the connection.
• Assure all pipe joint connections are gas tight.
• Check alignment of valves after connecting the cooktop
to the gas supply to be sure the manifold pipe has not
been moved.
• A misalignment could cause the valve knob stem to rub
on the control panel, resulting in a gas leak at the valve.
If an oven is to be installed below this appliance connect gas
supply line as shown in figure consider the below cabinet
clearance.

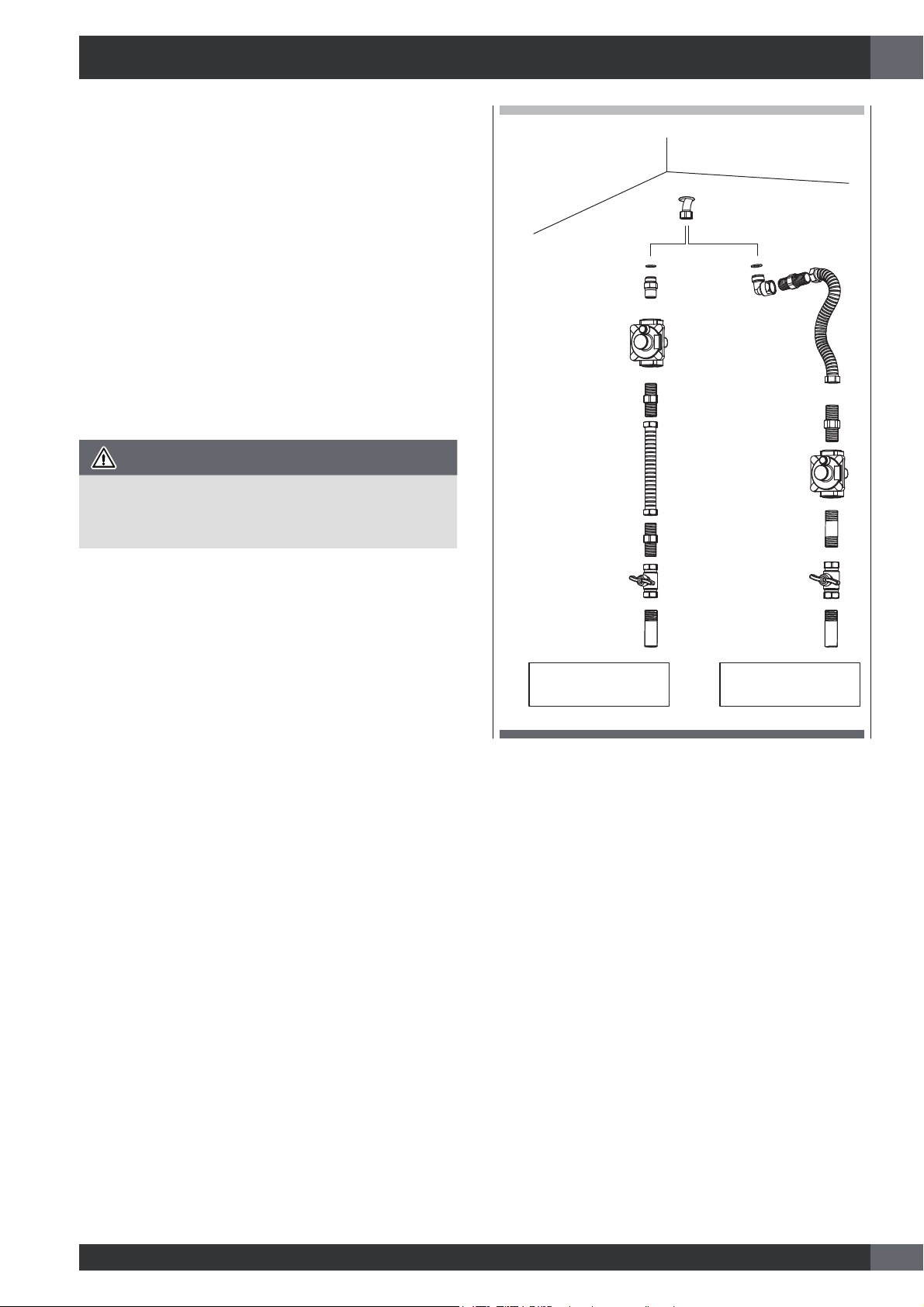

ILLUSTRATIVE GAS SUPPLY PIPING
(NO OTHER APPLIANCE BELOW
COOKTOP)
BURNER BOX
(REAR OF APPLIANCE)
GASKET
FLARE UNION
ADAPTOR
APPLIANCE
PRESSURE
REGULATOR
ALL PIPE JOINTS
1/2" N.P.T.
GAS
MANIFOLD
SHUTOFF
VALVES

EN
11
FOR ALTERNATIVE PIPING METHODS TO CONNECT THE
APPLIANCE TO THE GAS SUPPLY, A TRAINED SERVICE MAN
OR GAS APPLIANCE INSTALLER MUST MAKE THE GAS SUPPLY
CONNECTION.
Leak testing of the appliance shall be conducted by the Installer
according to the Instructions given.
Unless prohibited by local codes or ordinances, a new A.G.A.
- Certified, flexible metal appliance connector may be used to
connect this appliance to its gas supply.
The connector must have an internal diameter not less than
nominal 1/2” NPT pipe and be no more than 5 feet in length.
A 1/2” NPT x 1/2” flare union adapter is required at each
end of the flexible connector.
If a flexible connector is used assure that both the appliance
pressure regulator and manual shut-off valve are joined
solidly to other permanent hard piping (either gas supply or
the appliance manifold) so as to be physically stationary. See
figure.
CAUTION
Do not attempt to attach the flexible connector directly to an
external pipe thread.
Connection requires flare union adapters.
For Massachusetts Installations:
1. Shut-off valve must be a “T” handle gas cock.
2. Flexible gas connector must not be longer than 36 inch.
3. Not approved for installation in a bedroom or a bathroom
unless unit is direct vent.
MANIFOLD
ENTRANCE
GASKET GASKET
FLARE
UNION
ADAPTOR
FLARE UNION
ADAPTOR 1/2" NPT
PIPE NIPPLE
ELBOW
1/2" NPT
PIPE NIPPLE
1/2" NPT PIPE
(STATIONARY
SUPPLY PIPE)
1/2" NPT PIPE
(STATIONARY
SUPPLY PIPE)
NO APPLIANCE
MOUNTED BELOW
THIS COOKTOP
WALL OVEN MOUNTED
IN CABINETRY BELOW
THIS COOKTOP
GAS
SHUT-OFF
VALVE
GAS
SHUT-OFF
VALVE
FLEXIBLE
APPLIANCE
CONNECTOR
5 FT. MAX
(1.52 m) MAX
()
FLEXIBLE
APPLIANCE
CONNECTOR
5 FT. MAX
(1.52 m) MAX
()
FLARE
UNION
ADAPTOR
FLARE
UNION
ADAPTOR
FLARE
UNION
ADAPTOR
APPLIANCE
PRESSURE REGULATOR,
SUPPLIED (OBSERVE
DIRECTIONALITY
OF GAS FLOW)
APPLIANCE
PRESSURE
REGULATOR,
SUPPLIED (OBSERVE
DIRECTIONALITY
OF GAS FLOW)

EN
12
Pressure Testing
The appliance must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 PSIG (3.5 kPa).
This appliance, as well as its individual shut-off valve, must
be disconnected from the gas supply piping system during
any pressure testing of the system at test pressures in excess
of 1/2 PSIG (3.5 kPa).
When checking appliance regulator function, make certain
pressure of natural gas supply is between 6 and 14 inches
of water column or, if converted for LP gas, between 11 and
14 inches.
THE PRESSURE TESTING SHOULD BE PERFORMED BY
MEANS OF THE INJECTOR THREAD ZONE
Gas test inlet
Thread
Pressure Test Method

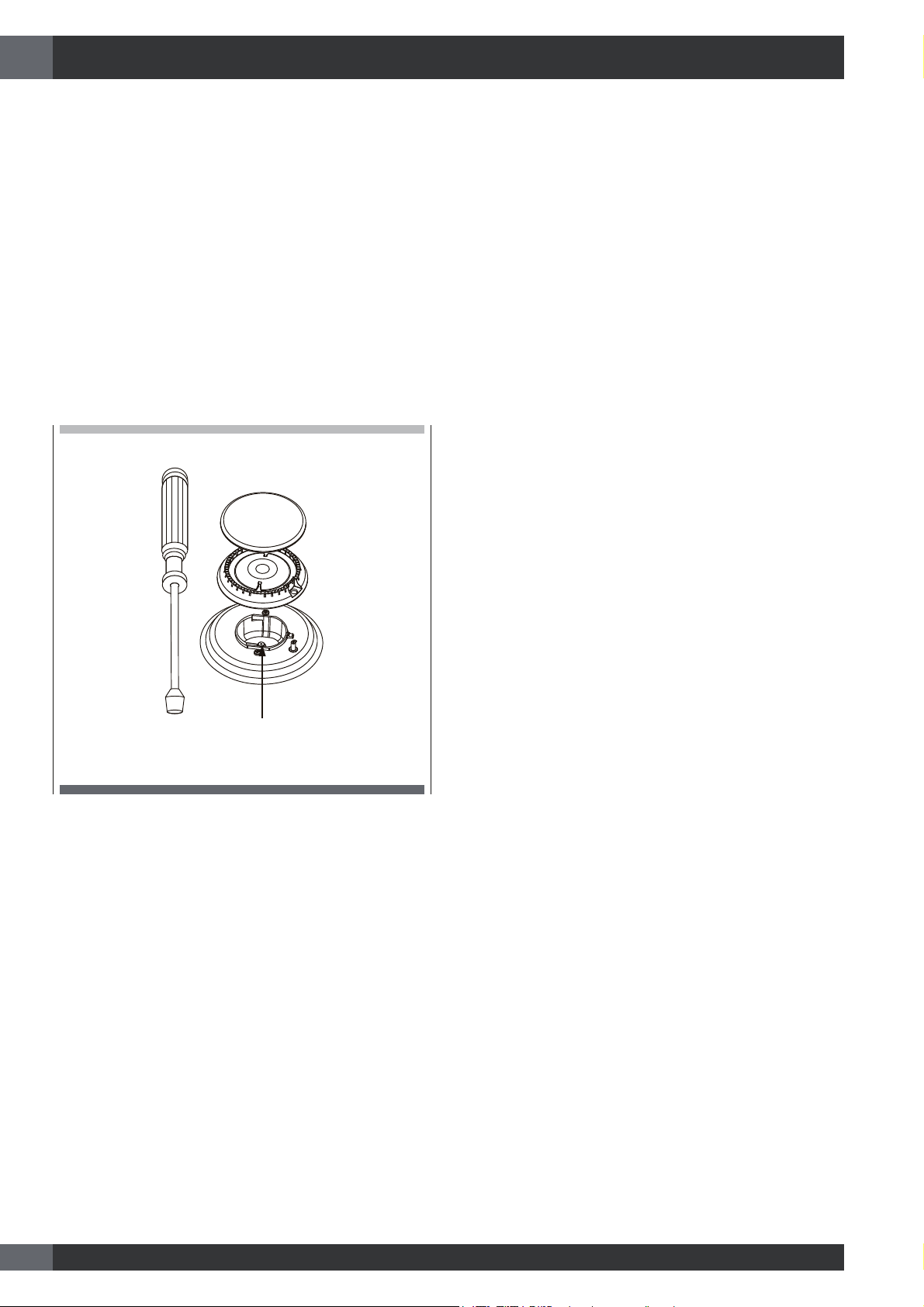

• Remove grate and burner cap
• Remove aluminum gas spreader
• Temporarily remove the injectors
• Connect the pressure Test instrument into injector holder
thread zone (M6x0,75)
• Check if the cooktop has the correct pressure
• Fix the injector removed for testing and replace the parts
in the right position.

EN
13

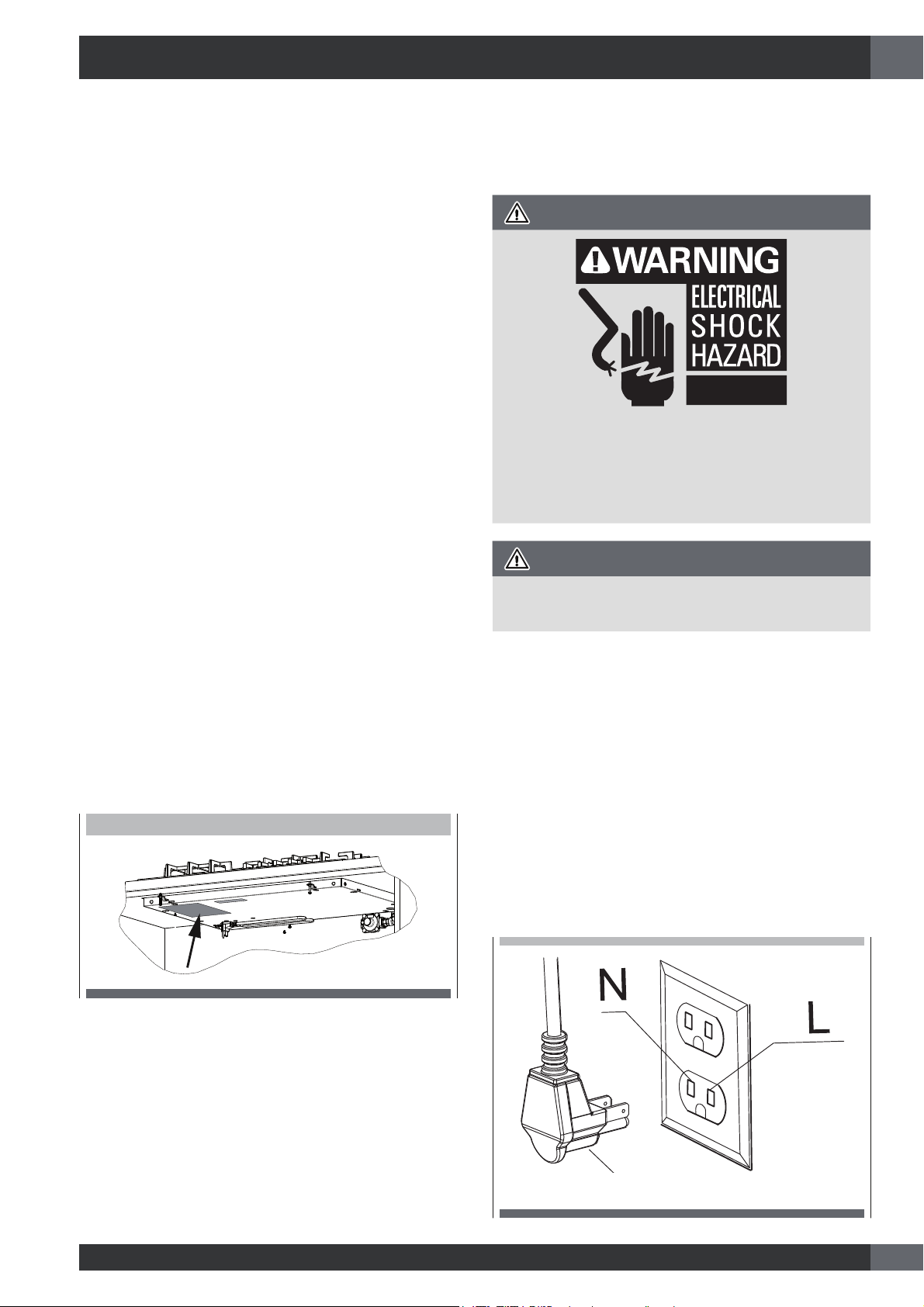

5 - Electrical Requirements
General Information
This appliance must be supplied with the proper voltage
and frequency and connected to an individual, properly
grounded branch circuit, protected by a circuit breaker or
fuse having amperage as noted on the rating plate. We
recommend you have the electrical wiring and hookup of
your cooktop connected by a qualified electrician.
After installation, have the electrician show you where your
main cooktop disconnect is located. Check with your local
utilities for electrical codes which apply in your area. Failure
to wire your cooktop according to governing codes could
result in a hazardous condition.
If there are no codes, your cooktop must be wired and fused
to meet the requirements of the National Electrical Code,
ANSI/NFPA No. 70 - Latest edition.
You can get a copy by writing:
National Fire Protection Association
Battery march Park
Quincy. MA 02269
In Canada your cooktop must be wired and fused to meet
the requirements of the Canadian Electrical Code.
Be sure the installation of this product in a mobile home
conforms with the Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280.
If this standard does not apply, you must follow the standard
for Manufactured Home Installations, ANSI A225.1 and
Manufactured Home Installations, Sites and Communities
and ANSI/NFPA 501A or with local codes.
You can get a copy of the Federal Standard by Writing:
Office of Mobile Home Standards HUD Building
451 7th Street, S.W.
Washington, D.C. 24010
LOCATION OF RATING PLATE
Electrical Connection
An adequate electrical supply and outlet must be used to
operate the electrical parts of your cooktop.
CAUTION
Electrical Grounding Instruction
Plug into a grounded 3 prong outlet. Do not remove ground
prong. Do not use an adapter. Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or
electrical shock.
IMPORTANT
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
The power cord of this appliance is equipped with a 3-
prong (grounding) plug which must be used with a properly
grounded 3-hole outlet with a standard 120 Volt, 60 cycle
AC household current. If you do not have a 3-hole grounded
outlet, have a qualified electrician change your old one.
A grounding adaptor will be needed to convert the old
one until the outlet can be replaced. This method is only
temporary, and a qualified electrician should test it to be
sure it meets requirements.
Electrical Requirements
Do not under any circumstances cut or remove grounding
prong from the cooktop cord.
GROUNDING PRONG

EN
14

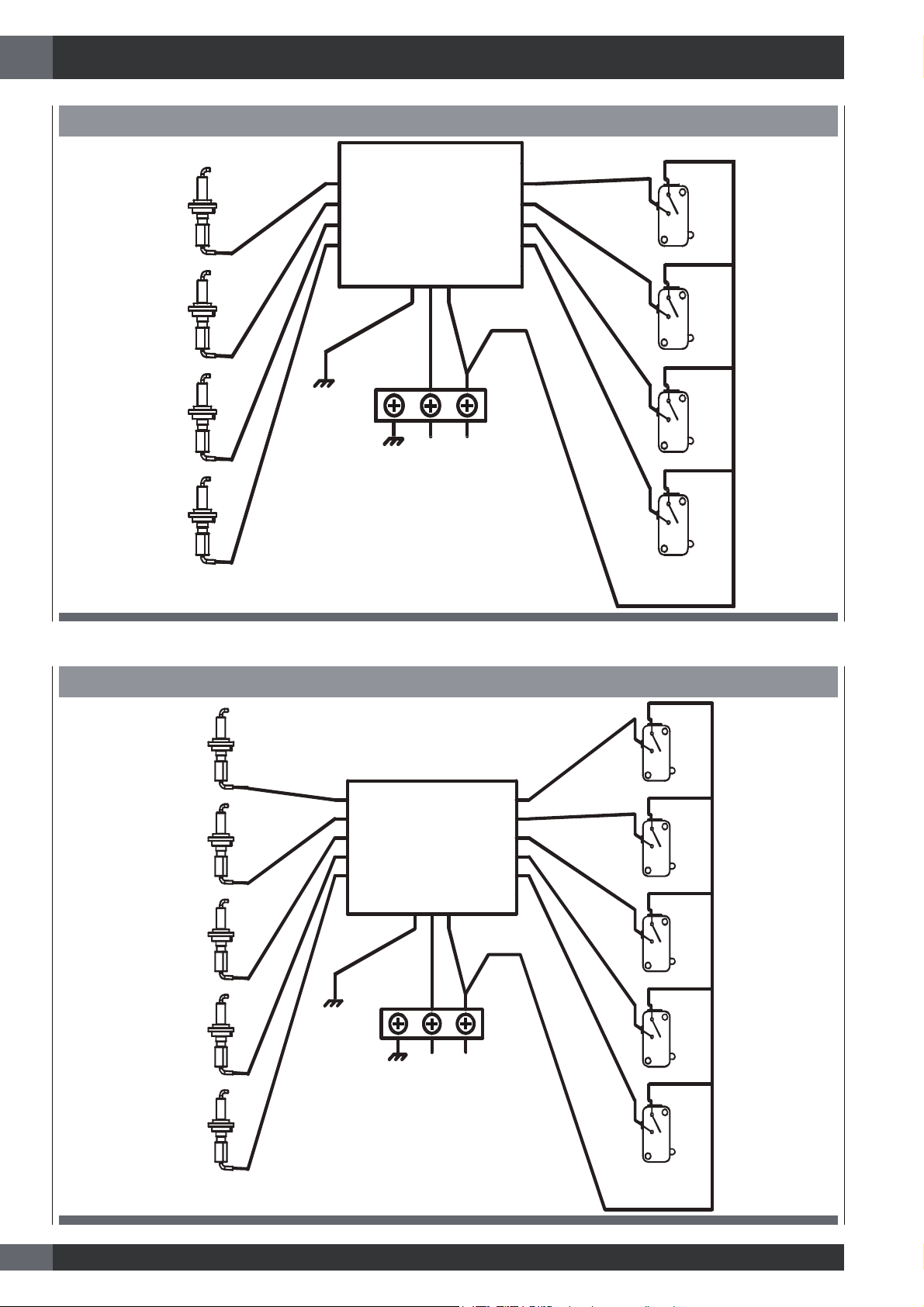

WIRING DIAGRAM (4 ZONES)
2
3
4
5
2
3
4
5
TERMINAL
BLOCK
GNL
GNL
RE-IGNITER
SYSTEM
2
3
4
5
2
3
4
5
IN
IN
IN
IN
OUT
OUT
OUT
OUT
WIRING DIAGRAM (5 ZONES)
1
2
3
4
5
1
2
3
4
5
TERMINAL
BLOCK
GNL
GNL
RE-IGNITER
SYSTEM
1
2
3
4
5
1
2
3
4
5
IN
IN
IN
IN
IN
OUT
OUT
OUT
OUT
OUT

EN
15
6 - Conversion for LP or NG Gas
Converting Appliance for Use with LP Gas
WARNING
Conversion is to be performed by a AUTHORIZED
SERVICER (or other qualified agency) in accordance
with the manufacturer’s instructions and all codes and
requirements of the authority having jurisdiction. Failure to
follow instructions could result in serious injury or property
damage.
The qualified agency performing this work assumes
responsibility for this conversion.
WARNING
Before proceeding with the conversion, shut off the gas
supply to the appliance prior to disconnecting the electrical
power
If this appliance should be converted for use with gas
LP (propane or butane), each of the following modification
must be performed:
Gas conversion label (aluminium) to be placed on the back
of the appliance, near the data plate, after conversion has
been carried out;
Replace injector on (one ring flame burners)
1. Remove the grates and burner cups.
2. Remove aluminum gas spreader.
3. Loosen injector by turning 9-32” nut driver counter
clockwise.
4. Install the injectors supplied with this appliances in the
appropriate burner. The injectors have small number
stamped on the side, this number codes the orifice
diameter and its correct burner location (see figure on
page 17).
5. Turn clockwise to tighten (tighten to a torque of 15 to 20
inch-lbs).
6. Replace all parts following the reverse order.
7. Save the orifices removed from the appliance for future
use.
Replace injectors on (two rings flame burner)
1. Remove the grates and burner cups.
2. Remove aluminium gas spreader.
3. Remove the three screws of simmer gas spreader (1).
4. Remove the two screws of injector cover (2).
5. Loosen injector (A) by turning 9-32” nut driver counter
clockwise.
6. Loosen injector (B) by turning 9-32” box wrench counter
clockwise.
7. Install the injectors supplied with this appliances in the
appropriate burner. The injectors have small number
stamped on the side, this number codes the orifice
diameter and its correct burner location (see figure of
the paragraph “Injectors position”).
8. Turn clockwise to tighten (tighten to a torque of 15 to 20
inch-lbs).
9. Replace all parts following the reverse order.
10. Save the injectors removed from the appliances for
future use.
After injectors replacement adjust the burner flame (see Low
Flame Adjustment paragraph).
Check the appearance of each burner’s flame at HILO
settings, if the flame appear too large or too small make
sure that all steps were completed correctly.
Convert the pressure regulator on LP position following the
illustration.

EN
16
Converting Appliances for Use with NG Gas
If this appliance should be converted for use with gas NG
(natural gas), each of the following modifications must be
performed.
1. Replace all injectors following the step described on
page 15, observe the number stamped on the side,
this number codes the orifice diameter and its correct
burner location (following the illustration of injectors
position).
2. Convert the pressure regulator on LP position (following
the illustration of pressure regulator conversion).
3. Adjust the burner flame (see Low Flame Adjustment
paragraph).
Check the appearance of each burner’s flame at HILO
settings, if the flame appears too large or too small make
sure that all steps were completed correctly.
Pressure regulator conversion
The appliances is designed for use with NG gas or LP gas.
The gas pressure regulator is supplied. It must be installed
in the gas way ahead of manifold entrance. It is pre-set for
use with the gas supplied with the appliances. For use with
different gas must be converted.
For the pressure regulator conversion following the below
instructions:
• Disconnect all electrical power, at the main circuit breaker
or fuse box.
• Shut off the gas supply to the cooktop by closing the
manual shut-off valve.
• Adjust the pressure regulator, by following the instruction
(see figure)
1. Unscrew the regulator cap
2. Unscrew the plastic conversion plug from the cap turn
over and screw back (wide section away from cap for LP
and against cap for NG) see figures below.
3. Replace the cap regulator.

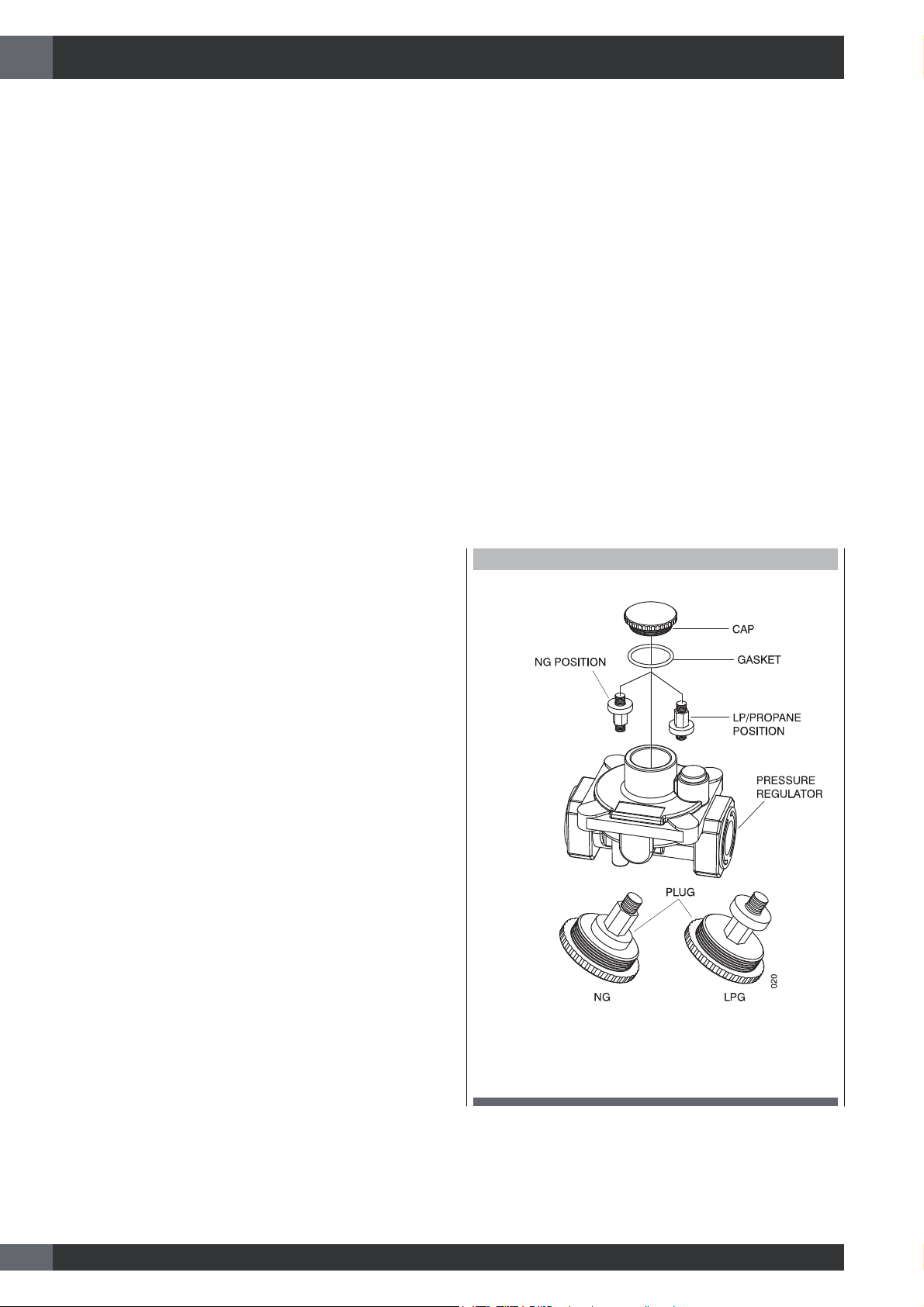

PRESSURE REGULATOR CONVERSION
Before replace the regulator cap.
Check the position of plug.
Suitable for the gas converted.
