FULGOR RGC90 User manual

RANGEHOOD - 90CM
MODEL RGC90

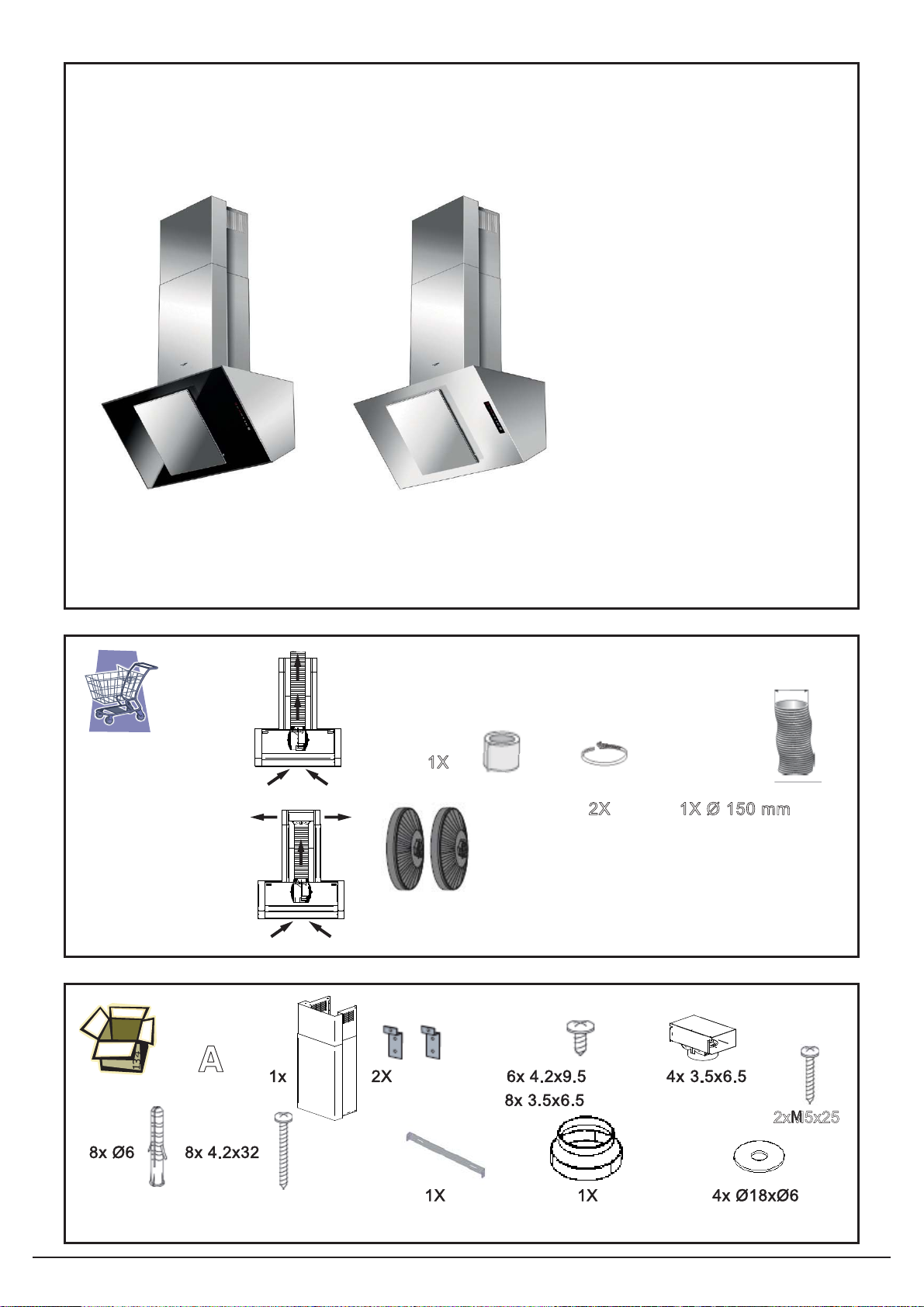

2

1X
2X 1XØ 150 mm
A
2xM5x25
Wall cooker hood
3

min. 500 mm
Ø 150 mm. Ø 150 mm.
Ø 150 mm.
4

190 mm
mm
190 mm
340
60 cm
90 cm mm 340 mm
Ø mm (A)
823
32 mm
6
98 98
A1
A3
A5
A7
A2
A4
A6
A8
5

A9
A11
A13 A14
A10
Ø 125
A12
ONLY IF WALL HOLE Ø 125

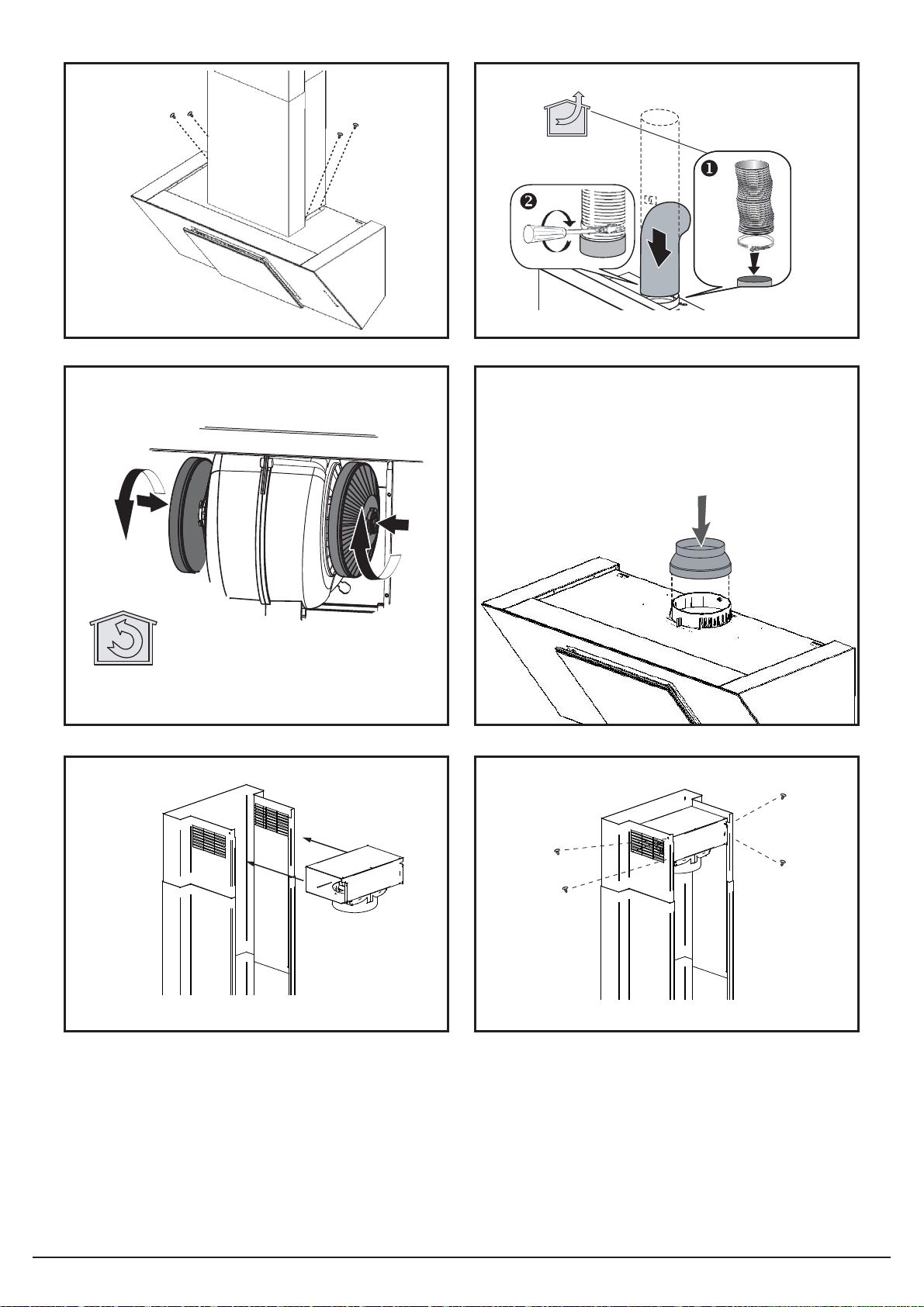

6

GB
THIS PRODUCT IS DESIGNED FOR
DOMESTIC USE.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY FOR DAMAGES TO THINGS
OR PEOPLE DERIVING FROM INCORRECT
INSTALLATION OR IMPROPER, ERRONEOUS
OR UNSUITABLE USE.
THE APPLIANCE MUST NOT BE USED
BY PEOPLE (INCLUDING CHILDREN)
WITH PHYSICAL, SENSORIAL OR
MENTAL IMPAIRMENTS, OR BY PEOPLE
WITHOUT THE NECESSARY EXPERIENCE
OR KNOWLEDGE, UNLESS THEY ARE
SUPERVISED OR INSTRUCTED IN THE
USE OF THE APPLIANCE BY A PERSON
RESPONSIBLE FOR THEIR SAFETY.
CHILDREN MUST BE SUPERVISED TO
ENSURE THAT THEY DO NOT PLAY WITH THE
APPLIANCE.
Dear Customer,
we would like to thank you and congratulate
you on your choice.
This new product has been carefully designed
and built using top quality materials, and
meticulously tested to ensure that it meets all
your culinary requirements.
Please read and observe these simple
instructions, which will enable you to achieve
excellent results from the very ÀUVW time you
use it. This state-of-the-art appliance comes
to you with our very best wishes.
THE MANUFACTURER
7

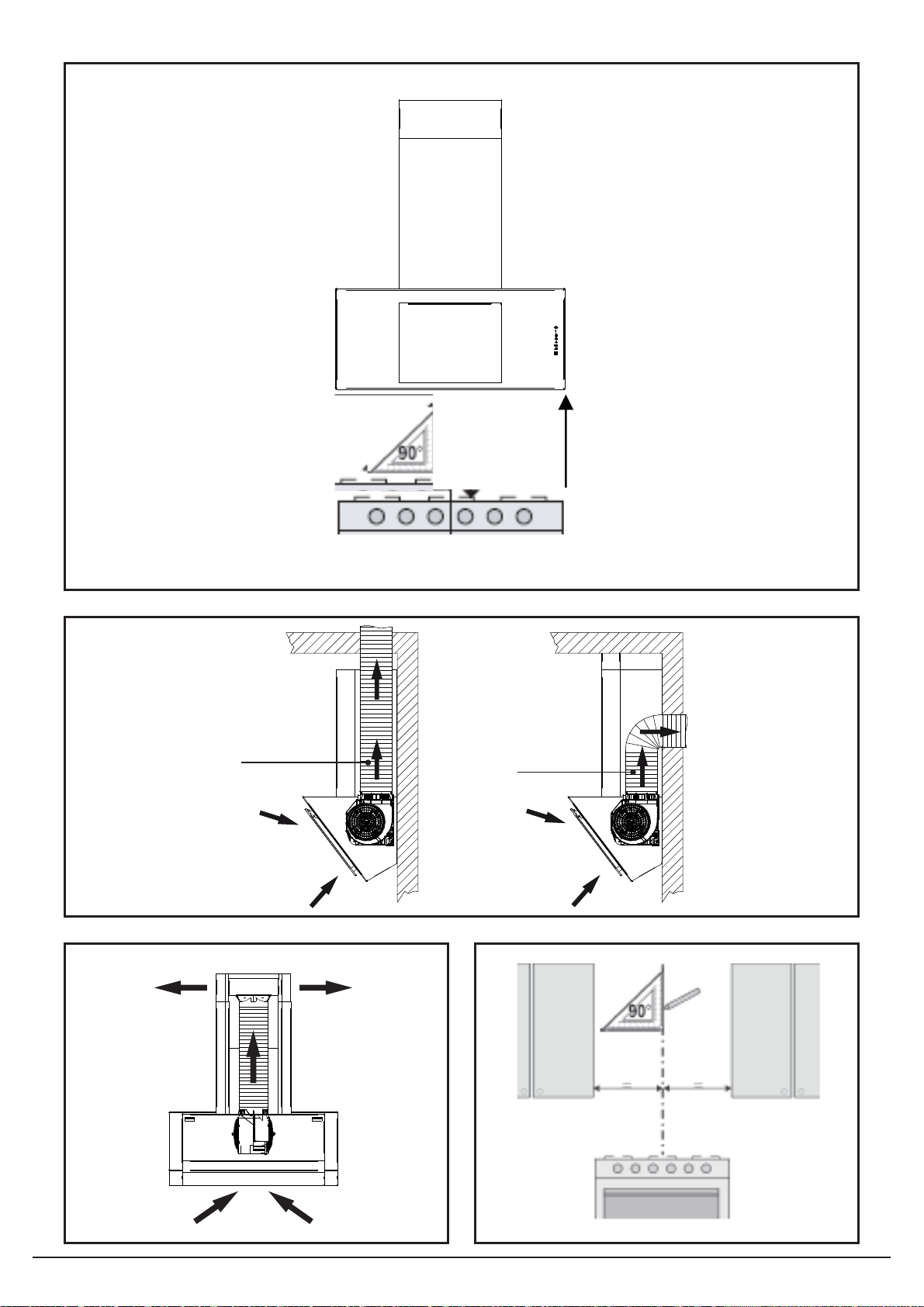

The hood may be installed in the filtering or in the
ducting version.
Exhausting version (Fig.1) the hood aspirates
the kitchen air saturated with fumes and odours,
purifies it through the grease filters and expels
it through an outlet pipe. With his version the
charcoal filters are not required.
Filtering version (Fig.1A) the hood aspirates
the kitchen air saturated with fumes and odours,
purifies it through the grease filters and the
charcoal filters and returns clean air into the
room.
The charcoal filters are not supplied.
Decide from beginning on the type of
installation.
For greater efficiency, we recommend to
install the hood in exhausting version.
Use gloves during installation and
maintenance operations.
In case of exhausting version it is important :
- topreparetheholeandtheduct of150mm.diameter
- to use a duct with the minimal indispensable length
- to use a duct with few curves as possible (max
curve angle 90°)
- to avoid to use flat ducts or with different sections
- to use a duct with the smoother surface inside and
of a certified material
- don’t connect the hood to fumes exhaust ducts
(fireplaces, boilers, stoves,…)
- the air can not be evacuated into a wall hole, if this
hole is not dedicated to this purpose
- to equip the room of air intakes in order to not create
air depression (it must not exceed the 0,04 mbar)

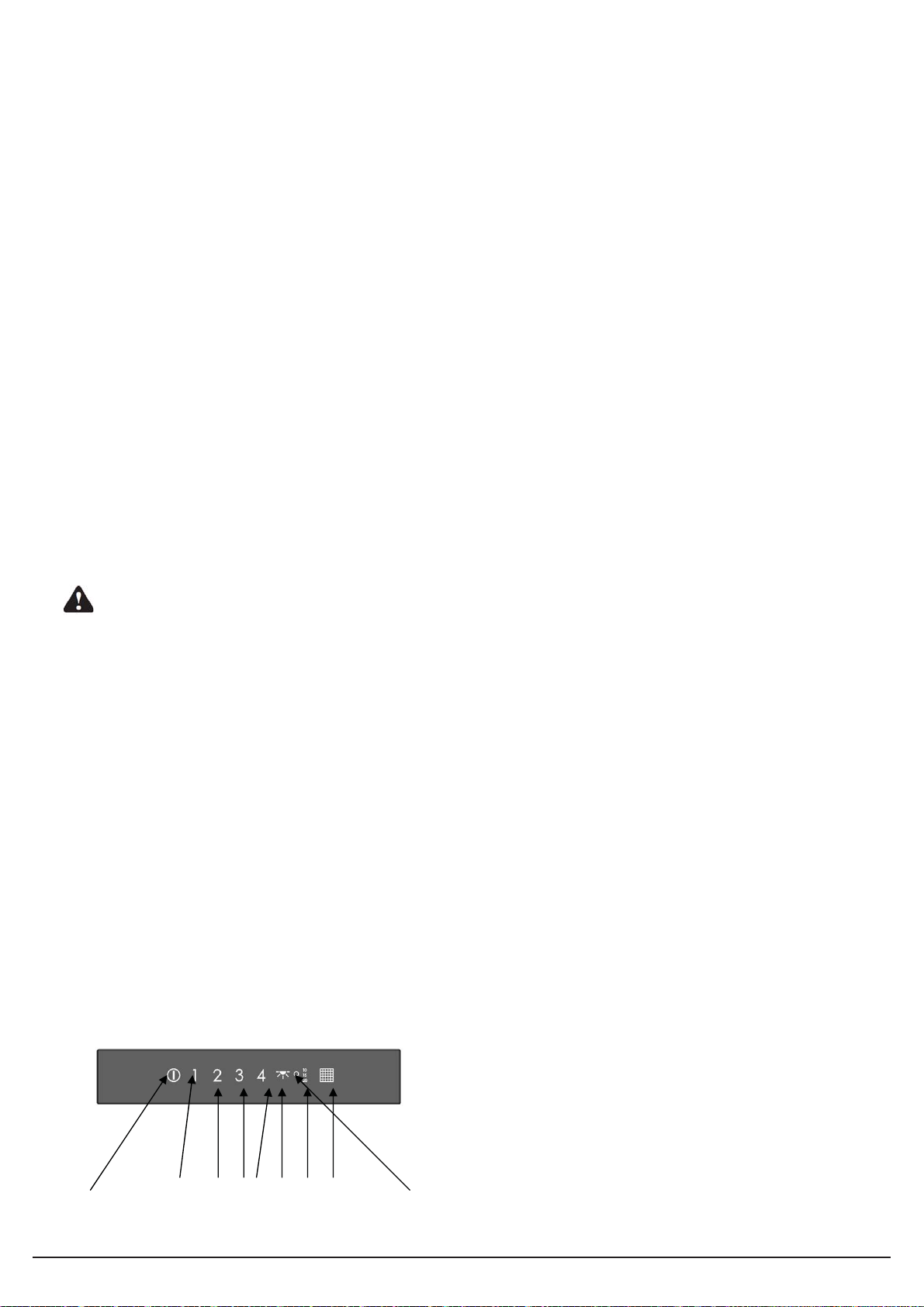

CONTROLS
A) ON/ OFF motor (it switches the hood on
the second speed)
B) 1st motor speed
C) 2nd motor speed
D) 3rd motor speed
E) 4th motor speed
F) ON/OFF lamps: if pressed long, it permits
to select 3 different levels. Last selected
level will remain in memory when the
cooker hood restarts. If the product is
equipped with led lamps, it is not possible
to select the different levels; therefore the
function is only ON/ OFF.
G) TIMER: it permits to select 3 several
ranges(10’, 15’, 20’ minutes)
H) *Filter alarm
I) Remote control signal receiver
*Filter alarm:
the first operation once you have connected the
cooker hood to the net, is to set it into exhausting
or recycling mode. Proceed as follows:
once the cooker is connected all the keys will
light for some seconds: press the key on/off
for around 8 seconds until that the key H is not
lighted. Press the key B if you want that the
cooker hood works in exhausting mode (on this
way the charcoal filters counter is not working
because not considered); the red key H is blinking
and you can confirm pressing it.
To set the coke hood into recycling mode (grease
filters and charcoal filters counter) you must press
the key C after the 8 seconds and the key H will
be lighted red fix; pressing on it you can confirm.
After 30 hours working, the key H will light fix:
this means that it is time to clean the grease
filters.After 140 hours working the key H will blink
red: this means that the grease filters must be
cleaned and the charcoal filters replaced. To rest,
press the key H longer for second 7-8.
Note well: it is not possible to reset partially
the counter times until the system doesn’t show
one of the alarms. This means that intermediate
resets are not possible.
8
A B C D E F G H I

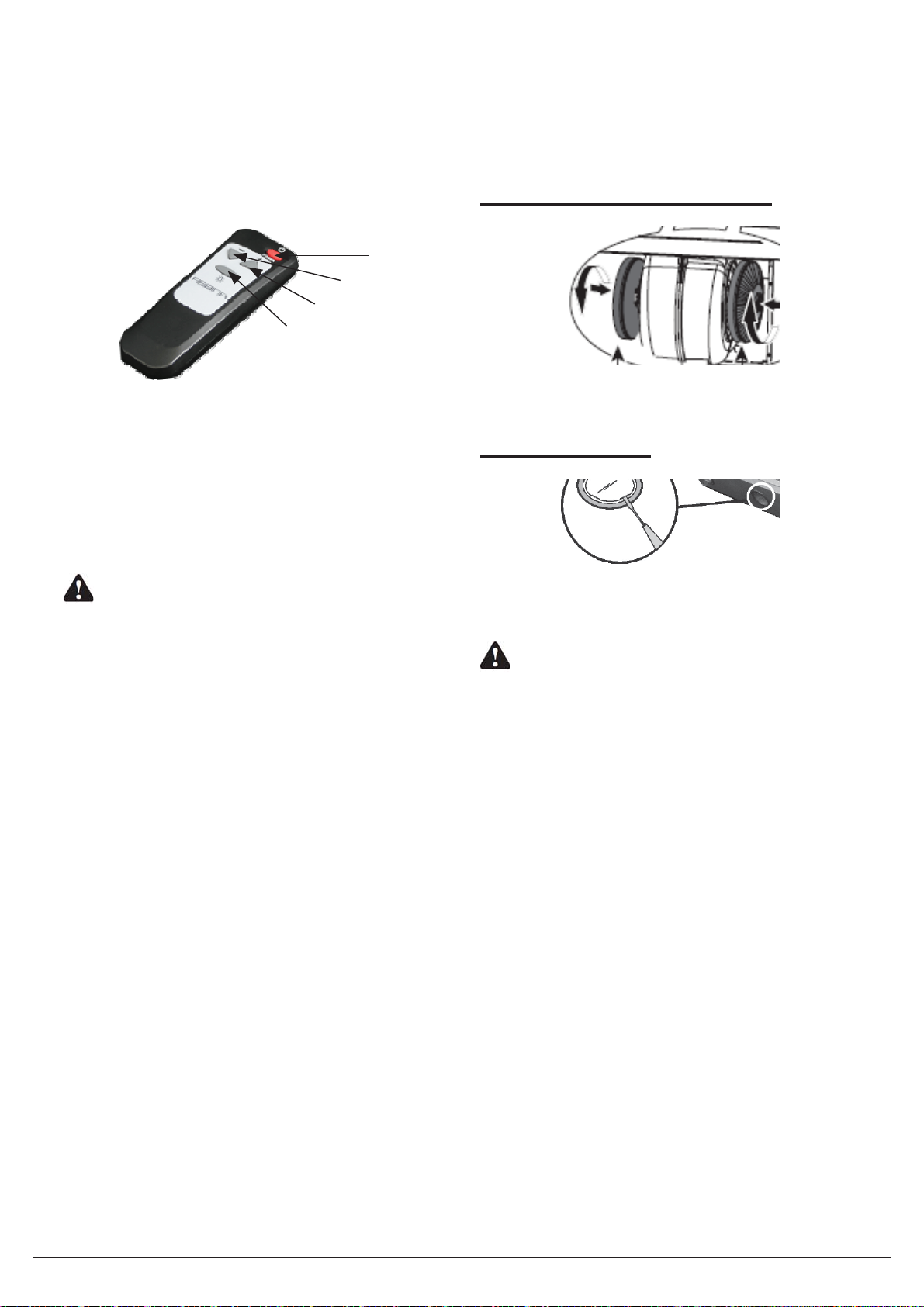

REMOTE CONTROL FUNCTIONS (if available)
A
B
C
D
A) ON/OFF motor (it switches the hood on the
second speed)
B) It decreases the motor’s speed
C) It increases the motor’s speed
D) ON/OFF lamps (it is possible to settle the
lamps intensity only manually on the hood)
MAINTENANCE
Before cleaning and maintenance
operations, would you please cut the power.
Cooker hood cleaning:
the cooker hood must be cleaned at least each 2
months in order to prevent the fire’s risk; to clean
the hood externally, a soft cloth moistened with
warm water and neutral soap must be used for
the painted cooker hoods and specific cleaning
producs for the stainless steel cooker hoods.
To clean the cooker hood internally, use a cloth
with denatured alcohol.
Do not use abrasive or corrosive products!
Grease filters cleaning(for exhausting and
filtering executions) shtnom2hcaetsaeltasretlifesaergehtnaelC
in order to prevent the fire’s risk and anyway
according the use of the appliance. s’retlifehtnohsupsretlifesaergehtev
omeroT
handle.
Wash them hand or in the dishwasher by using a
neutral soap. Please take also into consideration
that the dishwasher wash can altherate the
grease filter’s colour but not their feature.
Charcoal filters replacement (in case of
filtering execution):
The charcoal filters must be replaced at least
each 6 months in order to prevent fire’s risk and
anyway according the use of the appliance.
How to replace the charcoal filters:
Insert the charcoal filters in the special side slot
and rotate them 90° (as shown in the picture)
Lamps replacement:
Remove the lamp glass gently with a screwdriver.
Replace with a lamp of the same type. Do not
touch the new lamp with bare hand.
Don’t touch the lamps if they are still hot!
MALFUNCTION
Before to contact the Technical Service, please
verify these simple cases:
Why the cooker hood is not working?
- is there power cut?
- Is the cooker hood switched off?
- Is the plug disconnected or damaged?
Why the cooker hood is inefficient?
- is the cooker hood working at the suitable speed
to remove the quantity of the fumes and vapours?
- Is the kitchen room enough ventilated to permit
an adeguate air intake?
- Must the grease filters be cleaned?
- Must the charcoal filters be replaced?(in case of
filtering cooker hood)
- After 10 minutes continuous working at the 4th
speed, the cooker hood goes automatically to
the 2nd speed (normal working speed)
Why the cooker hood switched off while is working?
- Is there a sudden power cut?
- Is the plug disconnected or damaged?
- After 5 hours continuous working the cooker
hood turns off automatically (energy saving).
