Full Boar FBAHR-020 User manual

KNOW YOUR PRODUCT
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0622
INSTRUCTION MANUAL
20M RETRACTABLE
AIR HOSE REEL
• AUTO LOCK & REWIND AT ANY LENGTH
• RATED PRESSURE 145PSI / BURST
PRESSURE 783PSI
• CARRY OR WALL MOUNTING

2
SPECIFICATIONS - MODEL NO. FBAHR-020
KNOW YOUR PRODUCT
Rated pressure: 10 bar (145psi)
Burst pressure: 54 bar (783psi)
Hose working temp.: –5°C ˜45°C
Air hose length: 20m
Fitting: 1/4” BSP Male
Inlet hose length: 2m
Hose diameter: I/D 9.5mm, O/D 15mm
Hose material: PVC & Rubber hybrid
Gross Weight : 8.2kg

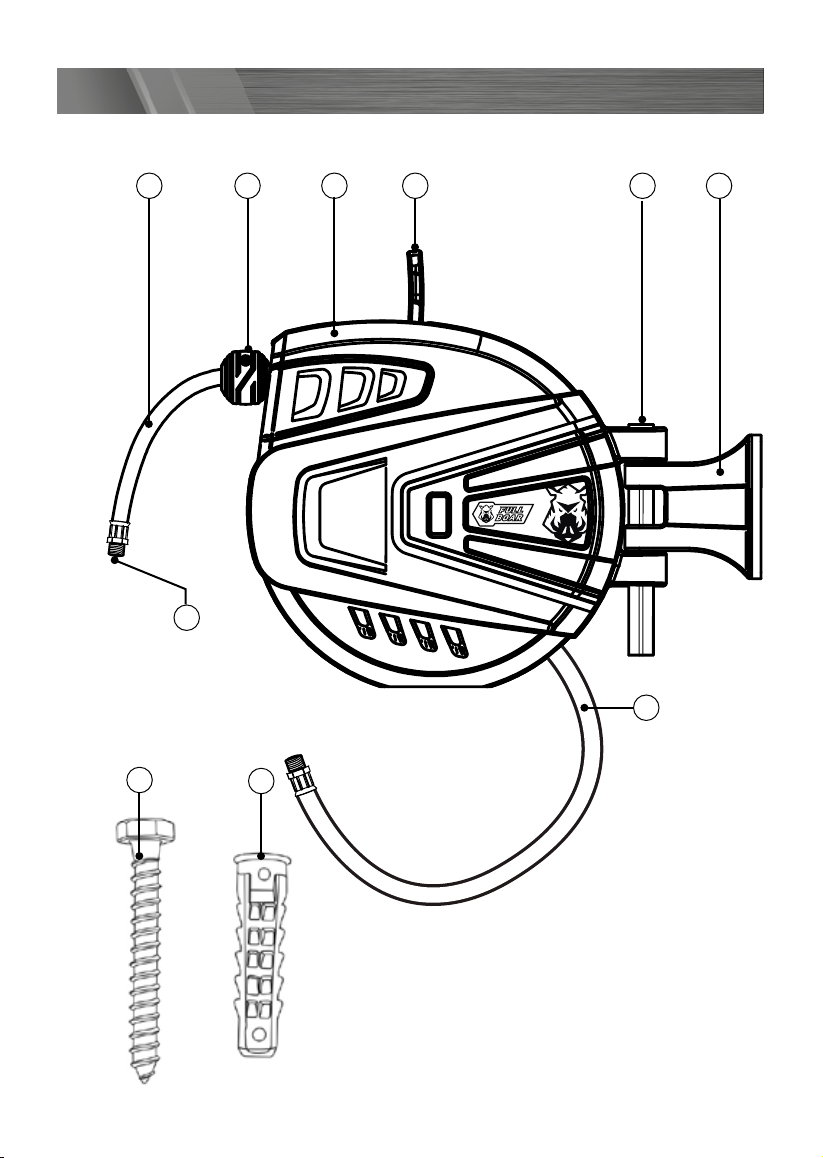

1. Air hose
2. Hose stopper
3. Hose reel housing
4. Carry handle
5. Pivot tube
6. Wall mounting bracket
7. Inlet hose
8. 1/4” BSP Male brass fitting
9. Coach screw x 4
10. Wall plugs x 4

3
KNOW YOUR PRODUCT (cont.)
1 2 3 4 6
10
8
5
9
7

4
TABLE OF CONTENTS
SPECIFICATIONS...................................................... Page 02
KNOW YOUR PRODUCT.......................................... Page 02
INTRODUCTION......................................................... Page 05
WARNINGS.................................................................. Page 05
INSTALLATION........................................................... Page 06
OPERATION................................................................. Page 07
MAINTENANCE.......................................................... Page 08
DESCRIPTION OF SYMBOLS................................ Page 09
CONTENTS.................................................................. Page 11
WARRANTY.................................................................. Page 12

5
Congratulations on purchasing a Full Boar 20m
Retractable Air Hose Reel.
Your Full Boar 20m Retractable Air Hose Reel extends
the reach of your air compressor and is a great addition
to any garage or workshop. The hose is a durable PVC &
rubber hybrid with 1/4” BSP brass threads for strength and
reliability.
RETRACTABLE AIR HOSE REEL WARNINGS
INTRODUCTION
Young children should be supervised to ensure that they do not play with
the appliance.
WARNING! This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
•After use, switch off the compressed air and empty the hose.
•The equipment must only be operated in an ambient temperature of 5 to 40°C.
The hose must not be exposed to direct sunlight, as this can result in damage to
the hose over time.
•Do not expose the equipment to rain. Never use the equipment in damp or wet
locations.
•Disconnect the hose from the compressor after use.
•Protect the hose from heat, oil and sharp edges.
•Keep the air hose retracted and wound up when not in use.
•Do not release air hose when it is retracting. The hose may whip about and cause
injury.
•Ensure hose is locked before putting hose or connected tool down.
•Secure hose reel to the wall according to instructions in the manual before use.
•Do not attempt to open the housing assembly.
•Always use the carry handle when installing or transporting the hose reel.
•Never use the hose reel for anything other than its intended purpose.
WARNING! Refer to instruction manuals of all independent tools/
accessories connected to the air hose and adhere to all safety
warnings before use.

6
INSTALLATION
Mounting to a wall
Use the supplied coach screws (9) to mount the air hose reel to the wall. If
mounting to concrete, brick or masonry walls, use the supplied wall plugs (10)
as well.
There are many alternative positions in which the unit can be placed. The
key point is subject to what is convenient for the user. The most appropriate
position is to mount it on a wall horizontally near to the air source.
The pivot tube (5) on the air hose reel
connects the reel and wall mounting
bracket (6) (fig. 1), allowing the reel to swivel
180°. The length of air hose ranges from
0-20m.
1. Select a suitable position to mount your
air hose reel, around 800mm from the wall
mounting bracket (6) to the floor (fig. 2).
2. Place the wall mounting bracket (6)
against the wall and mark the location of
the 4 holes to be drilled. For best results,
use a spirit level (not included), align the
hole marks horizontally. If mounting to
concrete, brick or masonry walls, drill the
holes with a (12mm) masonry drill bit (not
included) and insert the wall plugs (10).
Screw the wall mounting bracket (6) to
the wall with the coach screws (9) (fig. 3).
3. Align the holes on the back of the hose
reel housing (3) with the holes in the wall
mounting bracket (6) and insert the pivot
tube (5) to mount the air hose reel on the wall mounting bracket (6).
4. Connect the inlet hose (7) to the air source. Apply thread sealing tape (not
included) to all air fittings.
Pivot Tube
Wall Mounting
Bracket
Fig. 1
800mm
Wall
Floor
Fig. 2
Wall Mounting
Bracket
Coach Screw
Wall Plug
Fig. 3

7
OPERATION
Using the Air Hose Reel
Read the next section carefully to understand how the automatic lock
functions.
Note: The automatic lock will engage at any time while the ratchet is clicking,
around every 300mm.
1. Slowly and firmly pull out the air hose (1) to the required length. A “clicking”
noise will be heard as you do so.
2. To lock the air hose (1) in position, allow the air hose (1) to retract slowly and
gently release the tension on the air hose (1).
3. To retract, simply pull the air hose (1) until the “clicking” noise stops,
approximately 300mm, and then allow the hose to slowly retract. Give a
short pull to lock again. To fully retract, guide the air hose (1) retract until the
hose stopper (2) reaches the hose reel housing (3).
Note: If the air hose (1) does not retract properly, extend the air hose fully and
let it slowly retract.
WARNING! To avoid injury and damage, always firmly hold the air hose
(1) while it is retracting.

8
MAINTENANCE
WARNING! Before cleaning your retractable air hose reel or carrying
out any maintenance procedure, disconnect any air tools, accessories
and air compressors from the hoses.
Cleaning
•Keep the air hoses and hose reel housing (3) free of dust and dirt. Wipe it
down with a clean cloth or blow it with compressed air at low pressure.
•Always keep the air hose (1) clean. Clean it with a damp cloth before
retracting it back into the hose reel housing (3).
•Clean the hose reel housing (3) regularly with a damp cloth. Do not use
cleaning agents or solvents; these may be aggressive to the plastic parts.
Ensure that no water can get into the interior of the hose reel housing.
Storage
•Disconnect any air tools, accessories and air compressors. Clean the hose
and housing, retract it into the reel and make sure it is not accessible to
unauthorised persons.
Note: The retractable air hose reel warranty does not cover components that
have been subjected to operator abuse or negligence. To receive full value
from the warranty, the operator must maintain the retractable air hose reel as
instructed in this manual.
TB Imports will not be responsible for any damage or injuries caused by
the repair of the retractable air hose reel by an unauthorised person or by
mishandling of the retractable air hose reel.

9
DESCRIPTION OF SYMBOLS
Wear eye protection
Wear hearing protection
Do not expose to rain or water
BSP British Standard Pipe psi
m
Pounds per square inch
°C Degrees Celsius Metres
Read instruction manual before use to reduce the risk of injury
Warning
mm Millimetre
bar Pressure rating
ØDiameter PVC Polyvinyl chloride

10
Power tools and machines that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT

11
CONTENTS
1 x 20m Retractable air hose reel
1 x Pivot tube
1 x Wall mounting bracket
4 x Coach screws
4 x Wall plugs
1 x Instruction manual
Note: The manufacturer’s liability shall be deemed void if the machine is
modified in any way and the manufacturer shall therefore accept no liability for
any damages arising as a result of modifications.
Distributed by:
TB Imports
AUSTRALIA (Head Office)
25 Fox Drive, Dandenong South, Victoria, Australia, 3175
Telephone: [phone] (AUS), 0800 647 840 (NZ)

12
WARRANTY EXCLUSIONS
The following actions will result in the warranty being void.
If the tool has been operated on a supply voltage other than that specified on the tool.•
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents•
or alterations.
Failure to perform maintenance as set out within the instruction manual.•
If the tool is disassembled or tampered with in any way.
The warranty excludes damage resulting from product misuse or product neglect.
•
•
This warranty is given by TB Imports.
ABN: 17 050 731 756
Ph. 1800 951 371 (AUS)
0800 647 840 (NZ)
Australia/New Zealand (Head Office)
25 Fox Drive, Dandenong South, Victoria, Australia 3175
FB3
WARRANTY
