Fuller Brush FB-SM User manual

Owner’s Manual
For The Fuller Brush
Speedy Maid Vacuum
Thank you for purchasing this
Fuller Brush Upright Vacuum.
To ensure the best results, please read this
manual rst and keep it for future reference.
Model
FB-SM

Important Safety Instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Polarization Instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Parts Identification� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Replacement Bags and Belts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
How to Assemble the Vacuum � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Vacuum Features � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
How to Change the Vacuum Bag � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
How to Remove/Install the Bottom Plate � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
How to Change the Belt � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
How to Replace the Squeegee � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
How to Reset the Circuit Breaker� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Troubleshooting Guide � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
For Best Performance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
The model and serial numbers of this product may be found on the back side of the unit� You should register your
vacuum online at www�FullerBrushVacuums�com as soon as possible for your protection� Also, note the model and serial
numbers of your unit in the spaces provided below, and retain this book as a permanent record of your purchase�
Model Number _____________________________________________________________________________________
Serial Number ______________________________________________________________________________________
Date Purchased _____________________________________________________________________________________
Your Fuller Brush vacuum cleaner is a product of high-quality materials and superior workmanship� We urge you to
read these operating instructions carefully before you use this vacuum cleaner in order to obtain the full performance and
satisfaction it can offer you�
Before you plug in your Fuller Brush vacuum cleaner, make sure the voltage indicated on the rating plate located on the
back of the vacuum cleaner is the same as your local supply�
1
Index
Customer’s Record
Save These Instructions

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
When using an electrical appliance, basic precautions should always be followed, including the following:
SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of fire, electric shock or injury:
1� Do not leave appliance unattended when plugged in� Unplug from outlet when not in use and before servicing�
2� WARNING: ELECTRIC SHOCK COULD OCCUR IF USED OUTDOORS OR ON WET SURFACES�
3� Do not allow to be used as a toy� Close attention is necessary when used by or near children�
4� Use only as described in this manual�
5� Do not use with damaged cord or plug� If appliance is not working as it should, has been dropped,
damaged, left outdoors or dropped into water, return it to a service center�
6� Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners�
Do not run appliance over cord� Keep cord away from heated surfaces�
7� Do not unplug by pulling on cord� To unplug, grasp the plug, not the cord�
8� Do not handle plug or appliance with wet hands�
9� Turn off all controls before unplugging�
10� Do not put any object into openings� Do not use with any opening blocked; keep free of dust, lint, hair and anything
that may reduce air flow�
11� Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts�
12� Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes�
13� Do not use without vacuum bag in place�
14� Use extra care when cleaning on stairs�
15� Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present�
16� Do not attempt to service the unit while appliance is plugged in�
2
IMPORTANT SAFETY INSTRUCTIONS

3
Polarization Instructions
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer�
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects
or other reproductive harm�
Power Cord, 2-Wire Polarized Cord
To reduce the risk of electric shock, this product is equipped with a polarized alternating current line plug (a plug
having one blade wider than the other)� This plug will fit into the power outlet only one way� This is a safety
feature� If you are unable to insert the plug fully into the outlet, try reversing the plug� If the plug should still fail to
fit, contact a qualified electrician to replace the obsolete outlet� Do not defeat the safety purpose of the
polarized plug�

• Genuine Fuller Brush Vacuum Bags
Part # FFH-6 6 per package
• Genuine Fuller Brush Belt
Part # FBSM-B2 2 per package
4
Parts Identification
Replacement Bags and Belts
On/Off
Power Switch
Outer Bag
(To Access
Vacuum Bag)
Quick Release
Cord Hook
Lower
Cord Hook
Furniture Guard
Circuit Breaker Reset Button
Self-Adjusting Nozzle
Headlight
Power Cord

Edge Cleaning
The edge cleaning feature provides improved cleaning near walls and stationary furniture� For
maximum edge cleaning, place the left side of the nozzle against the wall or stationary furniture�
Automatic Carpet Height Adjustment
Your Fuller Brush vacuum is designed with an automatic, self-adjusting nozzle� No manual adjustments
are required� The height of the nozzle is instantly and automatically adjusted to the flooring surface�
This self-adjusting feature allows the nozzle to float evenly over all flooring surfaces�
Bare Floor Cleaning
Your Fuller Brush vacuum comes equipped with a squeegee on the bottom of the vacuum to improve its
effectiveness in cleaning bare floors� (figure 6)
When cleaning tile, hardwood, linoleum, etc�, use the On setting, as opposed to the maximum power
setting for best results�
Fig. 1
Fig. 2 Fig. 3
Fig. 4 Fig. 5
5
How to Assemble the Vacuum
Vacuum Features
The vacuum cleaner handle is packed as a separate component that requires assembly�
1� Release the handle bracket from the handle tube by removing the two screws (figure
1)�
2� Place handle onto the handle tube, aligning holes with pegs (figure 2)�
3� Place the handle bracket back into position (figure 3)�
4� Secure with two screws removed in step 1�
5� Thread cord through cord guides and proceed with wrapping the cord (figures 4 &
5)�
6� Wrap the cord clockwise around the top and bottom cord hooks� Fasten the plug to
the wrapped cord using the channel on the plug� When not in use, store the vacuum
indoors in a clean, dry area where it cannot be damaged or cause injury�
On/Off Switch
The switch, located on the vacuum handle, is a three-way switch� The middle position
is the Off setting, the rear position is the On setting and the forward position is for
maximum power�
Use the maximum power setting for carpet cleaning and the On setting for cleaning bare
floors and throw rugs�
Pull the switch backward to turn the vacuum on� Push the switch halfway back to turn the
vacuum off� Push the switch all the way forward to use the maximum power setting�
The vacuum cleaner should be turned off before returning the handle to its full upright
position� Always turn the vacuum cleaner off before unplugging it from the electrical
outlet�
Fig. 6

6

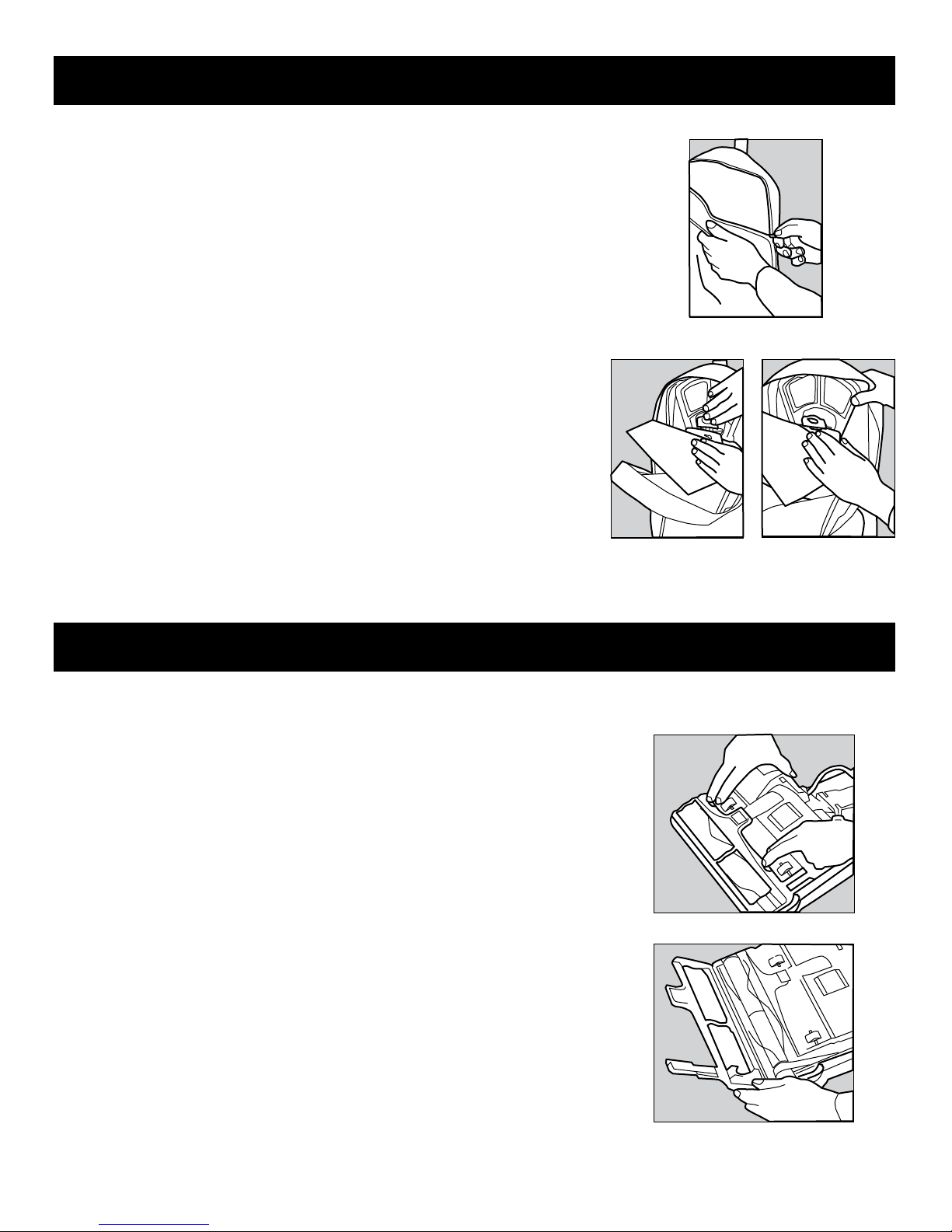

How to Change the Vacuum Bag
How to Remove/Install the Bottom Plate
CAUTION: First, unplug the vacuum cleaner from the electrical outlet�
1� Unzip the outer cloth bag (figure 7)�
2� Remove the used bag by pressing the bag holder tab and pulling the bag off the
vacuum (figure 8)� Discard used bag�
3� To install the new bag, position the bottom of the bag collar into the bag collar
holder (figure 9)�
4� Push the top of the bag collar inward and secure it under the bag holder tab�
5� Zip the outer cloth bag closed�
CAUTION: First, unplug the vacuum cleaner from the electrical outlet�
To remove the bottom plate:
1� After unplugging the power cord, turn the vacuum cleaner over, exposing the underside�
2� Press the two holding tabs inward (figure 10) releasing the bottom plate� Remove the
bottom plate�
To install the bottom plate:
1� Align the bottom plate hinges with the corresponding grooves (figure 11)�
2� Press plate into position until the plate “clicks” on both sides�
Fig. 11
Fig. 7
Fig. 9
Fig. 8
Fig. 10

7
How to Change the Belt
How to Replace the Squeegee
How to Reset the Circuit Breaker
CAUTION: First, unplug the vacuum cleaner from the electrical outlet�
1� Turn the unit over and remove the bottom plate (see “How to
Remove the Bottom Plate”)�
2� Remove the brushroll and the worn or broken belt from the brushroll
pulley and the motor drive shaft (figure 12)�
3� Loop the new belt around the motor drive shaft and the brushroll
(figure 13)�
4� Reinstall the brushroll back into the housing� Turn the brushroll by
hand, making sure the belt is not twisted and all rotating parts
move smoothly (figure 14)�
5� Reinstall the bottom plate (see “How to Install the Bottom Plate”)�
NOTE: To ensure maximum cleaning efficiency, the belt should be
checked regularly to be sure it is in good condition� Check to see
if the belt is stretched, cracked, or if excessive slipping is occurring�
Replace if needed�
If your squeegee splits or begins to look worn, simply remove the
worn squeegee from its track and slide a new one into the track
(figure 15)� If you have trouble installing the new squeegee, please
see your Authorized Fuller Brush service center�
Your vacuum features a circuit breaker to protect the machine against
damage due to a surge in the electrical current� Electrical surging
can be a result of, though not limited to, a jammed brushroll (i�e�
vacuuming up a sock or throw rug) or a jammed motor fan�
Should your Fuller Brush vacuum cleaner experience a jammed
brushroll with the circuit breaker tripping, first press the On/Off
button to the Off position and unplug the unit� Inspect the brushroll by
removing the bottom plate (see “How to Remove the Bottom Plate”)
and remove any debris that may be causing the jam� Reinstall the
bottom plate (see “How to Install the Bottom Plate”), reset the circuit
breaker by pressing the Circuit Breaker Reset Button (figure 16), plug
in the power cord, and turn the unit on� If the unit fails to turn on, seek
service at an Authorized Fuller Brush service center�
Fig. 16
Circuit breaker
reset button
Fig. 15
Fig. 12
Fig. 13 Fig. 14

Troubleshooting Guide
For Best Performance
8
• Keep your Fuller Brush vacuum clean and in good operating condition�
• Change vacuum bags once a month or when the bags are 2/3 full to maximize cleaning performance�
• Always use genuine vacuum bags and replacement parts� Use of other products may result in poor cleaning performance,
potential vacuum cleaner damage and may void vacuum warranty� Genuine products are designed for maximum cleaning
performance�
• Use only Authorized Fuller Brush Retailers for parts or service�
• Store your machine carefully in a dry area�
• For optimum cleaning performance and safety, follow your owner’s manual instructions�
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
Vacuum won’t turn on • Power cord not firmly plugged in
• Blown fuse or tripped breaker
• Needs service
• Plug unit in firmly
• Check house fuse or breaker�
Replace fuse/reset breaker�
• Take vacuum to a Fuller Brush
service center�
Vacuum won’t pick up or low
suction
• Vacuum bag full
• Broken belt
• Worn brushroll
• Install new bag
• Replace belt
• Replace brushroll
Dust escaping from vacuum • Vacuum bag not installed
properly
• Install bag properly� Review
bag installation (page 6)

Fuller Brush Vacuum Cleaners
PO Box 730
Fenton, MO 63026
www.FullerBrushVacuums.com
Should your vacuum ever need service, visit our website for a listing of Fuller Brush Service Centers�
©2014 Fuller Brush Vacuum Cleaners�
B503-7900
