TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
TOUCHSCREEN FAR
INFRARED HEATER
This appliance complies with European Directives:
2004/108/EC on electromagnetic compatibility.
2006/95/EC on low voltage.
2002/95/EC on the restrictions of the use of certain hazardous substances.
EN/IEC 60335 - 1 Safety of electrical appliances
EN 55014-1:2006 + A1:2009 + A2:201 1
EN 61000-3-2:2006 + A 1 : 2009 + A 2 :2009
EN 61000-3-3:2013
EN 55014-2:1997 + A1:2001 + A2:2008
EN 62233:2008
EN 50564:2012
UN12600-IBI (Laminated toughened safety glass)
The Restriction of the Use of Certain Hazardous Substances (RoHS) in
Electrical and Electronic Equipment Directive (2011/65/EU)!aims to prevent
hazardous substances from entering the production process and thereby
keep them out of the waste stream.
The Waste Electrical or Electronic Equipment (WEEE) Directive requires
countries to maximise separate collection and environmentally friendly
processing of these items. In the UK, distributors including retailers must
provide a system which allows all customers buying new electrical equipment
the opportunity to recycle their old items free of charge."
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
1.Technical features of the appliance
230V 50Hz
Class II
Degree of protection: IP35
The features of the appliance are indicated on the features label situated on the
rear edge of the cover.
XXXX : Manufacturer's trademark or brand
12345678: Serial No.
Category:……… Type:……… Model……
IP Rating:……… Voltage:…… Power……
CE Marking double insulation WEEE
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE
This appliance complies with European Directives:
2004/108/EC on electromagnetic compatibility.
2006/95/EC on low voltage.
2002/95/EC on the restrictions of the use of certain hazardous
substances.
1.Technical features of the appliance
230V 50Hz
Class II
Degree of protection: IP24
The features of the appliance are indicated on the features label situated on the
rear edge of the cover.
XXXX : Manufacturer's trademark or brand
12345678: serial No.
Category:………- type:………- model………..
Degree of protection:…..-Voltage:…… - Power…….
EC Marking –double insulation –quality label

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
2. General Information
Unpack the appliance and place it either on the polystyrene protection or on
a carpet
Package contains:
•Appliance
•Remote control
•Wall mounting kit
•Instruction manual
Read these instructions carefully before installing and using the appliance and
keep for future reference.
Use the appliance only according to these instructions.
These instructions do not cover all situations that may arise. Use caution and
common sense when installing and using the appliance.
Modification of the heater in any way voids the warranty
Make sure that the appliance is in good condition prior to installation and do not
use the appliance if damaged.
This appliance is not intended for use by persons (including children) with
reduced physical sensory or mental capabilities
Children under 3 years of age must be kept away from the appliance and always
be supervised.
During normal operation the surface of the appliance may reach high
temperatures which can cause burns.
Combustible or flammable materials and pressurised containers (sprays, fire
extinguishers, etc.) must be kept at a distance of at least 50cm from the
appliance.
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
The materials used for packaging can be recycled. For disposal use dedicated
recycling containers
Do not touch the appliance with wet hands or feet.
It is important not to completely cover the appliance at any time in order to avoid
dangerous overheating. Use of towel rails or towel hooks supplied by us for the
heaters is acceptable.
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
3. Positioning and installation
This appliance is intended for domestic use for room heating.
It must be fixed onto a wall as indicated in this instruction manual.
In case of vertical positioning the control graphics must be kept on the right-hand
side, while for horizontal positioning the control graphics must be kept on the
lower side.
Ideally the heaters, if in landscape orientation, should be mounted at picture /
mirror height.
Our heaters are rated IP45 which means they can be installed in zone 1 or 2
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE
ZONE 2
ZONE 1
ZONE 0
ZONE
OUTSIDE
ZONE
ZONE
ZONE
2
1
0
ZONE 1
600mm
Radius 600mm
600mm
2250mm
ZONE 2
ZONE 2 600mm
ZONE 2 600mm

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
Do not install the appliance:
•In contact with the floor.
•In close proximity to flammable or combustible materials or pressurised
containers.
•Make sure that there are no electrical cables or pipes in the wall which could be
damaged during installation.
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL

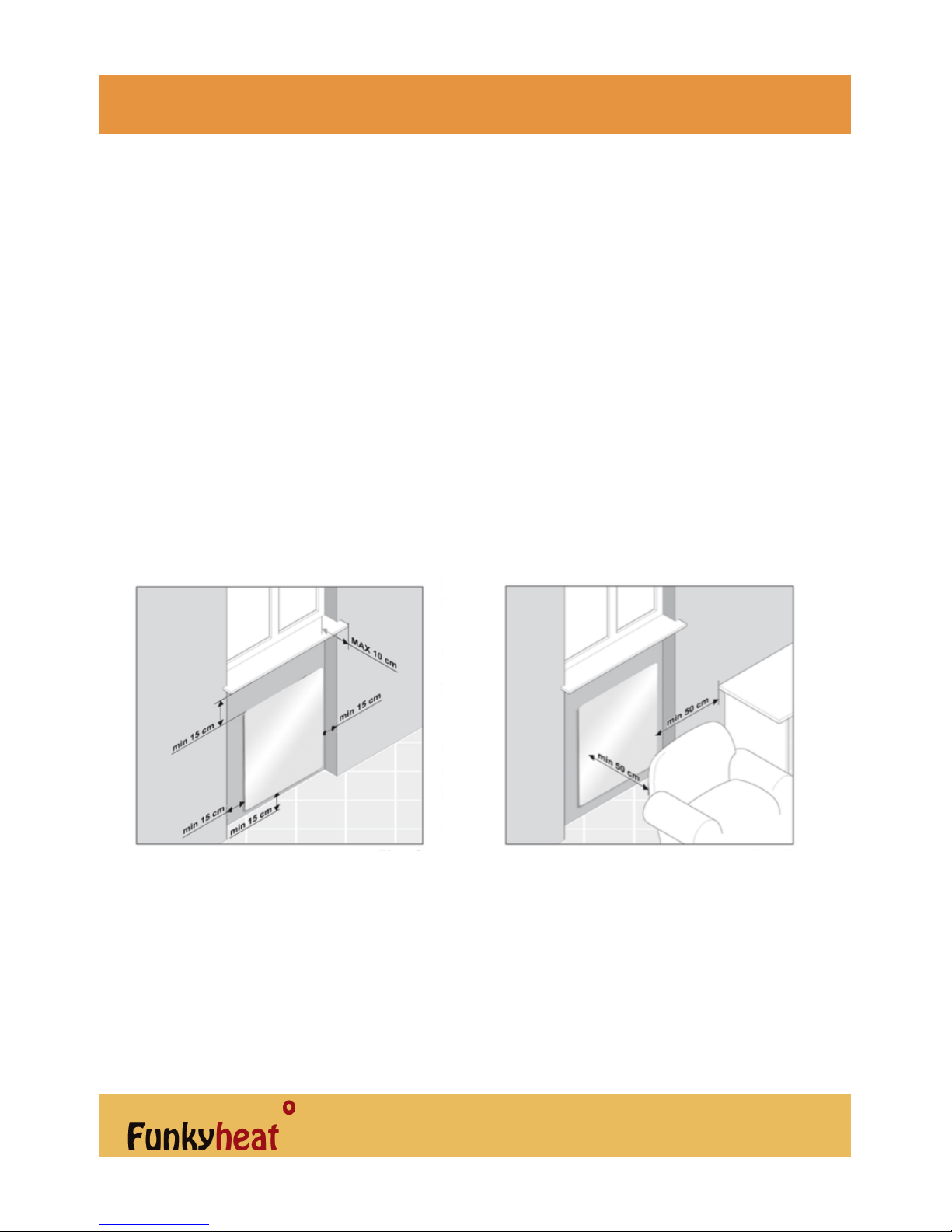

3.1 Wall mounting
Make sure the plugs and screws provided are suitable for the wall type onto which
the appliance is going to be mounted. The brackets provided are only suitable for
wall mounting. If you require ceiling mounting please contact us. If in doubt, ask
professional qualified personnel.
A video showing wall installation is available here: http://www.funkyheat.co.uk/
support/install/
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
3.2 Electrical connection
If hardwiring to a fused spur, this work must be done by a qualified
electrician.
The electrical connection must be carried out in compliance with the national
regulations for electricians in force.
Before connecting the appliance to the electrical network, make sure that the
power is off.
Do not install the appliance if:
•The power supply cable is damaged.
•The appliance and the control boxes are damaged.
The appliance supply voltage is 230V 50Hz.
Make sure the power supply complies with the appliance's voltage.
Make sure that the power supply cable never comes into contact with the hot
surface of the appliance.
If the appliance is mounted in the bathroom or shower, the power line must be
equipped with an RCD with maximum rated current of 30mA.
In humid environments (bathrooms, kitchens, laundry rooms etc.) it is very
important that the electrical connection to the network is situated at least at 25 cm
from the floor.
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
4. Control panel (touch screen)

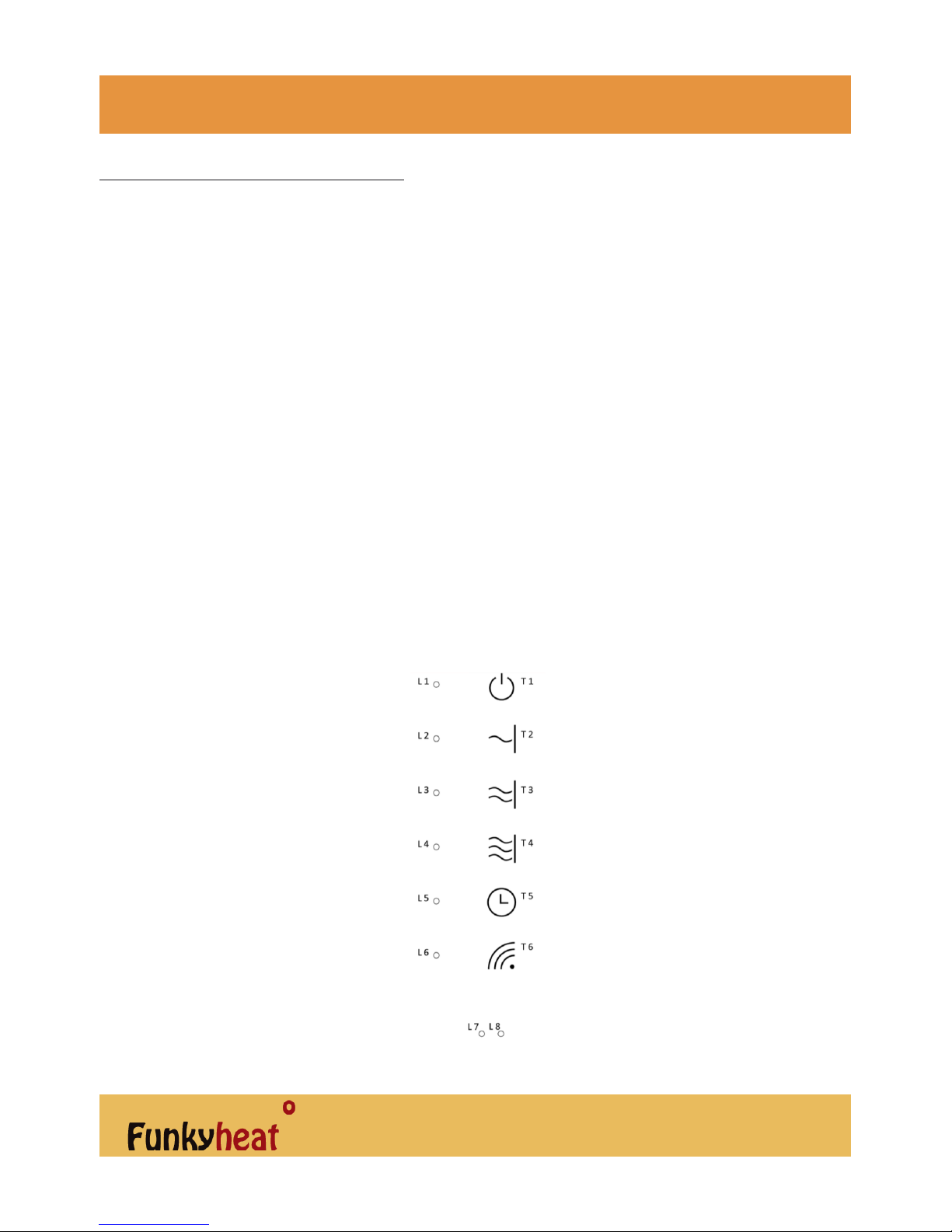

Control panel with symbols and functions
T1 STAND-BY...................................................................... L1
T2 Low-temperature heating (50°c) …....….............. L2
T3 Medium-temperature heating (70°c) …..........… L3
T4 Maximum-temperature heating (90°c) …......... L4
T5 Maximum-temperature 2-hours boost ...................... L5
T6 Keypad Lock............................................................... L6
L7 Red LED indicates radiator is heating up
L8 Appliance is heating
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
5. Remote Control

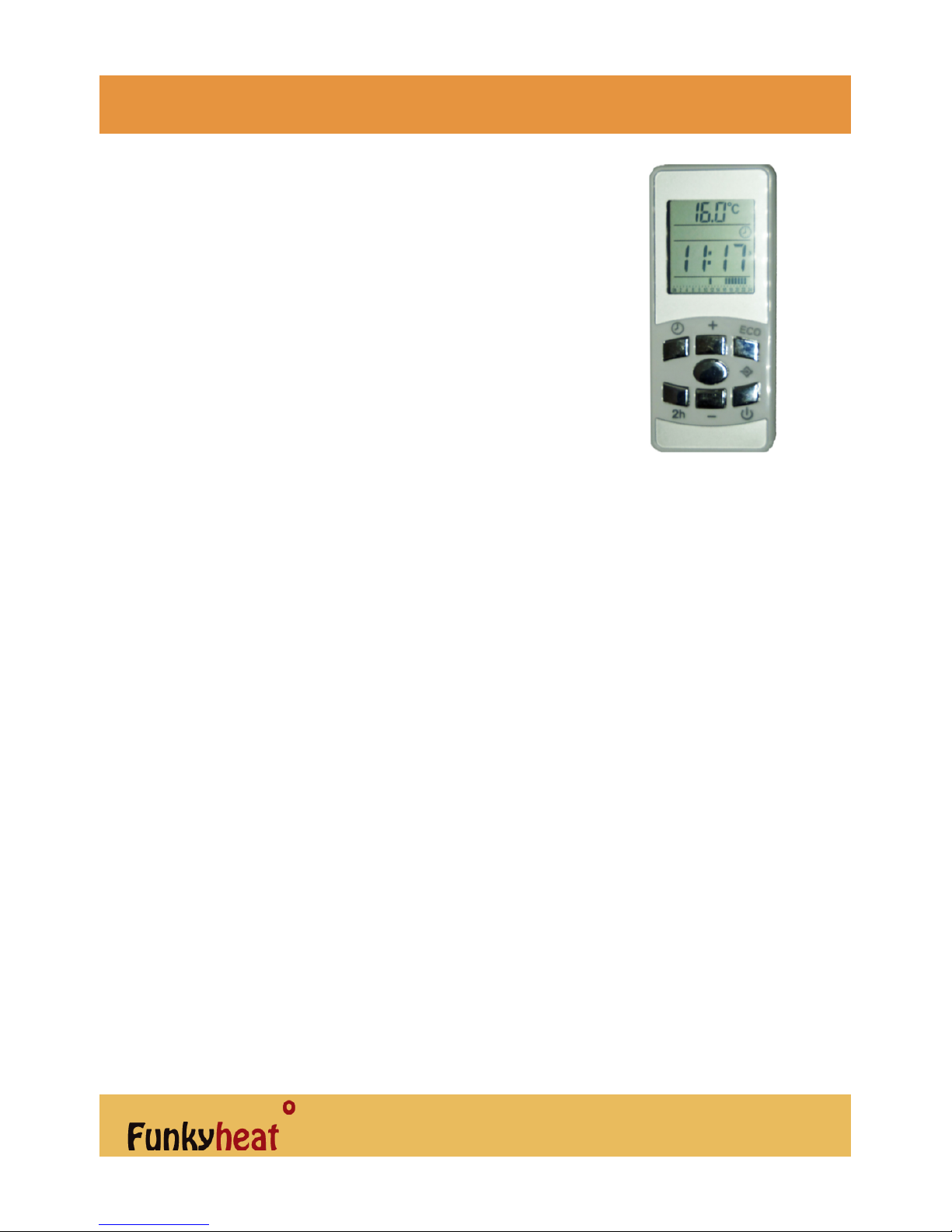

These far infrared heaters are equipped with infrared remote control allowing you
to control the room temperature and to set different operating programs.
When the heater receives the information, the L8 LED flashes to indicate the
communication has been received.
For an efficient communication, point the remote control at the receiver unit. The
distance between the remote and the receiver must not be greater than 7 m.
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE
5.2 General Description
1 : Double infrared communication, one at the top and one at the bottom of the
remote control
2 : Seven push-buttons
3 : Maximum communication distance from device: 7 m
4 : Two - AAA - LR03 - 1.5 V batteries

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
NOTE: Fil-Pilot is only used in FRANCE
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE
Symbol Mode Function Description
Fil-pilot The temperature of the appliance is controlled by the pilot-
wire
Comfort The temperature of the appliance is controlled by the
“Comfort mode” settings
Night The temperature of the appliance is controlled by the
“Night mode” settings
2 hr
timer
The appliance heats up the room at maximum power
Clock The temperature of the appliance is controlled by the mode
of either the “comfort” or “night” programs
Fan Allows the Fan to operate for 15/30/45/60 minutes
Stand-by The appliance is not in operation
Lock Locks the keypad of the appliance
Switching Modes
See Fig.1 below :

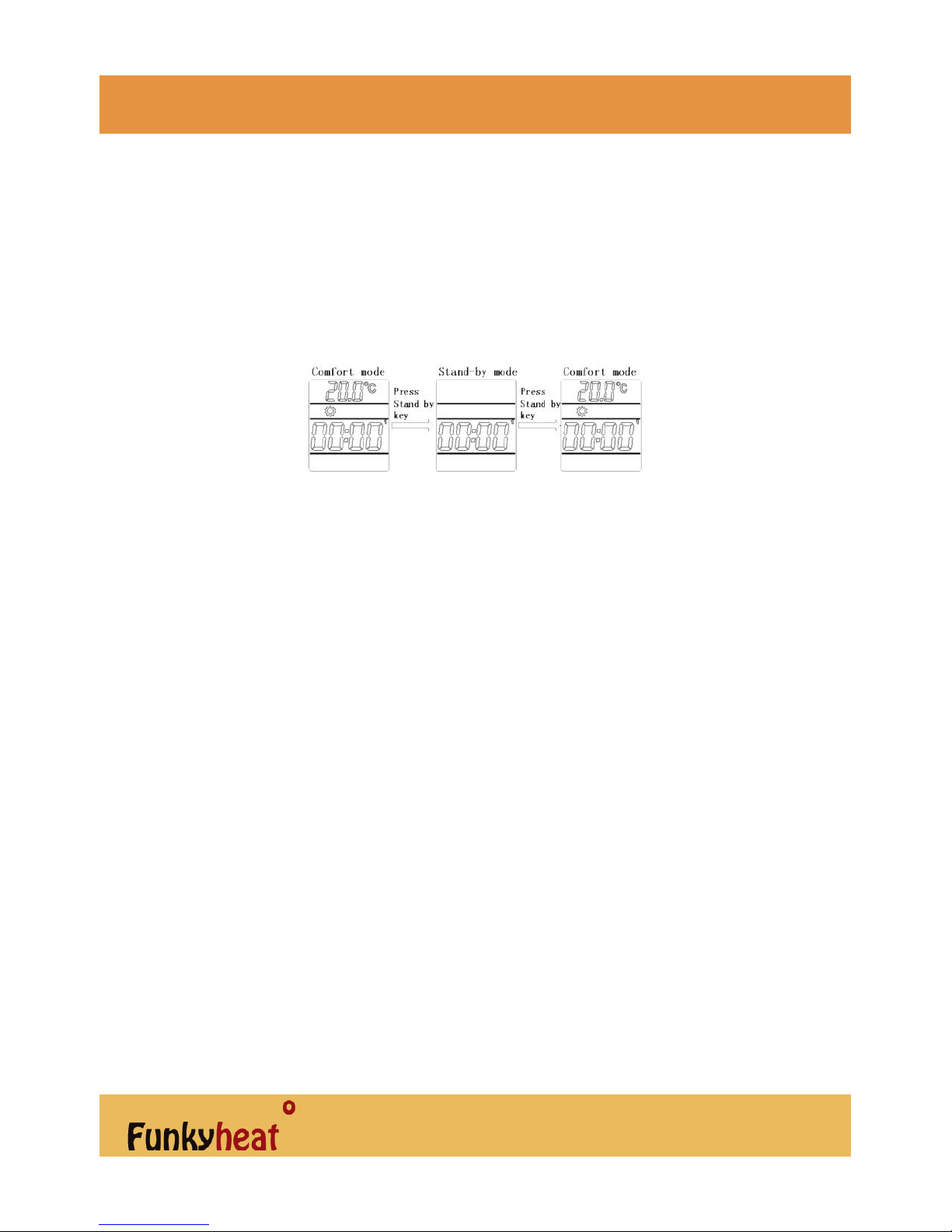

1 : Once the batteries are installed, the LCD display will be showing all symbols
for 3 seconds.
After this, go to the “Date and time settings” interface – the date will be flashing,
the user will then be able to set the date by using the “Plus” or “Minus” buttons.
Press then the “Mode” button - the “Hour” will be flashing – set current hour by
using the “Plus” or “Minus” buttons.
Then press the “Mode” button once again – the minutes section will be flashing –
set current minute by using the “Plus” or “Minus” buttons once again.
Press the “Mode” button again to terminate the Minutes setting and to switch to
stand-by mode.
While “Date” is flashing, if the user does not wish to set any parameter, just press
the "Stand-by" button to switch to stand-by mode immediately.
Fig. 1
Symbol Mode Function Description
Fil-pilot The temperature of the appliance is controlled by the pilot-
wire
Comfort The temperature of the appliance is controlled by the
“Comfort mode” settings
Night The temperature of the appliance is controlled by the
“Night mode” settings
2 hr
timer
The appliance heats up the room at maximum power
Clock The temperature of the appliance is controlled by the mode
of either the “comfort” or “night” programs
Fan Allows the Fan to operate for 15/30/45/60 minutes
Stand-by The appliance is not in operation
Lock Locks the keypad of the appliance
Switching Modes
See Fig.1 below :
1 : Once the batteries are installed, the LCD display will be showing all symbols
for 3 seconds.
After this, go to the “Date and time settings” interface – the date will be flashing,
the user will then be able to set the date by using the “Plus” or “Minus” buttons.
Press then the “Mode” button - the “Hour” will be flashing – set current hour by
using the “Plus” or “Minus” buttons.
Then press the “Mode” button once again – the minutes section will be flashing –
set current minute by using the “Plus” or “Minus” buttons once again.
Press the “Mode” button again to terminate the Minutes setting and to switch to
stand-by mode.
While “Date” is flashing, if the user does not wish to set any parameter, just press
the "Stand-by" button to switch to stand-by mode immediately.
Fig. 1

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
6. Programming your infrared heater
Infrared and convection heating work differently, whereas convection heaters are
switched on and off regularly due to inefficiency and expensive running costs,
infrared heaters should be set up using temperature parameters and left on.
The most efficient way to set up an infrared heater is by using temperature
parameters as follows:
Infrared heaters should be set up with an 'on' temperature, that is the temperature
you want your home or office to be at when you are there and using it. There
should also be an 'off' temperature, that is a temperature that you do not allow the
home or office to drop below. Typically the 'on' temperature would be 21ºC or
22ºC with the 'off' set at 14ºC or 15ºC.
With the infrared heating set up in this way, heat is stored and maintained in the
structure of the space that is being heated, meaning less heat loss, a more
comfortable heat and a more cost efficient heating system. Your heater will
maintain both the 'on' and 'off' temperatures efficiently and will generally only be
drawing power about 1/3 of the time.
This means that you will have an ‘on’ temperature (the sun icon) and an ‘off’
temperature (the moon icon). We suggest that for maximum efficiency you should
set the ‘on’ to 22ºC and the ‘off’ to 14 or 15ºC
If you have a number of heaters it is possible to set up a master controller for
different zones, for example you might want a bedroom zone and a living zone,
each zone having different temperature and timing settings.
You can set up one master controller for each zone and programme accordingly. It
is then as simple as pointing the controller at each heater in turn, scrolling through
the icon set on the handset until you get to the clock setting on the far right. The
heater will then flash and beep confirming that the settings have been imported by
the heater.!
A video showing controller set up is available here: http://www.funkyheat.co.uk/
support/install/"
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
6.1 Quick Controller Set-Up
1. Take the batteries out to re-set it
2. Put the batteries in
3. The display will flash 00:00 with the number 1 in the top right
4. Press the centre oval button twice - this allows you to set the clock. Use the +
or - buttons (above and below the oval button) to set the time
5. Press the clock icon button on the top left (the 1 in the display on the right will
now flash) - you need to decide which is day one for you so that you can
differentiate the weekend settings.!
6. Press the oval button twice to go through the hours and minutes. The small
block above the numbers in the display with now flash. This is how you set when
the heater comes on or stays off
7. Press - for all the time you want the heater at the ‘off’ setting. When you reach
the time that you want the heater to be at the ‘on’ setting, press +. When you want
it off again, press -
8. When you reach the end of the day, press the centre oval button again - this
will take you to the next day (number 2), do this for all 7 days.!
9. Now use the button on the bottom right to switch on the heater
10. You will now see the sun icon. This is the temperature that the heater will be
trying to heat to when the heater is on. The default is 20ºC, you can change this
with the + or - buttons
11. Press the centre oval button again. You will now see the moon icon. This is the
temperature that the heater will keep the space at when the the heater is ‘off’. The
default setting is 18ºC, we generally reduce this to 14ºC or 15ºC
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
12. Press the centre oval button again. You will now see the snowflake icon. This
is the frost protection setting. Put it on this setting if you are on holiday and it will
stop the space from dropping below this temperature
13. Press the centre oval button again. You will now see the timer (clock) icon.
These are the settings you programmed in earlier and the heater will now operate
on these programmed settings. Now when you press the centre button and point it
at the heater, you will notice that the heater will beep - this is the heater and the
controller communicating.
Work through the icons until you get to the timer icon point it at the heater as you
press and wait. It is now set up.!
14. Finally, using the touchscreen on the heater, press the I, II, or III This controls
the surface temperature of the heater. Initially, select III this allows the surface
temperature to go up to maximum it does not affect the temperature settings that
you programmed earlier and means that the space will get to temperature more
quickly. Setting I and II limits the surface temperature for 45ºC and 65ºC
respectively and is useful if you have vulnerable people in the property.
15. You should now have 3 green lights showing on the heater. The first above the
III, the second above the ‘wi-fi’ signal and the third below the branding icon. You
will also note a red light coming sometimes, this is the heater and the controller
communicating and activating the heater as required.!
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
6.2 Detailed Controller Set-Up
Setting the Clock
1. Once the batteries are installed, the LCD
display will be showing all symbols for three
seconds.
Press Clock button #
Press Oval Mode button and Hours flash, adjust
hours using “+” or “–“ buttons #
Press Oval Mode button and Minutes flash, adjust
hours using “+” or “–“ buttons #
Press Oval Mode button 7 times until Temperature
displayed on top line as in photo to right. #
Switching between controller modes
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE
Switching Modes
See Fig.1 below :
1 : Once the batteries are installed, the LCD display will be showing all symbols
for 3 seconds.
After this, go to the “Date and time settings” interface – the date will be flashing,
the user will then be able to set the date by using the “Plus” or “Minus” buttons.
Press then the “Mode” button - the “Hour” will be flashing – set current hour by
using the “Plus” or “Minus” buttons.
Then press the “Mode” button once again – the minutes section will be flashing –
set current minute by using the “Plus” or “Minus” buttons once again.
Press the “Mode” button again to terminate the Minutes setting and to switch to
stand-by mode.
While “Date” is flashing, if the user does not wish to set any parameter, just press
the "Stand-by" button to switch to stand-by mode immediately.
Fig. 1
2 : once date/hour/minutes are set and once having switched to “stand-by” mode,
press the “Stand-by” button - the remote control will switch to “Comfort” mode.
From the "Comfort" mode, by pressing the “Mode” button, the “Night” mode will be
activated.
Similarly, by pressing the “Mode” button again, the remote control's modes will
switch to: Comfort Mode –Night Mode –Antifreeze Mode –Clock Mode –Pilot-
Wire Mode –Comfort Mode***
Comfort and Night Modes –setting of the mode's temperature (see Fig.1 )
1 : Go to “Night” or “Comfort” mode - use “Plus” or “Minus” buttons for
temperature setting: by pressing the “Plus” button once, the temperature will rise
by 0.5 degrees, by pressing the “Minus” button once, the temperature will drop by
0.5 degrees.
Temperature can be adjusted from 7 up to 32 degrees.

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
Comfort and Night Modes – setting of the mode's temperature (see Fig.1 )
1. Go to “Night” or “Comfort” mode - use “Plus” or “Minus” buttons for temperature
setting: by pressing the “Plus” button once, the temperature will rise by 0.5
degrees, by pressing the “Minus” button once, the temperature will drop by 0.5
degrees.
Temperature can be adjusted from 7 up to 32 degrees.
2. The “Night” mode temperature setting can not be higher than the “Comfort”
mode's one.
Antifreeze Mode
Go to “Antifreeze” mode, the temperature is fixed to 7 degrees and cannot be
changed.
Clock Mode
Go to “Clock” mode, the LCD display will be showing temperature, date, time and
state of the daily program.
2-Hours Mode
In any mode, by pressing the “two hours” button, the device will operate at full
power for 2 hours before reverting to the settings you have previously
programmed.
By pressing the button again, the remote control will go back to the previous
mode.
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE
2 : The “Night” mode temperature setting can not be higher than the “Comfort”
mode's one.
Example : If the “Comfort” mode's temperature has been set to 25 degrees, when
switching to “Night” mode and wanting to set the temperature, once it reaches 25
degrees, the temperature will not rise, even when pressing the “Plus” button.
Antifreeze Mode ( see Fig.1 )
Go to “Antifreeze” mode, the temperature is fixed to 7 degrees, by pressing the
“Plus” or “Minus” buttons, the temperature cannot be neither risen nor reduced.
Clock Mode ( see Fig.1 )
Go to “Clock” mode, the LCD display will be showing temperature, date, time and
state of the daily program.
Pilot-Wire Mode ( see Fig.1 )
Go to “Pilot-Wire” mode – the device will recognise the commands received from
the Pilot-Wire (Comfort / Nigh / Antifreeze / ECO / Stand-by)
2-Hours Mode
In any mode, by pressing the “two hours” button, the device will start to heat up
the environment at full power for 2 hours.
By pressing the button again, the remote control will go back to the previous
mode. (Fig 2)
Stand-by Mode
In any mode, by pressing the "Stand-by" button, the remote control will go into
stand-by mode and the device will stop operating.
By pressing this button again, the remote control will go back to the previous
mode. (Fig 3)

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
Stand-by Mode
In any mode, by pressing the "Stand-by" button, the remote control will go into
stand-by mode and the device will stop operating.
By pressing this button again, the remote control will go back to the previous
mode.
Eco Mode
Eco mode can be activated to reduce power consumption when the room is
empty for a specific period of time. By pressing the "Eco" button, the remote
control display will show the icon of the function.
By pressing the "Eco" button again, the function will be disabled and the icon will
disappear.
“Window open” Mode
Pressing the "Eco" and "-" buttons simultaneously for 3 seconds will activate the
'window open' sensor. Pressing the "Eco" and "-" buttons again simultaneously for
3 seconds will disable the function. In this mode, if the heater detects a
temperature drop of more than 1ºC within a 5 minute period, the heater will switch
off for 30 minutes before reverting back to the previous settings
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE
2 : The “Night” mode temperature setting can not be higher than the “Comfort”
mode's one.
Example : If the “Comfort” mode's temperature has been set to 25 degrees, when
switching to “Night” mode and wanting to set the temperature, once it reaches 25
degrees, the temperature will not rise, even when pressing the “Plus” button.
Antifreeze Mode ( see Fig.1 )
Go to “Antifreeze” mode, the temperature is fixed to 7 degrees, by pressing the
“Plus” or “Minus” buttons, the temperature cannot be neither risen nor reduced.
Clock Mode ( see Fig.1 )
Go to “Clock” mode, the LCD display will be showing temperature, date, time and
state of the daily program.
Pilot-Wire Mode ( see Fig.1 )
Go to “Pilot-Wire” mode – the device will recognise the commands received from
the Pilot-Wire (Comfort / Nigh / Antifreeze / ECO / Stand-by)
2-Hours Mode
In any mode, by pressing the “two hours” button, the device will start to heat up
the environment at full power for 2 hours.
By pressing the button again, the remote control will go back to the previous
mode. (Fig 2)
Stand-by Mode
In any mode, by pressing the "Stand-by" button, the remote control will go into
stand-by mode and the device will stop operating.
By pressing this button again, the remote control will go back to the previous
mode. (Fig 3)

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
Time and program setting
The handset has 24 one hour slots for each of 7 days where it can be ON or OFF.
You will need to programme all 7 days. To do this starts the same way as the
instructions above to set the Time.
Press Clock button #
Press Mode button and Hours flash, adjust or just press Mode to accept, #
then Minutes flash and adjust or just press Mode to accept. #
Display will show small number 1 (signifying Day 1) and first hour block will flash
on bottom line of the display. #
Press “–“ button to skip or “+” button to set heater for that one hour time slot. #
Display will flash next hour slot, repeat with “–“ or “+” until end of line or you have
set all the blocks you want in that day #
Press Oval Mode button #
Display will show next day and small number 2 (signifying Day 2) and first hour
block will flash on bottom line of the display. #
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE
Keypad Lock
By pressing the “Mode” and “Minus” buttons simultaneously for 3 seconds, the
block symbol will be displayed and all buttons will be locked. Thus, at the pressing
of any buttons the remote control will not respond.
By pressing once again the “Mode” and “Minus” buttons simultaneously for 3
seconds, the block symbol will disappear and the buttons will go back to being
operational. (Fig.7)
IR transmission
If no button is in operation, after 1 second, the remote control will transmit the IR
data to the device and the IR transmission symbol will start flashing. At the end of
data transmission the symbol will disappear. (Fig 8)
Low Batteries
When the batteries' tension is lower than 2.2 V, the “Battery symbol will be
displayed for 3 seconds every minute in the clock zone. The user will have to

TOUCHSCREEN INFRARED HEATER
INSTRUCTION & INSTALLATION MANUAL
Repeat above for days 3 to 7 #
When Mode button is pressed after Day 7 the controller
display shows Temperature as in example photo on
right. #
This shows the current Day (3) and time (11:17) and a
flashing block for the current hour (11) and temperature
setting (16ºC which is the OFF period)#
Setting temperatures
There are three temperature levels which are set on the
handset and transmitted to the radiator:
ON (or comfort) which is the maximum level the radiator heats up to (21ºC in
photos)
OFF (or night) which is the minimum temperature so if the radiator drops below
this during an OFF period it will heat up to reach this minimum (14ºC in photos)
FROST (set at 7ºC) which can be selected for when the property is left empty in
winter and the radiator will heat if the temperature falls below this level
#
To set these press Mode button to cycle through the symbols shown on the
display (note fil-pilote house icon only for France)
ON (sun icon) - you can adjust the temperature using the “+” or “-“ buttons
OFF (moon icon) - you can adjust the temperature using the “+” or “-“ buttons
FROST (snowflake icon)
Programmed Settings (clock icon) #
THE CARLILE INSTITUTE
HUDDERSFIELD ROAD
MELTHAM, HD9 4AE
