USER MANUAL FOR
BEACH VOLLEYBALL POSTS
PRO BEACH
Index
General information
Net installation + Courtline
Spare parts

FUNTEC Sports GmbH | Loehestr. 25 | DE - 53773 Hennef | [phone] | [e-mail] www.funtec.de
Security advice
- This product has been developed for use at competitions
and at top-class sports.
- This product must be used in accordance with its desig-
nated use which is Volleyball or similar sports.
- Before using this product make sure it has been installed
properly and all supports or fittings are firmly tightened.
- This product corresponds with DIN 33957:2012-04
and it has been developed in accordance with DIN EN
1271:2015-01.
- In case the posts have been removed from the sockets
please make sure to cover any remaining parts in a way
that players won‘t get injured.

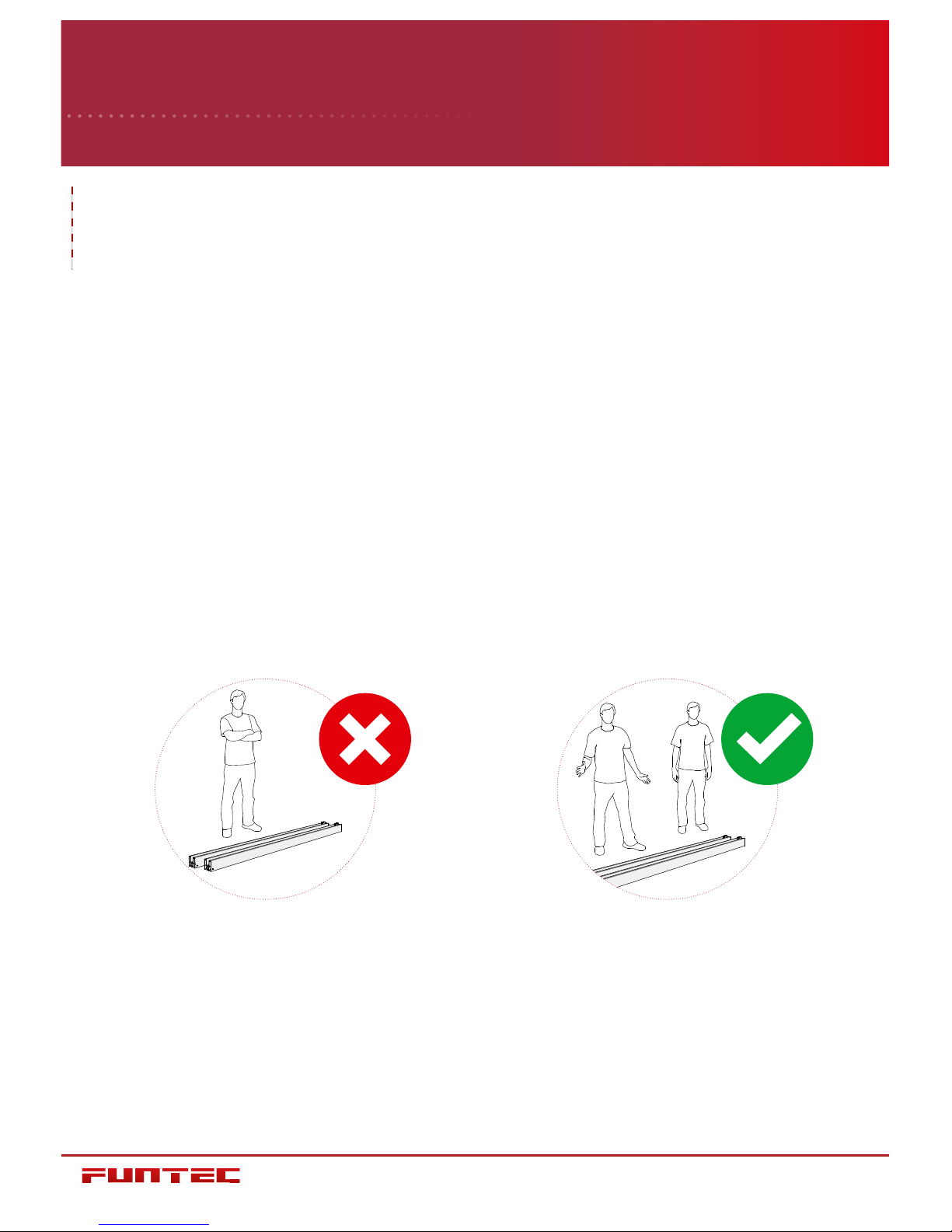

Assembly instructions
- This product has to be assembled with due care by an
adult person. We recommend to call upon the help of a
second person.
- For this product a level ground is required with the dimen-
sions of at least 14 x 22 m (for the leisure sports) or 18 x
26 m (for competition sports).
- Depending on the way of floor mounting it is required
to create foundations according to instructions from this
manual.
- Please take no unneccessary risks while handling the
equipment and be careful when assembling this product.
Maintenance and care
- This product does not require regular maintenance work.
However, we recommend to check all components for da-
mages or deformation regularly. Any damaged parts should
be replaced as soon as possible.
- To clean this product, use water and soap avoiding all
types of solvents or alcohol. Do not use dirty or abrasive
cloths.
- Store in a dry place, ideally at a temperature of
10° C to 25° C.
Please read carefully before assembly or use
and retain for future use
ID: 111206/111205/111204
General Information

4

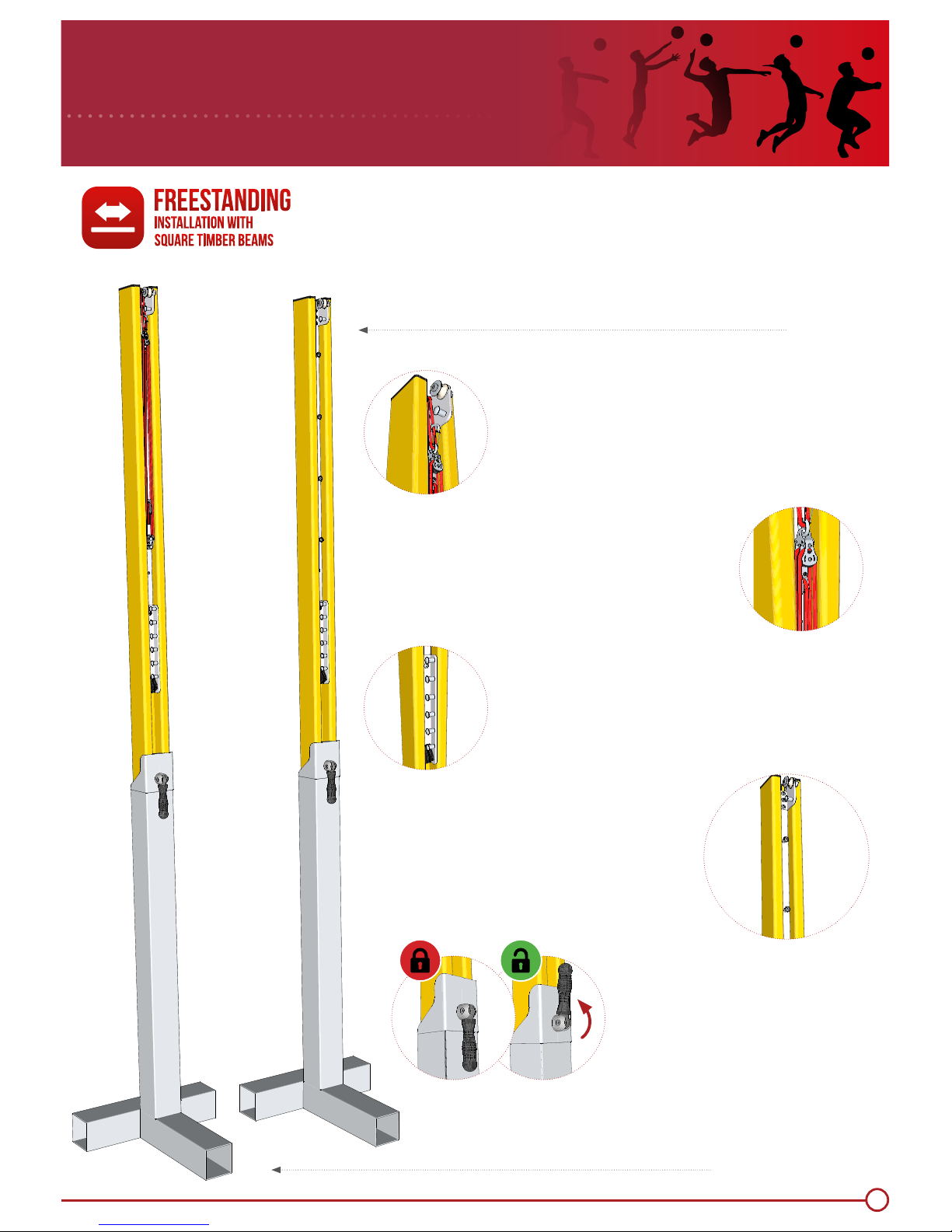

ID: 111206 - WITH FREESTANDING SOCKETS
Beach volleyball Posts
Pro Beach
Pro Beach net posts made from powdercoated
special aluminium profile (91 x 91 mm), telescopic
height adjustment with special socket adapters
Pro Beach sockets with easy-to-use
locking lever
Maximum operation comfort with
exact lever position (open/closed)
Single-arm suspension,
allows easy mounting of net tension cable
Rope pulley with triple block combination including
a stainless steel carabiner with wire gate (for one-
handed use)
Pulley block system is self-balancing
to pulling direction
Tensioning counter slider with four
mounting pins, ideal for choosing the best
net pre-tension with differing cable lengths
Open tensioning console with horizontal pins for best
choice of net cord angle
Includes an additional clamcleat below for comfortable
fine adjustment of tensioning ropes
Sockets with T-base for a freestanding
installation with square timbers

5
ID: 111206

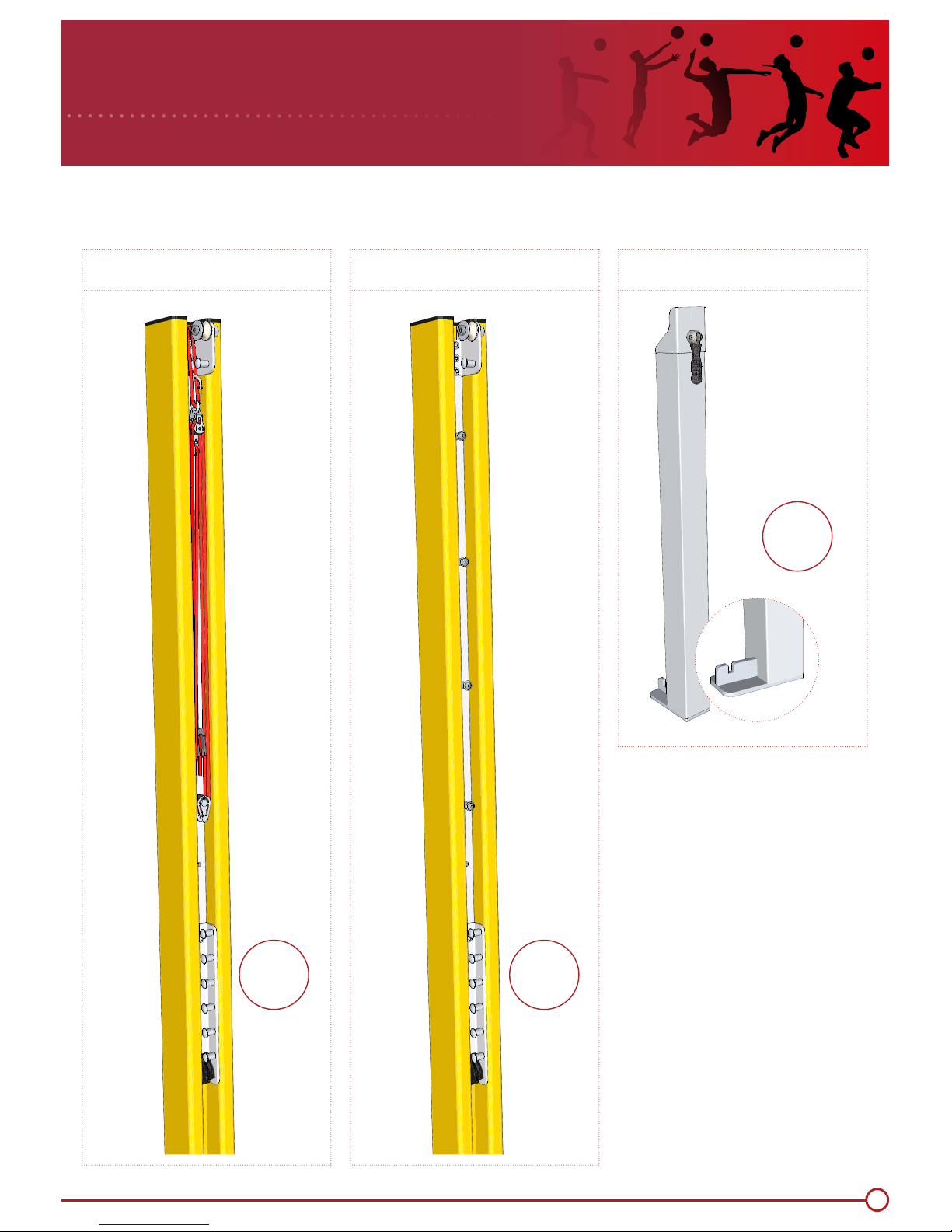

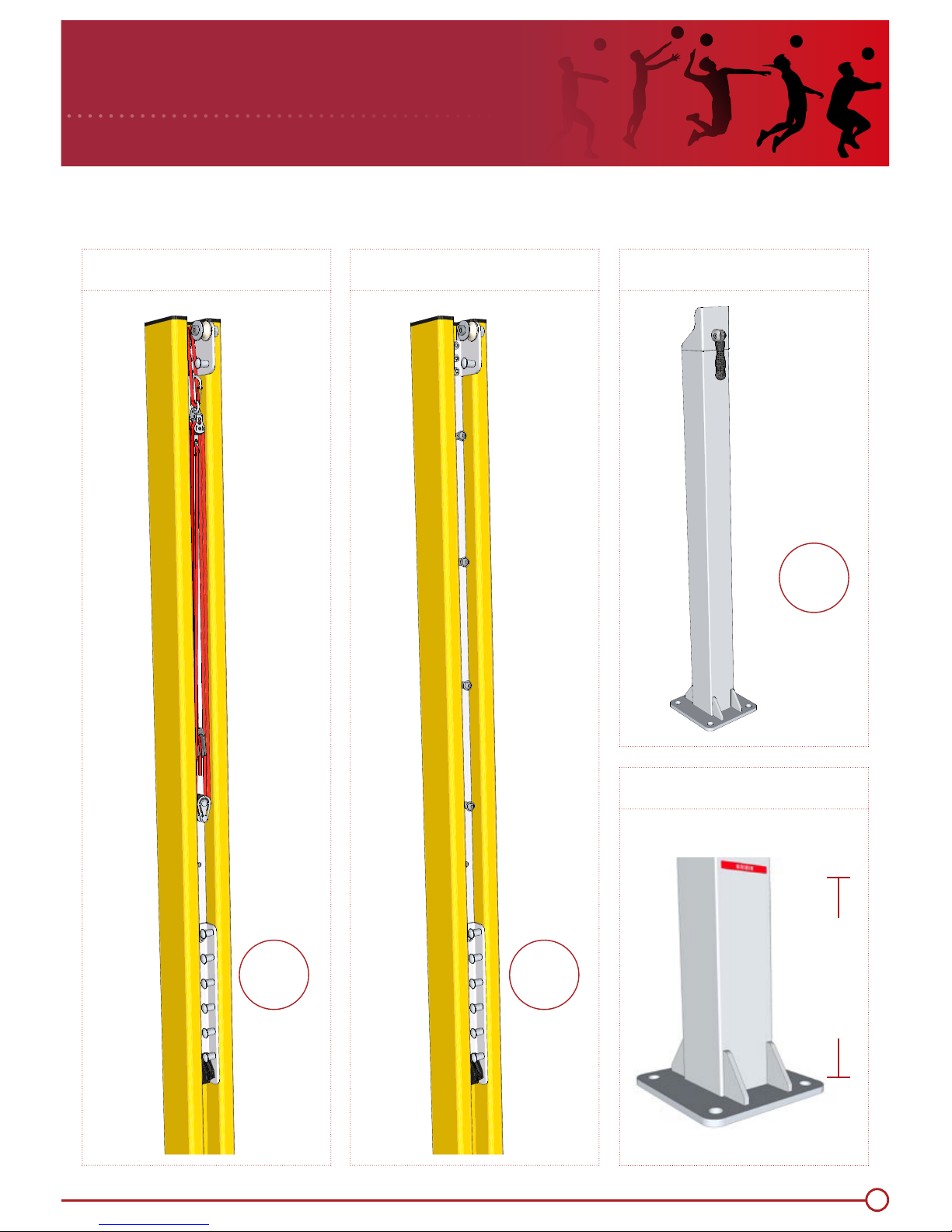

Scope of delivery
Pro Beach socket
with T-Base
2x
Minimum sand level
35 cm
Net post with
tackle tensioning slider
Net post with
tensioning counter slider
1x 1x

6

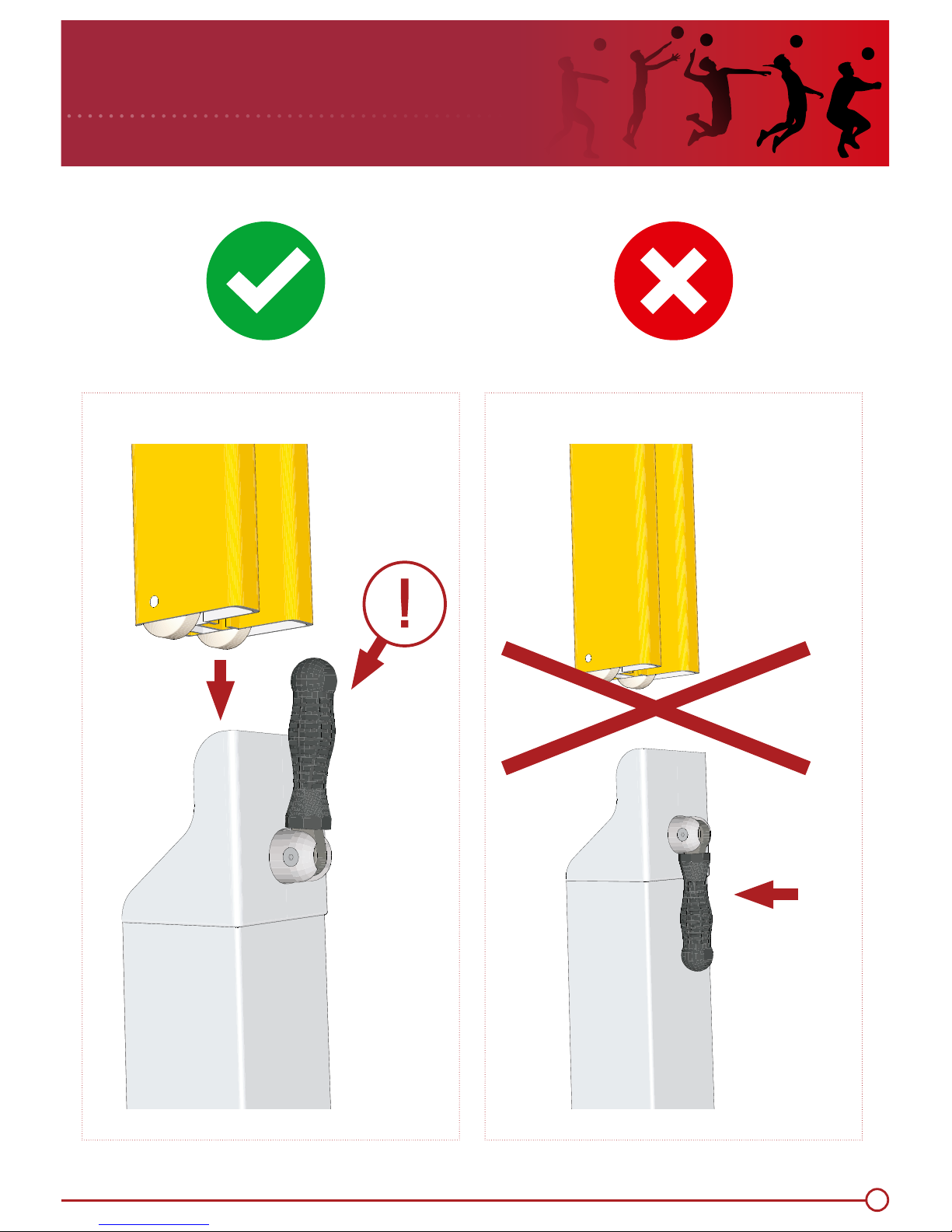

Important notice!

7
General information on building a Beach Volleyball court with City Beach sockets:
When building a sand court we suggest to fill up the sand first of all. Afterwards you can just dig in the City Beach ground
sockets and set up the net system.
We consider a permanent sand level of 40-50 cm as ideal. It is recommended to fill up the sand a little bit higher at the
centres of the playing field halves. It will be moved away towards the court surrounds by the players. Please make sure to
create a minimum sand level of 35 cm around the ground sockets for this installation option.
Example: Approximately 250 tons sand are required for a sand court with 14 x 22 m dimensions (for leisure sports) and a
sand level of approximately 45 cm. Calculation: volume in m³ x density factor (e.g.: 1,8 - depending on the grain size and
the sand quality).

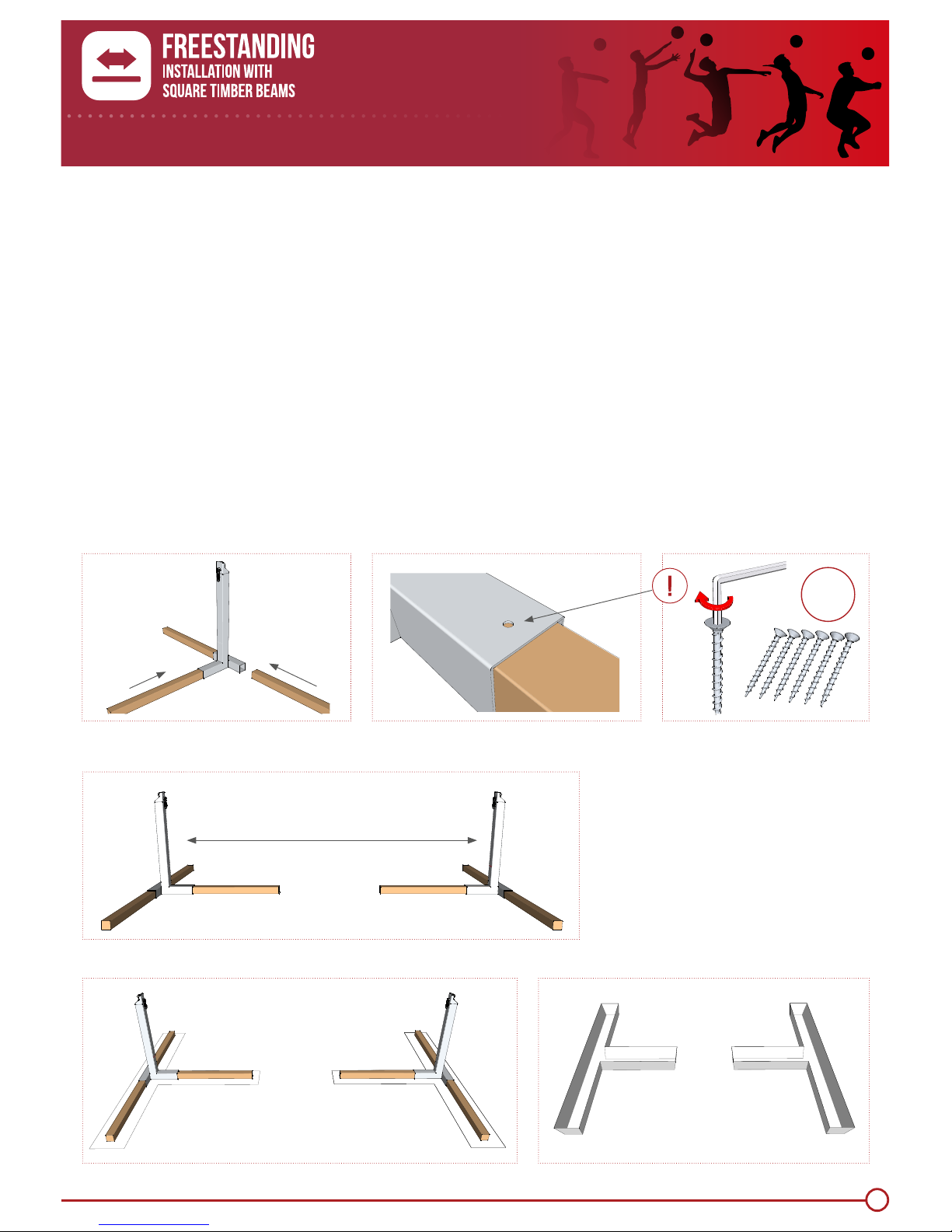

Required for assembly:
Pressure-treated square timbers, 6 pieces, each 1500 x 88 x 88 mm (maximum dimensions: 1500 x 90 x 90 mm), suitable
for permanent ground contact
Minimum Sand level: 35 cm
Insert square timbers into T-base
Mark the outline of the square timbers Make excavations according to outlines
Secure with suitable screws
Set into position: ground sockets together with inserted square timbers
10 m (with a 8.5 m net)
11 m (with a 9.5 m net)
GROUND INSTALLATION FOR ID: 111206
6x

8
Fill up the excavation
(Be careful not to move the timbers when doing this!)
Step on the timbers to press them firmly into the sand
Align the sockets with each other - inserting the net poles
will be helpful
The sockets are designed with a 2° sloping angle to the
outwards
Set ground sockets with timbers into excavation; be careful
not to step onto the borders of the excavation
GROUND INSTALLATION FOR ID: 111206
2° 2°
Minimum: 35 cm

9
Square timber set
ID: 111232
1x
Pro Beach Courtline
ID: 111304
Square-cut Beach Volley post pads (100 x 100 mm),
1 pair, ID: 111353
1x
ACCESSORIES FOR ID: 111206 (SOLD SEPARATELY)
Pro Beach net PLUS, incl. net antennas PLUS
(2-piece, with velcro strap pockets), ID: 111601
1x
1x

10
ID: 111205 - WITH BOLT-DOWN SOCKETS
Beach volleyball Posts
Pro Beach
Pro Beach net posts made from powdercoated
special aluminium profile (91 x 91 mm), telescopic
height adjustment with special socket adapters
Single-arm suspension,
allows easy mounting of tension cable
Rope pulley with triple block combination including
a stainless steel carabiner with wire gate (for one-
handed use)
Pulley block system is self-balancing
to pulling direction
Tensioning counter slider with four
mounting pins, ideal for choosing the best
net pre-tension with differing cable lengths
Open tensioning console with horizontal pins for best
choice of net cord angle
Includes an additional clamcleat below for comfortable
fine adjustment of tensioning ropes
Sockets with bolt-down base for installation
on a concrete foundation
Pro Beach sockets with easy-to-use
locking lever
Maximum operation comfort with
exact lever position (open/closed)

11
ID: 111205
Scope of delivery
Pro Beach socket
with bolt-down base
Minimum sand level
2x
Net post with
tackle tensioning slider
Net post with
tensioning counter slider
1x 1x
35 cm

12
Important Notice!

13
GROUND INSTALLATION FOR ID: 111205
Create foundations with a closed surface,
Distance (clear span between sockets): 10 m with a 8.5 m net, 11 m with a 9.5 m net
The sockets are designed with a 2° sloping angle
to the outwardsScrew down the sockets onto the foundation
Description
Foundation, Dimensions: 80 x 80 x 80 cm, class C25/30, built-in welded wire fabric (Q188A)
Ground socket, bolted down on the concrete foundation
Distance (clear span): 10 m (with a 8.5 m net), 11 m (with a 9.5 m net)
Sand (minimum sand level: check red marking)
Drainage matting/geomembrane
Drainage/base layer, 50 cm approx.
Soil
General information on building a Beach Volleyball court with bolt-down socket:
We consider a permanent sand level of 40-50 cm as ideal. It is recommended to fill up the sand a little bit higher at the
centres of the playing field halves. It will be moved away towards the court surrounds by the players. Please make sure to
create a minimum sand level of 35 cm around the ground sockets for this installation option.
Example: Approximately 250 tons sand are required for a sand court with 14 x 22 m dimensions (for leisure sports) and a
sand level of approximately 45 cm. Calculation: volume in m³ x density factor (e.g.: 1,8 - depending on the grain size and
the sand quality).
Minium Sand level: 35 cm
2° 2°
10 m (bei 8,5 m-Netz)
11 m (bei 9,5 m-Netz)
Required for installation:
e.g. ground anchor with mortar cartridge
UPAT M16 x 165 A4 with UPAT UKA 3
M16 or equal
8x

14

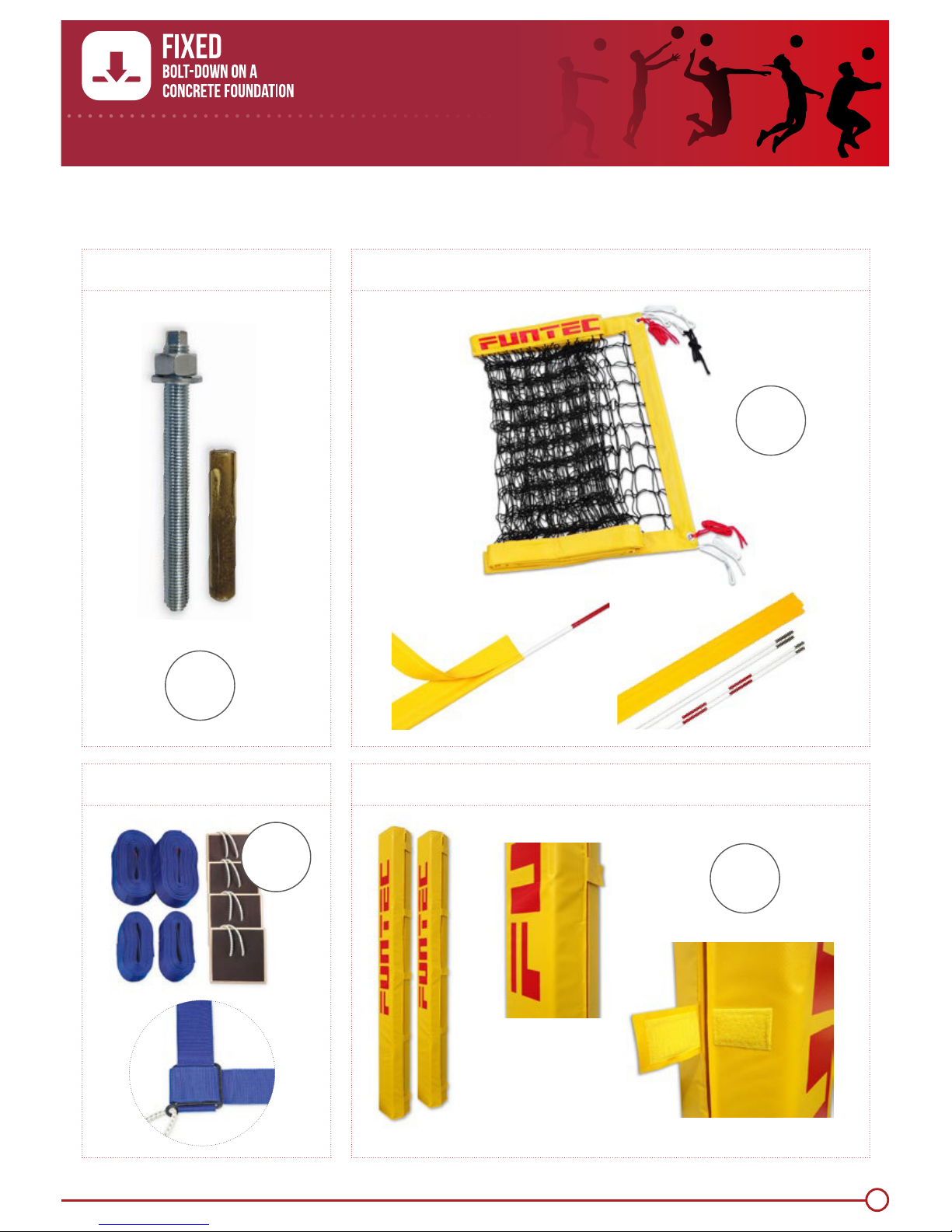

ACCESSORIES FOR ID: 111205 (SOLD SEPARATELY)
Steel ground anchor, with mortar
cartridge, ID: 111213
8x
Pro Beach Courtline
ID: 111304
Square-cut Beach Volley post pads (100 x 100 mm),
1 pair, ID: 111353
1x
Pro Beach net PLUS, incl. net antennas PLUS
(2-piece, with velcro strap pockets), ID: 111601
1x
1x

15

16

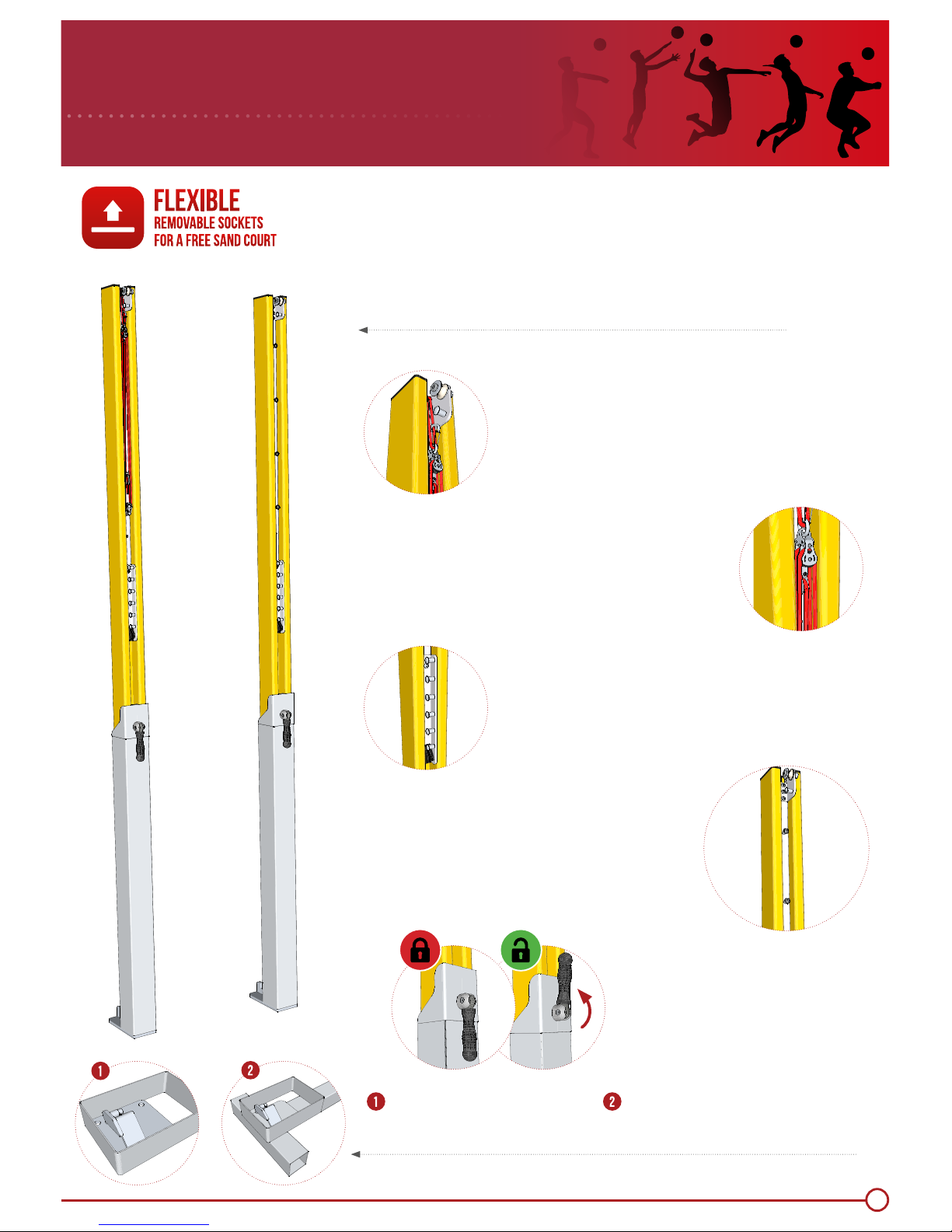

ID: 111204 - WITH REMOVABLE SOCKETS
Beach volleyball Posts
Pro Beach
Pro Beach net posts made from powdercoated
special aluminium profile (91 x 91 mm), telescopic
height adjustment with special socket adapters
Single-arm suspension,
allows easy mounting of tension cable
Rope pulley with triple block combination including
a stainless steel carabiner with wire gate (for one-
handed use)
Pulley block system is self-balancing
to pulling direction
Tensioning counter slider with four
mounting pins, ideal for choosing the best
net pre-tension with differing cable lengths
Open tensioning console with horizontal pins for best
choice of net cord angle
Includes an additional clamcleat below for comfortable
fine adjustment of tensioning ropes
Switch bolt-down ground plate
for a concrete foundation
Switch ground plate with T-base for a
freestanding installation with square
timbers
Pro Beach sockets with easy-to-use
locking lever
Maximum operation comfort with
exact lever position (open/closed)

17
ID: 111204
Scope of Delivery
Pro Beach socket, removable
from suitable ground plate
2x
Net post with
tackle tensioning slider
Net post with
tensioning counter slider
1x 1x

18
Important notice!

19
Steel ground anchor, with mortar
cartridge, ID: 111213
Square timber set
ID: 111232
Switch bolt-down ground plate, incl. sand protection
frame and a 3-piece steel cover lid, ID: 111219
2x
Switch ground plate with T-base, incl. sand protection
frame and a 3-piece steel cover lid, ID: 111220
2x
1x
FOR ID: 111204
8x
Ground installation options
and required accessories
20 22

20

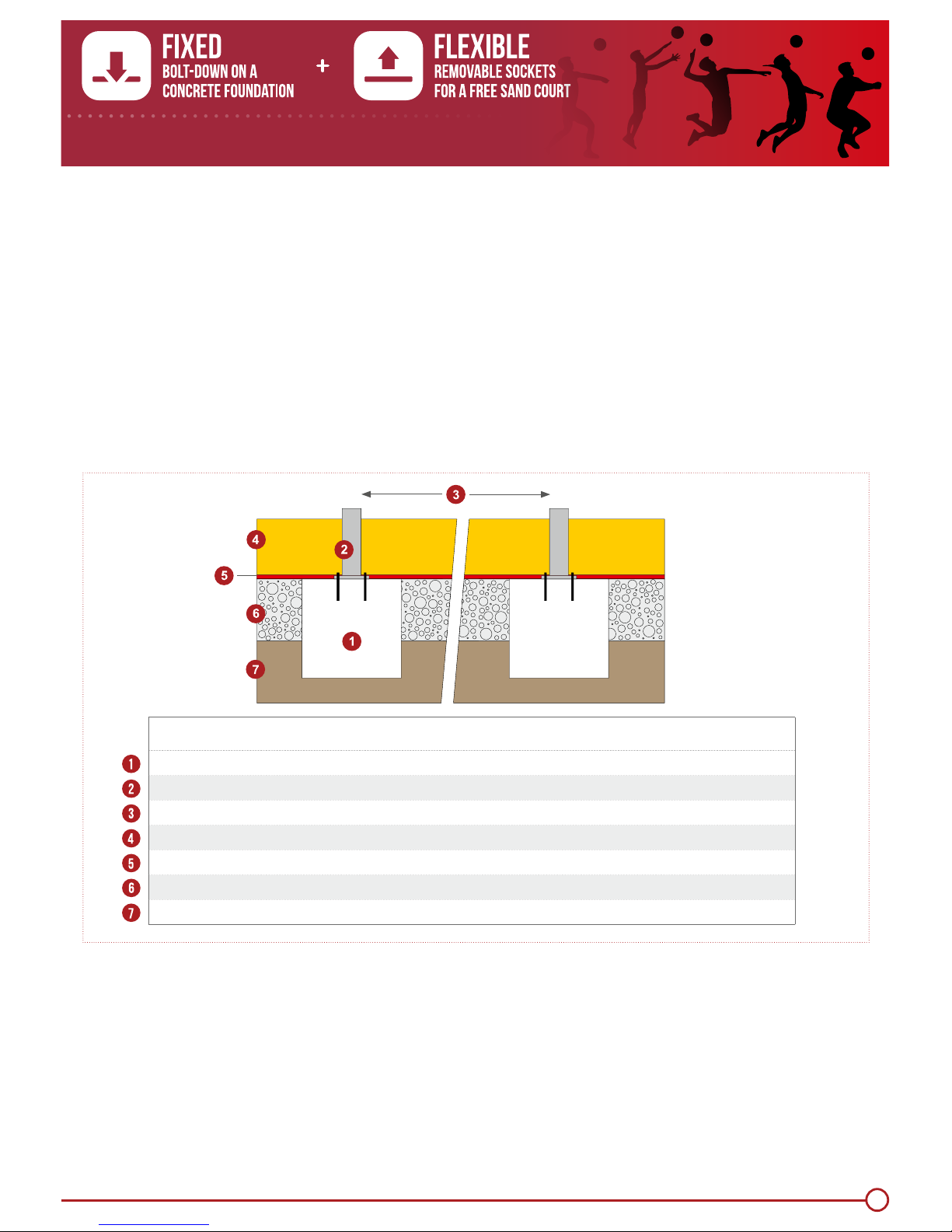

GROUND INSTALLATION OPTION FOR ID: 111204
General information on building a Beach Volleyball court with bolt-down socket:
We consider a permanent sand level of 40-50 cm as ideal. It is recommended to fill up the sand a little bit higher at the
centres of the playing field halves. It will be moved away towards the court surrounds by the players. Please make sure to
create a minimum sand level of 30 cm around the ground sockets for this installation option.
Example: Approximately 250 tons sand are required for a sand court with 14 x 22 m dimensions (for leisure sports) and a
sand level of approximately 45 cm. Calculation: volume in m³ x density factor (e.g.: 1,8 - depending on the grain size and
the sand quality).
Create foundations with a closed surface,
Distance (clear span between sockets): 10 m with a 8.5 m net, 11 m with a 9.5 m net
Description
Foundation, Dimensions: 80 x 80 x 80 cm, class C25/30, built-in welded wire fabric (Q188A)
Ground socket, bolted down on the concrete foundation
Distance (clear span): 10 m (with a 8.5 m net), 11 m (with a 9.5 m net)
Sand (minimum sand level: check red marking)
Drainage matting/geomembrane
Drainage/base layer, 50 cm approx.
Soil
Minimum sand level: 30 cm
