funtronic floor User manual

Instalation manual for the Funtronic Floor
Manual de instalación

OK
MODE
+
-
+
-
2
1) WHAT IS NEEDED FOR THE INSTALLATION? 2) PARTS OF THE SET
Hammer Pencil
The Funtronic Floor
Hanger with wing nuts
Remote with batteries
4 rawlplugs with screws
Wiertarka
Drill
Drill bit, 10 mm diameter
Phillips type screw drive

3
Manual
USB network adapter
Extension*
Power cable
*) use the extension if you are installing the hanger to a hidden
ceiling (p. ex. suspended ceiling)

h
d
min. 0,7m
maks. 1,5m
h
w = 0,75 h
0,7 w
0,2 w
0,3 w
Screen centre
4

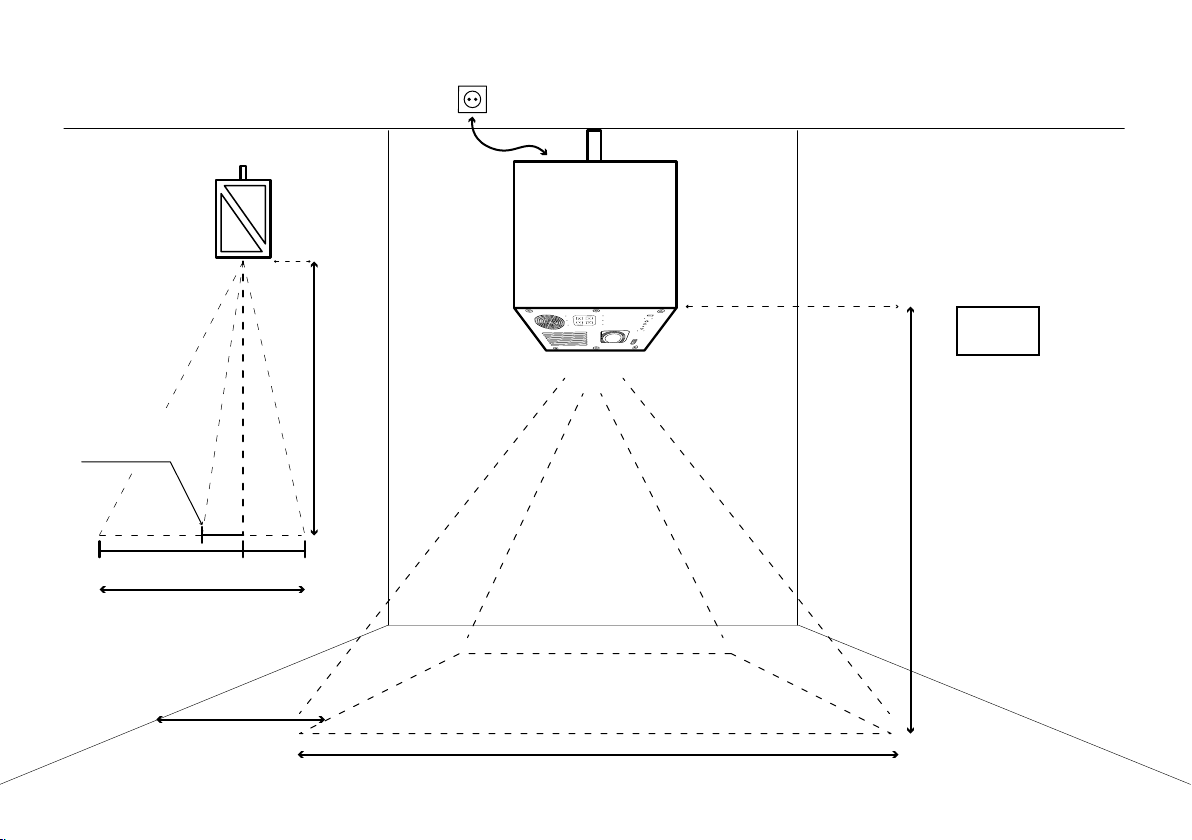

3) CHOOSE AN OPTIMAL PLACE FOR
INSTALLATION WARNING! Maximum distance from the power outlet is 1,5 m
WARNING!
Height, at which the unit is
installed (h) is equal to the width of
the picture displayed (d)
SIDE SHIFT
h = d

h
d
min. 0,7m
maks. 1,5m
h
w = 0,75 h
0,7 w
0,2 w
0,3 w
Środek obrazu
Screen centre
5
4) MARK WHERE THE HANGER SHOULD BE INSTALLED 5) DRILL HOLES
6) PUT THE RAWLPLUGS IN HOLES

A)
A)
B) C)
B)
A)
A)
B) C)
B)
6
7) INSTALL THE HANGER 8) PUT THE DEVICE ON THE HANGER, TIGHTEN THE WING NUTS
Do not screw it too
tight
Align the hanger
Tighten the
screws

A) B)
A) B)
OK
MODE
+
-
+
-
A) B)
A) B)
OK
MODE
+
-
+
-
A) B)
A) B)
OK
MODE
+
-
+
-
A) B)
A) B)
OK
MODE
+
-
+
-
7
9) CONNECT THE POWER CABLE 11) TURN THE DEVICE ON (OFF/ON SWITCH)
12) PUT THE BATTERIES IN THE REMOTE AND TURN ON THE FUNTRONIC FLOOR10) PLUG IN THE NETWORK ADAPTER AND CONFIGURE IN THE MENU
