Furniture To Go Scandi 4+2 Drawer Chest 1020201 User manual

Assembly Instructions - Please keep for future reference
Assembly Instructions - Please keep for future reference
1020201
Issue 2 - 21-02-2013
Scandi - 4+2 Drawer Chest
Dimensions
Width
Depth
Height
:
:
:
350216 MDF
83.5 cm
39.7 cm
88.3 cm

!Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Care and maintenance
1
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• We do not recommend the use
of power drill/drivers for
inserting screws, as this could
damage the unit. Only use hand
screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page
with these instructions for
future reference.
350216-02

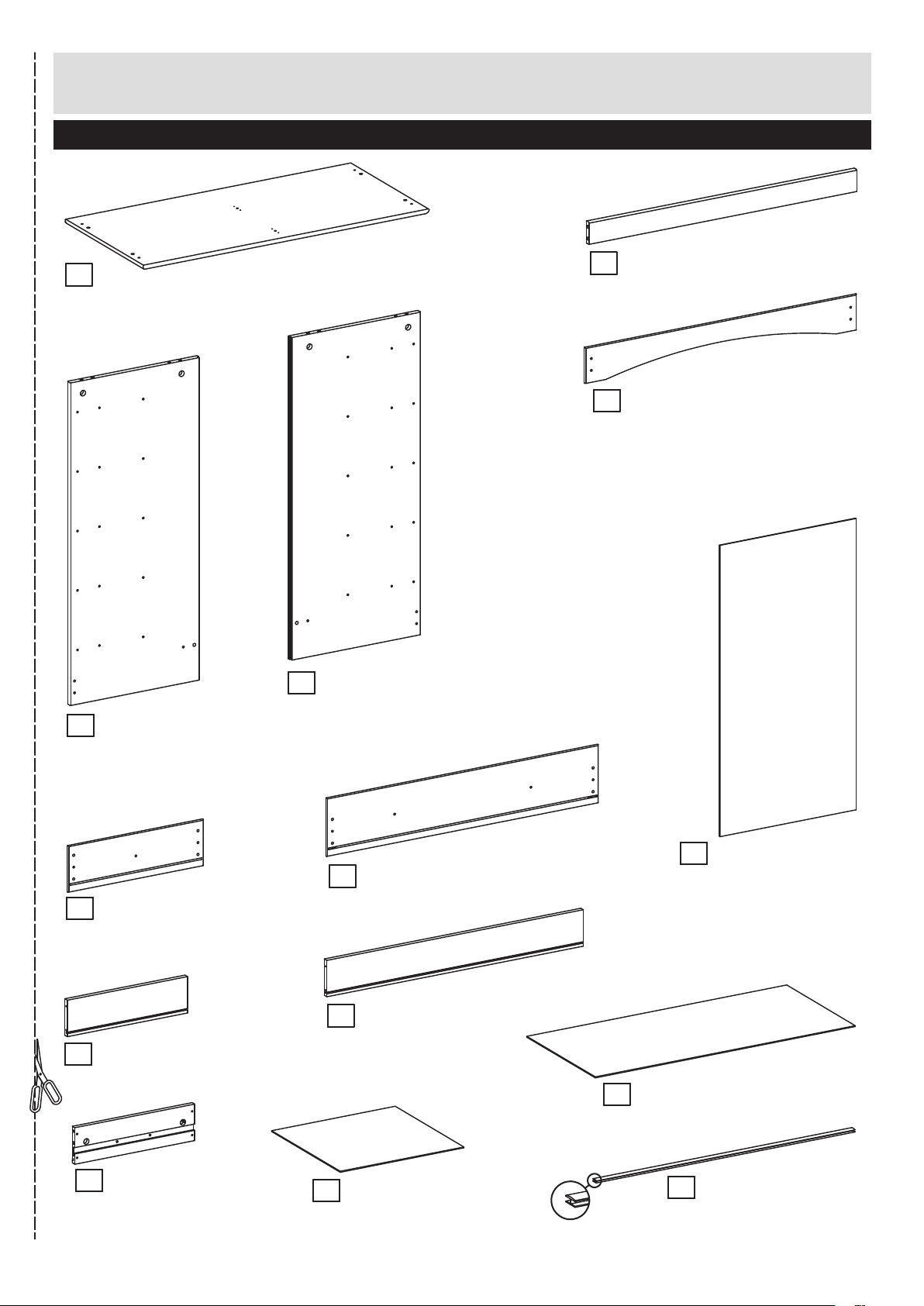

Components - Panels
Please check you have all the panels listed below
2
350168-03
3
(86,8 cm x 37,9 cm)
Side, right
2
(86,8 cm x 37,9 cm)
Side, left
4
(78,1 cm x 6 cm)
Plinth, back
15
(75,5 cm x 1,7 cm)
H-profile
11
(74,9 cm x 9,8 cm)
Drawer back
9
(79,3 cm x 15,7 cm)
Drawer front
5
(79,3 cm x 9,6 cm)
Plinth, front
7
(78,4 cm x 39,7 cm)
Back
1
(83,5 cm x 39,7 cm)
Top
8
(39,5 cm x 12,5 cm)
Drawerfront, small
10
(35,1 cm x 9,8 cm)
Drawer back, small
14
(75,9 cm x 34,7 cm)
Drawer bottom
13
(36,1 cm x 34,7 cm)
Drawer bottom, small
4
x
4
x
2
x
12
x
2
x
2
x
4
x
2
x
12
(35 cm x 9,8 cm)
Drawer side, right/left
350216-03

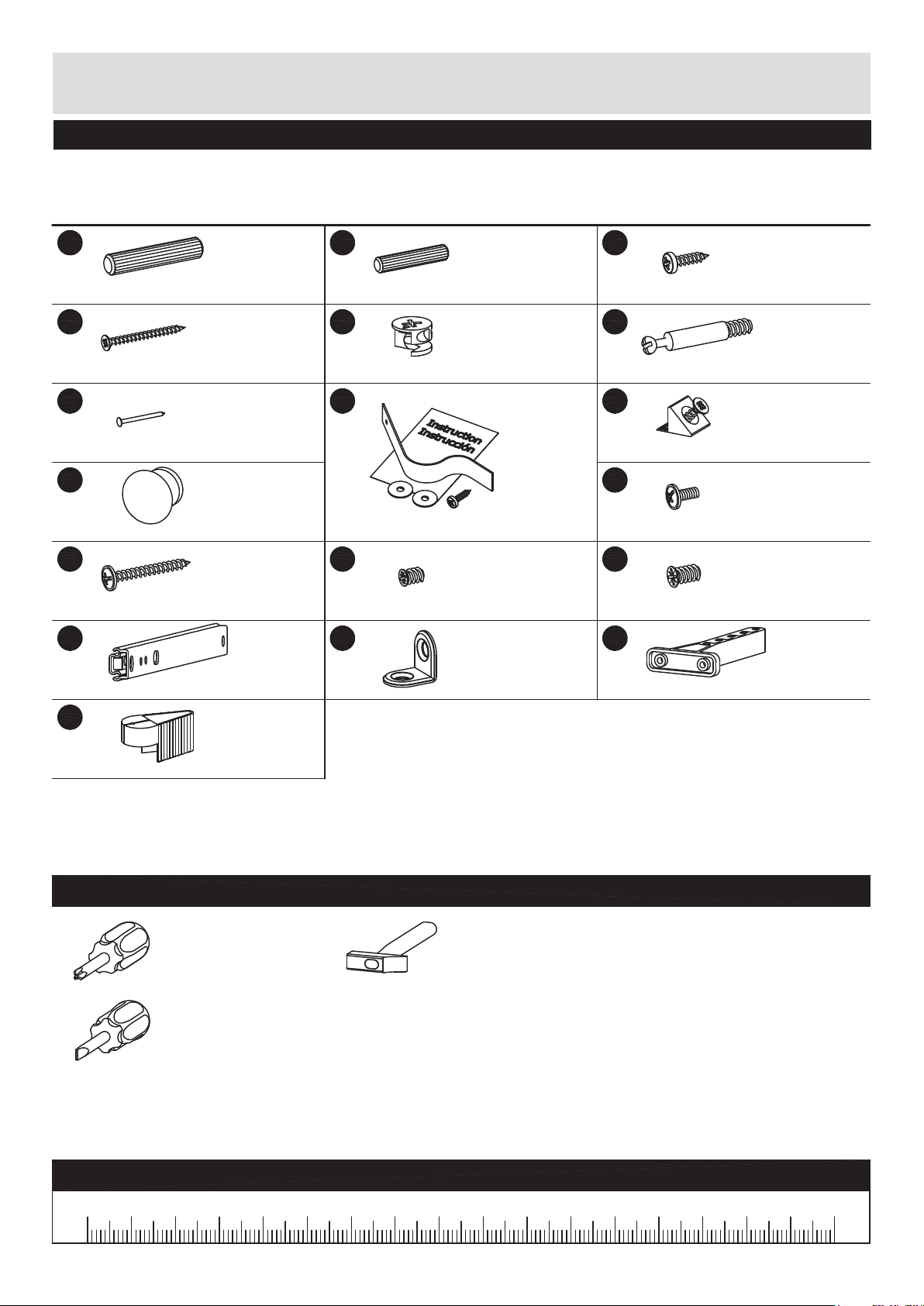

Components - Fittings
Please check you have all the panels listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more ttings
may be supplied than are required.
3350168-04 MDF
6 ø7.8 x 40mm Wooden dowel x
Aa Ab
ø6 x 30mm Wooden dowel x 24
Cb
ø5 x 11, cc34mm Bolt x 18
Ca
ø15 x 10.5mm Cam x
18
ø4 x 35mm Screw x
Jc
10
1.2 x 20mm Nail x
Da
50
Kb
ø5.8 x 8mm Screw x
34
Sk
12 245 x 17 x 10mm Drawer runner x
Gc
10 ø40 x 35mm Wooden Knob x Wall strap and instruction x 1
Fh
17060 16040 90 15013070 120100 14011050 803020100
Ruler - Use this ruler to help correctly identify the screws
Tools required
Flatblade screwdriver
(Medium)
Hammer Phillips screwdriver
(Medium & large)
Ke
8
ø6.1 x 11.5mm Screw x
Back fitting w. ø3.5 x 15mm Screw x
Fi
12
Va
Angle 20 x 20 x 16mm x 4
Yd
1
Nail holder x
ø3 x 35mm Screw x
Bp
24
Hk
12
M4 x 9mm Screw x
Wb
Support for drawer runner x
2
ø4 x 16mm Screw x
Bf
4
350216-04 MDF

Assembly Instructions
4
350168-05
x4
x2
11
14
9
Bp
Bp
Ab
Ab
Cb
Cb
10
12
13
8
Cb
Cb
Ab
Ab
Bp
Bp
x4
x2
x4
x2
x4
x2
12
12
12
12
12
12
12
12
12
12
12
350216-05

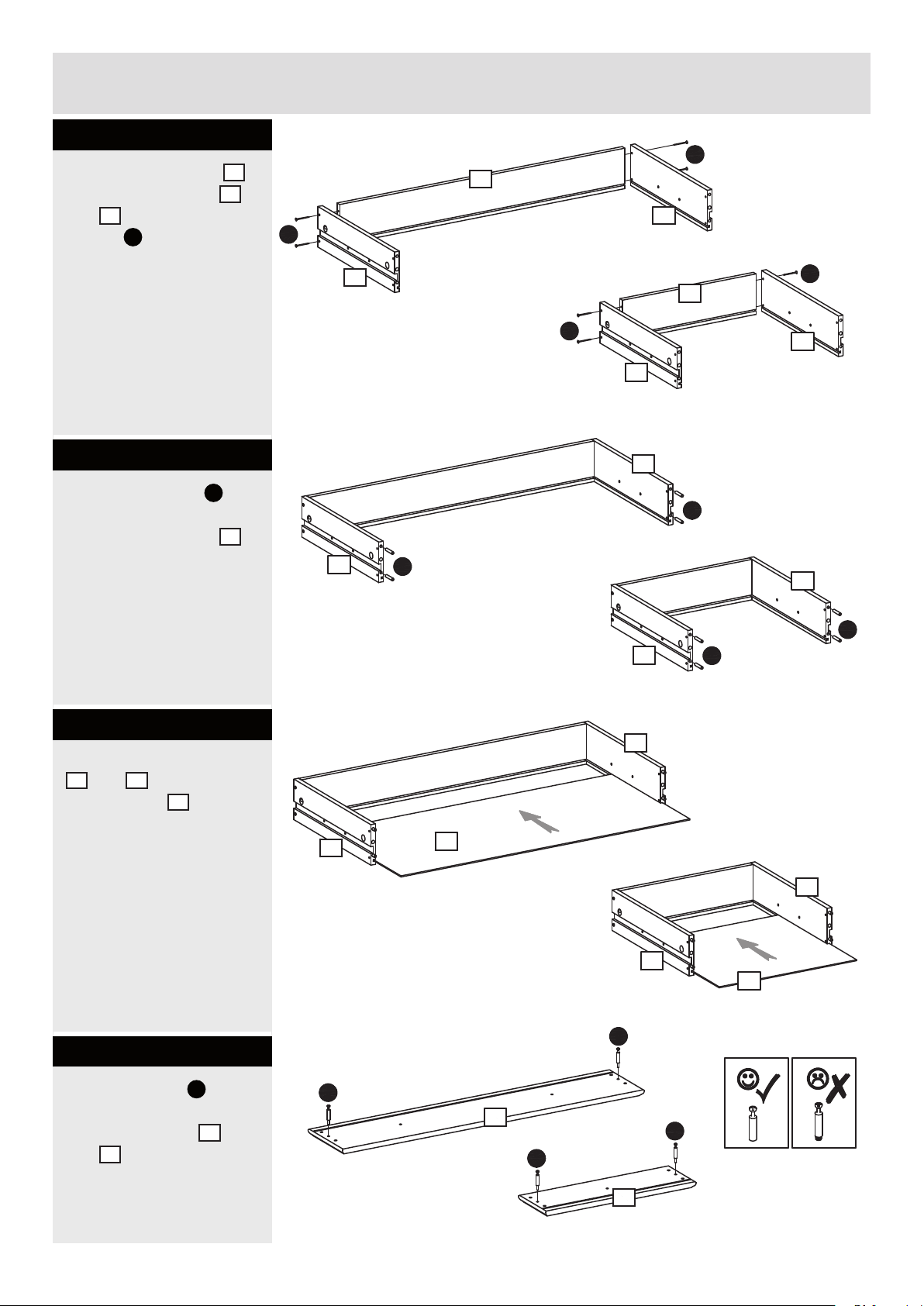

Knock the dowels
Ab
into the holes indicated
on the drawer sides 12
using a smal hammer.
Step 2
Step 4
Screw the bolts
Cb
into
the holes indicated on
the drawer fronts 8
and 9.
Fix the drawer sides 12
to the drawer backs 10
and 11 as shown, using
screws
Bp
.
Step 1
Slide the drawer bottoms
13 and 14 into the
drawer sides 12 .
Step 3

Assembly Instructions
350168-06
5
90°
90°
90°
90°
90°
90°
90°
90°
90°
Fi
Fi
Gc
Gc
Ca
Ca
9
Cb
Ca
10
8
9
11
13
14
Fi
Fi
Gc
x4
x2
x4
x2
x4
x2
8
Ca
Ca
9
8
12
12
12
12
Fi
Fi Fi
12
12
12
12
Jc
Jc
Jc
350216-06
Step 5
Push the drawer fronts
8and 9onto the
drawer sides 12 as
shown.
Push cams
Ca
into the
holes indicated. Arrow
pointing towards the
front.
Turn the cams
Ca
to the
right to x the fronts 8
and 9.
Step 6
!
Important!
Make sure the
angle between the
drawer fronts
8
/
9
and
the drawer sides
12
is 90°
before the drawer bottoms
13
/
14
is xed.
Fix the drawer bottoms
13
and
14
to the drawer backs
10
and
11
and the drawer
fronts
8
and
9
using
Fi
.
To adjust the angle between
the drawer sides and the
drawer fronts push the tting
Fi
sidewards. See details.
Step 7
Fix the Wooden knobs
Gc
to the drawer fronts 8
and 9using screws
Jc
.

Assembly Instructions
6
350168-07
1
1
Cb
Cb
Cb
Cb
Wb
Wb
Bf
Bf
Bf
Bf
Wb
Sk
Sk
Sk
Sk
Kb
Kb
Kb
Kb
Bf
Bf
350216-07

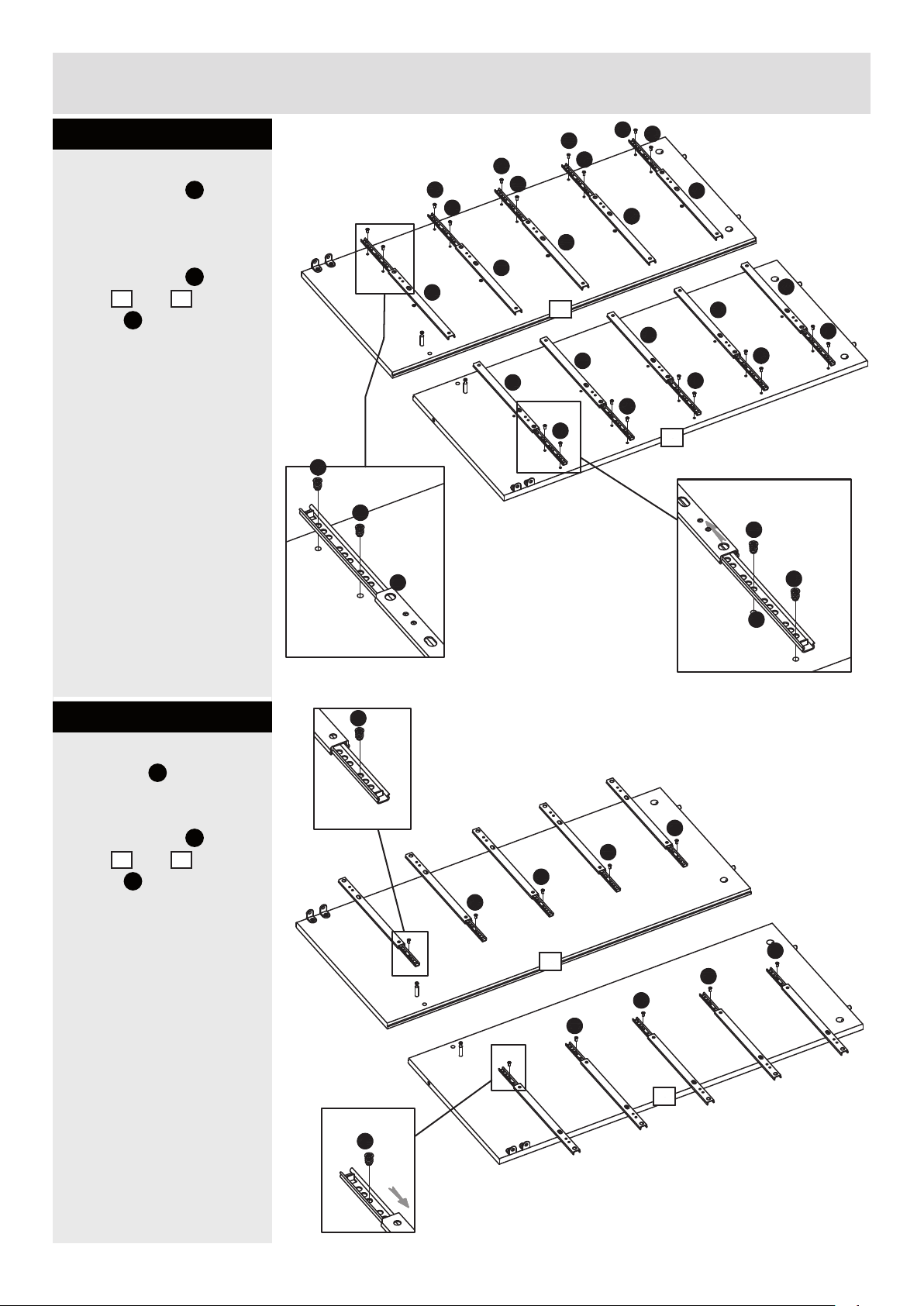

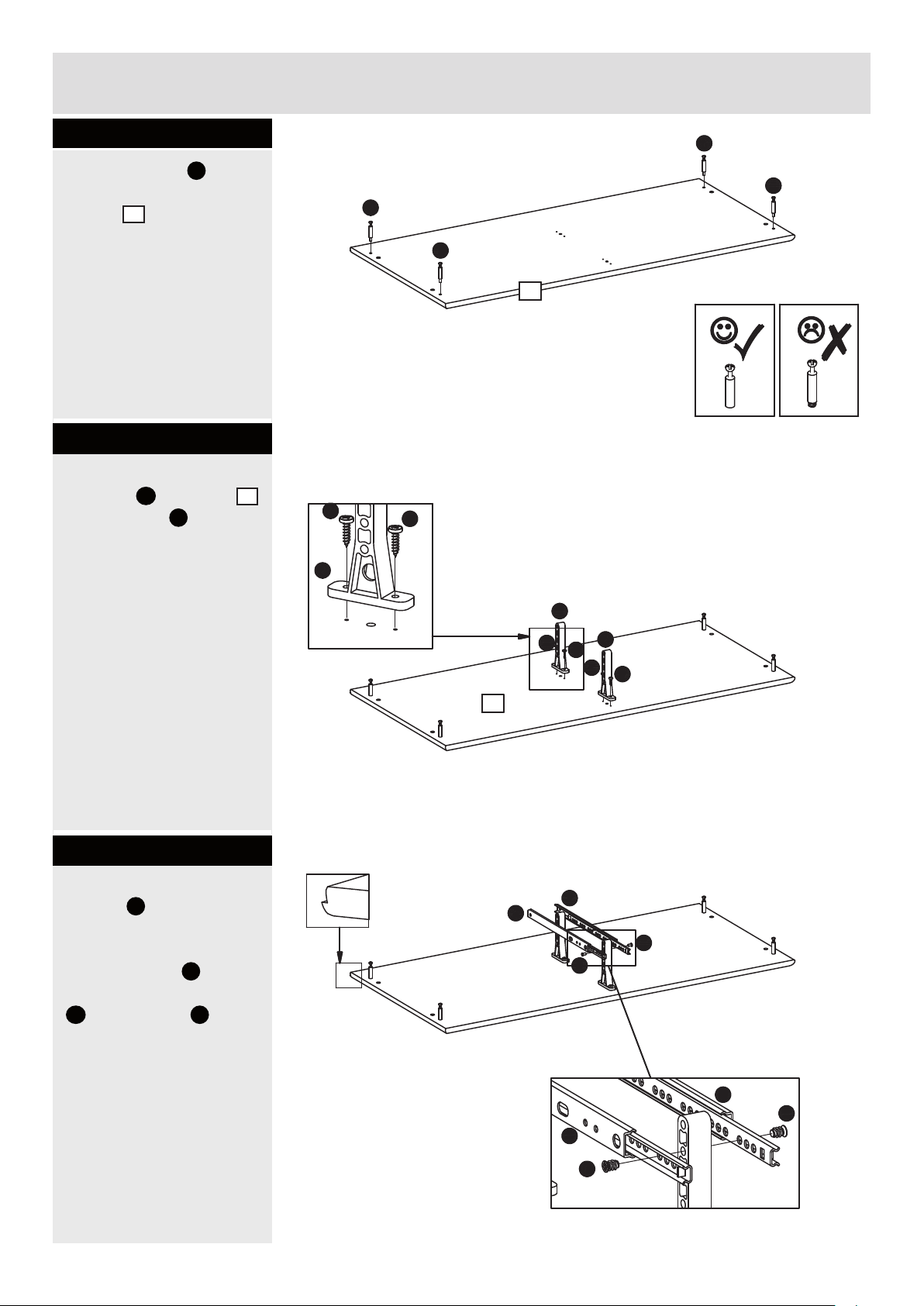

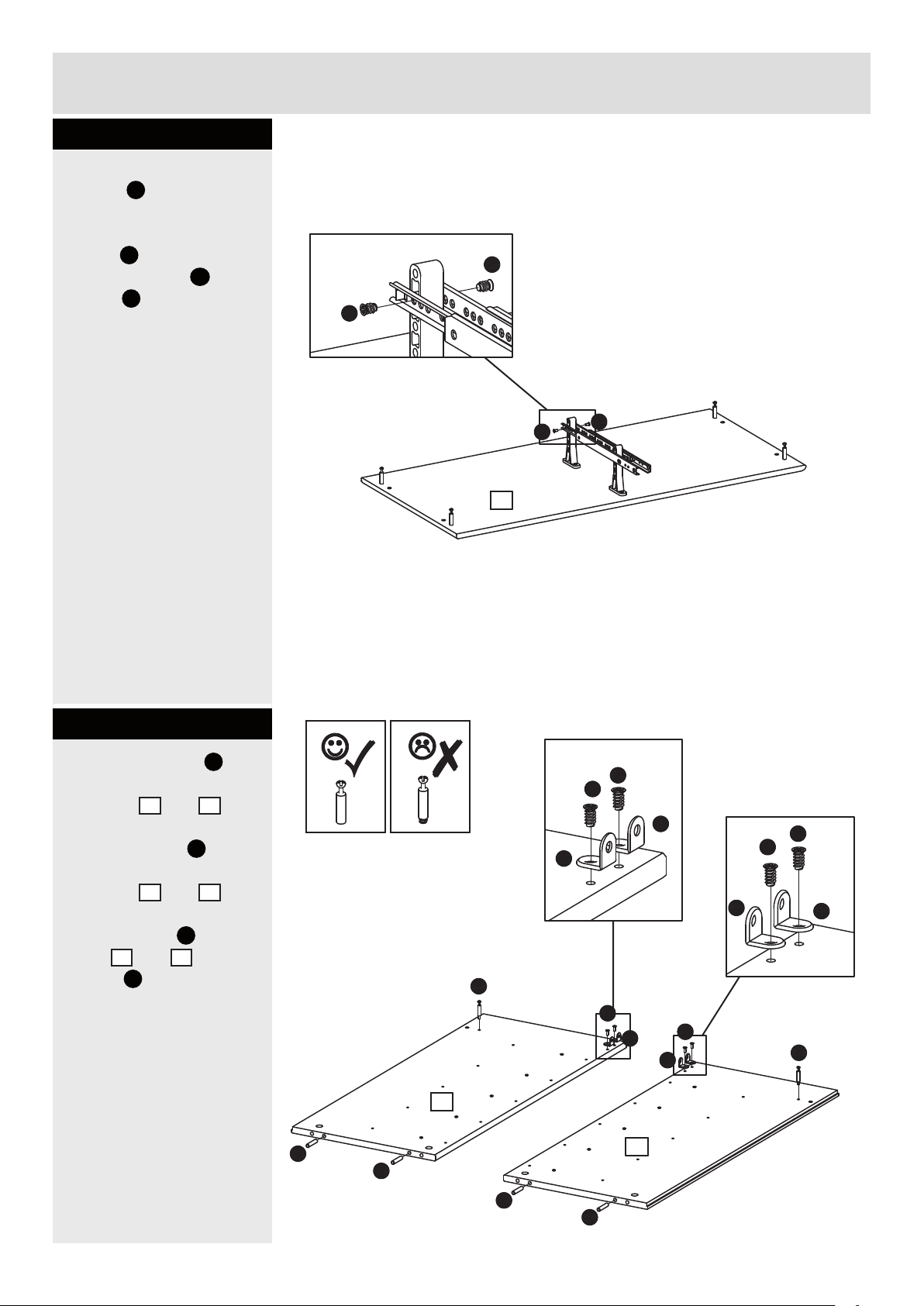

Slide the top of the drawer
runners
Sk
backwards.
Fix the front end of the
drawer runners
Sk
to the
drawer runner supports
Wb
using screws
Kb
into
the holes indicated. See
details.
Step 10
Step 8
Screw the bolts
Cb
into
the holes indicated on
the top 1.
Fix the drawer runner
supports
Wb
to the top 1
using screws
Bf
into the
holes indicated.
Step 9

Assembly Instructions
350168-08
7
Ke
Va
Va
Ke
Aa
Aa
Aa
Aa
Ke
Va
Va
3
2
Ke
Cb
Cb
Kb
Kb
Kb
Kb
1
Ke
Ke
Va
Va
350216-08
Slide the top of the drawer
runners
Sk
forwards.
Fix the the drawer
runner
Sk
to the drawer
runner supports
Wb
using
screws
Kb
into the holes
indicated. See details.
Step 11
Knock the dowels
Aa
into
the holes indicated on
the sides 2and 3.
Screw the bolts
Cb
into
the holes indicated on
the sides 2and 3.
Fix the angles
Va
to the
sides 2and 3using
screws
Ke
. Place the
angles as shown.
See details.
Step 12

Assembly Instructions
8
350168-09
Kb
Kb
Kb Kb
Sk
Sk
Sk
Sk
Sk
Sk
Sk
Sk
Sk
Sk
Kb
Kb
Kb
Kb
Kb
Sk
3
2
Kb
Kb
Kb
Kb
Kb
Kb
Kb
Kb
Kb
Kb
Kb
Kb
Sk
2
3
Kb
Kb
Kb
Kb
Kb
Kb
350216-09
Slide the top of the
drawer runners
Sk
backwards.
Fix the front end of the
drawer runners
Sk
to the
sides 2and 3using
screws
Kb
through the
holes indicated.
See details.
Step 13
Slide the top of the draw-
er runners
Sk
forwards.
Fix the backend of the
drawer runners
Sk
to the
sides 2and 3using
screws
Kb
through the
holes indicated.
See details.
Step 14

Assembly Instructions
350168-10
9
1
2
3
Ca
Ca
Ca
Ca
Ca
3
2
4
Cb
Ca
350216-10
Press the top 1onto the
sides 2and 3.
Push cams
Ca
into the
holes indicated on the
sides 2and 3.
Arrow pointing towards
the top 1.
Turn the cams
Ca
to the
right to x the top 1.
Step 16
Step 15
Place the sides 2and
3onto the back
plinth 4.
Tighten using cams
Ca
into the holes indicated
on the back plinth 4.

Assembly Instructions
10
350168-11
Yd
7
7
15
Da
Da
Da
Da
Da
342
1
5
2
3
Ke
Ke
Va
Ke
350216-11

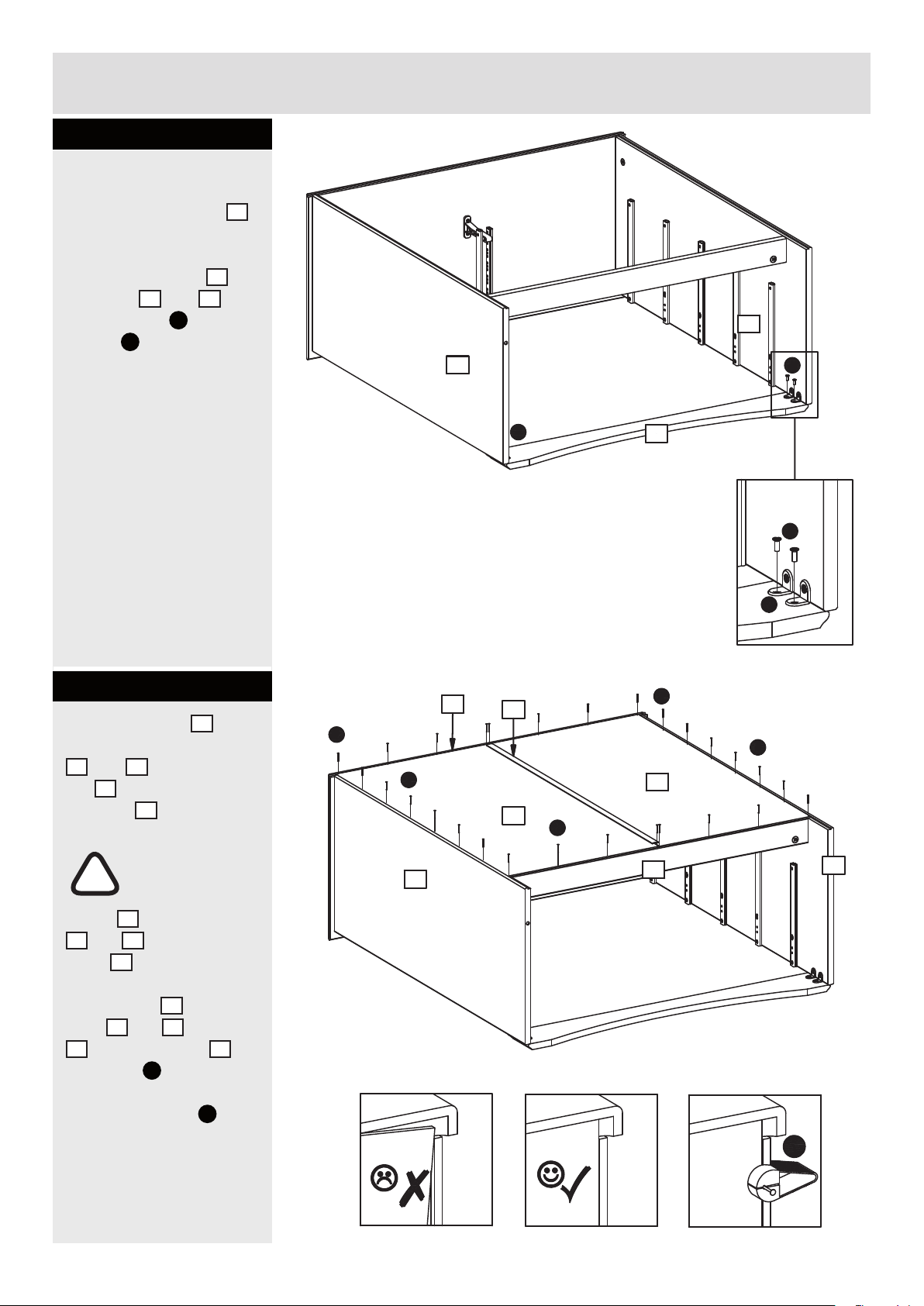

Turn around the chest.
Place the front plinth 5
as shown.
Fix the front plinth 5to
the sides 2and 3
using screws
Ke
into the
angles
Va
.
Step 17
Step 18
Place the backs 7into
the rabbets in the sides
2and 3and the
top 1and into the
H-prole 15 .
!
Important!
Make sure the
angle between
the top
1
and the sides
2
and
3
is 90° when the
backs
7
is attached.
Fix the backs
7
to the
sides
2
and
3
, the top
1
and the back rail
4
using nails
Da
.
Use the nail holder
Yd
and a
small hammer.

Assembly Instructions
350216-12
11
Hk
Hk

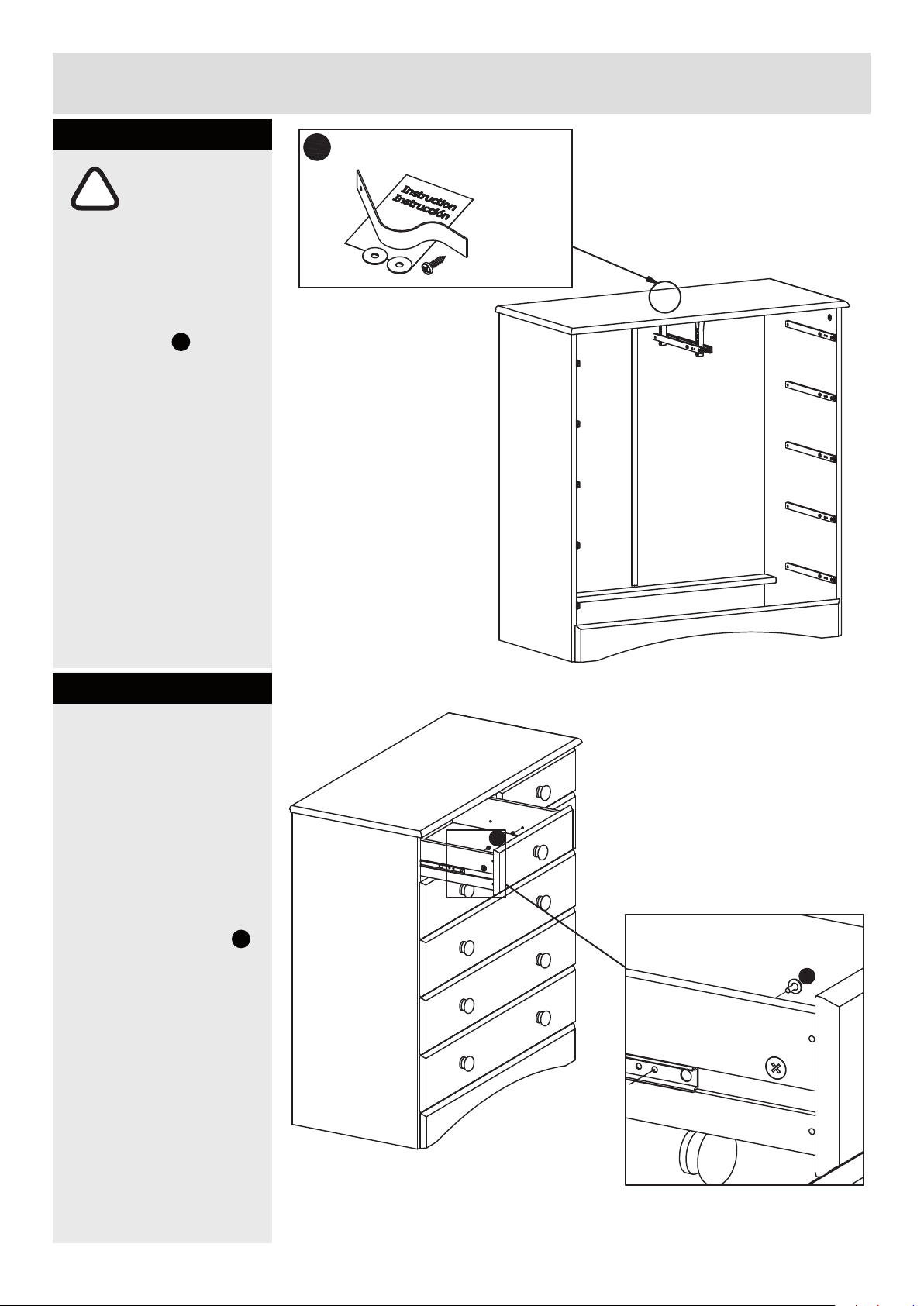

Wall strap and instruction
x Fh 1
350216-12
Pull out the drawer
runners. Slide the
drawers onto the
runners.
Fit and x the lower
drawer rst and work
your way up.
Fix drawers to drawer
runners using screws
Hk
.
Step 20
Step 19
!
Warning!
The chest of
drawers is heavy.
Lift with care.
Its recommended that the
chest is xed to the wall.
Use the ttings
Fh
. Follow
the instructions included
with the ttings.
