Furrion FHO23SACRV-BL User manual

*Product picture is for reference only.
12V Horizontal RV Range Hood
Instruction Manual
Model: FHO23SACRV-BL
FHO23SACRV-SS
FHO23SACRV-BP

1
Welcome
Thank you for purchasing the Furrion®12V Horizontal RV Range Hood. Before operating
your new appliance, please read these instructions carefully. This instruction manual
contains information for safe use, installation and maintenance of the appliance.
Please keep this instruction manual in a safe place for future reference. This will
ensure safe use and reduce the risk of injury. Be sure to pass on this manual to new
owners of this appliance.
The manufacturer does not accept responsibility for any damages due to not
observing these instructions.
If you have any further questions regarding our products, please contact us at
supportfurrion.com

2
Contents
Welcome ............................................................................................1
Contents ............................................................................................2
Important Safety Instructions............................................................3
Installation ........................................................................................5
What’s in the Box ....................................................................................................5
Range Hood Installation..........................................................................................5
Operation...........................................................................................7
Fan Control .............................................................................................................7
Light Control ...........................................................................................................7
Care and Cleaning..............................................................................8
Replacement Part List .......................................................................8
Warranty............................................................................................9
Specification ......................................................................................10

3
Important Safety Instructions
Warning and important safety instructions appearing in this guide are not meant to
cover all possible conditions and situations that may occur. Common sense, caution,
and care must be exercised when installing, maintaining, or operating the appliance.
Always contact the manufacturer about problems or conditions you do not understand.
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
–Do not use this fan with any solid
state speed control device.
–Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire related construction.
–Sufficient air is needed for proper
combustion and exhausting of
gases through the flue (chimney)
of fuel burning equipment to
prevent back drafting. Follow the
heating equipment manufacturer’s
guidelines and safety standards
such as those published by the
National Fire Protection Association
(NFPA), The American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE),
and local code authorities.
–When cutting into walls or ceilings,
do not damage electrical wiring and
other hidden utilities.
–Use only metal ductwork. Exhaust
air must be ducted to the outside.
Do not vent exhaust air into spaces
within walls, ceilings, attics, crawl
spaces or garages.
–Inadequate repairs may cause
serious hazards. For repair service,
please contact the service centre in
your country.
RANGE HOOD SAFETY
Your safety and the safety of others are
very important.
We have provided many important safety
messages in this manual and your
appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential
hazards that can kill or hurt you
and others. All safety messages
will follow the safety alert symbol
and either word “DANGER“ or
“WARNING.“ These words mean:
DANGER
You can be killed or seriously injured if you
don’t immediately follow instructions.
WARNING
You can be killed or seriously injured
if you don’t follow instructions.
CAUTION
Safety instruction: Failure to observe
this instruction can cause fatal or
serious injury.
●For general ventilating use only.
Do not use to exhaust hazardous or
explosive materials or vapors.
●Do not allow insulation, ceiling
finishing materials, roofing
materials, or other debris to enter
the fan housing or ductwork.
Motor failures due to debris are not
subject to warranty coverage.
Save these instructions for future reference

4
Important Safety Instructions
WARNING WARNING
TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
–SMOTHER FLAMES with a close-
fitting lid, cookie sheet or metal
tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out
immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
–NEVER PICK UP A FLAMING PAN!
You may be burned.
–DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
–Use an extinguisher only if:
1. You know you have a class ABC
extinguisher, and you already
know how to operate it.
2. The fire is small and contained
in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your
back to an exit.
Based on ‘Kitchen Fire Safety Tips’
published by the NFPA.
WARNING
TO REDUCE THE RISK OF INJURY OF A RANGE HOOD GREASE FIRE:
–Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite.
–Heat oils slowly on low or medium settings.
–Always turn hood on when cooking at high heat or when cooking or flambeing food.
–Clean ventilating fans frequently. Grease should not be allowed to accumulate on
fan or filter.
–Use proper pan size. Always use cookware appropriate for the size of the
surface element.
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE
FOLLOWING:
–Use this unit only in the manner
intended by the manufacturer.
If you have questions, contact the
manufacturer.
–Before servicing or cleaning unit,
switch power off at the service panel
and lock service disconnecting
means to prevent power from being
switched on accidentally. When the
service disconnecting means
cannot be locked, securely fasten
a prominent warning device,
such as a tag, to the service panel.
–People (including children)
whose physical, sensory or metal
capacities or whose lack of
experience or knowledge prevent
them from using this product
safely should not use it without the
supervision or instruction of
a responsible person.

5
Installation
What’s in the Box
Make sure all the following items are
included in the packaging. If any items are
damaged or missing, contact your dealer.
●12V RV Range Hood
●Mounting Screws (4 pieces)
●Instruction Manual
●Warranty Card

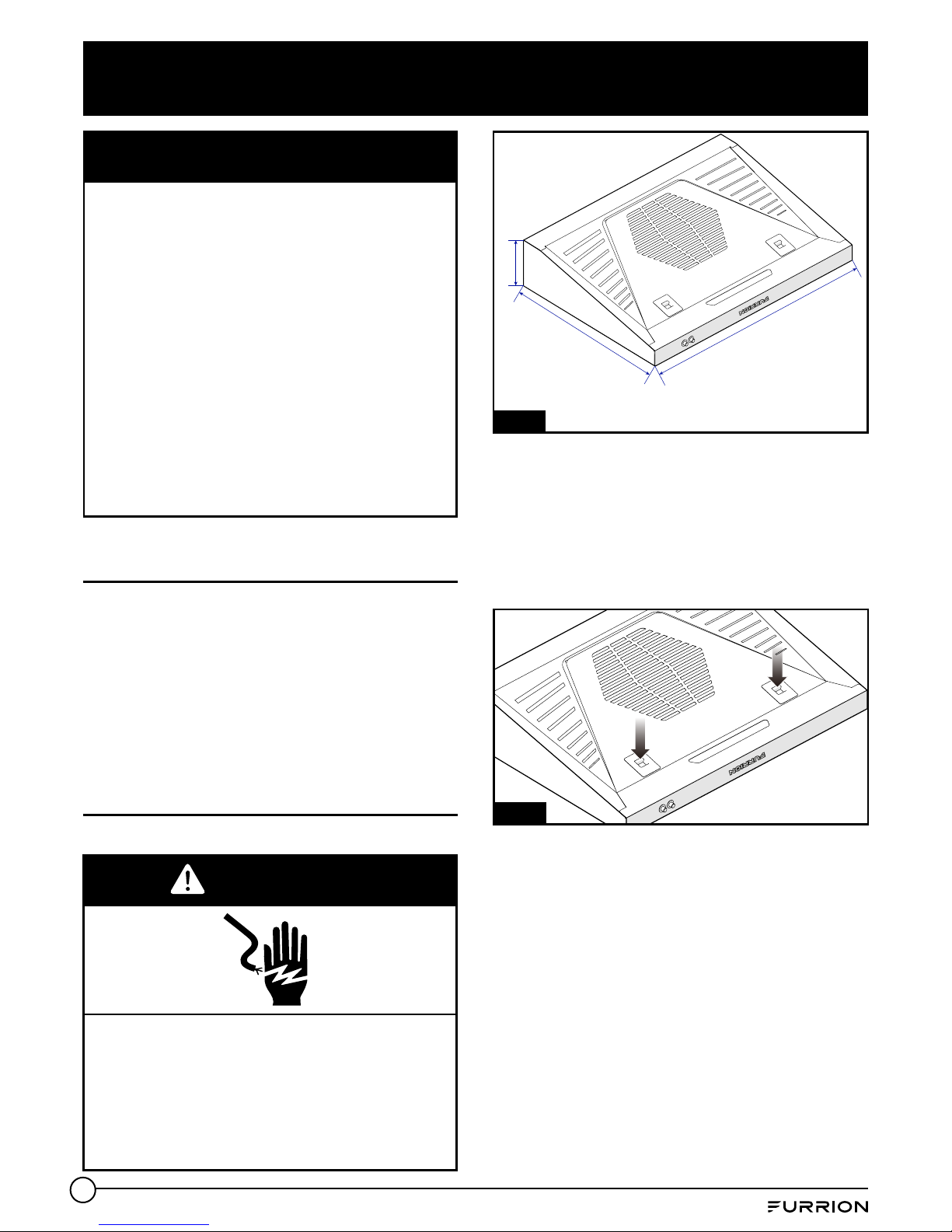

Range Hood Installation
1. Disconnect power.
2. Take out the range hood from box
and put on a flat surface with the grill
cover facing up.
3. Press the two release tabs on the
grill cover to release it from range
hood. (Fig. 2)
Fig. 2
4. Mark centerline of range hood on the
cooktop. (Fig. 3)
NOTE: The minimum vertical distance
to combustible material above the
cooktop is 19⁄ inches when installed
with a range hood, provided the
overhead construction does not
extend 13 inches from the rear wall.
(Fig. 4) This range hood will work with
Furrion cooktops and ranges with up
to 22,500 BTU.
4¹¹⁄16”
16¹¹⁄16”
23¹⁄2”
Fig. 1
IMPORTANT
Observe all governing codes and
ordinaces.
It is the installer’s responsibility to
comply with installation clearances
specified on the model/serial/rating
plate. The model/serial/rating plate is
located inside the range hood; Range
hood location should be away from
strong draft areas, such as windows,
doors, and strong heating vents.
Models that are capable of being
installed as non-vented (recirculating)
require charcoal filters.
WARNING
Electrical Shock Hazard.
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Product Dimension: 23⁄” x 16⁄” x 4⁄”
598 x 423.6 x 120.65 mm

6
Installation
19¹⁄2”
⁵⁄8”
10⁷⁄8”
4³⁄4”
23⁹⁄16”
Center of
Range Hood
Range Hood
Outline
3³⁄4”
Fig. 3
13”
19¹⁄2”
16¹¹⁄16”
3¹¹⁄16”
Fig. 4
5. Connect the range hood wires to a
12V power source from the bottom of
the cabinet. Connect white to white,
black to black. (Fig. 5)
NOTE: Make all electrical supply
connections in accordance with local
and/or applicable codes. A window
or air vent should be opened slightly
while using any cooking appliance.
Fig. 5
6. Fix the range hood onto the top
cabinet with the four screws provided.
(Fig. 6)
NOTE: DO NOT over tighten the screws.
Fig. 6
7. Verify that the blower housing and
ductwork are free of debris and fan
blades spin freely.
8. Replace the grill cover to the range
hood and press the release tabs
until you hear a click. (Fig. 7) The
grill cover is securely attached to the
range hood. (Fig. 8)
Fig. 7
Fig. 8

7
Operation
Fan Control
Press the fan button once to turn on the
fan, press twice to turn off. (Fig. 9)
Fig. 9
Light Control
Press the light button once to turn on the
light, press twice to turn off. (Fig. 10)
Fig. 10
Electrical Requirements
Observe all governing codes and ordinaces.
Ensure that the electrical installation
is adequate and in conformance with
National Electrical Code, ANSI/NFPA
70 (lastest edition), or CSA Standards
C22.1-94, Canadian Electrical Code, Part 1
and C22.2 No. 0-M91 (lastest edition) and
local codes and ordinances.
If codes permit and a separate ground
wire is used, it is recommended that a
qualified electrician determine that the
ground path is adequate.
Wire sizes and connections must
confirm with the rating of the appliance
as specified on the model/serial/rating
plate. The model/serial/rating plate is
located inside the range hood. Wire sizes
must confirm to the requirements of the
National Electrical Code, ANSI/NFPA
70 (lastest edition), or CSA Standards
C22.1-94, Canadian Electrical Code, Part
1 and C22.2 No. 0-M91 (lastest edition)
and local codes and ordinances.
Recreational vehicle fan units.
Do not operate any fan with a damaged
cord or plug. Discard fan or return
to an authorized service facility for
examination and/or repair.

8
Care and Cleaning
1
2
3
4
5
Replacement Parts List
No. Description:
1 Charcoal filter
2 Fan blade
3 Fan motor
4 LED bar
5 Switch
IMPORTANT: Clean the hood frequently
according to the following instructions.
After disconnecting power, wipe the fan
blade with a moist cloth or sponge to
remove any dirt buildup. Never attempt
to clean lamp bulb while it is hot.
This product uses a charcoal filter that
is not cleanable. To order a replacement
charcoal filter, please see the “Warranty”
section and back page for service contact
information. The charcoal filter should be
replace every six months when subject to
normal use.
Do not use sharp or hard objects or
cleaning agents for cleaning as these
may damage the product.
Replacing an LED Lamp
The LED lights are replaceable by a service
technician only. See the “Warranty“ section
and back page for service contact information.
Place the packaging material in the
appropriate recycling waste bins
wherever possible.
If you wish to finally dispose
of the product, ask your local
recycling centre or specialist
dealer for details about how to
do this in accordance with the
appliance disposal regulations.

9
Warranty
FURRION WARRANTS FOR A PERIOD OF 1 YEAR FROM DATE OF RETAIL PURCHASE
BY THE ORIGINAL END-USE PURCHASER, THAT THIS PRODUCT, WHEN DELIVERED
TO YOU IN NEW CONDITION, IN ORIGINAL PACKAGING, FROM A FURRION
AUTHORIZED RESELLER AND USED IN NORMAL CONDITIONS, IS FREE FROM ANY
DEFECTS IN MANUFACTURING, MATERIALS, AND WORKMANSHIP. IN CASE OF SUCH
DEFECT, FURRION SHALL REPLACE OR REPAIR THE PRODUCT AT NO CHARGE
TO YOU. THIS WARRANTY DOES NOT COVER: PRODUCTS WHERE THE ORIGINAL
SERIAL NUMBERS HAVE BEEN REMOVED, ALTERED OR CANNOT READILY BE
DETERMINED; DAMAGE OR LOSS CAUSED BY ACCIDENT, MISUSE, ABUSE, NEGLECT,
PRODUCT MODIFICATION, FAILURE TO FOLLOW INSTRUCTIONS IN INSTRUCTION
MANUAL, COMMERCIAL OR INDUSTRIAL USE; DAMAGE OR LOSS CAUSED TO THE
DECORATIVE SURFACE OF PRODUCT; TO ANY DATA, SOFTWARE OR INFORMATION;
AND NORMAL WEAR AND TEAR. THIS WARRANTY ONLY PROTECTS THE ORIGINAL
END-USER (“YOU”) AND IS NOT TRANSFERABLE; ANY ATTEMPT TO TRANSFER THIS
WARRANTY SHALL MAKE IT IMMEDIATELY VOID. THIS WARRANTY IS ONLY VALID IN
THE COUNTRY OF PURCHASE.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER
ORAL OR WRITTEN, EXPRESS OR IMPLIED. FURRION SPECIFICALLY DISCLAIMS
ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IF FURRION CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS
LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY.
No Furrion reseller, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.

10
Warranty
FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED
TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF
ANY EQUIPMENT OR PROPERTY, ANY COSTS OF RECOVERING, REPROGRAMMING,
OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH FURRION
PRODUCTS. FURRION’S TOTAL LIABILITY IS LIMITED TO THE REPAIR OR
REPLACEMENT OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR EXCLUSIONS OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES OR CONDITIONS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR (WHERE APPLICABLE
IN THE COUNTRIES WHERE FURRION HAS NON-US/CANADIAN AUTHORIZED
DEALERS) COUNTRY. NO ACTION OR CLAIM TO ENFORCE THIS WARRANTY SHALL BE
COMMENCED AFTER THE EXPIRATION OF THE WARRANTY PERIOD.
Keep your receipt, delivery slip, or other appropriate payment record to establish the
warranty period. Service under this warranty must be obtained by contacting Furrion at
[email protected]om
Product features or specifications as described or illustrated are subject to change
without notice.
Specifications
General Specification
Part No. FHO23SACRV-BL/FHO23SACRV-SS/FHO23SACRV-BP
Connection Voltage 12 VDC
Power Consumption 12 W
Lighting Power Consumption 0.95 W
Dimension 23⁄” x 16⁄” x 4⁄” (598 x 423.6 x 120.65 mm)
Test Mark

IM-FHA00037 V2.0
Furrion Innovation Center & Institute of Technology
●52567 Independence Ct., Elkhart, IN 46514, USA ●Toll free:1-888-354-5792
●Email: [email protected]om
©2007-2018 Furrion Ltd. Furrion®and the Furrion logo are trademarks licensed for use by
Furrion Ltd. and registered in the U.S. and other countries.
FURRION.COM
