Future Aqua User manual

590 REV02 REV DATE: SEPTEMBER 13, 2013
NT
USER MANUAL

CONTENTS
590 REV02 REV DATE: SEPTEMBER 13, 2013 2 AQUA NT
1 General...............................................................................................................................................................4
Labels .....................................................................................................................................................................5
Operating Safety Warnings ....................................................................................................................................6
Features..................................................................................................................................................................8
Safety Inspection Checklist ....................................................................................................................................9
Troubleshooting................................................................................................................................................... 11
2 Front Riggings ................................................................................................................................................. 12
Installing And Adjusting The Front Rigging Figure 1, Figure 2............................................................................ 12
3 Arms................................................................................................................................................................. 14
Adjusting And Installing Arms Figure 3Figure 4 .................................................................................................. 14
4 Back................................................................................................................................................................. 16
Replacing Upholstery And Adjusting Back Height Figure 5Figure 6................................................................... 16
5 Seat.................................................................................................................................................................. 18
Replacing Seat Assembly Figure 7 ..................................................................................................................... 18
6 Potty................................................................................................................................................................. 19
Removing and Installing Potty Figure 8 Figure 9 ................................................................................................ 19
7 Casters............................................................................................................................................................. 22
Adjusting commode seat height Figure 10.......................................................................................................... 22
8 Rear wheels (self-propelled only).................................................................................................................... 24

CONTENTS
590 REV02 REV DATE: SEPTEMBER 13, 2013 3 AQUA NT
Removing/Installing the rear wheels Figure 11 ................................................................................................... 24
9 Wheel locks –(self-propelled only).................................................................................................................. 25
Using the Wheel Locks Figure 12........................................................................................................................ 25
10 Anti-tippers (self-propelled only)...................................................................................................................... 27
Installing/adjusting anti-tippers Figure 13 Figure 15............................................................................................ 27
11 Seat to Floor .................................................................................................................................................... 30
Adjusting the seat to floor ratio Figure 15 Table 1............................................................................................... 30
12 Cleaning and maintenance.............................................................................................................................. 32
13 Warranty.......................................................................................................................................................... 34

1GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 4 AQUA NT
1 General
NOTE: Check all parts for shipping damages before using.
In case of damage, do NOT use the equipment.
Contact the Equipment Supplier for further instructions.
NOTICE
Information contained within this document is subject to change
without notice.
WARNING
DO NOT install this equipment without first reading and
understanding this instruction booklet. If you are unable to
understand these instructions, contact a healthcare professional,
dealer or technical personnel before attempting to install this
equipment - otherwise, injury or damage may occur.

1GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 5 AQUA NT
Labels
AQUA NT COMMODE
WEIGHT CAPACITY
300LBS. (136KGS)
REFER TO OWNER’S
MANUAL

1GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 6 AQUA NT
Operating Safety Warnings
Unless otherwise noted, all service and adjustment should be performed while the tilt commode is unoccupied.
To determine and establish your particular safety limits, practice bending, reaching and transferring activities in
several combinations in the presence of a qualified healthcare professional BEFORE attempting active use of the
tilt commode.
Always verify that the back assembly is secure PRIOR to use when an attendant is used to propel or lift the tilt
commode. Check for any signs of looseness or deterioration and if found, contact a qualified technician. DO
NOT attempt to move the tilt commode by using the back assembly is it is found to be unsecure or have
deteriorated.
DO NOT sit or transfer into the commode unless it is fully open and the commode seat assembly is properly
fastened to the commode frame though the use of clips.
DO NOT TRAVERSE, CLIMB or GO DOWN ramps or slopes greater than 9 degrees
DO NOT attempt to move up or down an incline with a water, ice or oil film
DO NOT operate on roads, streets or highways
DO NOT attempt to ride over curbs or obstacles. Doing so may cause your commode to tip over and cause
bodily harm to you or damage to the commode.
DO NOT attempt to reach objects if you have to move forward in the seat.
DO NOT attempt to reach objects if you have to pick them up from the floor by reaching down between your
knees.
DO NOT lean over the top of the back upholstery. This will change your center of gravity and may cause you
to tip over.
DO NOT shift your weight or sitting position toward direction you are reaching as the commode may tip over.

1GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 7 AQUA NT
WHEEL LOCKS ARE NOT BRAKES. DO NOT attempt to stop a moving commode with wheel locks.
These locks are to be engaged by the occupant or attendant when the commode is stationary and prior to use
by the occupant.
CASTER LOCKS ARE NOT BRAKES. DO NOT attempt to stop a moving commode with caster locks.
These locks are to be engaged by the attendant when the commode is stationary and prior to use by the
occupant.
DO NOT tip the commode without assistance.
DO NOT use an escalator to move a commode between floors. Serious bodily injury may occur.
Before attempting to transfer in and out of the commode, every precaution should be taken to reduce the gap
distance. Turn both casters parallel to the object you are transferring onto. When transferring to and from the
commode, ALWAYS ENGAGE BOTH WHEEL and CASTER LOCKS.
DO NOT use parts, accessories or adapters other than those authorized by Future Mobility Healthcare Inc.
Otherwise, the warranty is void.
DO NOT attempt to lift the commode by any removable (detachable) part. Lifting by means of any removable
(detachable) parts of a commode may result in injury to the user and/or assistant or damage to the commode.
DO NOT stand on the frame of the commode.
DO NOT use the footplate as a platform. When getting in or out of the commode, make sure that the
footplates are in the upward position.

1GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 8 AQUA NT
Features
FEATURES
SPECIFICATIONS
Removable seat and potty
Removable cantilever fixed height arm rest
Incredibly low 16-1/4” seat to floor height
Quick release clip on casters for adjustment of
seat to floor heights
Height adjustable back frame
50 or 70 degree swing away front riggings
(optional)
Removable rear wheels with stainless steel or
plastic hand rims (self-propelled only)
Composite footplates
Heel loops
Seat Width: 17”, 20”, 22”
Seat Depth: 17”
Overall Width: Seat Width +7” (self-propelled),
seat width + 6” (attendant propelled)
Seat to Floor: 15-1/4” –19”1/2”
Caster Size: 5” urethane w/lock
Rear Wheels: 20”, 22”, 24” (self-propelled only)
Back Style: Mesh Back
Back Height: 20”
Front Riggings: Swing away
Weight Capacity: 300lbs (136kgs)
Product Weight: 38lbs
Frame Material: Stainless Steel
Frame Finish: Electro polished or white powder
coat

1GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 9 AQUA NT
Safety Inspection Checklist
Initial adjustments should be made to suit your personal body structure needs and preference. Thereafter follow
these maintenance procedures:
Item
Initially
Weekly
Monthly
Periodically
GENERAL
Commode rolls straight (no excessive
drag or pull to one side)
X
X
X
FRAME AND CROSSING TUBES
Inspect for loose or missing hardware
Inspect for bent frame or cross tubes
X
X
X
X
X
X
SEAT AND BACK
Inspect for rips or sagging
Inspect for loose or broken hardware
Inspect cane and back support for
wear/looseness
X
X
X
X
X
X
X
FRONT AND REAR CASTERS
Inspect caster assembly for proper
tension by spinning caster; caster should
come to a gradual stop
X
X

1GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 10 AQUA NT
Adjust bearing system if wheel wobbles
or binds to a stop. Ensure wheel
bearings are clean and free of moisture.
Check caster stem for tightness
Inspect casters for cracks and wear
Inspect for cracked, bent or broken
spokes
Inspect Tente Caster lock to ensure it
engages properly
X
X
X
X
X
X
X
X
X
X
X
CLEANING
Clean upholstery and armrests
Clean potty and commode seat
Check commode for sign of human waste
on all parts to maintain sanitary
conditions.
X
X
X
X
X
X
X
X
X

1GENERAL
590 REV02 REV DATE: SEPTEMBER 13, 2013 11 AQUA NT
Troubleshooting
Commode
Veers
Right/Left
Sluggish
Turn or
Performance
Caster
Flutter
Squeaks
and
Rattles
Looseness
in Chair
Commode
not tilting
Solutions
X
X
X
X
Check for loose nuts and
bolts
X
X
Tente Caster assembly in
the front and rear (if
applicable)
X
Check gas cylinder
assembly to see if cable
ball socket is fastened
properly
X
Check to see if tilt cable is
not kinked which would
prevent the chair from
tilting

2FRONT RIGGINGS
590 REV02 REV DATE: SEPTEMBER 13, 2013 12 AQUA NT
2 Front Riggings
Installing and Adjusting the Front Rigging
Figure 1, Figure 2
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely –otherwise injury or damage may occur.
Installing/Removing The Front Riggings
Installing:
1. Place the front rigging assembly parallel to the
commode pointing outwards.
2. Insert the bushing on the commode hanger into
the top opening of the frame front.
3. The back cutout on the bushing should come to
rest on the pin –which is welded to the frame
front.
4. Ensure the Front Rigging is not loose and is
‘snug’ in place
5. Repeat this procedure with the other front
rigging assembly.
Figure 1

2FRONT RIGGINGS
590 REV02 REV DATE: SEPTEMBER 13, 2013 13 AQUA NT
Removing:
1. Lift the front rigging vertically up such that the
hanger bushing clears the frame front pin.
2. The rigging should be placed near the
commode so when needed it may be placed
back onto the commode
3. Repeat this procedure with the other front
rigging assembly.
Adjusting Footplate Height
1. Remove the front rigging assembly. Refer to
INSTALLING/REMOVING THE FRONT
RIGGING in this section of the manual.
2. Loosen the 1/4-20 x 1/2” socket head button
screw which fastens the footrest hanger to the
footrest extension. Slide the footrest extension
up or down to desired height. There should be
approximately 2-3/8” of range for the footrest
extension.
3. Re-tighten socket head button screw.
4. Repeat this procedure with the other footplate
assembly.
Figure 2

3ARMS
590 REV02 REV DATE: SEPTEMBER 13, 2013 14 AQUA NT
3 Arms

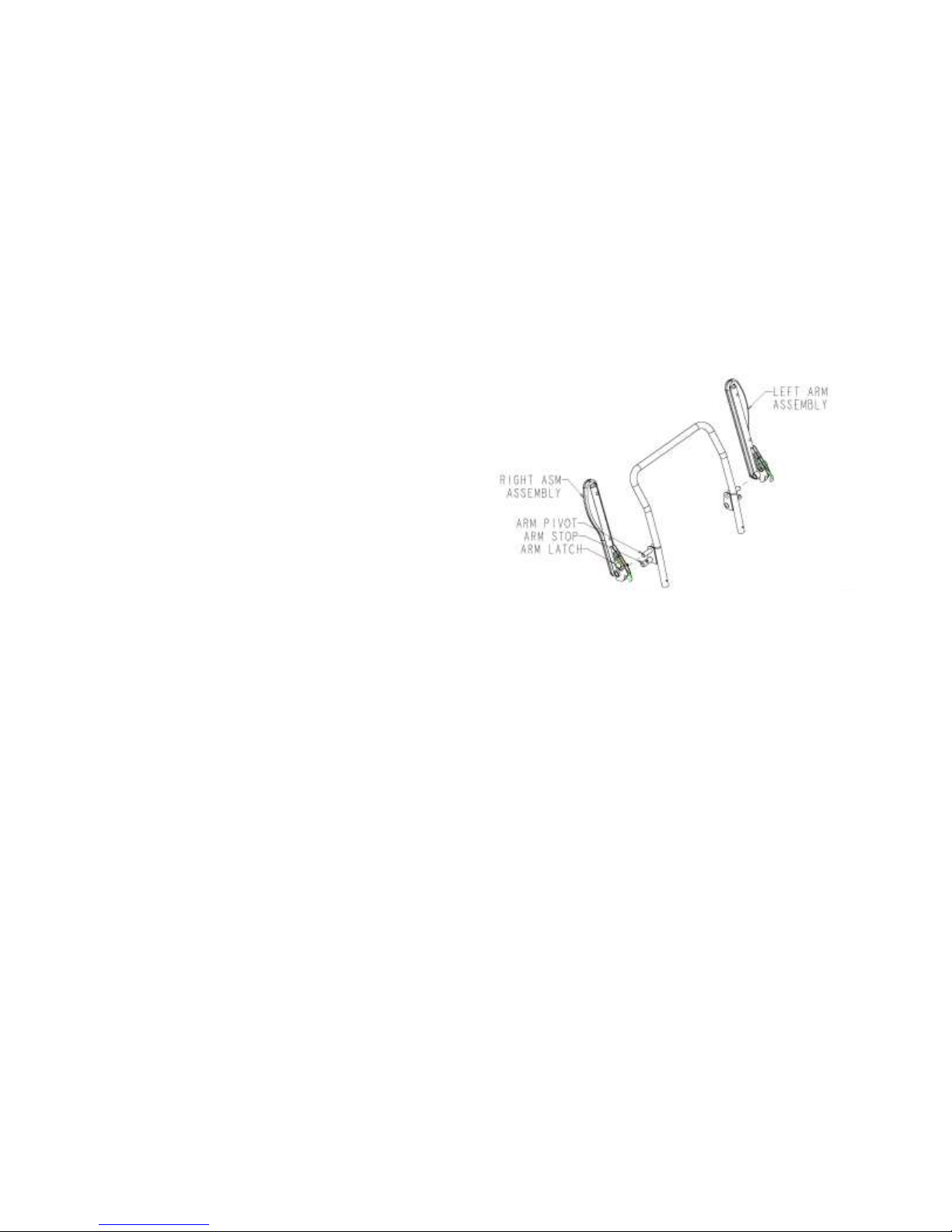

Adjusting and Installing Arms Figure 3 Figure 4
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely –otherwise injury or damage may occur.
Removing Arm Assembly
1. Lift the arm latch up with index finger such that
the arm assembly is able to rotate
2. Rotate the arm assembly upwards to the
position show in the figure.
3. At this point the arm assembly should come to
a stop. Gently slide the arm assembly towards
your body and you should be able to see the
arm assembly out come from the arm pivot rod.
4. Do not force the arm assembly out as there a
nylon spacer which acts as a guide for the arm
while it is rotating and keeps the arm in place.
Note: If the nylon spacer becomes damaged
then it needs to be replaced because it could
cause problems for the end user.
Figure 3

3ARMS
590 REV02 REV DATE: SEPTEMBER 13, 2013 15 AQUA NT
Installing Arm Assembly
1. Orient the arm assembly in a manner such that
the arm latch and arm pads are oriented away
from the back frame as shown below
2. Gently slide the arm assembly onto the arm
pivot rod until it comes to a stop.
3. One should notice that the space between the
two metal plates on the arm body should line
up with the nylon spacer.
4. Do not force the arm assembly inwards as
there a nylon spacer which acts as a guide for
the arm while it is rotating and keeps the arm in
place.
Note: If the nylon spacer becomes damaged
then it needs to be replaced because it could
cause problems for the end user.
5. Gently rotate the arm assembly downwards
until the arm assembly comes to rest. One
should hear a ‘click’ noise and notice that the
back of the arm latch is engaged with the arm
stop.
Figure 4

4BACK
590 REV02 REV DATE: SEPTEMBER 13, 2013 16 AQUA NT
4 Back
Replacing Upholstery and Adjusting Back Height Figure 5 Figure 6
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely –otherwise injury or damage may occur.
Replacing The Back Upholstery
1. Gently grasp the back upholstery from the
sides and slide the upholstery up the back
assembly until the upholstery becomes loose
and is independent from the commode.
2. Gently grasp the new back upholstery from the
sides and slide the upholstery down the back
assembly until the top of the upholstery lines
up with the top of the back assembly. One
should also notice that the bends at the top of
the back assembly should be visible through
the cutouts on either side of the back
upholstery.

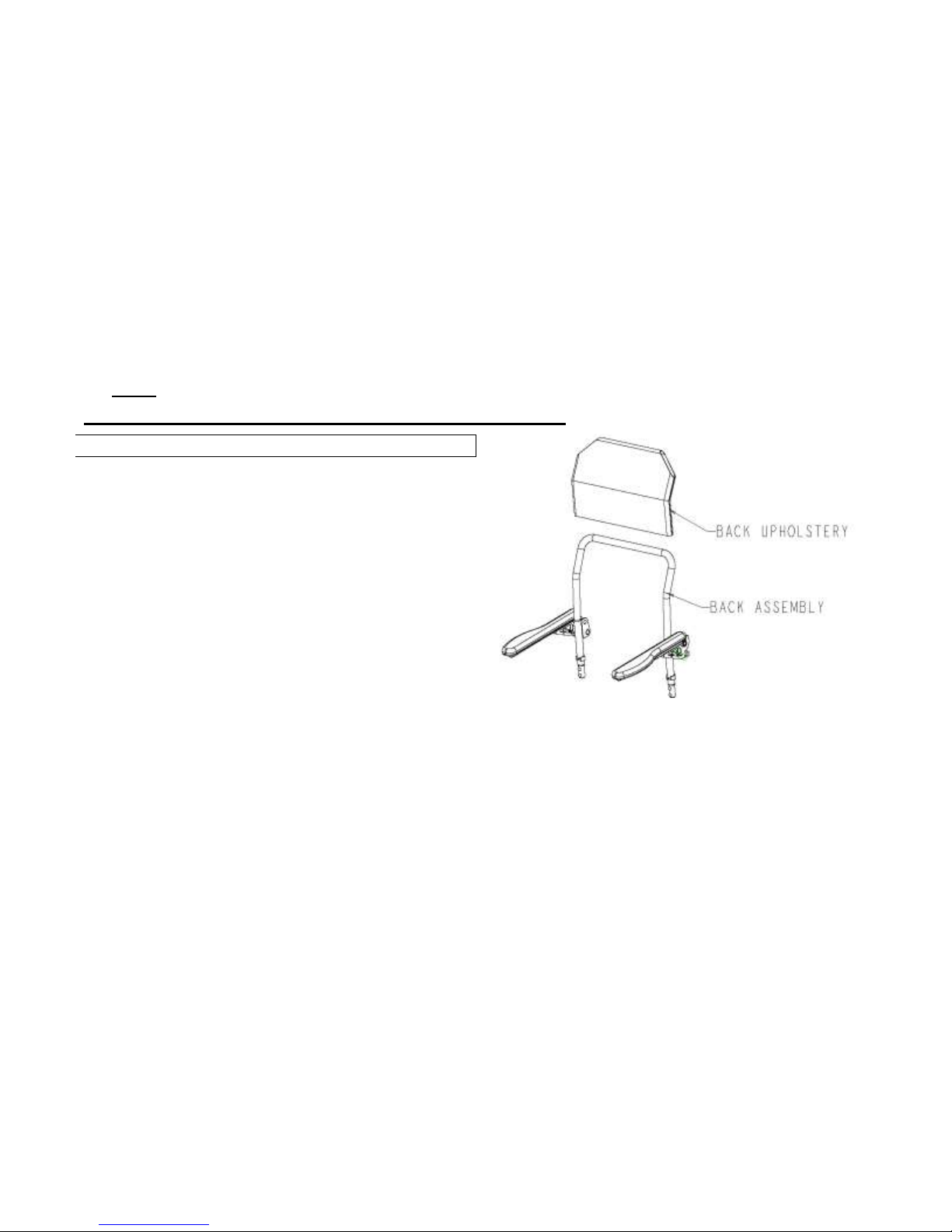

Figure 5

4BACK
590 REV02 REV DATE: SEPTEMBER 13, 2013 17 AQUA NT
Adjusting Back Assembly Height
1. Remove the snap clip on both sides of the back
assembly
2. Adjust the position of the back assembly to the
desired height on the receiver post and hold
the back assembly in place.
3. Place the snap clip back into the back
assembly to secure the assembly to the
receiver post. Ensure the hole used by the
snap clip is at the same position on both sides
such that the back assembly is straight and not
at an angle.

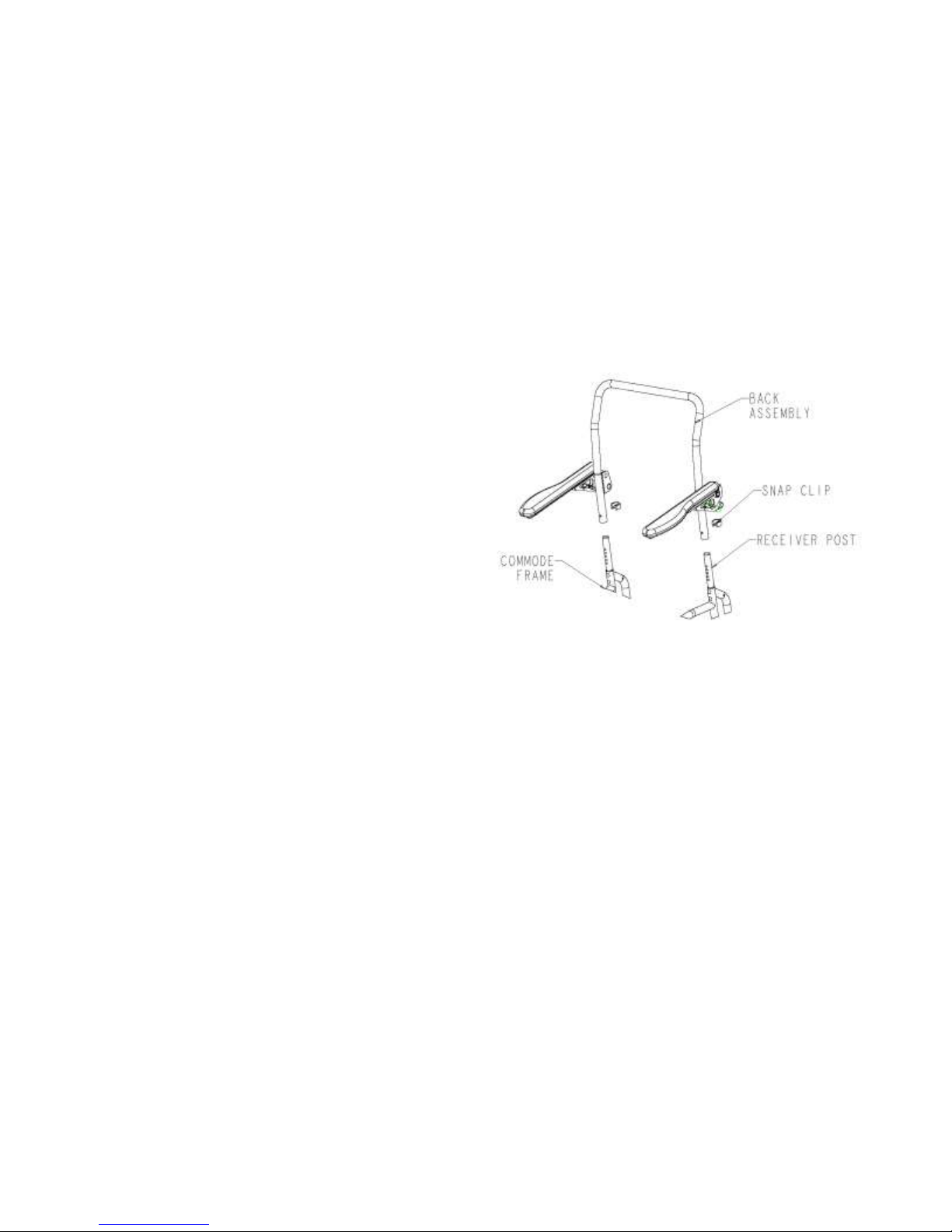

Figure 6

5SEAT
590 REV02 REV DATE: SEPTEMBER 13, 2013 18 AQUA NT
5 Seat
Replacing Seat Assembly Figure 7
Replacing Seat Assembly
1. Gently grasp the seat assembly from the sides
and pull upwards to release the seat locking
clips from the commode frame tubing such that
the seat assembly becomes independent from
the commode.
2. Gently grasp the new seat assembly from the
sides and line up the approximate location of
the seat locking clips with their respective
frame tubing that they will ‘lock’ onto.
3. Push the seat assembly down onto the frame
and ensure that the commode seat opening is
oriented in the manner shown below. The seat
locking clip should ‘lock’ onto the frame tubing.
The commode seat assembly should be ‘snug’
in place and should not be loose.
4. Ensure the seat locking clips do not interfere
with the bends on the potty receiver.

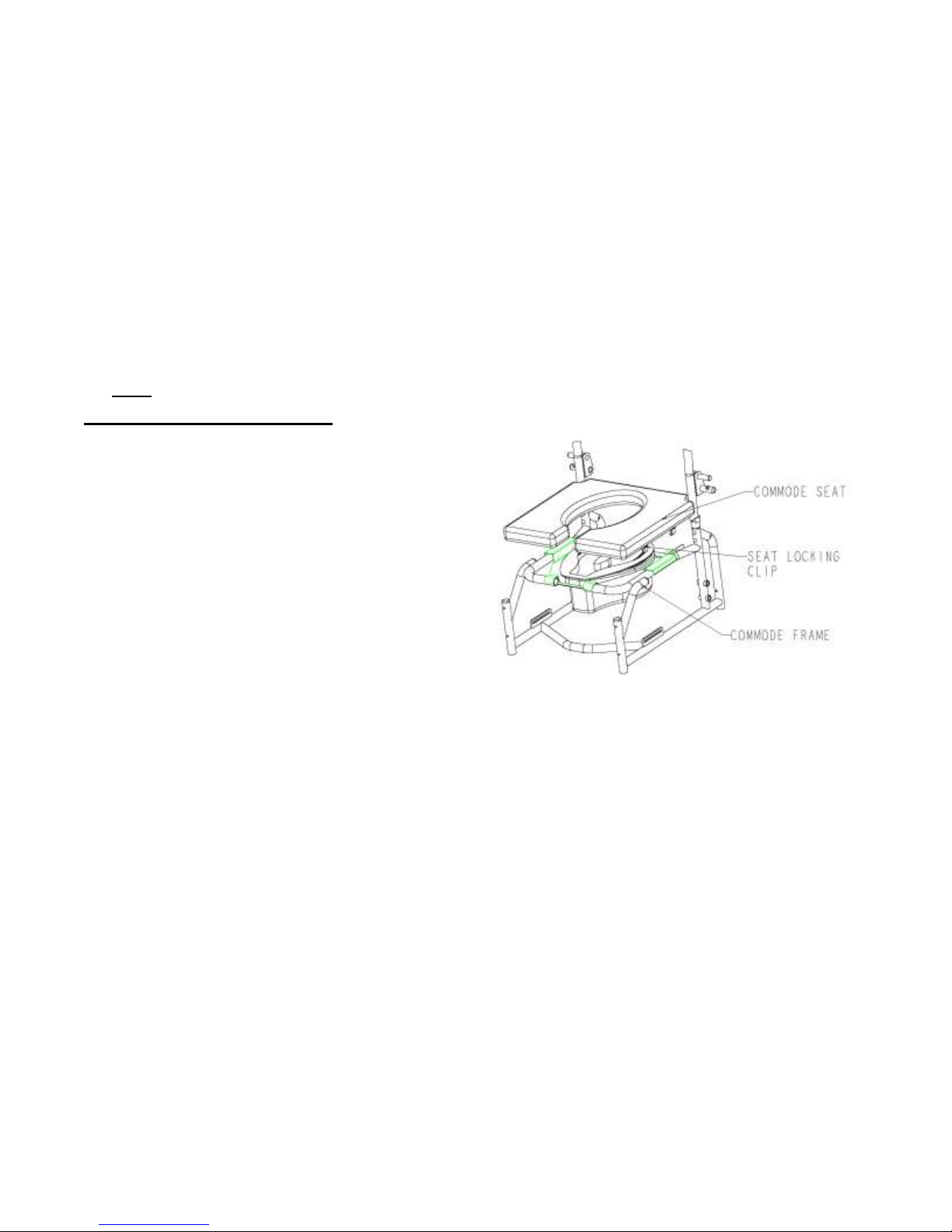

Figure 7

6POTTY
590 REV02 REV DATE: SEPTEMBER 13, 2013 19 AQUA NT
6 Potty
Removing and Installing Potty Figure 8 Figure 9
WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure all attaching hardware is tightened
securely –otherwise injury or damage may occur.
Removing Potty
1. Turn the commode around so that one can see
the back of the commode and potty.
2. Ensure the wheel or caster locks are engaged
before removing potty.
3. Open one side of the Velcro potty strap located
on the potty receiver.
4. Gently grasp the handle of the potty and slide
the potty out from the potty receiver in a
direction away from the commode.
5. Place the lid on the potty as shown below and
ensure the lid and potty properly assemble
together. The potty lid handle should be
oriented vertical up to ensure that the potty
assembly does not fall when it is picked up.

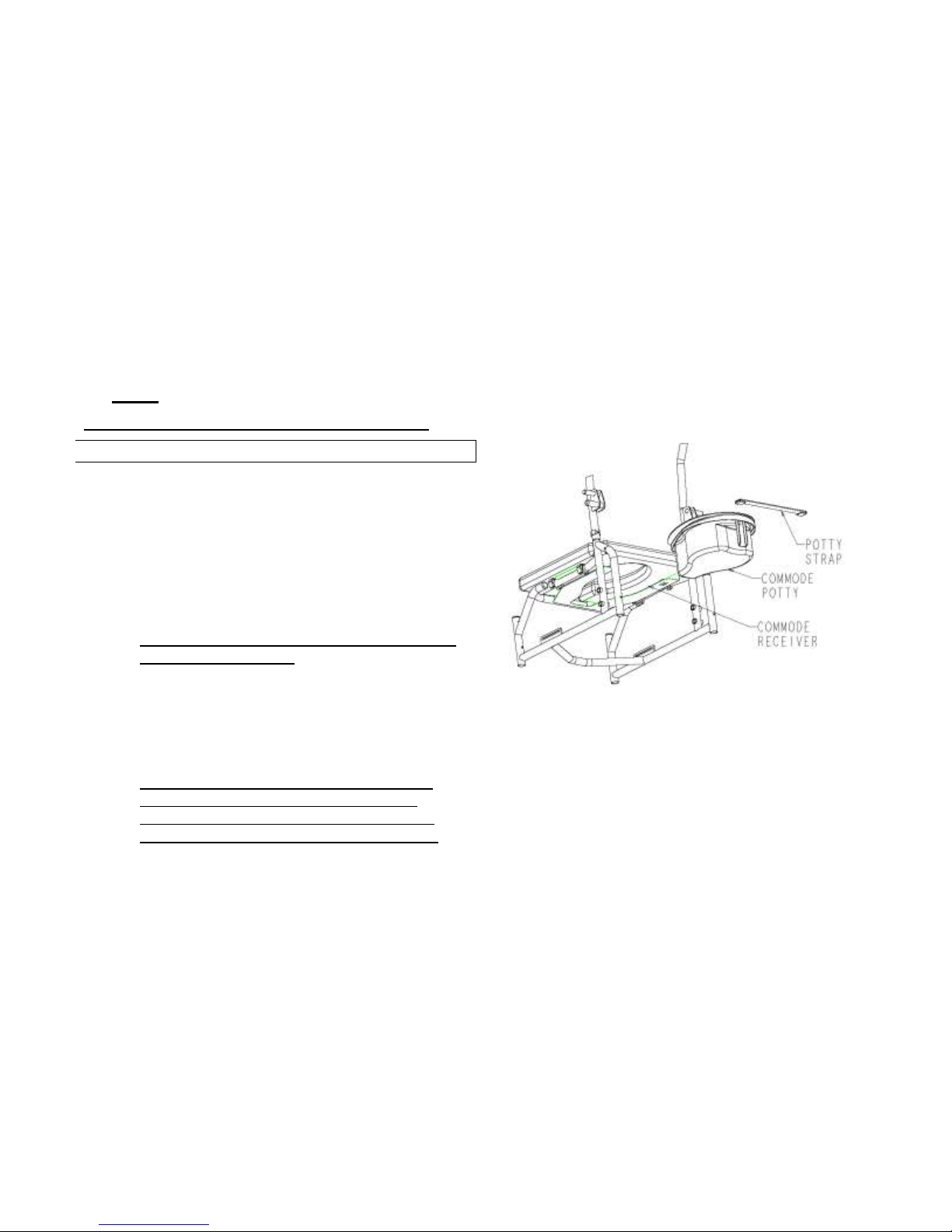

Figure 8

6POTTY
590 REV02 REV DATE: SEPTEMBER 13, 2013 20 AQUA NT
6. Dispose the contents of the potty in the
washroom and properly sanitize the potty
assembly before placing the potty back into the
potty receiver.
Note: If the user wants to use the commode with a toilet
instead of with the potty then one has to remove
the potty receiver and potty. First one has to
remove the commode seat as describe in the
section REPLACING SEAT ASSEMBLY and then
remove the potty receiver and potty. Finally after
using the toilet the commode should be cleaned
and inspected to see if there may be human waste
on other parts of the commode. Then the potty
receiver and potty can be placed back onto the
commode if needed.
Installing Potty
1. Turn the commode around so that one can see
the back of the commode and potty.
2. Ensure the wheel or caster locks are engaged
before installing potty.
3. Open one side of the Velcro potty strap located
on the potty receiver.
4. Remove the lid on the potty (if any) and ensure

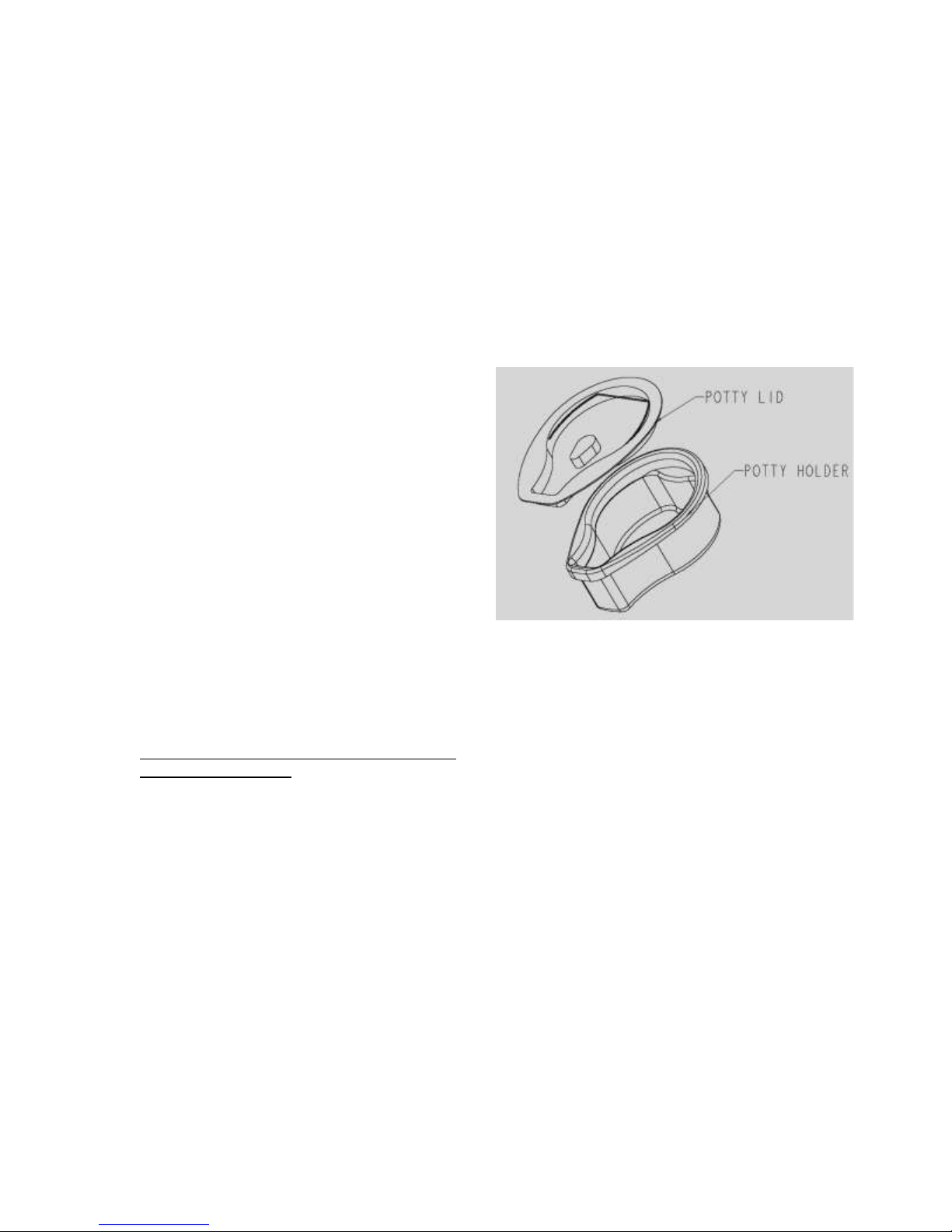

Figure 9
