Futureglass MSCA01 User manual

Mirror Cabinet
Installation Guide
For Models:
MSCA01
MSCA02
MSCR01
MSCP01
MSCP02
MSCSQ01
(Recessed and Wall Mounted Installation)

Stud
Finder 2x4 Lumber
Plus:
• Wire Cutter/Stripper
• Assorted Drill Bits
• Framing and Plaster Tools
• Framing and Plaster Fasteners

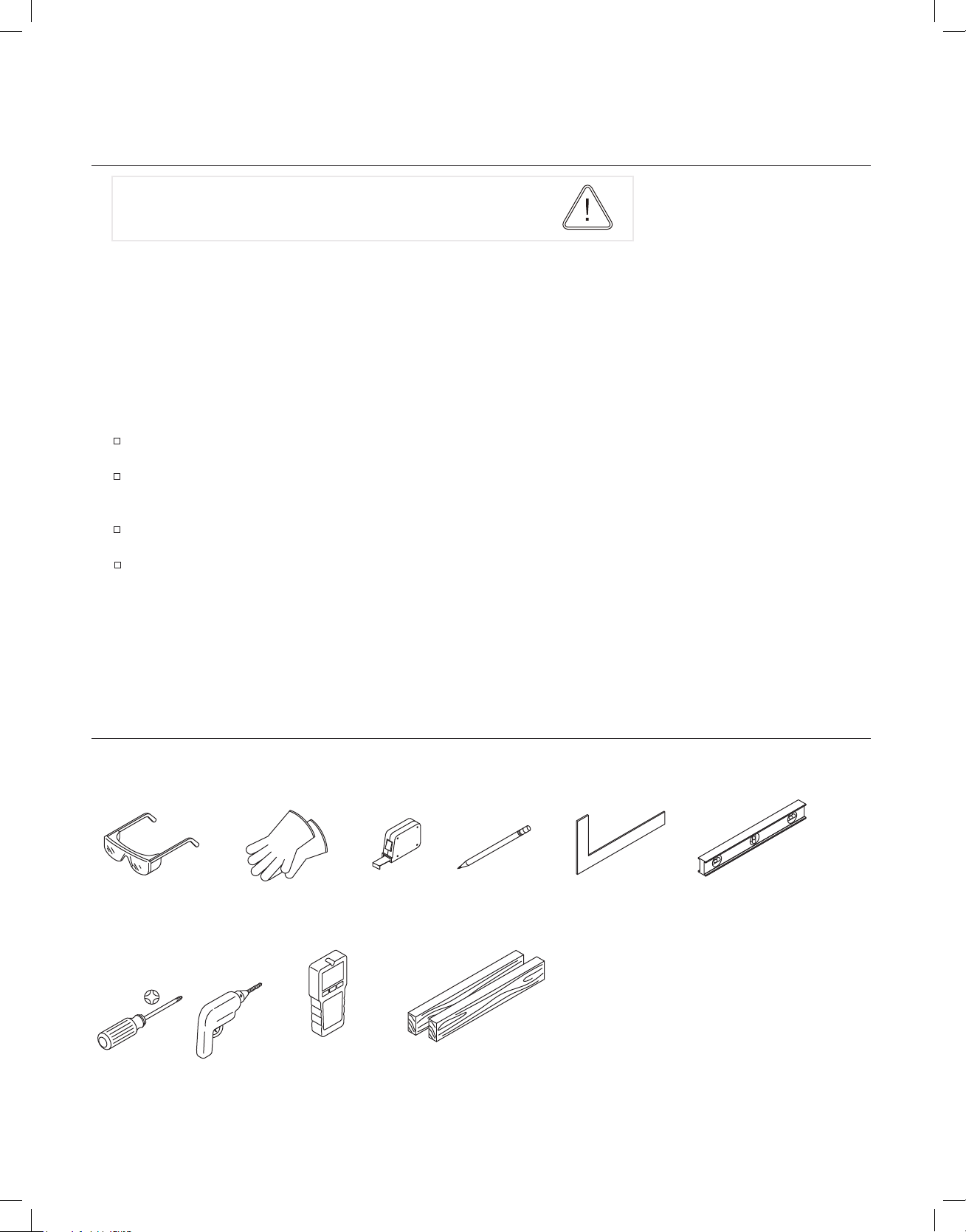

Tools and Materials
Before You Begin
NOTICE: Risk of property or product damage. The location of the cabinet is critical. Make sure that
the door will clear all obstacles (such as a faucet or light fixture). Ensure that any obstacles behind
the finished wall will not be damaged during the cutting and/or drilling process.
IMPORTANT! Reroute any electrical wires or water supply piping from the wall cavity. If you encounter
drain or vent piping or if your wall is load-bearing, consult a professional before proceeding.
NOTE: Recessed-Mount Installation: The wall cavity must be framed. The cabinet must be secured to
the framing studs.
Observe all local building codes.
The appearance of your recessed cabinet may differ from the recessed cabinet illustrated. The
installation steps still apply.
This installation is easiest when performed by two people.
When determining the height of the product, verify that the doors will clear all obstacles (such as
a faucet or light fixture). A minimum distance of 3” (76 mm) is required.
Caution: Risk of personal injury. Cabinets are very heavy.
Get assistance for lifting and moving the cabinets

Installation Guide

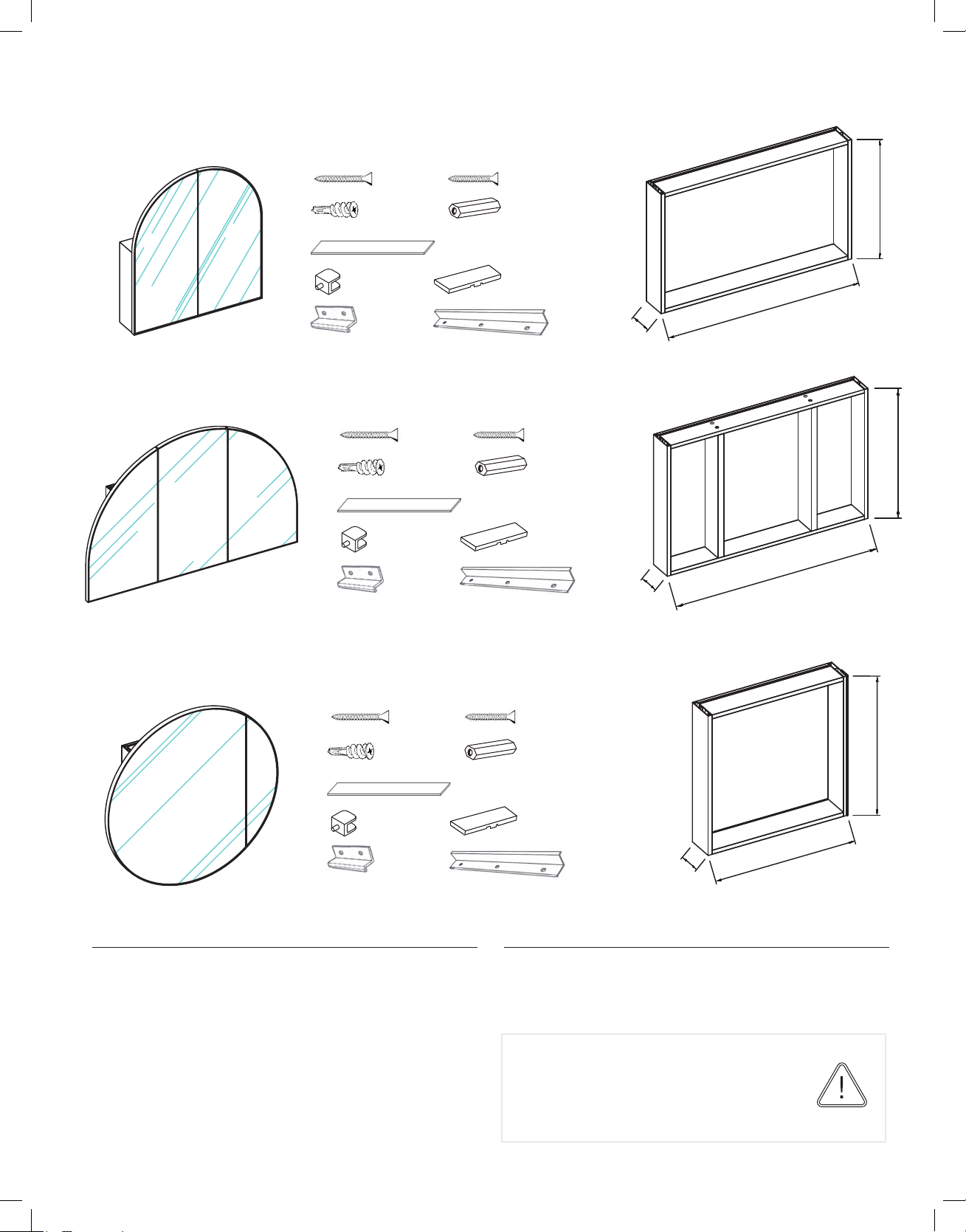

Included in your purchase Preparation
IMPORTANT:
The dimensions of the cabinet body
may be vary from actual item. Please
measure the exact item before making
cutout.
Measuring the cabinet body of the actual product.
Model MSCA01 (H: 860mm / W: 760mm /1 Door)
A
Model MSCA02 (H: 800mm / W: 1200mm /3 Doors)
A
Model MSCR01 (H: 800mm / W: 800mm /1 Door)
BC
D
X 4
X 1
X 4
E
X 4
F
GH
I JX 2 X 1
D
X 6
X 24
E
X 6
F
GH
IJX 2 X 1
D
X 2
X 8
E
X 3
F
GH
IJ
X 2 X 1
X 8
X 8 X 8
X 9 X 9
X 8 X 8
ACabinet Body
B40mm(L) Flat Head Screw (For Wooden Frame)
FGlass shelf
GShelf clip
HCover plate for hinge
C
D
E
35mm(L) Flat Head Screw (For Wall Mounting)
Plaster Wall Plug (For Wall Mounting)
Anchor for masonry (For Wall Mounting)
I
J
Top Bracket (For Wall Mounting)
Bottom Bracket (For Wall Mounting)
A
758 mm
103 mm
473 mm
864 mm
559 mm
103 mm
530 mm
525 mm
103 mm
BC
X 4 X 9
BC
X 4 X 8

Installation Guide
Included in your purchase Preparation
IMPORTANT:
The dimensions of the cabinet body
may be vary from actual item. Please
measure the exact item before making
cutout.
Measuring the cabinet body of the actual product.
Model MSCP01 (H: 960mm / W: 560mm /1 Door)
A
Model MSCP02 (H: 760mm / W: 1200mm /3 Doors)
A
Model MSCSQ01 (H: 900mm / W: 600mm /2 Doors)
D
X 1
X 4
E
X 3
F
GH
I JX 2 X 1
D
X 6
X 24
E
X 6
F
GH
IJX 2 X 1
D
X 4
X 16
E
X 4
F
GH
IJ
X 2 X 1
X 8 X 8
X 9 X 9
X 8 X 8
ACabinet Body
FGlass shelf
GShelf clip
HCover plate for hinge
D
E
Plaster Wall Plug (For Wall Mounting)
Anchor for masonry (For Wall Mounting)
I
J
Top Bracket (For Wall Mounting)
Bottom Bracket (For Wall Mounting)
A
558 mm
390 mm
103 mm
812 mm
610 mm
103 mm
598 mm
770 mm
103 mm
BC
X 4 X 8
B40mm(L) Flat Head Screw (For Wooden Frame)
C35mm(L) Flat Head Screw (For Wall Mounting)
BC
X 4 X 9
BC
X 4 X 8

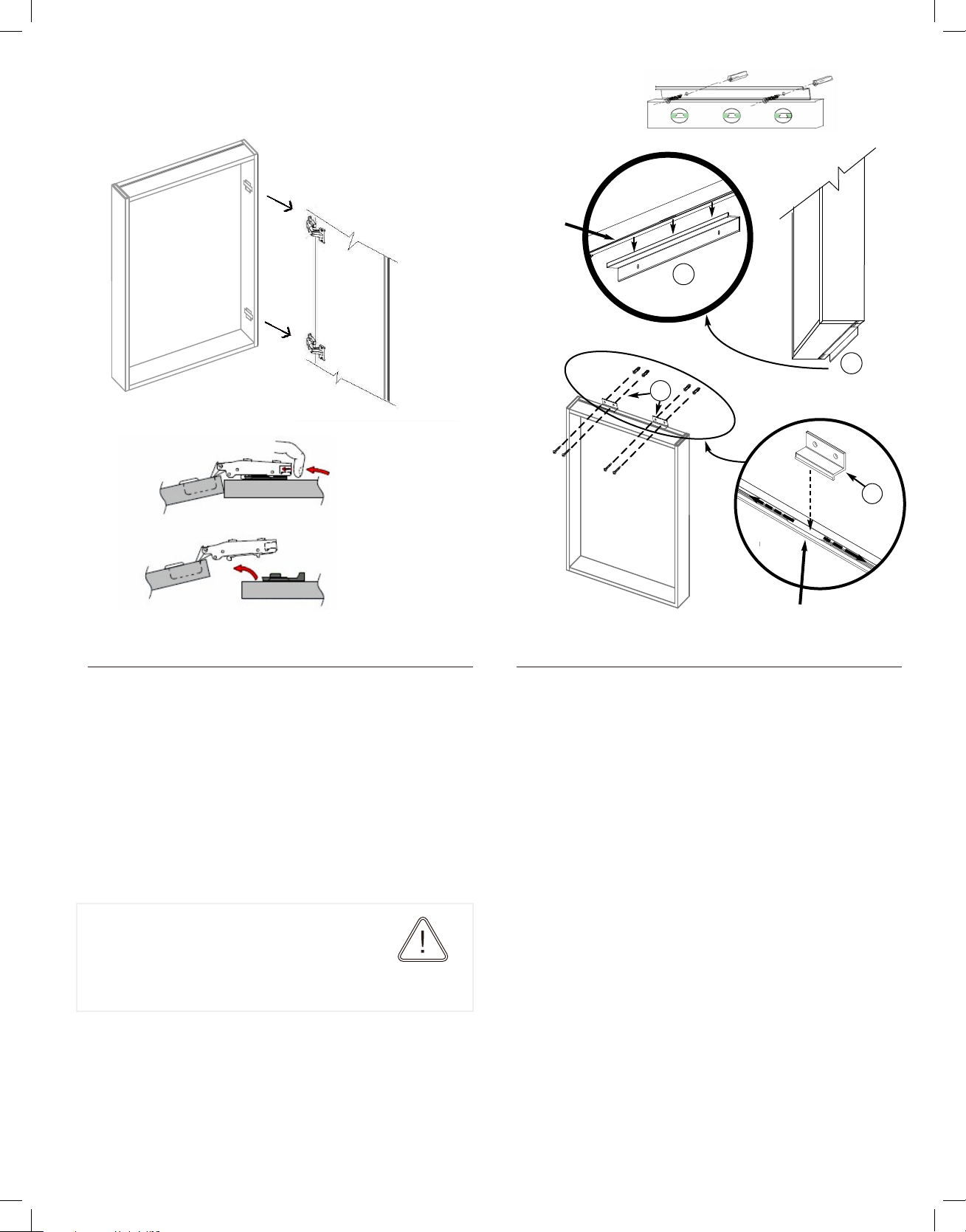

Disassemble the cabinet door(s)
After taking out the cabinet, disassembling the
door(s).
The door(s) can be quickly removed by pushing the
button on hinge.
Unclipping the door from the mounting plate.
02
IMPORTANT:
.
01
WalI Mount Installation
Installing the mounting brackets and mounting the
Cabinet Body on wall
J
bottom slot
I
I
Measure and mark the bottom mounting holes on the wall
corresponding to the pre-drilled hole locations in the bottom
mounting bracket (Draw horizontal line connecting the two
bottom marked locations. The line should to be level.
Adjust to level if necessary). Install the screws (C) to fix
the bottom bracket according to the remarks below.
Put the cabinet body on the bottom bracket and ensure the
bracket has been inserted into the slot.
Insert the top brackets into the top slot and move them to
correct location. Mark the holes on the wall corresponding
the pre-drilled hole locations for top mounting brackets.
Install the screws (C) to fix the top brackets according to the
remarks below.
- Plaster: remove the screws from the white plaster wall plugs
(D). Using a Phillips head screwdriver in the end of the
Plaster plug, gently apply pressure and rotate clockwise.
The plug will bore its own hole into the Drywall.
Continue until the end of the plug is close to flush with
the wall. WARNING: DO NOT OVER-TIGHTEN.
- Masonry: Drill holes using a 6mm masonry drill bit. With a
hammer, gently tap each Green anchor (E) into the holes
until flush with the wall surface.
- Timber: Drill holes using a 3mm wood drill bit. Anchors are
not necessary.
When determining the height of product,
verify that the doors will clear all obstacles
(such as a faucet or light fixture). A minimum distance
of 3” (76mm) is required.
top slot opening
J

Disassemble the cabinet door(s)
After taking out the cabinet, disassembling the
door(s).
The door(s) can be quickly removed by pushing the
button on hinge.
Unclipping the door from the mounting plate.
02
Construct the framing
IMPORTANT:
The dimensions of the cabinet body
may be vary from actual item. Please
measure the exact item before making
cutout.
When determining the height of the product, verify
that the doors will clear all obstacles (such as a
faucet or light fixture). A minimum distance of 3”
(76 mm) is required.
Measuring the cabinet body of exact item.
Using a jigsaw or keyhole saw, carefully remove
the finished wall material from the marked cutout.
Frame out the wall cavity. If needed, install a header.
01
Recessed Installation

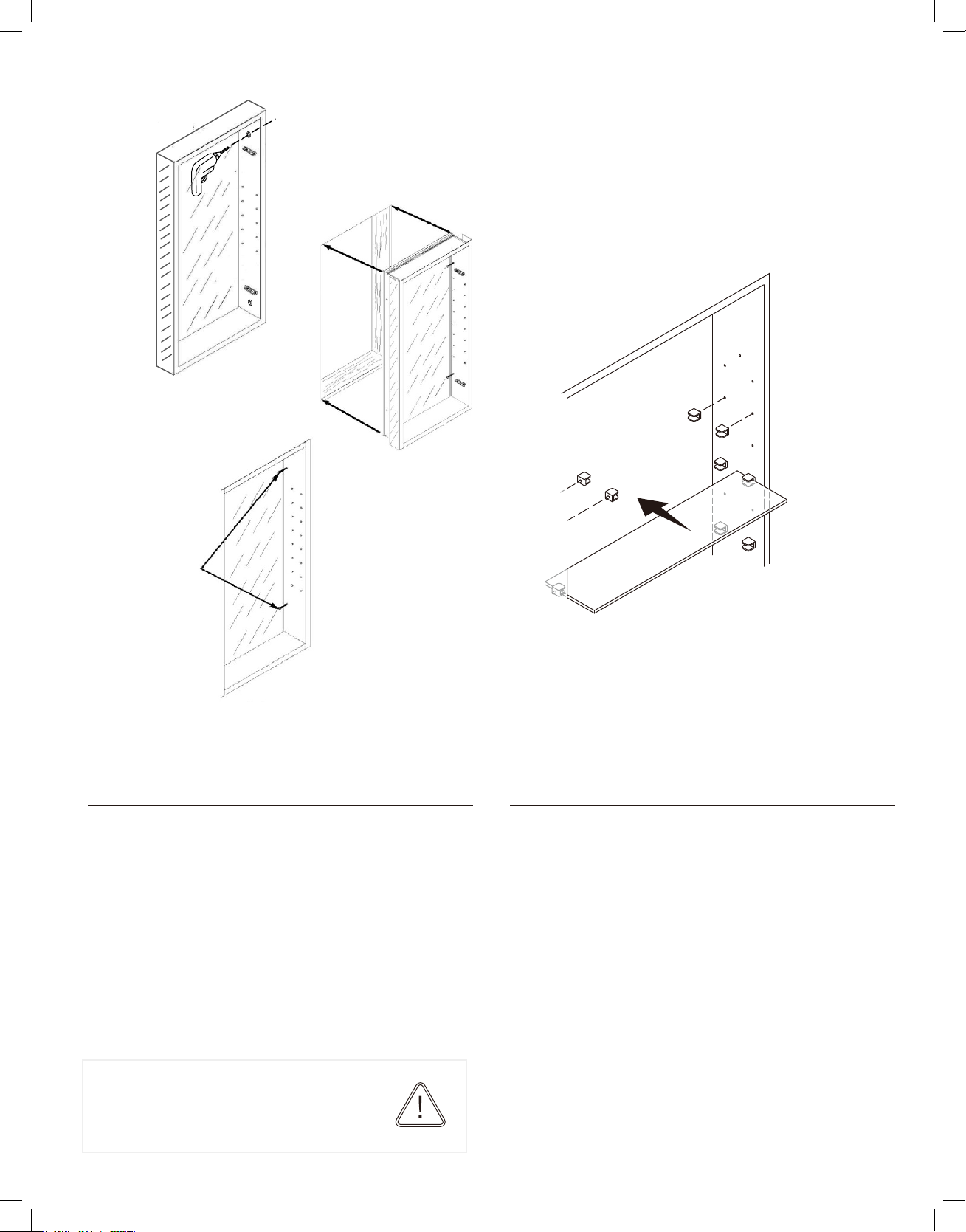

Install the glass shelf(shelves)Install the cabinet body into the framing
Make sure hinges are on correct side of opening for
left hand or right hand operation.
Place cabinet body into framing.
Insert 4 wood screws (B) into four locations provided
for recessed installation. Be careful not to overtighten.
Make sure cabinet is centered in framing.
Determine the shelf(shelves) locations and insert the
slotted pins into the holes in the sides of the cabinet.
Install the shelf(shelves) between the slots of the pins
and then, tighten the plastic screw at bottom of each
clip. Be careful not to overtighten.
Important: Enclosed screws are for
wooden frame only. Appropriate anchors
and screws need to be purchased for
installation into non wooden frames.
0403
Wood screws (4)
Drill through the 4 Half-Drilled holes (With rivet nuts)
for recessed installation by using 6mm drill bit.

Adjusting hinges - To make the door(s) in correct
position
Reassembling the door(s)
After install the glass shelf (shelves) in right position,
reassembling the door(s).
Clamp hinge on the mounting plate as shown
by direction arrow.
Press down the hinge arm to lock the plate as shown.
Front to back adjustment - Turn the screw “A” clockwise or
anti-clockwise for moving the door Inward or Outward.
Lateral adjustment - Turn the screw “B” clockwise or
anti-clockwise for moving the door Left or Right.
Vertical adjustment - Turn the screw “A” clockwise or
anti-clockwise for moving the door Up or Down.
Important: For products with more than
one door, please make sure you assmble
the doors in correct sides by matching the
same letters sticked on the mounting plate
on cabinet body and hinge arm on door.
0605

Care and Cleaning
The cabinet door and interior are constructed of mirrored glass, steel and stainless steel.
Use only a damp cloth to clean.
Ammonia or vinegar based cleaners can damage mirrors. A solution of 50% of water and
50% of isopropyl alcohol is recommended fop mirror cleaning.
A very mild detergent may be used to clean the surface. When cleaning, spray the cloth,
not the cabinet, mirror, or surround surfaces. Do not use abrasive cleansers on any part
of the cabinet.

If for any reason you are having trouble with installation, or if the size
of the product does not fit your designated space, please contact
Future Glass directly and do not return this product to place of purchase.
Future Glass takes pride in providing quality products and customer
service. We want to ensure your happiness with your purchase for years
measurements are, Future Glass can supply the product to fit!
If you have any questions, please do not hesitate to reach out to us.
Thank you again for choosing Future Glass!
Best Regards,
The Team at Future Glass
www.futureglass.com.au
Thank you
for your purchase.
