FUXTEC FX-KM196 Product information sheet

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
1

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
2
Inhaltsverzeichnis
1. Original user manual ................................................................... 3
2. General Safety Precautions .......................................................... 4
3. Hazard symbols and meanings ..................................................... 7
4. Main Components ....................................................................... 8
5. Assembly ................................................................................. 10
6. Engine Operations ..................................................................... 11
7. Operation ................................................................................ 13
8. During Use ............................................................................... 16
9. Service and Repair .................................................................... 17
10. Storage ................................................................................... 17
11. Troubleshooting ........................................................................ 18
12. Maintenance ............................................................................. 18
13. Declaration of Conformity .......................................................... 20

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
3
1. Original user manual
Please read this entire manual before operating the equipment. It
instructs you how to safely and efficiently set up, use and maintain
your device. Please be sure that you, and any other persons who will
operate the machine, carefully follow the recommended safety
practices at all times. Failure to do so could result in personal injury or
property damage.
Function of Sweeper
This sweeper is designed solely for the use in clean up, maintenance and
similar. And please pay more attention that NOT for small stone cleaning, to
avoid the injury.
Use in any other way is considered contrary to the intended use. Compliance
with and strict adherence to operation, service and repair conditions, as
specified by the manufacturer, are also essential elements of the intended use.
Terms used in Manual
Right-hand, left-hand, front and rear are determined from the actual operating
position.
SAFETY STATEMENTS
DANGER
THIS STATEMENT IS USED WHERE SERIOUS INJURY OR DEATH WILL RESULT
IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
WARNING
THIS STATEMENT IS USED WHERE SERIOUS INJURY OR DEATH COULD
RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
CAUTION
THIS STATEMENT IS USED WHERE MINOR INJURY COULD RESULT IF THE
INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
4
NOTICE
THIS STATEMENT IS USED WHERE EQUIPMENT OR PROPERTY DAMAGE COULD
RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
THIS SYMBOL BY ITSELF OR USED WITH A SAFETY SIGNAL WORD
THROUGHOUT THIS MANUAL IS USED TO CALL YOUR ATTENTION TO
INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY OR THE SAFETY OF
OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY
OR DEATH.
2. General Safety Precautions
WARNING
READ MANUAL PRIOR TO INSTALL
Improper installation, operation, or maintenance of this equipment could result
in severe injury or death. Operators and maintenance personnel should read
this manual as well as all manuals related to this equipment and the prime
mover thoroughly before beginning installation, operation, or maintenance.
Follow all Safety instructions in This manual and the prime Movers manual.
WARNING
READ AND UNDERSTAND ALL SAFETY STATEMENTS
Read all safety decals and safety statements in all manuals prior to operating
or working on this equipment. Know and obey all regulations, local laws and
other professional guidelines for your operation. Know and follow acceptable
work practices when assembling, maintaining, repairing, mounting, removing
or operating this equipment.
WARNING
KNOW YOUR EQUIPMENT
Know your equipment's capabilities, dimensions and operations before operating.
Visually inspect your equipment before you start, and never use equipment that is
not in proper working order with all safety devices intact. Check all hardware to
assure it is tight. Make sure that all locking pins, latches, and connected devices are
correctly installed and secured. Remove and replace any damaged, tired or

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
5
excessively worn parts. Make sure all safety decals are in place and are legible.
Keep decals clean, and replace them if they become dull and hard to read.
WARNING
PROTECT AGAINST FLYING DEBRIS
Always wear proper safety glasses, goggles or a face shield when driving pins in or
out or when operation causes dust, flying debris, or any other hazardous material.
WARNING
LOWER OR SUPPORT RAISED EQUIPMENT
Do not work under raised booms without supporting them. Do not use support
material made of concrete blocks, logs, buckets, barrels or any other material that
could suddenly collapse or shift positions. Make sure support material is solid, not
decayed, warped, twisted, or tapered. Lower booms to ground level or onto blocks.
Lower booms and attachments to the ground before leaving the cab or operator's
station.
WARNING
DO NOT MODIFY MACHINE OR ATTACHMENTS
Modifications may weaken the integrity of the attachment. They may impair the
function, safety, life and performance of the attachment, when making repairs, use
only the manufacturer's genuine parts, following authorised instructions. Other parts
may be substandard in fit and quality. Never modify any RoPS (Rollover Protection
System) equipment or device. Any modifications must be authorised in writing by
the manufacturer.
WARNING
SAFELY MAINTAIN AND REPAIR EQUIPMENT
• Do not wear loose clothing or any accessories that can catch in moving parts. If
you have long hair, cover or secure it so that it does not become entangled in the
equipment.
• Work on a level surface in a well-lit area.
• Use properly grounded electrical outlets and tools.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
6
• Use the correct tool for the job at hand. Make sure they are in good condition for
the task required.
• Wear the protective clothing equipment specified by the tool manufacturer.
WARNING
SAFELY OPERATE EQUIPMENT
Do not operate equipment until you are thoroughly trained by a qualified operator in
how to use the controls; know its capabilities, dimensions, and all safety
requirements. See your prime movers manual for these instructions.
• keep all step plates, grab bars, pedals, and controls free of dirt, grease, debris,
and oil.
• Never allow anyone to be around the equipment when it is operating.
• Do not allow riders on the attachment or the prime mover.
• Do not operate the equipment from anywhere other than the correct operator's
position.
• Never leave equipment unattended with the engine running or with this
attachment in a raised position.
• Do not alter or remove any safety feature from the prime mover or this
attachment.
• know your worksite safety rules as well as traffic rules and flow. When in doubt on
any safety issue, contact your supervisor or safety coordinator for an explanation.
WARNING
FALL HAZARD DO NOT OPERATE NEAR UNGUARDED EDGES.
• This sweeper is NOT intended for rooftop use.
• When operating sweeper, adhere to all government rules, local laws and other
professional guidelines for your sweeping application.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
7
3. Hazard symbols and meanings
WARNING!
WARNING! Read the instructions before operating
the machine.
DANGER! Ejected objects. Do not turn the brush
towards onlookers or animals.
DANGER! Keep people, children and animals away
from the work area.
DANGER! Keep hands and feet away from rotating
parts.
DANGER! Always use hearing protectors. Wear eye
protection.
DANGER! Risk of fire or explosion. Do not smoke; do
not use open flames or ignition.
IMPORTANT
Any damaged or illegible decals should be replaced. Please order replacement decals
from an authorised assistance centre of FUXTEC.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
8
4. Main Components
1. Chassis
2. Engine
3. Fuel Tank
4. Handle
5. Dashboard
6. Brush Safety Guard
7. Brush
8. Caster Wheels
9. Wheel
10. Fixing accessories equipments

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
9

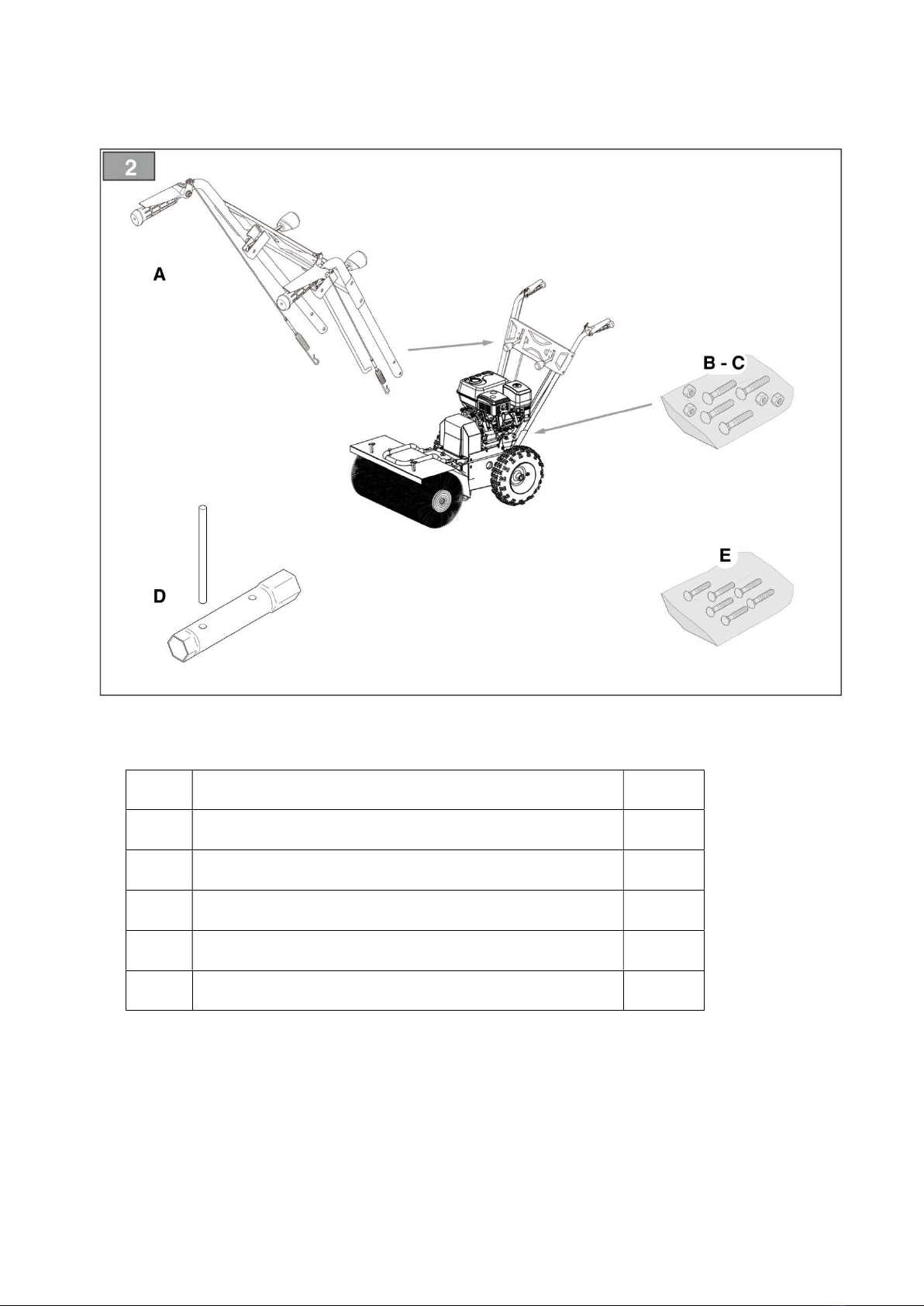

PACKAGE CONTENTS
Pos.
Description
Qty
A
Handle with pre
-
installed rods and wires
1
B
Handle fastening screws
4
C
Handle fastening
bolts
4
D
Spark plug removal key
1
E
Nuts and bolts
1

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
10
NOTES:
1. Cautiously open the packaging, paying attention not to loose components.
2. Consult the documentation in the box, including these instructions.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Dispose of the box and packaging in compliance with local regulations.
5. Assembly
Please note that during assembly, maybe you'll need a helper!
Forward and brush control cable assembly

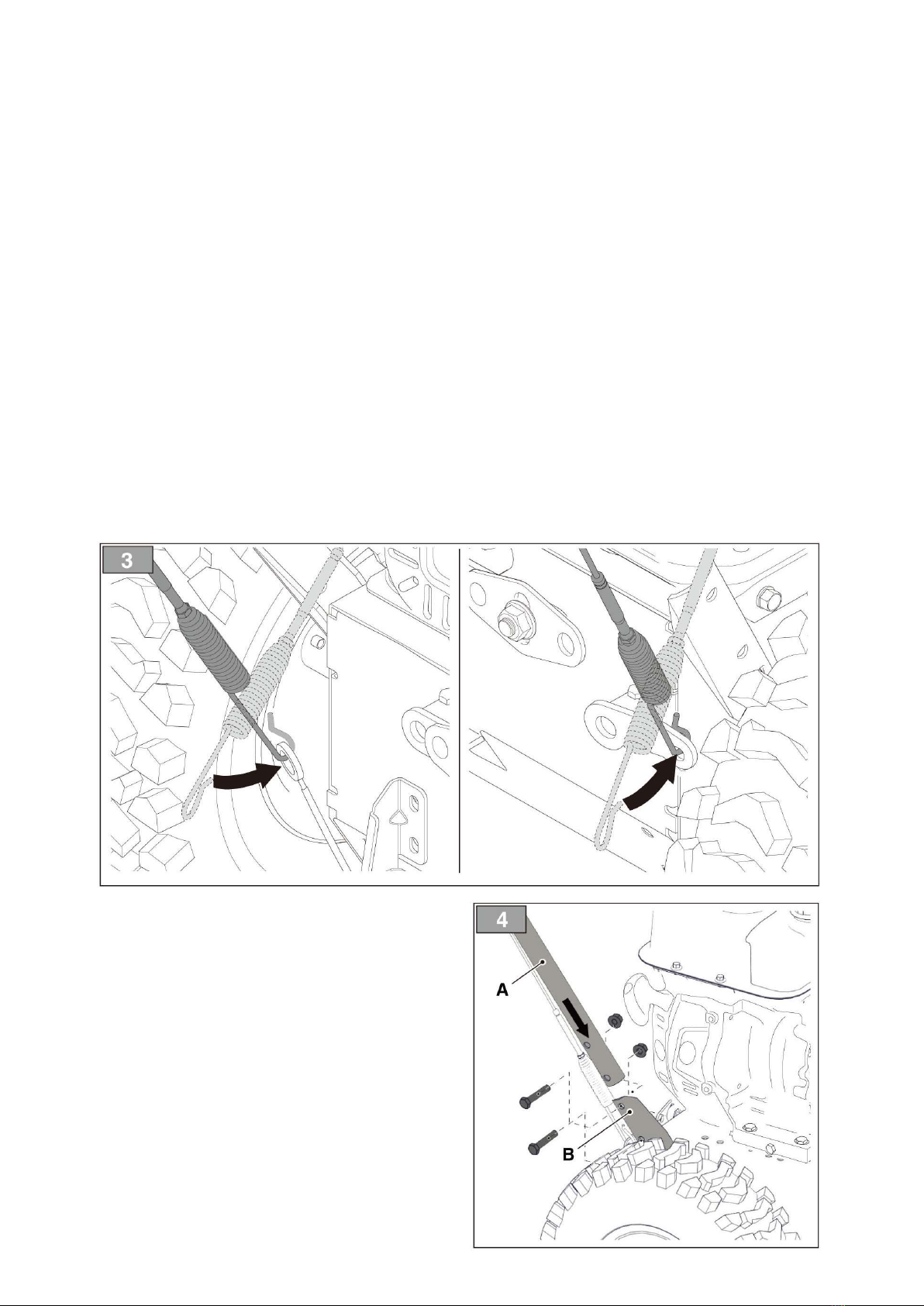

Couple the cable eyelet to the specific opening (fig. 3).
NOTE: The cables are already pre-assembled on the dashboard.
1. Handle assembly
The handle is delivered with the
dashboard already assembled. The
device handle assembly screws, gear
control fastening screws and nuts and
bolts to secure the directional brush
control are provided in a separate
package found in the machine
packaging. Install as follows:

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
11
a) Bring the two tubes at the ends of
the handle (fig. 4.A) up to the
support (fig. 4.B).
b) Insert the screws in the holes and
secure in place with the nuts.
2. Installation of the gear control
a. Remove the previously assembled
articulated joint (fig. 5.A) on the
washer gear control (fig. 5.B) and
nut (fig. 5.C).
b. Insert the articulated joint (fig.
5.A) of the gear control in the hole
on the lever (fig. 5.D) to connect it
to the transmission.
c. Secure the washer (fig. 5.B) and
nut (fig. 5.C).
3. Brush directional control assembly
d. Remove the previously assembled
articulated joint (fig. 6.A) on the
brush directional control nut (fig.
6.B).
e. Insert the articulated joint (fig.
6.A) on the directional brush
control in the lever hole (fig. 6.C)
to connect it to the drive.
f. Secure the nut (fig. 6.B).
6. Engine Operations
NOTICE: THE ENGINE IS DELIVERED WITHOUT OIL AND GASOLINE.
Oil Filling:
Place the engine in a horizontal position. Remove the plug and fill with oil right to
the edge. (Figure 7)

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
12
Fuel
Use lowest available octane unleaded fuel. When filling, place the machine in a
horizontal position. Always replace old fuel. Always stop the engine when fueling.
Never fill up with fuel on a hot engine. Never use gasoline mixed with oil.
Operation - Start and Stop
Cold Engine
Activate the engine choke. Set the throttle control on full speed. (Figure 8)
First pull the starting rope a couple of times, shortly, until it feels tight. Pull the
starting rope slowly to the point where it feels tight, place your left hand on the
engine in order to hold back, and pull the starting rope hard once. When the engine
runs, deactivate the choke.
NOTICE: NEVER LET THE STARTING ROPE WIND AGAIN BY ITSELF.
Follow it all the way back with your hand. If the engine does not run in spite of
several attempts, this may be caused by the fact that there is too much fuel in the
cylinder/carburettor, and that the spark plug has become moist. Remove the plug
and wipe it off.
Stop the Engine:
Set the throttle control in position "Stop". Set the throttle lever to idle and let the
engine run for 12-20 seconds before the lever is moved to stop. Never leave the
sweeper without stopping the engine.
NOTICE: Do not turn off the engine by switching on the choke, as this may result in
damage to the engine.
Figure 8

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
13
7. Operation
CAUTION
A SWEEPER IS A DEMANDING MACHINE.
Only fully trained operators or trainee operators under the supervision of a fully
qualified person should use this machine.
Before operating sweeper:
 Operate sweeper controls in an off-road location.
 Be sure that you are in a safe area, away from traffic or other hazards.
 Check all hardware making sure it is tight.
 Replace any damaged or tired hardware with properly rated fasteners.
 Check tire pressure before sweeping.
 Remove from the sweeping area all property that could be damaged by flying
debris.
 Be sure all persons not operating the sweeper are clear of the sweeper
discharge area for protection, and wear a dust mask.
 Always wear proper apparel such as a long-sleeved shirt buttoned at the cuffs;
safety glasses goggles or a face shield; ear protection; and a dust mask.
While operating sweeper
DANGER
FALL HAZARD DO NOT OPERATE NEAR UNGUARDED EDGES.
 This sweeper is not intended for rooftop use.
 When operating sweeper, adhere to all government rules, local laws and other
professional guidelines for your sweeping application.
 Minimise flying debris - use the slowest rotating speed that will do the job.
 Keep hands, feet, hair and other loose clothing away from all moving parts.
 Before leaving the operator's position for any reason stop engine.
NOTICE: AVOID TRANSMISSION DAMAGE. Do not shift while in motion.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
14
WARNING
Leave the brush hood (shield) and all other shields and safety equipment in
place when operating the sweeper.
 When sweeping on rough terrain, reduce speed to avoid "bouncing" the
sweeper. Loss of control can result.
 Never sweep toward people, buildings, vehicles or other objects that can be
damaged by flying debris.
 Only operate the controls while the engine is running.
 While you operate the sweeper slowly in an open area, check for proper
operation of all controls and all protective devices. Note any repairs needed
during the operation of the sweeper. Report any needed repairs.
Before each use
Perform daily maintenance as indicated in Maintenance Schedule.
Run the sweeper at a low idle, check for proper brush rotation and drive
engagement.
WARNING
AVOID SERIOUS INJURY.
Check for large objects that could harm the operator or others if thrown by the
sweeper. Remove these items before operating.
During use
Directing Debris
 Avoid excessive downward pressure on the brush sections to prevent excessive
wear. A two- to a four-inch-wide pattern is sufficient for most applications.
 Direct debris by angling the brush head in that direction.
 Observe wind direction. Sweeping with the wind makes sweeping more
effective and helps keep debris off the operator.
 The terms swing, and angle is used interchangeably.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
15
Brush Direction
The brush direction is regulated by a lever (fig. 9B) that tilts it in the required
direction. Move the lever forward or rear in one of the three available positions to
tilt the brush.
· Lever forward = 15o to the right.
· Lever central = 0o no tilt.
· Lever rear = 15o to the left.
Sweeping
To sweep:
1. Turn the directional brush control (fig. 9
B) to the required position. (See Brush
Direction)
2. Set the gear depending on the route and
the amount of material to be swept.
3. Engage the brush drive. (fig. 9C)
4. Engage the traction drive. (fig. 9D)
NOTICE: AVOID SWEEPER DAMAGE.
Reduce travel speed to avoid hitting immovable objects.
The sweeper is equipped with an instant shut off when you release the levers, the
brush and machine stop.
Operating Tips
NOTICE: AVOID SWEEPER DAMAGE. Do not ram into piles.
Large Areas
 For uneven or dirt surfaces, reduce speed to avoid jogging the brush and
damaging it.
 Sweep creating a central passage dividing the area into two parts and then
sweeping the remaining areas. That reduces the load on the brush.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
16
8. During Use
Snow
 Snow is removed more quickly when it is still fresh - passback over the already
cleared zones to remove snow residue.
 If possible, clear the snow in the direction of the wind. Check the distance and
the direction of the removed snow.
 Reduce the engine rotations before stopping it.
Dirt & Gravel
 To reduce the amount of duct lifted when sweeping, work at low brush speed.
If possible, also work on damp or cloudy days or after it rains.
 For gravel, adjust the height of the brush to avoid throwing them and causing
potential damages.
Heavy Debris
 Reduce forward speed and work without using the entire machine working
width.
WARNING
SAFELY OPERATE EQUIPMENT
Do not operate equipment until you are thoroughly trained by a qualified operator in
how to use the controls; know its capabilities, dimensions, and all safety
requirements. See your prime movers manual for these instructions.
 Keep all step plates, grab bars, pedals, and controls free of dirt, grease, debris,
and oil.
 Never allow anyone to be around the equipment when it is operating.
 Do not allow riders on the attachment or the prime mover.
 Do not operate the equipment from anywhere other than the correct operator's
position.
 Never leave equipment unattended with the engine running or with this
attachment in a raised position.
 Do not alter or remove any safety feature from the prime mover or this
attachment.
 Know your worksite safety rules as well as traffic rules and flow. When in doubt
on any safety issue, contact your supervisor or safety coordinator for an
explanation.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
17
WARNING
IN AN EMERGENCY, RELEASE LEVERS AS QUICKLY AS POSSIBLE AND STOP
THE ENGINE.
Height adjustment of Caster Wheels & Brushes
Once the brushes get worn, it is necessary to adjust the
height of the brushes, i.e. how close they are to the
surface to sweep. This adjustment takes place by moving
the plastic rings of the brush caster wheels. See as
follows:
1. Release the lock (fig. 10.A);
2. Extract the plug (fig. 10.B);
3. Lift / lower the caster wheels (fig. 10.C);
4. Re-insert the plug;
5. Lock the lock.
9. Service and Repair
 Repair or adjust the sweeper in a safe area, away from traffic and other
hazards.
 Before adjusting or servicing remove spark plug wire from the spark plug.
10. Storage
NOTICE:
 Do not store the sweeper with weight on the brush. Weight will deform the
bristles, destroying the sweeping effectiveness.
 Do not store polypropylene brushes in direct sunlight. The material can
deteriorate and crumble before the bristles are worn out.
 Keep polypropylene brush material away from intense heat or flame.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
18
11. Troubleshooting
The engine does not start
Ensure that the spark plug is not defective
Ensure that the spark plug cap is fitted
correctly
The engine runs irregularly
Ensure that the choke is deactivated
Ensure that there are no impurities in the fuel
The brushes will not rotate
Check whether the belt coupling is adjusted
correctly.
Check whether the v-belt is defective
The machine will not run Make sure that the belt coupling is adjusted
correctly
The machine does not sweep
effectively
Check whether the v-belt is defective
Check whether the brush distance to the
surface is set correctly
12. Maintenance
MAINTENANCE SCHEDULE
PROCEDURES
BEFORE
EACH USE
25
HOURS
100
HOURS
AFTER
EACH USE
Hardware - Inspect & tighten
Engine & Air Filter
-
check &
clean if necessary
Oil, engine - check the level
Wash Unit - Remove Grease &
Debris

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
19
Maintenance
If you need to change the belts, please contact the distributor or local agent. Do not
change them by yourself.
Residual risks
Even when the machine is used as prescribed, it is not possible to eliminate all
residual risk factors. The following hazards may arise in connection with the power
tool's construction and design:
1. Damage to the lungs if an effective dust mask is not worn.
2. Damage to hearing if adequate hearing protection is not worn.
3. Damages to health resulting from vibration emission if the power tool is being
used over a more extended period or not adequately managed and properly
maintained.
WARNING
This machine produces an electromagnetic field during operation. This field may,
under some circumstances interfere with active or passive medical implants. To
reduce the risk of severe or fatal injury, we recommend persons with medical
implants to consult their physician and the medical implant manufacturer before
operating this machine.

Original-Bedienungsanleitung Benzin-Kehrmaschine FX-KM196_rev05
20
13. Declaration of Conformity
-------------------------------------------------------------------------------------------
In the following the
FUXTEC GmbH
KAPPSTRASSE 69, 71083 HERRENBERG-GULTSTEIN Germany
declares that the product
3in1 Benzin-Kehrmaschine FX-KM196 (Schneefräse optional), (KCB24)
to which this declaration refers, meets the relevant essential health and safety
requirements of the applicable EC Directives 2006/42 / EC. This statement applies
only to the machine in the condition in which it was placed on the market, parts
subsequently installed by the end-user and/or subsequent interventions are
disregarded.
Applied harmonized standards: EN 13019: 2001+A1:2008
EN ISO 12100
EN ISO 13732-1, EN982, EN983
Measured sound power level LpA 87.8 dB(A), K=3 dB(A)
Guaranteed sound power level LwA 101.56dB(A)
Herrenberg, 06.05.2019
Tim Gumprecht
(Managing Director)
Manufacturer:
FUXTEC GmbH
KAPPSTRASSE 69, 71083 HERRENBERG Germany
Place of technical documentation:
FUXTEC GmbH, KAPPSTRASSE 69, 71083 HERRENBERG Germany
T. Zelic, Managing Director
