ORIGINAL USER MANUAL
Petrol leaf blower
FUXTEC FX-LB133T
Your new device has been developed and designed to meet FUXTEC's high standards, such as
easy operation and user safety. Properly treated, this device will serve you well for years to come.
WARNING: To reduce the risk of injury, the user must read and understand this manual
before operating the device.
FUXTEC GmbH
Kappstrasse 69, 71083 Herrenberg - Gültstein, Germany

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
3
Table of contents
1. Introduction...............................................................................................................................4
2. Scope of delivery......................................................................................................................4
3. Operating hours........................................................................................................................4
4. Safety symbols on the device and in the operating instructions..............................................5
5. Intended/non-intended use ......................................................................................................5
6. Residual risks and safe working ..............................................................................................6
7. Fuel management ..................................................................................................................10
8. Overview of the device...........................................................................................................11
9. Assembly as leaf blower ........................................................................................................12
10. Commissioning - refuelling, 2-stroke engine oil.....................................................................13
11. Start/stop the leaf blower .......................................................................................................15
12.Working notes ........................................................................................................................16
13. Maintenance and care............................................................................................................16
14. Technical data ........................................................................................................................19
15. Troubleshooting......................................................................................................................20
16. Customer Service...................................................................................................................22
17. Warranty .................................................................................................................................22
18. Disposal information...............................................................................................................22
19. EC Declaration of Conformity.................................................................................................23

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
4
1. Introduction
We would like to thank you for purchasing a leaf blower from our company. This user manual will
explain how to use the blower in the best possible way. Before using it, please read this manual
carefully, operate the device correctly and work safely. Furthermore, it is possible that not all details
of your device comply with the operating manual due to further development of the device.
Therefore, we ask for your understanding.
2. Scope of delivery
•Leaf blower FX-LB133T
•2-piece blowpipe
•Tool bag
•Operating instructions
After unpacking, check the contents of the carton for
•Completeness
•Possible transport damage
Please inform us immediately of any complaints. Later complaints will not be accepted.
3. Operating hours
According to the Device Noise Protection Ordinance of September 2002, leaf blowers may not be
used in pure, general and special residential areas, small housing estates, special areas used for
recreation, spa and clinic areas and areas for tourist accommodation, as well as on the premises
of hospitals and nursing homes on Sundays and public holidays and on working days from 8 p.m.
to 7 a.m.
Please also note the individual regional regulations on noise protection.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
5
4. Safety symbols on the device and in the operating
instructions
You may find symbolic references on the type plate of your vacuum pool cleaner.
They provide important information about the product or instructions for its use.
Dangerous situation or imminent danger. Failure to observe these instructions may result in
injury or damage to property.
Important information on the correct handling of the device. Non-observance of these instructions
can lead to malfunction of the device.
User instructions. These hints will help you to make optimum use of all functions of the
device. Installation, operation and maintenance of the device. Here you will find detailed
instructions on how to proceed.
5. Intended/non-intended use
The petrol leaf blower is designed exclusively for blowing leaves. Proper use also includes reading
and adhering to the operating instructions before each use. The device must be checked for
mechanical damage before and during use. If repairs are necessary, contact FUXTEC.
Only spare parts approved by FUXTEC or original spare parts may be used. The device may only
be put into operation in open garden area.
If non-approved or non-original spare parts are used, the operator and not the manufacturer is
liable for any damage to property or persons.
Any use other than that mentioned above is an unintended use:
•Proper use also includes reading and adhering to the operating instructions.
•If non-approved or non-original spare parts are used, the operator and not the manufacturer
is liable for any damage to property or persons.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
6
•Any use other than that mentioned above is an unintended use.
•Intended use also includes compliance with the operating, maintenance and repair conditions
specified by the manufacturer and the safety instructions contained in the manual.
•The applicable relevant accident prevention regulations as well as the other generally
accepted occupational health and safety rules must be observed.
•Any use beyond this is considered improper use. The manufacturer is not liable for damages
of any kind resulting from this: the risk is borne solely by the user.
•Own modifications to the device preclude any liability of the manufacturer for damages of any
kind resulting from such modifications.
•The device may only be set up, used and maintained by persons who are familiar with it and
have been informed about the dangers. Repair work may only be carried out by the
manufacturer or by service centres recommended by the manufacturer.
•The device must not be used in a potentially explosive environment or exposed to rain.
6. Residual risks and safe working
Even when used as intended, there may still be residual risks due to the design determined by the
intended use, despite compliance with all relevant safety regulations.
Residual risks can be minimized if the "Intended Use" and the "Safety Instructions" as well as the
operating instructions as a whole are observed.
•Consideration and caution reduce the risk of personal injury and damage.
•Injury due to disposal of parts.
•Risk of carbon monoxide poisoning when used in closed or poorly ventilated rooms.
•Danger of burns from hot components.
•Hearing is impaired if work is carried out over long periods without hearing protection.
Furthermore, despite all the information and precautions taken, there may be residual risks that
are not obvious.
Warning: The actual vibration emission value present during use of the device may differ from that
specified in the operating instructions or by the manufacturer. This can be caused by the following
influencing factors, which should be observed before or during use:
•If the device is used correctly
•Is the device in good working order
•If the handles are fitted with optional vibration grips and are firmly attached to the
Device body
Read the following instructions and the safety regulations applicable in your country before using
this product to protect yourself and others from possible injury.
Always keep these safety instructions (operating instructions) with the device. The device may
only be operated by persons with sufficient experience.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
7
Repairs to the device must be carried out by the manufacturer or companies recommended by
him.
Getting started
•If you are working with the device for the first time, you must receive practical
instruction in the use of the device and personal protection equipment from an
experienced operator.
•Be alert. Work with common sense. If you are tired or under the influence of drugs,
alcohol or medication you must not use the device. Failure to use the device properly
may result in serious injury
•Familiarize yourself with the device before use. Inadequately informed operators can
endanger themselves or other persons through improper use.
•Make sure you are standing securely and keep your balance at all times. The use of e.g. A
ladder is not permitted.
•Do not use the device for purposes for which it is not intended (see "Intended use").
•Wear suitable work clothing:
•No jewellery or loose clothing, they could be caught in the device
•Gloves and non-slip footwear
•For long hair a hair net
•Wear protective clothing:
oHearing protection
oSafety goggles or face shield
oWork gloves
oSafety shoes
oTested helmet in situations where head injuries are to be expected.
•It is recommended to wear leg protection and a safety jacket.
•Keep your work area in order!
•Take environmental influences into account:
oDo not expose the device to rain.
oDo not use the device in a wet or humid environment.
oPostpone work in unfavourable weather conditions (rain, snow, ice, wind) due to increased
risk of accidents!
oEnsure good lighting.
oDo not use the device near flammable liquids or gases.
•You may not be able to hear danger because of the engine noise. Therefore, make yourself
familiar with your surroundings.
•Never leave the device unattended.
•During breaks in work, the device must be laid down in such a way that nobody is endangered.
Secure the device against unauthorized access.
•Persons under 18 years of age must not operate the device.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
8
•Keep other people and children away.
•The operator is responsible for accidents or hazards that occur to other persons or their
property.
•Do not let other persons, especially children, touch the tool or theengine.
•Make sure that the device is not overloaded! You will work better and safer in the specified
power range.
•Only operate the device with complete and correctly fitted protective devices. Do not change
anything on the device that could impair safety.
•Switch off the device and pull the spark plug connector from the spark plug:
oIf the device touches soil, stones, nails or other foreign bodies check whether the device
is damaged.
oRepair work, as well as maintenance and cleaning work
oElimination of malfunctions (e.g. Clogging of the blow tube)
oTransport and storage
oLeaving the working area, even during short interruptions.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
9
Maintain of your leaf blower with care:
•Clean the device after each use
•Empty the tank after each use
•Keep handles dry and free from lubricants.
•Follow the maintenance instructions.
Check the device for damage:
•Before further use of the device, safety devices must be carefully checked for their trouble-
free and proper function.
•Check that moving parts are working properly and are not jamming, or if parts are
damaged. All parts must be correctly mounted and meet all conditions to ensure proper
operation of the device.
•Damaged safety devices and parts must be properly repaired or replaced by us or a
recognised specialist workshop, unless otherwise stated in the instructions for use.
•Damaged or illegible security stickers must be replaced.
•Never leave a tool key in place!
•Always check that keys and tools are removed before switching on.
•Store unused devices in a dry, locked place out of the reach of children.
•Do not repair the device yourself.
Do not carry out any repairs on the device other than those described in the chapter
"Maintenance", but contact the manufacturer or authorised customer service directly.
Repairs to other parts of the device must be carried out by the manufacturer or a specialist
workshop specified by him.
Only use original spare parts! The use of other spare parts or accessories may cause
danger to the user. The manufacturer is not liable for any damage resulting from this.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
10
7. Fuel management
Fuels and fuel vapours are flammable and can cause serious damage if inhaled or on the
skin. Therefore, care must be taken when handling fuel and good ventilation must be
provided.
•Before refuelling, switch off the engine and let the device cool down.
•Avoid open flame when refuelling.
•Wear gloves when refuelling.
•Do not refuel in closed rooms (danger of explosion).
•Do not spill fuel or oil. Clean the device immediately if you have spilled fuel or oil. Change
your clothing if you have spilled fuel or oil on it.
•Do not let any fuel get into the ground.
•After refuelling, carefully close the fuel filler cap again and check that it does not become
loose during operation.
•Make sure that the fuel filler cap and fuel lines are tight. If leaks occur, the device must not be
put into operation.
•Transport and store fuels only in marked and approved containers.
•Do not transport or store fuel near flammable or highly inflammable materials or sparks or
open fire. Keep children away from fuel.
•To start the device, move away sufficiently from the fuel station.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
11
8. Overview of the device
1.Engine
2. Main tube with throttle
handle
3. Intermediate pipe
4. End pipe (1)
5. End pipe (2)
6. Throttle lever/grip
7. Corrugated pipe
8. Mixing container
9. Mounting clamps
10. Pull starter
11.fuel cap
12th choke
13. air filter box
14. spark plug
1
2
5
4
3
6
7
8
9
10
11
12
13
14
2

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
12
9. Assembly as leaf blower
Caution: Always switch off the engine when carrying out assembly and/or maintenance work!
Wear protective gloves during assembly to protect yourself from cuts.
1. Mount the throttle grip on the pipe behind the corrugated pipe and position the throttle grip
so that you can reach it easily with your hand
2. Place the other two blowpipes one after the other on the guide
3. Make sure that the plug connection is turned all the way on it
4. Adjust the back carrying strap to your body height using the adjustment eyelets so that the
leaf blower fits tightly and comfortably.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
13
10. Commissioning - refuelling, 2-stroke engine oil
The device is not delivered filled with fuel mixture.
Fill the device as described in this chapter under "Refuelling".
The device is operated with a 40:1 mixture of normal petrol (unleaded) and two-stroke engine
oil. For the first tank filling we recommend a mixture of 25:1. Use of ready-mixed or special fuels
can cause damage to the device.
When handling petrol, increased attention is required. Avoid smoking and naked
flames at all costs because of the danger of explosion.
Gasoline:
Octane number at least 91 RON, lead free
•Do not fill with leaded petrol, diesel or other non-approved fuels.
•Do not use petrol with an octane number lower than 91 RON. This can lead to engine damage
due to increased engine temperatures.
•If you work continuously in the higher speed range, use petrol with a higher octane rating.
•For environmental reasons, the use of unleaded petrol is recommended. The use of E10 fuels
is not permitted.
2-stroke engine oil
Do not use four-stroke or two-stroke oils for water-cooled outboard engines, or ready-mixed
fuel from petrol stations.
Mixing ratio 40:1
•Ensure that the oil quantity is measured exactly, as a small deviation in the oil quantity has a
strong effect on the mixing ratio for small quantities.
•Do not change the mixing ratio, as this will result in increased combustion residues, increased
fuel consumption and reduced performance, or damage to the engine.
Mix the petrol and oil in a clean, petrol approved and marked container with overfill protection.
1. First fill in half of the petrol to be mixed
2. Then fill in the entire quantity of oil.
Gasoline
Two-stroke engine oil
(40:1)
Gasoline
Two-stroke engine oil
(40:1)
1 litre
0.025 litres
5 litres
0,125 litres
2 litres
0.050 litres
10 litres
0.250 litres

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
14
3. Shake the mixture.
4. Fill in the rest of the fuel.
Fuels can only be stored for a limited time as they age. Superimposed fuels and fuel mixtures can
cause problems when starting. Therefore, only mix as much fuel as you use in one month.
Store fuels in dry and safe conditions in approved and marked containers.
Ensure that the fuel tanks are kept out of the reach of children.
Refuelling the leaf blower
Switch off the engine, let the device cool down!
- Wear protective gloves!
- Avoid skin and eye contact (wear protective goggles)!
- It is essential to observe "Handling of fuel".
1. Only refuel the device outdoors or in sufficiently ventilated rooms.
2. Clean the area around the filling area. Dirt in the tank causes malfunctions.
3. Shake the container with the fuel mixture again before refuelling.
4. Open the closure (10) carefully so that any excess pressure can be released.
5. Carefully fill the mixture up to the lower edge of the filler neck.
6. Close the fuel filler cap again.
7. Make sure that the fuel filler cap is tight.
8. Clean the fuel cap and the surrounding area.
9. Check for leaks in the tank and fuel lines
10. Operate the primer pump (24) if necessary.
11. Remove yourself appropriately from the fuelling station before starting the engine

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
15
11. Start/stop the leaf blower
The device must not be put into operation until you have read this operating manual,
observed all the instructions given and the device has been completely and correctly
installed!
•Only start the device when it is completely assembled.
•Support the device on the ground for starting and hold it firmly.
1. Maintain a distance from flammable materials.
2. Take a safe standing position.
3. Place the device on the ground in front of you
4. Hold the device by the upper bracket with your left hand
5. Grasp the pull starter with your right hand
Starting with cold engine
1. Slide the ON / OFF switch 2 to position 1.
2. Gently press the primer pump below choke lever 5 several times until fuel enters the pump.
3. Push the starting lever 5 (choke) to
4. Pull out the starting cord 7 at the starting handle slowly until resistance is reached.
5. Pull quickly on the start cord and then release it slowly.
Do not pull out the starting cable completely and do not let the starting handle snap back
on the engine.
6. Push the starting lever (choke) to approx. 20-30sec. after the engine has
started
7. The engine rotates in idle speed
8. Before starting work, let the appliance warm up at idle for about 2-3 minutes and slowly start to
pull the throttle lever 2.
Stop the engine
1. Release throttle stick 2.
2. Set the ON / OFF switch to position 0
Starting with a warm engine
1. Move ON / OFF switch 2 to position 1.
2. Push the start lever (choke) to
3. Pull the starting cord on the starting handle until the engine starts.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
16
12. Working notes
Perform the following checks regularly before commissioning and during operation:
•Always hold the device with both hands on the front and rear handle.
•Is the device complete and correctly installed?
•Make sure that all nuts and bolts are tightened.
•Is the device in good and safe condition?
•Are all safety functions in order?
•Is the gas tank full?
•Are the engine and muffler free of deposits, leaves or lubricants?
•Is the handle clean and dry (no oil, grease or resin)?
•Is the workplace free of obstacles that you could trip over?
•Are you wearing the necessary protective equipment?
•Have you read and understood the instructions?
•Are the throttle levers smooth and the locking knob functional?
•Is the ON/OFF switch functional?
•Make sure that the gear device has sufficient lubrication (see "Maintenance").
13. Maintenance and care
Before any maintenance and cleaning work
•Switch off thevengine
•Wait until the engine has come to a standstill
•Disconnect spark plug connector (except when adjusting the idle speed)
Due to the risk of fire, do not carry out maintenance work in the vicinity of open flame.
Maintenance and cleaning work not described in this chapter may only be carried out by customer
service.
Safety devices that have been removed for maintenance and cleaning must be properly checked
and reattached before use.
Only use original parts. Other parts may cause unforeseeable damage or pose a danger to the
user.
Maintenance
Wear gloves to avoid injury.
To ensure a long and reliable use of the device, carry out the following maintenance work
regularly.
Check the device for obvious defects such as
•loose fastenings
•worn or damaged components

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
17
•Tank cap and fuel lines for their tightness
Check the device for wear after each use.

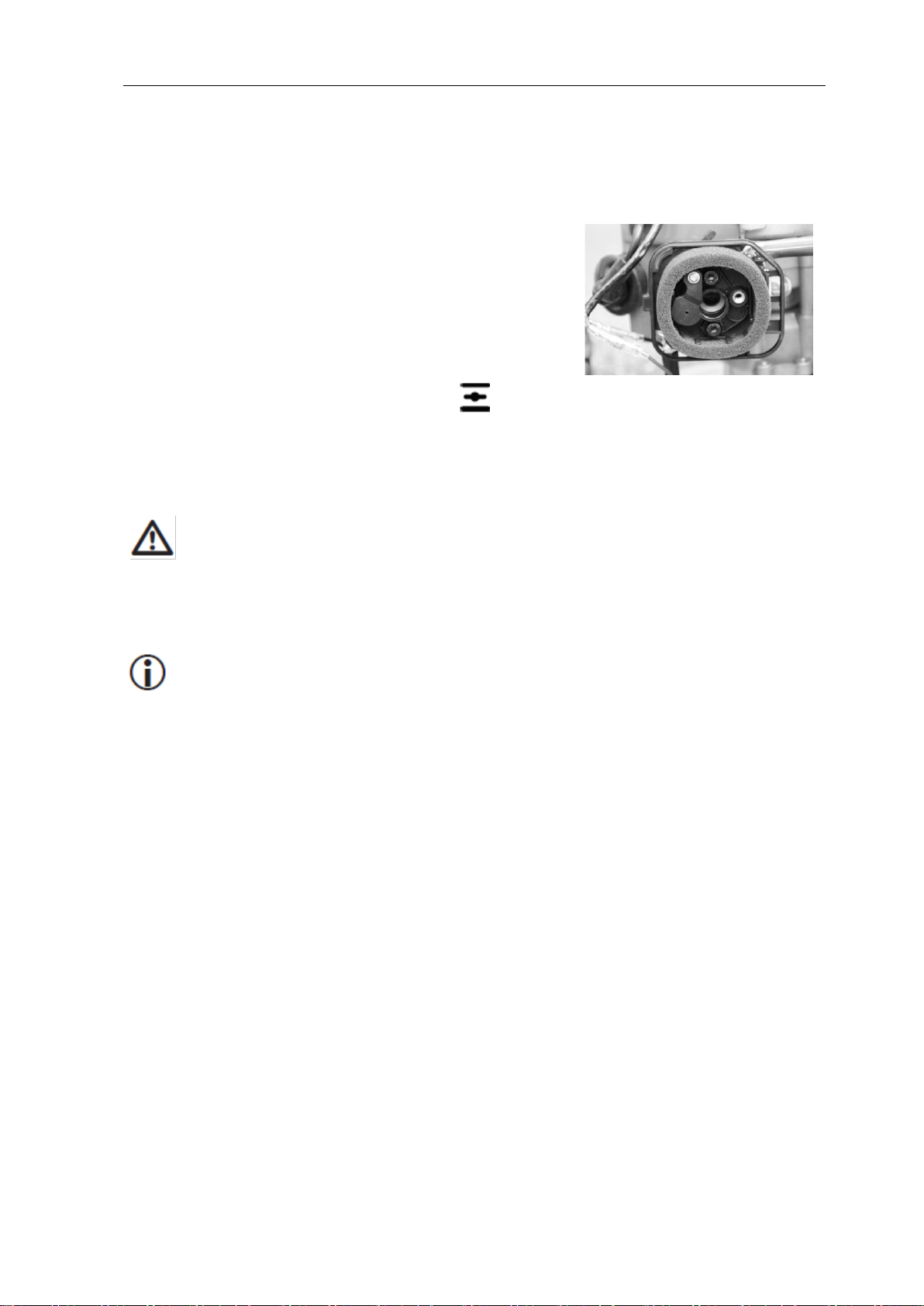

Clean or replace the air filter
Clean the air filter regularly to remove dust and dirt to prevent
- performance losses,
- startup problems,
- too high fuel consumption
Clean the air filter approx. every 8 operating hours, or even
more often in particularly dusty conditions.
1. Set the starting lever (choke) to the position so that no dirt gets into the
carburettor
2. Remove the air filter cover.
3. Remove the foam air filter.
4. Wash the air filter in lukewarm soapy water.
Do not blow out the dirt, there is a danger of eye injuries!
5. Clean the inside of the air filter with a brush.
6. Allow the air filter to dry thoroughly and replace it.
7. Replace the air filter cover
Replace the air filter regularly.
Damaged air filters must be replaced before starting work.
Clean or replace the fuel filter
Check the fuel filter if necessary. A dirty fuel filter hinders the fuel supply.
Open the fuel filler cap and pull the fuel filter through the opening with a wire hook.
•light soiling ➜remove the fuel filter from the fuel line and clean the filter in cleaning gasoline
•heavy dirt ➜ replace the fuel filter
Change or check spark plug
High voltage! Do not touch the spark plug or the spark plug connector while the engine is running.
Danger of burns when the engine is hot. Wear protective gloves!
Check the spark plug and the distance between the electrodes regularly.
Proceed as follows:
1. remove the spark plug connector from the spark plug
2. unscrew the spark plug with the spark plug wrench provided.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
18
The electrode gap should be between 0.3 and 0.4 mm.
Clean the spark plug if it is dirty.
Replace the spark plug:
•if it has a damaged insulation body
•in case of heavy burn-up of the electrodes
•for very dirty or oily electrodes
•every month in regular operation
Use one of the following spark plugs:
Torch BMR6A
Check ignition sparks
1. Remove the spark plug connector from the spark plug
2. Unscrew the spark plug with the spark plug wrench provided.
3. Insert the spark plug connector firmly.
4. Press the spark plug against the engine casing (not near the spark
plug hole) with insulated pliers.
Slide the on / off switch to the "start" position.
6. Pull strongly the starting rope at the starting handle.
A spark must be visible between the electrodes if the system is functioning properly.
Muffler/outlet opening
Do not tighten the muffler screws when the engine is hot.
1. Check regularly that the screws (D) of the muffler have not become loose ➜ If they are loose,
hand-tighten them.
2. Regularly clean the outlet opening (E).
Care
Clean the device carefully after each use to ensure that it continues to function properly.
•Clean the housing with a soft brush or dry cloth.
Water, solvents and polishing agents must not be used.
•Make sure that the ventilation slots for cooling theengine remain free (danger of overheating).
•Clean and oil all moving parts regularly.
Do not use grease! Use environmentally friendly oil.
Warning: failure to carry out maintenance regularly can cause serious damage to the device and
persons.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
19
14. Technical data
Designation FUXTEC leaf blower
Model FX-LB133T
Motor power max. at speed. 900 W at 8,000 min-1
Idle speed 2,800 ± 200min-1
Cubic capacity 33.0 cm³
Spark plug TORCH-BMR6A
Carburettor Ruixing H119-2
Fuel tank contents. 0.65 l
Mixing ratio (fuel/two-stroke oil)40:1
Weight (tank empty) 4.5 kg
WARNING: Only approved, original spare parts as mentioned in this manual may be used.
Unauthorized spare parts may cause serious injury.

Original User Manual FUXTEC petrol leaf blower FX-LB133T_rev06
20
15. Troubleshooting
Malfunction
Cause
Troubleshooting
The Engine does not start
1. Tank is empty
2. the engine is flooded
3. Spark plug dirty (carbon
residues on the electrodes),
electrode gap too large
4. Carburettor nozzles dirty
5. Damaged spark plug
connection
6. No ignition spark
1. Fill up with petrol
2. Remove gas, start several
times, remove spark plug if
necessary clean and dry the
spark plug
3. Clean spark plug, check
heat value of spark plug,
replace spark plug if
necessary or adjust electrode
gap to 0.6mm – 0.7mm
4. Clean carburettor
5. renew
6. Check on/off switch, check
cables, check ignition
module, replace ignition
module if necessary
Engine runs too fast at idle
Engine is cold
Slowly warm up, close choke
The engine does not give
maximum power
1. Spark plug dirty (carbon
residues on the electrodes),
electrode gap too large
2. Carburettor nozzles dirty
3. Dirty air filter
4. Exhaust is dirty
5. Seal in crankcase leaking
1. Clean spark plug, check
heat value of spark plug,
replace spark plug if
necessary or adjust electrode
gap to 0.6mm – 0.7mm
2. Clean carburettor
3. Clean air filter
4. Dismantle and clean the
exhaust pipe
5. renew
