ORIGINAL USER MANUAL
Multifunctional petrol cutter
FX-MT152/-MT152E/-MT252E
Your new device has been developed and designed to meet FUXTEC's high standards,
such as easy operation and user safety. Properly treated, this device will serve you well
for years to come.
WARNING: To reduce the risk of injury, the user must read and understand
this manual before operating the device.
FUXTEC GmbH
KAPPSTRAßE 69, 71083 HERRENBERG-GÜLTSTEIN, GERMANY

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
3
TABLE OF CONTENTS
TECHNICAL DATA........................................................................................................ 5
SYMBOLS AND SAFETY INSTRUCTIONS ON THE DEVICE AND ATTACHMENTS . 7
INTENDED USE AND GENERAL SAFETY INSTRUCTIONS ..................................... 11
NOTES ON ACCESSORIES ........................................................................................ 15
ATTACHING THE SHOULDER STRAP ...................................................................... 16
COMPONENT OVERVIEW .......................................................................................... 17
MOUNTING THE ALL-ROUND HANDLE/ATTACHMENTS ........................................ 18
MOUNTING THE MOTOR SCYTHE/GRASS TRIMMER ............................................. 19
USING THE HEDGE TRIMMER ATTACHMENT ......................................................... 22
USING THE BRANCH SAW ATTACHMENT ............................................................... 25
USING THE 1M EXTENSION FOR MT152E................................................................ 37
USING THE PIVOTING BRANCH SAW ATTACHMENT ON THE MT252 .................. 38
STARTING/STOPPING THE DEVICE ......................................................................... 39
REFUELING THE ENGINE .......................................................................................... 40
TRIMMING TECHNIQUES ........................................................................................... 42
REPLACING NYLON THREAD ................................................................................... 44
MAINTENANCE PLAN ................................................................................................ 45
STORAGE OF THE DEVICE ....................................................................................... 47
TROUBLESHOOTING ................................................................................................. 48

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
4
INFO: OPTIONAL ACCESSORIES (ADJUSTABLE POLE SAW) .............................. 49
CUSTOMER SERVICE ................................................................................................ 49
WARRANTY ................................................................................................................ 50
DISPOSAL NOTE ........................................................................................................ 50
EC DECLARATION OF CONFORMITY ....................................................................... 51
We are continually striving to improve our products. Therefore technical data and
illustrations may change!

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
5
Technical Data
Type FX-MT152/-MT152E/-MT252
Engine air-cooled; 2-stroke
Cubic capacity 52cm3
Maximum output power (kW)
(in accordance with ISO 8893)
2.2kW / 7,500min-1
The maximum speed of the engine 9,000 min-1
Idle speed of the engine 3,000 min-1
The maximum speed of the spindle
(motor scythe)
7,100 min-1
The maximum speed of the spindle
(grass trimmer)
6,600 min-1
LPA at the operator's position 99.5dB(A) (K=3dB)
Measured LWA according to ISO
10884
107.7dB(A) (K=3dB)
Guaranteed LWA 111dB(A)
Maximum vibration values at each
handle
9.661m/s2
k=1.5m/s2
Maximum diameter of the threads Φ2.5mm
Diameter of the metal blade 305mmx1.6mm-2T / 255mmx1.6mm-3T/
255mmx1.6mm-4T/ 255mmx1.6mm-8T
Rotation direction of the cutting
device
counterclockwise (see the mark on the plate)
Number of the handle 1 piece
Dry weight (without fuel, cutting
assembly, carrying strap)
7.2kg
Fuel tank capacity (L) 1.2
Fuel consumption (kg/h) (in
accordance with ISO 8893)
0.89 kg
Specific fuel consumption (g/kWh)
(in accordance with ISO 8893)
630 g
Hedge trimmer attachment Blade
length
390mm
Hedge trimmer attachment Working
angle
270° - 90°
Hedge trimmer attachment max.
thickness
19mm
High feeler attachment Sword 12" (300mm) / AL12-44-507P

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
6
length/ type
Saw chain/chain pitch TT-9D-3B / Pitch 3/8"
Pole saw max. cutting length 290mm
Oil tank capacity Chain lubrication 150ml

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
7

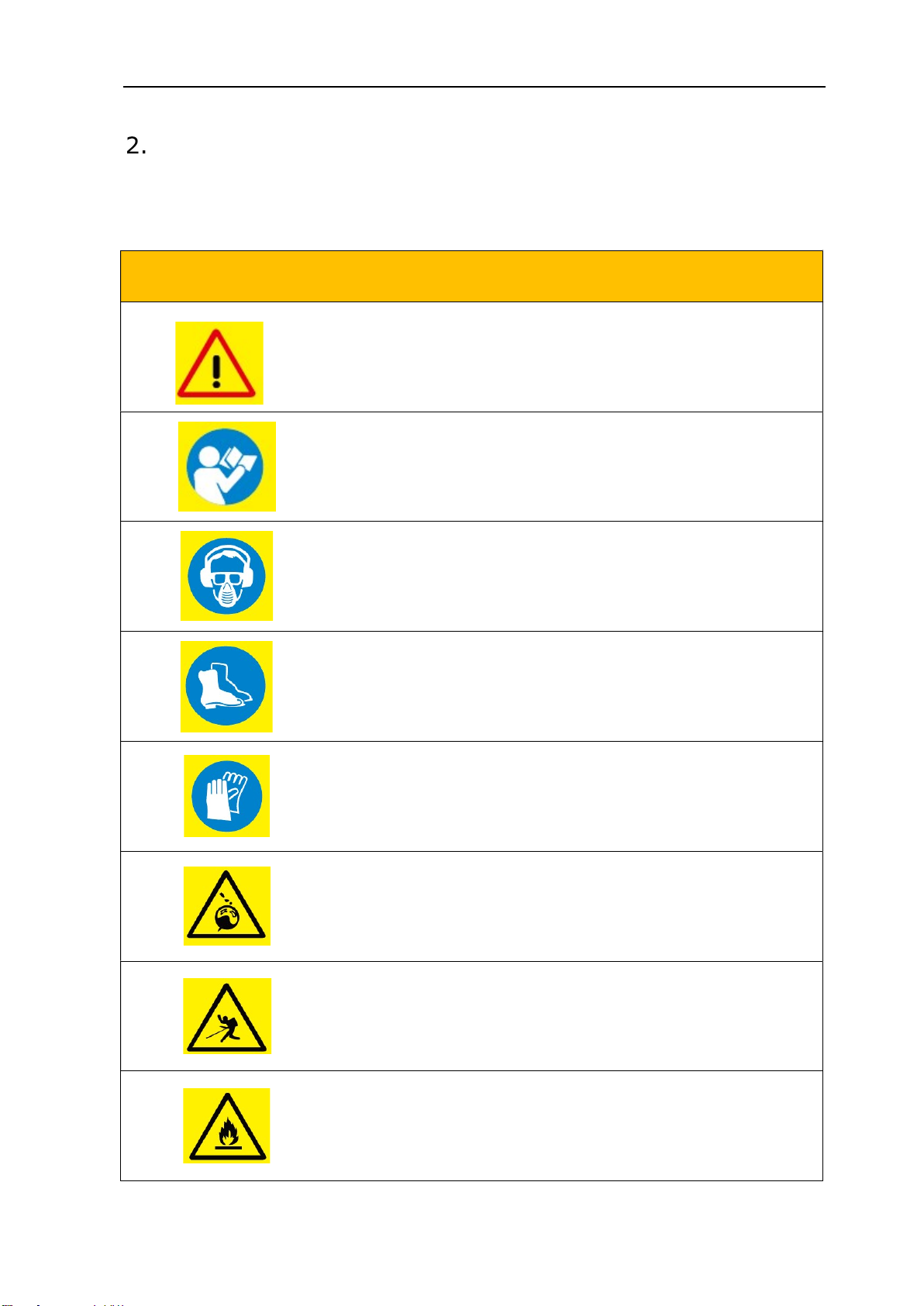

Symbols and safety instructions on the device and
attachments
Warnings on the primary device Multifunction Cutter
WARNING! IMPROPER OPERATION MAY
LEAD TO SERIOUS INJURY
READ AND UNDERSTAND THIS USER MANUAL BEFORE USE.
ALWAYS WEAR EYE PROTECTION, EAR PROTECTION, AND
MOUTH PROTECTION.
WEAR FOOT PROTECTION.
WEAR GLOVES.
DO NOT TOUCH THE ROTATING BLADE,
DANGER OF INJURY!
WARNING AGAINST FLYING OBJECTS!
WARNING! FLAMMABLE MATERIALS!

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
8

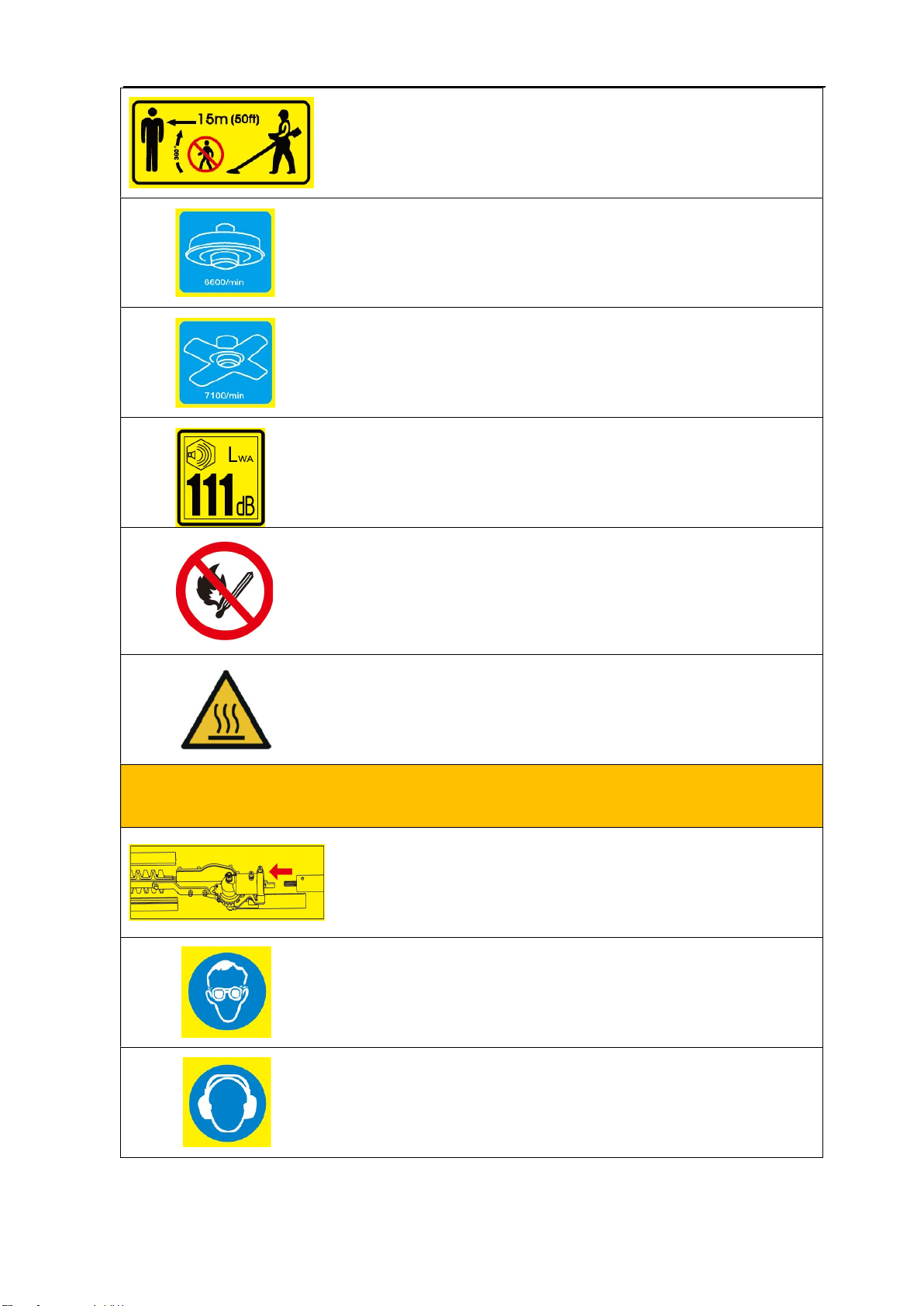

ALWAYS KEEP 15 METERS AWAY FROM
DISTANCE!
MAXIMUM NUMBER OF ROTATION OF THE SPINDLE (GRASS
TRIMMER): 6600 min-1
MAXIMUM ROTATION SPEED OF THE BLADE (MOTOR
SCYTHE):7100 min-1
THE GUARANTEED NOISE LEVEL COMPLIES WITH THE LEGAL
NOISE GUIDELINES.
DO NOT SMOKE AND AVOID NAKED FLAMES ON THE
DEVICE.
WARNING:
DANGER OF HOT COMPONENTS!
Additional warnings for the hedge trimmer attachment:
MOUNT THE DRIVE SHAFT CAREFULLY ONTO THE GEARBOX.
ALWAYS WEAR EYE PROTECTION!
ALWAYS WEAR HEARING PROTECTION!

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
9

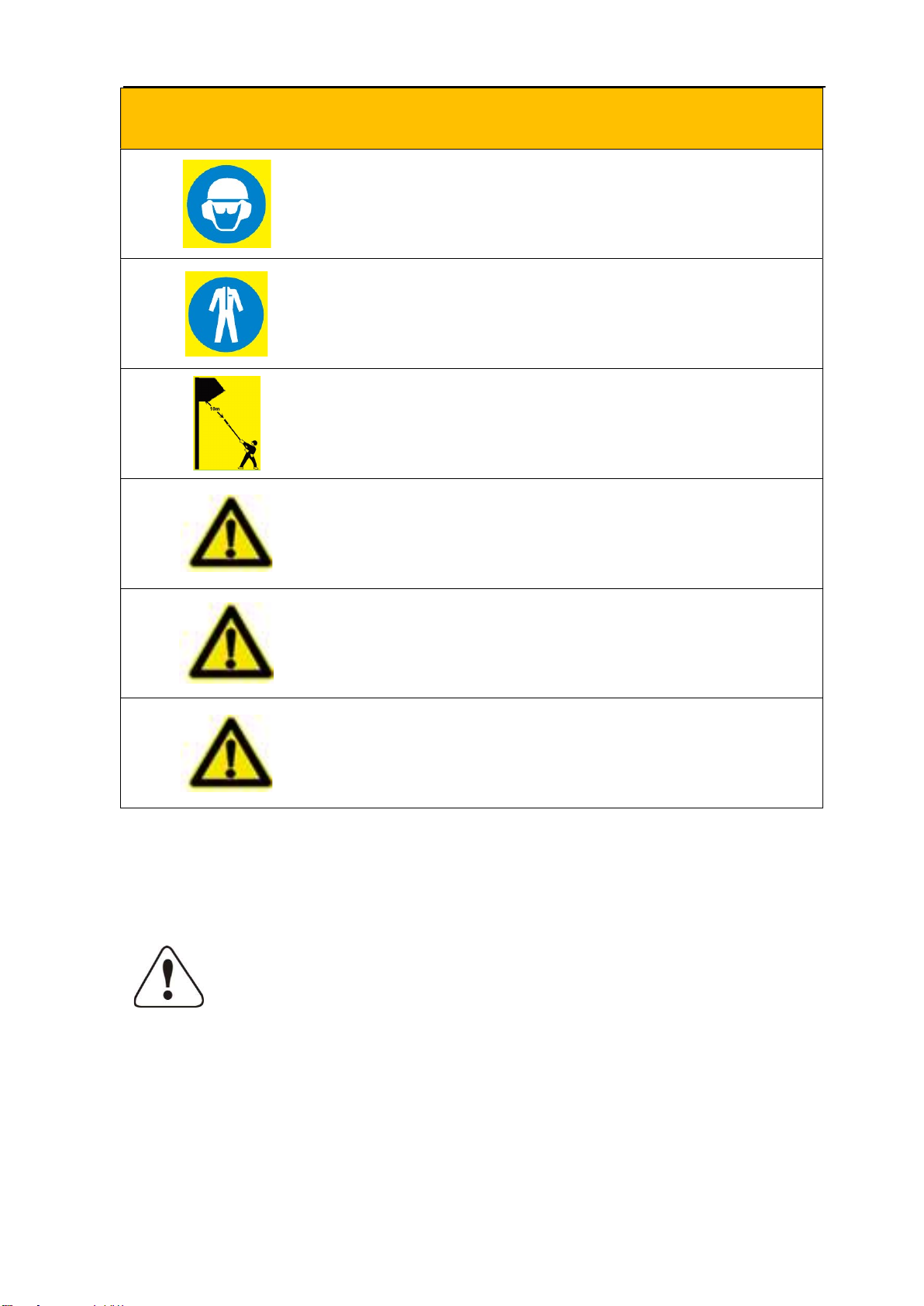

Additional warnings for the pole saw attachment
ALWAYS WEAR EYE PROTECTION, EAR PROTECTION, AND
HEAD PROTECTION!
ALWAYS WEAR PROTECTIVE CLOTHING!
ALWAYS KEEP A MINIMUM DISTANCE OF 10M BETWEEN THE
DEVICE AND HIGH VOLTAGE LINES!
ALWAYS TURN THE DEVICE OFF AND MAKE SURE THE
CUTTING TOOL IS STOPPED BEFORE CLEANING, REMOVING
OR ADJUSTING IT.
WARNING:
EXHAUST GASES OF THIS PRODUCT CONTAIN
CHEMICALS THAT CAUSE CANCER, BIRTH DEFECTS
AND MAY CAUSE FURTHER DAMAGE
WARNING! NEVER CHANGE THE MACHINE. IMPROPER USE
OF THE DEVICE CAN CAUSE SERIOUS OR FATAL
PERSONAL INJURY.
Do not allow others to use this device unless they have been fully instructed, have read
and understood the device manual, and have been trained in the operation of the
device.
Prolonged use of the device exposes the user to shocks that can lead to
white finger disease (Raynaud's syndrome) or carpal tunnel syndrome. This
condition reduces the hand's ability to sense and regulate temperature,
causes numbness and heat sensations, and can lead to nerve and circulatory damage
and tissue death.
Not all factors leading to white finger disease are known. Still, cold weather, smoking,
and other conditions affecting the blood vessels and blood circulation, as well as
extensive or prolonged exposure to shocks, are mentioned as factors in the development
of white finger disease. To reduce the risk of white finger disease and carpal tunnel
syndrome, please note the following

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
10
● Wear gloves and keep your hands warm.
● Take regular breaks.
All the above precautions cannot eliminate the risk of white finger disease or carpal
tunnel syndrome. Long-term and regular users are, therefore, advised to closely monitor
the condition of their hands and fingers. Consult a doctor immediately if any of the
above symptoms occur.
The operating noise of the tool may damage your hearing. Wear a
sound-proofing (Oropax or ear muffs) to protect it. Long-term and
regular users are recommended to check your hearing regularly. Be
especially vigilant and careful when wearing hearing protection as it limits your
ability to hear warnings (cries, alarms, etc.).
WARNING: Some noise exposure from this device is unavoidable. Do not work in
noisy environments during approved and designated times. If necessary, observe rest
periods and limit the duration of work to the minimum required. For your personal
protection and the protection of persons in the vicinity, wear suitable hearing protection.

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
11
Intended use and general safety instructions
This device may only be used with the scythe attachment for mowing or
trimming grass, weeds, and undergrowth. The hedge trimmer attachment is to
be used exclusively for trimming hedges, the branch saw attachment is to be
used solely for delimbing and trimming tree crowns.
Never use it for other purposes, as this can cause serious injuries!
Correct safety instructions must be followed. DO NOT EXPOSE YOURSELF OR OTHERS
TO DANGER. Follow these general safety instructions:
● Always wear safety glasses for your eyes. Long hair must be tied back. Do not wear
loose clothing or jewelry that could get caught in moving parts of the device. Safe,
secure, non-slip safety shoes must always be worn. It is recommended that legs and
feet are fully protected to guard against flying objects during operation.
● Check the entire device for loose parts (nuts, bolts, screws, etc.). Service or replace
them if necessary before using the device. Do not use accessories with this drive
head other than those recommended by the manufacturer. Otherwise, severe injury
to the user or bystanders and damage to the device may result.
● Keep the handles free of oil and fuel.
● Always use correct handles and the shoulder strap when cutting.
● Do not smoke when mixing fuel or filling the tank.
● Do not mix fuel in a closed room or near open fires. Ensure sufficient ventilation/air
circulation.
● Mix and store the fuel mixture in a sealed container approved for such use according
to local regulations.
● Never remove the fuel tank cap while the device is running.
● Do not operate the device in closed rooms or buildings. Exhaust gases contain
dangerous carbon monoxide.
● Do not attempt to adjust the device while running or carrying it. Always fix the
device on a flat, free surface
● Do not use the device if it is damaged. Never remove any protective devices from
itself. Otherwise, the operator or persons may be seriously injured, and further
damage to the device may result.
● Check the area to be cut and remove any objects that may be entangled in the
nylon cutting head or cutting blade. Also, remove all possible objects that the device
could throw around during cutting.
● Never leave the device unattended.
● Do not stretch out far forward. Always maintain a firm stand and balance. Never let
the device run while standing on a ladder or any other unstable standing position.

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
12
● Children must not have access to the device. Spectators should stand at a safe
distance from the working area, at least 15 meters.
● Keep hands and feet away from the nylon cutting head or metal blade during
operation.
● Do not use the device if you are tired, ill, or under the influence of medication,
drugs, or alcohol.
● Use an undamaged nylon cutting head. If you hit a stone or any other obstacle, stop
the device and check the nylon cutting head. Never use a defective or unbalanced
nylon cutting head.
● Before starting, after failure or impact, always check the device and make sure it is
in good condition.
● Attention! Local regulations may limit the use of the device.
● Always keep the device with the cutting tool in good condition. Note, improper
maintenance, the use of non-compliant spare parts or removal, or modification of
safety devices can cause damage to the device, and severe injury to the person
working with it.
● Secure the device well during transport to prevent fuel loss, damage to the device,
and injury. Always fit the transport protection of the cutting blade before
transporting or stowing the device.
● On devices with a clutch, regularly check that the cutting attachment stops rotating
when the engine is idling.
● Always check the device for loose fasteners, fuel leaks, damaged parts, etc. before
each use. Replace used parts before further use.
● Do not store the device in an enclosed area where fuel vapors can reach an open
fire from water heaters, stoves, etc. Store the device only in a well-ventilated area.
● IMPORTANT: When filling the fuel, make sure that the device is off and cooled
down. Never refuel when the device is running or hot. If gasoline is spilled, wipe up
before starting the engine.
Safety Instructions for Hedge Trimmer
● THESE HEDGE TRIMMERS CAN CAUSE SERIOUS INJURIES! Carefully read the
instructions for correct handling, preparation, maintenance, starting, and stopping of
the hedge trimmer. Familiarize yourself with all controls and proper use of the hedge
trimmer.
● Children must never use the hedge trimmer.
● Beware of overhead power lines.
● Avoid using the hedge trimmer when people, especially children, are near it.
● Wear suitable clothing! Do not wear loose clothing or jewelry that can be caught by
moving parts. It is recommended to wear sturdy gloves, non-slip shoes, and safety
goggles.
● Handle fuel with care, it is highly flammable, and the vapors are explosive. The
following points should be followed.

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
13
o Use only specially designed containers.
o Never remove the filler cap or add gasoline while the engine is running or hot.
Allow the engine and exhaust parts to cool down before refilling.
o Do not smoke.
o Only refuel outdoors.
o Never store the hedge trimmer or fuel tank in a room with an open flame, such as a water
heater.
o If gasoline has leaked, do not attempt to start the engine, but remove the gasoline residue
from the device before starting.
o Always replace the fuel cap after filling the tank and close it securely.
o If the tank is emptied, this should be done outdoors.
● If the cutting device touches a foreign object or if the operating noise increases or
the hedge trimmer vibrates unusually strongly, stop the engine and let the hedge
trimmer come to a standstill. Remove the spark plug connector from the spark plug
and take the following actions:
o check for damage;
o check for loose parts and secure all loose parts;
o replace damaged parts with equivalent parts or have them repaired.
● Warning! Always wear hearing and eye protection when using the device.
● Instructions on how to stop the hedge trimmer in an emergency: Unlock the
throttle. Let the device return to idle. Push the engine stop switch on the handle
upwards until the device stops. If it does not stop, pull out the spark plug connector
in an emergency. Never leave the device unattended while it is running.
Notes for operation
a) The engine must be stopped before:
cleaning or removing a blockage;
inspection, maintenance or work on the hedge trimmer;
adjusting the working position of the cutting device;
leaving the hedge trimmer unattended.
b) Always ensure that the hedge trimmer is appropriately in one of the specified working positions
before starting the engine.
c) Always ensure that the hedge trimmer is in a safe position when operating the hedge trimmer. Do
not step on the hedge trimmer or use a ladder.
d) Do not use the hedge trimmer with a defective or heavily worn cutting device.
e) To reduce the risk of fire, ensure that the engine and silencer are free of deposits, leaves, or
escaping lubricant.

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
14
f) Always ensure that all handles and safety devices are fitted when using the hedge trimmer. Never
attempt to use an incomplete hedge trimmer or one with an unauthorized modification.
g) Always use both hands when using the hedge trimmer attachment.
h) Always familiarize yourself with your surroundings and be aware of potential hazards that you may
not be able to hear because of the noise of the hedge trimmer.
Maintenance and Storage Instructions
a) When the Multitool is stopped for maintenance, inspection, or storage, turn off the engine,
remove the spark plug connector from the spark plug and make sure all rotating parts have
stopped. Allow the device to cool down before checking, adjusting, etc.
b) Store the device where petrol vapors cannot come into contact with naked flames or sparks.
Always allow the hedge trimmer to cool down before storing it.
c) When transporting or storing the device, always cover the cutting device with the cutter guard.

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
15
Notes on accessories
● Make sure that your product is only equipped with original accessories. Only use
original parts that are specified by the manufacturer. The use of any other
attachments or accessories may cause injury to the user and damage to the device.
● Clean the device thoroughly, especially the fuel tank and air filter. After using the
device, remove all fuel.
● If you approach a user of the device as a spectator, carefully attract his attention
and confirm that the user will stop the device. Please do not startle or distract the
user. Otherwise, you could cause an unsafe situation.
● Never touch the nylon cutting head or metal blade when the device is running. If it
is necessary to replace the guard or cutting tool, be sure that the device and cutting
tools have stopped.
● The device must be OFF before you change the working range.
● When starting or operating the device, never touch hot parts such as the exhaust,
ignition cables, or spark plug.
● After the device has stopped, the exhaust pipe is still hot. Never place the device
near inflammable materials (dry grass, flammable gases or liquids, etc.).
● Pay particular attention to the fact that the ground may be slippery when operating
the device in the rain or immediately after the rain.
● If you slip or fall to the ground, release the throttle immediately.
● Be careful not to drop the device or hit it against obstacles.
● Before adjusting or repairing the device, make sure that the device is stopped, and
the spark plug connector is removed.
● Before removing blockages, stop the device and remove the spark plug connector.
● If the device is to be stored for an extended period, drain the fuel from the fuel tank
and carburetor, clean the parts, place the device in a safe place and ensure that the
device has cooled down completely.
● Perform constant checks to ensure the safe and efficient operation of the device.
● Keep the device away from fire or sparks.
● Be careful when using the device. There is a risk of kickback and recoil.
● Use extreme caution when using this device with the cutting blade. A cutting blade
kickback is a reaction that can occur when the rotating cutting blade hits an object that cannot be cut.
This contact causes the cutting blade to stop for a moment and then suddenly repels
from the hit object with accelerated force. This kick-back reaction can be severe
enough that the operator loses control of the device. A cutter blade kickback can
occur without warning if the cutter blade encounters an obstacle, becomes blocked
or jams. This is more likely in areas where it is difficult to see the material being
cut. For easy and safe cutting, approach the weeds to be cut from your right to your
left side. If an object or stick of wood is hit unexpectedly, this can reduce a cutter

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
16
blade kickback.
Attaching the shoulder strap
Adjusting the carrying strap
Shoulder Strap
 Put your shoulder strap over one shoulder
 Adjust the strap length (with the attachment
attached) so that the spring hook is at the
height of your right hip
Attention
Never wear the belt diagonally over the shoulder and chest, but only on one shoulder, so
that you can quickly remove the device from your body in case of danger.

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
17

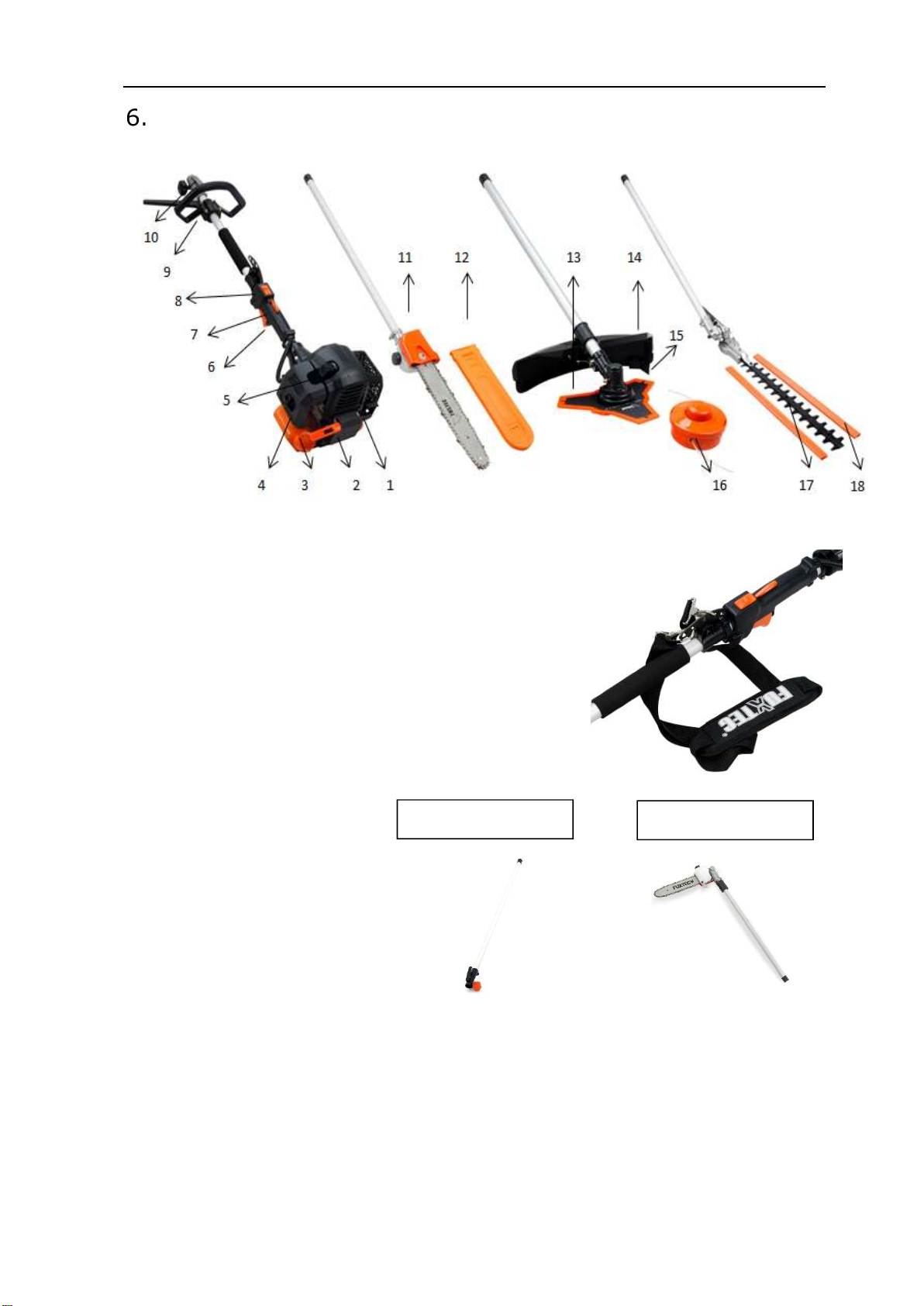

Component overview
1. Exhaust pipe
2. Pullstarter
3. Gas cap
4. Air filter
5. Spark plug
6. Throttle
7. Throttle lock*
8. Start/stop switch
9. All-round handle
10. Connector
11. Branch saw attachment
12. Chainguard
13. 3-tooth metal knife
14. Shield
15. Cutting blades
16. Nylon thread head
17. Hedge trimmer attachment
18. Knife protection
19. Shoulder strap
20. 1m extension
21. Pivoting branch saw attachment
*7 Throttle lock prevents accidental acceleration of the engine. The throttle stick can only be
pressed when the throttle stick lock is pressed.
19
Only for MT152E: Only for MT252:
20 21

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
18
Mounting the all-round handle/attachments
Attaching the handle
The handle must be fitted before use.
Follow the illustrations below for correct installation.
Mounting the wrap-around handle
 There are four holes for mounting the wrap-around handle
 Take the wrap-around handle.
 Align the position of the holes.
 Insert the screws into the holes and tighten them until you feel resistance.
 Tighten the screws well.
Mounting the attachments
1). Place the drive axle against the main shaft so that
the hole of the axle is aligned with the locking pin of the
connecting piece.
2). Actuate the locking pin and insert the drive axle into
the main shaft. Release the locking pin and ensure that
the locking pin engages in the hole.
3). Turn the wing screw clockwise to secure the
connection.

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
19
Mounting the motor scythe/grass trimmer
A metal blade with 3 teeth is delivered with the device. It is used for cutting bushes and
weeds. The use of the saw blade with this device is prohibited.
WARNING DANGER
Also, wear head, eye, face and hearing protection, and safety shoes. Do not wear
rings and jewelry or
loose, dangling clothes that could get caught in the device.
Do not wear footwear with unprotected toes and do not work
barefoot or without leg protection. In certain situations, you must
wear head protection.
WARNING DANGER
Do not cut with blunt, cracked or damaged metal sheets.
Before working, check the surface for obstacles such as stones, metal bars or
other objects. If they cannot be removed,
mark this position to avoid collision with
the blade. Lines can become entangled on the blade head and flap or be swirled in
the air.
WARNING DANGER
Always use the shoulder strap. Adjust and fix the belt and
belt clamping plate on the device so that the device hangs a few cm above
the ground. The cut-out head and the protective shield should be aligned
horizontally in all directions. Pre-tension the machines on the right side of your
body.
WARNING DANGER
Do not use the brushcutter for cutting out trees.

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
20
2
4
3
2
4
3
Installation of the protective shield
Install the protective shield on the driveshaft tube
against the gearbox housing. Tighten the holder of
the guard so that the blade guard does not move or
slide down during operation.
Mounting the metal blade (motor scythe)
Steps:
1. Place the key (1) in the hole on the gearhead.
2. Remove the nut, the cover (4) and the
upper spacer disc (3) from the gear shaft
3. Place the metal sheet on the lower
Distance washer (2). Make sure that the marked
side of the cutting blade is in contact with the disc (2).
4. Slide the upper spacer disc (3) over the
Gear shaft onto the metal sheet. Pay attention to this,
the upper side of the cutting blade makes contact with the
spacer disc (3).
5. Place the cover (4) in place and screw the
Union nut tight with locked gear head
(see point 1)
1
