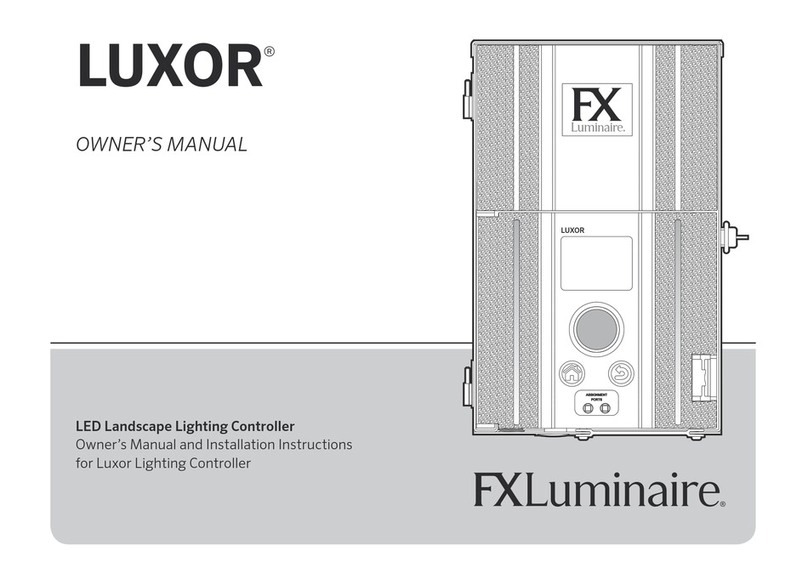

FXLuminaire Luxor User manual

The Luxor lighting controller manages groups
of lights and light intensity at desired times.
Two-wire connections power and communicate
with all lights in a system.
1. Facepack
2. LCD screen
3. Clickable scroll wheel
4. Home button
5. Back button
6. Fixture assignment ports
7. Core cover
8. Chassis
9. Facepack connection
10.Chassis LED
11. Terminal blocks
12.Fuse cover
LUXOR ➊
➋
➌
➍ ➎
➏
➐ ➑
➒
⑩
⑪
⑫
LUXOR®
QUICK START GUIDE
Fixture Assignment
1. Enter assignment mode by inserting stripped
wire leads into the assignment ports on the
front of the Luxor controller facepack.
2. Select your desired group and press
Program.If assignment fails, press Program
again.
1
Controller Setup
1. Select Setup from the Home screen.
2. Enter the current Month, Day, Year, and
Time (Hour, Minutes, Seconds). Then select
Auto.
3. Select your desired Language.
Location Setup
1. Select your Location from the Setup screen.
2. Select your Region.*
3. Select your Map.
4. Use the scroll wheel to navigate to the
desired location. Use the scroll wheel to
toggle between Up/Down and Le/Right.
*The time zone and longitude/latitude will
automatically change with your selected
region.
A. LAN
1. Install a network cable into the LAN
connector located on the back side of the
Luxor facepack.
2. Select SETUP from the Home screen.
Wireless Control
Wireless of the Luxor lighting controller uses
the facepack as a connection point for both
LAN and Wi-Fi connection.
A
LAN
B
Wi-Fi
3. Select LAN.
4. Conrm the LAN eld displays “Connected.”

LUXOR®
QUICK START GUIDE (CONTINUED)
2
B. Wi-Fi Module
1. Install the WIFIMOD2 or WIFIMOD2RMT into
the Wi-Fi connector on the back side of
the Luxor facepack.
2. Select SETUP from the Home screen.
3. Select Wi-Fi.
4. Scroll to the Network eld and press the
scroll wheel.
5. Select your desired network from the list of
available networks.
6. If necessary, enter your network password
and press OK.
7. Conrm the Wi-Fi eld displays “Connected.”
3. Scroll to the Color eld. Press the scroll
wheel to enter the color on the Color
Selector screen.
Colors
1. Select Color from the Home screen.
2. Scroll to your desired color label (C1–C250).
4. Scroll to the Test Grp eld and select your
desired group to test the color.
Color Wheel
1. Select Color Wheel from the Color screen.
2. Scroll to your desired Color Wheel label
(CW1–CW10).
3. Select Start Color. Any color (C1–C250) can be
used as a starting color.
4. Set your desired time interval (5 seconds to
300 seconds) for your Color Wheel cycle. The
shorter the duration, the faster the cycle.
Themes
1. Select Theme from the Home screen
2. Select your desired theme letter (A–AN).
3. Enter your desired Group(s), Color, and
Intensities.
4. Press Test to temporarily turn on the desired
Theme.
Programs
1. Select Program from the Home screen.
2. Select your desired Program (A–G).
3. Enter your desired event type (Sunset,
Sunrise, or Time) in the Event eld.
4. Enter the time you want the event to occur in
the Time eld.
5. Enter the Group or Theme that you want to
be activated during the event.
6. For Groups, select the Color (if applicable).
7. Enter your desired intensity in the % eld.
Group events can be 1%–100%. Themes can
be ON/OFF.
Best practice: To ensure all lights are turned
o, set the last event in the Grp/Thm eld to
“ALL LIGHTS” and set the % eld to OFF.
