INDEX
Presentation of the company and introduction to the Instruction Manual 3
Warranty General Clauses 4
Intended Use Of The Machine 5
Technical Data 6
Machine Standard Equipment 7
Safety Prescriptions 8
Transport recommendations 9
Machine Stability 10
Workplace 10
Emergency Stop Installation Exemption 10
Machine Setup and Instructions 11
Ordinary maintenance 18
Troubleshooting and Acoustic Emissions 19

3
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
PRESENTATION OF THE COMPANY AND
INTRODUCTION TO THE INSTRUCTION MANUAL
G.B.C. Industrial Tools S.p.A. is known worldwide for the quality of its machines and accessories for
pipe cutting and beveling procedures of any sort and plate beveling machines..
The Headquarters are located in Torbiato di Adro (BS) where are currently operating the General
Management, the sales de-department, as well as the main workshop and the shipping department.
QUALITY STANDARD—All our machines are assembled according to the highest quality standard.
Since 1996 G.B.C. Industrial Tool S.p.a. has implemented management procedures in compliance
with the quality system regulations UNI EN ISO 9001 (SGS ITALIA S.R.L. N° IT 96.088 / 1996).
This Manual is supplied together with the machine it makes reference to. The customer may apply
for further copies to G.B.C. Industrial Tools S.p.a. Our company owns the copyright of this docu-
ment and any partial or complete copy or distribution to natural persons or to corporate bodies is
strictly forbid-den unless our prior approval to do so is obtained. G.B.C. Industrial Tools S.p.a.
informs its customers that any operation carried out on the machines which is not prescribed in this
manual entails the automatic invalidation of the warranty. G.B.C. Industrial Tools S.p.a.
recommends to contact the Maintenance Service in Torbiato di Adro –Italy prior to proceed with any
modification on the machine.
You are invited to scrupulously adhere to the information written on the identification tag.
For any further information you are invited to contact us at these numbers:
Tel. +39 - 030 -7451154
Fax +39 - 030 –7356629

4
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
G.B.C. Industrial Tools S.p.a. guarantees the reliability of the machine and its conformity to the specifica-
tions herewith reported. The warranty covers the machine in its whole for a time period of one year from
the shipment date (ref. Delivery Note) for any flaw not imput-able to the user.
The parts subject to wear are excluded from the warranty at sole discretion of G.B.C. Indus-trial Tools
S.p.a.
In case of any operational malfunction arising during the warranty period, G.B.C. Industrial Tools S.p.a.
And its Maintenance Service, hereinafter called MSS, will remedy this inconvenient free of charge , both
for handwork and for eventual replaced parts, except when the malfunction is directly or indirectly imput-
able to misuse or alteration. In any case the machine must not be disassembled or altered before the ship-
ment. The warranty is valid only when the warranty document is duly signed by G.B.C. Industrial Tools
S.p.a. and by a G.B.C. official distributor connected with the MSS maintenance service.
The shipment of the defective material must be performed within 8 (eight) days from the notification of
the defect and/or the claim and/or the request of technical assistance. On the contrary the warranty will be
void. G.B.C. Industrial Tools S.p.A. and MSS obligations will cover the defect resolution, the general
maintenance and the inspection of the parts subject of the claim only. The component replacement is at
G.B.C. Industrial Tools S.p.A. discretion only. The shipmen to costs from and to the MSS as well as the
direct and indirect costs rising from repair of the prod-uct are at user’s charge. Any warranty repair or
extraordinary repair must be executed by G.B.C. Industrial Tools S.p.A. and MSS, otherwise the warranty
will be void.
Any ordinary maintenance performed by the customer/user or by any service centre non recognized or
approved by G.B.C. Industrial Tools S.p.A. will not be refunded and will make the warranty void. The
warranty is not valid for cases not listed in this certificate or for damage caused by a misuse of materials,
power supply, negligence, unauthorized modifications, atmospheric events, acts of vandalism, incautious
handling and/or transport, use of non original G.B.C. Industrial Tools S.p.A. parts and damage for causes
not specified by G.B.C. Industrial Tools S.p.A. and for which G.B.C. Industrial Tools S.p.A. declines any
responsibility. G.B.C. Indus-trial Tools S.p.A. reserves the right to modify and to improve its products
without any obligation to modify equipment and components already supplied. Nobody is authorized to
modify the conditions herewith contained or to issue any on behalf of G.B.C. Industrial Tools S.p.A. The
claim terms for defects and/or damages in the material or of the ordered quantities, are those pre-scribed
by the Civil Code; the goods acceptance entails the buyer to automatically accept the above mentioned
warranty clauses.
WARRANTY GENERAL CLAUSES

5
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
THE MACHINE SHOULD BE OPERATED ONLY BY SPECIALIZED OPERATORS WHO HAVE
BEEN DULY TRAINED ON THE UNIT.
FOLLOWING TO A SPECIFIC FORMATION WE DO NOT ENVISAGE ANY REASONABLY PRE-
DICTALBE MISUSE OF THE UNIT

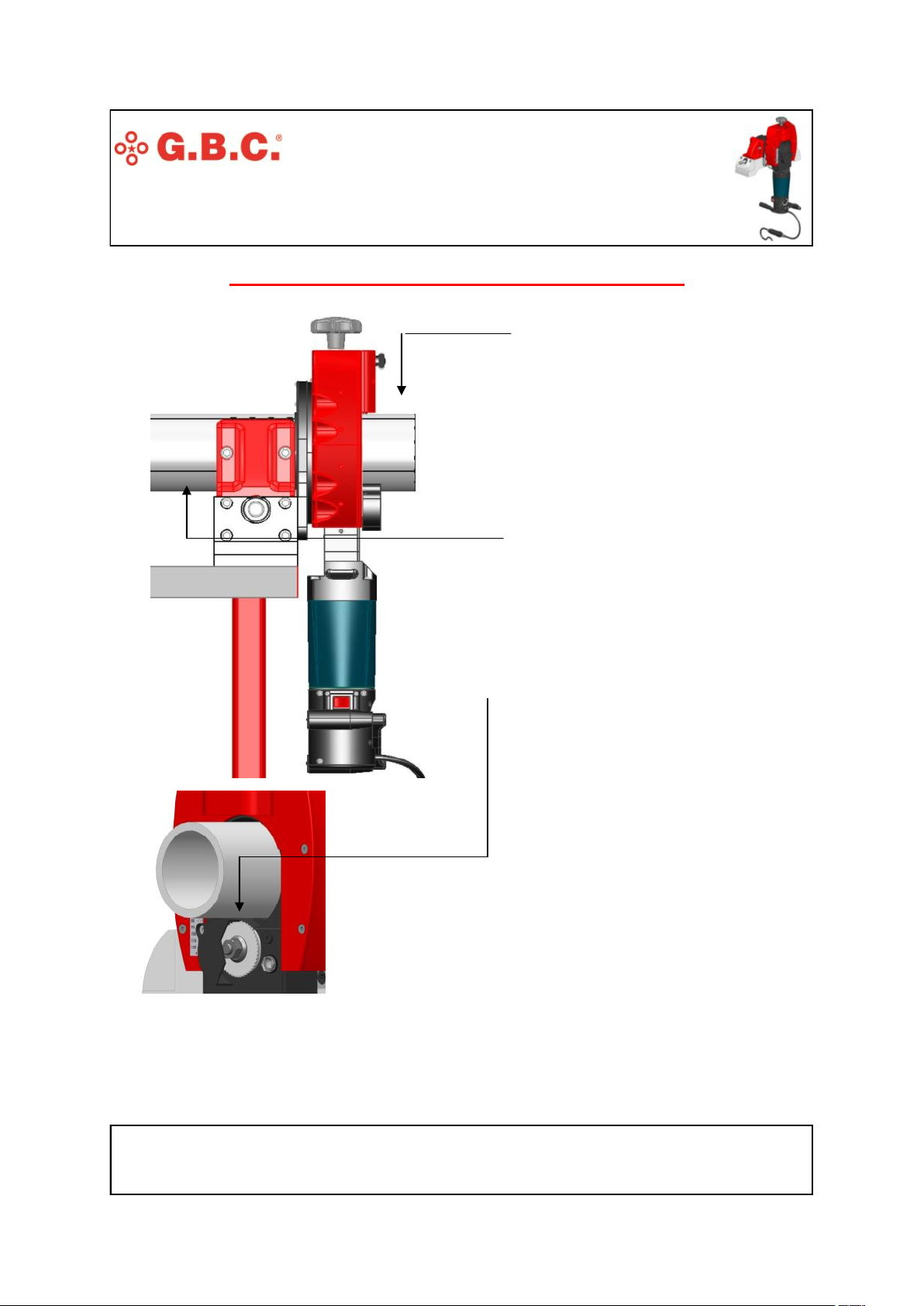

INTENDED USE OF THE MACHINE
INTENDED USE OF THE MACHINE
INTENDED USE OF THE MACHINE
The machine shown in the
drawing is intended to be
used for cutting pipes with
small diameters which are
workable with this unit.
The pipe is loaded in the
machine and locked in the
jaw vice.
The cut is performed by
circular milling tools hav-
ing different thickness de-
pending by the material the
pipes are made of.

6
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
TECHNICAL DATA
ELECTRIC
OD Locking Range mm 13 ÷ 115
Pipe Thickness Mm 2 ÷ 8
Idle Speed gg/min 170 ÷ 300
Electric Motor Power Hp (W) 2200
Tension Volt 110/230
Frequency Hz 50/60
Max Acoustic Emission Db 75
Machine Weight Kg 85

7
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
MACHINE STANDARD EQUIPMENT
MACHINE STANDARD EQUIPMENT
MACHINE STANDARD EQUIPMENT
The machine is supplied with:
 N° 3 milling tools
 Brush and lubricating oil
 20-22 mm Wrench
 19 mm Double Ended Hexagonal Tubular Socket Wrench
 Wooden Case
 Instruction Manual and Exploded Drawings
Pipe 4
Service Tools
Wooden Case
Instruction Manual and Exploded
Drawings

8
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
G.B.C. Industrial Tools S.p.A. designs and assembles its machines in strict compliance with
the safety regulations provided by the applicable EC directives and by the Italian laws regulat-
ing this matter.
G.B.C. Industrial Tools S.p.A. declines any responsibility for misuse of its machines and their
use when in contrast with the regulation listed hereinafter and with the use and maintenance
instructions hereto.
 Carefully read ALL the following regulations and the instructions herewith attached
before starting any operation.
 Carefully ensure that the operator and the foreman using the machine are fully aware of
all the regulations and all the instructions and that they are qualified to operate the unit.
 Strictly attain to the indications given by the international symbols applies on the ma-
chine and/or on its case.
 Do not perform any maintenance operation when the machine is plugged to the power
supply.
 Before every use, ensure the power supply connections to be conform to the specs given
by our manual.
alle caratteristiche specificate nel manuale G.B.C.
alle caratteristiche specificate nel manuale G.B.C.
The authorized operator in any case will not have to disregard the basic safety rules such as:
 Using gloves and goggles (safety gear supplied by the company responsible for the
site or for the building)
 To properly illuminate the working area
 Ensure you are operating in an area which grants free movements (at least 1,5 metres
around the operator)
 Do not replace the control system and do not replace parts with non original spare
parts, and do not project violent water squirts on the machine
 Keep the hands away from hot and sharpened parts.

 G.B.C. Industrial Tools S.p.A. remarks that for any non specified circumstances it is
necessary to obtain the authorization of the manufacturer.
SAFETY PRESCRIPTIONS
SAFETY PRESCRIPTIONS
SAFETY PRESCRIPTIONS

9
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
TRANSPORT RECOMMENDATIONS
Weight of the Machine kg 85
Shipping Dimensions mm 1000x610x570
Shipping Weight kg 117
Under 25 Kgs no lifting machines are required.
1. Always wear gloves and goggles during every operation
2. Any adjustment or inspection of the machine shall be done
with the unit unplugged from the power source.
3. The Use and Maintenance Manual as well as the drawings
will always supply quick and adequate explanations.
Using properly the safety gear entails the only risks to be generated by the user’s
system and not by inborn defects of our machines.

10
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
MACHINE STABILITY
MACHINE STABILITY
MACHINE STABILITY
Considering the mass of the machine no particular problem has been detected in regard to
the operator safety.
WORKPLACE
WORKPLACE
WORKPLACE
By always using both hands for operating the machine, the operator is unable to reach the
bevelling tools as the unit would suddenly stop –motor brake –
EMERGENCY STOP INSTA
EMERGENCY STOP INSTA
EMERGENCY STOP INSTALLATION
LLATION
LLATION
EXEMPTION
EXEMPTION
EXEMPTION
As provided for the paragraph 1.2.4.3. of the attachment 1 of the Machinery Directi-
ve, portable machines are exempt to have this feature.

11
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
MACHINE SETUP
MACHINE SETUP
MACHINE SETUP
After the machine has been removed from its packaging, position it on top of a working
bench as shown in the picture. Once found a satisfactory position fix it in place with N° 4
M16 nuts with suitable length (not included).

12
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
Unscrew the locking nut with a counter-clockwise movement using the wrench supplied
with the machine.
Rotate the protection as shown in the picture.

13
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
Install the milling tool suitable for the job making sure it is well greased for a better grip,
paying attention to the direction of the cutting teeth which must be exactly as shown in the
picture.
Once the milling tool is installed fasten the bolt with the wrench rotating clockwise.

14
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629

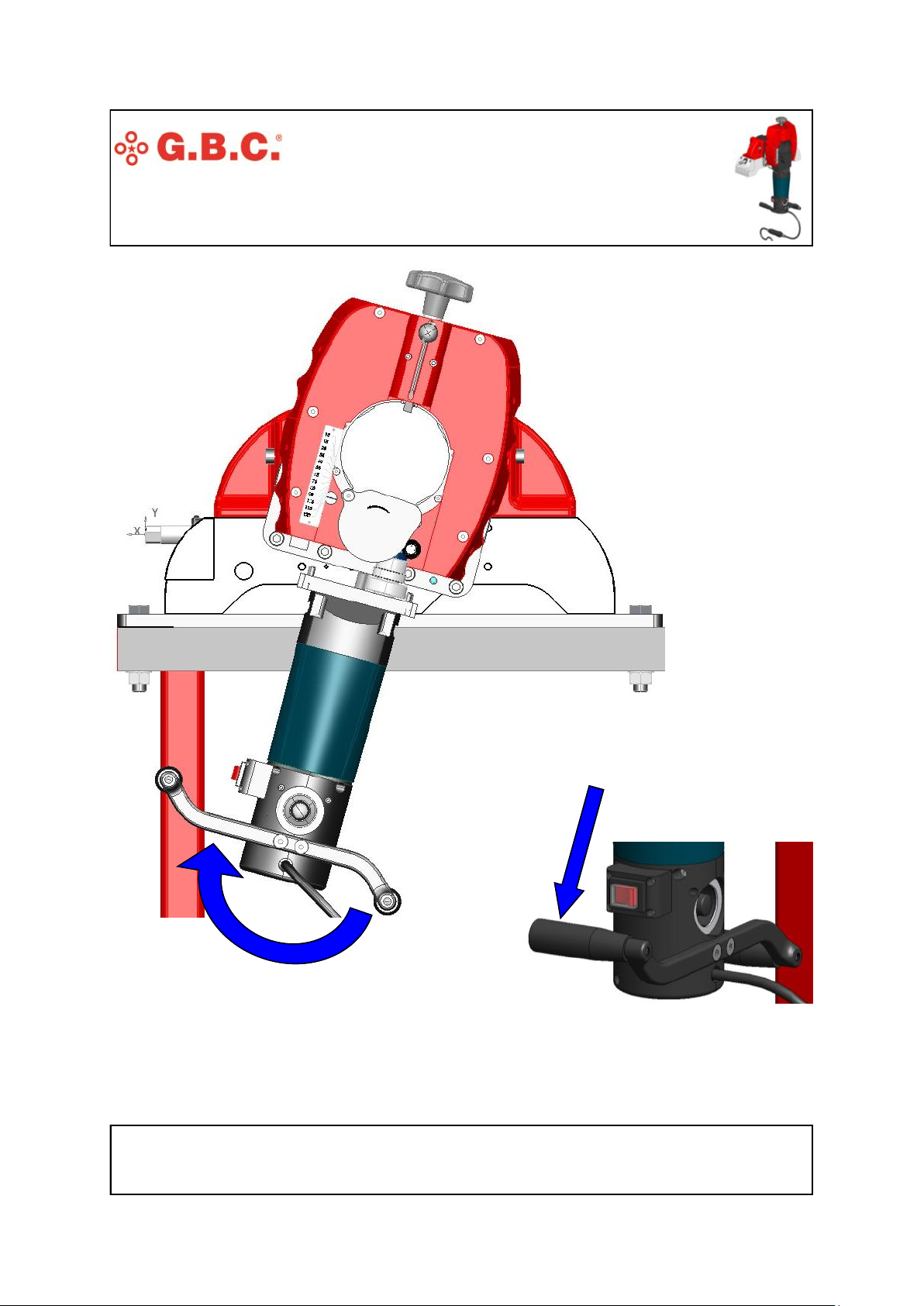

By rotating the hand wheel, position the machine in correspondence of the desired diameter
of the pipe to be worked , in a scale value included between 13 and 120mm. The vernier ap-
plied on the side of the machine will grant you the maximum accuracy.

15
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629

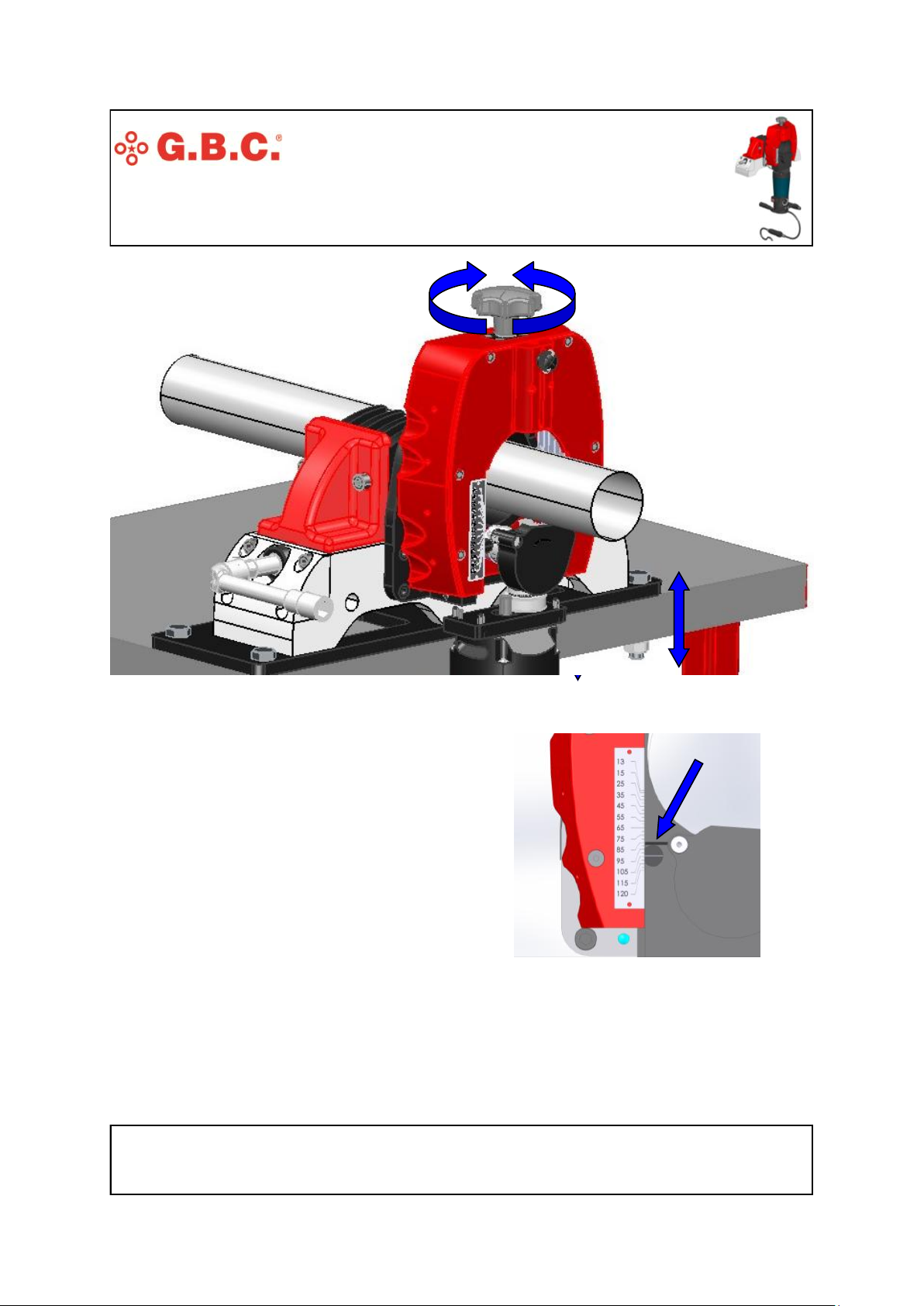

Unscrew the locking screw ―A‖ with a counter-clockwise rotation and pull the reference nee-
dle down on the pipe to visually check where the cut will be executed. Now you can lock the
pipe in the jaws by acting on the locking nut with the elbow pipe wrench. Now you can set
back in place the reference needle and fasten the locking screw to hold it in place..
A
B

16
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
Before starting the machine, apply some lubricating oil on the milling tool with the brush
supplied, but do not exceed with it.
Start the machine with the red button on the side of the motor.
THE BUTTON WILL REMAIN IN ―ON‖ POSITION UNTIL IT IS MANUALLY SWI-
TCHED ON THE ―OFF‖ POSITION.
ON

17
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
Begin the cutting operation by slowly rotating the machine clockwise on its axis. See the op-
eration shown in the picture.

18
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
The milling tool speed can be adjusted in function of the type of material and the thickness
of the pipe, by rotating the speed regulator knob located on the lower part of the motor.

19
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
ORDINARY MAINTENANCE
ORDINARY MAINTENANCE
ORDINARY MAINTENANCE
We suggest to perform a service c/o G.B.C. Industrial Tools S.p.A. premises e-
very 400 hours working cycles.
PERIODICAL CHECKS
PERIODICAL CHECKS
PERIODICAL CHECKS
 Verify the general conditions of the machine;
฀ Always use the filter + lubricator when using pneumatic machines
฀ Ensure the filter + lubricator is mounted the nearest possible to the machine
and that the lubricant contained is supplied by G.B.C. In-dustrial Tools S.p.A.
only.
฀ Perform a compressed air periodical cleaning on the threaded part of the gui-
ding shaft and in the rear part of the machine.
฀ Always ensure that the seats of the tools on the chuck are clean
฀ Every 20 –30 hours ensure the security valve has no air leaks
฀ Ensure no air leaks are present on the air supply system nearby the connection
between the machine and the hose.
฀ Introduce some drops of gasoline or similar oily solvent in the air intake nipple
of the pneumatic motor and start the machine in idle.
฀ Always use well sharpened tools to obtain the maximum result.
G.B.C. Industrial Tools is at your disposal for any information you may re-quire
about the above mentioned procedures and for any general clarification you may
need.

20
PIPE 4
Original Instructions—rev.2011—In compliance with the step 1.7.4 of the Machinery
Directive 2006/42/CE
G.B.C. Industrial Tools S.p.A.
Via Artigiani,17 –25030 Torbiato di Adro (Bs) –Italia –Tel. + 39 030 7451154 –Fax. + 39 030 73 56 629
TROUBLESHOOTING
TROUBLESHOOTING
TROUBLESHOOTING
The machine does not run : Check the power supply is connected and suitable in regard to the
motor power consumption.
The machine does not cut. Check the conditions of the cutting blade and ensure the pipe
you are trying to cut does not require special tools to be worked. Always ask suggestions to
your referent in G.B.C. as we are at your complete disposal.
The acoustic emissions are within the maximum limits provided by the current Machinery Direc-
tive.
The tests are performed on every single machine and the results are stored in our archives.
