GABOR FPC-85 User manual

FPC-85 / FLAT PANEL
for 55 – 85 in. Flat-Panel Screens
TV CART
User Manual

2
The Gabor FPC-85 Flat-Panel TV Cart is the modern heavy duty rolling A/V cart.
Wheel your 85-inch monitor, laptop, and webcam from room to room, whether
it’s at the office, on the sales floor, or in school.
If you have safety concerns about installing this product, contact a qualified
professional or installation contractor.
If this product is missing hardware or there are defective parts, visit
www.madebygabor.com or call Customer Service at 212-594-2353.
Thank you for choosing Gabor.

3
• When installing this product, be sure to refer to the mounting instructions
detailed in this manual; failure to follow the mounting instructions may void
the product warranty.
• It is strongly recommended that this product be installed by a qualified
professional or installation contractor; Gabor takes no responsibility for any
product damage or personal injury resulting from mishandling, incorrect
mounting, faulty assembly, or improper use of this product.
• Do not use this product for any flat-panel screen device other than what it is
intended for; the exact specifications, size parameters, and weight limits are
found both on the product box and in the instruction manual.
• It is recommended that at least two people perform the installation process
to prevent injury from mishandling or dropping the product or flatscreen
device; proper safety gear and tools must be used at all times when installing
this product.
• Do not assemble or use the cart on structures that may be affected by
vibrations or noticeable impacts; do not assemble or use near a heater,
fireplace, or any other source of direct heat energy.
• This product may contain small parts which can possibly pose a choking
hazard; keep out of reach of children and pets.
• Excessive exposure to liquids may damage the finish of this product; when
cleaning this product, use only a mild detergent solution and quickly wipe dry
with a soft cloth.
• All images are for illustrative purposes only.
Safety Warnings

4
Compatible flat-panel display size:
55 to 85 in. (139.7 to 215.9 cm)
Max height:
66 in. (167.5 cm)
Min height:
47.8 in. (121.4 cm)
Max weight capacity:
200 lb. (90.7 kg)
Weight:
64.6 lb. (29.3 kg)
VESA mounting pattern:
200 × 200 to 800 × 500 mm
Material:
Steel
A/V shelf size:
17.7 × 13.3 in. (44.9 × 33.7 cm)
Max A/V shelf load:
25 lb. (11.3 kg)
Caster size:
3 in. (7.6 cm)
Product
Specifications
30.9 in. (100 cm)
17.7 in. (44.9 cm)
38.5 in. (100 cm)
28.2 in. (71.6 cm)
13.3 in. (33.7 cm)
66 in. (167.5 cm) max
47.8 in. (121.4 cm) min

5
and washer

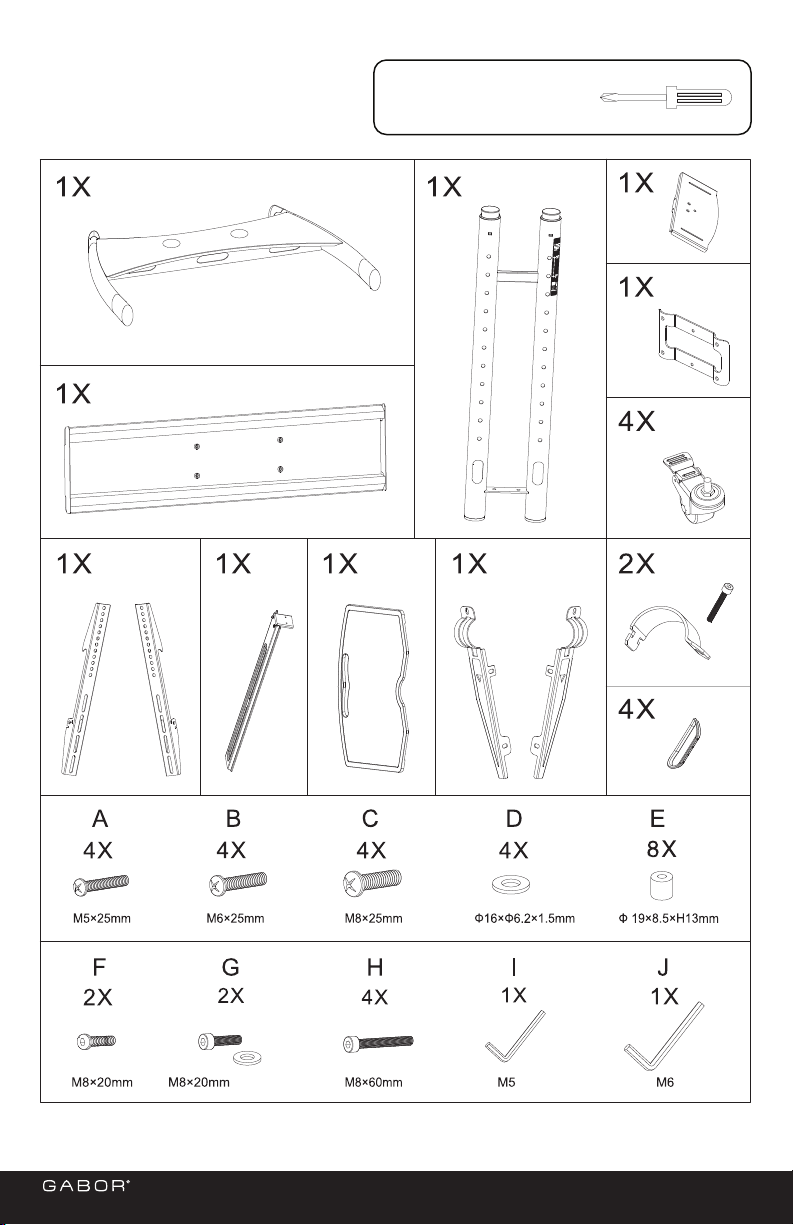

Parts List Required tool:
Phillips screwdriver

6

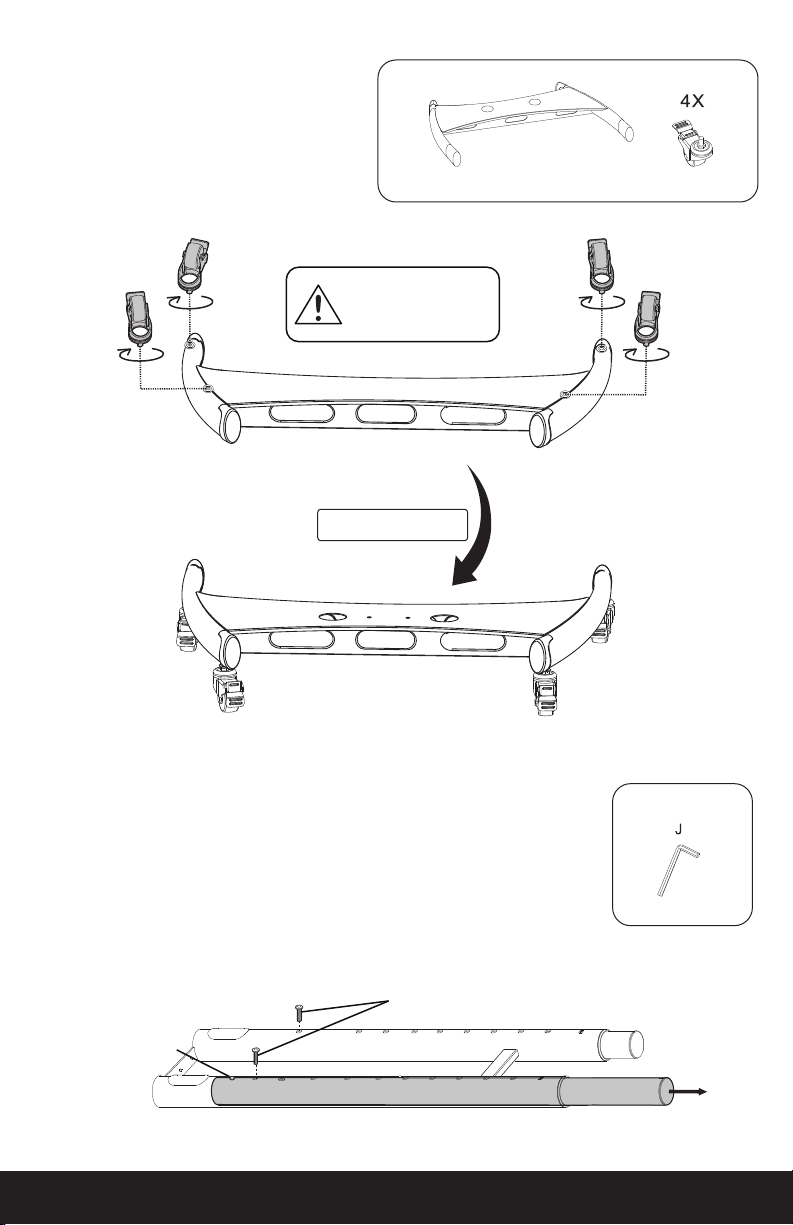

Installing the
Casters
Setting Up the
Risers
Lock the casters
during installation
and cart assembly.
Step 1
Step 2
Turn over
Lay the riser assembly on a flat surface.
Remove the locking screws.
Pull the riser out approximately 2 inches, until the spring pin securely
pops into the open hole.
Repeat these steps for the second riser.
1.
2.
3.
4.
Locking screw
Spring pin

7
Attaching the
Riser Post
Step 2
Make sure the
cable-management holes are
facing the rear of the base.
Step 1

8

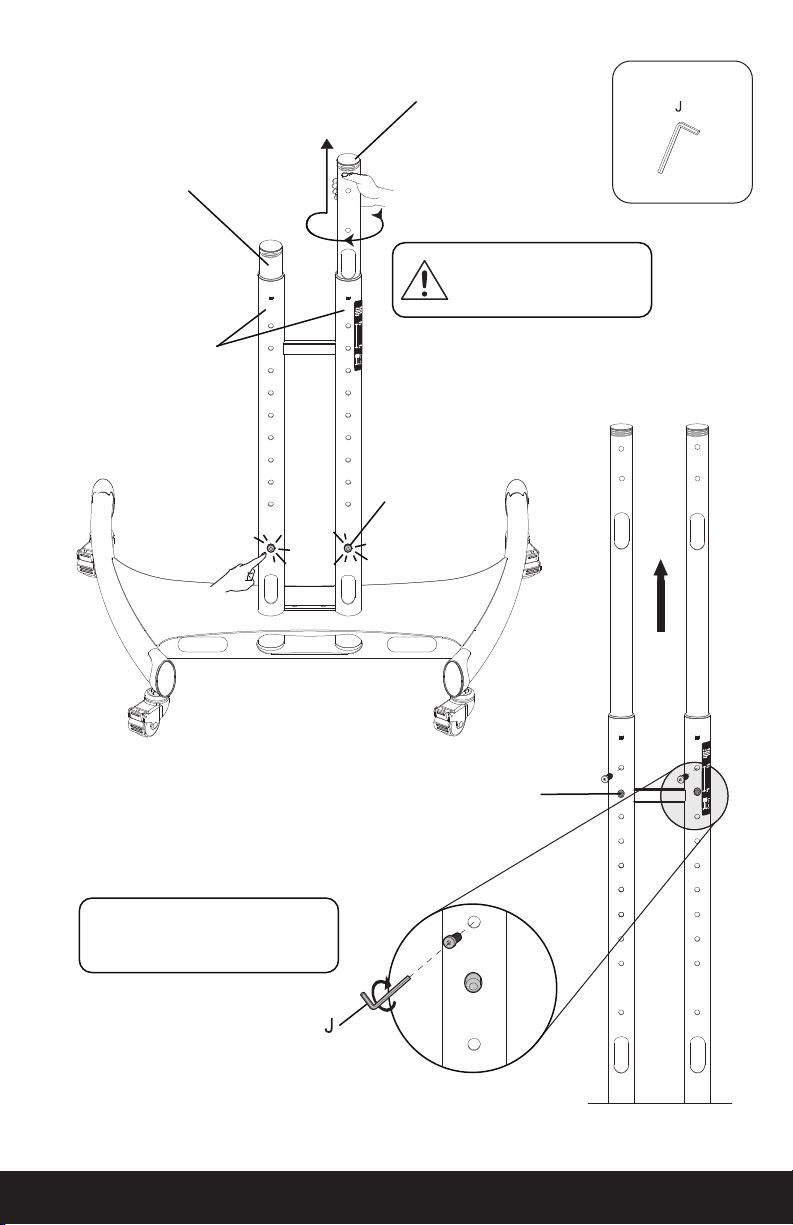

Adjusting the
Riser Height
Left riser
Posts
Right riser
Spring
pin
Step 1
Step 2
Important! Always insert the
locking screw one space above
the spring pin.
Hold onto the riser
when adjusting the
height.
Spring
pin

9
Step 3
A/V Shelf Assembly
and Installation
Step 2
Step 1
Step 4

10
Installing the
Display Mount

11
E (A,B,C)D
Installing the
Display/TV Bracket
If the screw is too short, it
may not hold the display.
If it’s too long, it may
damage the display.
Selecting the Right VESA Mounting
Hardware for Your Display
A variety of screws are included to fit
VESA standards on the back of most
displays. Select the appropriate M5, M6,
or M8 screws and washers.
Hand-thread the screws to determine
the correct diameter.
If Your TV Has a Flat Back:
Install the bracket directly to your TV,
using only the screws and washers
provided.
If Your TV Has a Curved Back or
Recessed Mounting:
Install the spacer between the bracket
and your TV. Then fasten with the
screws and washers until secure.
Bracket
Bracket

12
Step 3
Step 2
Mounting the TV to
the Display Mount
Step 1

13
Camera Tray
Attachment
Step 1 Step 2 Step 3
Step 4
Step 5

14

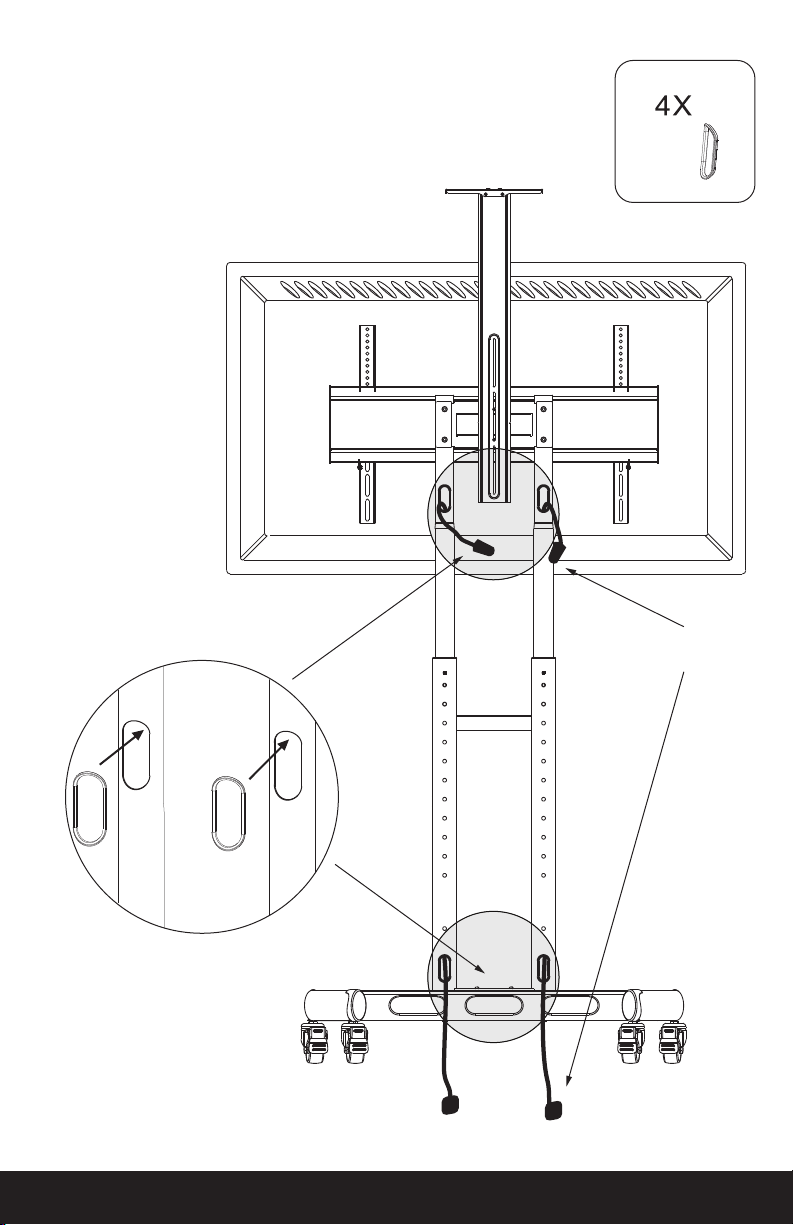

Installing Power
and A/V Cables
Step 2Step 1

15

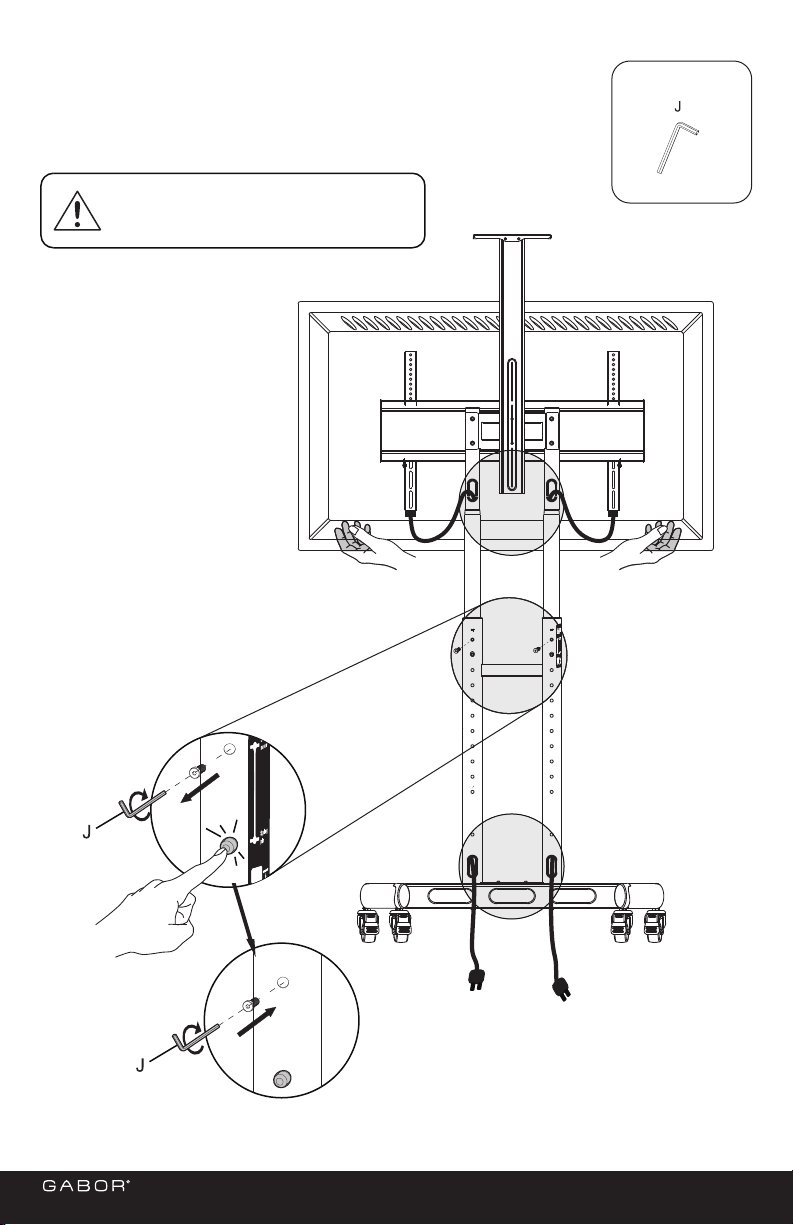

TV Height
Adjustment
Important! Adjusting the TV height is at
minimum a two-person job. These steps
must be done by at least two people.
Lock the casters.
Unplug all connected
devices.
Caution: Make sure the
cables have enough
slack to move the risers
up or down.
Hold the TV while your
partner removes the
security screws and
presses the spring pins.
Move the risers to the
desired height until the
spring pins pop into their
holes. Then reinsert the
security screws.
1.
2.
3.
4.
