Introduction 04
Safety Information 05
Specication 09
Accessories included 11
Product Description 12
Getting started 13
Initial Set Up 13
Cartridge Down Force Adjustment 13
Speaker connection 14
Operation 15
INPUT 15
Turntable Function (LP) 15
Bluetooth Receiver Function (BT) 15
OUTPUT 16
Stereo System Output 16
USB-Encoding 16
Troubleshooting guide 17
Cartridge Replacement 20
Maintenance and Care 21
Contacting customer service
22

SAFETY INFORMATION
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EX-
TENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLEPARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug.
A polarized plug has two blades with one wider than the other. A grounding
plug has two blades and a third grounding prong. The wide blade or the
CONTENT
Introduction 04
Safety Information 05
Specication 09
Accessories included 11
Product Description 12
Getting started 13
Initial Set Up 13
Cartridge Down Force Adjustment 13
Speaker connection 14
Operation 15
INPUT 15
Turntable Function (LP) 15
Bluetooth Receiver Function (BT) 15
OUTPUT 16
Stereo System Output 16
USB-Encoding 16
Troubleshooting guide 17
Cartridge Replacement 20
Maintenance and Care 21
Contacting customer service 22
INTRODUCTION
Thank you for purchasing HENRY Turntable.
To assure maximum satisfaction from this product, please read the
information and follow the instructions presented in this manual.
Please keep the manual in an accessible location for future reference.
We suggest that you save all the packaging materials for possible future
storage, moving or shipping.
Caution: To avoid stylus damage, make certain the included stylus guard
is in place whenever the turntable is being installed, moved or cleaned.
04 05

third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. Where a mains plug is used as the disconnect device, the disconnect
device shall remain readily operable.
16. Please keep the unit in a good ventilation environment.
17. Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on apparatus.
18. The user should not attempt to service the appliance beyond that
described in the operating instructions. All other servicing should be
referred to qualified service personnel.
19. Unplug this product from wall outlets and refer servicing to qualified
service personnel under the following conditions:
When the power supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions, as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to its normal operation.
SAFETY INFORMATION
FOR U.S. MODELS
Federal Communications Commission (FCC)
Compliance Notice
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
06 07

SPECIFICATIONS
HENRY’S TURNTABLE
HENRY’S SPEAKER
HENRY’S NEEDLE: AT3600L
Power AC power adaptor, DC output 15V 2400mA
Power Consumption 36W
Turntable Speed 33 1/3, 45 RPM
Bluetooth Version 5
Speed Variance ±1.5%
Wow and Flutter < 0.15%
Signal to Noise 70dB
Downforce Range 0-6.0g
Effective Tonearm Length 8.6”(218.5mm)
Overhang 0.73”
Turntable Dimensions 418 X 123 X 346 mm
(W X H X D) with lid open 420 X 410 X 420 mm
Weight 5.77kgs
Frequency Response 20Hz - 20kHz
Channel Balance <2.5dB
Tweeter 8Ω10W X 2
Woofer 4Ω30W X 2
RMS 4Ω18W X 2
Speaker Dimensions 162 X 248 X 158 mm
(W X H X D)
Weight 3.76kgs
FOR EUROPEAN MODELS
Declaration of Conformity
This product conforms to all applicable EU directive requirements.
We declare, under our sole responsibility, that this product complies
with the standards:
- Safety
- Limits and methods of measurement of radio disturbance charac
teristics
Limits for harmonic current emissions
- Limitation of voltage changes, voltage fluctuations and flicker
- EU RoHS Directive, 2011/65/EU
08 09

ACCESSORIES INCLUDED
Before throwing away any packaging materials, please check thoroughly
and make sure you nd the following items that come along with this
package:
1. Turntable
2. Speaker X2 (with cable)
3. Turntable Lid
4. Turntable Slip Mat
5. Turntable Platter
6. Tonearm Counterweight
7. 45 RPM adapter
8. Turntable Belt
9. Belt Hook
10. Cartridge Alignment Protractor
11. Anti-skating function
12. Instruction Manual
13. Power Adaptor
14. USB Cable
15. RCA Cable
16. Guarantee Card
17. Story Card
* Please retain the original packaging materials for exchange
or return purposes
Channel Separation >18dB
Output Voltage 2.5mV
Recommended Load 47kΩ
Resistance
Amplifier connection MM - input
Recommended Tracking 3.5±0.5g
Pressure
Weight 5g
10 11

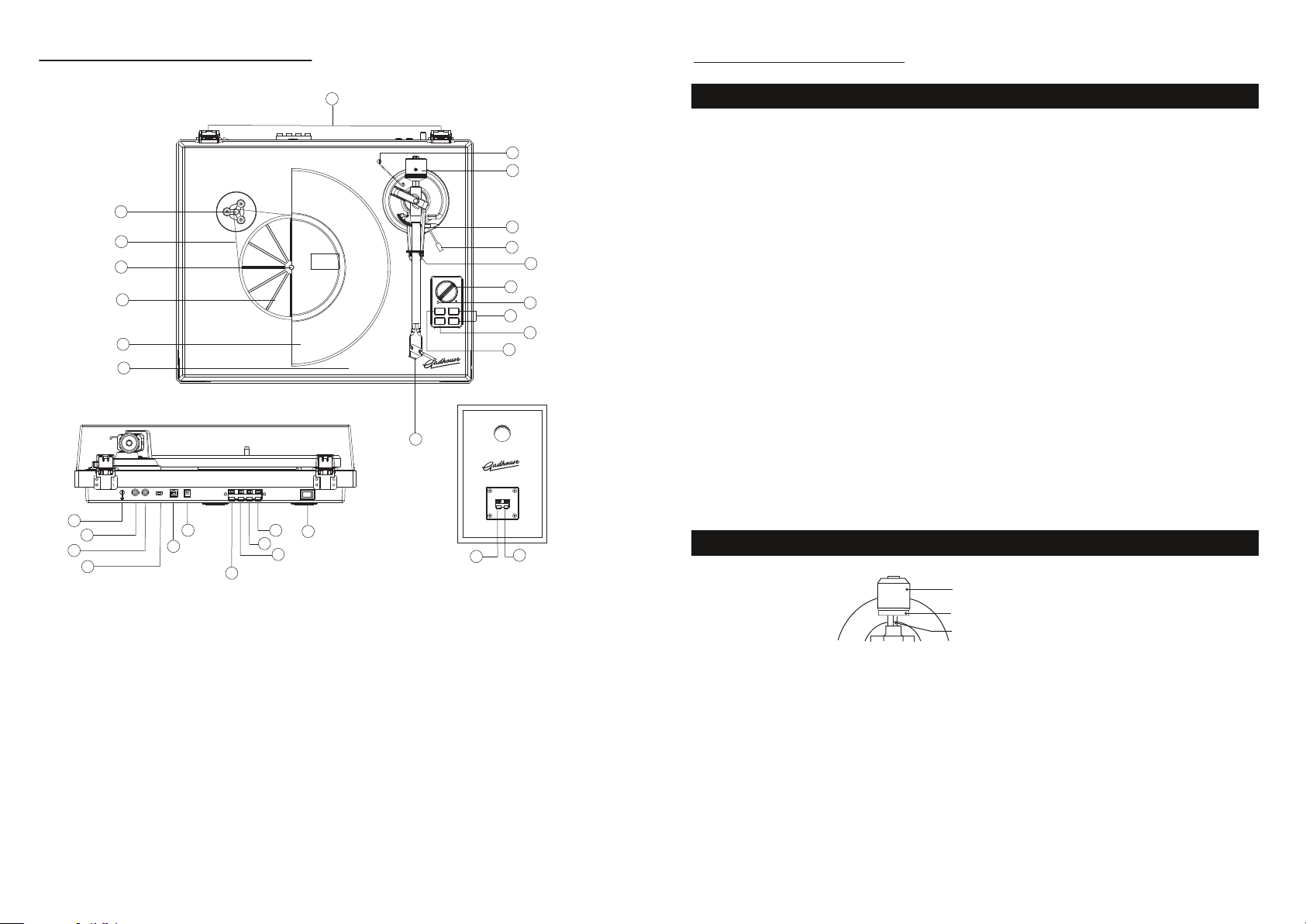

PRODUCT DESCRIPTION
33
45
MODE
PLAY
25
24
23
22
21
20
19
7
6
5
4
3
2
1
17
18
16
15
14
13
12
11
10
9
8
26
27
28 29
30 31
1. Lid Hinge
2. Stepped Drive Pulley
3. Drive Belt
4. Turntable Spindle
5. Turntable Hub
6. Turntable Platter
7. Dust Cover
8. Cartridge
9. Function Switch Button
10. PLAY / STOP Button
11. 33 1/3 / 45 Speed Button
12. Indicator
13. Volume Control
14. Tonearm Clip
15. Tonearm Lift Lever
16. Tonearm Lift
17. Anti-skating weight
18. Tonearm Counterweight
19. Ground Connector
20. R Jack for RCA Line out
21. L Jack for RCA Line out
22. Phono / Line Out Switch
23. USB Port
24. Power Jack
25. Power Amplifier R+
26. Power Amplifier R-
27. Power Amplifier L+
28. Power Amplifier L-
29. Power Switch
30. Speaker Jack -
31. Speaker Jack +
ON
SPEAKERS
L-L+
SPEAKERS
PHONO LINE
USB-PC DC IN 15V
RL
R+R- OFF
12
GETTING STARTED
INITIAL SETUP
1. Place the unit on a flat and level surface. The selected location should
be stable and free from vibration.
2. Install the turntable lid to the hinges.
3. Remove the tie-wrap that is holding the tonearm.
4. Put the drive belt around the Turntable Hub, and then use the provided
belt hoot to help pull the belt to fit around the slot of motor pulley.
5. Place the turntable platter through the turntable spindle.
6. Place the slip mat on top of the turntable platter.
7. Slide Tonearm Counterweight onto tonearm and twist it lightly onto the
rear shaft of the tonearm.
8. Adjust the counterweight to set proper stylus pressure.
9. Connect the adaptor to the Power Jack of the unit.
NOTE: Do not plug the AC power adaptor to power outlet before all the
assembly is completed. Before turning the power on, make sure again all
the connection setting are correct. Always turn off the power when
connecting or disconnecting.

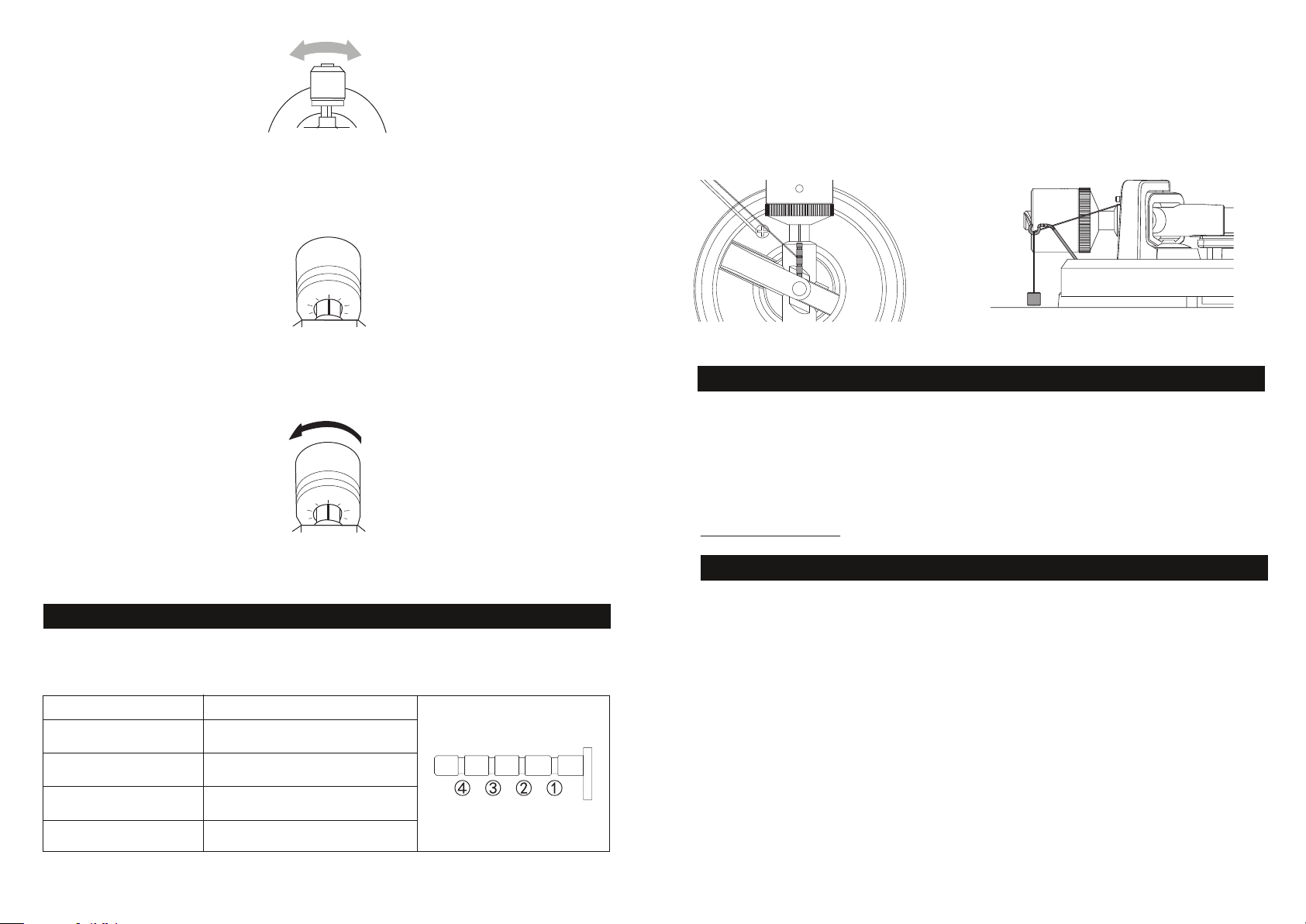

CARTRIDGE DOWN FORCE ADJUSTMENT
The Counterweight supplied is suitable for cartridges weighing between
3.0-6.0g. Gently push and turn the Counterweight onto the rear of the
tonearm (with the scale facing toward the front of the turntable).
Remove the cartridge protection cap. Lower the tonearm lift and position
the cartridge in the space between tonearm rest and platter.Carefully
rotate the Counterweight until the tonearm balances out. The tonearm
should return to the balanced position if it is moved up or down.
This adjustment must be done carefully.
Counterweight
Downforce scale ring
Center line
13

15
The anti-skating force must be adjusted corresponding to the tracking
force as follows:
Tracking Force
5-10 mN
10-15 mN
15-20 mN
20mN and bigger
1st from bearing ring
2nd from the bearing ring
3rd from the bearing ring
4th from the bearing ring
Groove in the stick
Once the tonearm is correctly balanced return it to its’ rest. Hold the
Counterweight without moving it, and gently rotate the Down force Scale
ring until the zero is in line with black line on the rear of the tonearm.
Check whether the arm still balances out.
Rotate the counterweight counter clockwise (seen from the front) to
adjust the down force according to the cartridge manufacturer’s recom-
mendations. One mark on the scale represents 0.05g of down force.
NOTE: The recommended down force for the factory fitted cartridge
is 3.5±0.5g.
ANTISKATE FORCE ADJUSTMENT
0
2
0.5
2
1.5
0
14
Turntable Function (LP)
1. Press the Power Switch to turn on the power.
2. Press the MODE button to choose turntable mode, the indicator will
light in red.
3. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
4. Remove the stylus protector from the stylus assembly.
Note: To avoid stylus damage, make certain the included stylus guard is
in place whenever the turntable is being moved or cleaned.
5. Open the tonearm clip from left to right.
6. Press the PLAY / STOP button once, the platter start turning.
SPEAKER CONNECTION
1.Slip the loop of the anti-skating
weight’s thread over the 3rd
groove of the stick to set correct
anti-skating force for the
factory-fitted cartridge.
2.Feed the thread through the loop
of the wire hanger.
The spring clip speaker terminals deliver amplified, speaker-level signals
as output and should be connected with the passive speakers. The Red
plug connects with the Right channel and the White plug connects with
the Left channel.
OPERATION
INPUT

NOTE:
If the Phono/Line switch is set at LINE position but RCA jacks connected
to the stereo system’s phono input, the sound might be distorted due to
input overload and could damage your stereo system.
If the Phono/Line switch is set at PHONO position but RCA jacks
connected to the stereo system’s line input, the volume will be very low
due to lacking signal pre-amplification.
RCA Jack is not designed to be connected directly to the passive/unpow-
ered speakers and if it does, the volume will be very low.
UPC-Encoding
Visit our tutorial page to see the instruction of both macOS/Windows
operating system
www.gadhouse.com/tutorial or QR code below;
RCA Jacks
The RCA Jacks of this unit are shared as both the Phone output jacks and
the Line output jacks. They are determined by the Phono/Line Switch.
When used as a line output, the jacks output analog line-level signals and
could be connected directly with a pair of active speakers or the appropri-
ate input of your stereo system. When used as a Phono output, they should
be connected to the phono pre-amplifier or the phono input of the stereo
system.
1. Press the Power Switch to turn on the power.
2. Press the MODE button to choose Bluetooth mode, the indicator will
light in blue. You will hear an activation sound from the unit.
Turn on the Bluetooth feature of your audio device, search for “HENRY”
and pair.
Once your device is successfully paired with the unit, you will hear a short
confirmation sound “Connected” Play and stream music from your device
to the unit.
Enjoy the music!
OUTPUT
7. Gently pull up the tonearm from its rest and move it over the record
where play is desired to begin. Use the Tonearm Lift Lever to raise the
Tonearm Lift and let the tonearm sit on it.
8. Set the Tonearm Lift Lever back to the down position, the tonearm will
descend slowly onto the record and begin playback.
9. When the record is finished playing, use the Tonearm Lift Lever to raise
the tonearm and then return it to the tonearm rest. To suspend the
playback, repeat the same steps.
10. Press the PLAY / STOP button again, the platter stop turning.
Stereo System Output
Bluetooth Receiver Function (BT)
16 17

TROUBLESHOOTING GUIDE
To keep the warranty valid, never try to repair the product yourself. If you
encounter problems when using this product, check the following points
in the table below before requesting service. If the problem remains
unsolved, directly contact customer service
e-mail: [email protected]
Problem Troubleshooting guide
The HENRY turntable
does not operate
No sound from the
HENRY turntable.
Power is on, but the
platter does not turn
Tone arm
will not move
 Make sure the power cord is plugged into
a wall outlet and plug the connector into
the power jack on the unit.
 Turn off the product, and then turn it on
again.
 No power at the power outlet.
 Stylus protector is still on.
 Tone arm is lift up by the lever.
 The Phono/Line switch is set at PHONO
position but RCA jacks connected to the
stereo system’s line input.
 Forget to connect the speaker to the
turntable.
 This unit is not in turntable mode. Press
the MODE button to turntable mode, the
indicator light in red.
Need to press the PLAY / STOP button
once to start playing.
Turntable’s drive belt is not installed or
has slipped off.
 Read the information under “Initial set
up” topic in this booklet.
Problem Troubleshooting guide
Needle does not
lower onto record.
Music from record
too slow or too fast
Records keep
skipping
The audio quality is
poor after connection
with a Bluetooth-
enabled device.
Lower the lifter lever.
Make sure the replacing new needle is a
Moving Magnet Cartridge (ATN3600L Dual)
Balance the Counter Weight probably
(see the section Cartridge down force
adjust
 Make sure the Speed button Switch is
correctly set for the record being played
(33, 45, or 78 RPM). (can check the speed
on the record label)
 Ensure the turntable is on a flat, level
surface.
Clean the record with a Gadhouse Vinyl
Cleaner (check the product from Gadhouse
online store) to remove build-up of dust in
the grooves of the record before playing.
 Ensure the Needle is in the correct position.
 Ensure the Needle is not bent or broken by
lightly touching the tip of the needle. (see
more information under “Replacing the
needle” Online here: http://gadhouse.com
/tutorial)
 Ensure the record is in good condition.
 The Bluetooth reception is poor. Move the
device closer to this product or remove any
obstacle between.
 Ensure the length between device and
product is not more than 10 Metre.
18 19

Problem Troubleshooting guide
Cannot connect
Bluetooth with
the HENRY turntable.
 The device does not support the profiles
required for this product.
The Bluetooth function of the device is not
enabled. Check the user manual of the
device to find out how to enable the
function.
Ensure this product is not in the pairing
mode.
This product is already connected with
another Bluetooth-enabled device. Discon-
nect that device and then try again.
Ensure the Mode is operate as “Bluetooth”
function
NOTE:
1. Simultaneous use with other devices
Failure, such as the interruption of sound, may
be caused by radio wave interference from
devices that use the same frequency band
(2.4GHz) as the turntable, including devices
with Bluetooth wireless technology, devices
using wireless LAN, digital cordless phones
and microwaves. Similarly, because radio
waves of the turntable may affect these
devices, take the following precautions:
- Install the devices using the same frequency
band (2.4GHz) away from the turntable.
2. Any device which is connected to the
turntable needs to meet the Bluetooth stand-
ards established by Bluetooth SIG and be
certified. Even if the device meets the Blue-
tooth standards, it might not connect to the
turntable or the operation method and behav-
iour may differ depending on the device’s
characteristics and specification.
20
1. Before replacement, put the stylus protector back on the stylus to
prevent damage to the stylus during the replacement process.
2. Carefully remove the wire leads from the original cartridge.
3. Loosen the two screws on the headshell that are securing the
cartridge and then remove the original cartridge.
4. Mount the new cartridge to the headshell and tighten it lightly. Do not
completely tighten the screws at this moment.
The Bluetooth reception is poor. Move the
device closer to this product or remove any
obstacle between.
 Ensure the length between device and
product is not more than 10 Metre.
 Some mobile phones may connect and
disconnect constantly when you make or
end calls. This does not indicate any
malfunction of this product.
For some devices, the Bluetooth connection
may be deactivated automatically as a
power-saving feature. This does not indicate
any malfunction of this product.
This model use Moving Magnet Cartridge
(ATN3600L Dual), insist upon a genuine
the product at Gadhouse online store
(http://www.gadhouse.com/shop).
and see tutorial page for instruction.
 See the below section of Cartridge
Replacement
 The cable is not grounded correctly.
Problem Troubleshooting guide
The paired device
connects and
disconnects
constantly.
How-to Replacing
the new stylus
Strong hum on
phono input
CARTRIDGE REPLACEMENT
21
Turntable Function (LP)
1. Press the Power Switch to turn on the power.
2. Press the MODE button to choose turntable mode, the indicator will
light in red.
3. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
4. Remove the stylus protector from the stylus assembly.
Note: To avoid stylus damage, make certain the included stylus guard is
in place whenever the turntable is being moved or cleaned.
5. Open the tonearm clip from left to right.
6. Press the PLAY / STOP button once, the platter start turning.

Your turntable requires little of no regular maintenance. Remove dust
with a slightly damp antistatic cloth. Never use a dry cloth, this will create
static electricity and attract more dust! Antistatic cleaning agents are
available at specialist stores, but must be applied sparingly to avoid
damage to rubber parts. It is recommended to install the needle cover
before cleaning or maintenance is carried out to avoid damage.
If the turntable is not used over a long period of time, the drive belt should
be removed to prevent unequal stretching.
NOTE: Always disconnect the record player from the power supply as a
precaution before maintenance!
USEFUL TIPS
The turntable should be positioned on a low-resonance surface such as
wood or multiple layer ply board to avoid structural vibrations disturbing
playback.
CONTACTING CUSTOMER SERVICE
For questions about the HENRY turntable, contact your local store which
cooperates with Gadhouse. For contact information and customer service,
please directly contact the HENRY model’s customer service e-mail:
[email protected] or see more information on
http://www.gadhouse.com.
LIMITED WARRANTY
The HENRY turntable is covered by a limited warranty. Details of the
limited warranty are provided on the product website (http://www.gad-
house.com) or contact for further information via HENRY model’s
customer service e-mail: [email protected]
5. Connect the wire leads to the new cartridge’s terminals. The wire lead
color are as below:
6. Adjust the cartridge’s position to make sure it is precisely aligned on
the headshell so that the stylus will be tracking the grooves in parallel
perfectly. To achieve this, place the included paper cartridge alignment
protractor over the turntable spindle, carefully lift the tone arm and
place the tip of the stylus on the points marked 130mm and 250mm
respectively. Fine tune the cartridge’s position on the headshell until
the cartridge is perfectly in parallel with the reference lines at both
posits.
7. Tighten the screws completely once the perfect alignment is achieved.
NOTE:
· Design and specifications are subject to change without notice.
1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus
on the turntable mat or a record’s edge.
2. Clean the stylus frequently with a soft brush with a back-to-front
motion only.
3. Clean the records to get rid of dust or grease with a record cleaning
brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped
microfiber cloth.
NOTE: Do not use cleanser other that contains alcohol,benzene or any
other harsh chemicals, with might damage the paint and finish of the
turntable.
MAINTENANCE AND CARE
White
Black
Red
Black
(L+)
(L-)
(R+)
(R-)
Left channel positive
Left channel negative
Right channel positive
Right channel negative
22 23
