Gadhouse MATHIS User manual

USER MANUAL
Model: HP-H002DC
Turntable Hi-Fi System

CONTENT
Introduction 04
Safety Information 05
Specification 09
Accessories included 10
Product Description 11
Getting started 12
Initial Set Up 12
Cartridge Down Force Adjustment 12
Operation 14
INPUT 14
Turntable Function (LP) 14
OUTPUT 15
Bluetooth Transmitter 15
Connection to Amplifier 15
Stereo System Connection 16
USB-Encoding 16
Troubleshooting guide 17
Cartridge Replacement 18
Maintenance and Care 19
Contacting customer service
20

SAFETY INFORMATION
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EX-
TENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLEPARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug.
A polarized plug has two blades with one wider than the other. A grounding
plug has two blades and a third grounding prong. The wide blade or the
CONTENT
Introduction 04
Safety Information 05
Specification 09
Accessories included 10
Product Description 11
Getting started 12
Initial Set Up 12
Cartridge Down Force Adjustment 12
Operation 14
INPUT 14
Turntable Function (LP) 14
OUTPUT 15
Bluetooth Transmitter 15
Connection to Amplifier 15
Stereo System Connection 16
USB-Encoding 16
Troubleshooting guide 17
Cartridge Replacement 18
Maintenance and Care 19
Contacting customer service 20
INTRODUCTION
Thank you for purchasing MATHIS Turntable.
To assure maximum satisfaction from this product, please read the
information and follow the instructions presented in this manual.
Please keep the manual in an accessible location for future reference.
We suggest that you save all the packaging materials for possible future
storage, moving or shipping.
Caution: To avoid stylus damage, make certain the included stylus guard
is in place whenever the turntable is being installed, moved or cleaned.
04 05

third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. Where a mains plug is used as the disconnect device, the disconnect
device shall remain readily operable.
16. Please keep the unit in a good ventilation environment.
17. Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on apparatus.
18. The user should not attempt to service the appliance beyond that
described in the operating instructions. All other servicing should be
referred to qualified service personnel.
19. Unplug this product from wall outlets and refer servicing to qualified
service personnel under the following conditions:
When the power supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions, as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to its normal operation.
SAFETY INFORMATION
FOR U.S. MODELS
Federal Communications Commission (FCC)
Compliance Notice
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
06 07

SPECIFICATIONS
MATHIS’S TURNTABLE
MATHIS’S NEEDLE: AUDIO TECHNICA AT-VM95E
Power AC power adaptor, DC output 12V/ 500mA
Power Consumption 5W
Turntable Speed 33 1/3, 45 RPM
Speed Variance ±1%
Wow and Flutter < 0.15%
Signal to Noise 55dB
Downforce Range 0-2.2g
Effective Tonearm Length 8.6”(218.5mm)
Overhang 0.73”
Turntable Dimensions 420 X 360 X 125 mm
(W X H X D) with lid open 420 X 410 X 420 mm
Weight 6.1kgs
Frequency Response 20Hz - 20kHz
Channel Balance <2.0dB
FOR EUROPEAN MODELS
Declaration of Conformity
This product conforms to all applicable EU directive requirements.
We declare, under our sole responsibility, that this product complies
with the standards:
- Safety
- Limits and methods of measurement of radio disturbance charac
teristics
Limits for harmonic current emissions
- Limitation of voltage changes, voltage fluctuations and flicker
- EU RoHS Directive, 2011/65/EU
Channel Separation >20dB
Output Voltage 4.0mV
Recommended Load 47kΩ
Resistance
Amplifier connection MM - input
Recommended Tracking 2.0±0.2g
Pressure
Weight 6.1g
08 09

ACCESSORIES INCLUDED
Before throwing away any packaging materials, please check thoroughly
and make sure you find the following items that come along with this
package:
1. Turntable
2. Turntable Lid
3. Turntable Slip Mat
4. Turntable Platter
5. Tonearm Counterweight
6. 45 RPM adapter
7. Turntable Belt
8. Belt Hook
9. Cartridge Alignment Protractor
10. Anti-skating function
11. Instruction Manual
12. Power Adaptor
13. USB Cable
14. Warranty Card
15. Story Card
* Please retain the original packaging materials for exchange
or return purposes
PRODUCT DESCRIPTION
10. Lid
11. Lid Hinge
12. Ground Connector
13. PHONO & Line Out Jacks
14. PHONO & Line Out Switch
15. Anti-skating Weight
16. USB-PC Port
17. AC-DC Power Jack
18. Bluetooth Status
19. Power Switch
1. Counterweight
2. Anti-skating Stick
3. Turntable Platter
4. Tonearm Lift Lever
5. Tonearm Rest
6. Tonearm
7. Turntable Hub
8. Removeable Headshell
9. 33/45 RPM Selector
Removable Headshell
Turntable Hub
Removable Headshell
Turntable Hub
10 11

GETTING STARTED
INITIAL SETUP
1. Place the unit on a flat and level surface. The selected location should
be stable and free from vibration.
2. Install the turntable lid to the hinges.
3. Remove the tie-wrap that is holding the tonearm.
4. Put the drive belt around the Turntable Hub, and then use the provided
belt hoot to help pull the belt to fit around the slot of motor pulley.
5. Place the turntable platter through the turntable spindle.
6. Place the slip mat on top of the turntable platter.
7. Slide Tonearm Counterweight onto tonearm and twist it lightly onto the
rear shaft of the tonearm.
8. Adjust the counterweight to set proper stylus pressure.
9. Connect the adaptor to the Power Jack of the unit.
NOTE: Do not plug the AC power adaptor to power outlet before all the
assembly is completed. Before turning the power on, make sure again all
the connection setting are correct. Always turn off the power when
connecting or disconnecting.

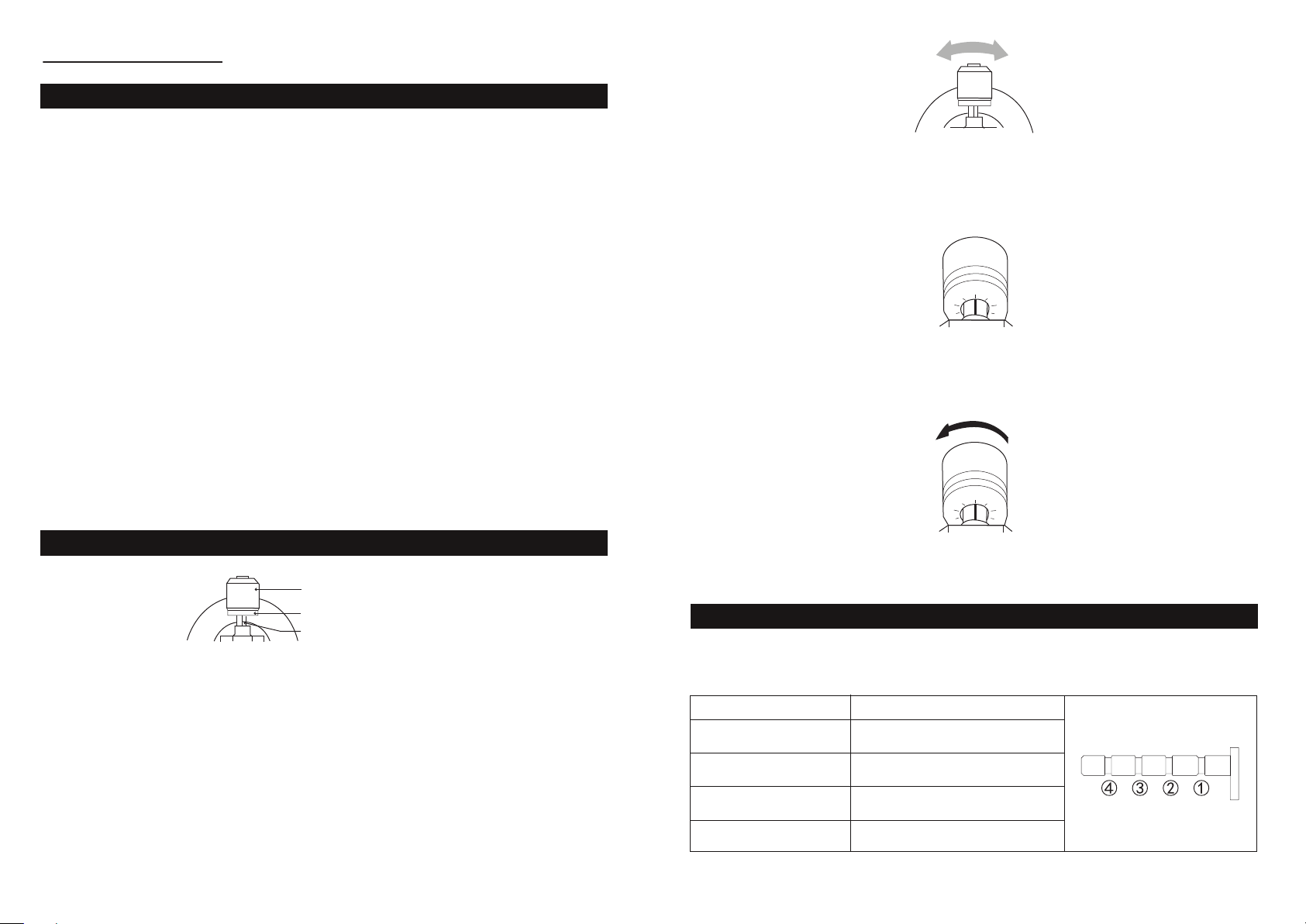

CARTRIDGE DOWN FORCE ADJUSTMENT
The Counterweight supplied is suitable for cartridges weighing between
3.0-6.0g. Gently push and turn the Counterweight onto the rear of the
tonearm (with the scale facing toward the front of the turntable).
Remove the cartridge protection cap. Lower the tonearm lift and position
the cartridge in the space between tonearm rest and platter.Carefully
rotate the Counterweight until the tonearm balances out. The tonearm
should return to the balanced position if it is moved up or down.
This adjustment must be done carefully.

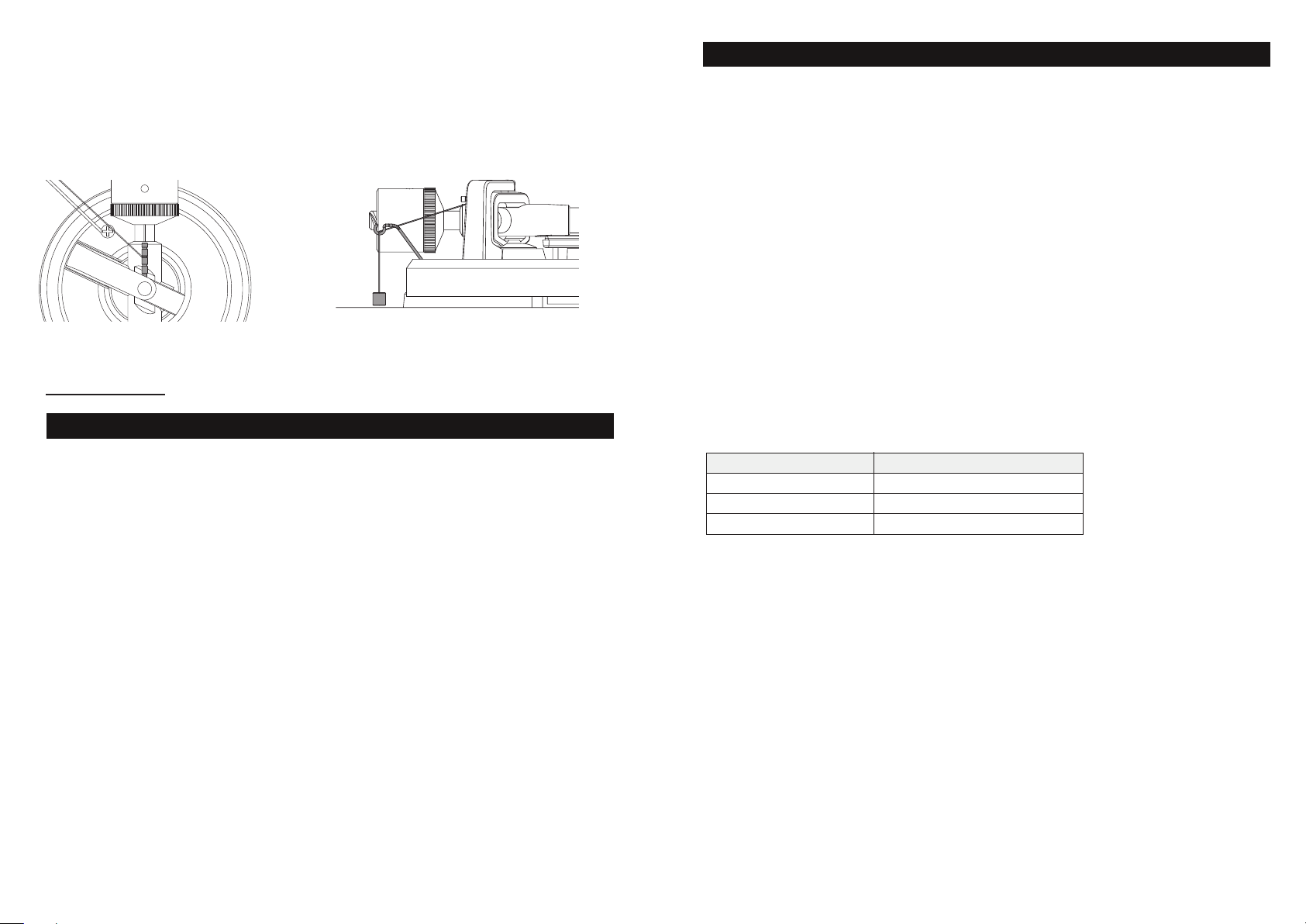

The anti-skating force must be adjusted corresponding to the tracking
force as follows:
Tracking Force
5-10 mN
10-15 mN
15-20 mN
20mN and bigger
1st from bearing ring
2nd from the bearing ring
3rd from the bearing ring
4th from the bearing ring
Groove in the stick
Once the tonearm is correctly balanced return it to its’ rest. Hold the
Counterweight without moving it, and gently rotate the Down force Scale
ring until the zero is in line with black line on the rear of the tonearm.
Check whether the arm still balances out.
Rotate the counterweight counter clockwise (seen from the front) to
adjust the down force according to the cartridge manufacturer’s recom-
mendations. One mark on the scale represents 0.05g of down force.
NOTE: The recommended down force for the factory fitted cartridge is
1.8-2.2g (Model: AT-VM95E)
ANTI-SKATE FORCE ADJUSTMENT
Counterweight
Downforce scale ring
Center line
0
2
0.5
2
1.5
0
12 13

Turntable Function (LP)
1. Press the Power Switch to turn on the power.
2. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
3. Remove the stylus protector from the stylus assembly.
Note: To avoid stylus damage, make certain the included stylus guard is
in place whenever the turntable is being moved or cleaned.
4. Open the tonearm clip from left to right.
5. Gently pull up the tonearm from its rest and move it over the record
where play is desired to begin. Use the Tonearm Lift Lever to raise the
Tonearm Lift and let the tonearm sit on it.
Note: The platter will auto start when the Tonearm leave the its rest
6. Set the Tonearm Lift Lever back to the down position, the tonearm will
descend slowly onto the record and begin playback.
7. When the record is finished playing, use the Tonearm Lift Lever to raise
the tonearm and then return it to the tonearm rest. To suspend the
playback, repeat the same steps.
2. Connection to the Amplifier
This turntable uses a moving magnetic cartridge. Set the PHONO & Line
Out Switch on PHONO Position. Connect the phono out cables to the
phono input on your amplifier of pre-amplifier (phono stage). Line inputs
such as CD, Tuner, Tape, or Video are not suitable for phono inputs.
Make sure the amplification of the selected input matches the type of
cartridge being used. The factory installed cartridge is 47k ohms/MM-input.
NOTE: If your amplifier does not have an input suitable for phono cartridges,
you will need to purchase a separate phono amplifier for moving magnetic
cartidges. This separate phono amplifier will then connect between your
turntable and your amplifier.
1.Slip the loop of the anti-skating
weight’s thread over the 3rd
groove of the stick to set correct
anti-skating force for the
factory-fitted cartridge.
2.Feed the thread through the loop
of the wire hanger.
OPERATION
OUTPUT
INPUT
1. Bluetooth Transmitter Operation
This turntable has a Bluetooth transmitter to wirelessly send audio to
Bluetooth speaker.
1. Power on your Bluetooth speaker and ensure it is in pairing mode.
2. Power on the turntable. BT will auto search when the turntable turns on
and the BT LED indicator light will flash.
3. When pairing, the light will flash twice per second and will become solid
when paired successfully.
4. To disconnect pairing, power off the turntable to turn off Bluetooth
pairing on your Bluetooth speaker.
5. This turntable will connect to the nearest Bluetooth speaker.
If after 2 minutes no Bluetooth speaker can be found to pair with,
the Bluetooth transmitter will become inactive and the LED will
turn off. If you need to connect again, power off the turntable and
the speaker then power on again.
Bluetooth Indicator
Flash
Solid
Off
Auto searching and pairing
Paired successfully
Inactive
Bluetooth Status
14 15

4. USB-Encoding
Visit our tutorial page to see the instruction of both macOS/Windows
operating system
www.gadhouse.com/tutorial or QR code below;
TROUBLESHOOTING GUIDE
To keep the warranty valid, never try to repair the product yourself. If you
encounter problems when using this product, check the following points
in the table below before requesting service. If the problem remains
unsolved, directly contact customer service
e-mail: Cu[email protected]
Problem Troubleshooting guide
There is no power:
The platter doesn’t
turn although the
unit is switched on:
No signal through
one or both
channels:
Strong hum on
phono input:
· The turntable is not connected to the
power adapter.
No power at the outlet.
· The unit is not connected to the main
power supply.
· No power at the outlet.
Drive belt is not installed or has
slipped off.
· Phono input not selected on amplifier.
· Amplifier not switched on.
· Amplifier or speakers muted.
No connection to the speakers.
No connection between turntable and
amplifier
Wire leads not connected the cartridge.
· No ground connection from cartidge, arm,
or arm cable to amplifier or ground loop.
Turntable is too close to speakers.
3. Stereo System Connection
Set the PHONO & Line Out Switch on LINE mode. The RCA PHONO & Line
Out Jacks output analog line-level signals and could be connected directly
with a par of active/powered speakers of the appropriate input of your
stereo system.
The Red plug connects with the Right channel and the White plug
connects with the Left channel.
NOTE: The RCA Jacks are not designed to be connected directly to the
passive/unpowered speakers on LINE mode. If connected to the passive
speakers, there is no sound.
16 17

1. Before replacement, put the stylus protector back on the stylus to
prevent damage to the stylus during the replacement process.
2. Carefully remove the wire leads from the original cartridge.
3. Loosen the two screws on the headshell that are securing the
cartridge and then remove the original cartridge.
4. Mount the new cartridge to the headshell and tighten it lightly.
Do not completely tighten the screws at this moment.
Problem Troubleshooting guide
Distorted or
inconsistent sound
from one or both
channels:
Needle isn’t touching
the record:
Needle is scratching
the record’s surface:
Turntable is connected to wrong input of
amplifier.
Needle or cantilever damaged.
Drive belt overstretched or dirty.
Dust on stylus.
MM / MC switch on pre-amplifier set
incorrectly.
· The screw on the tonearm rest may have
loosened during transport. Genty turn this
screw clockwise to move the needle stylus
closer to the record.
· Gently turn the tonearm rest screw
anticlockwise to move the needle stylus
away from the turntable.
CARTRIDGE REPLACEMENT
NOTE: Factory screw tightness is based on the thickness of the included
slip mat. If a thinner or thicker 3rd-party slip mat is used, gently adjust the
screw as needed following the steps in the last two situations.
5. Connect the wire leads to the new cartridge’s terminals. The wire lead
color are as below:
6. Adjust the cartridge’s position to make sure it is precisely aligned on
the headshell so that the stylus will be tracking the grooves in parallel
perfectly. To achieve this, place the included paper cartridge alignment
protractor over the turntable spindle, carefully lift the tone arm and
place the tip of the stylus on the points marked 130mm and 250mm
respectively. Fine tune the cartridge’s position on the headshell until
the cartridge is perfectly in parallel with the reference lines at both
posits.
7. Tighten the screws completely once the perfect alignment is achieved.
NOTE:
· Design and specifications are subject to change without notice.
1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus
on the turntable mat or a record’s edge.
2. Clean the stylus frequently with a soft brush with a back-to-front
motion only.
3. Clean the records to get rid of dust or grease with a record cleaning
brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped
microfiber cloth.
NOTE: Do not use cleanser other that contains alcohol, benzene or any
other harsh chemicals, with might damage the paint and finish of the
turntable.
MAINTENANCE AND CARE
White
Black
Red
Black
(L+)
(L-)
(R+)
(R-)
Left channel positive
Left channel negative
Right channel positive
Right channel negative
18 19

Your turntable requires little of no regular maintenance. Remove dust
with a slightly damp antistatic cloth. Never use a dry cloth, this will create
static electricity and attract more dust! Antistatic cleaning agents are
available at specialist stores, but must be applied sparingly to avoid
damage to rubber parts. It is recommended to install the needle cover
before cleaning or maintenance is carried out to avoid damage.
If the turntable is not used over a long period of time, the drive belt should
be removed to prevent unequal stretching.
NOTE: Always disconnect the record player from the power supply as a
precaution before maintenance!
USEFUL TIPS
The turntable should be positioned on a low-resonance surface such as
wood or multiple layer ply board to avoid structural vibrations disturbing
playback.
CONTACTING CUSTOMER SERVICE
For questions about the MATHIS turntable, contact your local store which
cooperates with Gadhouse. For contact information and customer service,
please directly contact the MATHIS model’s customer service e-mail:
Cu[email protected] or see more information on
http://www.gadhouse.com.
LIMITED WARRANTY
The MATHIS turntable is covered by a limited warranty. Details of the
limited warranty are provided on the product website
(http://www.gadhouse.com) or contact for further information via MATHIS
model’s customer service e-mail: Cu[email protected]
20

Turntable Function (LP)
1. Press the Power Switch to turn on the power.
2. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
3. Remove the stylus protector from the stylus assembly.
Note: To avoid stylus damage, make certain the included stylus guard is
in place whenever the turntable is being moved or cleaned.
4. Open the tonearm clip from left to right.
5. Gently pull up the tonearm from its rest and move it over the record
where play is desired to begin. Use the Tonearm Lift Lever to raise the
Tonearm Lift and let the tonearm sit on it.
Note: The platter will auto start when the Tonearm leave the its rest
6. Set the Tonearm Lift Lever back to the down position, the tonearm will
descend slowly onto the record and begin playback.
7. When the record is finished playing, use the Tonearm Lift Lever to raise
the tonearm and then return it to the tonearm rest. To suspend the
playback, repeat the same steps.
