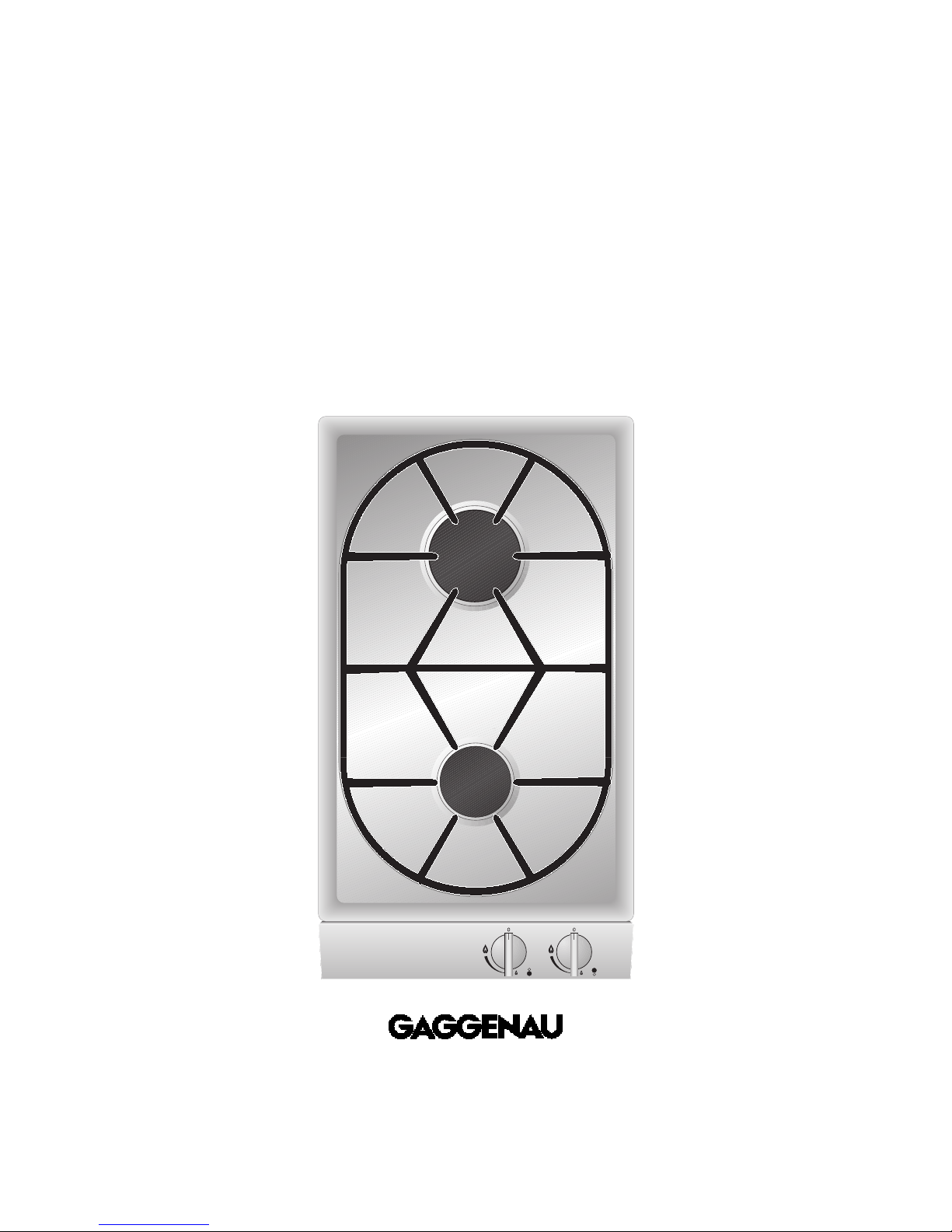

Gaggenau VG 232-322 SG Product guide

Operating and assembly instructions
VG 232-322 SG
Gas cooker

1
Preface
1. Important notes Page 3-4
1.1 For your safety Page 3
1.2 Operating for the first time Page 3
1.3 About use Page 4
2. Structure and operating principle Page 5-6
2.1 Structure Page 5
2.2 Special accessories Page 5
2.3 Operating principle Page 6
3. Operation Page 7
4. Cleaning and care Page 8
5. Maintenance Page 9
5.1 General Page 9
5.2 Remedying slight malfunctions yourself Page 9
6. Technical data / Settings table Page 10
7. Assembly instructions Page 11-15
7.1 Important notes Page 11
7.2 Connecting the appliance Page 12
7.3 Nozzle replacement Page 13-14
7.4 Installation Page 15
VG 232-322 SG

2
Cooking with your new gas cooker will be
even more fun than before.
The appliance offers you the following
advantages:
–Regulation from hot to cold in seconds.
–High safety standard thanks to thermal
protection elements for all burners.
–Thanks to the novel installation method
implemented, installation is child’s play!
To ensure that you will be able to use this appliance
in all its diversity, read through the operating and
assembly instructions conscientiously before
operating it for the first time. The instructions
contain important notes on use, installation and
maintenance of the appliance.
You will find notes on page 3 that you ought to
observe before operating the appliance for the
first time.
The chapters entitled “Structure and operating
principle" and “Operation" tell you all the
things your cooker is capable of doing and how
to operate the appliance.
The chapter entitled “Cleaning and care" will
make sure that your appliance will stay operable
and beautiful for a long time.
And now we wish you lots of fun cooking.
Preface
Fig. 1

1.1 For your safety
You must not operate the appliance if it is damaged.
When connecting electrical appliances in the
proximity of the appliance, make sure that
connecting leads do not come into contact with
hot cooking surfaces!
As the user, you yourself are responsible for
maintenance and proper use in the household.
Only ever operate the appliance under supervision.
Do not operate the appliance without pots and pans
placed on it. Make sure that all the burner parts are
correctly fitted.
Important: The appliance heats up during
operation. Keep children away.
Note:
If you have fitted the appliance cover VD 201-010
(special accessory) on the appliance, it must not
be closed until the appliance has cooled down
completely. Do not operate the appliance with the
cover closed! Heat development may damage the
appliance and the cover. Do not use the appliance
cover as a surface for placing objects or for
keeping things warm.
Do not clean the appliance with a steam cleaning
apparatus or with water pressure - risk of short-
circuits!
Isolate the appliance from the mains during every
maintenance operation. To do this, remove the
mains plug or actuate the corresponding fuse.
Close the gas supply.
Repairs must be carried out by authorised
specialists, thus ensuring electrical safety.
No warranty claims can be lodged for any damage
resulting from failure to observe these instructions.
Observe caution with oils and fats. They may
overheat and burn easily.
Foodstuffs that are prepared in fat and oil must only
be prepared under constant supervision!
Technical modifications reserved.
1.2 Operating for the first time
Before operating the appliance for the first time,
please pay attention to the following notes:
The appliance must only be connected by an
authorised specialist.
Read through these instructions attentively before
operating the appliance for the first time.
Note:
The rating plate for this appliance is included on
a separate sheet. Keep the rating plate in a safe
place along with your operating and assembly
instructions.
Remove the packaging from the appliance and
dispose of it properly.
Keep packaging elements away from children.
Thoroughly clean the appliance and accessories
before using them for the first time. This will
eliminate any “newness" smells and soiling
(see chapter entitled “Cleaning and care").
3
1. Important notes

1.3 About use
The appliance is intended solely for use in the
household and must not be put to any other uses.
Use the appliance to prepare meals only. It must not
be used to heat up the room in which it is installed.
Use of a gas cooker generates heat and humidity
in the room where it is installed. This is why atten-
tion must be paid to good kitchen ventilation.
The natural ventilation openings must be kept
unobstructed. Prolonged use of the appliance
with several or all rings may call for additional
ventilation such as opening a window or a door,
or stronger air extraction by an extractor hood.
To guarantee good combustion, the room in
which the appliance is installed must have
a minimum volume of 10 m3and must possess
a door that opens outdoors or a window that
can be opened.
Only ever use the burners after placing pots and
pans on them. Do not heat up any empty pots
or pans; this may result in a build-up of heat. Use
pots and pans with thicker bottoms because heat
distribution is particularly improved in the low
setting. The better the size of pots and pans is
adapted to the burner size, the better the heat of
the gas flame will be exploited and the more costs
will be saved.
Cooking vessels with curved bottoms, e.g. woks,
must not be used.
It is not permitted to use roasting pans, frying pans
or grill stones heated simultaneously by several
burners because the resulting heat build-up may
damage the appliance.
Switch the burners to the low setting whenever you
remove pots or pans briefly. In this way, you reduce
the risk of burns when working next to naked
flames; you also save gas and reduce pollution.
Whenever the gas hob is fitted under a vapour
extractor hood, always cover the rings with pots
or pans. Otherwise, parts of the vapour extractor
hood may become damaged by the extreme heat
development or grease residues in the filter may
ignite. Ensure an adequate supply of air when
using a vapour extractor operating in the
exhaust air mode.
After igniting, keep the control knob pressed for
around 5-8 seconds more because the heat sensor
that opens the gas channel has to warm up first.
In the event of a power failure, you can also ignite
the unit with matches or any other ignition aid. The
thermal protection facility that prevent gas from
flowing out in the open position functions without
restriction.
Pots with a diameter of less than 90 mm or more
than 220 mm should not be used. When using
larger pots, pay attention to keeping to a minimum
distance of 50 mm between the cooking vessel and
combustible surroundings. A minimum distance of
15 mm must be observed between the control knob
and the pot or pan.
In the event of malfunctions, contact your
specialist dealer or your responsible Gaggenau
after-sales service.
Tip: When buying pots, pay attention to the fact
that the manufacturer frequently specifies the top
pot diameter, which is generally larger than the
diameter of the base.
Observe the manufacturer’s specification! Use
cooking utensils that the manufacturer states as
being “suitable for gas".
Preferably use the larger cooking zone for brief
cooking, deep fat frying and brief frying of large
quantities. Preferably use the smaller ring for
soaking, warming up and keeping warm, even
when large quantities are involved.
4

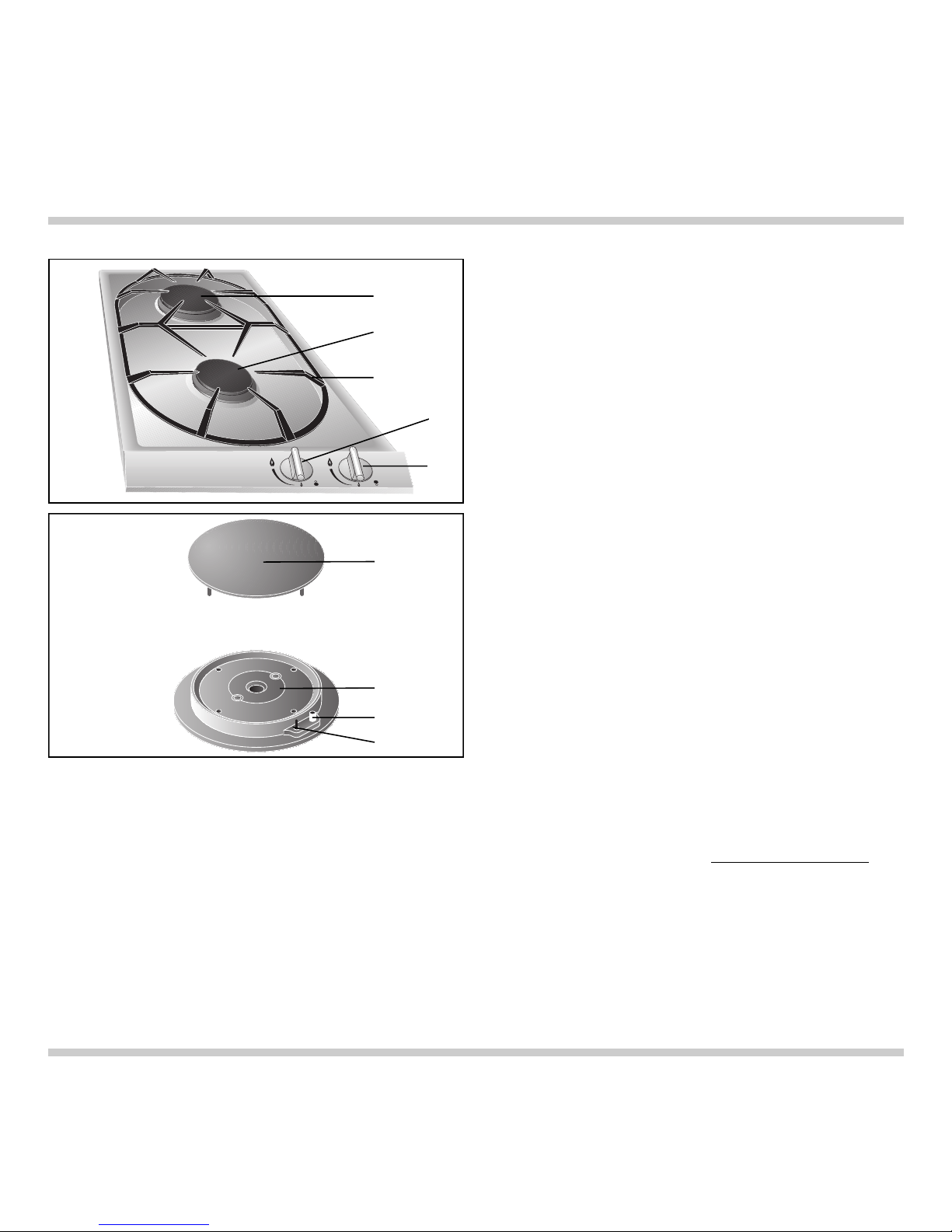

2.1 Structure
2.2 Special accessories
1High-power burner B 2.8 kW
2 Normal burner A 1.9 kW
3 Pot support
4 Control knob for the front cooking position
5 Control knob for the rear cooking position
6 Burner cover
7 Burner head
8 Spark plug for automatic ignition
9 Thermal sensor for flame monitor
You can order the following special accessories:
– VV 200-000: Connecting strip
– VD-201-010: Appliance cover (If an appliance
cover is fitted, the pot support must
be removed when closing.)
5
2. Structure and operating principle
6
7
8
9
1
2
3
4
5
Fig. 2
Fig. 3

2.3 Operating principle
The appliance features one-hand operation. That
is to say, the ignition is activated when the control
knob is pressed briefly.
After igniting, keep the control knob pressed for
around 5-8 seconds more because the heat sensor
that opens the gas channel has to warm up first.
The gas hob has 1 normal burner (front burner)
and 1 high-intensity burner (rear burner).
All burners have a thermal protection device that
prevents unburned gas from escaping in the open
position.
The total rated thermal load amounts to:
4.7 kW referred to Hs* (gross calorific value)
4.2 kW referred to Hi(calorific value)
The specified rated load is defined by installation
of the fixed nozzles.
The gas hob is converted to a different gas
type by nozzle replacement (full and low-burning
nozzles) (see nozzle table on page 10).
The symbols on the control panel mean:
0Off
High setting
Low setting
The flame is infinitely variable between high and
low-setting.
6

The cooking positions must only be ignited
when all burner parts are fitted. Otherwise,
malfunctions may occur on the ignition unit.
Switching on:
–Place a pot or a pan on the corresponding
cooking position.
–Fully press in the control knob for the
corresponding cooking position. This activates
the ignition. Keep the control knob pressed!
–Turn the control knob to the left to the “high"
position.
If the flame should not ignite within 2 to 4 seconds,
turn the control knob further to the left to the “low"
position and then back to the “high" position after
ignition. It is often faster to ignite in the low position
because the various gases have a differing ignition
response.
After igniting, keep the control knob pressed
for around 5-8 seconds more because the heat
sensor that opens the gas channel has to warm
up first.
Repeat the operation if the flame should go out
again.
The flame size can be set continuously between full
and low by slowing turning the control knob.
Switching off:
Fully turn the control knob to the left to the 0
position on the left.
3. Operation
7
Fig. 4
Fig. 5

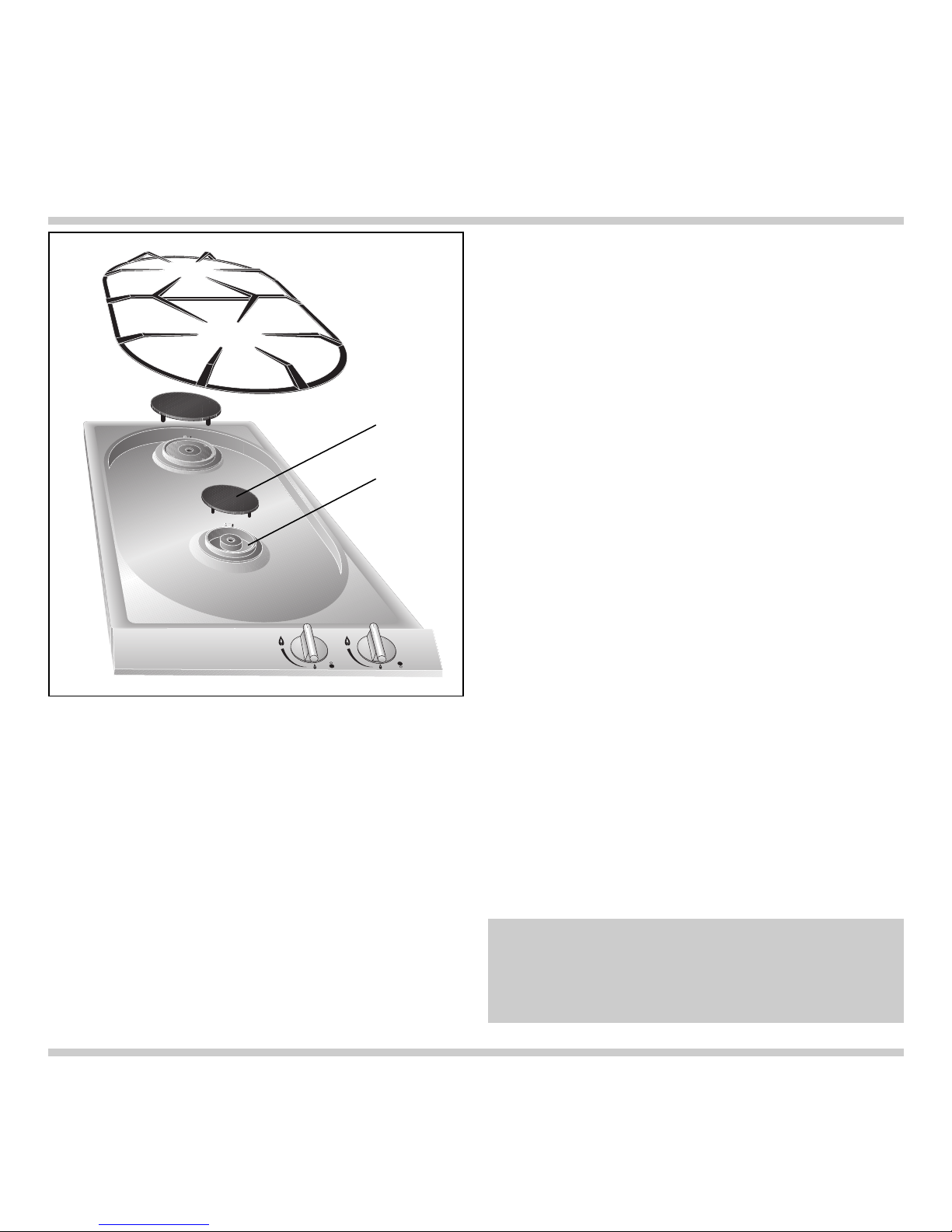

Wipe off spilt food immediately, thus ensuring that
it cannot burn in on the hob.
Caution! The burner gets very hot during
operation!
Never use abrasive or caustic cleaning agents.
You should only clean the control panel and the
control knobs with detergent and a a soft cloth.
To ensure perfect functioning, keep the thermal
sensor and the spark plug clean.
Keep the incoming air openings on the rear of
the panel unobstructed and clean.
Please thoroughly clean the appliance before
operating it for the first time and after every
use.
– Wait until the appliance has cooled down.
– Remove the pot grid.
– Remove the burner cover.
– Clean the hob, the burner covers and the
pot grid with commercially available cleaning
agents (not in a dishwasher!), e.g. with warm
soap solution and a dishwashing brush.
– Whenever required, clean the burner head with
a moist cloth.
– Soak burnt-in remainders in a little water and
detergent. This loosens even the most stubborn
of soiling. Do not use any abrasive agents and
abrasive sponges.
–As the result of heat development, slight dis-
coloration can appear on the stainless steel
surface. Do not attempt to scrape away such
discoloration. This damages the surface.
Distribute stainless steel care agents uniformly
and thinly on the hob (not on the control panel!).
This will ensure an even surface and will keep
your hob in a good condition for a long period of
time.
Important: Allow the burner covers to cool down
before cleaning them!
When assembling, place the burner cover (1) on
the burner head (2) so that the four tabs on the
bottom edge of the burner cover engage in the
corresponding tabs on the burner head (see Fig. 6).
Place the pot grids back in position.
4. Cleaning and care
Caution:
Never use high-pressure or steam jet units to
clean your appliance because otherwise the
electrical safety of the appliance will no longer
be guaranteed.
8
Fig. 6
1
2

5.1 General
Remedying slight malfunctions
yourself
In the event of malfunctions, check whether the
gas and electricity supply is in proper working
order, i.e. the gas valve is open and the plug has
been plugged into the socket.
If the power supply is functioning correctly, but your
appliance still does not work, please contact your
dealer or your local Gaggenau customer service
agency. Specify the appliance type (see rating
plate).
Repairs may only be carried out by authorised
technicians, in order to guarantee the safety of the
appliance.
Unauthorised tampering with the appliance will
invalidate any warranty claims.
Only ever use original spare parts.
9
5. Maintenance
Fault Remedy
The burner does not ignite after several attempts. Check whether ...
... the burner is correctly assembled.
... the gas shut-off facility is open.
... the burner is clean and dry.
... the domestic fuse has tripped.
If necessary, inform after-sales service.
The gas flame goes off after ignition. Check whether ...
... the burner covers are fitted correctly,
... the flame has been extinguished by a strong
draught in the room.
The cooking ring burner’s electrical igniter is no Check whether there are food remainders
longer functioning. between the ignition electrode and the burner
cover. Carefully remove these.
The flame tips are yellow and not blue. Check whether the burners are dry and clean.

Technical data (gas)
Burners: Normal burner
Full burning 1.9 kW
Low burning < 0.35 kW
High-intensity burner
Full burning 2.8 kW
Low burning < 0.56 kW
Gas connection:
R 1/2’’ union nut for R 1/2’’ bracket to DIN 1999,
conical-cylindrical
Attention: The appliance is suitable for
towngas / HK and LP-gas / HK.
Settings table, gas
Technical data (electrical)
Rated consumption 0.8 W
Voltage 220 - 240 V
Frequency 50 - 60 Hz
Technical modifications reserved.
10
6. Technical data / Settings table
Countries HK HK
SG SG
Gas family Town gas L.P.G.
Pressure 8 mbar 2.5 kPa (25 mbar)
A burner, full burning 2.05 0.74
A burner, low burning 0.47 gap* 0.36
B burner, full burning 2.95 0.87
B burner, low burning 0.55 gap** 0.42
∑Power 4.45 kW 4.7 kW
∑Consumption 1 m3/h 340 g/h
* = 1/2 ** = 3/4

11
7.1 Important notes
Please observe the safety notes and the
important notes (Chapter 1).
The installing technician is responsible for perfect
functioning of the appliance at its installation
location.
He must explain the operating principle to the user
with reference to the operating instructions and
must show how to switch of the electricity and gas
whenever required.
Caution:
Before connecting the appliance, please check
whether the local connection conditions such as
the gas type, gas pressure and mains voltage and
the appliance settings are correct. Refer to the
adhesive label on the gas connection or the rating
plate for the necessary information. This gas hob
conforms to the categories that are specified on the
rating plate. The rating plate can be found on the
appliance and additionally on the enclosed adden-
dum sheet. By replacing nozzles, it is possible to
set the appliance to any gas listed on the rating
plate.
If the data should not agree, the appliance must
be set to the required gas type and the available
pressure.
As this gas hob is not intended for connection to an
exhaust gas system, pay attention to the applicable
installation conditions.
Note on ventilation:
To ensure good combustion, the room in which this
appliance is installed must have a minimum volume
of 10 m3and a door that opens out to outdoors or a
window that can be opened.
The appliance may be installed in kitchen
combinations made of wood or similar combustible
materials without taking additional measures. The
rear wall must consist of non-combustible material.
A minimum distance of 150 mm from heat-sensitive
items of furnishing or contact surfaces (cupboard
side panel) must be observed.
The hob conforms to appliance class 3 and must be
installed in the worktop as shown in the installation
sketch.
The distance between the suspended cupboard
and the worktop must be at least 600 mm.
Attention must be paid to the manufacturer’s
specified safety clearance when a vapour extractor
is installed.
Wall trims must be heat-resistant, and the minimum
distance between the hob and the wall trim is at
least 35 mm.
After unpacking, check the appliance for any
transportation damage and report this immediately
to the transportation company.
Technical modifications reserved.
7. Assembly instructions

7.2 Connecting the appliance
Gas connection
The gas connection must be in a location that
permits access to the shut-off valve and which,
if applicable, is visible after opening the door of
the furniture item.
By means of the included R 1/2" connection bracket
(on the appliance end) with the affiliated washer,
the appliance must be connected to a fixed con-
necting line or a gas safety hose to DIN 3383
Part 1 that corresponds to the type concerned.
An ambient temperature of 70 °K must not be
exceeded if the gas safety consists only partly
of metal. The permissible ambient temperature for
a gas safety hose that consists completely of metal
is 115 °K.
If a flexible line is used, it must be laid in such a
way that it cannot come into contact with moving
parts of the kitchen element (e.g. drawer).
Electrical connection
Electrical connection (AC 220-240 V) is established
by means of a connecting cable with an earthing
contact plug connected to an earthed socket, which
must also be accessible after installation of the gas
hob.
If, after installation of the gas hob, not all poles can
be isolated from the mains by removing the plug,
an isolating device with a contact gap of at least
3 mm must be permanently installed. When estab-
lishing connections, make sure that the connecting
lead cannot come into contact with hot parts of the
gas hob or other hot parts.
12
40
73
Fig. 7
Seal
1/2”

7.3 Nozzle replacement
Changing over to a different gas type
Only authorised specialists are permitted to
change over to a different gas type.
The nozzles needed for the gas type to be set
are available as a conversion kit. Please specify the
appliance type and the required gas type.
Nozzles can be replaced without having to open
the housing.
Loads for all gases
For all gas types and pressures, the rated load
is achieved by installing the high and low setting
nozzles for the required gas type (see nozzle
table).
The low setting nozzle is screwed in fully at the
works, and so the lowest quantity is set.
Replacing the low-setting nozzle 1
Proceed as follows:
–Disconnect the appliance from the power
supply!
–Remove the cover from the underside of the
appliance under the gas valves.

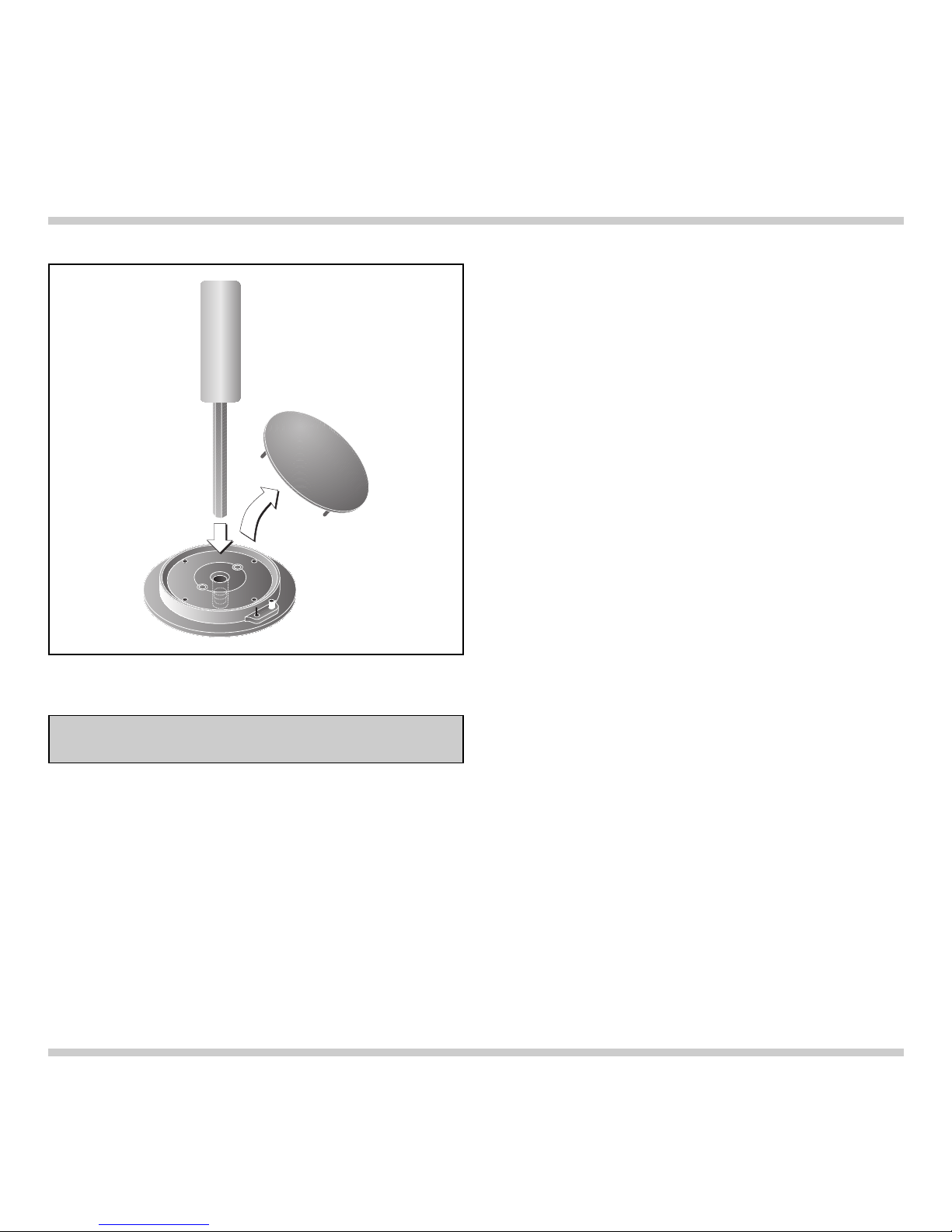

The low-setting nozzle 1 is located in the gas
valve and is screwed in from below. (see Fig. 8)
–Unscrew the nozzle and insert the new nozzle as
specified in the low-setting nozzle table. The
nozzle must be screwed in fully. Fit the cover
cap again.
If it should be necessary to correct the low-setting
nozzle 1 as the result of deviating gas types and
pressure, the flow rate can be increased by turning
to the left.
13
Fig. 8
See table on Page 10
for details of nozzle settings.

Replacing the main nozzle 2
Proceed as follows:

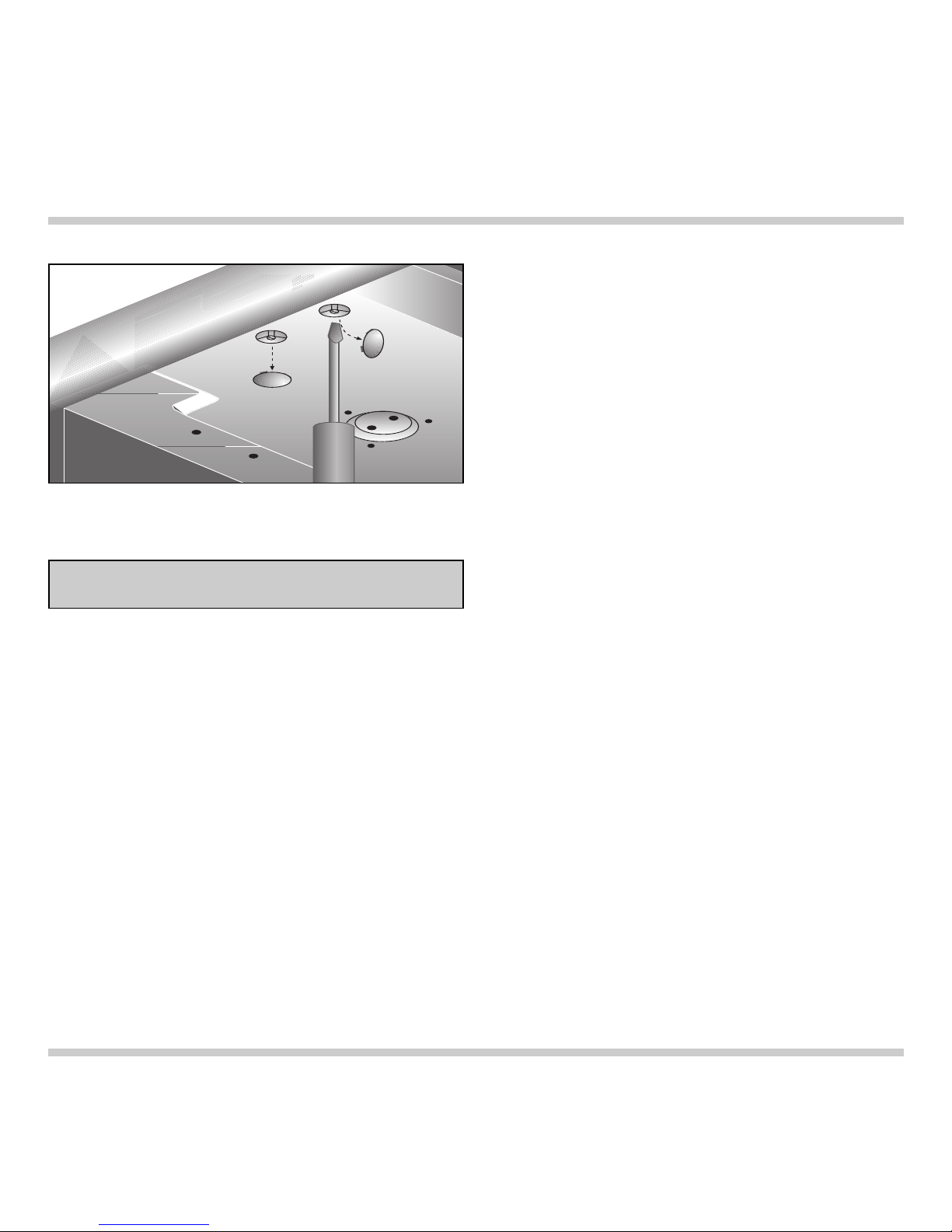

–The main nozzle 2 is visible after detaching the
burner cover (see Fig. 9). It is unscrewed with a
special screw key.
–Unscrew the nozzle and insert the new nozzle as
specified in the main nozzle table. The nozzle
must be screwed in fully and firmly (torque
1.5 Nm) (metallic seal).
–Please do not forget to stick the new adhesive
label included with the nozzle set over the old
adhesive label on the gas connection, thus
documenting the changeover to a different gas
type.
Checking functions
The flames are adjusted correctly if no yellow tips
are visible and if they do not go out when switching
over swiftly from the high to the low setting.
Adjusting the primary air
The primary air setting for different gases is only
defined by the diverse nozzle shapes and therefore
does not require adjustment.
14
Fig. 9
See table on Page 10
for details of nozzle settings.

5080003699 en 08.04 EB 15
7.4 Installation
–Produce the recess for one or several Vario
appliance(s) in your worktop. Proceed as
indicated on the installation sketch and the
dimension table. The dimension table contains
details of the space requirement for the trim
between the appliances.
Important: The angle between the cut surface
and the worktop must amount to 90° (Fig. 10).
–Mark the centre of the recess exactly.
Secure the securing rails on the front and rear
edges of the recess. Make sure that the lugs of
the securing rails lie on the worktop and that the
centre marking of the securing rails is precisely
flush with the centre marking on the worktop
(Fig. 11).
–Lower the appliance into the worktop. Make
sure that the engaging lugs on the appliance
lie exactly on the clamping springs. Press the
appliance firmly into the worktop. The engaging
lugs on the appliance “snap" into the clamping
springs (Fig. 12).
Note: When installing the appliance in granite
or marble worktops, have the holes produced by
a specialist or stick on the securing rails with a
temperature-resistant 2-component adhesive (metal
on stone).
Secure the cover on the appliance before instal-
lation. See assembly instructions VD 201-010.
Note:
Several appliances can also be installed in indi-
vidual recesses, as long as a minimum clearance
of 40 mm is kept to between the appliances.
1,4 m
55
8,5
288
510
490
114 7
854
561
268
min. 35
min. 50
42,5
Fig. 10
Fig. 12
Fig. 11

GAGGENAU HAUSGERÄTE GMBH
CARL-WERY-STR. 34 · D-81739 MÜNCHEN
Y(089) 45 90-03
FAX [phone]
www.gaggenau.com
