Gaggenau AW 400190 User manual

AW 400190/400120/400150
AW 402190/402120/402150
Gaggenau
Operating and installation instructions

2
Abb. 1
GAS
Abb. 1
ELEKTRO
≥ 700 mm ≥ 600 mm

3
Operating insructions
General Information 4
Information on protection of the environment 4
Before using the appliance forthe first time 4
Safety Instructions 5
Intended use 5
Technical safety5
Special information forgas cookers6
Proper use 7
Corect installation 7
Operating modes 8
Exhaust-air mode 8
Circulating-air mode 8
Operating procedure9
Cleaning and care11
Removing and installing thegrease filters12
Removing and installing the metal-mesh
grease filters12
Installing and removing the activated
carbon filters12
Changing the bulbs 13
Installation instructions
Installation instructions 14
Connecting pipes 14
Electrical Connections 15
Installation 16
Installation preparations 16

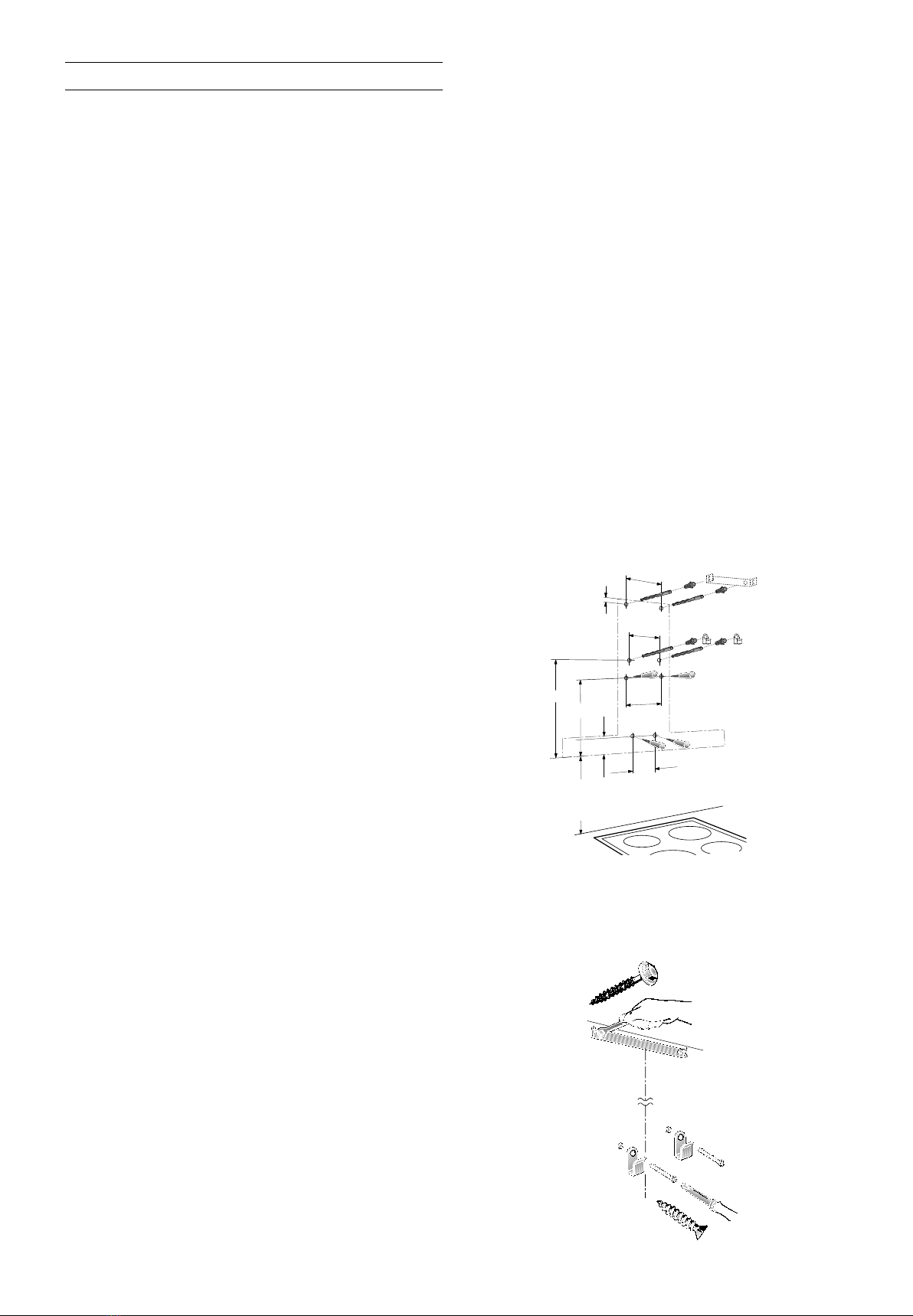

Attachment 17
Installing the flue ducts 18
Table of contents

4
Information on protection of the
environment
Disposal of transport packaging
Your new appliance was sent to you in protective
packaging. All utilised materials are environmentally
safe and recyclable. Please help us by disposing of
the packaging in an environmentally friendly
manner.
RISK OF INJURY
Packaging parts can be hazardous for children.
Therefore keep them outside thereach of children.
Disposal of the old appliance
Old appliances are not worthless rubbish. Valuable
raw materials can be reclaimed by recycling old
appliances.
This appliance is identified according to
the European Directive 2002/96/EC on
waste electrical and electronic equipment
– WEEE). The directive specifies the
framework for an EU-wide valid return and re-use of
old appliances.
Before disposing of your old appliance, render it
unusable.
Never treat your old appliance as non-recyclable
waste!
Please ask your dealer or inquire at your local
authority about current means of disposal.
Ensure that the old appliance is kept childproof until
it is disposed of.
Before using the appliance forthe
first time
Note: These operating instructions apply to several
appliance models It is possible that individual
features are described which do not apply to your
appliance.
Before switching on your new appliance, please
read the operating instructions carefully. They
contain important information on safety and how to
use and look afterthe appliance.
Keep the operating and instructions in a safe place
and pass them on to any subsequent owner of the
appliance.
Faults
If an Fappears in the display:
•See "Operating procedure" Section.
If is not possible to operate theextractor hood:
•Disconnect theextractor hood from the mains
electricity supply by pulling out the plug or
switching it off at the main fuse box.
Wait for approx. 1 minute and then switch it on
again.
Please contact customer service regarding any
queries or faults.
(See list of customer service centres).
When calling, please quote:
The numbers can be found on therating plate, after
removal of thegrease filter, inside theextractor
hood.
Enter the numbered in the above fields.
General Information
E-no. FD

5
Intended use
•This extractor hood complies with thestipulated
safetyregulations. Improper use may result in
injury or damage.
•The extractor hood may be used in the
household only. The manufacturer is not liable
for damage which is caused by improper use or
incorrect operation.
•The manufacturer cannot be made responsible
for damage which can be attributed to non-
observance of the safety instructions.
RISK OF INJURY
Do not allow children to play with theextractor
hood! Adults and children must never operate the
appliance unsupervised
–ifthey are not physically or mentally
capable of doing so,
–or if they do not have the knowledge and
experience to operate the appliance
correctly and safely.
Technical safety
•The extractor hood left thefactory in perfect
condition. Nevertheless check the appliance for
visible damage before installation. If it is
damaged, do not switch it on!
•If the power cord of theextractor hood is
damaged, it must be replaced by the
manufacturer, his customer service or a
similarly qualified person to prevent hazardous
situations.
•Only a qualified technician may install
(including electrical connection), service or
repair theextractor hood. Always isolate the
extractor hood by pulling out the mains plug or
switching off the fuse!
•If the appliance is improperly installed, serviced
or repaired, the user may be placed in
considerable danger for which the
manufacturer is not liable.
•Changes to the electrical or mechanical
installation are dangerous and must not be
undertaken! They may also cause theextractor
hood to malfunction.

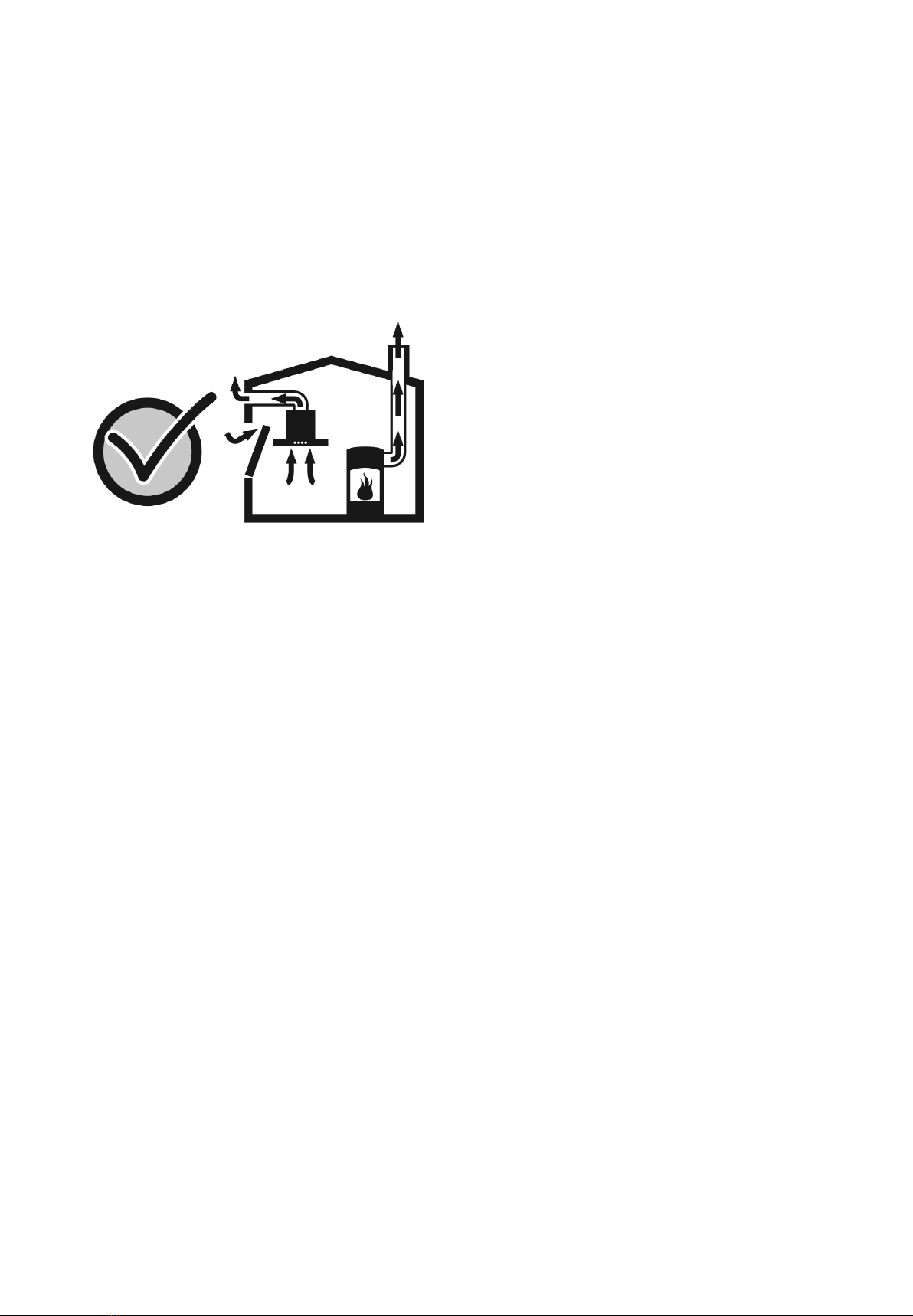

Simultaneous operation of theextractor hood
with a heating appliance which is dependent on
ambient air
•Heating appliances which are dependent on
ambient air, e.g. gas, oil, wood, or solid-fuel
heaters, instantaneous water heaters, hot water
boilers, hobs or ovens, and which draw
combustion air out of the installation room and
whose exhaust gases are conveyedto the
exterior by a flue.
RISK OF POISONING
If theextractor hood is operated at the same time as
a heating appliance which is dependent on ambient
air, there is a risk of poisoning due to combustion
gases being drawn back in.
$Safety instructions

6
•Safe operation is possible provided the low
pressure in the installation room of the heating
appliance does not exceed 4Pa (0.04mbar).
This can be achieved if the combustion air can
flow through non-closable openings, e.g. in
doors, windows, in conjunction with air
intake/exhaust air wall boxes or by other
technical measures.
•Adequate intake air must therefore always be
provided.
•An intake/exhaust air wall box alone does not
ensure compliance with the limit value.
Note: When making your evaluation, always
consider the entire ventilation system in the home.
Include the advice of a competent heating engineer
when making your evaluation.
•If theextractor hood is used in circulating air
mode only, it can be operated without any
restrictions.
Special information for gas cookers
•When installing theextractor hood above gas
hobs, observe the appropriate national
statutory regulations (e.g. in Germany:
Technische Regeln Gasinstallation TRGI).
•Observethe currently valid installation
regulations and instructions of thegas
appliance manufacturer.
•During installation, ensure that only one side of
theextractor hood is situated directly next to a
high-sided unit or a wall. Otherwise, there is a
risk of heat build-up. The gap between the
extractor hood and thewall or high-sided unit
must be at least 50 mm.
RISK OF BURNS
Do not operate more than 2 gas cooking areas
simultaneously over a period of max.
15 minutes at maximum thermal load. Due to the
effect of the heat there is a risk of burns if the
surfaces of the housing are touched!
•Note that one large burner of more than
5 kW (Wok) is equivalent to the power of 2 gas
burners.
•The extractor hood may be damaged by the
intense heat.
•Never operate a gas cooking area without a
cooking utensil on it. Regulate the flame in such
awaythat it does not project overthe cooking
utensil.

7
Proper use
•Clean theextractor hood thoroughly before
using forthe first time.
•Before cleaning and servicing theextractor
hood, isolate it from the power supply by pulling
out the mains plug or switching off the fuse.
•Bulbs (especially halogen bulbs) become very
hot during operation. Even some time afterthe
appliance has been switched off, there is still a
risk of burns!
•Before changing bulbs, isolate theextractor
hood from the power supply and leave the bulbs
to cool down!
•Do not operate theextractor hood without bulbs
inserted.
•Always switch on theextractor hood if a
hotplate is being used. If theextractor hood is
not switched on, condensation may form. As a
result, the appliance may corrode.
•Do not place any objects
on theextractor hood.
RISK OF FIRE
Do not flambé under theextractor hood or work
with a naked flame. When switched on, the
extractor hood draws flames into the filter. There is
arisk of fire due to deposits on thegrease filter!
•Do not leave pans, frying pans or deep-fat
fryers unattended if you are cooking food with
oils or fats, e.g. chips. Overheated oils or fats
can easily ignite!
•Arisk of fire can be prevented by cleaning the
grease filters regularly and changing the
activated-carbon filter in good time.
•Never operate theextractor hood without
grease filters.
Correct installation
•Check the manufacturer’s specifications forthe
cooker to determine whether an extractor hood
can be operated over it.
•If the manufacturer of the cooker has not
specified any significant safety distances, the
following minimum distances apply
–600 mm between electric hob and the lower
edge of theextractor hood, Fig. 1.
–700 mm between gas hob (upper edge of pan
support) and the lower edge of theextractor
hood, Fig. 1.
•If various cookers are used, thegreatest
indicated distance applies.
•The width of theextractor hood must
correspond to the width of the cooking area.
•The extractor hood must not be installed over a
solid fuel heating appliance which may be a fire
risk (e.g. flying sparks) unless the heating
appliance has a closed, non-detachable cover
and the country-specific regulations are
observed. This restriction does not apply to gas
cookers and gas hobs.
•To avoid damaging the hob, cover it when
installing theextractor hood.

8
•The extractor hood can be used in exhaust air
and circulating air mode. The standard setting
is exhaust air mode.

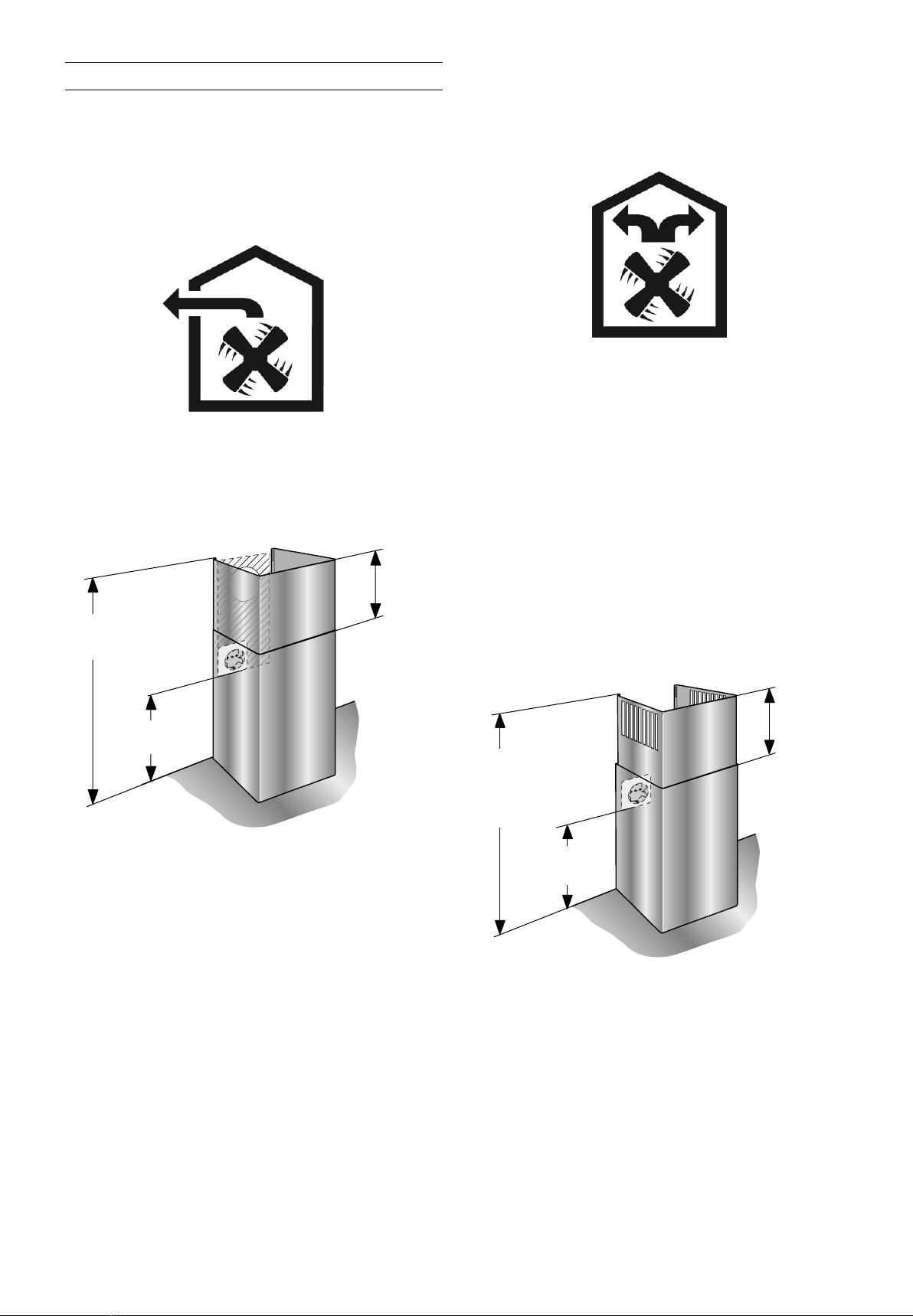

Exhaust-air mode
The air which is drawn in is cleaned by thegrease
filters and conveyedto theexterior by a pipe
system.
Appliance dimensions Exhaust air
Circulating-air mode
The air which is drawn in is cleaned by thegrease
filters and an activated carbon filter and conveyed
back into the kitchen.
An activated carbon filter must be installed to bind
odours in circulating-air mode (see ”Removing and
installing thegrease filters”).

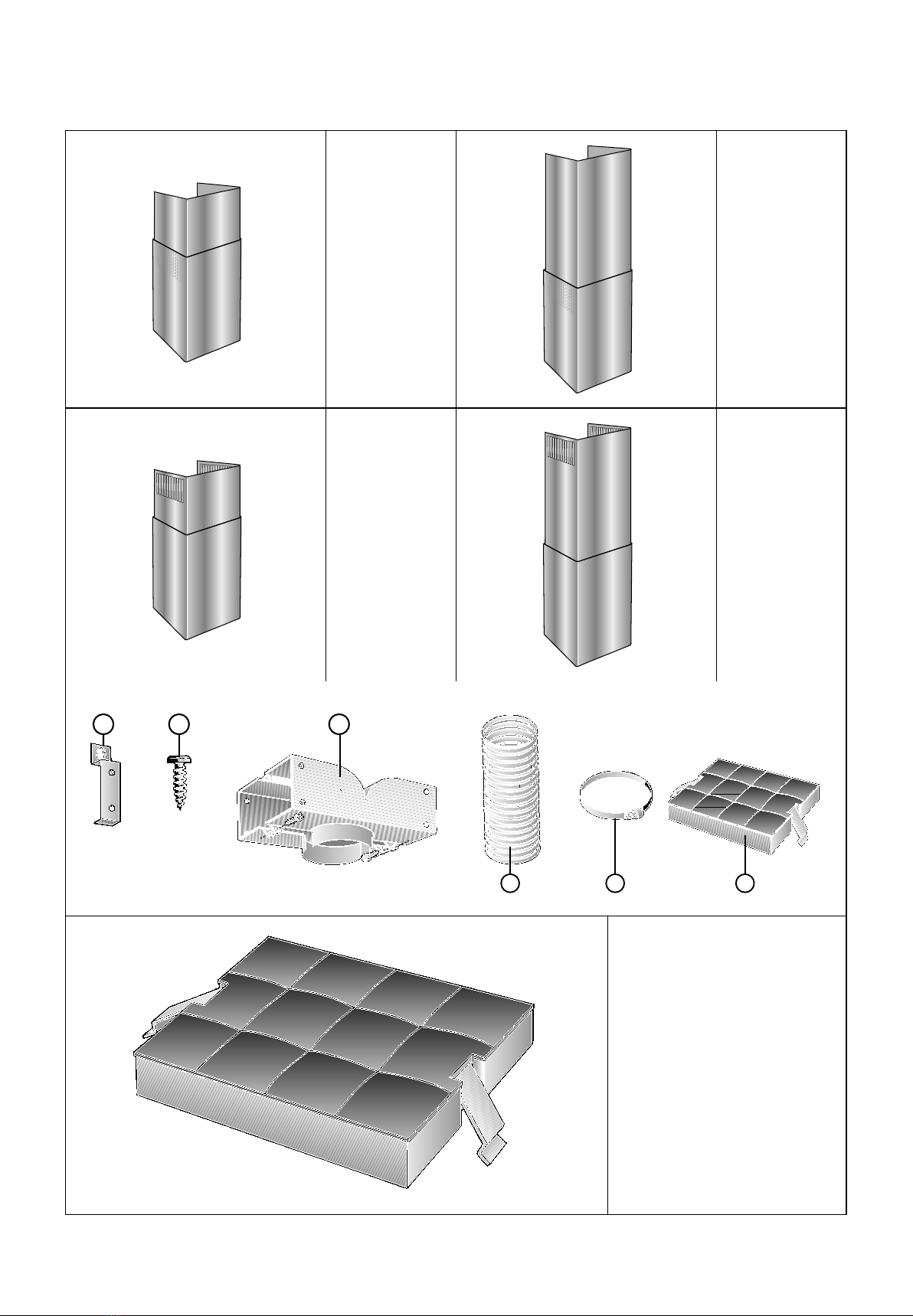

The complete installation set as well as the
replacement filters are available from specialist
outlets, customer service or the Online Shop. The
accessory number can be found at the end of the
operating instructions.
The socket must be attached at least 170 mm below
the ceiling.
Appliance dimensions Circulating air
Operating modes
min. 550 mm
max 1.320 mm
min.
120 mm
min.
385 mm
min.
120 mm
min.
550 mm
max
1.320 mm
min.
385 mm

9
Operating procedure
The most effective method of removing vapours
produced during cooking is to:
•Switch theventilator ON as soon as you begin
cooking.
•Switch theventilator OFF afew minutes after
you have finished cooking.
Switching thefan ON:
•Press the1, 2, 3 or Int button.
Switching thefan OFF:
•Press the0button.
Intensive setting
Maximum power is obtained at the intensive setting.
It is only required for short intervals.
•The Int keyforthe intensive level should be
pressed when browning and frying in an open
pan.
If you have switched on the hood by selecting
the intensive level, it will be switched off again
automatically after 5 minutes.
•If you press theInt key while the hood is
running at fan level1, 2 or 3, the electronic
control will switch back automatically to the
previously selected fan level after 5 minutes.
•If youwould like to end the intensive level
before the five minutes have elapsed, press the
0key (“Motor off”) or select a different level. It
is possible to switch off theextraction function
at any time by pressing the0key (motor “off”).
Fan OFF Saturation indicator
Light
Fanfollow-on
Intensive setting
Fan settings

10
Special functions
Intensive time:
•You can set the intensive levelrunning time to
3, 5 or 10 minutes by simultaneously pressing
theInt key and the1, 2 or 3key and you can
store this setting. When delivered, the
appliance is set to five minutes, i.e. the
combination of theInt key and thekey2.
Fanfollow-on:
•Delayed shut-off is possible at any level. First
press therequired key1, 2, 3 or Int and then
press thekey.
The delayed shut-off time for all levels is ten
minu-tes. Afterthese ten minutes, the
ventilation switches off, but the lighting stays
on.
Intervalventilation:
•Intervalventilation is a special feature of this
appliance which periodically activates thefan
for five minutes every hour. You can activate
this function by simultaneously pressing the0
key and, depending on therequired extraction
capacity, the1, 2 or 3key.
This mode of operation is indicated by
alternating illumination of thekeytogether
with the corresponding fan level indicator.
You can switch off intervalventilation by
pressing the 0 key.
Lighting:
•Briefly press the button to switch the light
on and off.
•The light can be switched on at any time, even
though thefan is switched off.
•Adjusting the brightness:
Hold down the button until the desired
brightness is obtained.
Saturation indicator: F
•The grease filter saturation display Fflashes
after an operating time of 30 hours to you
indicate to youthat you should clean thegrease
filter. The grease filters can of course be
cleaned at any time, even if thegrease filter
saturation display has not startedto flash.
•To cancel the display, press theFbutton.

11
RISK OF INJURY
Suitable cleaning agents and care products foryour
appliance can be purchased via the Hotline or from
the Online Shop (see cover page).
Appliance surfaces
Note: Observe thewarranty regulations in the
enclosed service booklet.
•The appliance surfaces and controls are
scratch-sensitive. Therefore observe the
following cleaning instructions:
–Avoid cleaning theextractor hood with dry
cloths, abrasive sponges, scouring agents,
cleaning agents containing sand, soda, acid,
chlorine or any other aggressive substances.
–Clean the appliance surfaces and controls with
a soft, damp cloth,washing-up liquid or a mild
window cleaner only.
–Do not scrape off dried dirt, but moisten with a
damp cloth.
–Clean carefully in the area of the controls to
avoid liquid from getting into the electronics.
Note: Clean thestainless steel surfaces in the
direction of theground surface only!
Do not use stainless steel cleaner forthe control
buttons!
Looking afterthe appliance
•Suitable cleaning agents and care products for
your appliance can be purchased via the
Hotline or from the Online Shop (see cover
page).
Metal-mesh grease filters
•The metal-mesh grease filters absorb the
grease particles from the kitchen fumes.
•The filter mats consist of fire-proof metal.
RISK OF FIRE
As the filters become more saturated with greasy
residue, the flammability increases. The function of
theextractor hood may also be impaired.
•The risk of fire is prevented by cleaning the
metal-mesh grease filters in good time.
•When cleaning thegrease filters, also remove
grease deposits from the accessible parts of
the housing with a damp cloth.
Cleaning the metal-mesh grease filters ...
•Under normal operation (daily 1 to 2 hours), the
metal-mesh grease filters must be cleaned 1x
month.
... in the dishwasher
•The metal-mesh grease filters can be cleaned in
the dishwasher. Slight discolouration may
occur but this will not affect the function of the
grease filters.
•The filters must be placed loosely in the
dishwasher. They must not be wedged in.
Note: Do not clean heavily saturated metal-mesh
grease filters together with utensils.
... by hand
•When cleaning by hand, soak thegrease filters
in a hot detergent solution, brush off the dirt,
rinse thoroughly and leave to dry.
•Do not use any aggressive, acidic or alkaline
cleaning agents.
•If dirt is particularly stubborn, we recommend
using a special grease solvent spray. This can
be ordered via the Online Shop.
Cleaning and care

12
Cleaning theglass plates
•Apply commercially available window cleaning
agent with a soft, moist cloth.
•To facilitate cleaning, you can detach the glass
plates as follows:
Detach thegrease filters. In theextractor hood,
you will find three openings on the upper side
through which you can lift the glass plates
singly with a blunt object (e.g. handle of a
wooden spoon) to detach them with greater
ease.
•If they are extremely soiled, the glass plates
can be cleaned in a dishwasher at a maximum
temperature of 55 °C.
Note: when putting the glass plates back in place,
make sure that you do not scratch the chimney.
Replace the glass plates with the printed side
facing down. Position the glass plates at the
chimney side first.
RISK OF INJURY
Before removing and installing thegrease filters,
alwaysfollow the instructions and warnings in the
chapter entitled ”Safety instructions”!
Removing and installing the metal-mesh grease
filters
1Open the lock and fold down thegrease filters.
In doing so, hold the underside of thegrease
filters with your other hand.
(for appliances with edge extraction)
2Clean thegrease filters.
3Reinsert the cleaned grease filters.
Removing and installing thegrease
filter

13
Changing the bulbs
Activated carbon filter
•Activated carbon filters bind the odours in
circulating-air mode.
•Under normal operation (daily 1 to 2 hours) the
activated carbon filters must be replaced
approximately 2x year.
•The activated carbon filter is available from
specialist outlets, customer service or the
Online Shop (see Optional accessories). Use
original filters only.
•Activated carbon filters do not contain any
pollutants. They can be disposed of in the
household refuse.
Installing and removing the activated carbon
filters
1Remove thegrease filters (see Removing and
installing the metal-mesh grease filters).
2Insert the activated carbon filter.
3Lock the catch.
4Reinsert thegrease filters (see Removing and
installing the metal-mesh grease filters).
•Before changing the bulbs, alwaysfollow the
instructions and warnings in the chapter
entitled ”Safety instructions”!
•The description of changing the bulbs applies
to several appliance models.
Note: Observe thewarranty regulations in the
enclosed service booklet.
Changing the halogen bulbs
RISK OF INJURY
Halogen bulbs become very hot during operation.
Even some time afterthe appliance has been
switched off, there is still a risk of burns!
•Defective bulbs should be replaced immediately
to avoid overloading theremaining bulbs.
•Before changing the halogen bulbs, ensure that
they have cooled down fully.
1Carefully remove the bulb ring with a suitable
tool.
2Replace the defective bulb with a new one of
the same type and equivalent power (see rating
plate).
Note: When inserting halogen bulbs, do not touch
the glass tube. Therefore use a clean cloth when
inserting the bulb.
3Reinsert the bulb cover.
4Restore the power supply by inserting the
mains plug or switching on the fuse.

14
•Prior to installation, alwaysfollow the
instructions and warnings in the chapter
entitled ”Safety instructions”!
Exhaust-air mode
•The exhaust air is conveyed upwards via a
ventilation shaft or directly through the outer
wall to theexterior.
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a
shaft which is used to ventilate
installation rooms which contain heating
appliances.
•Before conveying theexhaust air into a non-
functioning smoke or exhaust gas flue, obtain
the consent of the appropriate heating
engineer.
•Discharge exhaust air in accordance with the
official and statutory regulations (e.g. regional
building laws).
•If theexhaust air is conveyedthrough the outer
wall, a telescopic wall box should be used.
To ensure optimum performance, theextractor
hood requires:
–ashort, straight exhaust air pipe and
–the largest possible pipe diameter.
•If pipe bends cannot be avoided, ensure the
largest possible radii.
Note: If long, rough exhaust air pipes, a lot of pipe
bends or pipe diameters less than 150 mm are
used, the air capacity will be less than optimum and
there will be an increase in noise.
•Use only pipes or hoses made of non-
combustible material for installation of the
exhaust air duct.
•The manufacturer of theextractor hoods is not
responsible for complaints which can be
attributed to planning and design of the
pipework.
Connecting pipes
•The diameter of theexhaust air pipes should
not be less than 150 mm.
•Round pipes:
We recommend an inner diameter of 150 mm,
however at least 120 mm.
•Flat ducts must have the same inner cross-
section as round pipes.
There should be no sharp bends.
Ø 150 mm approx. 177 cm2
Ø 120 mm approx. 113 cm2
•If pipe diameters differ:
Use sealing strips.
Connection of 150 mm ø exhaust air pipe
(recommended size)
•Attach exhaust air pipe
directly to the air-pipe
connector and seal
appropriately. If using an
aluminium pipe, smooth the
connection area beforehand.
Connection of 120 mm ø exhaust air pipe
•Attach reducing connector
directly to the air-pipe
connector.
•Attach exhaust air pipe to the
reducing connector.
•Seal both joints appropriately.
Installation instructions

15
Electrical connection
•Before connecting the appliance to the power
supply, alwaysfollow the instructions and
warnings in the chapter entitled ”Safety
instructions”!
•The extractor hood may only be connected by a
qualified electrician who is familiar with the
regulations of therelevant electricity supply
company.
RISK OF INJURY
•If the power cord of theextractor hood is
damaged, it must be replaced by the
manufacturer, his customer service or a
similarly qualified person to prevent hazardous
situations.
•The extractor hood may be connected to a
correctly installed earthed socket only.
•Attach the earthed socket as directly as
possible behind the flue duct.
–The earthed socket should be connected via its
own circuit.
–Ifthe earthed socket is no longer accessible
following installation of theextractor hood, a
disconnector must be fitted as for a permanent
connection.
If a permanent connection is required
•A disconnector must be provided on the
installation side. Switches with a contact
opening of more than 3 mm and all-pole
disconnection are regarded as disconnectors.
This includes LS switches, fuses and
contactors.
Electrical specifications
The required connection data can be found on the
rating plate inside the appliance when thegrease
filters have been removed.
Length of the power cord: approx. 1.30 m.
This extractor hood complies with the EC
interference suppression regulations.

16
The extractor hood is designed to be mounted on
thewall.
•During installation, optional accessories may
also require fitting.
•Observe the minimum distance between hob
and extractor hood (see ”Safety instructions”)!
•Avoid damaging the sensitive surfaces!
Preparing thewall
RISK OF INJURY,
DAMAGE TO PROPERTY
Before drilling the holes forthe designated
installation location, check for concealed electrical
cables and other lines.
•The wall must be level and vertical.
•The enclosed screws and wall plugs are
suitable for solid brickwork. Use the
appropriate fixing materials forother wall
structures (e.g. plaster board, porous concrete,
poroton bricks).
Ensure that thewall has adequate load bearing
capacity.
•Ensure that the depth of the drilled holes
corresponds with the length of the screws.
•Ensure that thewall plugs are secure.
Max. weight: 40 kg.
Design subject to modification in line with technical
development.
Installation preparations
1Remove thegrease filter (refer to Operating
Instructions).
2Draw a line on thewall from the ceiling to the
lower edge of the hood at the centre of the
location where the hood is going to be
mounted.
3Use thetemplate to mark the points on thewall
where the screws will be mounted. In order to
make it easier to hook the hood onto the
screws, draw the outline of the area where the
hood will be attached.
Ensure that the minimum distance between the
hob and theextractor hood is maintained – 600 mm
for an electric hob and 700 mm for a gas hob. The
bottom edge of thetemplate equates to the lower
edge of theextractor hood.
4Drill 2x 8 mm ø holes forthe upper fixing
bracket and 2x 8 mm ø holes forthe lower fixing
bracket and press in wall plugs flush with the
wall.
Note: Take into account any special accessories
that are going to be fitted.
5Screw on the upper and the two lower fixing
brackets.
Installation
300
15
230
270
397
473
94
160
min. 600 Elektro
700 Gas
Empfehlung 700

17

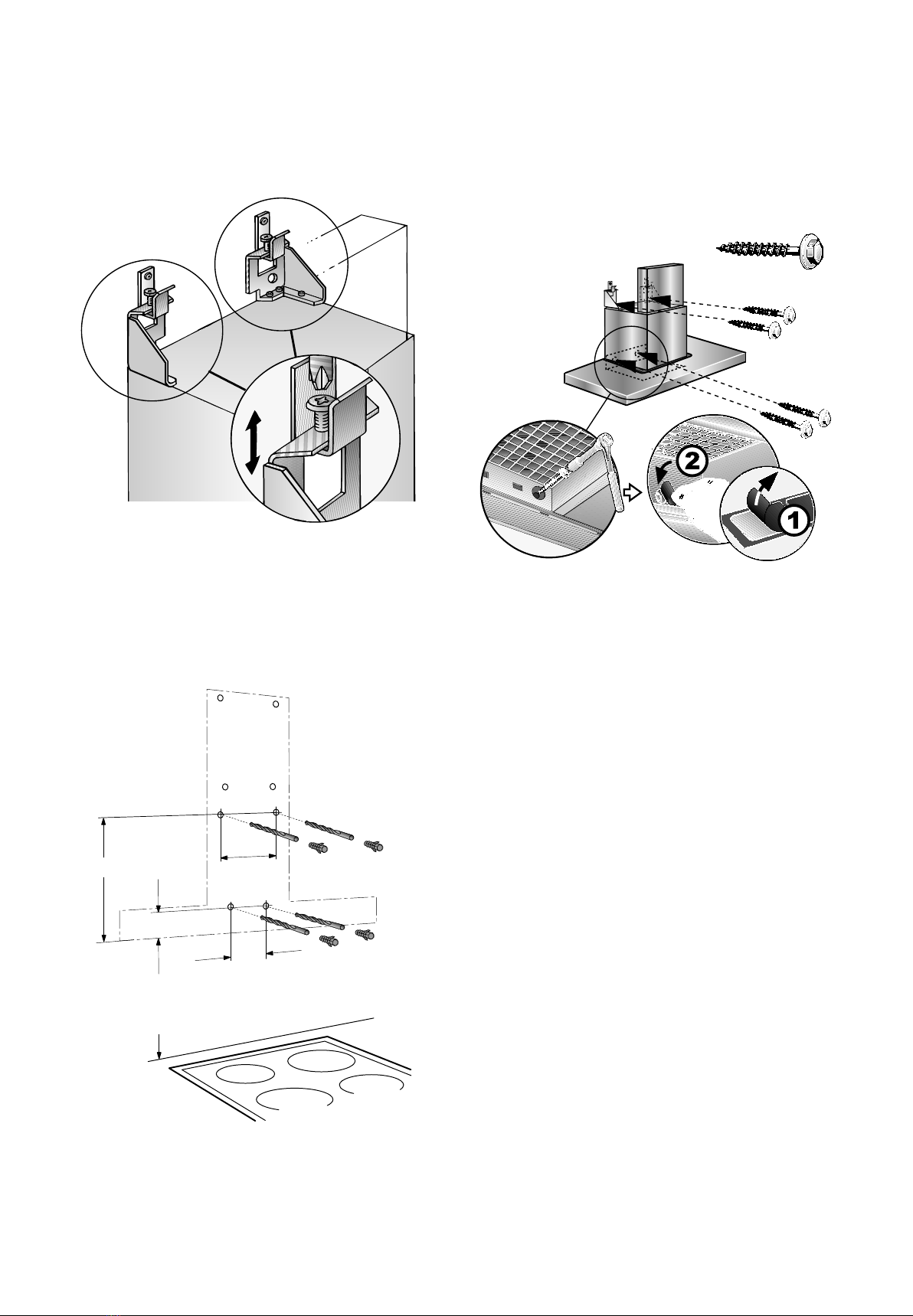

6Attach theextractor hood.
Adjust the height and align horizontally with the
adjusting screws.
Check that the 4 lower fixing holes have
been correctly marked. If required, mark again.
7Remove theextractor hood. Drill the 4 lower
8mm ø fixing holes and press in thewall plugs
flush with thewall.
8Attach theextractor hood and screw into
position with theremaining 4 screws.
9Stick protective film overthe holes of the 2
lower mounting bolts in the protective grid.
10 Connect up the air outlet pipe.
11 Connect the hood to the electricity supply.
270
160
94
397
min. 600 Elektro
700 Gas
Empfehlung 700

18
12 Carefully remove the protective foil.
Avoid damage to the sensitive surface.
Warning: The interior walls of the flue panelling can
have sharp edges – Risk of injury –.
We recommend that youwear gloves when
installing.

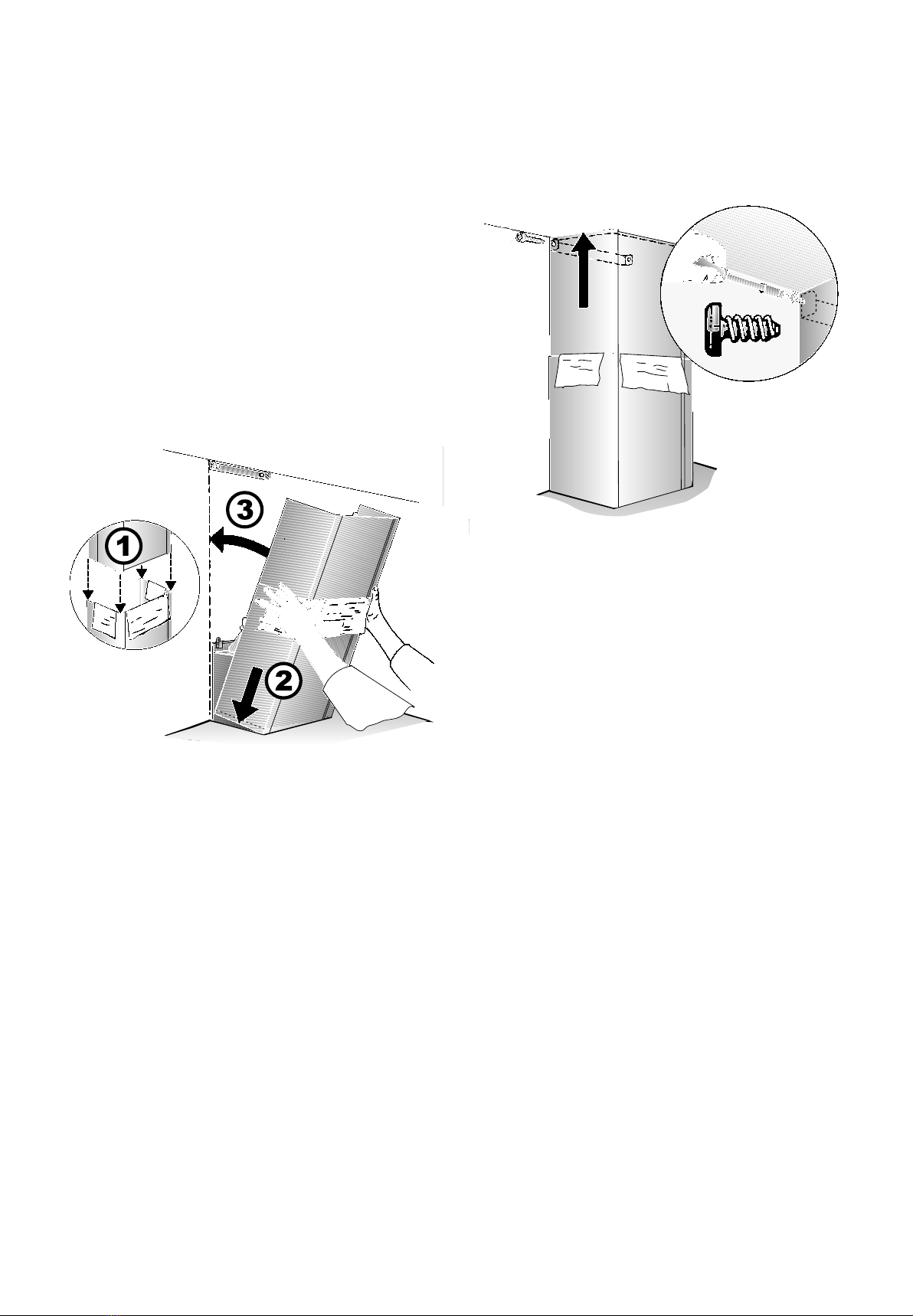

13. Insert the upper flue duct into the lower flue
duct.
n Protect the cover panels from scratches, for
example by laying thetemplate used for marking
thewall overthetop edge of the lower section.
14. Insert the complete flue duct at an angle and
swivel to therear.
15 Carefully pull the upper flue duct upwards and
screw the sides to the fixing bracket with
2screws.
16 Insert thegrease filter (refer to Operating
Instructions).
17 Place the glass plates on the appliance with the
printed side facing down.
Note: when putting the glass trays in place, make
sure that you do not scratch the chimney.

19
KF001-010
AD010012 AD010022
AD010112 AD010122
1 2 3
2x 10x
4 5 6
2x

Gaggenau Hausgeräte GmbH
Carl-Wery-Straße 34
D-81739 München
www.gaggenau.com
9000943713 EB 9311
