Gaggenau AW 442 720 User manual

Gaggenau
Installation instructions..........................2
Notice de montage ...............................21
Instrucciones de instalación................41
AW 442 720
AW 442 760
Hood
Hotte aspirante
Campana extractora

2
Table of Contents Installationinst r uct i ons
9Safety Definitions 2
IMPORTANT SAFETY INSTRUCTIONS 3
Appliance Handling Safety 4
Safety Codes and Standards 4
Electric Safety 4
Related Equipment Safety 5
Proposition 65Warning 5
Installation preparation 6
Check wall 6
General Notes 6
Exhaust air mode 6
Ventilation line 6
Electrical connection 7
Before you begin 7
Tools and parts needed 7

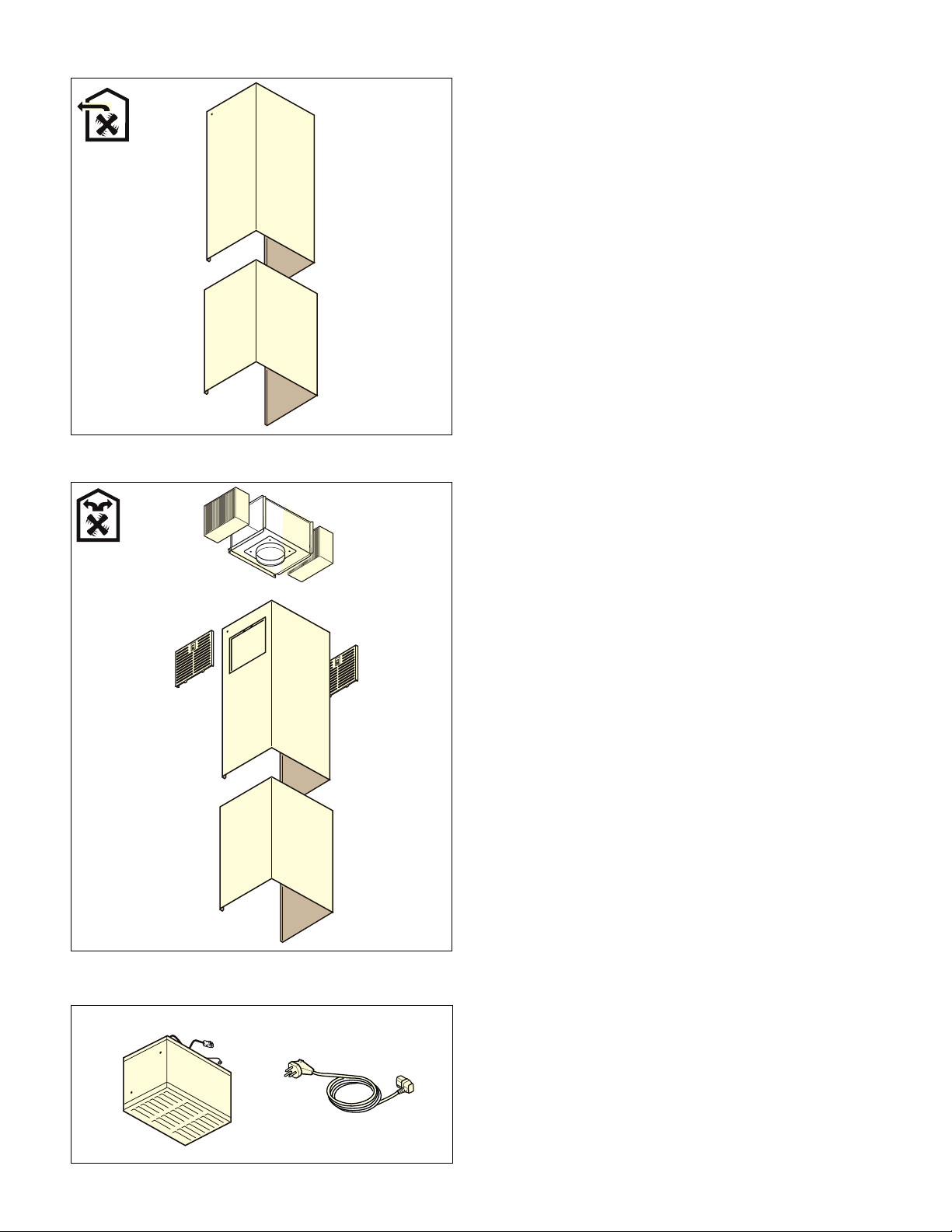

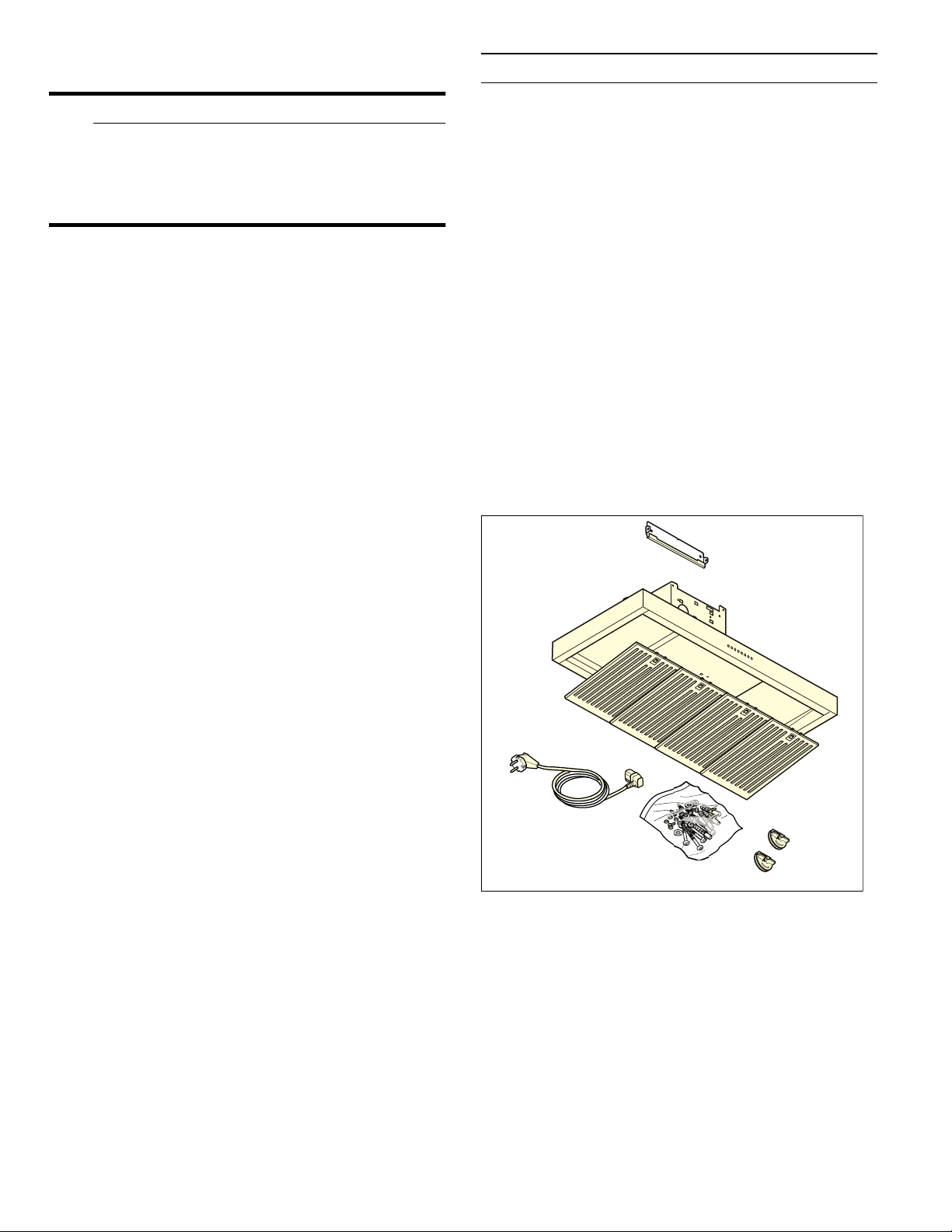

Parts included 7

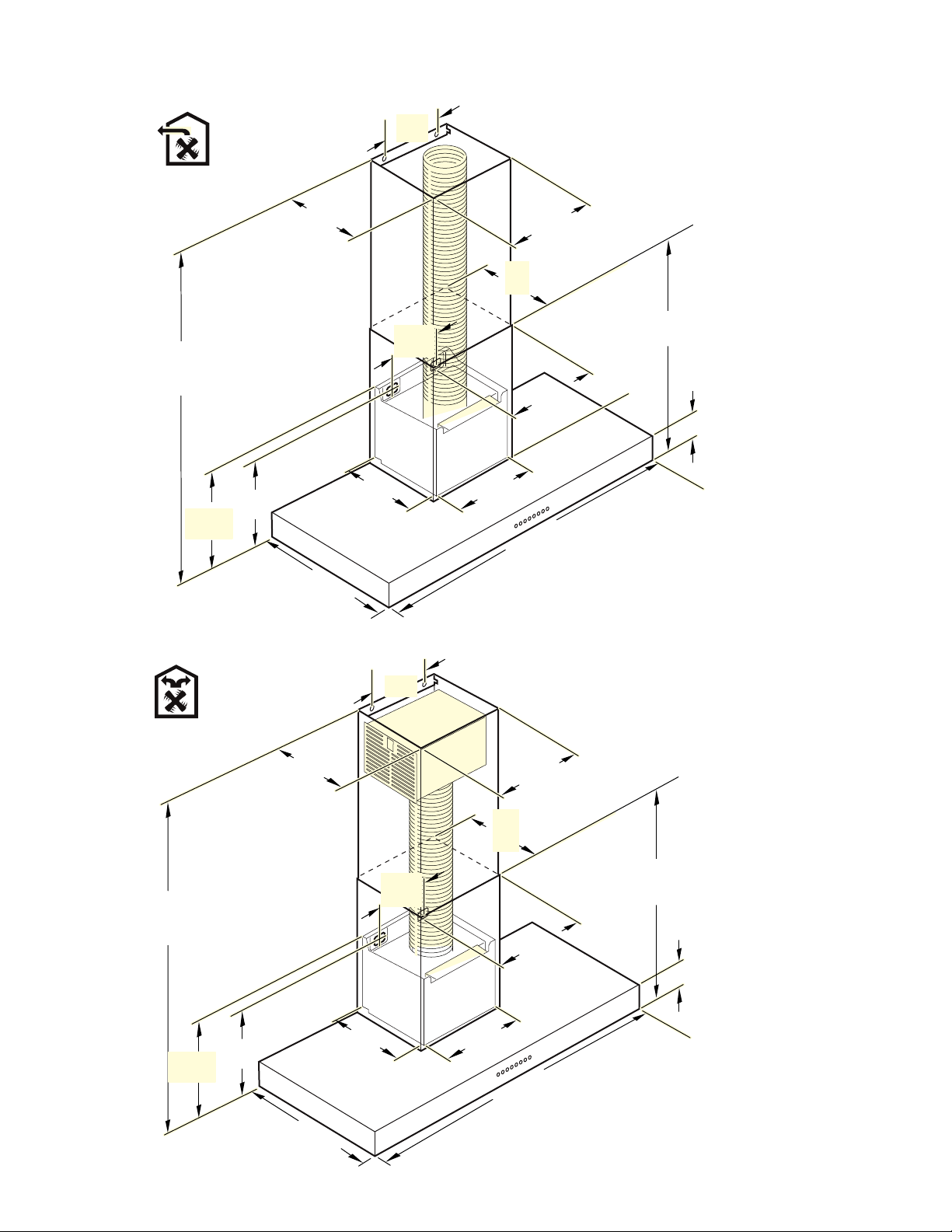

Appliance dimensions 9

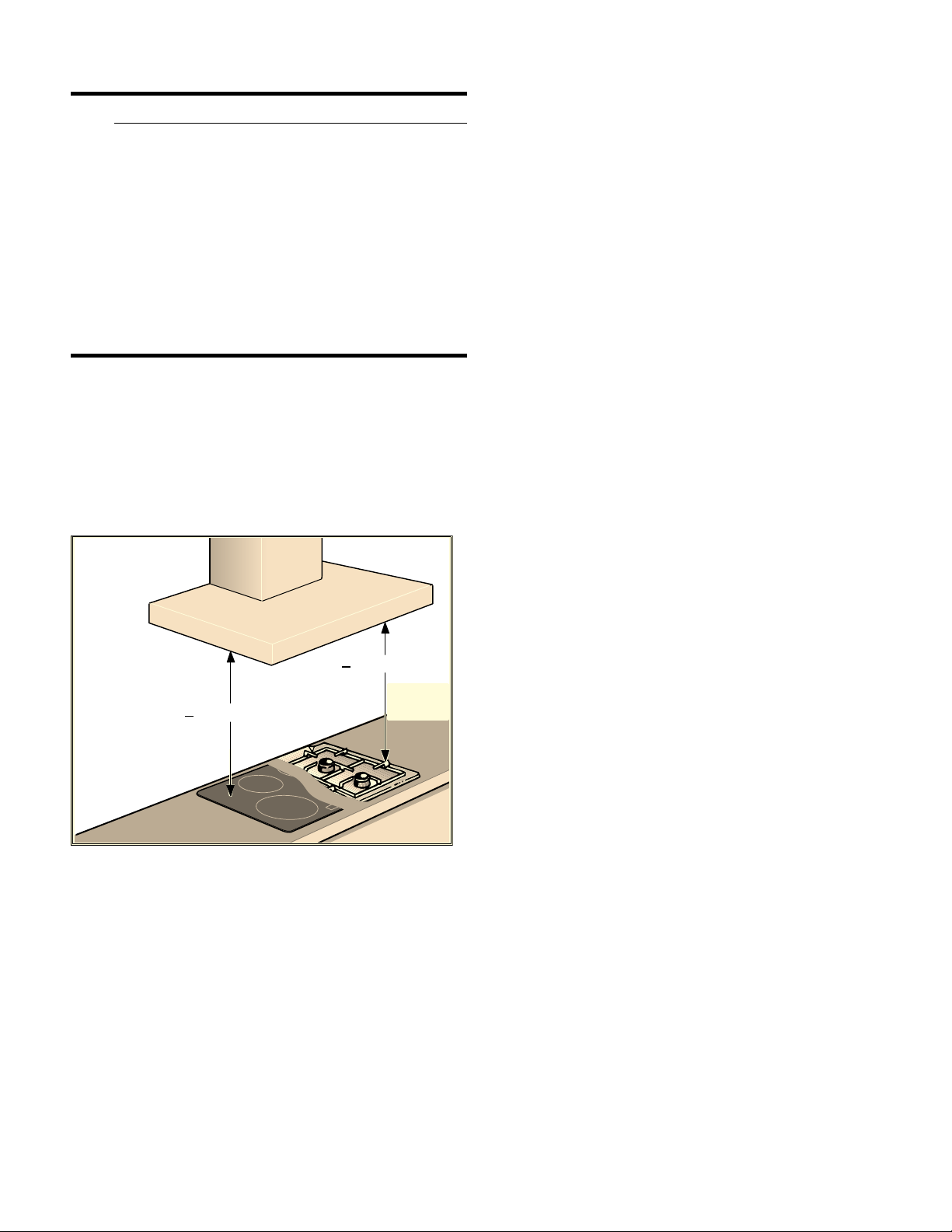

Safety clearances 10
Installation 11
Appliance Handling Safety 11
Installation preparation 11

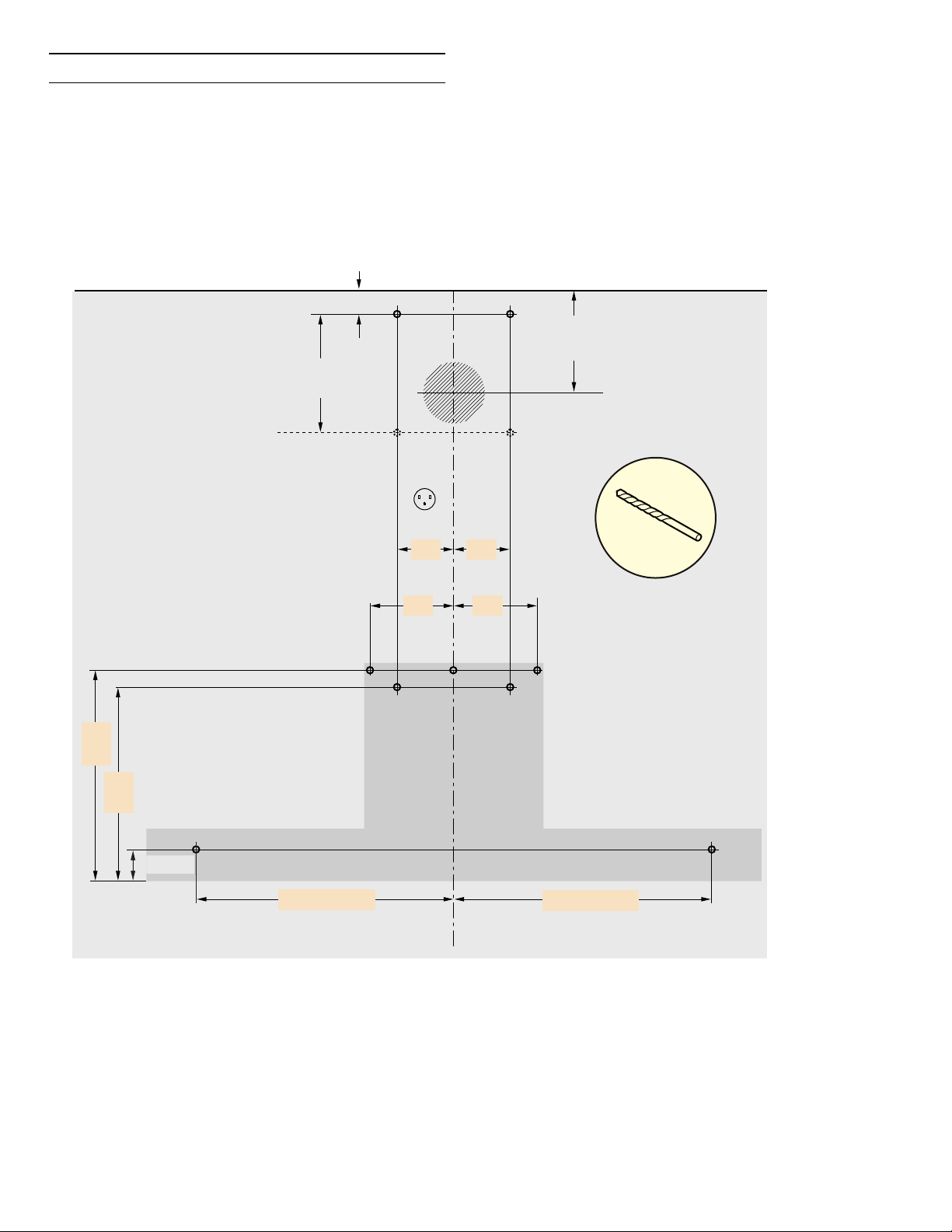

Fitting the wall retainer 12

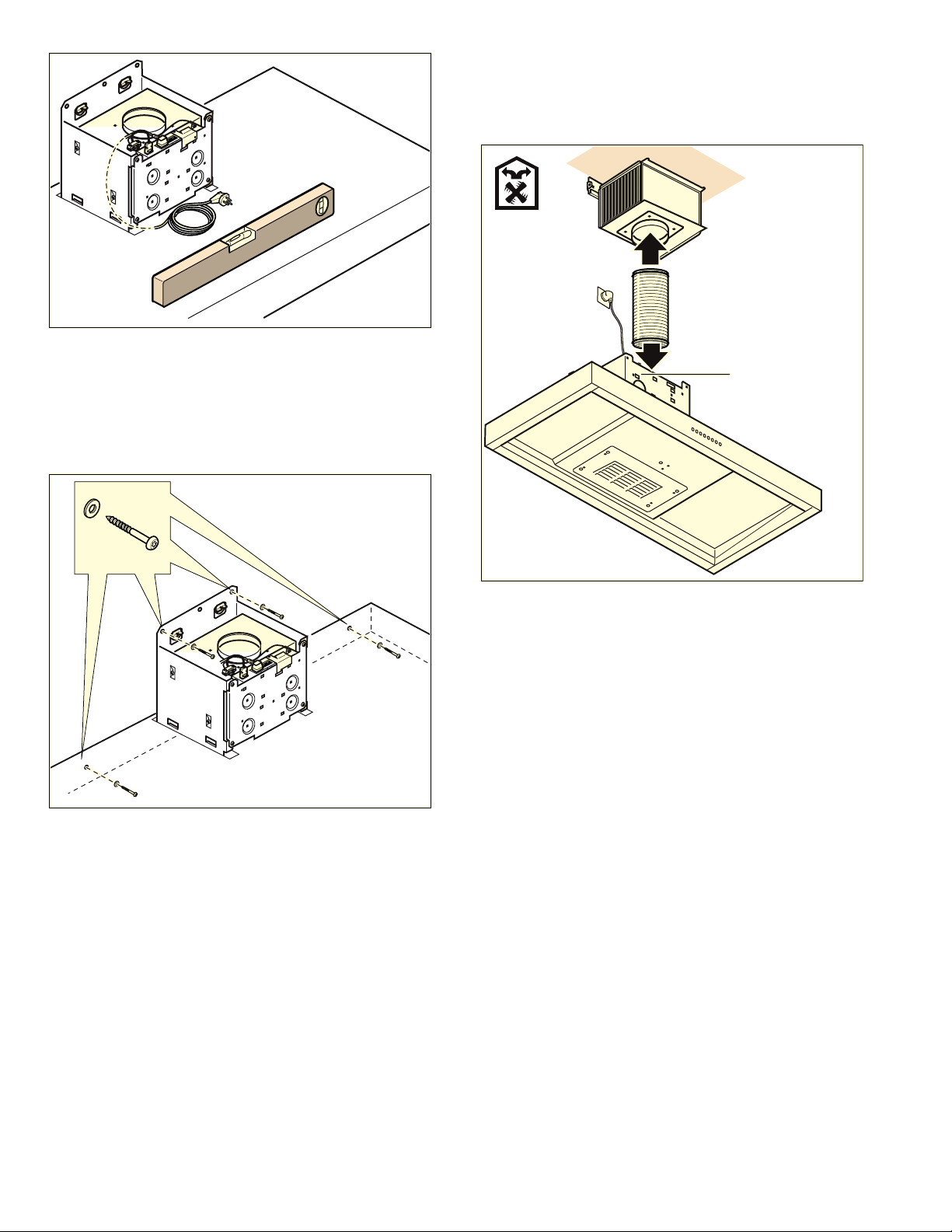

Installing the appliance 13

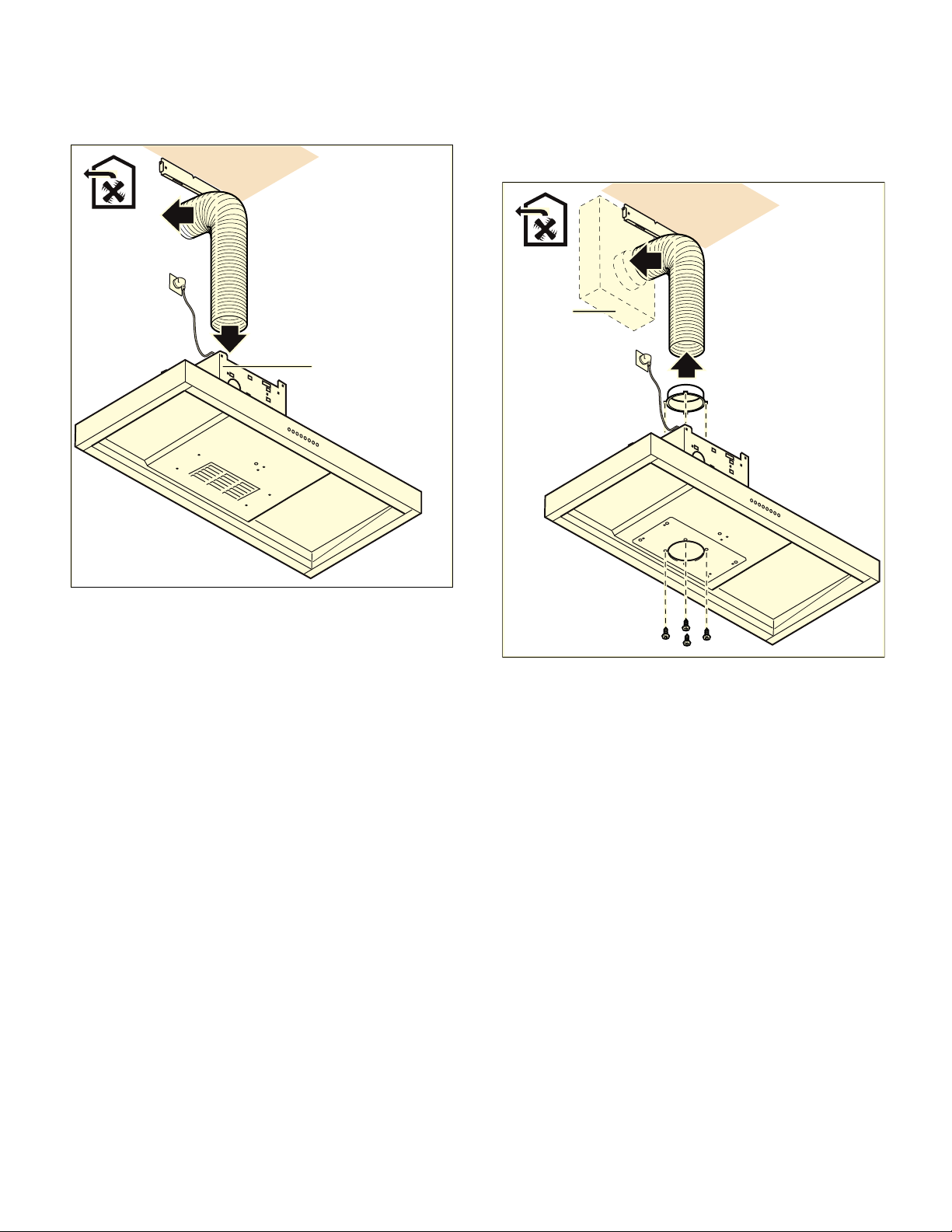

Establishing the connection for the exhaust air 15
Connecting the power supply 16

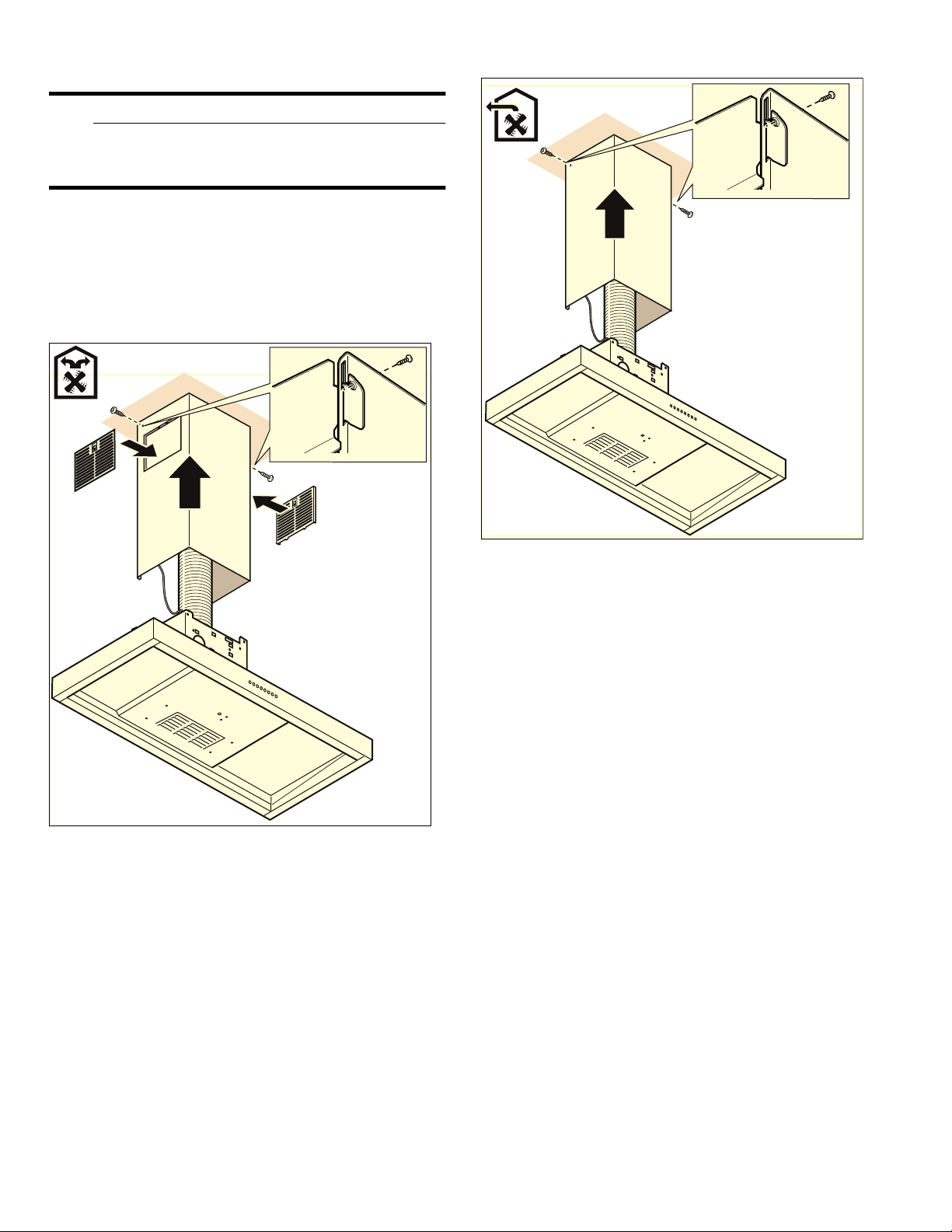

Attaching flue duct 17
Additional switching output 18
Connection for window contact switch AA 400 510 18
Networked operation 19
Connect Electrical Supply 19

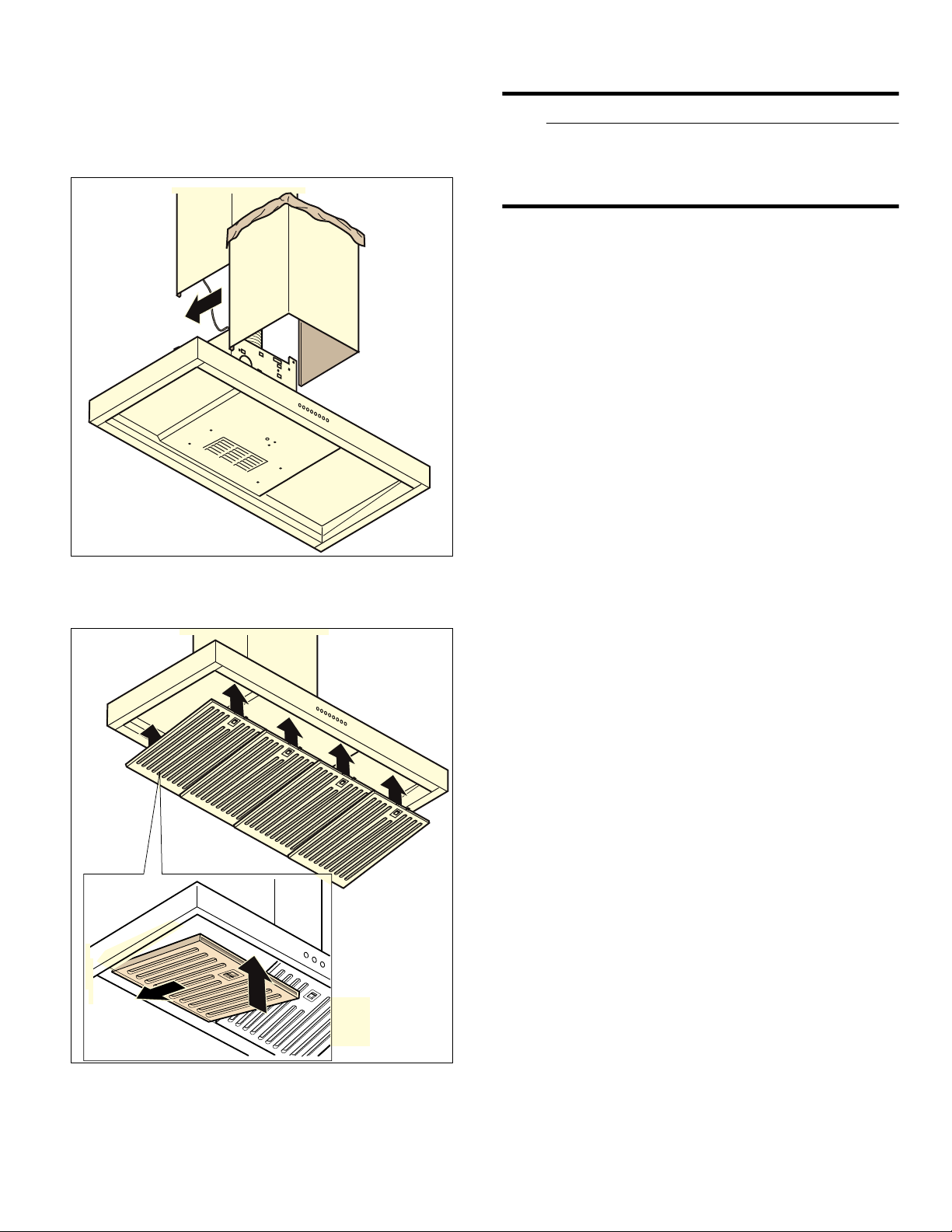

Removing the appliance 20
Customer Service 20
Appliance Handling Safety 20
9Safety Definitions Saf ety Definitions
9WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this
warning.
9CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this
warning.
NOTICE: This indicates that damage to the appliance
or property may occur as a result of non-compliance
with this advisory.
Note: This alerts you to important information and/or
tips.

3
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAF ET Y INSTRUCTIONS READ AND SAVE THESE INSTRUCTI ONS
INSTALLER: LEAVE THESE INSTRUCTIONS WITH
THE APPLIANCE AFTER INSTALLATION IS
COMPLETE.
IMPORTANT: SAVE THESE INSTRUCTIONS FOR THE
LOCAL ELECTRICAL INSPECTOR'S USE.
WARNING
If the information in this manual is not followed exactly,
fire or shock may result causing property damage or
personal injury.
WARNING
Do not repair, replace or remove any part of the
appliance unless specifically recommended in the
manuals. Improper installation, service or maintenance
can cause injury or property damage. Refer to this
manual for guidance. All other servicing should be done
by an authorized servicer.
WARNING
WARNING – TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
‒Installation work and electrical wiring must be done
by qualified person(s) in accordance with all
applicable codes and standards, including fire-
rated construction.
‒Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code
authorities.
‒When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
‒Ducted fans must always be vented to the outdoors.
WARNING
The applicable regulations of the energy supply
companies and the regional construction regulations
must be observed when installing the hood.
WARNING
Risk of fire
Grease deposits in the grease filter can catch fire.
Never work with a naked flame near the appliance (e.g.
flambéing). Install the unit near a heat-producing
appliance for solid fuels (e.g. wood or coal) only if there
is a closed, non-detachable cover. There must be no
flying sparks.
WARNING
Risk of fire
Operating several gas burners at the same time gives
rise to a great deal of heat. The ventilation appliance
may become damaged or catch fire. The ventilation
appliance must only be combined with gas burners that
do not exceed the maximum total output of 61,000BTU/
hr (18kW). If 41,000BTU/hr (12kW) is exceeded, the
local regulations concerning room ventilation, room
size, and combination with ventilation devices in exhaust
and recirculating operation must be followed.
WARNING
To reduce risk of fire and to properly exhaust air, be
sure to duct air outside. Do not vent exhaust air into
spaces within walls, ceilings, attics, crawl spaces or
garages.
WARNING
To reduce the risk of fire, use only metal ductwork.

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
4
WARNING
When the hood is operated in exhaust-air mode
simultaneously with a different burner which also makes
use of the same chimney (such as gas, oil or coal-fired
heaters, continuous-flow heaters, hot-water boilers) care
must be taken to ensure that there is an adequate
supply of fresh air which will be needed by the burner
for combustion.
Safe operation is possible provided that the under
pressure in the room where the burner is installed does
not exceed 4 Pa (0.04mbar).
This can be achieved if combustion air can flow through
non-lockable openings, e.g. in doors, windows and via
the air-intake/exhaust-air wall box or by other technical
measures, such as reciprocal interlocking, etc.
WARNING
Avoid carbon monoxide poisoning – Provide adequate
air intake so combustion gases are not drawn back into
the room.
An air-intake/exhaust-air wall box by itself is no
guarantee that the limiting value will not be exceeded.
Note: When assessing the overall requirement, the
combined ventilation system for the entire household
must be taken into consideration. This rule does not
apply to the use of cooking appliances, such as
cooktops and ovens.
CAUTION
For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
Risk of damage from condensation back flow. Install
exhaust vent at a slight downward slope away from the
appliance (1° slope).
Appliance Handling Safety
Unit is heavy and requires at least two people or proper
equipment to move.
Hidden surfaces may have sharp edges. Use caution
when reaching behind or under appliance.
WARNING
Risk of injury
The appliance may fall from the wall if it is not attached
properly. All fastening components must be fixed firmly
and securely in place.
Safety Codes and Standards
This appliance complies with the latest version of one or
more of the following standards:
▯UL 507- Electric Fans
▯CAN/CSA C22.2No. 113- Fans and Ventilators
It is the responsibility of the installer to determine if
additional requirements and/or standards apply to
specific installations.
Electric Safety
WARNING
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current.
This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be
plugged into an outlet that is properly installed and
grounded.
WARNING
Improper grounding can result in a risk of electric
shock. Consult a qualified electrician if the grounding
instructions are not completely understood, or if doubt
exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord
is too short, have a qualified electrician install an outlet
near the appliance.

5
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
WARNING
Before you plug in an electrical cord or turn on power
supply, make sure all controls are in the OFF position.
For appliances equipped with a cord and plug, do not
cut or remove the ground prong. It must be plugged into
a matching grounding type receptacle to avoid electrical
shock. If there is any doubt as to whether the wall
receptacle is properly grounded, the customer should
have it checked by a qualified electrician.
If required by the National Electrical Code (or Canadian
Electrical Code), this appliance must be installed on a
separate branch circuit.
WARNING
To reduce the risk of fire or electric shock, do not use
this fan with any solid-state speed control device.
Installer – show the owner the location of the circuit
breaker or fuse. Mark it for easy reference.
Before installing, turn power OFF at the service panel.
Lock service panel to prevent power from being turned
ON accidentally.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
‒Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
‒Before servicing or cleaning unit, switch power off
at service panel and lock the service disconnecting
means to prevent power from being switched on
accidentally.
When the service disconnecting means cannot be
locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
Be sure your appliance is properly installed and
grounded by a qualified technician. Installation,
electrical connections and grounding must comply with
all applicable codes.
WARNING
Risk of electric shock
Parts inside the appliance can have sharp edges. The
connection cable can be damaged. Do not bend or
pinch connection cables during installation.
Related Equipment Safety
Remove all tape and packaging before using the
appliance. Destroy the packaging after unpacking the
appliance. Never allow children to play with packaging
material.
The appliance should only be used if installed by a
qualified technician in accordance with these
installation instructions. The manufacturer is not
responsible for any damage resulting from incorrect
installation.
Never modify or alter the construction of the appliance.
For example, do not remove leveling legs, panels, wire
covers or anti-tip brackets/screws.
Proposition 65Warning:
This product may contain a chemical known to the State
of California, which can cause cancer or reproductive
harm. Therefore, the packaging of your product may
bear the following label as required by California:

&DQFHUDQG5HSURGXFWLYH+DUPZZZ3:DUQLQJVFDJRY
67$7(2)&$/,)251,$352326,7,21:$51,1*
:$51,1*

6
Installation preparation
9CAUTION
Ensure that there are no electric wires, gas or
water pipes in the area where holes are to be
made.
Check wall
▯The walls must be smooth, vertical, and sufficiently
load-bearing.
▯The depth of the bore holes must be the same
length as the screws. The wall plugs must have a
secure grip.
▯The enclosed screws and wall plugs are suitable for
solid brickwork. Suitable fasteners must be used
for other structures (e.g. plasterboard, porous
concrete, poroton bricks).
▯The max. weight of the extractor hood is 132 lbs
(60 kg).
General Notes General Notes
9WARNING
Risk of death
Risk of poisoning from flue gases that are drawn
back in. The exhaust air must not be conveyed
into a functioning smoke or exhaust gas flue or
into a shaft that is used to ventilate installation
rooms that contain heating appliances. If the
exhaust air is to be conveyed into a non-
functioning smoke or exhaust gas flue, you must
obtain the consent of the heating engineer
responsible.
Exhaust air mode
Note: Ventilation may not exit through an already
operational smoke or exhaust chimney, nor a duct used
for ventilating furnace installation areas.
▯If the ventilation is intended to pass through a
smoke or exhaust chimney that is not in operation,
the responsible area heating inspector must give
approval.
▯If the ventilation passes through an external wall,
use a telescope wall sleeve.
Ventilation line
Note: The appliance manufacturer does not assume any
warranty for complaints attributable to the pipe section.
▯The appliance achieves its optimum performance
with a short, straight exhaust air pipe and as large a
pipe diameter as possible.
▯As a result of long rough exhaust air pipes, many
pipe bends or pipe diameters that are smaller than
6" (150mm), the optimum extraction performance is
not achieved and fan noise is increased.
▯The pipes or hoses for laying the exhaust air line
must be made of non-combustible material.
▯Use sealing strip for deviating pipe diameters.
▯An inner diameter of 6" (150mm), but at least 4¾"
(120mm), is recommended.
NOTICE: Risk of damage from condensation back flow.
Install exhaust vent at a slight downward slope away
from the appliance (1° slope).

7
Electrical connection
9WARNING
Risk of electric shock
Parts inside the appliance can have sharp edges.
The connection cable can be damaged. Do not
bend or pinch connection cables during
installation.
The required connection information is on the
appliance's identification plate.
This appliance meets EC radio interference
suppression requirements.
This appliance may only be connected to a correctly
installed grounded socket.
Attach the grounded socket inside the flue duct if
possible.
▯The grounded socket should be connected via its
own circuit.
▯If the grounded socket is no longer accessible after
installing the appliance, an all-pole isolating switch
(e.g. circuit breaker, fuses, and contactors) with at
least a 3mm contact gap must be included in the
installation.
Before you begin Before youbegin
Tools and parts needed
▯Measuring tape
▯Pencil
▯Torx screwdriver TX20
▯Drill with the following bits: 5/16" (8 mm)
▯Spirit-level
▯Aluminum tape (DO NOT use insulating tape)
▯Exhaust channel (configuration depends on the
installation situation)
▯Additional sheet metal screws (if necessary for
installation of the exhaust air duct)
Parts included
All models

8
Models with exhaust air
Models with circulated air
Accessory: Remote fan unit
$'
$$
$'
$5

9
Appliance dimensions
Models with air extraction mode
Models with air recirculation mode
 PP

é

ʌ¼ʚ


ç¼ʚ


ʎ¼ʓʘ


èʌ¼ʓʘë
èè¼ʓʘ

èè¼ʓʘ

ç¼ʚ


ë

ç¼ʓʘ
ʎ¼ʚ


èç¼ʓʘ
ç¼ʚ

ʐ¼ʓʘ

 PP
ʎ¼ʓʘ

ç¼ʚ


èʌ¼ʓʘë
ʐ¼ʓʘ




ë

ç¼ʓʘ

èç¼ʓʘ


ç¼ʚ
ç¼ʚ

èè¼ʓʘ


ʌ¼ʚ
èè¼ʓʘ


é
ʎ¼ʚ


10
Safety clearances
9WARNING
Risk of fire
Grease deposits in the grease filter may catch
fire. The specified safety distances must be
observed in order to prevent an accumulation of
heat. Observe the specifications for your cooking
appliance. If gas and electric cooktops are
operated together, the largest specified distance
applies.
Only one side of the appliance may be installed
directly next to a high-sided unit or a wall. The
distance between the appliance and wall or high-
sided unit must be at least 2" (50 mm).
The minimum distance between the supporting surface
for the cooking equipment on the hob and the lowest
part of the range hood must be not less than 30 "
(760 mm) from electric cookers and 30 " (760 mm) from
gas or mixed cookers.
If the instructions for installation for the gas hob specify
a greater distance, this must be adhered to.

!
!
 PP

DERYHHOHFWULF
VXUpOHFWULTXH
VREUHHOpFWULFR
DERYHJDV
VXUJD]
VREUHJDV

11
Installation
Appliance Handling Safety
Unit is heavy and requires at least two people or proper
equipment to move.
Hidden surfaces may have sharp edges. Use caution
when reaching behind or under appliance.
Installation preparation
1Mark a vertical center line on the wall from the
ceiling to the lower edge of the extractor hood.
2Mark positions for the screws and the contour of
the attachment area.
3Drill holes for the fixtures and press in the wall
plugs flush with the wall.



$$
ʌ¼ʓʘ






 PP
ë
ʎ¼ʚ
PLQ
è¼ʓʘ
ʌ¼ʓʘʌ¼ʓʘ

ʎ¼ʓʘ ʎ¼ʓʘ
é
ʎ¼ʚ
ê

èè¼ʓʘ

ʌ¼ʚ

èè¼ʓʘ

ʌ¼ʚ

12
Fitting the wall retainer
1Screw on the angle bracket for the flue duct.
2Screw on both brackets for the extractor hood hand-
tight. Do not firmly tighten the screws.
ʌ¼ʓʘ


13

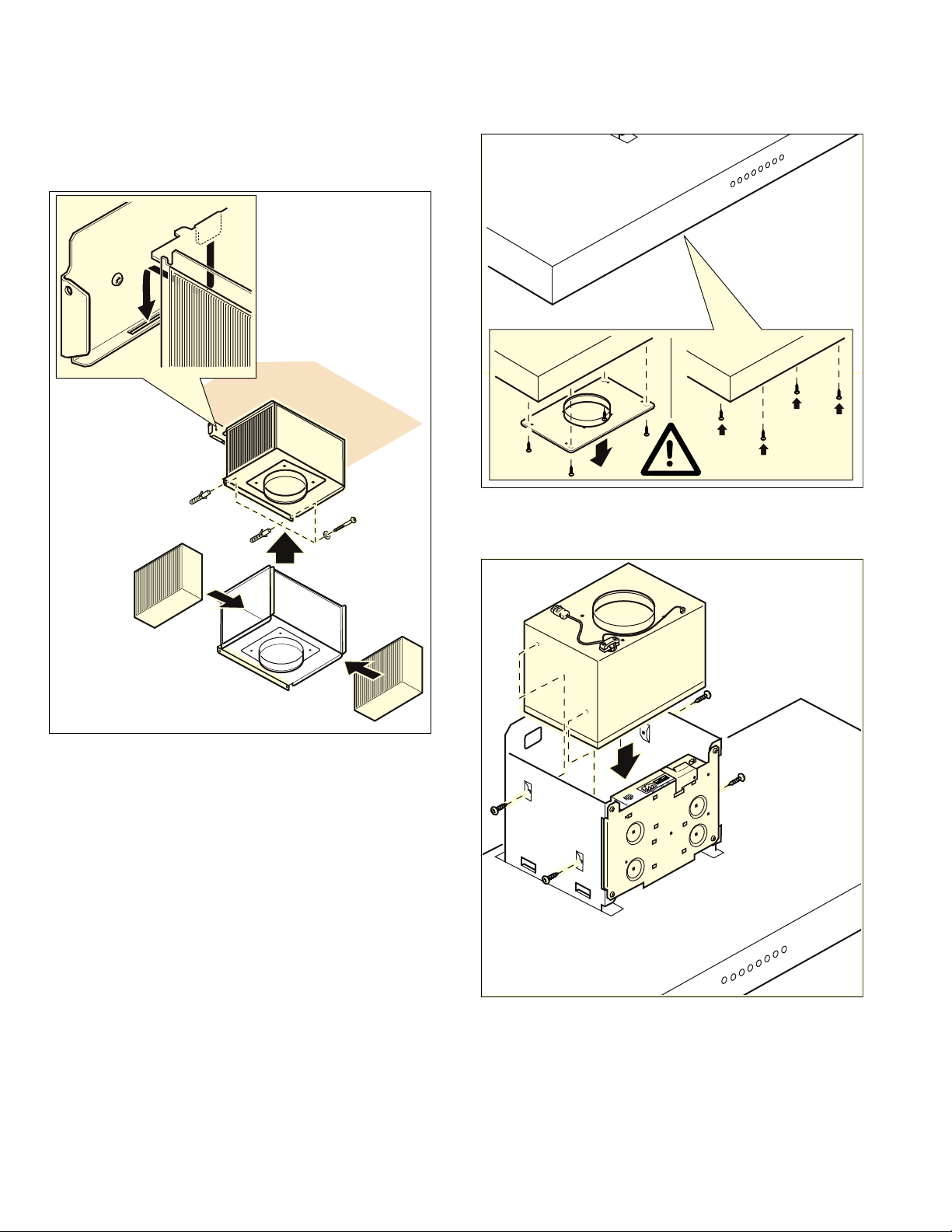

Installing the appliance
1For the air recirculation version only: Fit filters to
both sides of the AA 442810air recirculation
module. Hook the air recirculation module into the
angle brackets. Secure it to the wall with two
screws.
2For combination with internal remote fan unit
AR 400 743only: Unscrew the cover plate from the
ventilation hood: Loosen the four screws, remove
the cover plate and screw the four screws in again.
Slide the remote fan unit into the ventilation hood
from above. Use four screws to secure it in place.

14
Connect the mains cable and control cable to the
control module.
3For a combination with external remote fan unit
AR4.. only: Use the network cable to connect the
external remote fan unit and the ventilation hood’s
control module. The plug must snap into place.
Connect the mains cable to the control module.
Note: The X1and X2connection sockets are
identical.
4Hook the ventilation hood into both brackets in
such a way that it snaps firmly into place.
5Turn the mounting brackets to align the ventilation
hood horizontally. If required, the appliance can be
moved to the right or to the left.

15
6Tighten the screws on the mounting brackets. To do
this, hold the mounting brackets in place to prevent
them from twisting.
7Use two screws above the mounting brackets and
an additional two screws in the lower section of the
ventilation hood to secure it to the wall.
Establishing the connection for the
exhaust air
Notes
‒With operation in extraction air mode , a back-
pressure flap should be installed. If no back-
pressure flap is included with the appliance, it can
be ordered from a specialist retailer.
‒If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
‒If an aluminum duct is used, smooth the connection
area beforehand.
Exhaust air duct dia. 6" (150 mm) (recommended size).
Recirculation mode units with internal remote fan unit
AR 400 743:
1Attach the exhaust air pipe directly to theremote fan
unit's air pipe connector (A).
2Connect it to the air extractor opening (B).
3Seal the joints appropriately.
[
$5
$
%

16
Extraction mode unit with internal remote fan unit
AR 400 743
1Attach the exhaust air pipe directly to the remote
fan unit’s air pipe connector (A).
2Connect it to the air extractor opening (B).
3Seal the joints appropriately.
Extraction mode units without internal remote fan unit
AR 400 743
1Unscrew the connecting pieces from the cover
plate in the ventilation hood. Secure the exhaust air
pipe to the connecting piece. Screw the connecting
piece to the cover plate in the ventilation hood.
2Connect it to the air extractor opening.
3Seal the joints appropriately.
Connecting the power supply
1Plug the mains plug into the grounded socket.
2If a fixed connection is required, please follow the
instructions in the Electrical Connection section.
$5
$
%
$5
$
%

17
Attaching flue duct
9WARNING
Risk of injury
Components inside the appliance may have sharp
edges. Wear protective gloves.
1Remove the protective foil from both flue ducts.
2Fit the upper flue duct.
Hook both side panels onto the angle brackets and
screw them in at both sides.
Models with recirculation mode:
Models with extraction mode:

18
3Fit the lower flue duct.
Gently bend the two side panels away from each
other, hook them in behind the upper flue duct, and
push them together as far as they will go.
Note: To prevent scratches, lay paper over the
edges of the lower flue duct to protect the surface.
4Place the lower flue duct on the appliance.
5Fit the grease filter.
Additional switching output
9WARNING
Work must only be carried out on the additional
switching output by a qualified electrician in
accordance with the country-specific
requirements and standards.
The appliance has an additional switching output
X16(potential-free contact) that can be used to connect
other appliances, such as a ventilation system that is
available at the installation site. The contact is closed
when the blower is switched on, and is opened when the
blower is switched off.
The switching output is located under a cover. Maximum
switching power 30V/1A (AC/DC). The signal that is
connected to the contact must correspond to class of
protection 3.
Connection for window contact switch
AA 400 510
Work on the connection for the window contact switch
must only be carried out by a qualified electrician in
accordance with the requirements and standards of the
country in which in the appliance is being used.
The appliance has a connection (X17) for a window
contact switch. The window contact switch can be flush
mounted or surface mounted. You will receive the
window contact switch AA 400 510separately as an
accessory. Please observe the installation instructions
enclosed with the window contact switch.
If a window contact switch is connected, the extractor
hood's ventilation system will only work with the window
open. The lighting will work even if the window is
closed.
If you switch on the ventilation system with the window
closed, the button for the ventilation setting you have
selected will flash, and the ventilation system will not
switch on.
If you close the window while the ventilation system is
on, the appliance will switch the ventilation system off
within 5 seconds. The button for the ventilation setting
you have selected will flash.
The entire ventilation network and window contact
switch must be assessed by a master chimney sweep.

19
Networked operation
Several appliances can be networked together. The light
and blower on each of the appliances are operated
synchronously.
Connect the appliances in series via the connector
sockets X1and X2(equal value). The sequence of the
networking does not have any effect. If the enclosed
network cables are too short, use a commercially
available network cable (min. Cat. 5, shielded).
Maximum number of networked appliances: 20. Total
length of all of the network cables: 131 feet (40 m).
During the initial installation, a qualified electrician
must check that the system functions correctly.
If one of the networked appliances fails (power
interruption, network cable disconnected), this leads to
the blower function being blocked for the entire system.
All of the buttons on the appliance flash.
When changing the configuration, the system must be
re-initialized:
1Unscrew the cover plate.
2Press and hold the reset button until both LEDs
light up continuously (approx. 5seconds). Then
release the button within 5seconds.
3Screw on the cover plate.
4After initialization, have a qualified electrician
check that the system functions correctly.
Connect Electrical Supply
9WARNING
Risk of electric shock
Parts inside the appliance can have sharp edges.
The connection cable can be damaged. Do not
bend or pinch connection cables during
installation.
Refer to data plate for more information. See "Service"
for data plate location.
The branch-circuit breakers ampacity, the wire sizes and
the connections must conform to the requirements of
the National Electrical Code or Canadian Electrical
Code and all local codes and ordinances.
This appliance is connection with a plug
▯Plug has to be conform with NEMA
CONFIGURATIONS FOR PLUGS AND
RECEPTACLES.
▯The appliance must be properly grounded.
▯Plug must be rated not less than type 6-20 P
(2-pole 3-wire grounding).
▯Only a qualified electrician should connect the
plug.
▯Install a socket outlet earthed in accordance with
regulations approx. 27" (700 mm) above the floor
behind the appliance. The socket outlet must still
be accessible after installation.

20
Removing the appliance
1Remove the grease filter.
2Loosen the flue duct.
3Disconnect the appliance from the power supply.
4Loosen the exhaust air lines.
5Undo the fastening screws.
6Remove the appliance.
Customer Service
If your appliance needs repairs, our Customer Service
is there for you. We work hard to help solve problems
quickly and without unnecessary service calls, getting
your appliance back up and running correctly in the
least amount of time possible.
When you call, please indicate the product number
(E-Nr.) and serial number (FD-Nr.) so that we can
support you in a qualified manner. The data plate listing
the numbers can be found inside of the appliance
(remove metal grease filter to find it).
To avoid having to search when you need it, you can
enter your appliance data and the Customer Service
telephone number here.
Please read the use and care instructions provided with
your appliance. Failure to do so may result in an error in
using the appliance resulting in unnecessary service
calls, which may not be covered by the warranty.
Please find the contact data of all countries in the
enclosed customer service list.
To book a service visit and product advice
Appliance Handling Safety
Unit is heavy and requires at least two people or proper
equipment to move.
Hidden surfaces may have sharp edges. Use caution
when reaching behind or under appliance.
E-Nr. FD-Nr.
Customer Service O
USA 8774424436
toll-free
CANADA 8774424436
toll-free
