Gaggia Velasca User manual

Type RI8260, SUP047G
GAGGIA VELASCA
USER MANUAL
MANUALE UTENTE
RI8260,Type SUP047G
4219_460_3728_1_booklet_A5_v2.indd 1 14/02/17 08:49

1
ESPRESSO
ESPRESSO LUNGO
STEAM
A
R
O
M
A
S
T
R
E
N
G
T
H
MENU
HOT WATER
1
2
4
13
14
15
26 25
16
19
20
18
17
21 22
24
23
8
9
6
5
10
11
7
12
2728
3
4219_460_3728_1_booklet_A5_v2.indd 2 14/02/17 08:49

3
English
Contents
Introduction ______________________________________________________________________ 4
Important safeguards______________________________________________________________ 4
Caution__________________________________________________________________________ 5
Instructions for the power supply cord________________________________________________ 5
General description _______________________________________________________________ 5
Important________________________________________________________________________ 6
Warning _________________________________________________________________________ 6
Caution _________________________________________________________________________ 7
Electromagnetic elds (EMF) ________________________________________________________ 8
The display ______________________________________________________________________ 8
First installation ___________________________________________________________________ 8
Manual rinsing cycle _______________________________________________________________ 9
Water lter_______________________________________________________________________ 9
Installing the water lter____________________________________________________________ 9
Replacing the water lter ___________________________________________________________ 10
Measuring the water hardness_______________________________________________________ 10
Using the machine ________________________________________________________________ 11
Brewing coee with beans__________________________________________________________ 11
Brewing coee with pre-ground coee ________________________________________________ 11
Adjusting the coee quantity ________________________________________________________ 12
Adjusting the grind setting__________________________________________________________ 12
Frothing milk_____________________________________________________________________ 12
Hot water ________________________________________________________________________ 13
Descaling ________________________________________________________________________ 13
Descaling procedure ______________________________________________________________ 13
Interruption of the descaling cycle ___________________________________________________ 14
Cleaning and maintenance _________________________________________________________ 15
Weekly cleaning of the brew group___________________________________________________ 15
Lubrication ______________________________________________________________________ 16
Classic milk frother cleaning (daily) ___________________________________________________ 16
Classic milk frother and steam wand cleaning (weekly) __________________________________ 16
Warranty and support _____________________________________________________________ 17
Ordering maintenance products _____________________________________________________ 17
Disposal_________________________________________________________________________ 17
Warning icons and error codes ______________________________________________________ 17
Meaning of error codes_____________________________________________________________ 19
Troubleshooting___________________________________________________________________ 19
4219_460_3728_1_booklet_A5_v2.indd 3 14/02/17 08:49

4English
Introduction
Congratulations on buying this Gaggia Velasca full automatic
espresso machine! The machine is suitable for preparing espresso
coee using whole coee beans.
Important safeguards
When using electrical appliances, basic safety precautions should
always be followed, including the following:
1 Read all instructions.
2 Do not touch hot surfaces. Use handles or knobs.
3 To protect against re, electric shock and injury to persons do
not immerse cord, plugs, or appliance in water or other liquid.
4 Close supervision is necessary when the appliance is used by or
near children.
5 Unplug from outlet when not in use and before cleaning. Allow
to cool before putting on or taking o parts, and before cleaning
the appliance.
6 Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions, or has been damaged in any
manner. Return appliance to the nearest authorized service
facility for examination, repair or adjustment.
7 The use of accessory attachments not recommended by the
appliance manufacturer may result in re, electric shock or
injury to persons.
8 Do not use outdoors.
9 Do not let cord hang over edge of table or counter, or touch hot
surfaces.
10 Do not place on or near a hot gas or electric burner, or in a
heated oven.
11 Always attach plug to appliance rst, then plug cord into wall
outlet. To disconnect, turn any control to “o”, then remove
plug from wall outlet.
12 Do not use appliance for other than intended use.
SAVE THESE INSTRUCTIONS
4219_460_3728_1_booklet_A5_v2.indd 4 14/02/17 08:49

5
English
Caution
This appliance is for household use only. Any servicing, other
than cleaning and user maintenance, should be performed by an
authorized service center. Do not immerse machine in water. To
reduce the risk of re or electric shock, do not disassemble the
machine. There are no parts inside the machine serviceable by the
user. Repair should be done by authorized service personnel only.
1 Check voltage to be sure that the voltage indicated on the
nameplate corresponds with your voltage.
2 Never use warm or hot water to ll the water tank. Use cold
water only.
3 Keep your hands and the cord away from hot parts of the
appliance during operation.
4 Never clean with scrubbing powders or harsh cleaners. Simply
use a soft cloth dampened with water.
5 For optimal taste of your coee, use puried or bottled water.
Periodic descaling is still recommended every 2-3 months.
6 Do not use caramelized or avored coee beans.
Instructions for the power supply cord
-A short power-supply cord (or detachable power-supply cord) is
to be provided to reduce risks resulting from becoming entangled
in or tripping over a longer cord.
-Longer detachable power-supply cords or extension cords are
available and may used if care is exercised in their use.
-If a long detachable power-supply cord or extension cord is
used.
1 The marked electrical rating of the detachable power-supply
cord or extension cord should be at least as great as the
electrical rating of the appliance.
2 If the appliance is of the grounded type, the extension cord
should be a grounding-type 3-wire cord, and
3 The longer cord should be arranged so that it will not drape
over the counter top or table top where it can be pulled on by
children or tripped over.

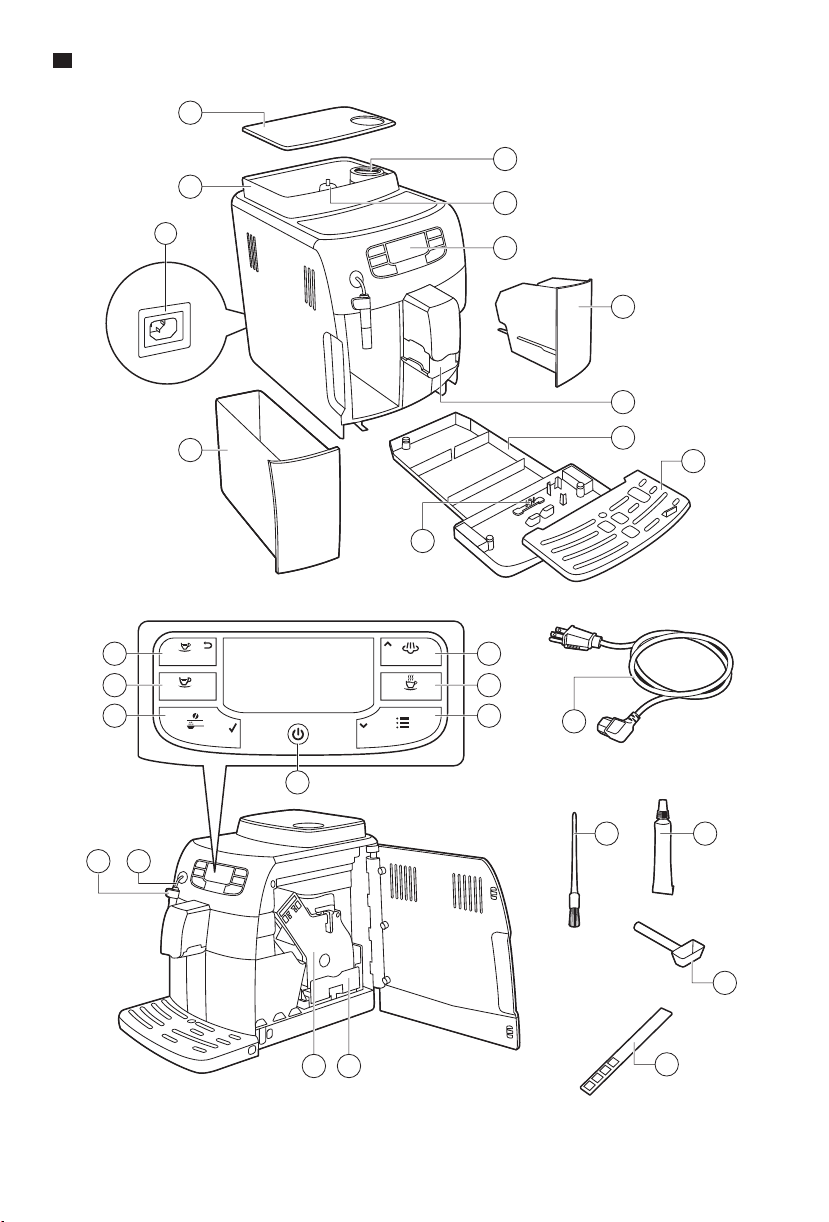

General description
1 Coee bean hopper lid
2 Coee bean hopper
3 Power cord socket
4 Water tank
5 Pre-ground coee compartment
6 Grinder adjustment knob
7 Control panel
8 Coee grounds container
9 Coee dispensing spout
10 Drip tray
11 Drip tray cover
4219_460_3728_1_booklet_A5_v2.indd 5 14/02/17 08:49

6English
12 Drip tray full indicator
13 Espresso button
14 Espresso lungo button
15 Aroma strength button
16 Standby button
17 Menu button
18 Hot water button
19 Steam button
20 Power supply cord
21 Cleaning brush (for specic types only)
22 Grease for the brew group (for specic types only)
23 Pre-ground coee measuring spoon

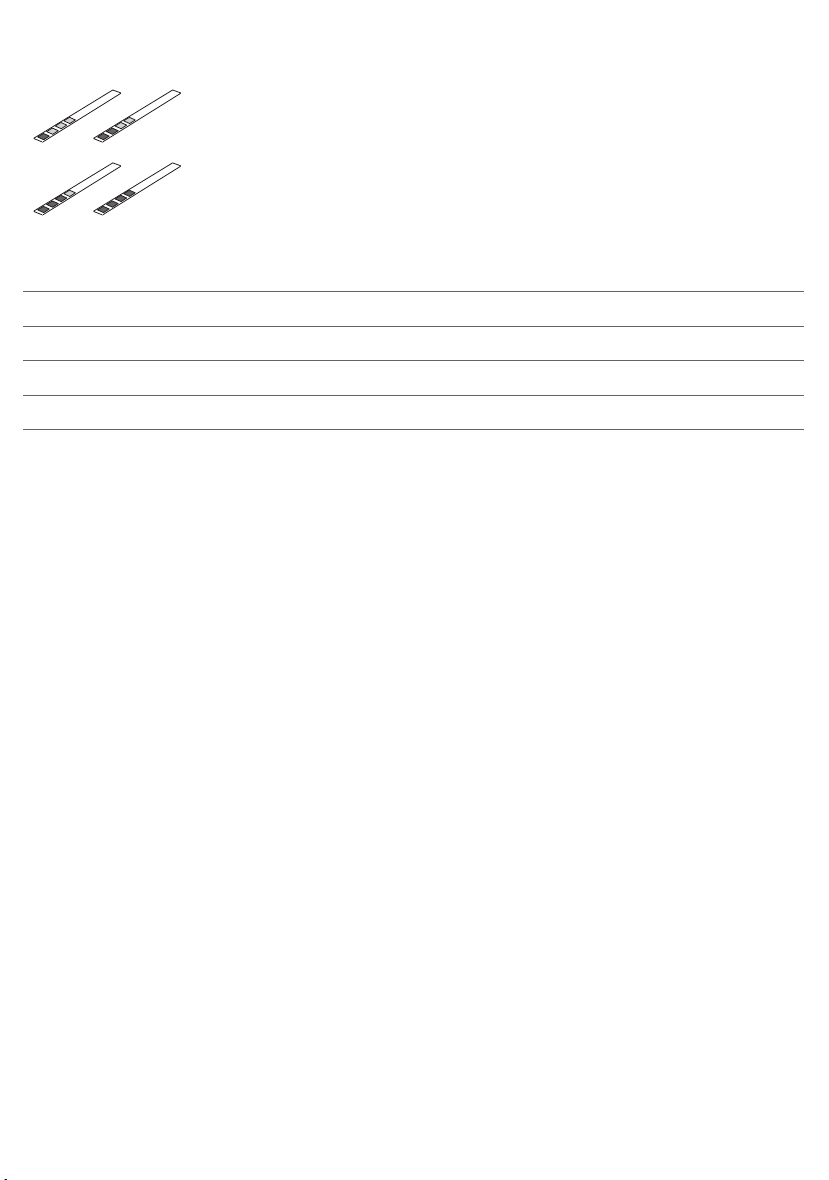

24 Water hardness test strip
25 Coee residues drawer

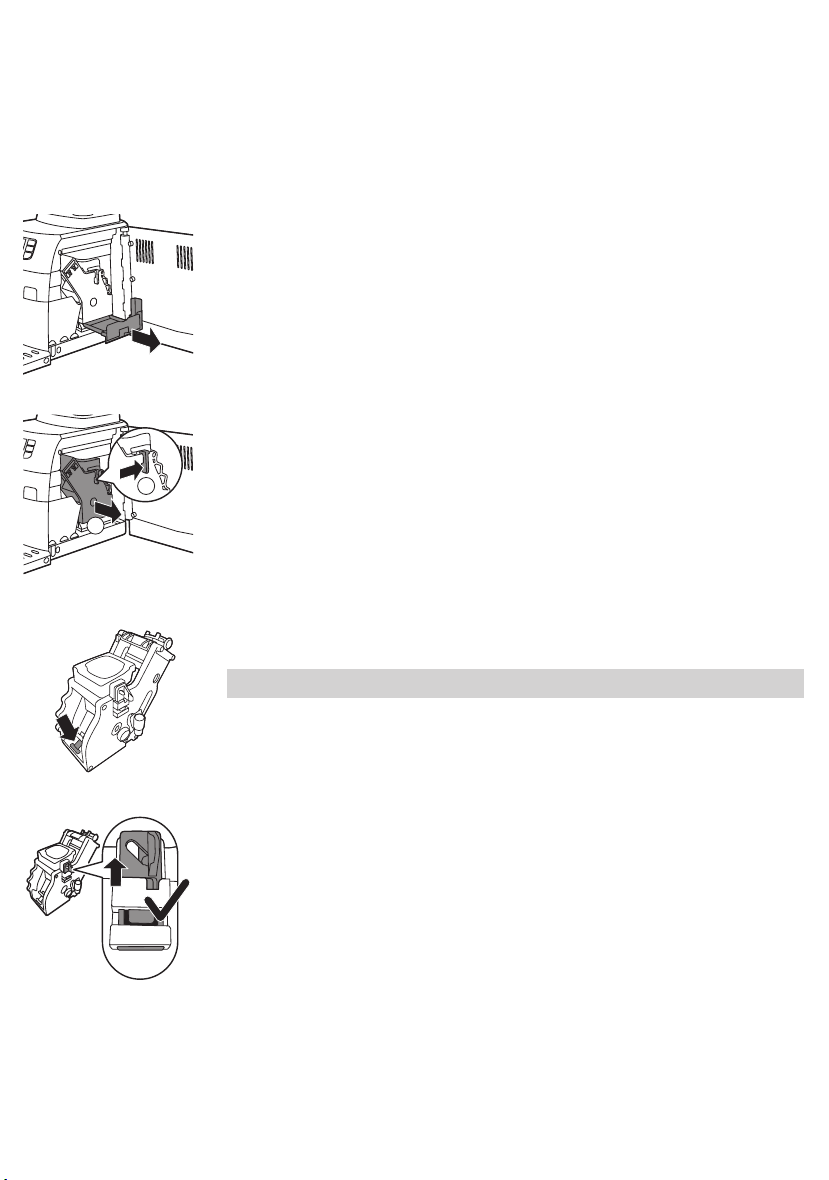

26 Brew group
27 Hot water/steam dispensing spout
28 Classic milk frother
Important
Read and follow the safety instructions carefully and only use the
machine as described in this user manual to avoid accidental injury
or damage due to improper use of the machine. Keep this user
manual for future reference.
Warning
-Check if the voltage indicated on the machine corresponds to the
local voltage before you connect the machine
-Connect the machine to a grounded wall outlet.
-Do not let the power supply cord hang over the edge of a table
or counter, or touch hot surfaces.
-Never immerse the machine, power plug or power supply cord in
water (danger of electrical shock).
-Do not pour liquids on the power supply cord connector.
-Never direct the hot water jet towards body parts: danger of
burns.
-Do not touch hot surfaces. Use handles and knobs.
-Remove the power plug from the wall outlet:
-If a malfunction occurs.
-If the machine will not be used for a long time.
-Before cleaning the machine.
-Pull on the power plug, not on the power supply cord. Do not
touch the power plug with wet hands.
-Do not use the machine if the power plug, the power supply cord
or the machine itself is damaged.
-Do not make any modications to the machine or its power
supply cord. Only have repairs carried out by a service center
authorized by Philips to avoid a hazard.
4219_460_3728_1_booklet_A5_v2.indd 6 14/02/17 08:49

7
English
-The machine should not be used by children younger than 8
years old.
-This machine can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
machine in a safe way and understand the hazards involved.
Children shall not play with the machine. Cleaning and user
maintenance shall not be made by children unless they are 8
years and above and supervised.
-Keep the appliance and its power supply cord out of reach of
children aged less than 8 years.
-Do not spill water on the power plug.
-Only use the machine as described in the user manual to avoid
potential injury due to misuse.
-Never insert ngers or other objects into the coee grinder.
Caution
-As water is a foodstu, the water in the water tank must be used
up within 1 to 2 days.
-If you are not going to use your coee machine for a prolonged
period (e.g. a holiday), we recommend that you discard any
water left inside the tank. Before you use the coee machine
again, clean the water tank and perform a manual rinsing cycle.
-Do not put any of the detachable parts of the machine in the
dishwasher, except for the milk carafe.
-The machine is for household use only. It is not intended for use
in environments such as canteens, sta kitchen of shops, oces,
farms or other work environments.
-Always put the machine on a at and stable surface.
-Do not place the machine on hot surfaces, directly next to a hot
oven, heater or similar source of heat.
-Only put roasted coee beans into the coee bean hopper. If
ground coee, instant coee, raw coee beans or any other
substance is put in the coee bean hopper, it may damage the
machine.
-Let the machine cool down before inserting or removing any
parts.
-Never use warm or hot water to ll the water tank. Use cold non-
sparkling drinking water.
-Never clean with scrubbing powders or harsh cleaners. Simply
use a soft cloth dampened with water.
-Descale the machine regularly. The machine indicates when
descaling is needed. If you do not clean and descale the
machine, you run the risk that the machine stops working and
that your guarantee becomes invalid.
-Do not keep the machine at temperatures below 32°F. Water left
in the heating system may freeze and cause damage.
4219_460_3728_1_booklet_A5_v2.indd 7 14/02/17 08:49

8English
-Do not leave water in the tank when the machine is not used
over a long period of time. The water can get contaminated. Use
fresh water every time you use the machine.
Electromagnetic elds (EMF)
This machine complies with all applicable standards and
regulations regarding exposure to electromagnetic elds.

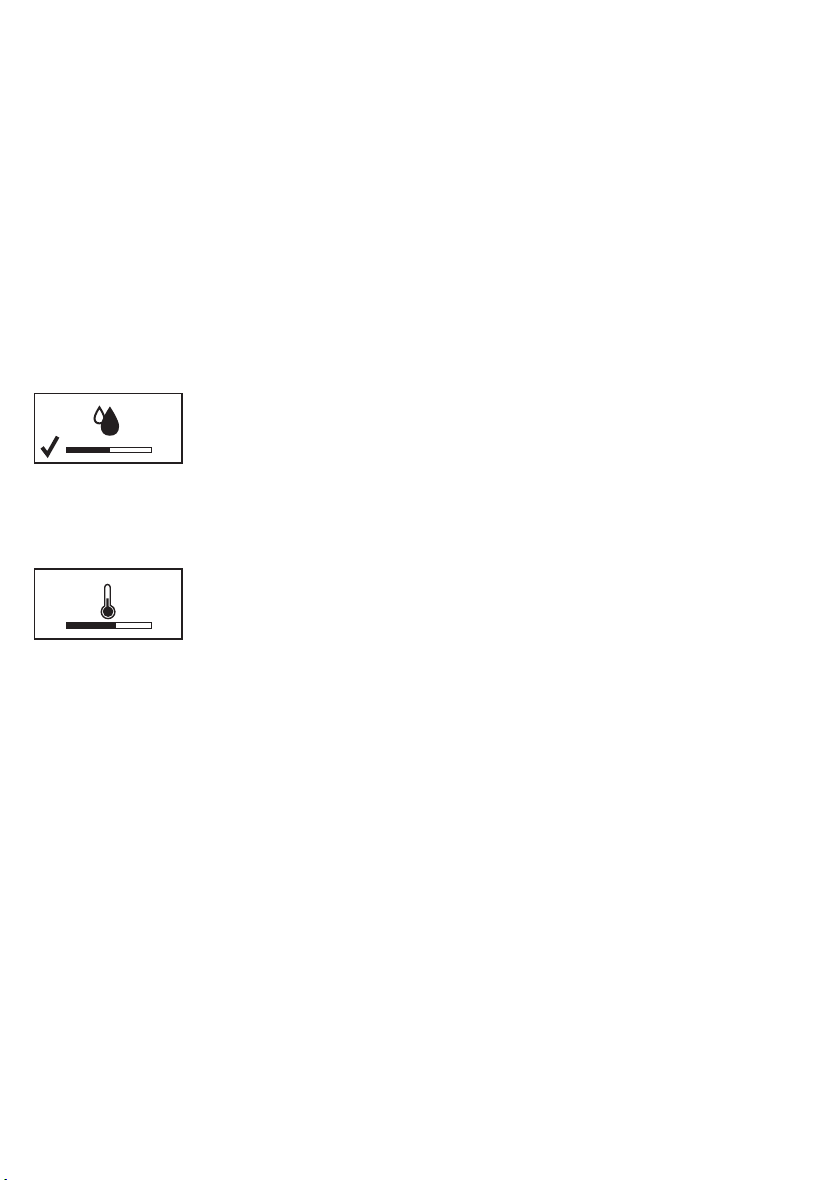

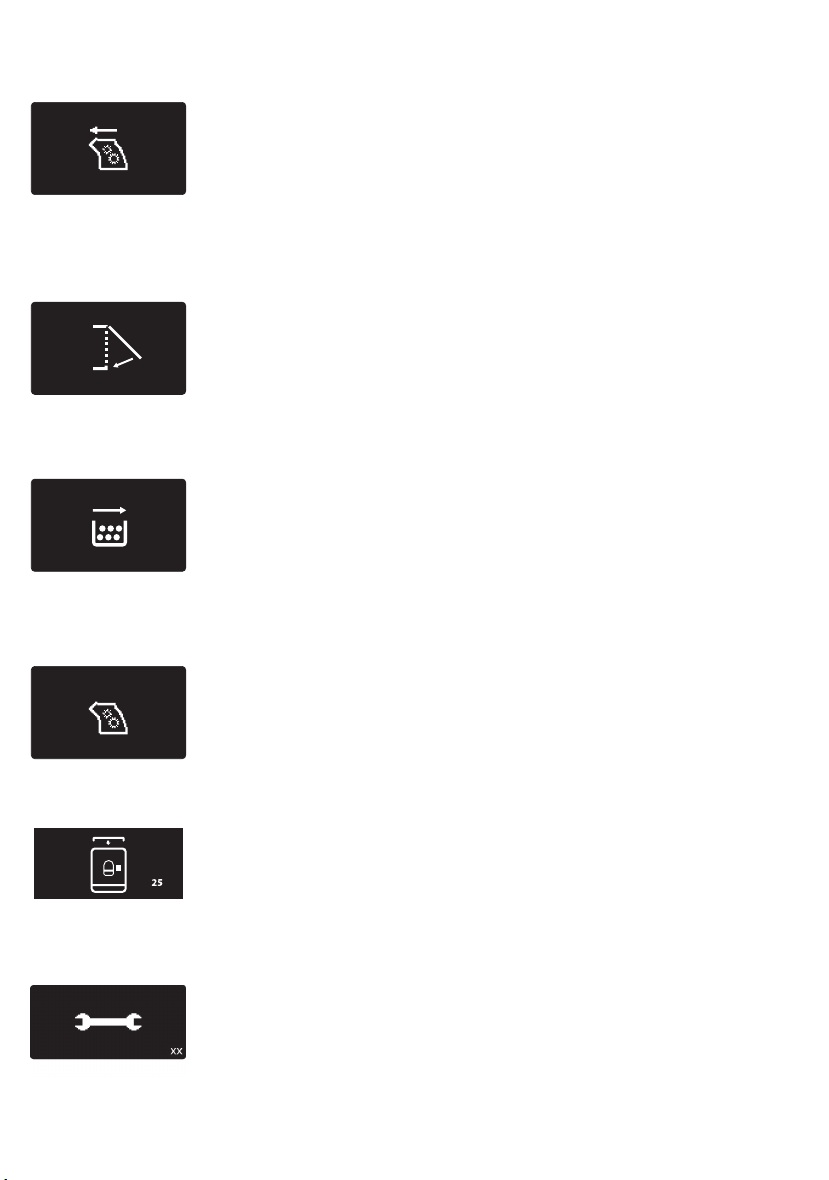

The display
Some buttons can be used to navigate through the menus:
-ESPRESSO button = ESC button: you can press this button to
return to the main menu.The ESC button takes you back one
level.You may have to press the ESC button. several times to
get back to the main menu.
-AROMA STRENGTH button = OK button: you can press this
button to select, conrm or stop a function.
-STEAM button = UP button: press this button to scroll up
through the display menu
-MENU button = DOWN button: press this button to scroll down
through the display menu.
First installation
1 Slide the drip tray with drip tray cover into the machine.
2 Remove the water tank.
3 Fill the water tank to the MAX level with fresh water.
4 Fill the coee bean hopper with coee beans.
5 Insert the small plug into the socket located on the back of the
machine. Insert the mains plug into the wall socket.
6 Attach the classic milk frother to the hot water/steam
dispensing spout.
7 Place a container under the classic milk frother.
ESPRESSO
A
R
O
M
A
S
T
R
E
N
G
T
H
STEAM
MENU
4219_460_3728_1_booklet_A5_v2.indd 8 14/02/17 08:49

9
English
8 Press the STANDBY button to switch on the machine.
9 Press the OK button to start the automatic circuit priming cycle.
-The machine performs an automatic rinsing cycle.
10 Remove the water tank from the machine and empty it.
11 Fill the water tank with fresh water and place it back into the
machine.
12 Continue with the next step: the manual rinsing cycle.
Manual rinsing cycle
1 Place a container under the coee dispensing spout.
2 Press the AROMA STRENGTH button to select pre-ground
coee. Do not add pre-ground coee.
3 Press the ESPRESSO LUNGO button. The machine starts
dispensing water.
4 When the machine stops dispensing, empty the container.
Repeat steps 1-3 twice.
5 Place a container under the classic milk frother.
6 Press the HOT WATER button. Hot water dispensing starts
automatically.
Dispense water until the display shows the no water icon.
7 Fill the water tank with fresh water up to the MAX level and
remove the container.
The machine is ready for use.
Water lter
The Intenza+ water lter is designed to reduce limescale deposits
in your coee machine and provide ltered water to preserve the
aroma and avor of each cup of coee.
Installing the water lter
1 Remove the small white lter from the water tank and store it in
a dry place.
Note: Please keep the small white lter for future use.You will
need it for the descaling process.
2 Remove the lter from its packaging and immerse it in cold
water with the opening pointing upwards. Press the sides of the
lter gently to let out the air bubbles.
3 Place the lter in the empty water tank. Press it down until it
cannot move any further.
4 Fill the water tank with fresh water up to the MAX indication
and place it the machine.
5 Select the hot water function and dispense hot water until the
water tank is empty (see chapter ‘Using the machine’, section
‘Brewing special drinks').
4219_460_3728_1_booklet_A5_v2.indd 9 14/02/17 08:49

10 English
6 Rell the water tank with fresh water up to the MAX indication
and place it back into the machine.
7 Press the MENU button to enter the menu.

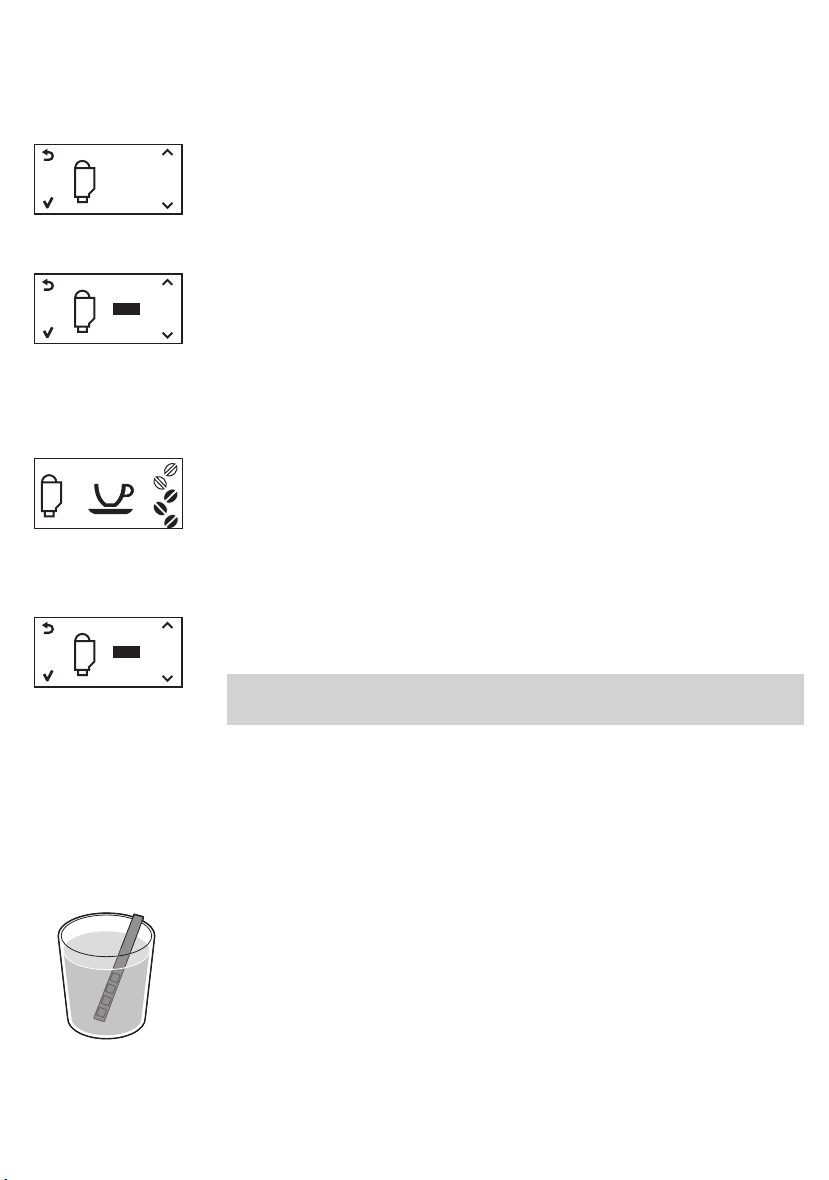

8 Press the DOWN button until the display shows the following
icon.
9 Press the UP button to select 'ON' and press the OK button to
conrm.
10 Press the ESC button.
The lter and machine are now ready for use.
Replacing the water lter
-The display shows the following icon to indicate the water lter
needs to be replaced.
1 Replace the lter as described in section 'Installing the water
lter'.
2 Press the MENU button and press the UP/DOWN button to
scroll trough the options on the menu until the following icon is
displayed.
3 Select the RESET option and press the OK button to conrm.
4 Press the ESC button to exit.
If the lter is already installed and you want to remove it and not
replace it, choose OFF
Measuring the water hardness
To be able to adjust the machine settings to the water in your
region, please measure the water hardness with the water hardness
strip supplied.
1 Immerse the water hardness test strip (supplied with the
machine) in fresh water for 1 second.
2 Remove the water hardness strip and and wait for 1 minute.
WATER
FILTER
FILT ERFILT ER
ON
OFF
FILT ER
FILT ER
ON
OFF
RESET
4219_460_3728_1_booklet_A5_v2.indd 10 14/02/17 08:49
