Model 10453-401
Electro-Sound Headset
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information which is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
General Information
The GAI-Tronics Model 10453-401 Headset provides hands-free communication with Electro-Sound
systems. The 30-foot extension cable provides the users with mobility when connected to an Electro-Sound
jack station. The cable is equipped with a belt clip. A push-button switch is provided on the left ear cup to
allow paging access in a system interfaced with a Page/Party®system.
The GAI-Tronics headset provides a noise reduction rating of 23 dB, making it ideal for use where hearing
protection is required. Please refer to the attached Environmental Protection Agency (EPA) Use and Care
Sheet for information on maintaining the headset’s noise reduction rating (NRR). The gooseneck
(flexboom) microphone is fully adjustable but remains stationary once it is in place. In addition, the gel-
filled ear cups and adjustable black cloth head strap maximize comfort and keep the headset securely in
place. These factors allow the use of the headset in areas with up to 110 dB SPL ambient noise, improving
safety for employees working in these areas.
The headset is adaptable for use with or without hard hats. An employee working in different areas with
different requirements, can alternate the use of the same headset, requiring a reduced investment.
Operation
To operate, the GAI-Tronics 10453-401 Headset must be connected to an Electro-Sound jack using a
GAI-Tronics Model 10410-002 Extension Cable.
Headset Replacements
Old Model Number New Model Number
10452-301 Headset 10453-401 Headset
10453-301 Headset (for use with a hard hat) 10453-401 Headset

Pub. 42004-329C
Model 10453-401 Electro-Sound Headset Page: 2 of 3
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-329c.doc 19527P-65(07-01)
08/01
Specifications
Noise Reduction Rating ....................................................................................................................23 dB
Microphone ....................................................................Gooseneck (flexboom); dynamic, noise-canceling,
Receiver ..................................................................................................Hearing aid-compatible; dynamic
Configuration .........................................................................Adaptable for use with or without a hard hat
Cable................................................................................................... 12-inch; with phono plug connector
Ear cups......................................................................................................................................Gel-filled
Temperature range (operating and storage)........................................-22°F to +158°F (-30°C to +70°C)
Headset weight .................................................................................................................1.1 lbs (0.51 kg)
Shipping weight..............................................................................................................2.25 lbs (1.03 kg)

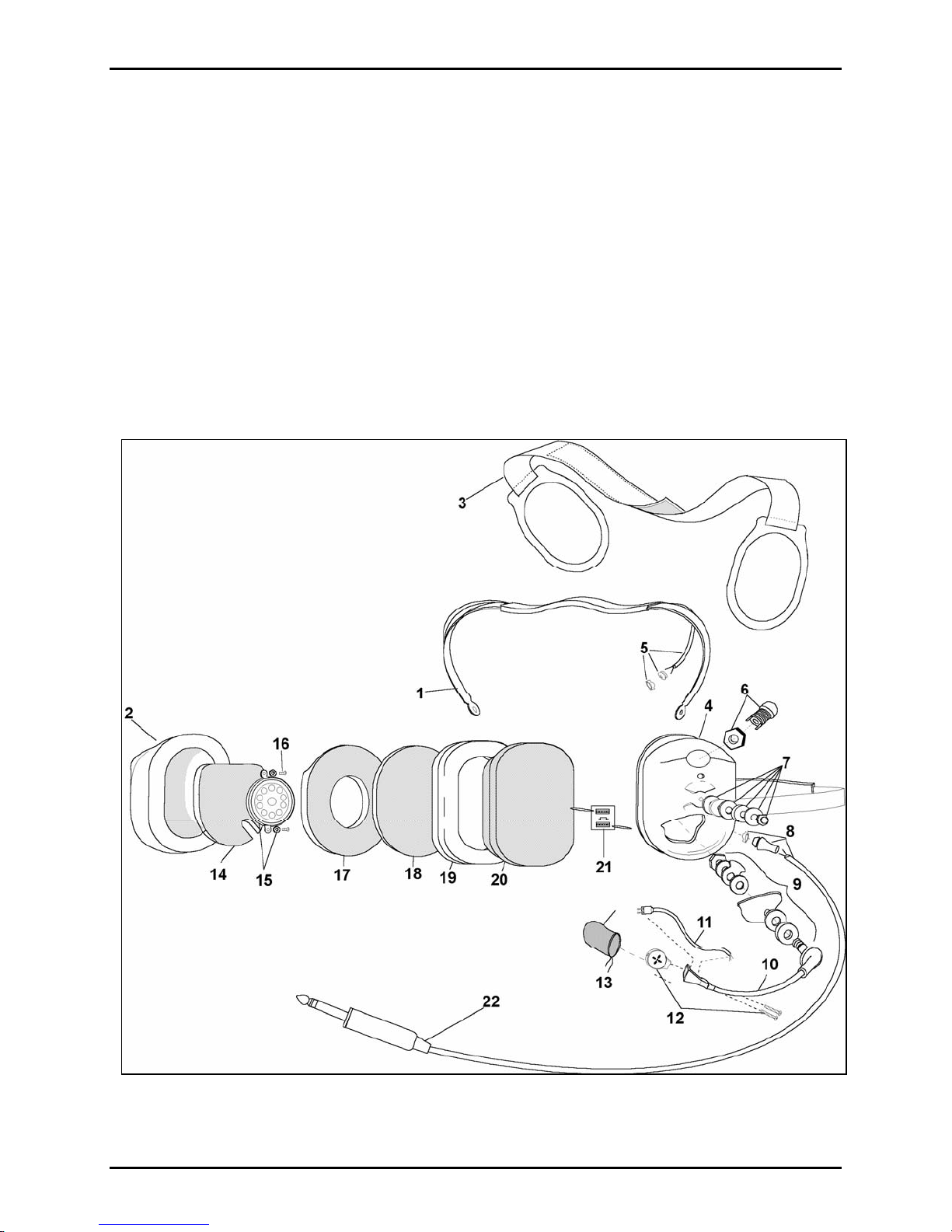

Use the Reference Designator numbers on the chart above to find the part number and description on the
Replacement Parts Table on page 3.

Pub. 42004-329C
Model 10453-401 Electro-Sound Headset Page: 3 of 3
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-329c.doc 19527P-65(07-01)
08/01
REPLACEMENT PARTS
Reference
Designator Description Part No.
1 Spring Assembly 12610-006
2 Dome, Right 12610-016
3 Support Assembly 12610-005
4 Dome, Left (mic side) 12610-017
5 Overhead Cord Assembly Kit 12610-004
6 Push-to-Talk Switch 12610-018
7 Nut and Washer Kit 12610-003
8 Communications Cord Assembly Kit 12610-022
9 Boom Attachment Kit 12610-015*
10 Flexboom Assembly 12610-007*
11 Microphone Plug Cord 12610-008
12 Microphone 13501-001
13 Microphone Muff 12610-009
14 Dome Filter 12610-019
15 Receiver 12610-023
16 Screws (10 pack) 12610-010
17 Dome Filter 12610-021
18 Filter 12610-011
19 Ear Cup, Liquid or Gel Filled (pair) 12610-012
20 Ear Cup, Comfort Cover 12610-013
21 PCB Assembly 12610-020
22 Connector, Electrical 12610-024
*If item 9 or item 10 require replacement, both pieces must be purchased to make the repair.
Replacement Extension Cable
Description Part No.
30-Foot Extension Cable with Belt Clip 10410-002

(Rev. 10/06)
Warranty
Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any
GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall
comply with the then-current product specifications and product literature, and if applicable, shall be fit
for the purpose specified in the agreed-upon quotation or proposal document. If (a) Seller’s goods prove
to be defective in workmanship and/or material under normal and proper usage, or unfit for the purpose
specified and agreed upon, and (b) Buyer’s claim is made within the warranty period set forth above,
Buyer may return such goods to GAI-Tronics’ nearest depot repair facility, freight prepaid, at which time
they will be repaired or replaced, at Seller’s option, without charge to Buyer. Repair or replacement shall
be Buyer’s sole and exclusive remedy. The warranty period on any repaired or replacement equipment
shall be the greater of the ninety (90) day repair warranty or one (1) year from the date the original
equipment was shipped. In no event shall GAI-Tronics warranty obligations with respect to equipment
exceed 100% of the total cost of the equipment supplied hereunder. Buyer may also be entitled to the
manufacturer’s warranty on any third-party goods supplied by GAI-Tronics hereunder. The applicability
of any such third-party warranty will be determined by GAI-Tronics.
Services. Any services GAI-Tronics provides hereunder, whether directly or through subcontractors,
shall be performed in accordance with the standard of care with which such services are normally
provided in the industry. If the services fail to meet the applicable industry standard, GAI-Tronics will
re-perform such services at no cost to buyer to correct said deficiency to Company's satisfaction provided
any and all issues are identified prior to the demobilization of the Contractor’s personnel from the work
site. Re-performance of services shall be Buyer’s sole and exclusive remedy, and in no event shall GAI-
Tronics warranty obligations with respect to services exceed 100% of the total cost of the services
provided hereunder.
Warranty Periods. Every claim by Buyer alleging a defect in the goods and/or services provided
hereunder shall be deemed waived unless such claim is made in writing within the applicable warranty
periods as set forth above. Provided, however, that if the defect complained of is latent and not
discoverable within the above warranty periods, every claim arising on account of such latent defect shall
be deemed waived unless it is made in writing within a reasonable time after such latent defect is or
should have been discovered by Buyer.
Limitations / Exclusions. The warranties herein shall not apply to, and GAI-Tronics shall not be
responsible for, any damage to the goods or failure of the services supplied hereunder, to the extent
caused by Buyer’s neglect, failure to follow operational and maintenance procedures provided with the
equipment, or the use of technicians not specifically authorized by GAI-Tronics to maintain or service the
equipment. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE IN LIEU OF AND
EXCLUDE ALL OTHER WARRANTIES AND REMEDIES, WHETHER EXPRESS OR IMPLIED BY
OPERATION OF LAW OR OTHERWISE, INCLUDING ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Return Policy
If the equipment requires service, contact your Regional Service Center for a return authorization number
(RA#). Equipment should be shipped prepaid to GAI-Tronics with a return authorization number and a
purchase order number. If the equipment is under warranty, repairs or a replacement will be made in
accordance with the warranty policy set forth above. Please include a written explanation of all defects to
assist our technicians in their troubleshooting efforts.
Call 800-492-1212 (inside the USA) or 610-777-1374 (outside the USA) for help identifying the
Regional Service Center closest to you.
