GAI-Tronics Auteldac 4 User manual

Installation and User Guide
Auteldac 4
ATEX / IEC Ex Approved
Hazardous Area Telephone
GAI-TRONICS
A Division of Hubbell Ltd

Auteldac 4
1
CONTENTS
1 PRODUCT DESCRIPTION...................................................2
1.1 At a Glance............................................................................3
1.2 External Signalling.................................................................3
1.3 Dimensions............................................................................4
1.4 Related Standards and Regulations .....................................5
1.5 Headset .................................................................................7
1.6 Suitability for Use ..................................................................7
1.7 Environmental Considerations ..............................................8
1.8 Recycling Information............................................................8
2 INSTALLATION.....................................................................8
2.1 Pre-installation.......................................................................8
2.2 Protection Against Hazards...................................................9
2.3 Preparation..........................................................................10
2.4 Wall Mounting......................................................................11
2.5 Pole-side Mounting..............................................................12
2.6 Desk Mounting / Rake .........................................................13
2.7 Connections and Cabling ....................................................14
2.8 Option Settings....................................................................18
2.9 Assembly of Telephone on to Installed Base ......................20
2.10 Possible Operating Faults ...................................................21
3 OPERATION .......................................................................22
3.1 Making and Receiving Calls................................................23
3.2 Last Number Redial.............................................................23
3.3 Recall Function....................................................................23
3.4 Programming.......................................................................23
3.5 Secrecy or Mute Function ...................................................23
3.6 Headset Operation ..............................................................24
4 MAINTENANCE ..................................................................25
4.1 Procedures ..........................................................................25
4.2 Fault Finding & Field Repairs..............................................25
5 CE DECLARATION.............................................................26

Auteldac 4
2
IMPORTANT
ALL POSSIBLE MEASURES MUST BE TAKEN TO ENSURE WATER,
FLUID OR DUST DOES NOT CONTAMINATE THE INTERNAL
COMPONENTS OF THIS TELEPHONE WHILST UNPACKING,
PREPARING AND INSTALLING IT IN INCLEMENT WEATHER
CONDITIONS OR BY NEGLIGENCE.
FAILURE TO CARRY OUT THIS PRECAUTION
WILL INVALIDATE CERTIFICATION AND YOUR WARRANTY
1 PRODUCT DESCRIPTION
Figure 1 – Auteldac 4 Hazardous Area Telephone at a glance

Auteldac 4
3
1.1 At a Glance
Auteldac 4 is an Ex certified telephone built to withstand arduous
industrial atmospheres and environmental extremes. Features include:
•Carbon loaded glass filled polyester body - rugged and corrosion
free.
•ATEX / IEC Ex certified for safe operation in hazardous areas
•Rugged handset with curly cord or armoured stainless steel cord.
•Noise-cancelling handset option
•Weather resistant up to IP66
•Selectable Timer – can be set to go back on hook after 6-8 minutes
•Integral 90dBA ringer with volume adjustment.
•Selectable dial and recall modes
•External signalling facilities (see below)
•Parallel telephone line connection terminal block
•One touch dial memories (18 button version only)
•Hearing aid compatible inductive coupling as standard
•Available in a range of keypad options including CB
•Headset option available.
1.2 External Signalling
The Auteldac 4 provides a galvanically isolated, volt-free contact for an
external signalling device, which opens and closes in step with the
cadence of the ringing signal from the exchange. The contacts are rated
at 240V a.c. rms at 5A. continuous resistive. This signalling device is
referred to as LOAD1 in the cabling section.
An optically isolated, volt-free contact is additionally provided to indicate
the state of the hook switch of the telephone instrument. The contacts
are rated at 250V a.c. rms at 150mA continuous. This signalling device
is referred to as LOAD2 in the cabling section.

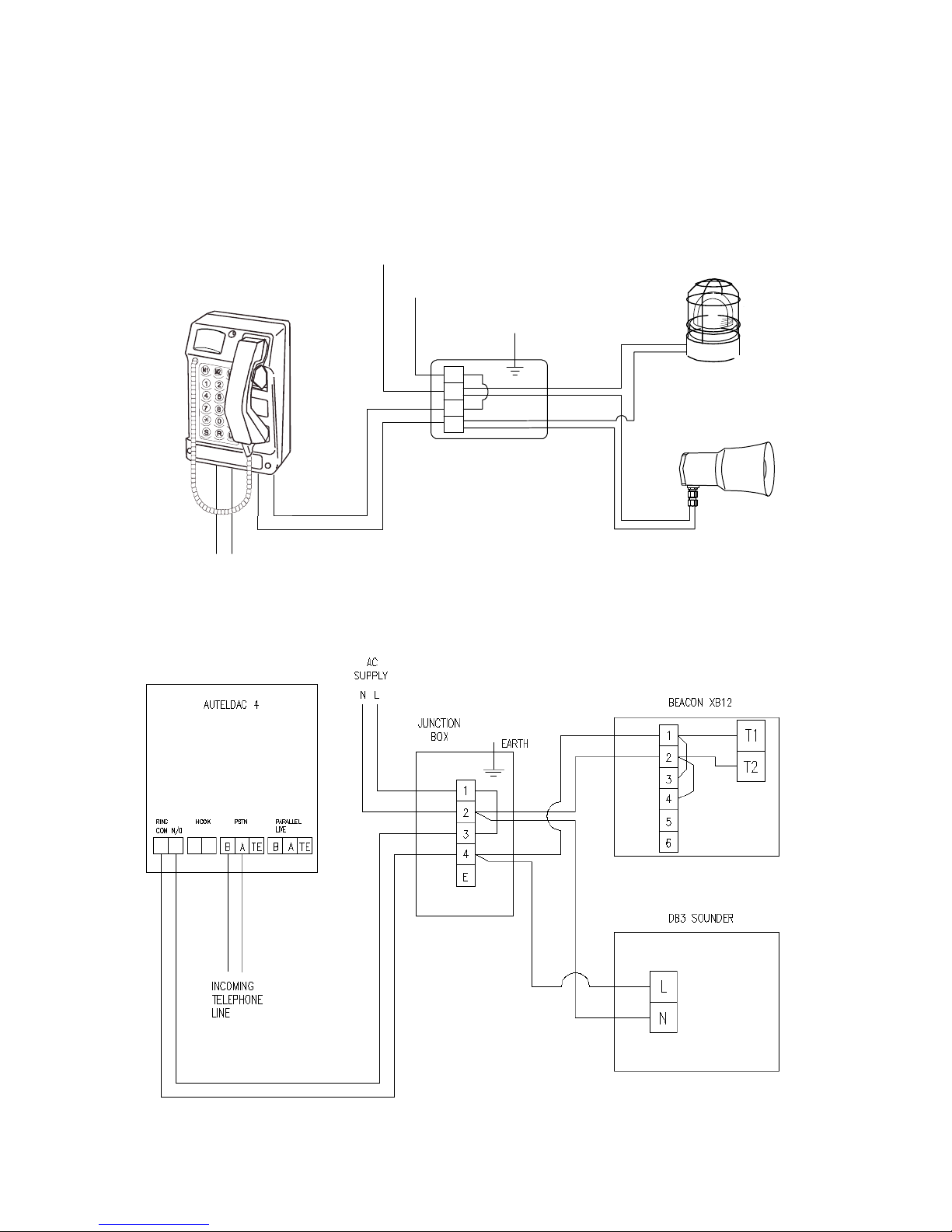

(See section 2.7 for more details on how to connect these optional
facilities.)

Auteldac 4
4
1.3 Dimensions
Four 7mm-clearance holes in the Rear Casing (outside the environmental
seal) allow it to be screwed or bolted to a wall, or to a pole-side mounting kit
(part no 100-02-0208-001).
The holes are arranged in a rectangle, as follows -
•Horizontal separation between centres: 145.0mm
•Vertical separation between centres: 270.0mm. The lower pair are about
10mm up from the bottom edge of the unit.
Handset cord lengths:
Standard curled cord: 320mm extending to 1m.
Standard stainless steel cord: 755mm
Other cord lengths are available as special options: contact GAI-Tronics for
details.

Auteldac 4
5
1.4 Related Standards and Regulations
Auteldac 4 is fully compliant with the following:
1.4.1 Safety Testing to:
EN60950:2000 – Specification for information technology equipment,
including electrical business equipment.
1.4.2 EMC Testing to:
EN55022:1998 – Information technology equipment. Radio disturbance
characteristics.
EN55024:1998 – Information technology equipment. Immunity
characteristics.
1.4.3 Transient Protection Testing to:
ITU-T recommendation K.21 (10/2000) - Enhanced surge protection.
1.4.4 Telephony Testing to:
I-CTR37 & CTR38 pan-European ETSI telephony standards. The Auteldac 4
has been designed for pan-European single terminal connection to the
Public Switched telephone Network (PSTN). However, due to differences
between the individual PSTNs & PABXs provided in different countries, this
does not, of itself, give an unconditional assurance of successful operation
on every PSTN or PABX termination point.
ETS 300 381 – Telephony for hearing impaired people; Inductive coupling of
telephone earphones to hearing aids.
1.4.5 ATEX Hazardous Area Certification to:
IEC60079-0:2007-10 Electrical apparatus for explosive gas atmospheres
Part 0: General requirements.
EN60079-7:2007 Electrical apparatus for explosive gas atmospheres
Part 7: Increased safety ‘e’.
EN60079-11:2007 Electrical apparatus for explosive gas atmospheres
Part 11: Protection by intrinsic safety ‘i’.
EN60079-18:2004 Electrical apparatus for explosive gas atmospheres
Part 18: Construction, test and marking of type of
protection encapsulation ‘m’ electrical apparatus.
1.4.6 Environmental Testing to:
EN60529:1992 – Degrees of protection provided by enclosures.

Auteldac 4
6
1.4.7 European Directives:
1999/5/EC – European Radio Equipment & Telecommunications Terminal
Equipment Directive.
94/9/EC - ATEX Product Directive.
This mark indicates compliance with the following
directives for this product;
R&TTE Directive 1999/5/EC
ATEX Product Directive 94/9/EC
II 2 G
Ex e ib mb IIC T5 (-20 ° C ≤ T
a
≤ 50 ° C)
Ex e ib mb IIC T4 (-20 ° C ≤ T
a
≤ 55 ° C)
Baseefa03ATEX0617
Suitable for inductively coupling to Hearing Aids having
a `T' switch position. Use of this facility for any other
purpose than that for which it was intended may cause
degradation in quality of a connection.
Tested to ETS 300-381
The GAI-Tronics Quality Management System
has been approved by LRQA to ISO9001-2000.
Certificate No. 861888
1.4.8 IEC Ex Certification
Auteldac 4 complies with the following IEC standards:
IEC 60079-0: 2007-10
Edition: 5
Explosive atmospheres - Part 0: Equipment -
General requirements
IEC 60079-11:2006
Edition: 5
Explosive atmospheres - Part 11: Equipment
protection by intrinsic safety 'i'
IEC 60079-18 : 2004
Edition: 2.0
Electrical apparatus for explosive gas atmospheres
- Part 18: Construction, test and marking of type of
protection encapsulation 'm' electrical apparatus
IEC 60079-7: 2006-07
Edition: 4
Explosive atmospheres - Part 7: Equipment
protection by increased safety 'e'
Certification details:
IECEx BAS 05.0060
Ex e mb ib IIC T5 (-20°C ≤Ta ≤+50°C)
Ex e mb ib IIC T4 (-20°C ≤Ta ≤+55°C)

Auteldac 4
7
Headset
For models fitted with headset socket, use only GAI-Tronics ATEX
headset part number 100-02-0598-001. See section 3.6 for operation.
NOTE:
GAI-Tronics only currently supply an ATEX certified headset. No IEC
certified is available. IEC certification will be invalidated if an ATEX
headset is connected.
Headset certification details:
II 2 G
EEx ib IIC T4 (-20 ° C ≤ T
a
≤ 40 ° C)
TUV03ATEX2124
NOTE: the headset temperature class is T4 only. With the headset
fitted, the temperature class of the complete instrument is that of the
headset.
The headset must only be used in accordance with the supplied
manufacturer’s manual.
1.4.9 Optional Headset Extension lead
The standard headset cord is approximately 820mm long and can
extend to approximately 2m (dependant on safe operating conditions.)
A separate headset extension lead is available as an optional extra
(part No. 610-35-2036-001). This will allow the operator to use the
headset over 6 metres away from the telephone unit. Note: Refer to
section 2.2.1 for hazard warnings regarding long corded Headsets &
handsets.
1.5 Suitability for Use
Auteldac 4 telephones are suitable for connection to the following types
of telephone line:
•Direct analogue PSTN
•PABX
•Manual Exchange
•Private System
Connection may NOT be made to:
•Shared service (party) lines.
•Pay phone extension
Any usage other than those indicated will invalidate the certification of
the telephone. Any cases of difficulty should be referred in the first
instance to GAI-Tronics on [phone].

Auteldac 4
8
1.6 Environmental Considerations
WARNING: The telephone must only be stored and operated within
the below stated temperature range. Subjecting the telephone to
temperatures above or below this range will promote failure of the
electronic components within the telephone.
•Storage temperature range -20
o
C to +55
o
C
•Operating temperature range -20
o
C to +50
o
C (+55
o
C)
•Maximum relative humidity 95% non condensing
•Telephone enclosure IP Rating: IP66 (curly cord variants)
IP55 (steel cord variants)
(NB the handset is excluded from this rating)
•The Auteldac 4 has not been certified for installation or operation in
explosive dust atmospheres.
•High pressure hoses should not be used on this product.
1.7 Recycling Information
2 INSTALLATION
Please read all these instructions thoroughly before starting installation.
2.1 Pre-installation
The Auteldac 4 telephone is connected by hard-wiring - (unlike a normal
plug and socket on internal telephones). Because of this, extra
precautions must be observed: installers must ensure that they have
the permission of the owner of the PABX or telephone network to which
the telephone is to be connected, and that installation is carried out by
trained personnel. Contact GAI-Tronics if installation service is required.
The symbol shown here and on the product means that the
product is classed as Electrical or Electronic Equipment and
should not be disposed with other household or commercial
waste at the end of its working life.
The Waste of Electrical and Electronic Equipment (WEEE)
Directive has been put in place to recycle products using best
available recovery and recycling techniques to minimise the
impact on the environment, treat any hazardous substances
and avoid the increasing landfill.
Business users should contact their suppliers and check the
terms and conditions of the purchase contract and ensure that
this product is not mixed with other commercial waste for
disposal.

Auteldac 4
9
The telephone is supplied suitable for wall mounting and desk
mounting.
IMPORTANT WARNING - Gland Specifications
Glands are not supplied. All glands and cables should comply with IP54
or better to meet ‘Increased Safety’ (‘e’ type) requirements. Only ‘e’ type
glands and suitable cables should be used and must be fitted correctly.
Note that the environmental rating of the telephone will not exceed that
of the glands, i.e. in order to maintain an IP66 rating, glands must also
meet IP66.
ALL POSSIBLE MEASURES MUST BE TAKEN TO ENSURE
WATER, FLUID OR DUST DOES NOT CONTAMINATE THE
INTERNAL COMPONENTS OF THE TELEPHONE WHILST
UNPACKING, PREPARING AND INSTALLING IT IN INCLEMENT
WEATHER CONDITIONS OR BY NEGLIGENCE.
FAILURE TO TAKE THIS PRECAUTION WILL INVALIDATE YOUR
WARRANTY AND CERTIFICATION
The telephone body must NOT be opened, nor glands removed or
cables disconnected unless all supplies to the telephone, including
telephone cables and external devices have been isolated outside the
hazardous area. Terminals for incoming cables are ‘e’ type and must be
carefully connected so as to make an ‘e’ type termination.
The Code of Practice for ‘e’ type enclosures is specified in EN60079-14.
The installer and all service personnel should be familiar with the
relevant sections of these documents.
If only one gland entry is used, the sealing plug fitted to the second
gland position should be left in place.
2.2 Protection Against Hazards
The Auteldac 4 telephone has been designed such that it does:-
-Not give rise to Physical injury or harm due to contact.
-Not produce excessive surface temperature, infra-red,
electromagnetic or ionising radiation.
-Not have non-electrical dangers.
Note:- The above only applies provided the instructions, restrictions and
warnings provided in this manual are complied with.

Auteldac 4
10
2.2.1 IMPORTANT WARNING:- Risk of Tripping or entanglement
For Auteldac 4 telephone versions supplied with long corded handset &
headsets
Telephone location:-
Care must be taken when installing the telephone onto a wall, post or
flat surface, to position the telephone so that the lower extremities of
the stowed handset/headset cord do not pose an entanglement or
tripping hazard.
Use of telephone:-
Some of the long corded (headset & handset) versions of the telephone
can reach to over 5 metres away from the telephone position. Therefore
caution and care must be taken when using the handset/headset at
these extended distances, so that the user and other personnel or
equipment in the vicinity is not impeded, trapped or entangled by the
cord. Also, care must be taken to stow these long cord
handset/headsets so they do not pose an entanglement or tripping
hazard.
2.2.2 IMPORTANT WARNING: Ringer high noise level hazard:-
The telephone ringer can develop a sound level in excess of 90dBA @
1 metre. Therefore, it is the installer’s responsibility to take the
necessary measure to comply with the European directive 2003/10/ec
on the minimum health and safety requirements regarding the exposure
of workers to the risks arising from physical agents (noise).
2.3 Preparation
1. Place the telephone on its base on a firm horizontal surface.
2. Using a 5mm Allen key, release the Front Casing from the Rear
Casing. The screws are captive in the Front Casing.
3. Noting the positions, disconnect the keypad cable at the keypad.

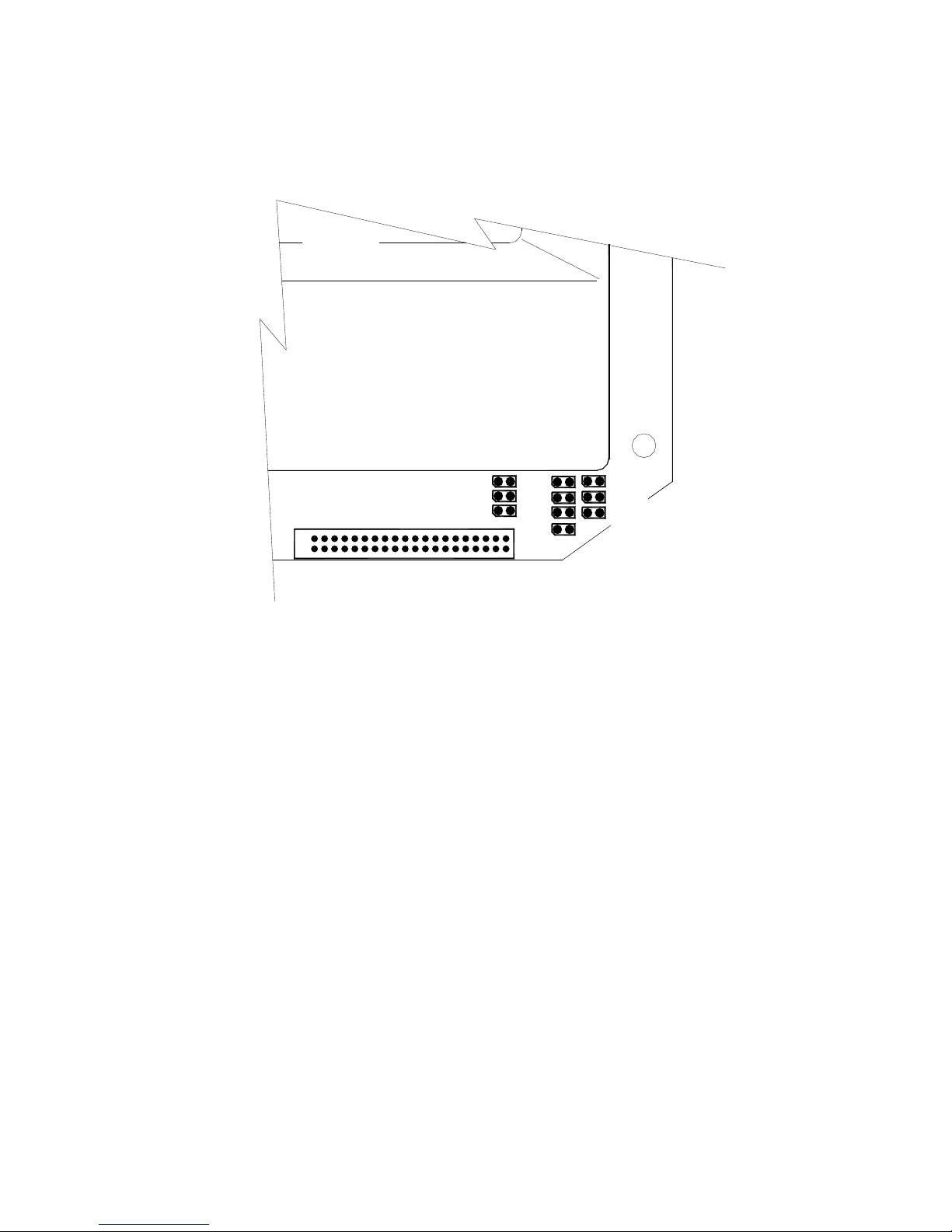

See figure 8, on Page 18.
4. Take care when removing the Front Casing from the Rear Casing
and storing the Front Casing not to damage the internal electronics,
specifically the headset switch terminals or connector PCB if fitted.
To do so will violate the certification of the telephone product.
5. Remove the RED blanking plug from the cable entry hole leaving the
EEx e certified (usually BLACK) blanking plug in situ.
NOTE: The EEx e plug must be used to seal the unused gland
hole; failure to do so will invalidate the certification of the
telephone product.

Auteldac 4
11
6. If two metal glands are to be used: remove one of the two Earth
Bonding screws and re-assemble as shown in Figure 2 below to give
an external stud. The earth stud is provided as suitable termination
point to ensure earth continuity between cable glands. Note that it is
the installer’s responsibility to ensure the correct fitting of the glands
(see section 2.1 above).
Figure 2 - Internal and external earth bonding stud arrangements
7. Select the appropriate size Ex gland for the cable used.
8. Take care when inserting the selected gland into the threaded cable
entry hole. Follow the gland manufacturers instructions particularly
with respect to sealing, installation and earthing.
9. After the glands have been fitted select the required mounting
method and follow the appropriate instructions below.
2.4 Wall Mounting
To ensure weatherproof integrity when wall mounted, external cables
should enter the enclosure from the bottom via the two 20mm gland
entries provided.
IMPORTANT WARNING:
DO NOT DRILL ANY EXTRA HOLES AS THIS WILL INVALIDATE
YOUR WARRANTY AND THE CERTIFICATE.
1. Remove rubber feet from the Rear Casing if fitted. Ensuring that the
cable entries are at the bottom offer the Rear Casing up to the
vertical surface and mark through the fixing holes.
Do not use the Rear Casing as a template to drill the holes.
Work only from the marked positions.
2. Drill the holes in the vertical surface to suit the best method of fixing.
3. Ensure the Rear Casing is securely attached to the vertical surface
using the four 7mm diameter screw holes provided. No sealing
washers are necessary.
PLAIN WASHER
SEALING WASHER
PLAIN WASHER
LOCKING WASHER
FULL NUT
HALF NUT
HALF NUT
FULL NUT
LOCKING WASHER
PLAIN WASHER
SEALING WASHER
EARTH STUD

Auteldac 4
12
IMPORTANT: Do not use countersunk headed fixing screws. Only
use round head, socket cap head or pan head screws. Take care not
to over tighten the screws as doing so may damage the case and
will invalidate your warranty and the certificate.
4. Pass the cable through the gland and tighten, following the gland
manufacturer’s instructions.
5. Continue the installation procedure with the connection of individual
wires from the cable as described under sections 2.7 onwards.
2.5 Pole-side Mounting
(refer to Hazard warning in section 2.2.1)
Kit No 100-02-0208-001
This accessory kit is for mounting GAI-Tronics telephones on to the side
of round poles of 100mm to 200mm diameter, or on to square or
rectangular section uprights of 100mm to 150mm across the mounting
surface. For flat mounting on surfaces greater than 150mm across use
the desk or wall mounted methods as appropriate.
Figure 3 – Pole side mounting
NOTE:
Banding straps (large scale worm-drive clamps) are not included in this
kit and must be obtained separately. For details of where mounting kits
can be obtained, refer to GAI-Tronics .
1. Remove rubber feet from the Rear Casing if fitted. Attach the pole
mounting clamp assemblies to the Rear Casing using the M6 x 25
screws provided.
2. Ensuring that the glands are at the bottom, pass a proprietary
banding strap round each of the pole mounting clamps and the
support pole. Tighten securely.
3. Continue the installation procedure with the connection of individual
wires from the cable as described under sections 2.7 onwards.
4. Secure the telephone Front Casing to the Rear Casing.

Auteldac 4
13
5. Re-tighten the straps firmly and trim off any excess band material.
For security the driving head of the band may also be sawn off.
2.6 Desk Mounting / Rake
IMPORTANT WARNING:- Risk of impact or falling
This telephone, when used in a desk mounting mode, should be located
on a horizontal, flat non-slip surface. Due to the heavy and robust
construction of the unit, users must take care when using the handset
or headset, not to pull the cord to such an extent as to cause the
telephone to be pulled off the flat surface, and possibly cause damage
or injury to persons or equipment. Therefore it is recommended that the
unit be fixed in position using fixing positions and method detailed in
section 2.4 if there is any risk of the unit being dislodged as described
above.
To provide a 'rake' for convenient operation, the Front Casing may be
turned through 180°before it is fitted to the Rear Casing. Thus the
cable entries are at the rear of the telephone.
1. Ensure that the supplied rubber feet are fitted to the underside of the
Rear Casing if the telephone if not fixed into position.
2. Rotate the Front Casing through180°and fold the keypad ribbon
cable to ensure that it lays flat against the potted block when re-
assembled. Refer to Figure 9 - Ribbon cable positions (page 21)
3. Continue the installation procedure with the connection of individual
wires from the cable as described in sections 2.7 onwards.

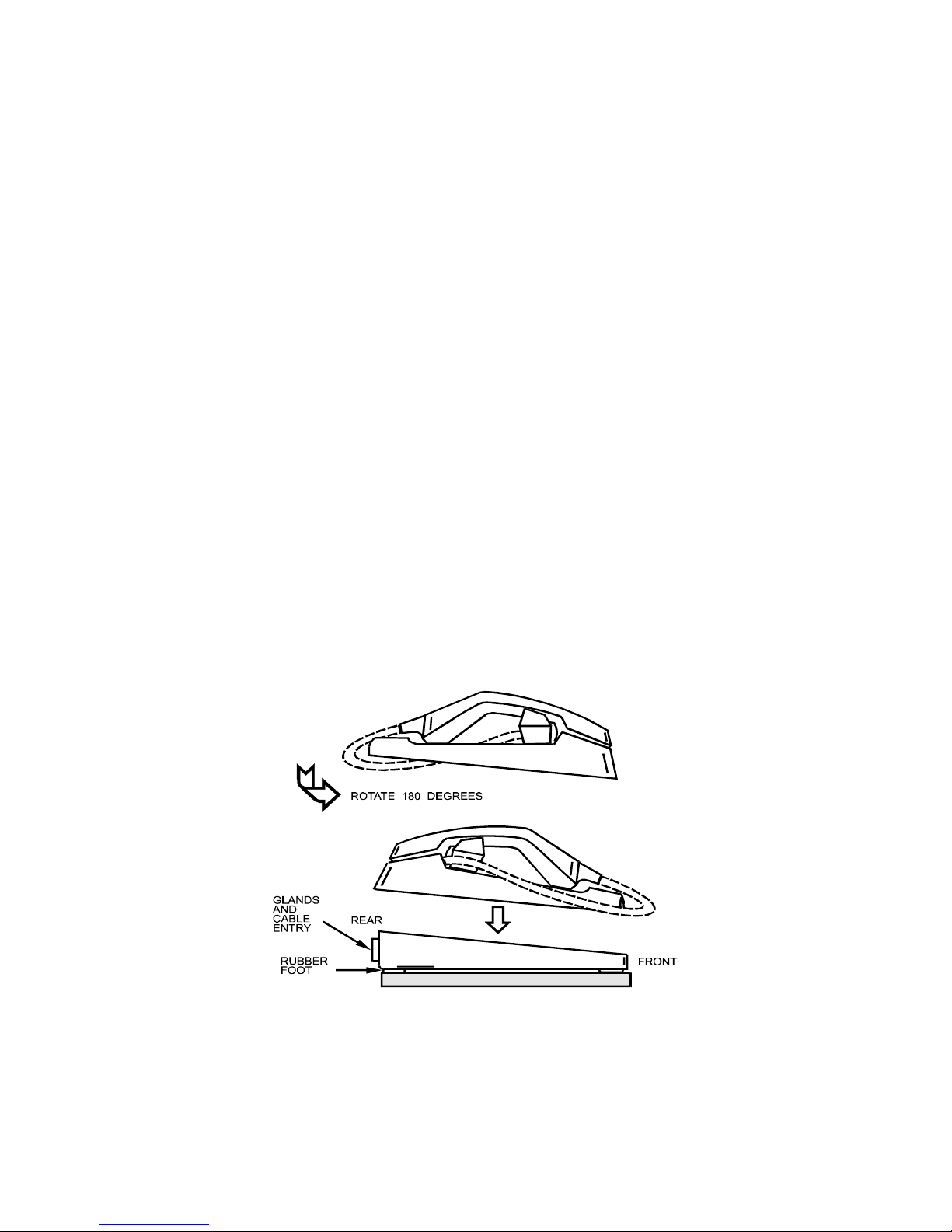

Figure 4 - Providing the rake

Auteldac 4
14
2.7 Connections and Cabling
IMPORTANT WARNING:-
ISOLATE MAINS AND TELEPHONE LINE OUTSIDE THE
HAZARDOUS AREA BEFORE OPENING THE CASE.
ALL TERMINALS MUST BE CONNECTED IN ACCORDANCE WITH
THIS INSTALLATION GUIDE. ANY DEVIATION FROM THIS MAY
RESULT IN AN UNSAFE INSTALLATION AND VIOLATE THE
CONDITIONS OF THE CERTIFICATE.
B A
EXCHANGE EARTH
(OPTIONAL)
RING HOOK
COM N/O
COM N/O B A TE B A TE
PSTN PARALLEL LINE
Figure 5- telephone line connections - telephone line only

Auteldac 4
15
RING HOOK
COM N/O
COM N/O B A TE
B A
EXCHANGE EARTH
(OPTIONAL)
B A TE
PSTN PARALLEL LINE
OTHER APPROVED
APPARATUS
RING HOOK
COM N/O
COM N/O B A TE
B A EXCHANGE EARTH
(OPTIONAL)
B A TE
PSTN PARALLEL LINE
OTHER APPROVED
APPARATUS
Figure 6- telephone line connection + parallel connection (alternatives)
2.7.1 Connection to a TELECOMMUNICATIONS NETWORK
To maintain safe operation of this product the telephone line must
not exceed the following:
•U
m
=250V rms
•Rated voltage = 70Vdc + 100Vrms Ring Voltage
•Maximum power = 15W (in accordance with EN60950:2000
Clause 1.4.11 and 1.2.13.8)
Note: these are safety parameters only and correct operation under
these conditions is not implied.
For correct operation the telephone line should comply with the
following:
•Ring Voltage: 30V to 100V rms, 20Hz to 50Hz
•Line voltage 20 to 70 Vdc
•Loop current ≥15mA

Auteldac 4
16
2.7.2 Ring Relay Contact
(Galvanically isolated, volt-free contact)
The connection from the telephone to the external load must be
installed such that the apparatus continues to comply with the
requirements of EN 60950:2000.
Typical connection scheme for a sounder and beacon.
Telephone connection diagram
1
2
3
4
EARTH
AC NEUTRAL
(DC -ve) IN
AC LIVE
(DC +ve) IN
Exe JUNCTION BOX
Ex ELECTRONIC
SOUNDER
Ex BEACON
5Joule / 21Joule
TO IN-BUILT
RING DETECTOR (LOAD 1)
INCOMING
TELEPHONE LINE
AUTELDAC 4

Auteldac 4
17
Maximum voltage = 240Vrms
Maximum current = 5A
Note: no fusing or transient protection is provided; this must be
installed externally.
Note: The minimum ring voltage required to operate the ring relay
depends on the frequency of the ring signal and on the loudness
setting of the Auteldac 4 ringer. Approximate minimum values (in V
rms) are shown in the table below:
Ring frequency (Hz)
Volume setting 50Hz 25Hz
Quiet 35 39
Medium 36.5 40
Loud 39 46
V. Loud 54.5 62
The ring detect relay fitted to the Auteldac 4 has a continuous
current rating of 5A. It has been brought to our attention that some
beacons, whilst having a current rating well below this figure,
actually generate current spikes far in excess of this during making
and breaking of the relay contacts. These current spikes can cause
the relay contacts to fail.
GAI-Tronics have been working closely with a leading beacon
manufacturer to resolve this issue and our recommendations are:
•Restrict the use of beacons to non AC variants only or those
with a maximum flash intensity of 5 joules.
•Where beacons with greater than 5 joule flash intensity are
required, the beacons should be purchased directly from GAI-
Tronics, who will ensure compatibility with the Auteldac 4 and
that ATEX approvals are not compromised.
•Utilise only beacons with integral ring detector, so that the relay
in the Auteldac 4 is not needed to activate the beacon.
2.7.3 Hook Switch State Indicator Contact
(Optically isolated, volt-free contact)
The connection from the telephone to the hook switch state indicator
must be installed such that the apparatus continues to comply with
the requirements of EN 60950:2000
Maximum voltage = 240Vrms

Auteldac 4
18
Maximum current = 150mA
Note: no fusing or transient protection is provided; this must be
installed externally.
SEE NOTE C
B A TE
HOOK
COM N/O
RING
COM N/O
B A
EXCHANGE EARTH
(OPTIONAL)
RING TAG
CONTINUITY EARTH
RING TAG
CONTINUITY EARTH
'LOAD 1'
CONNECTIONS
ONLY
'LOAD 2'
CONNECTIONS
ONLY
VOLT FREE
CONTACT O/P
VOLT FREE
CONTACT O/P
B A TE
PSTN PARALLEL LINE
OTHER APPROVED
APPARATUS
Figure 7 – Wiring for telephone and external loads
NOTES:
A: Conductor sizes to be 0.5mm - 2.5mm
2
.
B: INSULATION THICKNESS ON ALL CORES TO BE 1mm MINIMUM
C: Ensure these two sets of cable are segregated
2.8 Option Settings

Auteldac 4
19
Auteldac 4 has four functions that have optional settings. These are set
using jumpers on the main circuit board as described below.
ISOLATE MAINS AND TELEPHONE LINE OUTSIDE THE
HAZARDOUS AREA BEFORE OPENING THE CASE.
HD3
HD2
HD4
HD10
HD9
HD11
HD6
HD7
HD8
HD5
Figure 8 - Option jumper positions
2.8.1 Dialling method
Select the required dialling mode by fitting the jumper to one
of the headers below as appropriate:-
•Tone dialling (87ms/87ms burst/pause time) – HD2
•Pulse dialling (10pps), make/break 40ms/60ms– HD3
•Pulse dialling (10pps), make/break 33ms/66ms– HD4
2.8.2 Recall Mode
Select the required recall mode by fitting a jumper to one of
the below headers as appropriate:-
•Timed Break Recall (98ms) – HD5
•Timed Break Recall (250ms) – HD6
•Timed Break Recall (604ms) – HD7
•Earth Loop Recall (600ms pulse) – HD8
2.8.3 Ringer Loudness
