GAI-Tronics Titan CB User manual

Doc. No. 502-20-0099-001 Iss3. Dec 2007 (CN33056-001)
Installation and User Guide
Titan CB (1064)
Commander CB (1064)
Weather Resistant Telephones
GAI-TRONICS
Titan
Commander

2 Titan CB, Commander CB
CONTENTS
1. Safety and Care Information....................................................................... 3
2. Product Description .................................................................................... 3
2.1. Changes from previous versions.................................................. 3
2.2. Titan features ............................................................................... 4
2.3. Commander features.................................................................... 4
3. Operation / Testing ..................................................................................... 5
3.1. Call timer ...................................................................................... 5
3.2. Handset integrity alert .................................................................. 5
4. Installation .................................................................................................. 6
4.1. General ........................................................................................ 6
4.2. Emergency Services warning....................................................... 6
4.3. Titan ............................................................................................. 6
4.4. Commander ................................................................................. 7
5. Mounting methods and dimensions ............................................................ 7
5.1. General ........................................................................................ 7
5.2. Titan ............................................................................................. 8
5.3. Commander ............................................................................... 12
6. Connections and option settings............................................................... 14
6.1. Standard connections and timer setting ..................................... 15

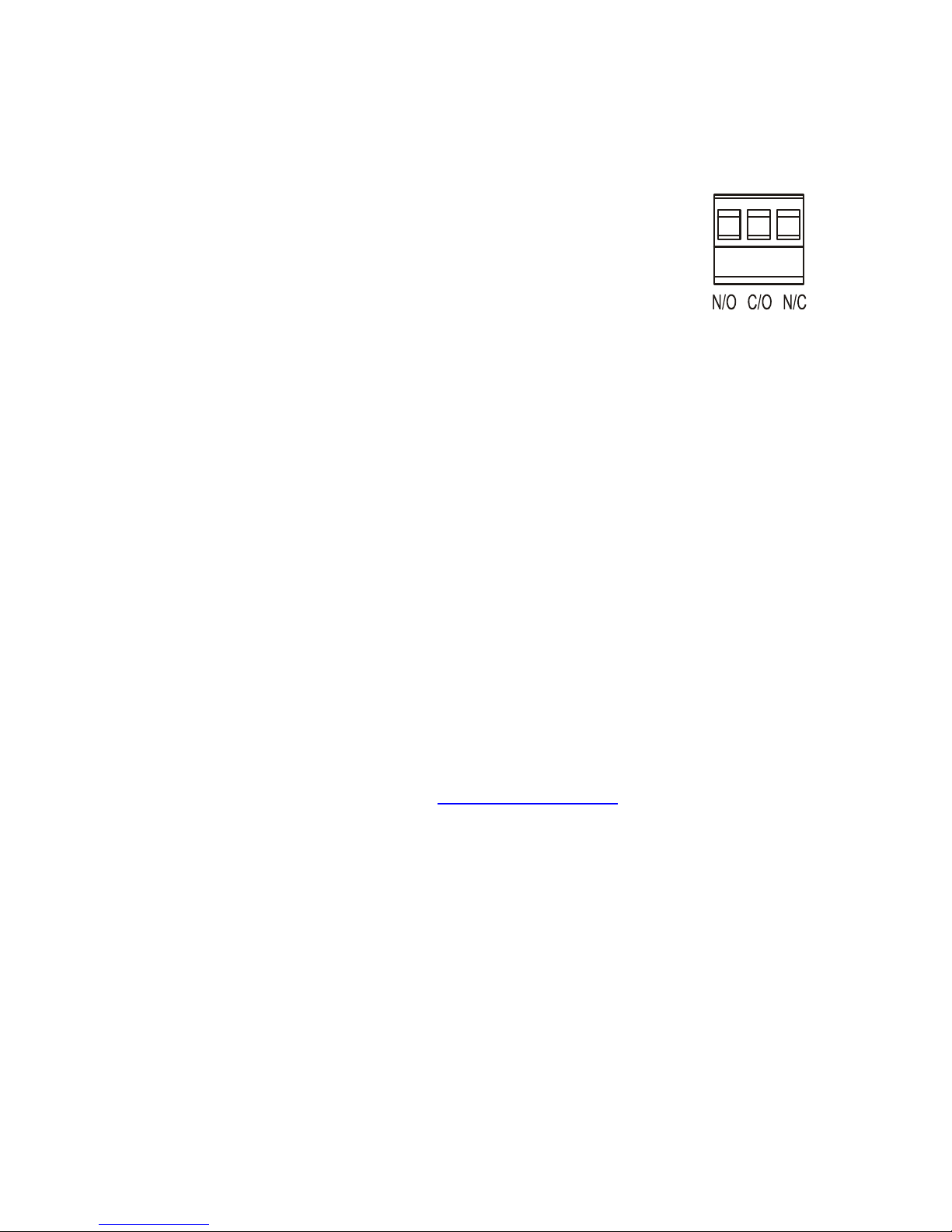

6.2. Additional hook contact .............................................................. 15
7. Aftercare................................................................................................... 16
8. Technical Specifications ........................................................................... 17
9. CE Declaration ......................................................................................... 19

Titan CB, Commander CB 3
1. Safety and Care Information
▲
The safety of the user/installer relies on the isolation of the telephone
network and not on the earthing of the case
▲
The spring-loaded door (Titan models only, where fitted) can close
sharply. Take care not to trap fingers etc., during installation and use.
▲
Please read these instructions thoroughly before starting installation.
These products must be installed by competent personnel familiar with
telephone installation.
▲
Telephone network voltages can be hazardous. Take adequate
precautions when opening the case or installing. If in doubt, disconnect
the telephone line elsewhere before accessing the line connections.
▲
For increased protection against lightning transients, attach a local
earth to the main terminal block (see section 6)
2. Product Description
This manual describes the CB versions of the Titan and Commander
telephone ranges. The term “CB” originally stood for “central battery”, but in
modern terms means a telephone with no dialling or signalling capability – it
can only seize the line or ring. Although functionally and electrically identical,
(i.e. the operation and connection details are common), Titan and
Commander differ physically, so the installation and mounting details are
described separately.
2.1. Changes from previous versions
This manual describes an updated range of products (called ‘1064’ models)
introduced in March 2005. For those familiar with GAI-Tronics’ products, the
list of new or changed features is as follows:
•New terminal layout (section 6.1).
•Increased lightning protection (section 8).
•Handset integrity alert option (section 3.2).
•No separate Cap-Shunt link (ringing is permanently enabled).
•Compliance with ETSI European telephony standards (previous versions
were to British standards) section 8.
•Compliance with railway EMC standards (section 8)
•Second hookswitch option (section 6.2)
For the full list of product features, please see the specifications in section 8.

4 Titan CB, Commander CB
2.2. Titan features

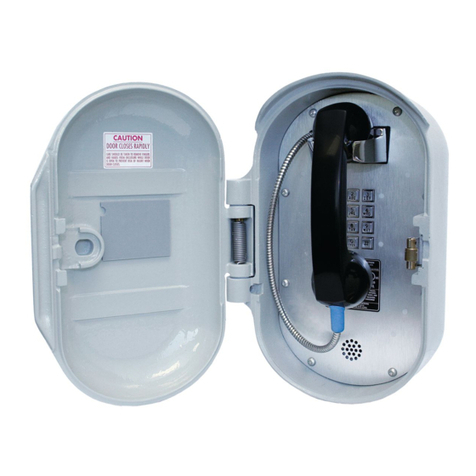

Titan is a family of rugged, weather-resistant metal-bodied telephones
available with a range of handset types, keypad configurations, colours and
enclosures, based around a common faceplate style.
Most Titans are equipped with a heavy-duty spring-loaded door, but models
are available without door and also as faceplate only, for flush mounting.
Titan doors may be fitted with slamlocks opened by an 8mm square socket
key.
2.3. Commander features
Commander is a family of rugged, weather-resistant telephones manufactured
from moulded glass-reinforced polyester. A range of handset types and
keypad configurations are available.

Titan CB, Commander CB 5
3. Operation / Testing
The CB telephone has no buttons and no means of dialling or signalling.
It can only be used to make calls where calls are routed by the exchange, for
example the BT Direct Connect service or PABXs or concentrators specifically
configured to do so. Seek assistance from your telephone service provider or
infrastructure maintainer to configure this facility.
To make a call, lift the handset. The exchange should establish the call.
When the other party answers, two way speech is possible.
To end the call, replace the handset on its cradle.
To answer a call, wait for ringing (a loud, two-tone warble), then lift the
handset. Two way speech should be possible as before, and the call is ended
by replacing the handset.
3.1. Call timer
The phone has a selectable call timer that can limit the maximum call duration
to approximately 7 minutes.
When on, the timer forces the phone back off line after the preset time. This
prevents the line remaining tied if the handset is left off-hook. The timer is
factory-set to OFF by default.
3.2. Handset integrity alert
If configured, this feature will disable the call timer if the handset integrity loop
is broken. This means that, if the handset is detached (for example by
vandalism), the telephone will remain permanently on line even if the call timer
is on.
This provides a method of alerting the signal box or control centre that the
handset is damaged and needs urgent attention.
WARNING: this option should only be used on PABXs or concentrators
configured to expect the alert condition. Not for use on the PSTN.
This is a factory-configured option. Telephones with this option have an
internal label marked “Handset Integrity Alert, the call timer is disabled if the
handset integrity loop is broken”.

6 Titan CB, Commander CB
4. Installation
4.1. General
IMPORTANT
All possible measures must be taken to ensure water, fluid or dust
does not contaminate the internal components of the telephone whilst
unpacking, preparing and installing the telephone in inclement weather
conditions or by negligence.
Failure to do so may invalidate your warranty.
These telephones are supplied without connection leads – cabling to the
telephone network must be supplied and installed by the installer. Because of
this, extra precautions must be observed: installers must ensure that they
have the permission of the owner of the PABX or telephone network to which
the telephone is to be connected, and that installation is carried out by trained
personnel. Contact GAI-Tronics if installation service is required.
IMPORTANT
Installation details differ between the TITAN and COMMANDER product
ranges –please make sure you know which product you are installing
and refer to the appropriate sections below.
4.2. Emergency Services warning
These telephones are not capable of dialling, and therefore cannot
make direct calls to the emergency services unless the exchange is
configured to do so. Check with your telephone service provider or
infrastructure maintainer whether it is necessary to warn users that
emergency calls cannot be made from this telephone, and if so provide
a suitable warning notice. A warning label, which can be fixed to the
front of the telephone, is provided.
4.3. Titan
1. To prepare for installation, open the door (where fitted), then undo the
four retaining screws to remove the faceplate from the rear enclosure. A
3mm Allen key is required. Do not remove the plastic cover on the back
of the faceplate.
Caution – take care to support the spring-loaded door whilst open
to prevent it slamming shut and trapping fingers.
2. All connections and option settings are on the rear of the faceplate
towards the lower edge.

Titan CB, Commander CB 7
3. The Titan telephone is intended for vertical installation to a wall or pole.
Select the required mounting method (section 5) and mount the rear
enclosure first where applicable.
4. Route the required cables through glands as appropriate, and make
connections and option settings following section 6.
5. Re-fit the faceplate ensuring a weatherproof seal
6. Test the operation of the telephone (section 3). Installation is now
complete.
4.4. Commander
1. All connections and option settings are on the lower edge of the circuit
board housed in the rear casing.
2. To prepare for installation, undo the three retaining screws shown to
remove the front casing from the rear. The screws are captive in the
front casing; a 5mm Allen key is required. Disconnect the handset /
hookswitch connector(s) from the circuit board, noting the position and
orientation.

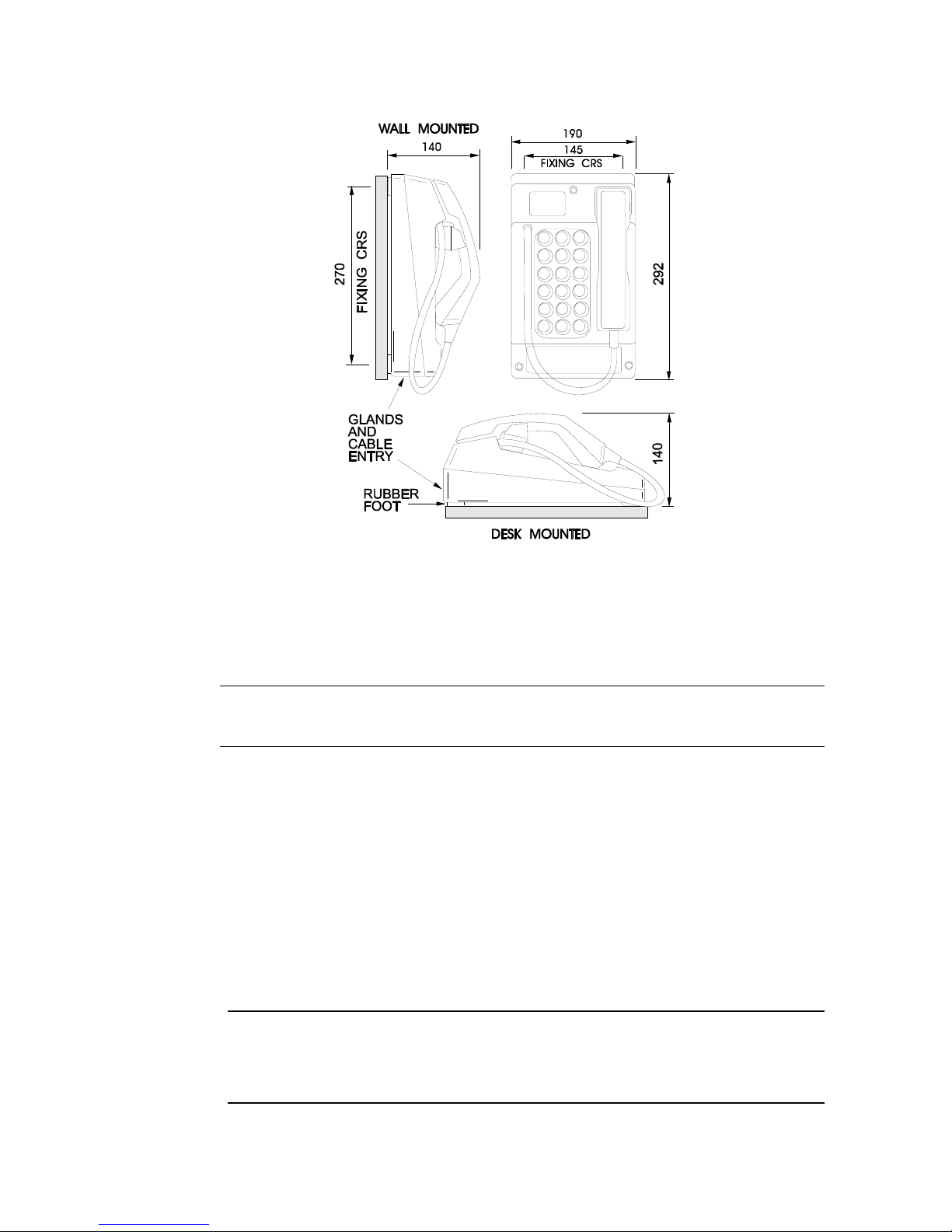

3. The Commander telephone can be installed vertically to a wall or pole,
or used horizontally on a desk. Select the required mounting method
(section 5) and mount the rear casing first where applicable.
4. Route the required cables through glands as appropriate, and make
connections and option settings following section 6.
5. Reconnect the handset / hookswitch. Re-secure the telephone Front
Casing to the Rear Casing with the three retaining screws, ensuring a
weatherproof seal.
6. Test the operation of the telephone (section 3). Installation is now
complete.
5. Mounting methods and dimensions
5.1. General
IMPORTANT
Installation details differ between the TITAN and COMMANDER product
ranges –please make sure you know which product you are installing
and refer to the appropriate sections below.
Before mounting the telephone, check the cable routing and requirements. If
glands are required, fit them to the case as follows:
1. Remove the RED blanking plug leaving the other (usually BLACK) in
place.

8 Titan CB, Commander CB
Only fit a second gland if a separate cable is required to the phone (for
example for an additional hook contact).
2. Select the appropriate sized gland:
Use the smaller gland for cables
diameters 4 - 7mm.
Use the larger gland for cable
diameters 8 - 13mm.

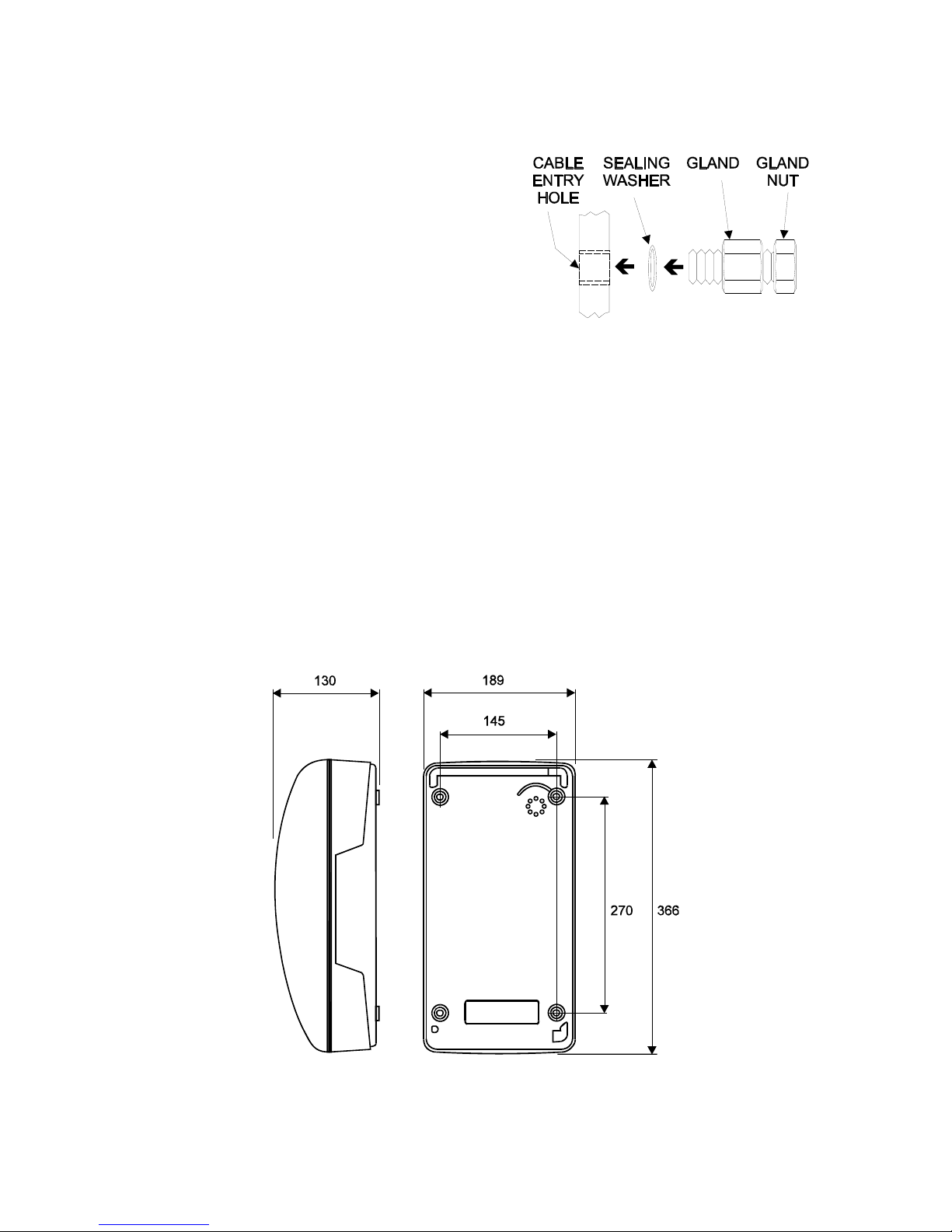

3. From the outside of the case, insert
the selected gland into the threaded
cable entry hole and tighten, so that
its sealing washer is compressed
against the enclosure surface.
4. Proceed with chosen mounting method below
5.2. Titan
As standard, Titan with rear enclosure is supplied with 2 cable glands with
sealing washers, 4 countersunk screws with wall plugs and a 3mm Allen key.

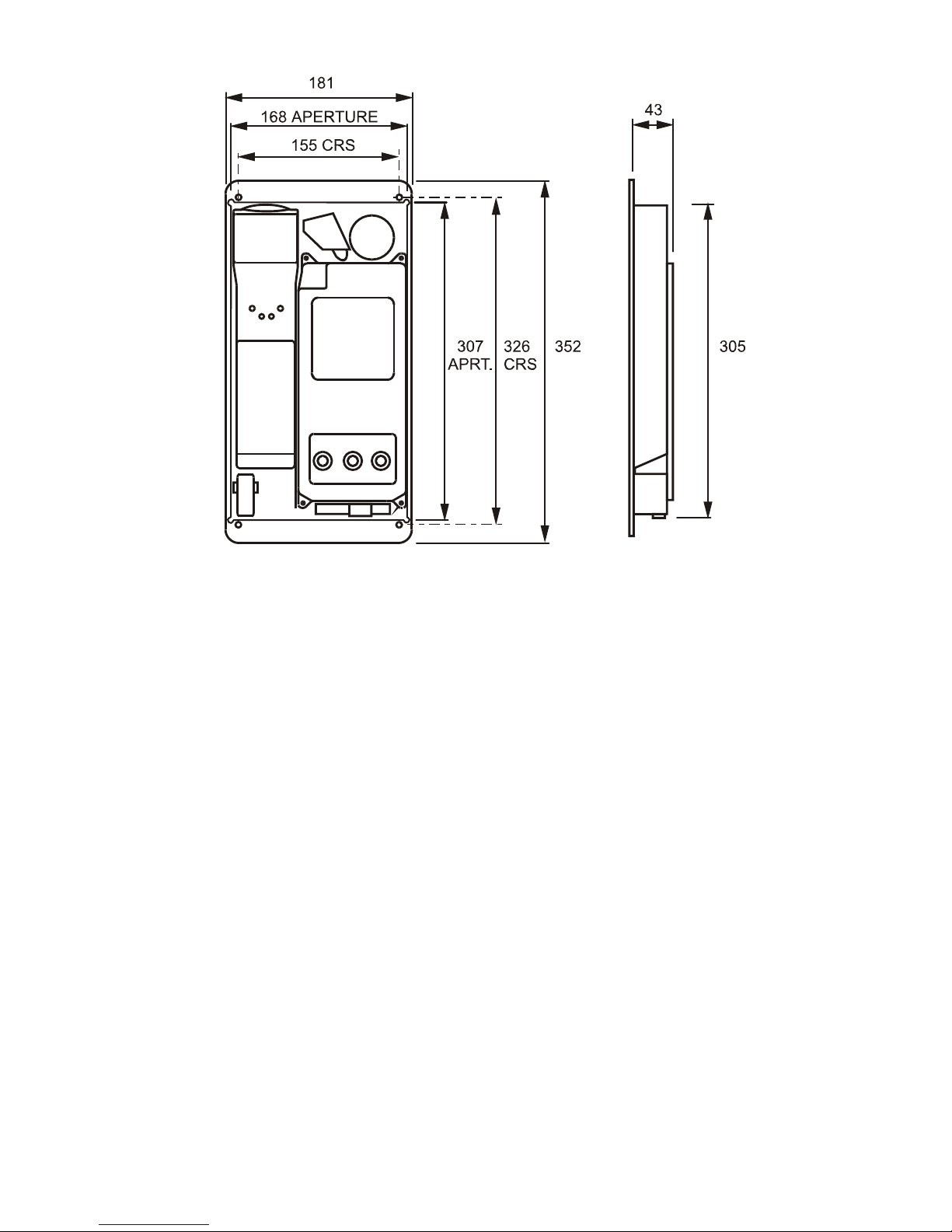

Titan telephones supplied for flush mounting have no rear enclosure – see
section 5.2.3 below.
5.2.1 Wall mounting
1. Using a suitable tool, punch out the 4 holes in the rear enclosure,
taking care not to damage or dislodge the plastic bushes. Only four

Titan CB, Commander CB 9
of the eight holes are required - the outer ones are recommended.
The inner holes are provided to be compatible with older-style
mounting posts, and should be left intact if not used. If the inner
holes are used they must be fitted with the supplied plastic bushes.
WARNING:.Your warranty will be invalidated if :-
1. Any fixing hole made in the rear enclosure is left unused.
2. Any additional holes are drilled into the telephone enclosure.
3. Plastic bushes are not used on all fixing holes.
2. Mark the wall with hole centres based on the dimensions shown
(145 x 270mm). If necessary offer the rear enclosure up to the wall
to check alignment. Do not use the enclosure as a template for
drilling.
3. Drill holes in the wall on the marked positions. Select appropriate
screws, wall plugs etc., for the type of wall, bearing in mind that the
weight of the complete phone is around 5kg.
IMPORTANT:USE ONLY countersunk-headed fixing screws. Check
that screws seat properly in the plastic bushes to ensure a
watertight seal. Do not use excessive tightening force, as this may
crack the case.
4. Ensure that all four plastic flanged bushes are in place and the rear
enclosure is screwed tightly to the surface to prevent any water
ingress through the punched holes.
5. Complete the installation by making the appropriate connections
(section 6) and re-fitting the face plate.

10 Titan CB, Commander CB
5.2.2 Pole mounting
Kit No 100-02-0208-001
This accessory is for mounting GAI-Tronics telephones on to the side of
round poles of 100mm to 200mm diameter, or on to square or
rectangular section uprights of 100mm to 150mm across the mounting
surface.
NOTE:
Banding straps (large scale worm-drive clamps) are not included in this
kit and must be obtained separately. For details of where banding can
be obtained, refer to GAI-Tronics.
1. After punching through the flanged bushes in the rear enclosure (as
described in WALL MOUNTING), attach the pole mounting clamp
assemblies to the rear enclosure using the M6 x 25 screws
provided. Tighten to a torque of 4.5Nm max.
Note: only use the outer four holes, and ensure that the screws seat
properly in the plastic bushes to avoid water ingress.
2. Ensuring that the glands are at the bottom, pass a proprietary
banding strap round each of the pole mounting clamps and the
support pole. Tighten securely.
3. Continue the installation by making the appropriate connections
(section 6) and re-fitting the face plate.
4. Re-tighten the straps firmly and trim off any excess band material.
For security the driving head of the band may also be sawn off.
5.2.3 Flush mounting
Titan telephones supplied for flush mounting have a slightly different
faceplate to those supplied with a rear enclosure – in particular the fixing
holes are in different positions and there are no corner cut-outs (for door
hinges). These models are usually described as “Titan fp” and the
supplied mounting kit contains round-headed screws and no glands.

Titan CB, Commander CB 11
To flush-mount the telephone to a wall:
1. Prepare a recess (at least 50mm deep) in the wall according to the
dimensions shown.
2. Mark the wall with hole centres based on the dimensions shown
(155 x 326mm). If necessary offer the faceplate up to the wall to
check alignment. Do not use the telephone as a template for
drilling.
3. Drill holes in the wall at the marked positions. Select appropriate
screws, wall plugs etc., for the type of wall, bearing in mind that the
weight of the complete phone is around 1.5kg.
4. Route the cable to within the recess, and make connections to the
telephone as shown in section 6.
5. Secure the telephone to the wall taking care not to trap any wires.
Note that the gasket on the rear of the faceplate is intended to make
a weather seal when compressed against a smooth surface. Do not
rely on this gasket to keep water out if mounting directly to rough
surfaces such as brickwork – in these cases use additional sealant
around the edges to ensure a weatherproof seal.

12 Titan CB, Commander CB
5.3. Commander
5.3.1 Wall mounting
To ensure weatherproof integrity when wall mounted, external cables
should enter the enclosure from the bottom via the 20mm gland entries
provided.
IMPORTANT:
Do not drill any extra holes as this will invalidate your warranty.
1. Remove rubber feet from the Rear Casing if fitted. Ensuring that the
cable entries are at the bottom offer the Rear Casing up to the
vertical surface and mark through the fixing holes.
Do not use the Rear Casing as a template to drill the holes. Work
only from the marked positions.
2. Drill the holes in the vertical surface to suit the best method of
fixing.
3. Ensure the Rear Casing is securely attached to the vertical surface
using the four 7mm diameter screw holes provided. No sealing
washers are necessary.
IMPORTANT: Do not use countersunk headed fixing screws. Only use
round head, socket cap head or pan head screws. Take care not to
over tighten the screws, doing so may damage the case and will
invalidate your warranty.

Titan CB, Commander CB 13
4. Continue the installation by making the appropriate connections
(section 6).
5. Reconnect the handset / hookswitch. Secure the telephone Front
Casing to the Rear Casing.
5.3.2 Pole mounting
Kit No 100-02-0208-001
This accessory is for mounting GAI-Tronics telephones on to the side of
round poles of 100mm to 200mm diameter, or on to square or
rectangular section uprights of 100mm to 150mm across the mounting
surface. For flat mounting on surfaces greater than 150mm across use
the desk or wall mounted methods as appropriate.
NOTE:
Banding straps (large scale worm-drive clamps) are not included in this
kit and must be obtained separately. For details of where banding can
be obtained, refer to GAI-Tronics.
1. Remove rubber feet from the Rear Casing if fitted. Attach the pole
mounting clamp assemblies to the Rear Casing using the M6 x 25
screws provided. Tighten to a torque of 4.5Nm max.
2. Ensuring that the glands are at the bottom, pass a proprietary
banding strap round each of the pole mounting clamps and the
support pole. Tighten securely.
3. Continue the installation by making the appropriate connections
(section 6).
4. Reconnect the handset / hookswitch. Secure the telephone Front
Casing to the Rear Casing.
5. Re-tighten the straps firmly and trim off any excess band material.
For security the driving head of the band may also be sawn off.

14 Titan CB, Commander CB
5.3.3 Desk mounting / Rake
For horizontal surfaces greater than 150 x 280mm use the free-standing
desk mounted method below.
To provide a 'rake' for convenient operation, the Front Casing may be
turned through 180° before it is fitted to the Rear Casing. Thus the cable
entries are at the rear of the telephone.
1. Ensure that the supplied rubber feet are fitted to the underside of
the Rear Casing.
2. Rotate the Front Casing through180° taking care not to trap any
wires.
3. Continue the installation by making the appropriate connections
(section 6).
4. Reconnect the handset / hookswitch. Secure the telephone Front
Casing to the Rear Casing.
6. Connections and option settings
If glands are used, insert the cable through the gland body and tighten the gland nut
sufficiently to clamp the cable, making a seal. For Titan models with rear enclosure,
ensure sufficient cable is left to allow removal of the faceplate without straining the
cable.

Titan CB, Commander CB 15
IMPORTANT: If only one gland entry is used, the blanking plug fitted to the
second gland position must be left in place.
6.1. Standard connections and timer setting
Connect the telephone line A and B to the main terminal block TB2 as shown.
The centre earth terminal is intended as an optional connection to a local
earth for the purpose of enhanced protection from lightning transients, and is
not required in terms of user safety from the telephone network.
Note: Conductor sizes to be 0.5mm-2.5mm
2
(flexible cable);0.5-4.0mm
2
(solid cable) The terminal block can be disconnected from the circuit board
for easier installation
Cabling must not infringe European Low Voltage Directive (LVD) 73/23/EEC.
The timer is set by the position of a two-way jumper plug on a three-pin
header. Position the jumper to the left to set the timer ON, and to the right to
set it OFF. Leaving the jumper unconnected will default to the timer being
OFF.
This unit is supplied with the switch set to the OFF position.
6.2. Additional hook contact
Note – this optional connection is only available if specifically ordered.
Contact GAI-Tronics for details.
The additional hook contact is provided on TB1. The diagram shows the state
of the changeover contacts when the telephone is on hook. These contact
labels are also on the PCB.

16 Titan CB, Commander CB
The switch is operated by the presence of the handset on the stowage. It is a
voltage-free switch providing functional and basic insulation from the
telephone network. It is intended to be connected to a TNV-3 or SELV circuit
as defined by EN 60950-1:2001.
Switch maximum ratings (resistive load):
50 Vrms
100 VDC
300mA
3W
The circuit is not fused.
It is recommended that the switch cabling is routed via the spare gland in the
case.
7. Aftercare
The purchase of your GAI-Tronics product does not end our commitment to
you.
In addition to our warranty obligations, GAI-Tronics are able to offer various
levels of maintenance packages, installation and commissioning packages and
technical support, from ad-hoc repairs to full maintenance contracts.
By choosing GAI-Tronics as your aftercare provider you are ensured of
manufacturer expertise and ISO 9000-certified quality control standards
throughout the life of the product.
We can also supply a full range of accessories including mounting posts,
beacons and high-volume sounders.
Contact GAI-Tronics for details. www.gai-tronics.co.uk

Titan CB, Commander CB 17
8. Technical Specifications
Operational Requirements
Systems. •Analogue Public Switched Telephone Network (PSTN)
•Private Automatic Branch Exchange (PABX)
• Railway infrastructure concentrator.
Not suitable for
connection to:
•Payphone extensions
•Public Emergency Telephone System (PETS)
Telephone line
parameters
•Ring Voltage: 30V to 100V rms, 20Hz to 50Hz
•Line voltage 20 to 70 Vdc
•Loop current ≥15mA
Note: these telephones have been designed for pan-European single terminal connection
to the PSTN. However, due to differences between the individual PSTNs & PABXs provided
in different countries, this does not, of itself, give an unconditional assurance of successful
operation on every PSTN or PABX termination point.
Product features
Power supply 100% line power.
Hookswitch Electronic with no external moving parts
Time Out 7 minutes (±1). Selectable
Ringer loudness 80dBA @ 1m
Handset Suitable for inductive coupling to Hearing Aids having
a `T' switch position.
Tested to ETS 300-381
Environmental limits
Temperature: Operating: -20ºC to +60ºC
Storing: -40ºC to +70ºC
Relative Humidity Up to 95% (non-condensing)
Ingress
Protection
IP65. (Titan with door closed IP66) to EN60529:1992 –
Degrees of protection provided by enclosures.
Physical characteristics
Casing material Die-cast Aluminium (Titan)
Glass reinforced polyester (Commander)
Handset Material Cycoloy (2850) with stainless steel or polyester curled cord.
Weight 3 –5kg depending on option.
Dimensions Dependant on model and variant. See 5.1 (Titan) or 5.3
(Commander)

18 Titan CB, Commander CB
Compliance to standards
European
Directive
1999/5/EC – European Radio & Telecommunications
Terminal Equipment Directive (R&TTE).
EMC EN55022:1998 – Information technology equipment. Radio
disturbance characteristics.
EN55024:1998 – Information technology equipment. Immunity
characteristics.
EN 50121-4: 2000 - Railway applications, emission and
immunity
RT/E/S/30003 iss1 1999 – The performance of
Telecommunications Equipment under Conditions of Electrical
Interference
Safety EN60950-1:2001 – Specification for information technology
equipment, including electrical business equipment.
Telephony ETSI TBR21: Jan 1998
ETSI TBR38: May 1998
Lightning and
transients
ITU-T recommendation K.21 (10/2000) - Enhanced surge
protection.
Recycling
Information
The symbol shown here and on the product means
that the product is classed as Electrical or Electronic
Equipment and should not be disposed with other
household or commercial waste at the end of its
working life.
The Waste of Electrical and Electronic Equipment
(WEEE) Directive has been put in place to recycle
products using best available recovery and recycling
techniques to minimise the impact on the
environment, treat any hazardous substances and
avoid the increasing landfill.
Business users should contact their suppliers and
check the terms and conditions of the purchase
contract and ensure that this product is not mixed
with other commercial waste for disposal.

Titan CB, Commander CB 19
9. CE Declaration

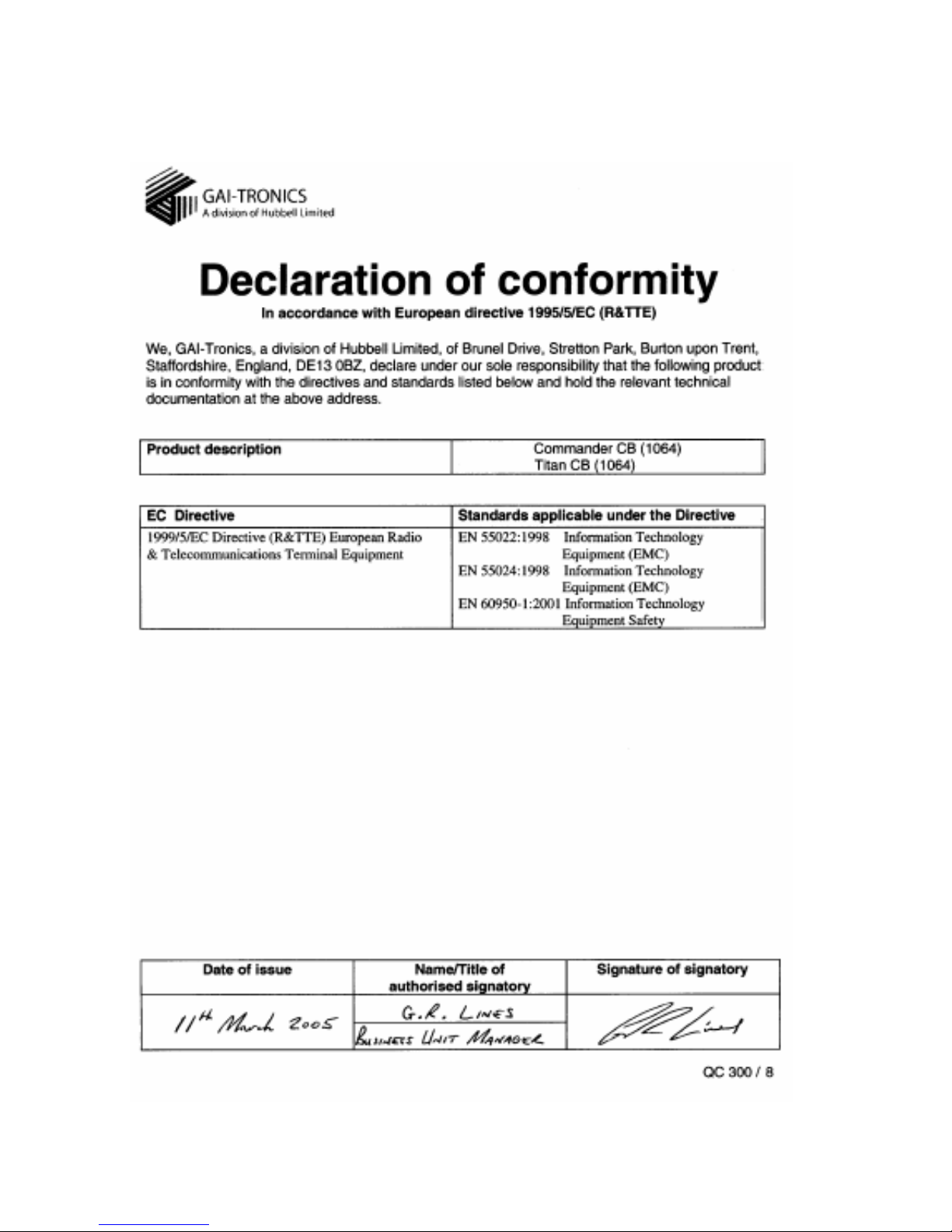

20 Titan CB, Commander CB
GAI-TRONICS
A division of Hubbell Ltd.
Brunel Drive
Stretton Park
Burton on Trent
DE13 0BZ
England
Tel: [phone]
Fax: [phone]
www.gai-tronics.co.uk
The policy of GAI-Tronics is one of continuous improvement, therefore the Company
reserves the right to change specifications without notice
