Gainwise SS91BV-M User manual

SS91BV-M GSM Intercom 1 Revision E8 ,Jan 2015
GAINWISE TECHNOLOGY
MANUAL

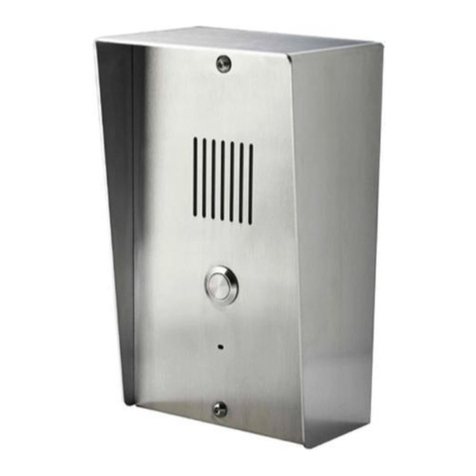

DOOR INTERCOM
SS91BV-M / SS1204AV-M
GSM / WCDMA INTERCOM
(ACCESS CONTROL SYSTEM)
For your protection, read these instructions completely
And keep them for future reference.

SS91BV-M GSM Intercom 2 Revision E8 ,Jan 2015
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTION ...................................................................... 3
SS91BV-M GSM INTERCOM INTRODUCTION ....................................................... 4
SS91BV-M GSM INTERCOM WITHACCESSORIES............................................... 4
INSTALLATION............................................................................................................... 5
SS91BV-M GSM Intercom Unit ................................................................................... 6
Wiring Diagram .............................................................................................................. 6
LED Indicator ............................................................................................................... 7
SS91BV-M GSM INTERCOM OPERATION ............................................................... 8
Enter Listener Monitoring Mode .................................................................................. 10
Enter Access Control Mode .......................................................................................... 10
Enter Programming Mode............................................................................................. 10
Programming..................................................................................................................11
Door/ Gate Release ..................................................................................................... 12
Check GSM Signal Strength ....................................................................................... 14
Check Relay Status ..................................................................................................... 14
Administrator Number....................................................................................................14
CHECK A LOG OF DIAL IN AND DIAL OUT NUMBERS VIA E-MAIL OR SMS....15
USER COMMANDS.............................................................................................................17
HOW TO RESET THE HARDWARE WHEN YOU FORGET YOUR PASSWORD.........19
SPECIFICATIONS .......................................................................................................... 19
QUICK PROGRAMMING VIA SMS ............................................................................. 20
TROUBLESHOOTING (Q&A)....................................................................................... 21

SS91BV-M GSM Intercom 3 Revision E8 ,Jan 2015
Thank you for purchasing SS91BV-M GSM Intercom. Please read this manual carefully before
using.
Be sure to keep this manual for future reference in case of any problem or question should arise.
IMPORTANT SAFTY INSTRUCTIONS
When using this SS91BV-M GSM Intercom, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and personal injury. Please read the following before using
your equipment.
1. Follow all warning and instructions on the product.
2. Unplug all the connections of product before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
3. Do not use this product near water.
4. Do not use this product near an area where there is a potential of gas leaks or near any fumes
that can be explosive.
5. Do not place this equipment near or over a radiator or any other heat source.
6. Do not overload the wall outlet or power cord where the power adapter is installed. This can
result in fire or electric shock
7. Avoid spilling liquid on this equipment and do not insert any objects through the ventilation
slots.
8. Avoid using the equipment during an electrical storm. There is a remote risk of electrical shock
from lighting.

SS91BV-M GSM Intercom 4 Revision E8 ,Jan 2015
SS91BV-M GSM INTERCOM INTRODUCTION
The GSM Intercom SS91BV-M is an intercom system, installed at the entrance of a building. It is an
ideal product replacing the traditional door phone. It allows you to speak with visitors standing at the
entrance of your company or house entrance from a remote location. A visitor, by simply pressing the
call button establishes a mobile call with you. During the call you will be able to activate realty.
This SS91BV-M GSM Intercom gives you the opportunity not only to know who is waiting at the
entrance from a remote location but also to control the access point. Use of SS91BV-M GSM Intercom
at your company or house does not require any special installation and wiring. Simply install the
SS91BV-M and connect the door latch and power supply.
SS91BV-M GSM INTERCOM WITHACCESSORIES
Item
Description
Q’ty
Included
Optional
1
SS91BV-M - GSM Intercom
1
◎
2
Power adapter
1
◎
3
External antenna
1
◎
4
Mounting Bracket for antenna
1
◎
5
Operational manual
1
◎

SS91BV-M GSM Intercom 5 Revision E8 ,Jan 2015
INSTALLATION
This GSM Intercom is suitable for both flush and surface mounting.
Note:
For surface mounting, you will have to remove the plastic enclosure before fitting main station into the
stainless steel cabinet.

SS91BV-M GSM Intercom 6 Revision E8 ,Jan 2015
SS91BV-M GSM Intercom Unit
Wiring Diagram
Call Button
Speaker
Microphone

SS91BV-M GSM Intercom 7 Revision E8 ,Jan 2015
LED INDICATORS
1. LED “Intercom Status “ Indicator
LED
Status
Yellow (standby)
Flashing
Yellow (using)
Solid
2. LED ‘Network “Indicator
LED
Status
Green (ready)
Flashes once per 3 seconds
Green (searching)
Flashes once per second
Green (busy)
Solid
3. LED “ Power “ Indicator
LED
Status
Red (power on)
Solid
Red (power off)
Off
1. SIM card
Register your SIM card with the network, and check it works in a mobile phone
You MUST remove the PIN request from the SIM before inserting it in the unit SS91BV-M.
Ensure the power is OFF before inserting the SIM card. Carefully side the SIM holder in the
OPEN direction, insert the SIM, and slide in the CLOSED direction to lock it in place.
2. Antenna
Install the antenna as high as possible on the top of the pillar for best possible reception.
3. Door Lock
Connect an electric door lock to terminals marked “door latch”.
4. Power Supply
Connect a 12 volt DC power supply to terminals marked “AC, AC”
The power supply should be capable of supplying a constant current of no less than 1amp.
5. After a final check of wiring , switch on the power
6. Allow 20~30 seconds for the unit to boot up and detect the network. Once successful connection
has been made, the unit will sound a confirmation tone and the status LED will begin flashing.

SS91BV-M GSM Intercom 8 Revision E8 ,Jan 2015
SS91BV-M GSM INTERCOM OPERATION
When the visitor pushes the call button to activate the SS91BV-M ring tone will be heard from the GSM
intercom. At the same time connection is established with the phone number that is stored in the
SS91BV-M. If the first number is busy or not answered the call can be diverted to the second and the
third.. The remote phone answers the call from SS91BV-M and starts conversation with the visitors.
During conversation press * on your mobile for door open. The relay switches can also be temporarily
or permanently switched on or off by press # and 1.
Enter system menu
There are three different modes under system menu.
1. Listener monitoring mode
2. Access control mode
3. Programming mode
To gain access to the system menu via dial in, follows these steps:
1. Call the telephone number of the GSM intercom
2. Wait for the intercom to answer and signal by one beep to enter system menu
3. Enter the password of the mode you would like to enter
4. Password correct one beep, password error 3 beeps.
5. 3 times failure attempt on password , hang up the call

SS91BV-M GSM Intercom 9 Revision E8 ,Jan 2015

SS91BV-M GSM Intercom 10 Revision E8 ,Jan 2015
Enter Listener Monitoring Mode
1. Call the telephone number of the GSM intercom
2. This device will then verify your phone number with your predefined numbers.
3. You will hear a “Do” tone to enter listener monitoring mode by pressing【*13*1212＃】
where 1212 is the password.
4. You are now in the” listener monitoring mode”.(you can hear the live sound of the
intercom’s surrounding environment)
* Under this mode speaker is OFF.( 35＃: turn on speaker )
* You can still control the relay output when you are under listener monitoring mode but
speaker must be ON status.
EnterAccess Control Mode
1. Call the telephone number of the GSM intercom.
2. This device will then verify your phone number with your predefined numbers.
3. You will hear a “Do” tone to enter access control mode by pressing【*33*5678＃】where
5678 is the password.
4. The door will be opened after enter the correct password
*(To open the door by password, if the number is not stored in the access control section)
Enter Programming Mode
1. Call the telephone number of the GSM intercom
2. This device will then verify your phone number with your predefined numbers.
3. You will hear a “Do” tone to enter into programming mode by pressing【*12* 1234＃】where
1234 is the password.
4. You are now in the “programming mode”
Note: At the end of each command there can be one of the two indications:
Successful: a long “beep” tone, failed: three short “beep” tone.
5. To make changes on settings please refer to the user commands.(P15,16)
6. To end programming mode just hang up.
NOTE:
*To be successful in programming, originate a call from a land line and enter the digits slowly or using
programming by text message.

SS91BV-M GSM Intercom 11 Revision E8 ,Jan 2015
Programming
Programming can be carried out either by dial into the GSM intercom or by text message
(Certain programming feature can only be set up by text message, please refer to user commands P.15)
Programming by text message
Programming by text message is the simplest way to customize the settings of the GSM intercom and
add or delete telephone numbers. Simply send texts in the format to the telephone number of the SIM
within the GSM intercom.
Note:
1. A Single SMS text messages is limited to 140 characters.
2. You can program many different user command codes in one text message with SMS command
format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #........
3. Each SMS must start with the pass code , default 1234 in the following format *12*1234 #
Followed immediately by a command.
4. To program a call button numbers DO NOT enter country code, just the complete number as
you would dial it.
Example:
Storing a call button phone number (Max 3 numbers) and delete 2&3 phone numbers.(Refer to user
commands P.16)
058 57235 (landline number 1)
086 5682554 (mobile number 2)
086 2235644 (mobile number 3)
SMS format: (storing a call button phone numbers)
*12*1234#1105857235#120865682554#130862235644#
SMS format: (delete 2&3 phone numbers from a call button)
*12*1234#12*#13*#
User command code CORRECT
SMS format:
*12*1234#1105857235#120865682554#130862235644#
SMS reply:
1105857235#120865682554#130862235644# OK
User command code ERROR (user command 19error)
SMS format: *12*1234#1105857235#190865682554#130862235644#
SMS reply: 110587235#190865682554# Error
Command to use: *12*1234#1[ Y][ phone number]#
Y= number 1, 2 or 3

SS91BV-M GSM Intercom 12 Revision E8 ,Jan 2015
Progrmming by dial in
Note: programming dial in can’t be used from telephones which are already programmed to
open the door when they dial the GSM intercom but you can disable Caller ID display (withhold
the number) on the mobile before using.
To gain access to the programming mode via dial in, follows these steps:
Example:
Storing a telephone number for dial in door release
Enter Programming Mode by Pressing…..
*12*1234# (1234 is default password)
A successful pass code will produce a single long beep. A failed attempt will produce 3 short
bleeps.
You may now program up to 100 telephone numbers into memory.
Use the following commands to program the unit
* Insert international country code (1~3 digits): 71 [ country code] #
* Add a number (up to 100 numbers):72 [ telephone number] #
* Delete a number: 73 [ telephone number ] #
* Delete all numbers: 73*#
Door /Gate Release (ring in to open)
This GSM intercom also has an extra feature to allow user to gain access from their mobile
phone by two methods.
1. Caller ID recognition
2. by access control password mode
1. Caller ID recognition to open
Ring in to open the door for authorized telephone number. It can support for up to 100 users.
When GSM Intercom receives a call from user, it will check the calling number and if the number is
in the list, the GSM Intercom will drop the call and then open the gate / door. The GSM Intercom
doesn’t answer the call, it simply checks the caller ID, and so it won’t cost you anything to open the
gate / door.

SS91BV-M GSM Intercom 13 Revision E8 ,Jan 2015
For Caller ID recognition to open the door or gate you need to program the mobile
numbers and country code into the memory before using.
Example:
Ireland Country code: 353 (UK: 44 / USA: 1)
086 5683624 (mobile number 1)
086 5682554 (mobile number 2)
086 2235644 (mobile number 3)
Command to use: *12*1234#71[country code]#72[ phone number] #72[ phone number] #....
SMS format:
*12*1234#71353#720865683624#720865682554#720862235644#
To delete phone numbers of dialing in to open
SMS format: (to delete phone number 1 and 2)
*12*1234#730865683624#730865682554#
SMS format: (to delete all numbers)
*12*1234#73*#
After the numbers are programmed you can also send the text message to check the stored
numbers by sending SMS format *21# , then the GSM intercom will reply the phone number list
text message.
2. Access control password to open
Dial the SIM card telephone number. The unit will answer the call and you will hear a bleep
tone.
To trigger door by pressing *33*5678#
To latch or hold open door by pressing *34*5678#
To unlatch door by pressing *35*5678#
*Above operation same as sending SMS commands
*This is for door open option for telephone numbers not stored.

SS91BV-M GSM Intercom 14 Revision E8 ,Jan 2015
Check GSM signal strength (0~31 levels)
When a request for GSM signal strength SMS is sent to the GSM intercom it will reply with a
signal strength code and service provider name. The code will be between 0~31 means the
signal level is from poor to best.
Example:
SMS format *20#
SMS reply: Vodafone Signal Level = 31 【Signal is very strong】
Check Relay Status
You can send SMS command code to check relay status.
SMS format *22#
SMS Reply Relay=ON Detect = ON【Relay=Hold , Detect=GND】
Remark:
Terminal mark”Detect” (see wiring diagram) is for you to connect a door reed switch. The gates
would have a reed switch wired through the”DET”input to ground. It’s used by the user to check if
the gates are open or closed.
Administrator Number
Once the administrator number is stored, the unit will only accept programming from this number
and only via SMS programming.
Example:
Program a mobile number as an administrator number via SMS
Mobile number: 0865682554
Command to use *12*1234#74 [Admin number]#
SMS format *12*1234#740865682554#
To delete the Admin number *12*1234#74*#

SS91BV-M GSM Intercom 15 Revision E8 ,Jan 2015
CheckA Log Of Dial InAnd Dial Out Numbers Via E-mail Or SMS
This system allows you to save dial in numbers record and will then automatically send the record
via e-mail or SMS as your request.
There is a list of commands you need and examples to guide you on the settings for this feature.
Please setup following required parameters and commands before you can use it.
NOTE: G-mail doesn’t support this feature.
o.
Function
SMS command codes
1
Auto sending dial in numbers record
*12*1234#83[N]#
N= 0(sending when it reaches 100 numbers)- default
N=1 (sending when it reaches 200 numbers, Max)
Sending record when it reaches 100 numbers. / command code example: *12*1234#830#
2
Way of sending dial in numbers
record via e-mail or SMS
*12*1234#84[N]#
N=0 (no saving /sending record)
N=1 (via SMS, 4 numbers /SMS)
N=2(via E-mail)
Sending record via email / command code example: *12*1234#842#
3
GPRS parameters setting
*40*1234#APN, auth_type,user name,password#
auth_type: 0= none / 1= PAP / 2= CHAP
Command code
Example:
4
E-mail parameters setting
( Doesn’t support Gmail)
*41*1234#SMTP server,port,user name, password,
e-mail address, e-mail sender name#
Command code
Example :
5
Recipient & Carbon copy settings
*42*1234# recipient e-mail address, recipient name,
carbon copy e-mail address, carbon copy name#
Commande code example:

SS91BV-M GSM Intercom 16 Revision E8 ,Jan 2015
No.
Function
SMS command codes
6
E-mail subject setting
*43*1234# e-mail subject#
Command code Example:
7
To immediately send current dial in
numbers record via email or SMS
*44*1234#
SMS reply: successful or failed
8
Check parameters setting
*4[N]*1234#
N=0( reply GPRS parameters)
N=1 ( reply e-mail parameters)
N=2 ( reply recipient & carbon copy)
N=3 ( reply e-mail subject)
Check GPRS parameters setting / Command code example: *40*1234#
9
Mobile number for receiving dial in
numbers record via SMS
*12*1234#85[mobile No.]#
10
Delete mobile number for receiving
dial in numbers record via SMS
*12*1234#85*#
11
SIM card number of SS91BV-M for
Clock date and time correction
*12*1234#86[ SIM No of SS91VB-M]#
12
To delete SIM card number of
SS91BV-M for Clock date and time
correction
*12*1234#86*#
Remark: why you need to setup the number for system time clock date and time correction?
This device has a time clock and supports automatically updating their date and time via NITZ
information from network. In case some of the networks are not available for NITZ information, we
strongly suggest to setup this clock date and time correction. When the device detects NITZ information
is not available from the network will automatically send a command to itself via the SIM card of
SS91VB-M for time correction which will keep your “dial in numbers record”with correct date and
time.
Log Example:
Ｉ: Dial in number / Ｏ: Dial out number

SS91BV-M GSM Intercom 17 Revision E8 ,Jan 2015
To gain access to the different modes and control relay (by dial in)
No.
Function
command
Description
Default
1
Enter Programming Mode
*12* [ password ] #
Programming by calling
1234
2
Enter Monitoring Mode
*13* [ password ] #
To hear the surroundings where
the intercom installed
1212
3
Enter Access control
Mode (Trigger relay)
*33* [ password ] #
Password mode access option
5678
4
Hold Relay
*34* [ password ] #
To hold relay to keep door
opened
5678
5
Release Relay
*35* [ password ] #
To release relay for door close
5678
User commands to check system info & control relay via SMS
No.
Function
Command
Reply
1
check signal strength
*20#
Signal Level 0~31 from poor to best
Service provide name, network
2
Check stored numbers
*21#
O [ number]…,I [ number]…..E (N)
O：call button numbers list
I：dial in to open numbers list
E：End
N：Next SMS
3
Check relay status
*22#
Relay [ status],Detect [ status ]
Status: ON / OFF
4
Trigger relay
*33* [ password ] #
No reply (default password:5678)
(Latch on when relay is on hold status)
5
Hold relay
*34* [ password ] #
No reply
(default password:5678)
6
Release relay
*35* [ password ] #
No reply
(default password:5678)
●SMS data error
(Only 0~9、*、# are available)
SMS Data Error
●Function code error
Function Code Error

SS91BV-M GSM Intercom 18 Revision E8 ,Jan 2015
User commands table
You can program many different user command codes in one text message with SMS command
format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #........
No.
Feature
Command
Description
Default
1
Change programming
Password
01 [ password ] #
password:4 digit codes
1234
2
Change access control
password
02 [ password ] #
password:4 digit codes
5678
3
Change monitoring mode
password
03 [ password] #
password:4 digit codes
1212
4
Store a call button phone
number
1 [ Y ] [ phone number ] #
Y= phone number 1,2 or 3
Max 3 phone numbers
phone No.:3~15 digit codes
None
5
Delete a call button
Phone number
1[ Y ]*#
Y= phone number 1,2 or 3
phone No.:3~15 digit codes
None
6
Speaker Volume
3 [ speaker volume] #
speaker volume level:0 ~ 4
3
7
Microphone Volume
4 [ microphone volume] #
microphone volume level:0 ~ 4
3
8
Relay Time
51 [ relay time ] #
relay time: 1~9999 sec
1
9
Call no answer time and
divert to next number
52 [ no answer time ] #
No answer time :10~99 sec
20 sec
10
Max call Time
53 [ max call time] #
Max call time:005~999 sec
060 sec
11
Max monitoring time
55[ duration time] #
duration time:00 ~ 60 mins
00 ( no limit)
10 mins
12
Change relay trigger code
61 [ X ] #
X=0~9 / * /＃
*
13
Change rely hold code
63 [ X ] #
X=0~9 / * /＃
#
14
Change relay release code
64 [ X ] #
X=0~9 / * /＃
1
15
Ring in to open the door
(Max: 100 numbers)
71 [ country code ] #
72 [ phone number ] #
73 [delete phone number ] #
73*#
Country code:1~3 digit codes
Number: 3~15 digit codes
Delete number: 3~15 digit codes
Del all phone numbers
886
16
Add administrator phone
number
74 [ admin number ] #
admin number: 3~15 digit codes
( no number no restriction)
None
17
Del administrator phone
number
74*#
delete administrator phone
number
None
18
Reset
999#
reset default
None

SS91BV-M GSM Intercom 19 Revision E8 ,Jan 2015
How To Reset The Hardware When You Forget your Password
SPECIFICATION:
Operating Voltage
12 to 24 Volt AC/DC
Operating Current
Maximum 250 mA, Typically 55mA
GSM / WCDMA Module
Cinterion / Simcom
GSM / WCDMA Frequency
GSM 850/900/1800/1900 Mhz, WCDMA850/1900 or 900/2100 Mhz
Physical size
Face plate: 170 x 100 mm, Stainless cabinet: 174 x 113 x 65 mm
Length of antenna
3 meters cable
Humidity
Less than 80% RH
Operating Temperature
-20℃to 50℃

SS91BV-M GSM Intercom 20 Revision E8 ,Jan 2015
Quick programming via SMS
Program a call button phone number. (Max 3 numbers)
Note: To program a call button numbers DO NOT enter country code, just the complete number as
you would dial it.
Command to use: *12*1234#1[Y][ phone number]#
Y= number 1, 2 or 3
Examples:
058 57235 (landline number 1)
086 5682554 (mobile number 2)
086 2235644 (mobile number 3)
SMS format: *12*1234#1105857235#120865682554#130862235644#
Program a phone number for dial in door release (Max 100 numbers)
Note: Program a phone number for dial in door release you NEED TO enter country code
Command to use: *12*1234#71[country code]#72[ phone number] #72[ phone number]
#72[ phone number] #.......
Example:
Ireland Country code: 353 (UK: 44 / USA: 1)
086 5683624 (mobile number 1)
086 5682554 (mobile number 2)
086 2235644 (mobile number 3)
SMS format: *12*1234#71353#720865683624#720865682554#720862235644#
Operation
When intercom calling your phone and you have answered the call…
Press * to open
Press # to hold open
Press 1 to release again.
Sending SMS commands
*33*5678# (momentary trigger relay)
*34*5678# (hold relay)
*35*5678# (release relay)
*20# (check reception level of intercom)
*21# (check stored number. The unit will reply with list of stored numbers. I= dial in / O= dial out )
*22# (check gate / door status)
