Read this Manual
Dear Customer,
Please read this User Information carefully
and keep it to refer to at a later date.
Pass it on to any subsequent owner of the
appliance.
This manual contains sections of Safety
Instructions, Operating Instructions, Installation
Instructions and Troubleshooting Tips, etc.
Carefully read it before using the dishwasher
This will help you to solve some common
problems by yourself..
Before Calling for Service
To review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself and not need to ask for the help of
professional technicians.
NOTE:
The manufacturer, following a policy of
constant development and up-dating of
the product, may make modifications
without giving prior notice.
1) Safety Information .............................1-2
2) Disposal ................................................2
3) Operating Instruction.........................3-4
Control Panel .................................... 3
Dishwasher Features .............................4
4) Prior to using for the first time .............4-9
Loading the Salt into the Softener .............4-5
Fiingll the Rinse Aid Dispenser ................6-7
Function of Detergent .........................7-9
5) Loading the Dishwasher Baskets..10-13
6) Starting a washing programme ....14-15
Wash Cycle Table ................................14
Turning on the Appliance ....................14
Changing the Programme .....................15
Forget to Add Dish .......................15
7) Maintenance and cleaning.............16-18
8) Installation .....................................18-21
Positioning and leveling . ............... .18-19
Connecting the water and electricity supplies
.....................................................19-21
9) Troubleshooting Tips.....................21-25
Error codes ...........................................21
Before calling the customer helpline ........22-23
Technical information ...........................24-25
WARNING !
When using your dishwasher, follow the basic precautions including the following:
1
WARNING! HYDROGEN GAS IS EXPLOSIVE
Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on all hot-water taps and let the
water flow from each for several minutes. This will release any accumulated hydrogen gas. As the
gas is flammable, do not smoke or use an open flame at this time.
Do not abuse, sit on, or stand on the door or dish basket of the dishwasher.
Do not touch the heating element during or immediately after use.
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door
very carefully if the dishwasher is operating. There is a risk of water squirting out.
Do not place any heavy objects or stand on the door when it is open. The appliance could tip
forward.
When loading items to be washed:
Locate sharp items so that they are not likely to damage the door seal;
Warning: Knives and other utensils with sharp points must be loaded in the basket with their
points down or placed in a horizontal position.
Ensure plastic items are not close to the heating element.
Check that the detergent receptacle is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap,
laundry detergent, or hand washing detergent in your dishwasher.
Other means for disconnection from the supply must be incorporated in the fixed wiring with at
least 3mm contact separation in all poles.
Keep children away from detergent and rinse aid, keep children away from the open door of the
dishwasher , there could still be some detergent left inside.
Young children should be supervised to ensure that they do not play with the appliance.
This product is not designed for use by persons (including children) who have reduced physical,
sensory or mental capacities or persons with no experience or knowledge, unless they are
instructed and supervised in the use of the appliance by a person responsible for their safety.
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed.
Avoid contact with skin and eyes.
The door should not be left in the open position since this could present a tripping hazard.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a
similarly qualified person in order to avoid a hazard.
Please dispose of packing materials properly.
1. Safety Information
WARNING! PROPER USE
......
..
..
......
.....
....

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
SAVE THESE INSTRUCTIONS
During installation, the power supply must not be excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance must be connected to the water mains using new hose sets provided.
Make sure that the openings at the bottom base are not obstructed..
Use the dishwasher only for its intended function.
The dishwasher is intended for indoor use only.
The dishwasher is not designed for commercial use. It is intended for use in domestic households.
2．Disposal
Packaging material could be dangerous for children!
For disposal of packaging and the appliance please go to a recycling centre. Cut off the power
supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and should be disposed in the waste
paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office
and your household waste disposal service
IMPORTANT!
To get the best performance from your dishwasher, read all
operating instructions before using it for the first time.
2
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
(e.g. PS for polystyrene, padding material)
This appliance is identified according to the European guideline
2002/96/EC on waste electrical and electronic equipment -WEEE. The
guideline specifies the framework for an EU-wide valid return and re-use of
old appliances.
WARNING!
Control Panel
3. Operating Instructions
3
1、Power switch: Turns the power supply on or off.
2、D :
3、Programme key-press: Press the key to scroll through the wash
cycles. The corresponding programme light will be ON to indicate
which WASH CYCLE has been selected.
、
5、
6、Child lock button: Press the two buttons for 3 seconds, the appliance
will lock and no buttons can activate. 7、Programme indicator light：
When you select a washing programme ,
the corresponding light will display.
elay button The START DELAY will allow you to delay the
start time of any cycle automatically up to 24hours. 4 Alternative f button: Pressing this button chooses the additional
function "3 IN 1" ,washing of upper layer or washing of lower layer and the corresponding light flashes.
Start \pause button: The appliance will start or pause the washing cycle.
unction
、 、
、
、Child lock :
12、Washing light of upper layer: To comes on when the upper
spray arm is washing.
、Washing
、
8 Salt refill indicator: The indicator lights up when the softener
needs to be refilled. 9 Rinse aid refill indicator: The indicator lights up when dispenser needs to be refilled. 10 3 in 1 indicator: Combined detergent, rinse aid and salt functions.
The additional function could be used with the programme.
11 indicator Press this button to select the programme.
The "Child lock" will be activated when the button has been
pressed for 3 seconds and "LO" flashes 6 times in the digital display
13 light of lower layer: To comes on when the lower
spray arm is washing. 14 Digital display: To display the delay time, error codes or the
1 2 3
6
11
7
5
8
9
10 12
4
13
14
IMPORTANT!
To get the best performance from your dishwasher, read all
operating instructions before using it for the first time.
23
1 2 3
6
11
7
5
8
9
10 12
4
13
14
Please do not overload your dishwasher. There is only spacefor 14 standard dishes.
Ensure all items are dishwasher safe before use as unsuitable items may get damaged,
affecting the washing condition and energy consumption.
estimated time left for the programme to run.

4．Prior to Using for the First Time
Dishwasher Features
Before using your dishwasher for the first time:
A.
B. Fill the rinse aid dispenser
C.Select appropriate detergent
Loading the Salt into the Softener
5
4

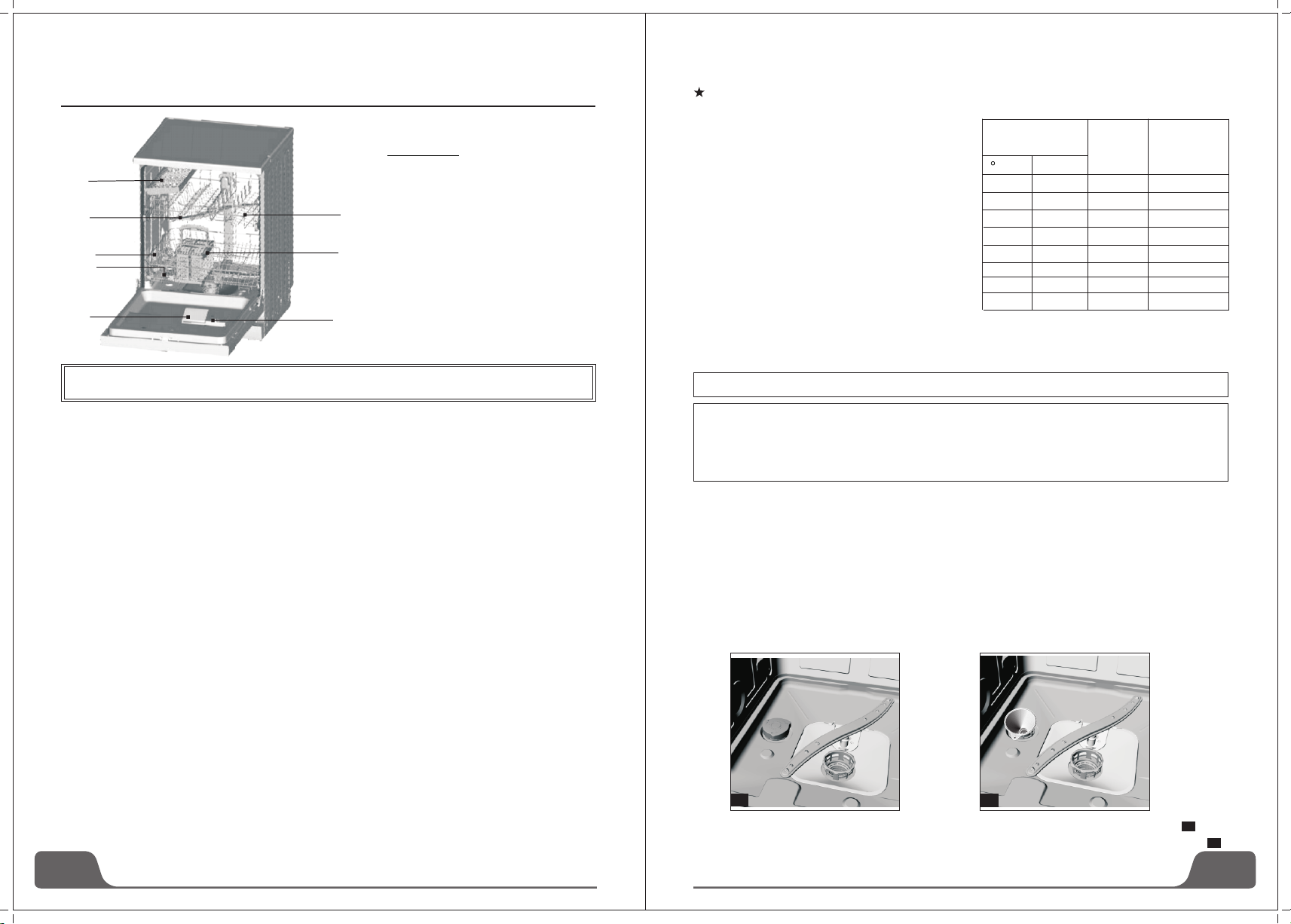

Front View
1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Water Softener
5 Cutlery Basket
6 Detergent Dispenser
7 Rinse Aid Dispenser
8 Fork Shelf
1
2
3
4
6
8
7
5
A. Setting the Water Softener
The water softener is designed to remove minerals and salts from the water, which would have a
detrimental or adverse effect on the operation of the appliance. The higher the content of these
minerals and salts, the harder the water is. The softener should be adjusted according to the
hardness of the water in your area. Your local Water Authority can advise you on the hardness of
the water in your area.
Setting
The amount of salt dispensed can be set from H0 to H7.
Salt is not required at the set value H0.
1. Set the value which can be found in the water hardness table.
2. Close the door.
3. Switch on the "Power" switch.
4. Hold down " Delay" button and then press "Programme" button for 5 seconds. The buzzer sounds
one time and H.flashes on the digital display.(factory setting is H4)
12
Clark
B. Loading the Salt into the Softener
Always use salt intended for using with dishwasher.
NOTE: If your model has no water softener, you may skip this section
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
The appliance is equipped with a special softener that uses salts specifically
designed to reduce lime and minerals from the water.
The salt container is located beneath the lower basket and should be filled as follows:
Attention!
Only use salt specifically designed for use in dishwashers! All other types of salt not specifically
designed for use in a dishwasher, especially table salt, will damage the water softener. In case of
damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is
liable for any damages caused.
Only fill with salt just before starting one of the complete washing programmes.
This will prevent any grains of salt or salty water, which may have been spilt, remaining on the
bottom of the machine for any period of time, which may cause corrosion.
After the first wash cycle the control panel light expires.
For optional performance
1. Set the value which can be found in the water
hardness table.
2. Close the door.
3. Switch on the power switch.
4. Hold down " Delay " button and press "Programme "
button for 5 seconds. The buzzer rings one
time and H.flashes on the digital display.
(factory setting is H4)
To change the setting:
1. Press " Delay " button.
Each time the button is pressed, the set value
increases by one level;when the value of H7 has
been reached, the display jumps back to H0(off).
2. Press " Programme" button. The chosen setting
has now been stored.
Water hardness
Range
M g / L Set value on
the machine
0-8
9-10
11-12
13-15
16-20
21-26
27-38
39-62
soft
soft
medium
medium
medium
hard
hard
hard
H0
H1
H2
H3
H4
H5
H6
H7
Water hardness table
A. Remove the lower basket and then unscrew and remove the cap from the salt container.
B. If you are filling the container for the first time, fill 2/3 of its volume with water (around 500ml).
1
2
0-110
120-140
150-180
190-210
220-290
300-370
380-540
550-890

1
2
3
1. The salt container must be refilled when the salt warning light in the control panel comes
on. Though the salt container is full, the indicator light may not black out before the salt
fully dissolves. If there is no salt warning light in the control panel (for some models),
you can judge when to load the salt into the softener by the cycles that the dishwasher
had run.
2. If salt spills,run a soak programme to rinse the dishwasher out.
NOTE:
2
13
1
2
3
4
5
6
MAX
9
6
D. Function of Detergent
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, be careful not to overfill.
Replace the cap by inserting and aligning it with the "open" arrow and turning it to the
"closed"(right) arrow
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes
that can leave spots and streaks. It also improves drying by allowing water to drain off the dishes.
Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the
door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator
turns completely black. The volume of the rinse aid container is about 140ml.
Be careful not to overfill the dispenser, as this could cause excessive foam. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close the dishwasher door.
Attention!
Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the
next wash.

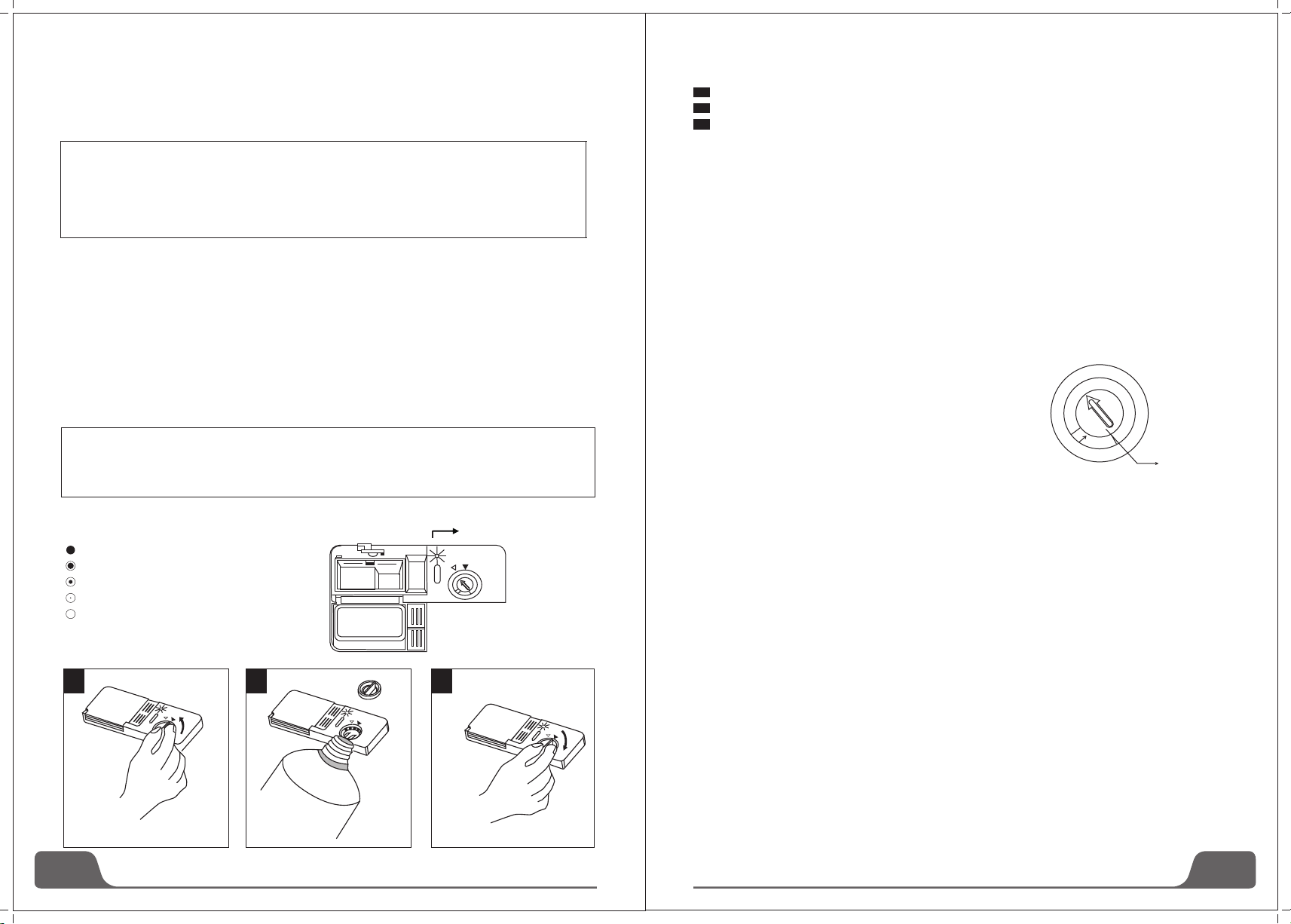

Adjusting the Rinse Aid Dispenser
The rinse aid dispenser has four or six settings . Always
Start with the dispenser set on "4" If spots and poor drying are
problems, increase the amount of rinse aid dispensed by removing
the dispenser lid and rotating the dial to "5". If the dishes still are
not drying properly or are spotted, adjust the dial to the next higher
number until your dishes are spot-free. The dose is factory set in
position 5.
NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife
blades.
Detergents with its chemical ingredients are necessary to remove dirt, dissolve dirt and transport it out
of the dishwasher. The majority of commercial quality detergents are suitable for this purpose.
Concentrated Detergent
Based on their chemical composition, detergents can be spilt in two basic types:
■conventional, alkaline detergents with caustic components
■Low alkaline concentrated detergents with natural enzymes
The use of "Eco" washing programme in conjunction with concentrated detergents reduces pollution
and is good for your dishes; these washing programmes are specially matched to the dirt-dissolving
properties of the enzymes of the concentrated detergent. For this reason"Eco" washing programme
in which concentrated detergents are used can achieve the same results that can otherwise only be
achieved using"intensive" programme.
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some detergent
1
2
3
4
5
6
MAX
Adjust lever
(Rinse)
C. Filling the Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak
free drying.
Attention!
Only use a branded rinse aid for the dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. dishwasher cleaning agent, liquid detergent). as this could cause damage to
the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light on the control panel, you can judge the amount of rinse-aid by
the colour of the optical level indicator "D" located next to the cap. When the rinse-aid container is
full, the whole indicator will be dark. As the rinse aid diminishes, the size of the dark dot decreases.
You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
D (Rinse-Aid indicator)
RINSE AID DISPENSER
C. Place the end of the funnel (supplied) into the hole and introduce approximately 2kg of salt. It is
normal for a small amount of water to come out of the salt container.
D. Carefully screw the cap back on.
E. Usually, the salt warning light will turn off in 2-6 days after the salt container is filled with salt.
7

9
8
2
1
NOTE:
If the lid is closed: press release button. The lid springs open.
Always add the detergent just before starting each wash cycle. Only use branded detergent aid
for dishwashers..
WARNING!
Dishwasher detergent is corrosive! Take care to keep it out of the reach of children
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Don't put powder detergent into the dispenser until you're ready to wash dishes.

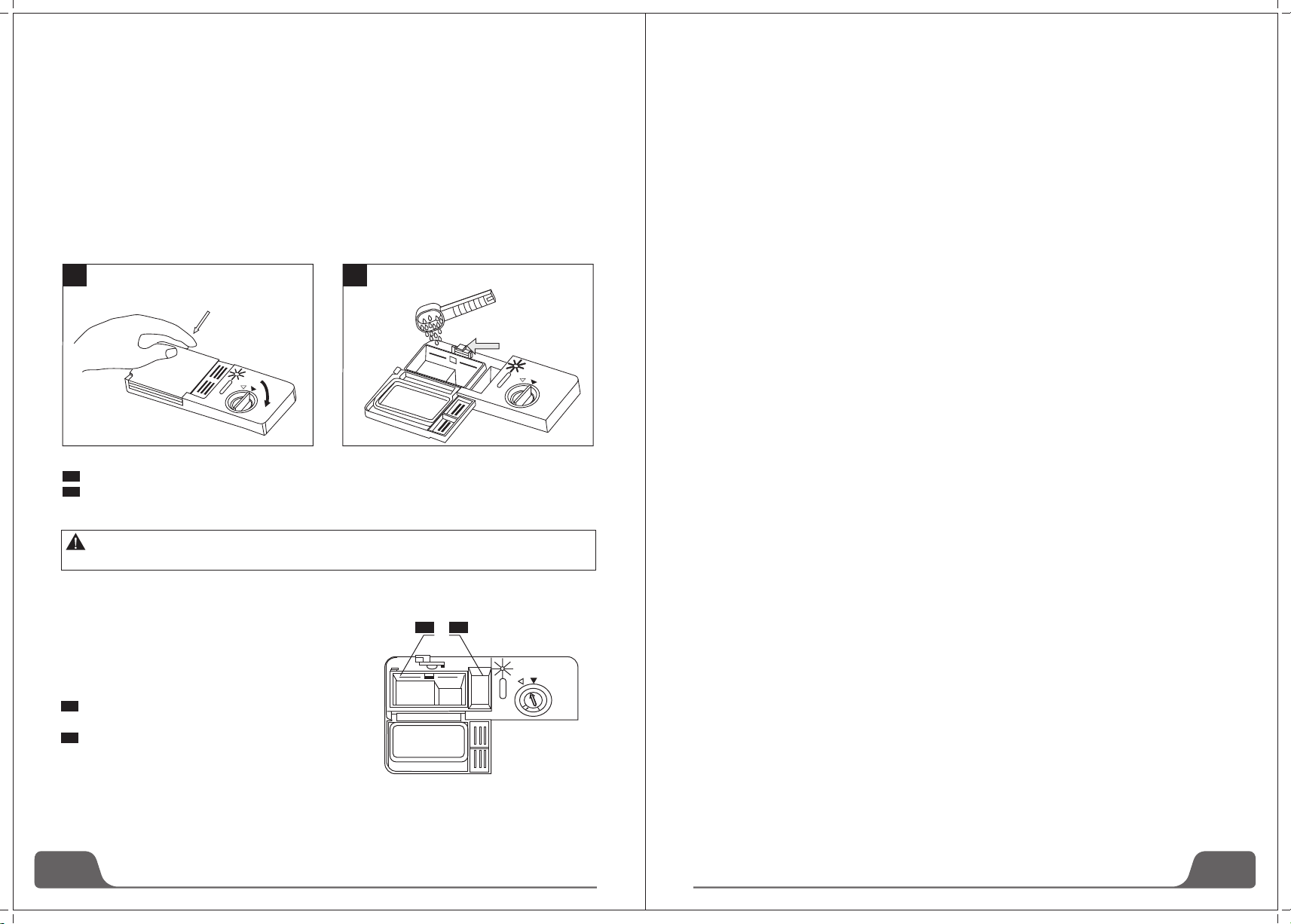

Filling in the detergent
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
For the main wash cycle detergent indicator,
MIN means approximately 20g of detergent.
For the pre-wash cycle detergent ,
approximately 5g of detergent is required.
" "
indicator
2
1
NOTE:
Information about the amount of detergent for the single programme can be found on the
last page. Please be aware that according to the level of soiling and the specific hardness of water,,
differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chloride
2.With phosphate and without chloride
3.Without phosphate and without chloride
Normally new powder detergent is without phosphate. The water softener function of phosphate
is not given. In this case we recommend to fill salt in the salt container even when the hardness of
water is only 6 dH. If detergents without phosphate were used in case of hard water often white
spots can appear on dishes and glasses. In this case please add more detergent to reach better results.
Detergents without chlorine do only bleach a little. Strong and coloured spots will not removed
completely. In this case please choose a programme with a higher temperature.
cannot dissolve and develop their full cleaning power during short programmes. Therefore please
use long programmes when using detergent tablets, to ensure the complete removal of detergent
residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each washing cycle following the instructions
provided in the Wash Cycle Table. Your dishwashers use less detergent and rinse aid than
conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash
load. Also, more heavily soiled items need more detergent. Always add the detergent just before
starting the dishwasher, otherwise it could get damp and will not dissolve properly.
Amount of Detergent to Use
Please observe the manufacturer's dosing and storage recommendations as stated on the
detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the pre-wash phase.
1
2
3
4
5
6
MAX
2
1
1 2
Use of "3 in 1" Detergent Tablets
General Advice
1. Before using these products you should first check that the water hard-ness in your supply is
compatible with the use of these products as per the detergent manufacturers instructions (on the
product packaging).
2. These products should be strictly used according to the detergent manufacturers instructions.
3. If you encounter problems when using "3 in 1" products for the first time then please contact the
detergent manufacturers care line (the telephone number is given on the product packaging).
These products are detergents with integrated and combined detergent/rinse aid and salt functions.
Special Advice
When using combination products, the rinse-aid and salt lights are no longer useful. It may be
helpful to select the lowest possible setting for water hardness.
To select "3in1" function:
To cancel "3in1" function:
Follow the 'Cancelling a programme in progress' instructions. If you decide to switch to the use of a
standard detergent system we advise that you:
2. Switch the water hardness setting to the highest possible position and run for three Eco cycles
without load.
3. Readjust the water hardness setting again according to the conditions for your region (For more
information please refer to your instruction manual page 5).
Note:The 3 in 1 washing cycle is an additional function and must be used with other programme (Intensive,
Eco and Light).
1. Press the power switch and select the 3in1 washing cycle by pressing the function alternative
button until the "3in1" indicator blinks.
2. The 3in1 washing cycle will be available after pressing the start/pause button , and the"3in1"
indicator lights.
1. Refill both the salt and rinse aid compartments.

11
10
Upper Basket
IN
For best performance of the dishwasher, follow these loading guidelines. Features and appearance
of baskets and silverware baskets may vary from your model.
Attention before Loading the Dishwasher Baskets
Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running
water. Place objects in the dishwasher in the following way:
1.Items such as cups, glasses, pots/pans, etc. are to be stood upside down.
2.Curved items, or those with recesses, should be at a slant so that water can run off.
3.Stack items securely so that they cannot tip over.
4.They do not prevent the spray arms from rotating while washing takes place.
Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.
Removing the Dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
Loading the Upper Basket
The upper basket is designed to
hold more delicate and lighter
dishware such as glasses,
coffee and tea cups and
saucers, as well as plates,
small bowls and shallow
pans (as long as they are
not too dirty). Position the
dishes and cookware so
that they do not get moved
by the spray of water.
Adjusting the Upper Basket
If required, the height of the upper basket can be adjusted in order to create more space for large
utensils either in the upper basket or lower basket. The upper basket can be adjusted for height by
putting wheels of different height into the rails. Long items, serving cutlery, salad servers or knives
should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf
can be folded back or removed when not be required for use.

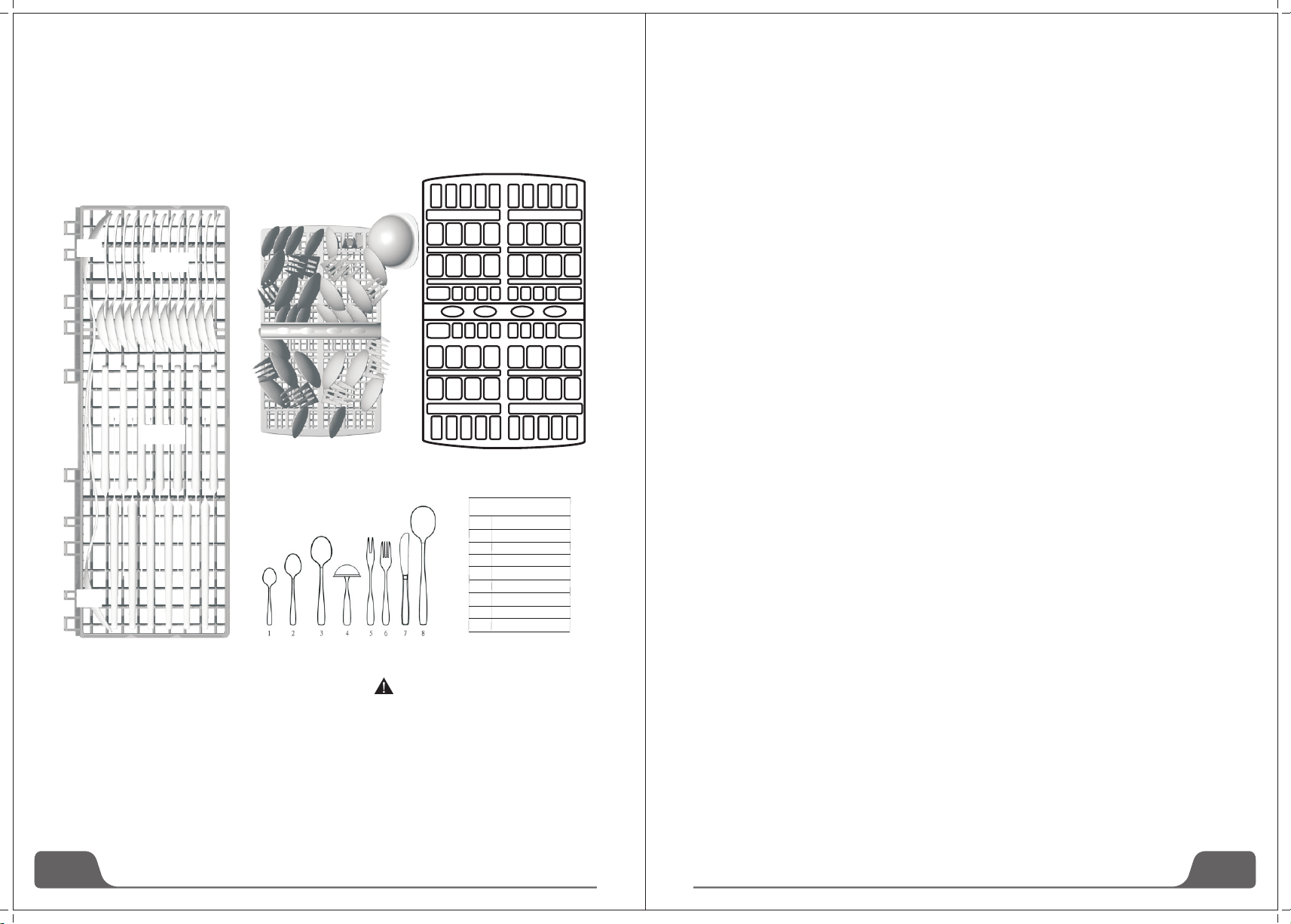

5．Loading the Dishwasher Baskets
Upper basket
Type Item
Cup
Glass
Saucer
Serving bowl
Serving bowl
A
B
C
D
E
2
1
4
2
1
11
Loading the Lower Basket
We recommend that you place large items which are most difficult to clean in to the lower basket:
(ie:pots, pans, lids, serving dishes and bowls), as shown in the figure below.
It is preferable to place serving dishes and lids on the side of the baskets in order to avoid blocking
the rotation of the top spray arm.
Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded.
Lower basket Folding racks
Folding racks consisting are located on
on the lower basket of your machine are
designed in order to let you place big items
easier (pots, pans, etc). If required,each
part can be folded separately, or all of them
can be folded and a larger area can be obtained.
Optional
Lower Basket
Lower basket
Type Item
Dessert plate
G
H
I
Dinner plate
Soup plate
Serving bowl
Oval plate
J
F
6
13
2
3
13
13
A1
A6
A7
A12
B1
B6
B9
B13
C1
C13 A13
B7
B8

13
12
For washing in the dishwasher the following cutlery/dishes
Are not suitable
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Lead crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibre
WARNING!
Do not let any item extend through bottom
Are of limited suitability
Some types of glasses can become
dull after a large number of washes
Silver and aluminium parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
NOTE:
new dishes please ensure that they are suitable for dishwashers.
Do not put in items that are dirty with cigarette ash, candle wax, lacquer or paint. If you buy
NOTE:
use dishes that are unsuitable for dishwashers. This is important for good results and for reasonable
energy consumption.
Please do not overload your dishwasher. There is only space for 13 standard dishes. Do not
Before loading the dishes, you should:
Remove any large amounts of left-over food.
Soften remnants of burnt food in pans
Loading Cutlery and Dishes
When Loading the Dishes and Cutlery, Please Note:
Dishes and cutlery must not impede the rotation of the spray arms.
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that water cannot
collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
■To avoid damage to glasses, they must not touch.
■Load large items which are the most difficult to clean into the lower basket.
■The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and
tea cups.
Long bladed or sharp items such as carving knives
must be positioned horizontally in the upper basket.
stored in an upright position are a potential hazard,
and
Attention!
Damage to Glassware and other Dishes
Possible causes:
■Type of glass or manufacturing process.
Chemical composition of detergent.
■Water temperature and duration of dishwasher programme.
■
Suggested remedy:
■Use glassware or porcelain dishes that have been marked dishwasher safe by the manufacturer.
■Use a mild detergent that is described as kind to dishes. If necessary, seek further information from
detergent manufacturers.
■Select a programme with a low temperature.
■To prevent damage, wait a few minutes after the programme has ended before removing glass and
cutlery from the dishwasher.
At the End of the Wash
When the working cycle has finished, the buzzer of the dishwasher will sound for 6 times, then stop.
Turn off the appliance using the "Power" button, and open the door of the dishwasher.
Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while
they are still hot and more susceptible to breakage. They will also dry better.
Cutlery Basket and Fork shelf
Cutlery should be placed in the cutlery basket with handles at the bottom: If the basket
has side baskets, the spoons should be loaded individually into the appropriate slots,
especially long utensils should be placed in the horizontal position at the front of the
upper basket.
Cutlery basket
Type Item
Tea spoons
Dessert spoons
Soup spoons
Forks
Knives
Serving fork
1
2
3
4
5
6
7
8Serving spoons
Gravy ladle
2 2 2 2 5 4
3 6 6 6 6 3
6 3 3 63
22 2 22
6
3
3
6 6 6 6
3 3 3 6
3
2 2
3
2
2
3 6
Door side
Fork shelf Cutlery basket
Door side
1
7
8
8

15
14
NOTE: A click can be heard when the door is closed correctly.
When the washing is over, you can switch off the dishwasher by pressing the "Power" button.
6. Starting a Washing Programme
Wash cycle table
Starting a wash cycle...
Draw out the lower and upper basket, load the dishes and
1. push them back. It is recommended to load the lower basket first, then the upper one (see the
section entitled "Loading the Dishwasher"). Pour in the detergent (see the section entitled "Salt,
Detergent and Rinse Aid").
Turning on the Appliance
NOTE:
main power and water supply before calling Customer Service.
If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the
Adding additional items during operation
Items can be added any time before the detergent cup opens.
1 Open the door a little to stop the washing.
2 After the spray arms stop working, you can open the door completely.
3 Add forgotten dishes.
4 Close the door, the dishwasher will resume after ten seconds.
WARNING!
It is dangerous to open the door when washing, because the hot water may scald you.
Switch Off the Dishwasher
The digital display appears "---" , only in this case the programme has ended.
Switch off the dishwasher by pressing the"Power" button.
Open the door carefully. Hot steam may escape when the door is opened!
■Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around
a few minutes before removing from the appliance.
■Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In
this way they will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper
basket onto the dishes in the lower one.
Changing the Programme.
Premise: A cycle that is underway can only be modified if it has only been running for a short time.
Otherwise, the detergent may have already been released, and the appliance may have already
drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section
entitled " Filling the Detergent " ).
Press"Power" button to cancel the programme, and turn on it again ,then you can change the
programme to the desired cycle setting (see the section entitled "Starting a wash cycle. . . " ).
NOTE: If you open the door when washing, the machine pauses and warning alarm rings, the display
appears E1. When you close the door, the machine will resume.
The 6 programme lights show the state of the dishwasher:
a) One of the programme lights on--> cycle running
b) One of the programme lights blinking -->pause
2. Insert the plug into the socket. The power supply is 220V-240V AC 50 Hz, the specification of the
socket is 12 A 220V-240V AC 50Hz.
Make sure that the water supply is turned on to full pressure. Close the door, press the"Power"button,
Press the "Program" button to select a desired "Wash cycle". (See the section entitled "Wash
Cycle Table") . With a little force to ensure the door is properly closed.
EN 50242: this program is the test cycle
The information for comparability test in accordance with EN50242,as follows:
- Capacity: 13 settings
- Position of upper basket: Low position
- Rinse aid setting: 6 ( or 4 for four setting dispenser)
Programme
Cycle Selection
Information
Description
of Cycle
Detergent
Pre/main
Running
Time
(min)
Energy
(kWh)
Water
(L)
Intensive
Eco
Light
Rapid
Pre-Rinse
For the heaviest soiled loads,
such as pots, pans, casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
Light wash cycle to be used
for more delicate items which
are sensitive to high
temperatures.(Run cycle
immediately after use)
A shorter wash for lightly soiled
loads that do not need drying.
To rinse dishes that you
plan to wash later that day
Pre-wash
Main wash(46℃)
Rinse
Hot rinse
Drying
Pre-wash
Main wash(46℃)
Rinse
Hot rinse
Drying
Main wash(40℃)
Hot rinse
Pre-wash
5/27.5
5/27.5
5/20
15
194
231
176
42
9
15
11.5
11.5
6
5
1.200
0.912
0.750
0.500
0.010
(*E 50242)
Programme)
(Standard
/
N
60 min
For lightly and normally soiled
plates and pans for every day.
Hot rinse 1
Hot rinse 2
Hot rinse(60℃)
Drying
5/20
( or 3 in 1)
( or 3 in 1)
( or 3 in 1)
60 0.900 9.5
Pre-wash
Main wash(60℃)
Rinse1
Rinse2
Hot rinse
Drying

1 2
17
16

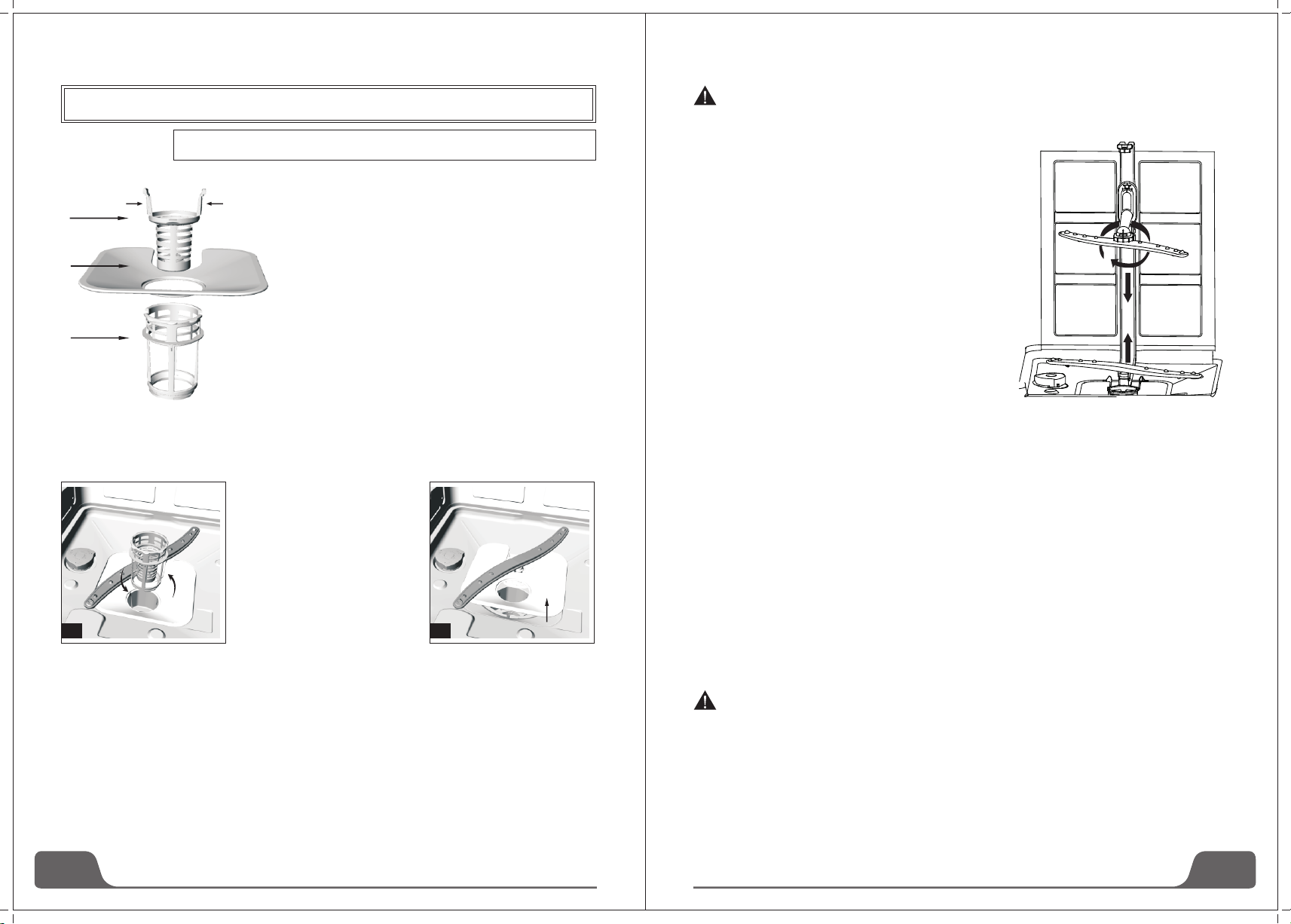

Filtering System The filter is used to avoid large remnants and other sundries getting inside
the pump.
The filter system consists of a coarse filter, a flat
(Main filter) and a micro filter (fine filter).
1 Flat filter
Food and debris will be trapped by a special jet
on the lower spray arm.
2 Coarse filter
Big debris, such as bone and glass that could clog the
drain will be trapped in the coarse filter.
To remove an item caught in this filter, gently squeeze
the taps on the top of this filter and lift it out.
3 Micro filter
This filter holds soil and food residue in the sump area
and prevents it from being redeposit on the dishes
during a cycle.
- Inspect the filters for obstructions every time the
dishwasher has been used.
- By unscrewing the coarse filter, you can remove
the filter system. Remove any food remnants and
clean the filters under running water.
Step 1：Turn the Coarse filter
anti clockwise, and then
lift it up;
Step 2：lift the filter upFlat
7. Maintenance and cleaning
NOTE:
to step 1, the filter system will be installed.
If operating from step 1 to step 2, the filter system will be removed; while operating from step 2
Filter assembly
For best performance and results, the filter assembly must be cleaned. The filter efficiently removes
food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it
is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing
the semicircular filter and cup under running water. To remove the filter assembly, pull on the cup
handle in the upward direction. The entire filter assembly should be cleaned once a week. To clean
the coarse filter and the micro filter, use a cleaning brush. Then, reassemble the filter parts as shown
in the figures above and reinsert the entire assembly in the dishwasher, positioning in its seat and
pressing downward. The dishwasher must never be used without the filters. Improper replacement
of the filter may reduce the performance level of the appliance and damage dishes and utensils.
2
1
3
WARNING!
WARNING!
Never run the dishwasher without the filters in place. When cleaning the filters, be careful not to cause
any damage which could affect the dishwashers performance.
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
To remove the spray arms, screw off the nut clockwise to
take out the washer on top of the spray arm and remove the
arm. Wash the arms in warm soapy water and use a soft
brush to clean the jets. Replace them after rinsing thoroughly.
Caring for the Dishwasher
To clean the control panel, use a lightly dampened cloth then
dry thoroughly.
To clean the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners
on any part of the dishwasher.
Protect Against Freezing
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter in the tub and the bottom and use a sponge to remove water in sump.
Cleaning the Door
To clean the edge around the door, you should use only a soft warm, damp rag. To prevent
penetration of water into the door lock and electrical components, do not use a spray cleaner of any
kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch
the finish. Some paper towels can also scratch or leave marks on the surface.
Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical
components. Avoid using abrasive agents or paper towels because of the risk of scratching or
leaving spots on the stainless steel surface.

max1100mm
min500mm
min120mm
min 40mm
19
18
How to Keep Your Dishwasher in Shape
After Every Wash
After every wash, leave the door slightly
ajar so that moisture and odours are not
trapped inside.
Remove the Plug
Before cleaning or performing
maintenance, always remove the plug from
the socket.
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of
the dishwasher, do not use solvents or
abrasive cleaning products. Use only a
cloth and warm soapy water. To remove
spots or stains from the surface of the
interior, use a cloth dampened with water
and a little white vinegar, or a cleaning
product made specifically for dishwashers.
When You Go on holiday
When you go on holiday, it is
recommended that you run a wash cycle
with the dishwasher empty and then
remove the plug from the socket, turn off
the water supply and leave the door of the
appliance slightly ajar. This will help the
seals last longer and prevent odors from
forming in the appliance.
Moving the Appliance
If the appliance must be moved, try to keep
it in the vertical position. If absolutely
necessary, it can be tilted on its back.
Seals
One of the factors that cause odours to form
in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with
a damp sponge will prevent this.
Attention:
The installation of the pipes
and electrical equipment
should be done by professionals.
Electrical Shock Hazard!
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death or
electrical shock.
Warning

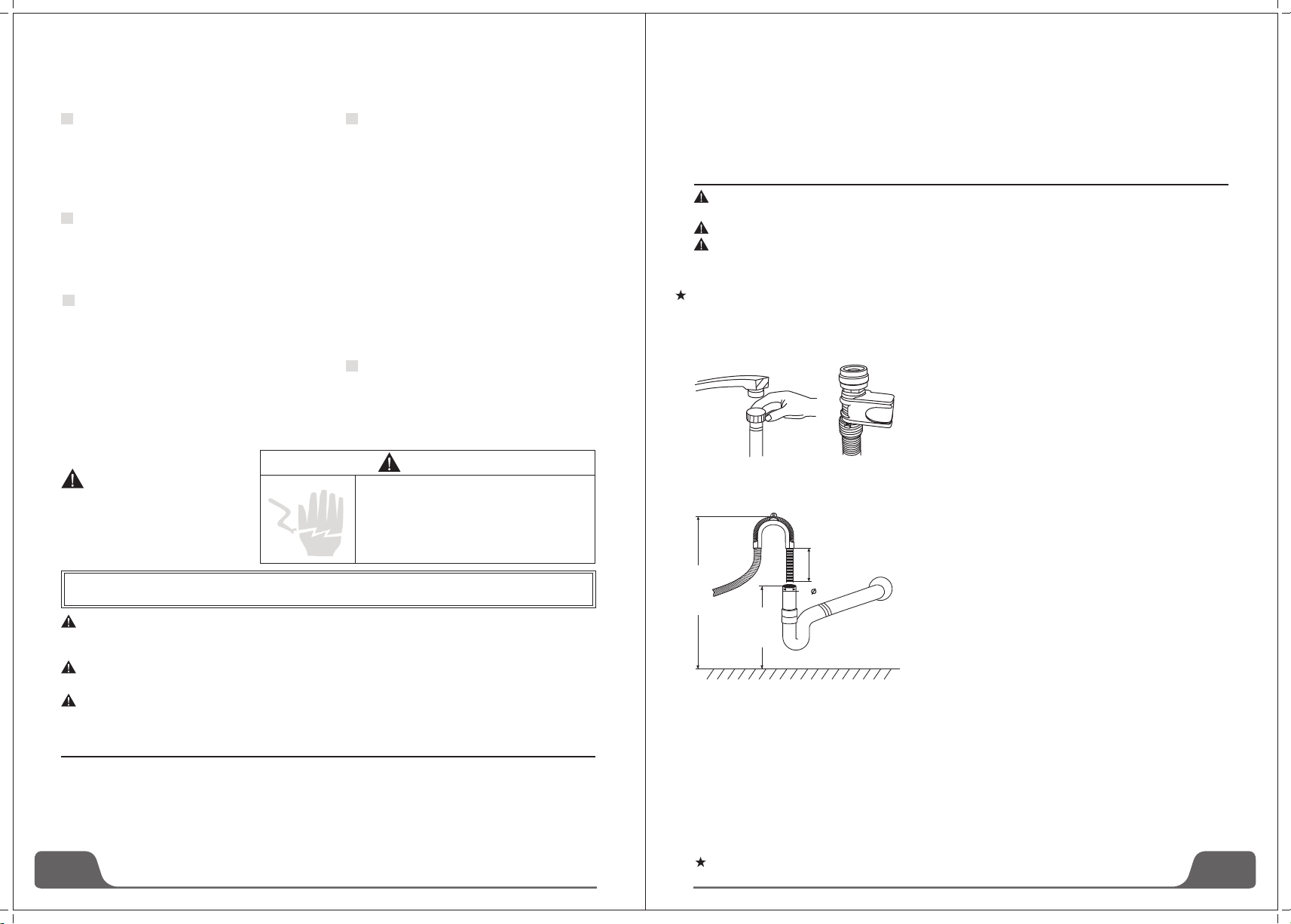

8. Installation
Keep this instruction manual in a safe place for future reference. If the appliance is sold, given
away or moved, please ensure the manual is kept with the machine, so that the new owner may
benefit from the advice contained within it.
Please read this instruction manual carefully: it contains important information regarding the safe
installation, use and maintenance of the appliance.
If the appliance must be moved at any time, keep it in an upright position; if absolutely
necessary, it may be tilted onto its back.
Positioning and leveling
1. Remove the appliance from all packaging and check that it has not been damaged during
transportation. If it has been damaged, contact the customer helplin and do not proceed any further
with the installation process.
2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent
cabinets or even with the wall. This appliance can also be recessed under a single worktop.
3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the
appliance may be adjusted until it reaches a horizontal position (the angle of inclination must not
exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to
move or cause vibrations and noise during operation.
Connection to the water and electricity supplies should only be performed by a qualified
technician.
The dishwasher should not stand on top of the water hoses or the electricity supply cable
The appliance must be connected to the water supply network using new piping. Do not use old
piping.
Connecting the water inlet hose
Fit the drainage hose of your machine to the drainage pipe
without bending.
If the length of the hose is not sufficient, contact customer
service for an extension made from the same material as
the original. Remember that the length of the hose should
hose should not exceed 4 meters even when with an extension.
If the drainage hose is longer the 4 meters. the dishes will not
be cleaned properly secure your hose firmly to the drainage
pipe to avoid it coming off during the washing process.
Connecting the water outlet hose
Electrical connection
Before inserting the plug into the electrical socket, make sure that:
●The socket is earthed and complies with current regulations.
●The socket can withstand the maximum load of the appliance, which is indicated on the data plate
located on the inside of the door(see description of the appliance).
●The power supply voltage falls within the values indicated on the data plate on the inside of the door.
●The socket is compatible with the plug of the appliance. If this is not the case, ask an authorised
technician to replace the plug (see assistance); do not use extension cables or multiple sockets.
Connecting the water and electricity supplies
Optional
Connect the cold water supply hose to a threaded 3/4(inch)
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that
the water is clear and free of impurities. If this precaution is
not taken, there is a risk that the water inlet can get blocked
and the appliance could be damaged.

21
20
Codes Meanings Possible Causes
Water drainage malfunction
E1
E2
E3
E4
E5
E6
E7
Door open
Water inlet
Water drainage
Temperature sensor
Overflow/leakage
Water leakage
Heating element
The door is opened when the
dishwasher is operating
Water inlet malfunction
Temperature sensor malfunction
Overflow occurs/Water leakage occurs
Water leakage occurs
Abnormal heating
E8 Water diversion system Water diversion system malfunction
Once the appliance has been installed, the power supply cable and the electrical socket should
be easily accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, it must be replaced by the manufacturer or its service
center in order to prevent all potential hazards.(See Assistance)
The company shall not be held responsible for any incidents that occur if these regulations are
not observed.
Advice regarding the first wash cycle
After the appliance has been installed, immediately before running the first wash cycle, completely
fill the salt dispenser with and add approximately 2 Kg of salt (see Rinse aid and refined salt). The
water may overflow: this is normal and is not a cause for concern. It is also normal that the LOW
SALT indicator light continues to flash for a few cycles after the salt has been loaded.
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and
the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and
drain hoses that can be positioned to the right or the left to facilitate proper installation.
Leveling the Appliance
Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the height of the
dishwasher, making it level. °.
NOTE: The maximum adjustment height of the feet is 20 mm.
How to Drain Excess Water From Hoses
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or a suitable
container that is held outside and lower than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water inlet hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, ensure you to use a similar drain hose.
It must be no longer than 4 metres, otherwise the cleaning effect of the dishwasher could be
reduced.
Syphon Connection
The waste connection must be at a height of between 50cm (minimum) and 100cm (maximum)
from the bottom of the dish. The water drain hose should be fixed by a hose clip.
Attention
The followings should be checked before starting the dishwasher:
1 Whether the dishwasher is level and fixed
2 Whether the inlet valve is opened
3 Whether there is leakage at the connections of the conducts
4 Whether the wires are tightly connected
5 Whether the power is switched on
6 Whether the inlet and drain hoses are knotted
7 All packaging materials and printed matter should be taken out from the dishwasher
After installation, please store this manual for future reference.
Start of Dishwasher
9. Troubleshooting Tips
Error codes
If a problem occurs with your appliance error codes may display. Please refer to the following table
for possible causes.
WARNING!
If overflow occurs, turn off the main water supply before calling the customer helpline. If there is water in the
base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
The appliance should not be inclined more than 2° in any instance.

25
22
Stained tub
interior
Detergent with
colourant was used Make sure that the detergent is one without colorant.
Dishes and
flatware
not clean Make sure that the action of the detergent dispenser
and spray arms are not blocked by large dishware.
Improper program
Improper basket
loading
Select a stronger programme.
Spots and
filming on
glasses and
flatware
1 Extremely hard
water
2 Low inlet
temperature
3 Overloading the
dishwasher
4 Improper loading
5 Old or damp
powder detergent
6 Empty rinse agent
dispenser
7 Incorrect dosage
of detergent
To remove spots from glassware:
1 Remove all metal utensils out of the dishwasher.
2 Do not add detergent.
3 Choose the longest cycle.
4 Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
5 Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher.
6 Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, using 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
Before Calling the customer helpline
Reviewing the charts on the following pages may make you be free of calling for service.
Only use the recommended dishwasher detergent to
avoid suds. If this occurs, open the dishwasher and let
suds evaporate. Add1gallon of cold water to the tub.
Close and latch the dishwasher, then start the"pre-rinse"
wash cycle to drain out the water. Repeat if necessary.
Problem
Dishwasher
doesn't run
Drain pump
doesn't stop
Noise
Suds in
the tub
Possible Causes What To Do
Spilled rinse agent
Always wipe up rinse agent spills immediately.
Fuse blown, or the
circuit breaker
activated
Power supply is
not turned on
Water pressure
is low
Overflow
The system is designed to detect an overflow. When it
does, it shuts off the circulation pump and turns on the
drain pump.
Some audible
sounds are normal
Utensils are not
secure in the
baskets or
something small
has dropped into
the basket
Motor hums
Improper detergent
Dishwasher has not been used regularly. If you do not
use it often, remember to set it to fill and pump out
every week, which will help keep the seal moist.
Ensure everything is secured in the dishwasher.
Sound from detergent cup opening.
Check that the water supply is connected and
the water is turned on.
properly
Make sure the dishwasher is turned on and the door is
closed securely. Make sure the power cord is properly
plugged into the wall socket.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher.
Cloudiness
on glassware
Combination of soft
water and too much
detergent
Use less detergent if you have soft water and select a
shorter cycle to wash the glassware and to get them
clean.
Yellow or
brown film
on inside
surfaces
White film on
inside surface
The Detergent
dispenser lid
cannot be
closed prop
-erly
Detergent left
in dispenser
cups
Steam
Black or
gray marks
on dishes
Water
standing on
the bottom
of the tub
Iron deposits in
water can cause
an overall film
Dishes block
detergent Cups
Use a solution of 1/2 cup of bleach and 3 cups of
warm water to remove the stains by hand.
WARNING
You have to wait for 20 minutes after a cycle to let the
heating elements cool down before cleaning interior;
otherwise, burns will happen.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves. Never
use any other cleaner than dishwasher detergent to
avoid foaming or suds.
Hard water minerals
Clogged detergent re
-sidue is blocking the
catch
Tea or coffee stains
A small amount of clean water around the outlet on
the tub bottom keeps the water seal lubricated.
Use a mild abrasive cleaner to eliminate those marks.
Steam coming through the vent by the
door latch during drying and water draining.
Re-load the dishes properly.
Clean the detergent from the catch.
Contact a water softener company for further advise
This is normal
Aluminum utensils
have rubbed
against dishes
Normal phenomenon
Dishwasher
leaks Dishwasher
isn't level Make sure the dishwasher is level.
Be careful not to overfill the rinse aid dispenser. Spilled
rinse aid could cause excessive foaming and lead to
overflowing. Wipe away any spills with a damp cloth.
Overfill dispenser or
rinse aid spills
3

25
24
Technical Data Sheet
Sheet of household dishwasher according to EU Directive 1059/2010:
Manufacture Galanz
Standard place settings
Model DWUK003W
Energy efficiency class1
Annual energy consumption2
Energy consumption of the standard cleaning cycle
Power consumption of off-mode
Power consumption of left-on mode
Annual water consumption
3
Drying efficiency class4
Standard cleaning cycle5
Program duration of the cleaning cycle
Noise level
Mounting
Could be built in
Height
Width
Depth (with connectors)
Power consumption
Rated voltage / frequency
Water pressure / (flow pressure)
Water temperature
NOTE:
1. A+++ (highest efficiency) to D (lowest efficiency).
2. Energy consumption "262" kWh per year, based on 280 standard cleaning cycles using cold water
fill and the consumption of the low power modes. Actual energy consumption will depend on how
the appliance is used.
3 Water consumption "3220" litres per year, based on 280 standard cleaning cycles. Actual water
consumption will depend on how the appliance is used.
4 A (highest efficiency) to G (lowest efficiency).
5 This programme is suitable for normally soiled tableware and is the most efficient programme
in terms of its combined energy and water consumption for that type of tableware.
The device meets the European standards and the directives in the current version at delivery.
-LVD 2014/35/EU
-EMC 2014/30/EU
-EUP 2010/1016
NOTE : The above values have been measured in accordance with standards under specified
operating conditions. Results may vary greatly according to quantity and pollution of the dishes,
water hardness ,amount of detergent, etc.
The manual is based on the European Union's standards and rules.
13
A++
262kWh
0.912kWh
0.35 W
0.8 W
3220 liter
A
Eco
231 min
47 dB(A) re 1 pW
Yes
84.5cm
60.0cm
60.0cm
1850 W
AC 220-240 V/ 50 Hz
0.4-10bar=0.04-1.0MPa
Max.63 C
Freestanding
