Galanz W60B1A401J-AE5 User manual

DISHWASHER USER MANUAL
www.galanz.com/in
W60B1A401J-AE5

Read this Manual
Dear Customer,
Please read this User Information carefully
and keep it to refer to at a later date.
Pass it on to any subsequent owner of the
appliance.
This manual contains sections of Safety
Instructions, Operating Instructions, Installation
Instructions and Troubleshooting Tips, etc.
Carefully read it before using the dishwasher
will help you to use and maintain the
dishwasher properly.
Before Calling for Service
To review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself and not need to ask for the help of
professional technicians.
NOTE:
The manufacturer, following a policy of
constant development and up-dating of
the product, may make modifications
without giving prior notice.
1) Safety Information .............................1-2
2) Disposal ................................................2
3) Operation Instruction.........................3-4
Control Panel ..............................................3
Dishwasher Features ..................................4
4) Prior using for the first time .............4-9
Water Softener .........................................4 -5
Loading the Salt into the Softener.............5-6
Fill the Rinse Aid Dispenser......................6-7
Function of Detergent ..............................7-9

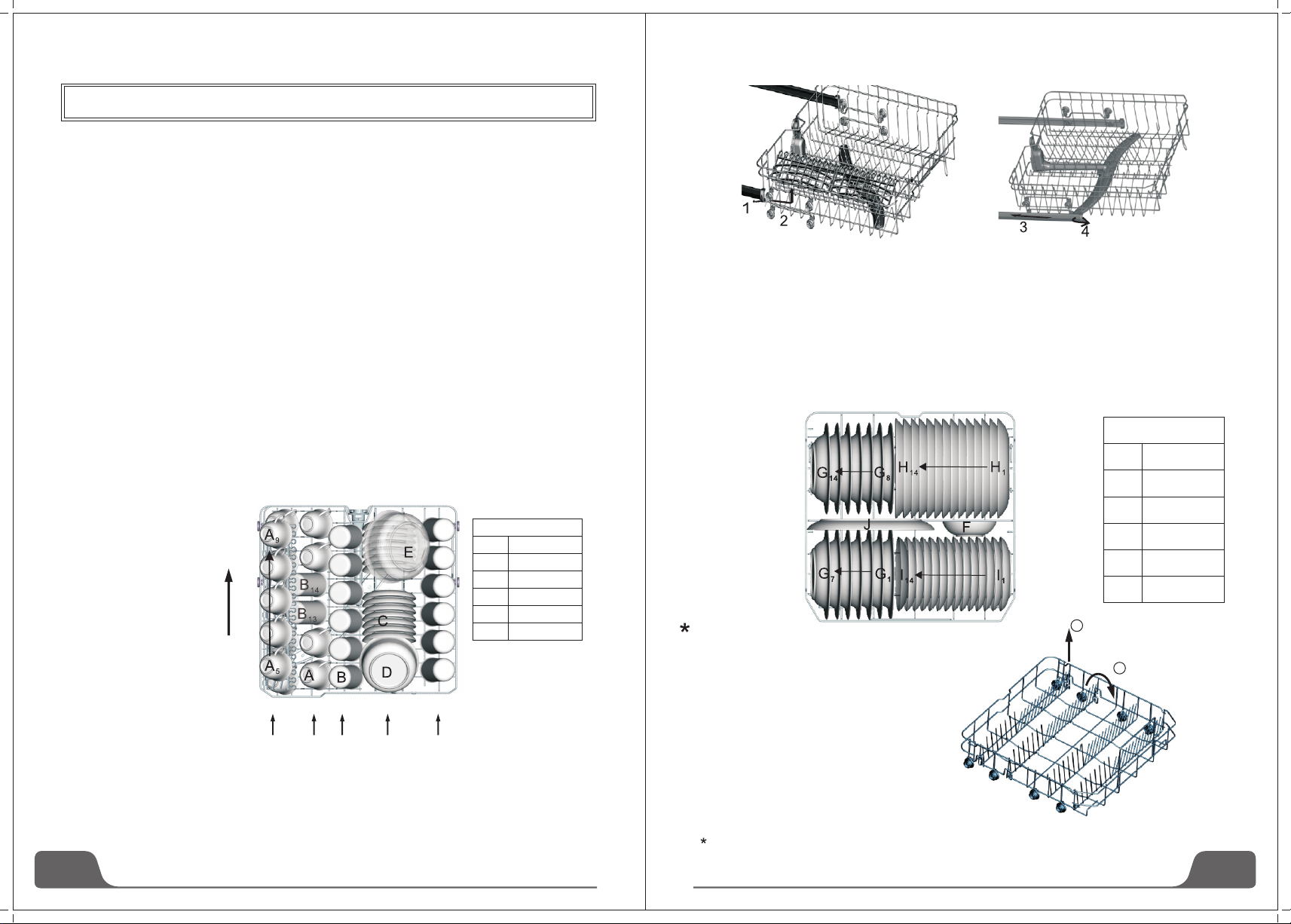

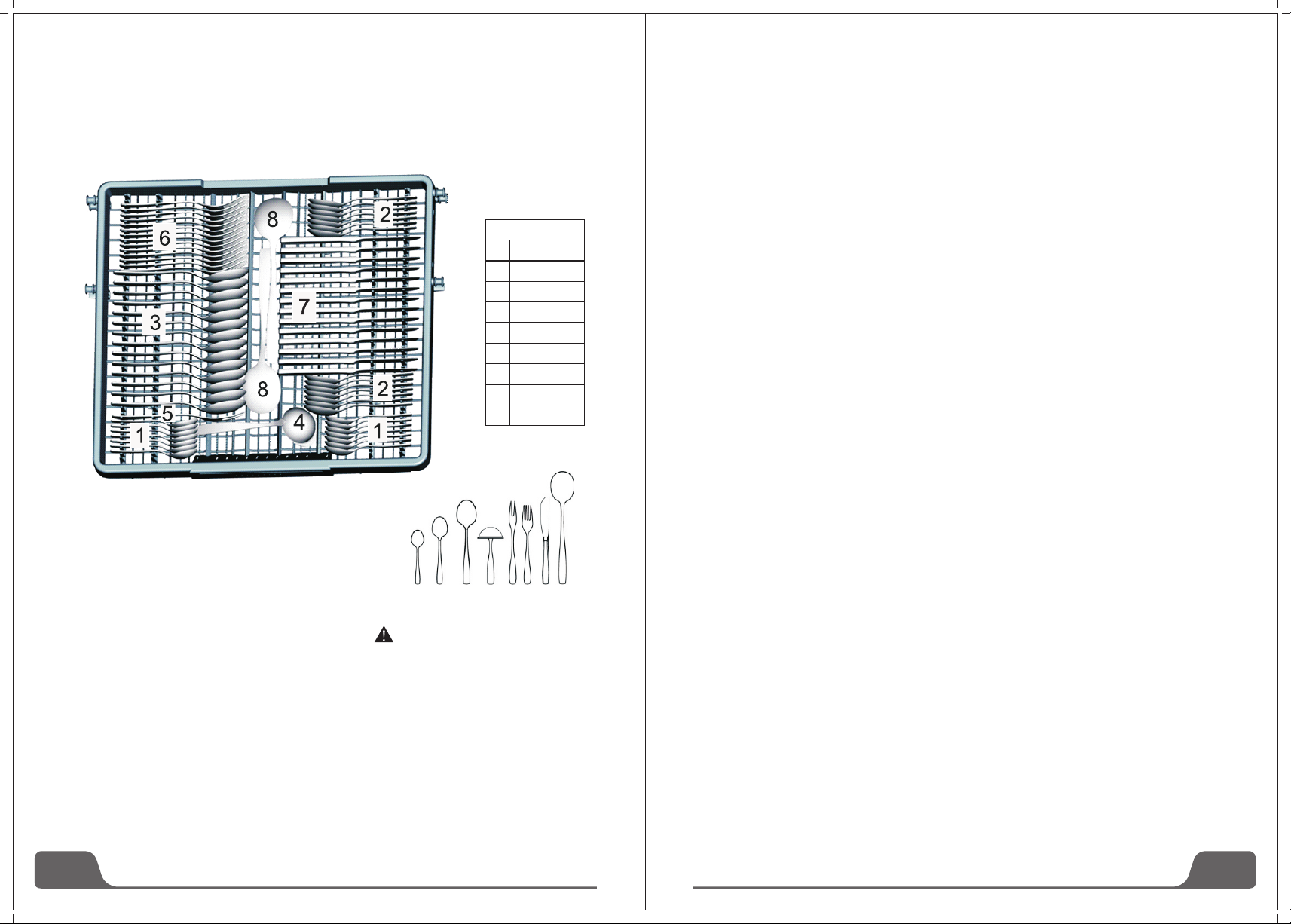

5) Loading the Dishwasher Baskets..10-13
6) Starting a washing programme ....14-15
Wash Cycle Table ......................................14
Turning on the Appliance............................14
Change the Programme.............................15
Forget to Add Dish ...............................15
7) Maintenance and cleaning.............16-18
8) Installation .....................................18-21
Positioning and leveling .......................18-19
Connecting the water and electricity supplies
..............................................................19-21
9) Troubleshooting Tips.....................21-25
Error codes ...............................................21
Before calling for service .....................22-23
Technical information ................................24-25
1
WARNING !
When using your dishwasher, follow the basic precautions including the following:
WARNING! HYDROGEN GAS IS EXPLOSIVE
Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on all hot-water faucets and let the
water flow from each for several minutes. This will release some accumulated hydrogen gas. As the
gas is flammable, do not smoke or use an open flame this time.
WARNING! PROPER USE
Do not abuse, sit on, or stand on the door or dish basket of the dishwasher.
Do not touch the heating element during or immediately after using.
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door
very carefully if the dishwasher is operating. There is a risk of water squirting out.
Do not place any heavy objects or stand on the door when it is open. The appliance could tip
forward.
When loading items to be washed:
Locate sharp items so that they are not likely to damage the door seal;
Load sharp knives with the handles up to reduce the risk of cut-type injuries;
Warning: Knives and other utensils with sharp points must be loaded in the basket with their
points down or placed in a horizontal position.
When using your dishwasher, you should prevent plastic items from contacting with heating
element.
Check that the detergent receptacle is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap,
laundry detergent, or hand washing detergent in your dishwasher.
Other means for disconnection from the supply must be incorporated in the fixed wiring with at
least 3mm contact separation in all poles.
Keep children away from detergent and rinse aid, keep children away from the open door of the
dishwasher , there could still be some detergent left inside.
1. Safety Information
■
■
■
These instructions shall also be got form the manufacturer or r e s p o n s i b l e Ve n d o r.
To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water
or other liquid.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and kno
wledge if they have been
given supervision or instruction concerning use of the appliancein a safe way and
understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

2
3. Operation Instruction
3

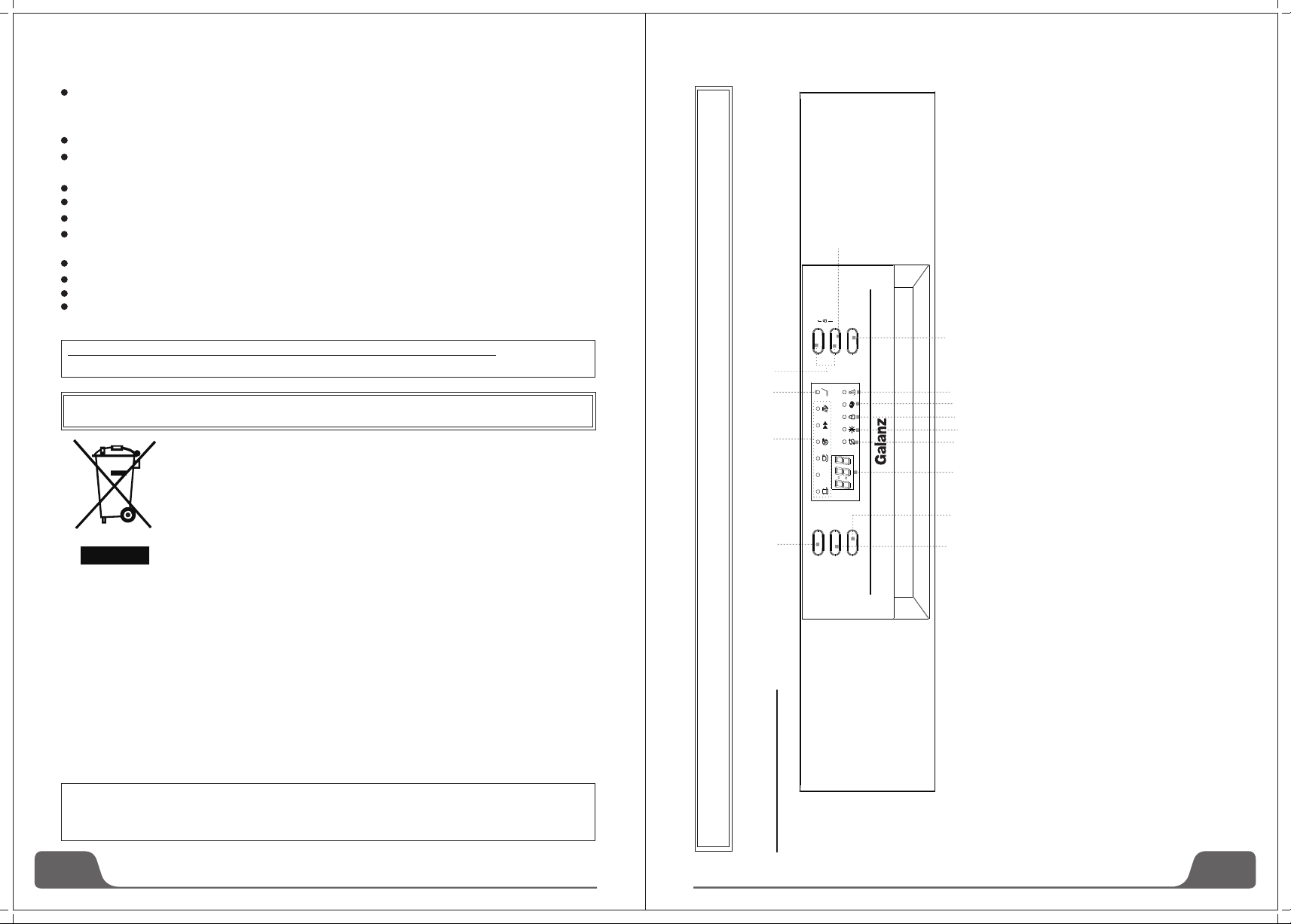

Control Panel
1、Power switch: To turn on/off the power supply.
2、Program key-press: Press the key to scroll through the wash
cycles. The corresponding programme light will be ON to indicate
which WASH CYCLE has been selected.
3、D :
、
5、 Press this button to start or pause the dishwasher.
6、Child lock button: Press the two buttons for 3 seconds, the appliance
could be locked and any button can not be used. 7、Program indicator light：When you select a washing programme ,
the corresponding light will display.
elay button The START DELAY will allow you to delay the
start time of any cycle automatically up to 24hours. 4 " 3 in 1 " button: Press this button you can choose or cancel the
?3 in 1? function.
Start \pause button:
、 、
、Child lock : 、
12、Washing light: To come on when the dishwasher is washing.
、 、
8 Salt refill indicator: The indicator lights up when the softener
needs to be refilled. 9 Rinse aid refill indicator: The indicator lights up when dispenser
needs to be refilled. 10 indicator The ?Child Lock? will be available when
you press the Child lock buttons for 3 seconds, and the "Child lock" indicator lights up after flashing 6 times. 11 3 in 1 indicator: The indicator lights up when the additional function be selected. 13 Drying light: To come on when the dishwasher is drying. 14 Digital display: To display the running time remain, Malfunction codes and delay time.
16
7
12
23
11
5
8 9
10 13
14
4
Prog ram
Powe r
Dela y Sta rt /Pa use
3 in 1
Eco
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
SAVE THESE INSTRUCTIONS
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed.
Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is
open.
The door should not be left in the open position since this could present a tripping hazard.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Please dispose of packing materials properly.
During installation, the power supply must not be excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets, and the old hose-sets
should not be reused.
Make sure that the carpet must not obstruct the openings at the bottom base.
Use the dishwasher only for its intended function.
The dishwasher is intended for indoor use only.
The dishwasher is not designed for commercial use. It is intended for use in domestic households
and in similar working and residential environments.
2．Disposal
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Cut off the power
supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and should be disposed in the waste
paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office
and your household waste disposal service
IMPORTANT!
To get the best performance from your dishwasher, read all
operating instructions before using it for the first time.
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
(e.g. PS for polystyrene, padding material)
This appliance is identified according to the European guideline
2012/19/EU on waste electrical and electronic equipment -WEEE. The
guideline specifies the framework for an EU-wide valid return and re-use of
old appliances.
WARNING!

4
12
Clark
4．Prior Using for the First Time
Dishwasher Features
Before using your dishwasher for the first time:
A. Set the water softener
B. Pour 500ml of water inside the salt container and then fill with dishwasher salt
C. Fill the rinse aid dispenser
D. Function of detergent
A. Water Softener
The water softener is designed to remove minerals and salts from the water, which would have a
detrimental or adverse effect on the operation of the appliance. The higher the content of these
minerals and salts, the harder the water is. The softener should be adjusted according to the
hardness of the water in your area. Your local Water Authority can advise you on the hardness of
the water in your area.
5
B. Loading the Salt into the Softener
Always use salt intended for using with dishwasher.
NOTE: If your model has no water softener, you may skip this section
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
The appliance is equipped with a special softener that uses salts specifically
designed to eliminate lime and minerals from the water.
The salt container is located beneath the lower basket and should be filled as follows:
Attention!
Only use salt specifically designed for use in dishwashers! All other types of salt not specifically
designed for use in a dishwasher, especially table salt, will damage the water softener. In case of
damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is
liable for any caused damages.
Only fill with salt just before starting one of the complete washing programmes.
This will prevent any grains of salt or salty water, which may have been split, remaining on the
bottom of the machine for any period of time, which may cause corrosion.
After the first wash cycle the control panel light expires.
Front View
1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Water Softener
5 Detergent Dispenser
6 Rinse Aid Dispenser
7 Cutlery Tray
8 Cup Holder
5
8
7
2
43
56
1
Water hardness
Range
Mmol/l Set value on
the machine
0-8
9-10
11-12
13-15
16-20
21-26
27-38
39-62
soft
soft
medium
medium
medium
hard
hard
hard
0-1.1
1.2-1.4
1.5-1.8
1.9-2.1
2.2-2.9
3.0-3.7
3.8-5.4
5.5-8.9
H0
H1
H2
H3
H4
H5
H6
H7
Water hardness table
A. Remove the lower basket and then unscrew and remove the cap from the salt container.
B. If you are filling the container for the first time, fill 2/3 of its volume with water (around 500ml).
1
2
Setting
The amount of salt dispensed can be set from H0 to H7.
Salt is not required at the set value H0.
1. Find out about the hardness value of your tap water. Your water utility company will help you
with this.
2. Set value can be found in the water hardness table.
3. Close the door.
4. Switch on "Power" switch.
5. Hold down " Delay" button and then press "Program" button for 5 seconds.The buzzer rings
one time and H..
flashes on the digital display.(factory setting is H4)
To change the setting:
1. Press " Delay " button.
Each time the button is pressed, the set value
increasesby one level;when the value of H7 has
been reached, the display jumps back to H0(off).
2. Press " Program " button. The chosen setting
has now been stored.
Contact your local water board for infor-
mation on the hardness of your water
supply.

1. The salt container must be refilled when the salt warning light in the control panel comes
on. Though the salt container is filled enough, the indicator light may not black out before
the salt fully dissolve. If there is no salt warning light in the control panel (for some models),
you can judge when to load the salt into the softener by the cycles that the dishwasher had
run (see the following schema).
2. If there are spills of the salt, a soak program could be run to wipe them out.
NOTE:
1
2
3
2
13
1
2
3
4
5
6
MAX
1
2
3
4
5
6
MAX
7
D. Function of Detergent
C. Fill the Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak
free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light on the control panel, you can judge the amount of rinse-aid by
the color of the optical level indicator "D" located next to the cap. When the rinse-aid container is
full, the whole indicator will be dark .As the rinse aid diminishes, the size of the dark dot decreases.
You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
D (Rinse-Aid indicator)
RINSE AID DISPENSER
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, be careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the "closed" (right)
arrow.
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes
that can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes.
Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the
door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator
turns completely black. The volume of the rinse aid container is about 140ml.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during the
next wash.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has four of six settings. Always start with
the dispenser set on "4" If spots and poor drying are problems,
increase the amount of rinse aid dispensed by removing the
dispenser lid and rotating the dial to "5". If the dishes still are not
drying properly or are spotted, adjust the dial to the next higher
number until your dishes are spot-free. The dose is factory set in
position 5.
NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife
blades.
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out
of the dishwasher. Most of commercial quality detergents are suitable for this purpose.
Concentrated Detergent
Based on their chemical composition, dishwasher can be split in two basic types:
■conventional, alkaline detergents with caustic components
■low alkaline concentrated detergents with natural enzymes
The use of "Eco" washing programme in conjunction with concentrated detergents reduces pollution
and is good for your dishes; these washing programmes are specially matched to the dirt-dissolving
properties of the enzymes of the concentrated detergent. For this reason"Eco" washing programme
in which concentrated detergents are used can achieve the same results that can otherwise only be
achieved using"intensive" programme.
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some detergent
6
Adjust lever
(Rinse)
C. Place the end of the funnel (supplied) into the hole and introduce about 2kg of salt. It is
normal for a small amount of water to come out of the salt container.
D. Carefully screw the cap back on.
E. Usually, the salt warning light will be off in 2-6 days after the salt container is filled with salt.
