DISHWASHER USER MANUAL
Website:www.galanz.com
广东格兰 仕 微 波生活电 器 制 造有限公 司

Read this Manual
Dear Customer,
Please read this User Information carefully
and keep it to refer to at a later date.
Pass it on to any subsequent owner of the
appliance.
This manual contains sections of Safety
Instructions, Operating Instructions, Installation
Instructions and Troubleshooting Tips, etc.
Carefully read it before using the dishwasher
will help you to use and maintain the
dishwasher properly.
Before Calling for Service
To review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself and not need to ask for the help of
professional technicians.
NOTE:
The manufacturer, following a policy of
constant development and up-dating of
the product, may make modifications
without giving prior notice.
1) Safety Information .............................1-2
2) Disposal ................................................2
3) Operation Instruction.........................3-4
Control Panel ..............................................3
Dishwasher Features ..................................4
4) Prior using for the first time .............4-9
Water Softener .........................................4-5
Loading the Salt into the Softener.............5-6
Fill the Rinse Aid Dispenser......................6-7
Function of Detergent ..............................7-9
5) Loading the Dishwasher Baskets..10-13
6) Starting a washing programme ....14-15
Wash Cycle Table ......................................14
Turning on the Appliance............................14
Change the Programme.............................15
Forget to Add Dish ...............................15
7) Maintenance and cleaning.............16-18
8) Installation .....................................18-21
Positioning and leveling .......................18-19
Connecting the water and electricity supplies
..............................................................19-21
9) Troubleshooting Tips.....................21-25
Error codes ...............................................21
Before calling for service .....................22-23
Technical information ................................24-25
WARNING !
When using your dishwasher, follow the basic precautions including the following:
1
WARNING! HYDROGEN GAS IS EXPLOSIVE
Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on all hot-water faucets and let the
water flow from each for several minutes. This will release some accumulated hydrogen gas. As the
gas is flammable, do not smoke or use an open flame during this time.
WARNING! PROPER USE
Do not abuse, sit on, or stand on the door or dish basket of the dishwasher.
Do not touch the heating element during or immediately after use.
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door
very carefully if the dishwasher is operating. There is a risk of water squirting out.
Do not place any heavy objects or stand on the door when it is open. The appliance could tip
forward.
When loading items to be washed:
Locate sharp items so that they are not likely to damage the door seal;
Load sharp knives with the handles up to reduce the risk of cut-type injuries;
Warning: Knives and other utensils with sharp points must be loaded in the basket with their
points down or placed in a horizontal position.
When using your dishwasher, you should prevent plastic items from contacting with heating
element.
Check that the detergent receptacle is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap,
laundry detergent, or hand washing detergent in your dishwasher.
Other means for disconnection from the supply must be incorporated in the fixed wiring with at
least 3mm contact separation in all poles.
Keep children away from detergent and rinse aid, keep children away from the open door of the
dishwasher , there could still be some detergent left inside.
Young children should be supervised to ensure that they do not play with the appliance.
This product is not designed for use by persons (including children) who have reduced physical,
sensory or mental capacities or persons with no experience or knowledge, unless they are
instructed and supervised in the use of the appliance by a person responsible for their safety.
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed.
Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is
open.
The door should not be left in the open position since this could present a tripping hazard.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Please dispose of packing materials properly.
1. Safety Information

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
SAVE THESE INSTRUCTIONS
During installation, the power supply must not be excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets, and the old hose-sets
should not be reused.
Make sure that the carpet must not obstruct the openings at the bottom base.
Use the dishwasher only for its intended function.
The dishwasher is intended for indoor use only.
The dishwasher is not designed for commercial use. It is intended for use in domestic households
and in similar working and residential environments.
2．Disposal
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Cut off the power
supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and should be disposed in the waste
paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office
and your household waste disposal service
IMPORTANT!
To get the best performance from your dishwasher, read all
operating instructions before using it for the first time.
2
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
(e.g. PS for polystyrene, padding material)
This appliance is identified according to the European guideline
2002/96/EC on waste electrical and electronic equipment -WEEE. The
guideline specifies the framework for an EU-wide valid return and re-use of
old appliances.
WARNING!

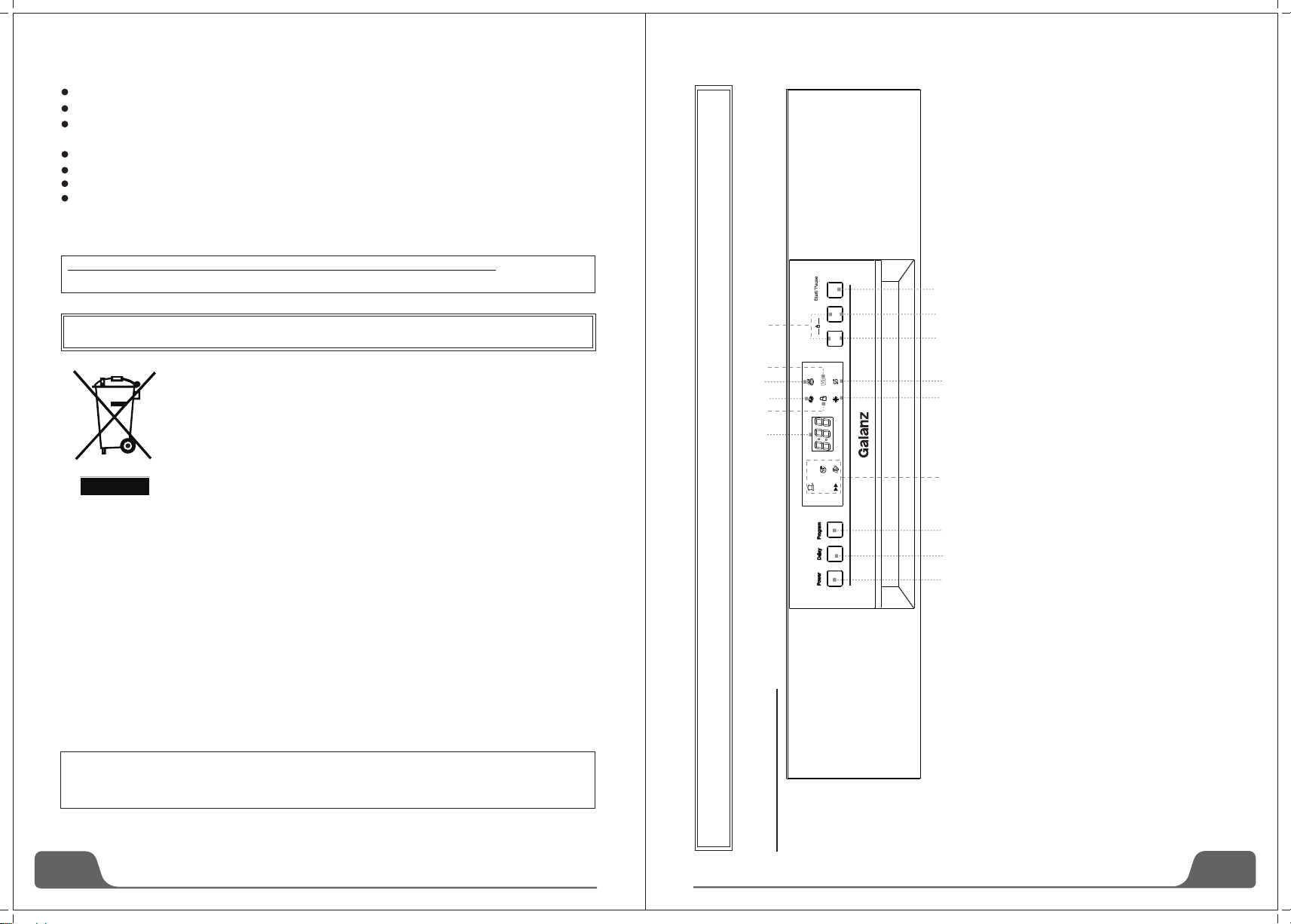

Control Panel
3. Operation Instruction
3
1 2 3
12
85
9 10
11 13
4
15 14 7
3 in1
Eco
Alt
1. Power switch: To turn on/off the power supply.
2.D : 3.Program key-press: Press the key to scroll through the wash
cycles. The corresponding program light will be ON to indicate which
WASH CYCLE has been selected.
.
6. Press this button to start or pause the
dishwasher.
7.Child lock button: Press the two buttons for 3 seconds, the appliance could be locked and any button can not be used.
elay button The START DELAY will allow you to delay the start
time of any cycle automatically up to 24hours. 4 "3 in 1" button: Press this button you can choose or cancel the "3 IN 1" function. 5. ALT button: Press this button you can choose the additional
functions of Dry+, Half Load, or you can have Dry+ and Half Load fucntions working at the same time, and the correponding light flashes.
Start \pause button:
8.Program indicator light: When you select a washing program, the
corresponding light will display.
9.
.
. Child lock :
.
13. Dry+ indicator: the Dry+ Indicator lights up when the Dry+
additional function be selected.
. Half_Load indicator the Half Load Indicator lights up when the
Half Load additional function be selected.
.
Rinse aid refill indicator: The indicator lights up when dispenser
needs to be refilled. 10 Salt refill indicator: The indicator lights up when the softener
needs to be refilled. 11 indicator The "Child Lock " will be available when you
press the Child lock buttons for 3 seconds, and the "Child lock " indicator lights up after flashing 6 times. 12 3 in 1 indicator: The indicator lights up when the additional
function be selected. 14 15 Digital display: To display the running time remain, malfunction
codes and delay time.
6
Reset(3Sec)
Auto

4
12
Clark
4．Prior Using for the First Time
Dishwasher Features
Before using your dishwasher for the first time:
A. Set the water softener
B. Pour 500ml of water inside the salt container and then fill with dishwasher salt
C. Fill the rinse aid dispenser
D. Function of detergent
A. Water Softener
The water softener is designed to remove minerals and salts from the water, which would have a
detrimental or adverse effect on the operation of the appliance. The higher the content of these
minerals and salts, the harder the water is. The softener should be adjusted according to the
hardness of the water in your area. Your local Water Authority can advise you on the hardness of
the water in your area.
5
B. Loading the Salt into the Softener
Always use salt intended for using with dishwasher.
NOTE: If your model has no water softener, you may skip this section
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
The appliance is equipped with a special softener that uses salts specifically
designed to eliminate lime and minerals from the water.
The salt container is located beneath the lower basket and should be filled as follows:
Attention!
Only use salt specifically designed for use in dishwashers! All other types of salt not specifically
designed for use in a dishwasher, especially table salt, will damage the water softener. In case of
damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is
liable for any caused damages.
Only fill with salt just before starting one of the complete washing programmes.
This will prevent any grains of salt or salty water, which may have been split, remaining on the
bottom of the machine for any period of time, which may cause corrosion.
After the first wash cycle the control panel light expires.
Front View
1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Water Softener
5 Detergent Dispenser
6 Rinse Aid Dispenser
7 Cutlery Tray
8 Cup Holder
5
8
7
2
43
56
1
Water hardness
Range
Mmol/l Set value on
the machine
0-8
9-10
11-12
13-15
16-20
21-26
27-38
39-62
soft
soft
medium
medium
medium
hard
hard
hard
0-1.1
1.2-1.4
1.5-1.8
1.9-2.1
2.2-2.9
3.0-3.7
3.8-5.4
5.5-8.9
H0
H1
H2
H3
H4
H5
H6
H7
Water hardness table
A. Remove the lower basket and then unscrew and remove the cap from the salt container.
B. If you are filling the container for the first time, fill 2/3 of its volume with water (around 500ml).
1
2
Setting
The amount of salt dispensed can be set from H0 to H7.
Salt is not required at the set value H0.
1. Find out about the hardness value of your tap water. Your water utility company will help you
with this.
2. Set value can be found in the water hardness table.
3. Close the door.
4. Switch on "Power" switch.
5. Hold down " Delay" button and then press "Program" button for 5 seconds.The buzzer rings
one time and H..
flashes on the digital display.(factory setting is H4)
To change the setting:
1. Press " Delay " button.
Each time the button is pressed, the set value
increasesby one level;when the value of H7 has
been reached, the display jumps back to H0(off).
2. Press " Program " button. The chosen setting
has now been stored.
Contact your local water board for infor-
mation on the hardness of your water
supply.

1. The salt container must be refilled when the salt warning light in the control panel comes
on. Though the salt container is filled enough, the indicator light may not black out before
the salt fully dissolve. If there is no salt warning light in the control panel (for some models),
you can judge when to load the salt into the softener by the cycles that the dishwasher had
run (see the following schema).
2. If there are spills of the salt, a soak program could be run to wipe them out.
NOTE:
1
2
3
2
13
1
2
3
4
5
6
MAX
7
D. Function of Detergent

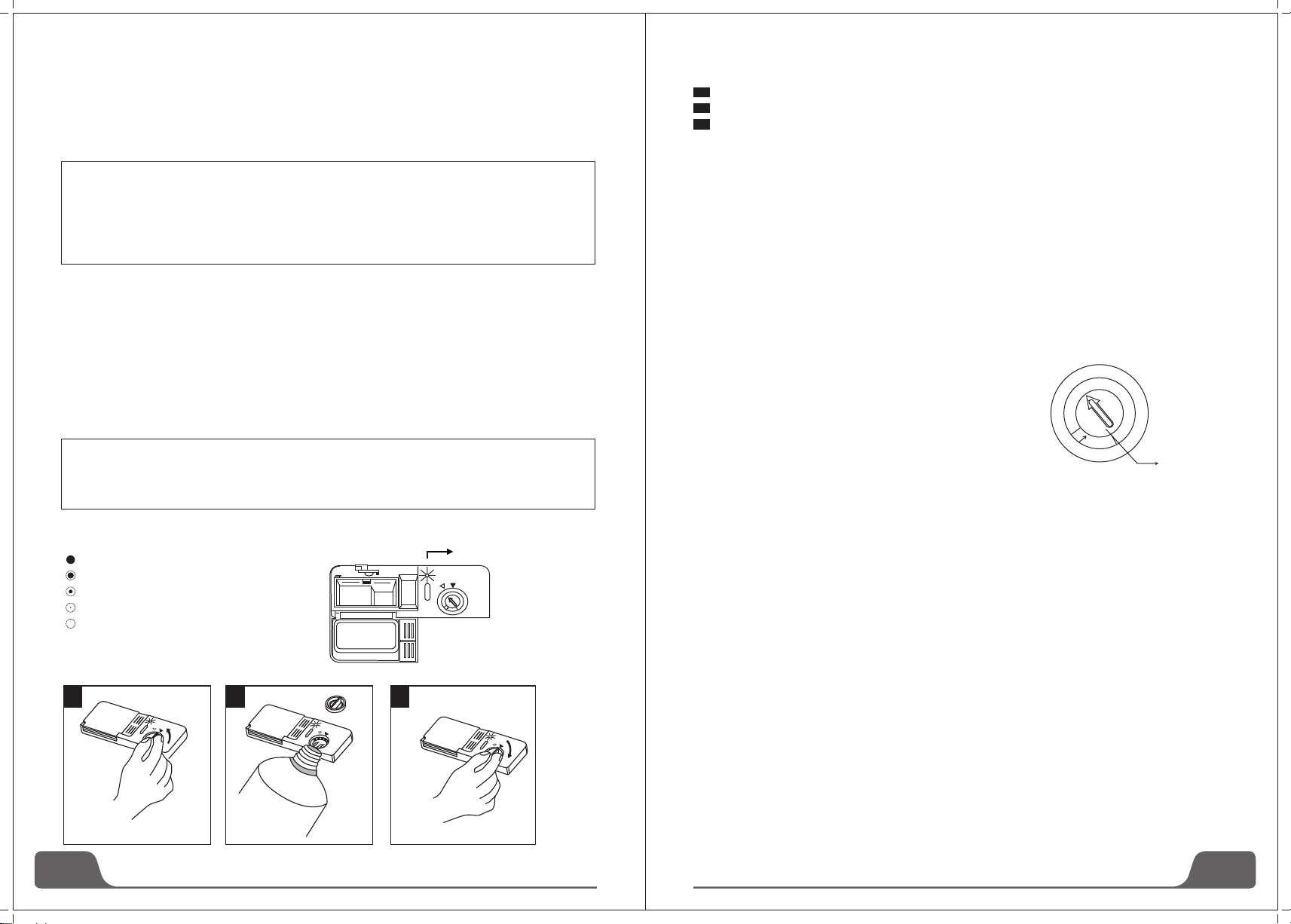

C. Fill the Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak
free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light on the control panel, you can judge the amount of rinse-aid by
the color of the optical level indicator "D" located next to the cap. When the rinse-aid container is
full, the whole indicator will be dark .As the rinse aid diminishes, the size of the dark dot decreases.
You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
D (Rinse-Aid indicator)
RINSE AID DISPENSER
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, be careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the "closed" (right)
arrow.
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes
that can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes.
Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the
door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator
turns completely black. The volume of the rinse aid container is about 140ml.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during the
next wash.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has four of six settings. Always start with
the dispenser set on "4" If spots and poor drying are problems,
increase the amount of rinse aid dispensed by removing the
dispenser lid and rotating the dial to "5". If the dishes still are not
drying properly or are spotted, adjust the dial to the next higher
number until your dishes are spot-free. The dose is factory set in
position 5.
NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife
blades.
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out
of the dishwasher. Most of commercial quality detergents are suitable for this purpose.
Concentrated Detergent
Based on their chemical composition, dishwasher can be split in two basic types:
■conventional, alkaline detergents with caustic components
■low alkaline concentrated detergents with natural enzymes
The use of "Eco" washing programme in conjunction with concentrated detergents reduces pollution
and is good for your dishes; these washing programmes are specially matched to the dirt-dissolving
properties of the enzymes of the concentrated detergent. For this reason"Eco" washing programme
in which concentrated detergents are used can achieve the same results that can otherwise only be
achieved using"intensive" programme.
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some detergent
6
Adjust lever
(Rinse)
1
2
3
4
5
6
MAX
C. Place the end of the funnel (supplied) into the hole and introduce about 2kg of salt. It is
normal for a small amount of water to come out of the salt container.
D. Carefully screw the cap back on.
E. Usually, the salt warning light will be off in 2-6 days after the salt container is filled with salt.

2
1
WARNING!
Dishwasher detergent is corrosive! Take care to keep it out of reach of children
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Don't put powder detergent into the dispenser until you're ready to wash dishes.
2
1
9
8
NOTE:
If the lid is closed: press release button. The lid springs open.
Always add the detergent just before starting each wash cycle. Only use branded detergent aid
for dishwasher.
Fill in the detergent
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
The place of main wash cycle detergent placed,
MIN means approximately 20g of detergent.
The place of pre-wash cycle detergent placed ,
approximately 5g of detergent.
" "
NOTE:
You find information about the amount of detergent for the single programme on the last page.
Please be aware that according to the level soiling and the specific hardness of water, differences
are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chloride
Normally new pulverized detergent is without phosphate. The water softener function of phosphate
is not given. In this case we recommend to fill salt in the salt container even when the hardness of
water is only 6 dH. If detergents without phosphate were used in case of hard water often white
spots appear at dishes and glasses. In this case please add more detergent to reach better results.
Detergents without chlorine do only bleach a little. Strong and coloured spots will not removed
completely. In this case please choose a programme with higher temperature.
1. Press the power switch and select the 3in1 washing cycle by pressing the function alternative
button until the "3in1" indicator blinks.
2. The 3in1 washing cycle will be available after pressing the start/pause button , and the"3in1"
indicator lights.
Use of "3 in 1" Detergent Tablets
General Advice
1. Before using these products you should first check that the water hard-ness in your supply is
compatible with the use of these products as per the detergent manufacturers instructions (on the
product packaging).
2. These products should be strictly used according to the detergent manufacturers instructions.
3. If you encounter problems when using "3 in 1" products for the first time then please contact the
detergent manufacturers care line (the telephone number is given on the product packaging).
These products are detergents with integrated and combined detergent/rinse aid and salt functions.
Before using these products you should first check that the water hardness in your supply is
compatible with the use of these products as per the detergent manufacturers (on the product
packaging).
Special Advice
When using combination products, the rinse-aid and salt lights are no longer useful. It may be
helpful to select the lowest possible setting for water hardness.
To select "3in1" function:
To cancel "3in1" function:
Follow the 'Cancelling a programme in progress' instructions.If you decide to switch to the use of a
standard detergent system we advise that you:1. Refill both the salt and rinse aid compartments.
2. Switch the water hardness setting to the highest possible position and run for three Eco cycles
without load.
3. Readjust the water hardness setting again according to the conditions for your region (For more
information please refer to your instruction manual).
Note:3in1washing cycle is additional function, they must be used with other programme (Intensive,
Eco and Light).
cannot dissolve and develop their full cleaning power during short programmes. Therefore please
use long programmes when using detergent tablets, to ensure the complete removal of detergent
residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each washing cycle following the instructions
provided in the Wash Cycle Table. Your dishwashers use less detergent and rinse aid than
conventional dishwashers. Generally, only one tablespoon of detergent is needed fora normal wash
load. Also, more heavily soiled items need more detergent. Always add the detergent just before
starting dishwasher, otherwise it could get damp and will not dissolve properly.
Amount of Detergent to Use
Please observe the manufacturer's dosing and storage recommendations as stated on the
detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the pre-wash phase.
1 2
1
2
3
4
5
6
MAX
2
1

Lower Basket
1
2
11
10
For best performance of the dishwasher, follow these loading guidelines. Features and appearance
of baskets and Cutlery tray may vary from your model.
Attention before or after Loading the Dishwasher Baskets
1. Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under
running water. Place objects in the dishwasher in the following way:
A. Items such as cups, glasses, pots/pans, etc. are stood upside down.
B. Curve items, or those with recesses, should be at a slant so that water can run off.
C. They are stacked securely and can not tip over.
D. They do not prevent the spray arms from rotating while washing takes place.
2. Very small items should not be washed in the dishwasher as they could easily fall out of the
Baskets.
3. The upper and lower baskets can not be pull out in the same time when the dishwasher is
Loading, or it may lead to dumping.
Removing the Dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
Loading the Upper Basket
The upper basket is designed to
hold more delicate and lighter
dishware such as glasses,
coffee and tea cup and
saucers, as well as plates,
small bowls and shallow
pans (as long as they are
not too dirty). Position the
dishes and cookware so
that they do not get moved
by the spray of water.
Adjusting the Upper Basket
If required, the height of the upper basket can be adjusted in order to create more space for large
utensils either in the upper basket or lower basket. The upper basket can be adjusted for height by
putting wheels of different height into the rails. Long items, serving cutlery, salad servers or knives
should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf
can be folded back or removed when not be required for use.
5．Loading the Dishwasher Baskets
Loading the Lower Basket
We recommend that you place large items which are most difficult to clean in to the lower basket:
pots, pans, lids, serving dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on the side of the baskets in order to avoid blocking
the rotation of the top spray arm.
Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded.
Lower basket
Folding racks
Folding racks consisting of two parts that
are located on the lower basket of your
machine are designed in order to let you
place big items easier as pots, pans, etc.
If requested, each part can be folded
separately, or all of them can be folded
and larger can be obtained. You can use
folding racks by rasing then upwards, or
by folding.
For optional
Lower basket
Type Item
Dessert plate
G
H
I
Dinner plate
Soup plate
Serving bowl
Oval plate
J
F
Upper basket
Type Item
Cup
Glass
Saucer
Serving bowl
Serving bowl
A
B
C
D
E
Upper Basket
IN
A1
A4
B7
B12
B1
B6
C1
C14
A10
A14

1 2 345678
13
12
For washing in the dishwasher the following cutlery/dishes
Are not suitable
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Lead crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibre
WARNING!
Do not let any item extend through bottom
Are of limited suitability
Some types of glasses can become
dull after a large number of washes
Silver and aluminium parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
NOTE:
new dishes please make sure that they are suitable for dishwashers.
Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy
NOTE:
use dish that is not suitable for dishwashers. This is important for good results and for reasonable
energy consumption.
Please do not overload your dishwasher. There is only space for 14 standard dishes. Do not
Before loading the dishes, you should:
Remove large left-over
Soften remnants of burnt food in pans
Loading Cutlery and Dishes
When Loading the Dishes and Cutlery, Please Note:
Dishes and cutlery must not impede the rotation of the spray arms.
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that water cannot
collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other
■To avoid damage to glasses, they must not touch
■Load large items which are most difficult to clean into the lower basket
■The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and
tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper
basket
Attention!
Damage to Glassware and other Dishes
Possible causes:
■Type of glass or manufacturing process. Chemical composition of detergent.
■Water temperature and duration of dishwasher programme.
Suggested remedy:
■Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.
■Use a mild detergent that is described as kind of dishes. If necessary, seek further information from
detergent manufacturers.
■Select a programme with a low temperature.
■To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the
programme has ended.
Cutlery tray
Arrange the cutlery in the tray as shown. Cutlery should be placed to ensure that water runs
off freely.
At the End of the Wash
When the working cycle has finished, the buzzer of dishwasher will ring for 6 times, then stop. Turn
off the appliance using the "Power" button, shut off the water supply and open the door of the
dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and
utensils while they are still hot and more susceptible to breakage. They will also dry better.
Cutlery tray
Type Item
Tea spoons
Dessert spoons
Soup spoons
Forks
Knives
Serving fork
1
2
3
4
5
6
7
8Serving spoons
Gravy ladle
Door side
Cutlery tray

WARNING!
Programme)
(Standard
15
14
6. Starting a Washing Programme
It is dangerous to open the door when washing, because the hot water may scald you.
Switch Off the Dishwasher
The digital display appears "---" and the buzzer rings 6 times, only in this case the programme has
ended.
1.Switch off the dishwasher by pressing the "Power " button.
2.Turn off the water tap!
Open the door carefully. Hot steam may escape when the door is opened!
■Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around
15 minutes before removing from the appliance.
■Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In
this way they will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper
basket onto the dishes in the lower one.
Switching on
1. Open the tap, if it is closed.
2. Close the door.
3. Make sure the spray arms are not obstructed.
4. Switch the dishwasher on using the "Start/Pause" button.
Select a programme
Choose your programme according to the type of load and how dirty it is.
The different programmes and their uses are described in the programme chart later on in this
booklet. Use the programme selector to select the expected programme .
Change the Programme.
Premise: A cycle that is underway can only be modified if it has only been running for a short time.
Otherwise, the detergent may have already been released, and the appliance may have already
drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section
entitled " Fill in the Detergent " ).
1.Press " Power " button or reset button for 3 second to cancel the programme.
2.Turn on it again and you can change the programme to the desired cycle setting (see the section
entitled "Starting a wash cycle. . . " ) or press programme button while you press "reset " button .
NOTE: If you open the door when the washing cycle underway, the appliance will pause and emit
warning signals, the digital display show "E1" and flash. When you close the door, the machine will
keep on working after 10 seconds.
Forget to Add Dish
A forgotten dish can be added any time before the detergent cup opens.
1 Open the door a little to stop the washing.
2 After the spray arms stop working, you can open the door completely.
3 Add forgotten dishes.
4 Close the door, the dishwasher will work after ten seconds.
Starting a wash cycle...
Draw out the lower and upper basket, load the dishes and
1. push them back. It is recommended to load the lower basket first, then the upper one (see the
section entitled "Loading the Dishwasher"). Pour in the detergent (see the section entitled "Salt,
Detergent and Rinse Aid").
2. Insert the plug into the socket. The power supply is 220-240V AC 50 Hz, the specification of the
socket is 12 A 250 VAC.50 Hz.
Make sure that the water supply is turned on to full pressure. Close the door, press the "Power"
button, press the "program". button to select a desired "Wash cycle". (See the section entitled "Wash
Turning on the Appliance
Cycle Table".)
With a little force to ensure the door is properly closed.
NOTE: A click could be heard when the door is closed perfectly.
When the washing is over, you can shut off the switch by pressing "Power" button.
Wash cycle table
Program Cycle Selection
Information
Description
of Cycle
Detergent
Pre/main
Running
Time
(min)
Energy
(kWh) Water
(L)
Intensive
Eco
Auto
Rapid
Pre-Rinse
For the heaviest soiled loads,
such as pots, pans, casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
For lightly and normally soiled
plates and pans for every day.
A shorter wash for lightly
soiled loads that do not
need drying.
To rinse dishes that you
plan to wash later that day
Pre-wash
Main wash(60℃)
Rinse1
Rinse2
Hot rinse
Drying
Pre-wash
Main wash(46℃)
Hot rinse
Drying
Pre-wash
Main wash
Rinse
Hot rinse
Drying
Hot rinse1
Hot rinse2
Hot rinse(60℃)
Drying
Main wash(40℃)
Hot rinse
Pre-wash
5/30g
5/30g
5/25g
5/20g
15g
169
178
101-221
60
36
11
1.500
0.930
0.600
-1.700
1.000
0.550
0.010
18
11
8-18
11.5
7
4
50242:this program is the test cycle.
EN
The information for comparability test in accordance with EN 50242,as follows:
-
-
Position of upper basket :Low position
Capacity:14 settings
-
Rinse aid setting:5(or 4 for four setting dispenser)
(*E 50242)
N
60 min
(or 3 in 1)
(or 3 in 1)
Is optimised according to the
soiled loads,such as
pots,pans,utensils and
cutlery,with the aid of sensors

WARNING!
WARNING!
17
16

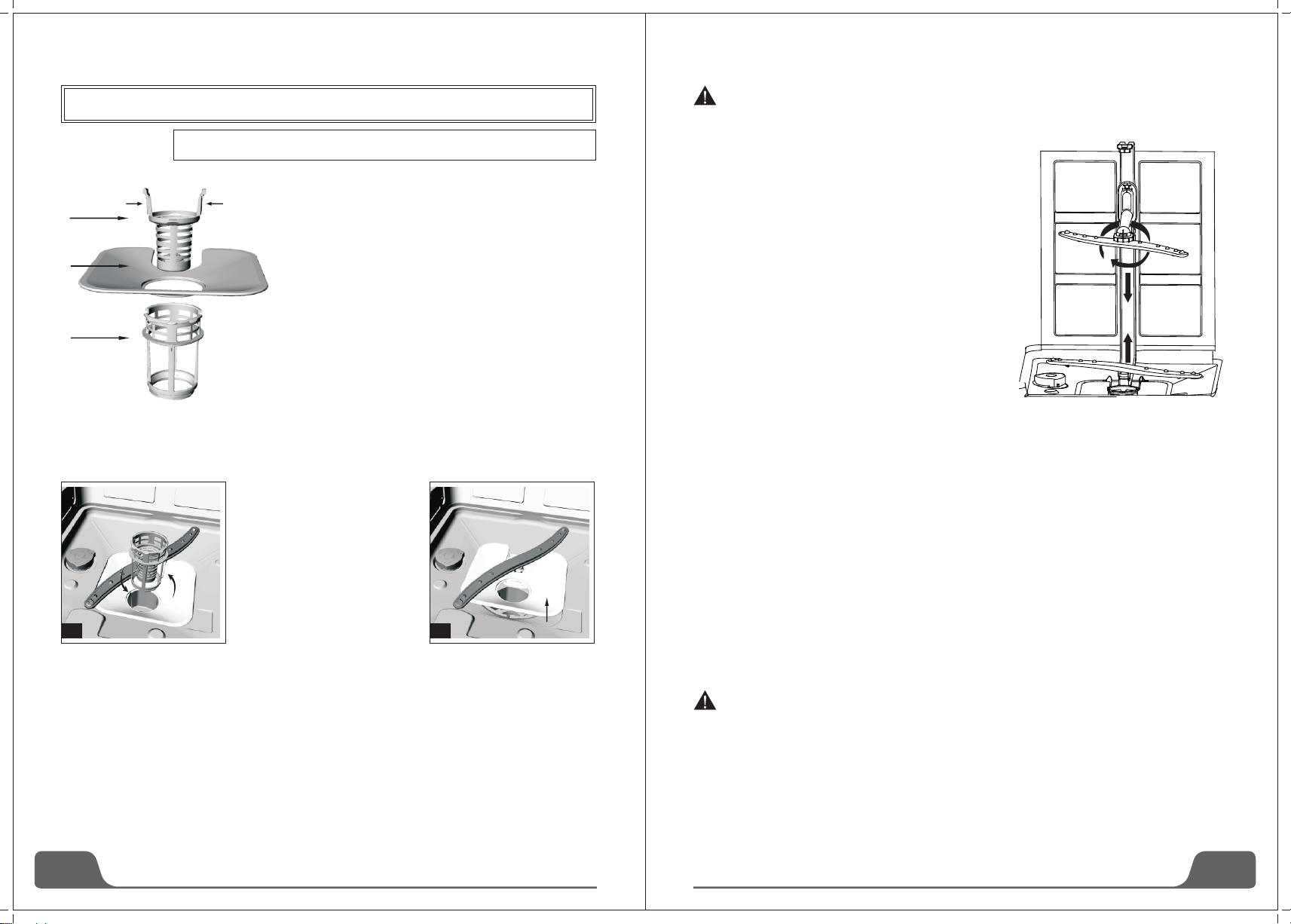

Filtering System The filter is used to avoid the big remnants and other sundries getting inside
the pump. The residue can obstruct the filter in sometime.
The filter system consists of a coarse filter, a flat
(Main filter) and a micro filter (fine filter).
1 Flat filter
Food and debris will be trapped by a special jet
on the lower spray arm.
2 Coarse filter
Big debris, such as bone and glass that could clog the
drain will be trapped in the coarse filter.
To remove an item caught in this filter, gently squeeze
the taps on the top of this filter and lift it out.
3 Micro filter
This filter holds soil and food residue in the sump area
and prevents it from being redeposit on the dishes
during a cycle.
- Inspect the filters for obstructions every time the
dishwasher has been used.
- By unscrewing the coarse filter, you can remove
the filter system. Remove any food remnants and
clean the filters under running water.
Step 1：contrarotate the
Coarse filter ,and then lift it up;
Step 2：lift the filter upFlat
7. Maintenance and cleaning
NOTE:
to step 1, the filter system will be installed.
If operate from step 1 to step 2, the filter system will be removed; while operate from step 2
Filter assembly
For best performance and results, the filter assembly must be cleaned. The filter efficiently removes
food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it
is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing
the semicircular filter and cup under running water. To remove the filter assembly, pull on the cup
handle in the upward direction. The entire filter assembly should be cleaned once a week. To clean
the coarse filter and the micro filter, use a cleaning brush. Then, reassemble the filter parts as shown
in the figures above and reinsert the entire assembly in the dishwasher, positioning in its seat and
pressing downward. The dishwasher must never be used without the filters. Improper replacement
of the filter may reduce the performance level of the appliance and damage dishes and utensils.
Never run the dishwasher without the filters in place. When cleaning the filters, don't knock on them.
Otherwise, the filters could be contorted and the performance of dishwasher could be debased.
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
To remove the spray arms, screw off the nut clockwise to
take out the washer on top of the spray arm and remove the
arm. Wash the arms in soapy and warm water and use a soft
brush to clean the jets. Replace them after rinsing thoroughly.
Caring for the Dishwasher
To clean the control panel, use a lightly dampened cloth then
dry thoroughly.
To clean the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners
on any part of the dishwasher.
Protect Against Freezing
If your dishwasher is left in an unheated place during the winter, ask a service technical to:
1.Cut off electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter in the tub and the bottom and use a sponge to use up water in sump
Cleaning the Door
To clean the edge around the door, you should use only a soft warm, damp rag. To prevent
penetration of water into the door lock and electrical components, do not use a spray cleaner of any
kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch
the finish. Some papers towels can also scratch or leave marks on the surface.
Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical
components. It is not allowed to use the abrasive agent or some paper towel because of the risk of
scratching or leaving spots on the stainless steel surface.
1 2
2
1
3

max1100mm
min500mm
min120mm
min 40mm
19
18
How to Keep Your Dishwasher in Shape
After Every Wash
After every wash, turn off the water supply
to the appliance and leave the door slightly
ajar so that moisture and odors are not
trapped inside.
Remove the Plug
Before cleaning or performing
maintenance, always remove the plug from
the socket. Do not run risks.
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of
the dishwasher, do not use solvents or
abrasive cleaning products. Use only a
cloth and warm soapy water. To remove
spots or stains from the surface of the
interior, use a cloth dampened with water
and a little white vinegar, or a cleaning
product made specifically for dishwashers.
When You Go on holiday
When you go on holiday, it is
recommended that you run a wash cycle
with the dishwasher empty and then
remove the plug from the socket, turn off
the water supply and leave the door of the
appliance slightly ajar. This will help the
seals last longer and prevent odors from
forming in the appliance.
Moving the Appliance
If the appliance must be moved, try to keep
it in the vertical position. If absolutely
necessary, it can be positioned on its back.
Seals
One of the factors that cause odors to form
in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with
a damp sponge will prevent this.
Attention:
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard!
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death or
electrical shock.
Warning
8. Installation
Keep this instruction manual in a safe place for future reference. If the appliance is sold, given
away or moved, please ensure the manual is kept with the machine, so that the new owner may
benefit from the advice contained within it.
Please read this instruction manual carefully: it contains important information regarding the safe
installation, use and maintenance of the appliance.
If the appliance must be moved at any time, keep it in an upright position; if absolutely
necessary, it may be tilted onto its back.
Positioning and leveling
1. Remove the appliance from all packaging and check that it has not been damaged during
transportation. If it has been damaged, contact the retailer and do not proceed and further with the
installation process.
2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent
cabinets or even with the wall. This appliance can also be recessed under a single worktop .
3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the
appliance may be adjusted until it reaches a horizontal position (the angle of inclination must not
exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to
move or cause vibrations and noise while it is operation.
Connection to the water and electricity supplies should only be performed by a qualified
technician.
The dishwasher should not stand on top of the water hoses or the electricity supply cable
The appliance must be connected to the water supply network using new piping. Do not use old
piping.
Electrical connection
Before inserting the plug into the electrical socket, make sure that:
●the socket is earthed and complies with current regulations;
●the socket can withstand the maximum load of the appliance, which is indicated on the data plate
located on the inside of the door(see description of the appliance);
●the power supply voltage falls within the values indicated on the data plate on the inside of the door;
●the socket is compatible with the plug of the appliance. If this is not the case, ask an authorised
technician to replace the plug (see assistance); do not use extension cables or multiple sockets.

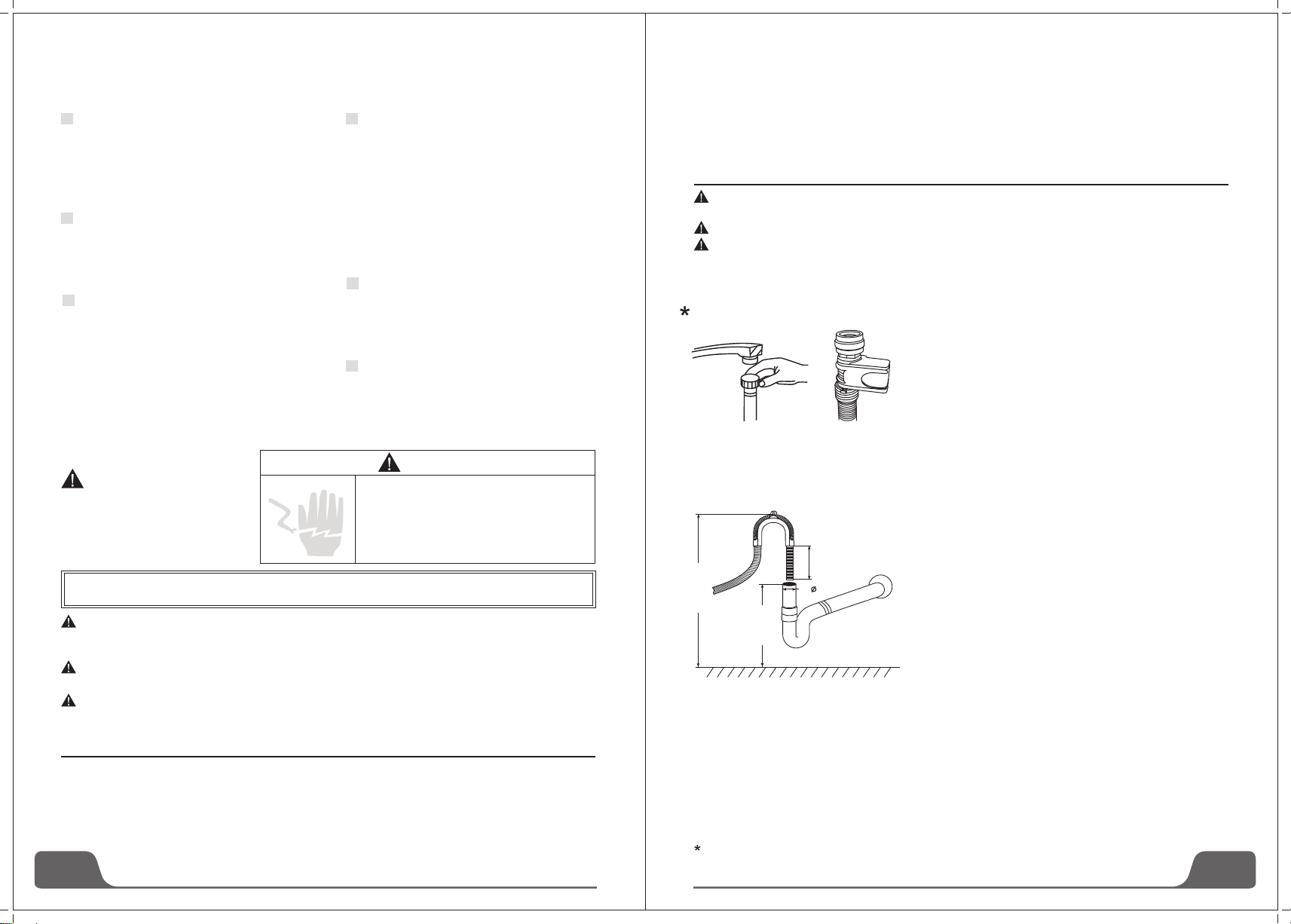

Connecting the water and electricity supplies
Connecting the water inlet hose
Connect the cold water supply hose to a threaded 3/4(inch)
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that
the water is clear and free of impurities. If this precaution is
not taken, there is a risk that the water inlet can get blocked
and the appliance could be damaged.
Fit the d rainage hose of your machine to the drainage pipe
without bending.
If the length of the hose is not sufficient, apply to the
authorized service for an extension made from the same
material as the original. Remember that the length of the
hose should not exceed 4meters even when with an
extension.
If the drainage hose is longer the 4 m. the dishes will not
be cleaned properly secure your hose firmly to the drainage
pipe to avoid it coming off during the washing process.
Connecting the water outlet hose
For optional

21
20
WARNING!
If overflow occurs, turn off the main water supply before calling a service. If there is water in the base
pan because of an overfill or small leak, the water should be removed before restarting the
dishwasher.
Once the appliance has been installed, the power supply cable and the electrical socket should
be easily accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical
Assistance Service in order to prevent all potential hazards.(See Assistance)
The company shall not be held responsible for any incidents that occur if these regulations are
not observed.
Advice regarding the first wash cycle
After the appliance has been installed, immediately before running the first wash cycle, completely
fill the salt dispenser with and add approximately 2 Kg of salt (see Rinse aid and refined salt). The
water may overflow: this is normal and is not a cause for concern. It is also normal that the LOW
SALT indicator light continues to flash for a few cycles after the salt has been loaded.
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and
the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and
drain hoses that can be positioned to the right or the left to facilitate proper installation.
Leveling the Appliance
Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the height of the
dishwasher, making it level. In any case, the appliance should not be inclined more than 2°.
NOTE: The maximum adjustment height of the feet is 20 mm.
How to Drain Excess Water From Hoses
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or a suitable
container that is held outside and lower than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water inlet hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, observe to use a similar drain hose..
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be
reduced.
Syphon Connection
The waste connection must be at a height of between 50cm (minimum) and 100cm (maximum)
from the bottom of the dish. The water drain hose should be fixed by a hose clip.
Attention
The followings should be checked before starting the dishwasher:
1 Whether the dishwasher is level and fixed
2 Whether the inlet valve is opened
3 Whether there is leakage at the connections of the conducts
4 Whether the wires are tightly connected
5 Whether the power is switched on
6 Whether the inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher
After installation, please put this manual into the bags of printings.
The content of this manual is very helpful to the users.
Start of Dishwasher
9. Troubleshooting Tips
Error codes
When some malfunctions happen, the appliance will display error codes to warn you.
Codes Meanings Possible Causes
Water drainage malfunction
E1
E2
E3
E4
E5
E6
E7
Door open
Water inlet
Water drainage
Temperature sensor
Overflow/leakage
Water leakage
Heating element
The door is opened when the
dishwasher is operating
Water inlet malfunction
Temperature sensor malfunction
Overflow occurs/Water leakage occurs
Water leakage occurs
Abnormal heating

23
22
Stained tub
interior
Detergent with
colorant was used Make sure that the detergent is the one without colorant.
Dishes and
flatware
not clean Make sure that the action of the detergent dispenser
and spray arms are not blocked by large dishware.
Improper program
Improper basket
loading
Select a stronger programme.
Spots and
filming on
glasses and
flatware
1 Extremely hard
water
2 Low inlet
temperature
3 Overloading the
dishwasher
4 Improper loading
5 Old or damp
powder detergent
6 Empty rinse agent
dispenser
7 Incorrect dosage
of detergent
To remove spots from glassware:
1 Take out all metal utensils out of the dishwasher.
2 Do not add detergent.
3 Choose the longest cycle.
4 Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
5 Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher.
6 Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
Before Calling for Service
Reviewing the charts on the following pages may make you be free of calling for service.
Use only the special dishwasher detergent to avoid
suds.If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then start the "pre-rinse" wash
cycle to drain out the water... Repeat if necessary.
Problem
Dishwasher
doesn't run
Drain pump
doesn't stop
Noise
Suds in
the tub
Possible Causes What To Do
Spilled rinse agent
Always wipe up rinse agent spills immediately.
Fuse blown, or the
circuit breaker acted
Power supply is
not turned on
Water pressure
is low
Overflow
The system is designed to detect an overflow. When it
does, it shuts off the circulation pump and turns on the
drain pump.
Some audible
sounds are normal
Utensils are not
secure in the
baskets or
something small
has dropped into
the basket
Motor hums
Improper detergent
Dishwasher has not been used regularly. If you do not
use it often, remember to set it to fill and pump out
every week, which will help keep the seal moist.
To ensure everything is secured in the dishwasher.
Sound from detergent cup opening.
Check that the water supply is connected properly and
the water is turned on.
Make sure the dishwasher is turned on and the door is
closed securely. Make sure the power cord is properly
plugged into the wall socket.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher.
Cloudiness
on glassware
Combination of soft
water and too much
detergent
Use less detergent if you have soft water and select a
shortest cycle to wash the glassware and to get them
clean.
Yellow or
brown film
on inside
surfaces
White film on
inside surface
The Detergent
dispenser lid
cannot be
closed prop
-erly
Detergent left
in dispenser
cups
Steam
Black or gray
marks on
dishes
Water
standing on
the bottom
of the tub
Iron deposits in
water can cause
an overall film
Dishes block
detergent Cups
Using a solution of 1/2 cup of bleach and 3 cups of
warm water to remove the stains by hand.
WARNING
You have to wait for 20 minutes after a cycle to let the
heating elements cool down before cleaning interior;
otherwise, burns will happen.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves. Never
use any other cleaner than dishwasher detergent for the
risk of foaming or suds.
Hard water minerals
Clogged detergent re
-sidue is blocking the
catch
Tea or coffee stains
A small amount of clean water around the outlet on
the tub bottom keeps the water seal lubricated.
Use a mild abrasive cleaner to eliminate those marks.
There is some steam coming through the vent by the
door latch during drying and water draining.
Re-loading the dishes properly.
Clean the detergent from the catch.
You have to call a water softener company for a special
filter.
This is normal
Aluminum utensils
have rubbed
against dishes
Normal phenomenon
Dishwasher
leaks Dishwasher
isn't level Make sure the dishwasher is level.
Be careful not to overfill the rinse aid dispenser.
Spilled rinse aid could cause oversudsing and lead
to overflowing. Wipe away any spills with a damp cloth.
Overfill dispenser or
rinse aid spills

25
24
Technical Data Sheet
Sheet of household dishwasher according to EU Directive 1059/2010:
Manufacture Galanz
Standard place settings
Model W60B1A101M-A
Energy efficiency class1
Annual energy consumption2
Energy consumption of the standard cleaning cycle
Power consumption of off-mode
Power consumption of left-on mode
Annual water consumption3
Drying efficiency class 4
Standard cleaning cycle5
Program duration of the cleaning cycle
Noise level
Mounting
Could be built in
Height
Width
Depth (with connectors)
Power consumption
Rated voltage / frequency
Water pressure / (flow pressure)
Water temperature
NOTE:
1. A+++ (highest efficiency) to D(lowest efficiency).
2. Energy consumption "266" kWh per year, based on 280 standard cleaning cycles using cold water
fill and the consumption of the low power modes. Actual energy consumption will depend on how
the appliance is used.
3 Water consumption "3080" litres per year, based on 280 standard cleaning cycles. Actual water
consumption will depend on how the appliance is used.
4 A (highest efficiency) to G(lowest efficiency).
5 This program is suitable for soiled normally soiled tableware and that it is the most efficient program
in terms of its combined energy and water consumption for that type of tableware.
The device meets the European standards and the directives in the current version at delivery.
-LVD 2014/35/EU
-EMC 2014/30/EU
-EUP 2010/1016
NOTE : The above values have been measured in accordance with standards under specified
operating conditions. Results may vary greatly according to quantity and pollution of the dishes ,
water hardness ,amount of detergent, etc.
The manual is based on the European Union's standards and rules.
Galanz
14
A++
266kWh
0.93kWh
0.35W
0.9W
3080 liter
A
Eco
178 min
49dB(A) re 1 pW
Freestanding
Yes
84.5cm
60.0cm
60.0cm
1850 W
AC 220-240 V/ 50 Hz
0.4-10bar=0.04-1.0MPa
Max.61 C
Guangdong Galanz Microwave Electrical Appliances Manufacturing Co., Ltd
