Galaxy Legacy 902518 Manual

Installation/Operating Instructions
READ THESE INSTRUCTIONS BEFORE FIRING UP YOUR BALLAST
WARRANTY This unit, when properly used will provide you with years of service. It is
covered under a 3 year warranty. This warranty will be voided if the unit is misused, abused
or altered. Warranty repair or replacement will be at the sole discretion of the manufacturer.
Defective units need to be returned to the place of purchase with proof of purchase/receipt.
This warranty is expressly in lieu of all other warranties, expressed or implied, including the
warranties of merchantability and fitness for use and of all other obligations or liabilities
on the part of the seller. This warranty shall not apply to this product or any part thereof
which has been damaged by accident, abuse, misuse, modification, negligence, alteration or
misapplication. Manufacturer makes no warranty whatsoever in respect to accessories or parts
not supplied by manufacturer. This warranty shall apply only to the United States, including
Alaska, Hawaii and territories of the United States and Canada. This warranty does not cover
labor, materials, travel time, equipment, etc. to de-install and install any lighting fixtures or
other equipment.
RETURNING UNITS Please contact your retail store for returns.
KEEP ORIGINAL PACKAGING— all returns need to be in the original packaging
in order to avoid product damage during shipping. Any damage to products not in
their original packaging will not be covered under warranty.
SAFETY FIRST! Failure to observe the following safety warnings may result in
serious injury. In addition, failure to observe these safety warnings will result in a
waiver of all liabilities and will void all warranties.
WARNING
 If the exterior of the lamp is damaged, replace lamp immediately.
 When re-lamping, make sure lamp has time to cool before touching.
 Make sure power cord and lamp cord are connected properly.
 Disconnect power before re-lamping.
DO NOT hang by power or lamp cord.
 DO NOT make contact with the interior of the socket while power is on.
 DO NOT operate light systems in wet locations.
  DO NOT plug system into supply voltage other than what is designated on ballast.
  DO NOT attempt to rewire or reconfigure your system, it will void warranty and
could cause serious safety hazards (i.e. power cord, lamp cord, lamp socket or ballast).
 Keep away from children.
®
Galaxy Legacy®
Amp Models:
902518 - 1000 WATT
902510 - 1000 WATT/240V
Part 18 compliance This device complies with Part 18 of the FCC Rules.
Advisory statement
This product may cause interference to radio equipment and
should not be installed near maritime safety communications
equipment or other critical navigation or communication
equipment operating between 0.45-30 MHz.
The interference potential
of the device or system
The interference potential of the device or system is the
operating frequency; 65 kHz.
Maintenance of the system Unplug the unit, wait 30 seconds, and plug the unit back in.
Simple measures that can be taken
by the user to correct interference
Move the unit away from any radio device.
 This product contains delicate electronic components. This means that if it is
placed near an object that transmits radio signals, it could cause interference. This
could be, for example, mobile telephones, walkie talkies, CB radios, remote con-
trols and microwaves. If interference occurs, move such objects away from
the appliance.
Galaxy Legacy Select-A-Watt 600/750/1000/Turbo Charge 120/240 Volt:
FCC#: 2AEHV902518

See back page for important FCC and warranty information
SAFETY FIRST!
  DO NOT alter or modify this unit in any way. It may cause bodily injury or
death as this is a high power electrical device.
DO NOT submerse in water or splash water on the unit.
DO NOT plug or unplug the lamp cord while the ballast is energized.
These high performance Electronic Ballasts are extremely efficient. They have a high
power factor and high luminous efficacy. It’s stable performance creates constant power
output even when power fluctuates (power surge). Short circuit protection technology
prevents damage to the lamp and other ballasts connected to the same circuit.
1. INSTALLATION PROCEDURE
  DO NOT alter or modify the electronic ballast in any way.
Not only may it damage the unit, it will void the warranty.
  Lamp power rating must match electronic ballast power rating.
3. NOTES
  The Galaxy Electronic Ballasts will operate with Metal Halide lamps and
High Pressure Sodium lamps that are rated at the proper wattage.
  This unit offers short-circuit and power fluctuation.
2. SPECIFICATIONS
  120-240 Volts (#902510 is 240V only)
  Power source frequency: 50/60Hz
  Power Factor (cosø): > 0.99
  Ambient Temp: 50˚F to 120˚F
Crest Factor: < 1.5
 Acoustic Resonance: none
  Total Harmonic Distortion:
(THD): < 10.0%
This ballast offers our exclusive Smart Volt®feature – It is a “smart” ballast — that
will operate on either 120 or 240 volt power (except #902510 Galaxy®Legacy®1000
watt 240 volt only ballast) by simply plugging in the appropriate power cord. There
is no further modification necessary. It comes with a 120 volt power cord. If you
wish to run this ballast on 240 volt, you must purchase the 240 volt power cord
separately (part #903082 six foot or #903084 twenty foot).
The Galaxy 1000 watt 240 volt (#902510) is a designated voltage electronic ballast.
Run this ballast only with 240 volts.
Dual universal lamp cord
receptacle is compatible with
all Sun System®reflectors as
well as other branded reflectors.

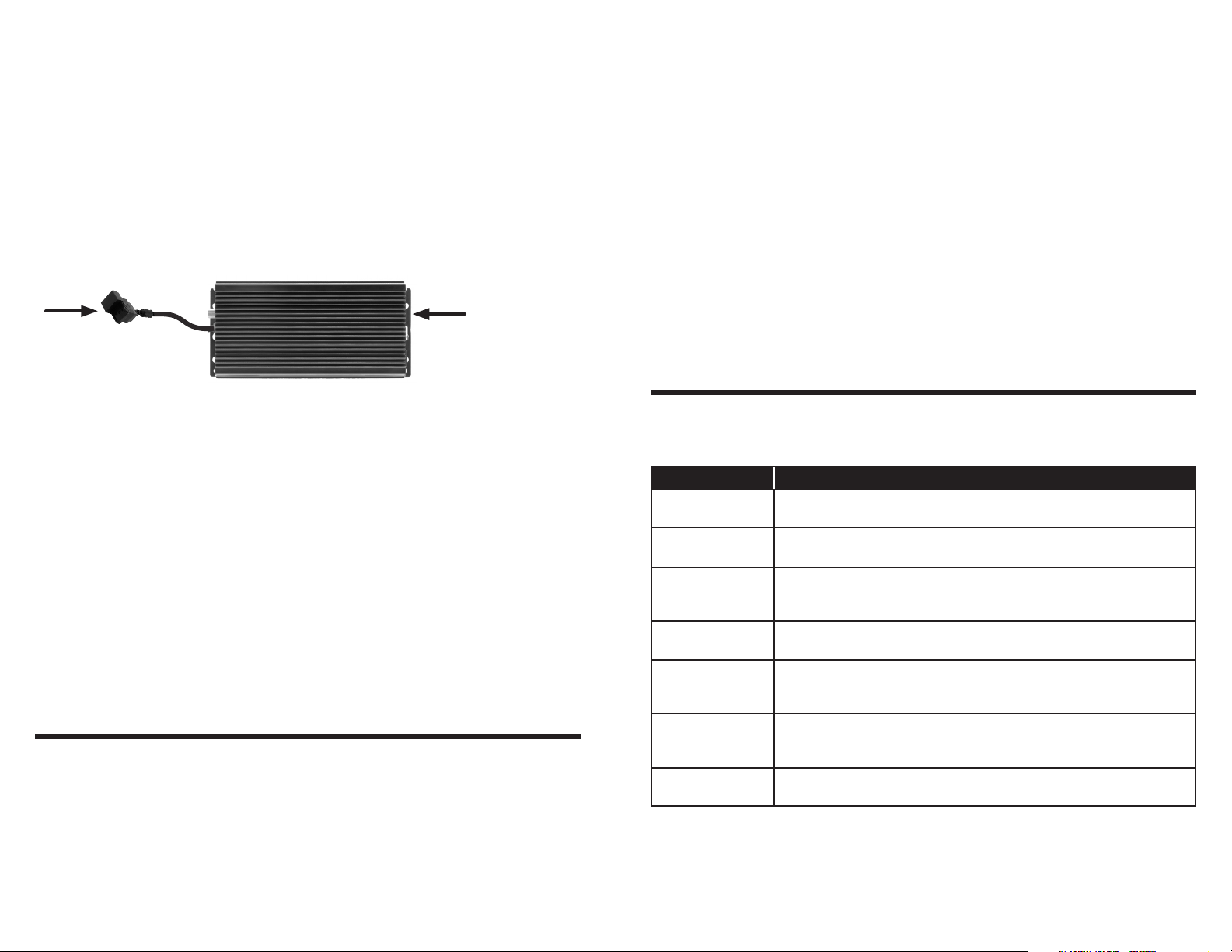

OUTPUT TO HPS/MH LAMP CONNECT APPROPRIATE
AC POWER PLUG HERE
AC input 120 (included)
or 240V (purchase
separately) #902510
includes a 240V cord.
LAMP REPLACEMENT - Be sure to disconnect the power source before chang-
ing lamps. Always use the specified wattage lamp. (A 600 watt lamp should not be
used on a 750, 1000 watt or Turbo Charge setting).
MOUNTING LOCATION - DO NOT install ballasts in areas of high heat, such
as an attic or a closed closet. DO NOT mount the ballast to the reflector or blow
exhaust air over them. DO NOT stack ballasts on top of each other. DO NOT allow
contact with water. Mount units at least six inches apart. If a unit has any leaking
resin, please relocate to a cooler area or place a fan near the ballasts.
TIMER BOX - If you are connecting a 240V ballast to a timer box, please make
sure that it cuts off both legs when timer is switched off. If you continue to supply
120V to your ballast when the timer is switched off, it may damage your ballast.
HPS/MH - The ballasts operate both metal halide and high pressure sodium lamps.
They will not light mercury vapor lamps.
LAMP RECOMMENDATIONS - The ballasts are designed to provide superior
performance with several lamps manufactured to American specifications. There
are several brands of lamps available for the U.S. market that were made according
to European specifications. We do not recommend using these types of lamps, since
they will provide inconsistent performance with your ballast.
240V WIRING - VERY IMPORTANT! All digital ballasts may malfunction if the
240V circuit has a neutral. The input for the ballast is 2 HOT WIRES and 1 GROUND
WIRE. If you are using a light controller ONLY bring a ground wire and two hot leads
from your electrical panels.
HOT RESTRIKE - It is VERY IMPORTANT that the lamp is given adequate time
to cool down before it is reignited. You should allow a hot lamp to cool for 20-30
minutes before you try to restrike it. Hot restrikes cause permanent lamp failure and
lumen output degradation. Additionally, the lamp should never be turned off before
the lamp reaches full intensity.
POSSIBLE CAUSES CORRECTIVE MAINTENANCE
LAMP LOOSE
IN SOCKET
Screw lamp firmly into socket. Make sure tab inside the socket makes proper
contact with the base of the lamp. If lamp will not seat properly replace lamp.
INCORRECT
VOLTAGE
Make sure you are using the correct input voltage with ballast. If using
incorrect voltage, disconnect the ballast from the power source immediately.
DEFECTIVE
OR IMPROPER
WIRING
Examine wiring to ensure it agrees with wiring diagrams on ballast label.
Check connections to see that they are secure. If wiring a 240V ballast,
DO NOT use a neutral. The correct wiring is two hot wires and a ground.
POOR ELECTRICAL
CONNECTIONS
Check wiring and lamp contact with socket. Make sure the lamp cord is
firmly seated in output receptacle.
INCORRECT
LAMP
Verify that you are using the proper wattage lamp with ballast.
DO NOT use a lamp manufactured according to European or Asian
specifications as they will not provide consistent performance.
LAMP
DAMAGE
Investigate possibility of outer bulb damage, particularly where glass
meets base. Lamps may have been twisted to firmly into socket.
Look for broken tubes or loose metal parts. Replace lamp.
BREAKER If lamp will not start, reset the breaker by pressing the white button located
on the input side of the ballast.
TROUBLESHOOTING GUIDE
Follow the troubleshooting tips below. If troubleshooting techniques fail, bring
ballast back to your place of purchase to request warranty service.
