GALBIATI PRIMA User manual
AUTOCLAVE
PRIMA
QUICK GUIDE FOR ASSISTANT
PRIMA
3
x1
x1
x2
x1
x2
A
B
C
D
F
G
E
x1
x 2

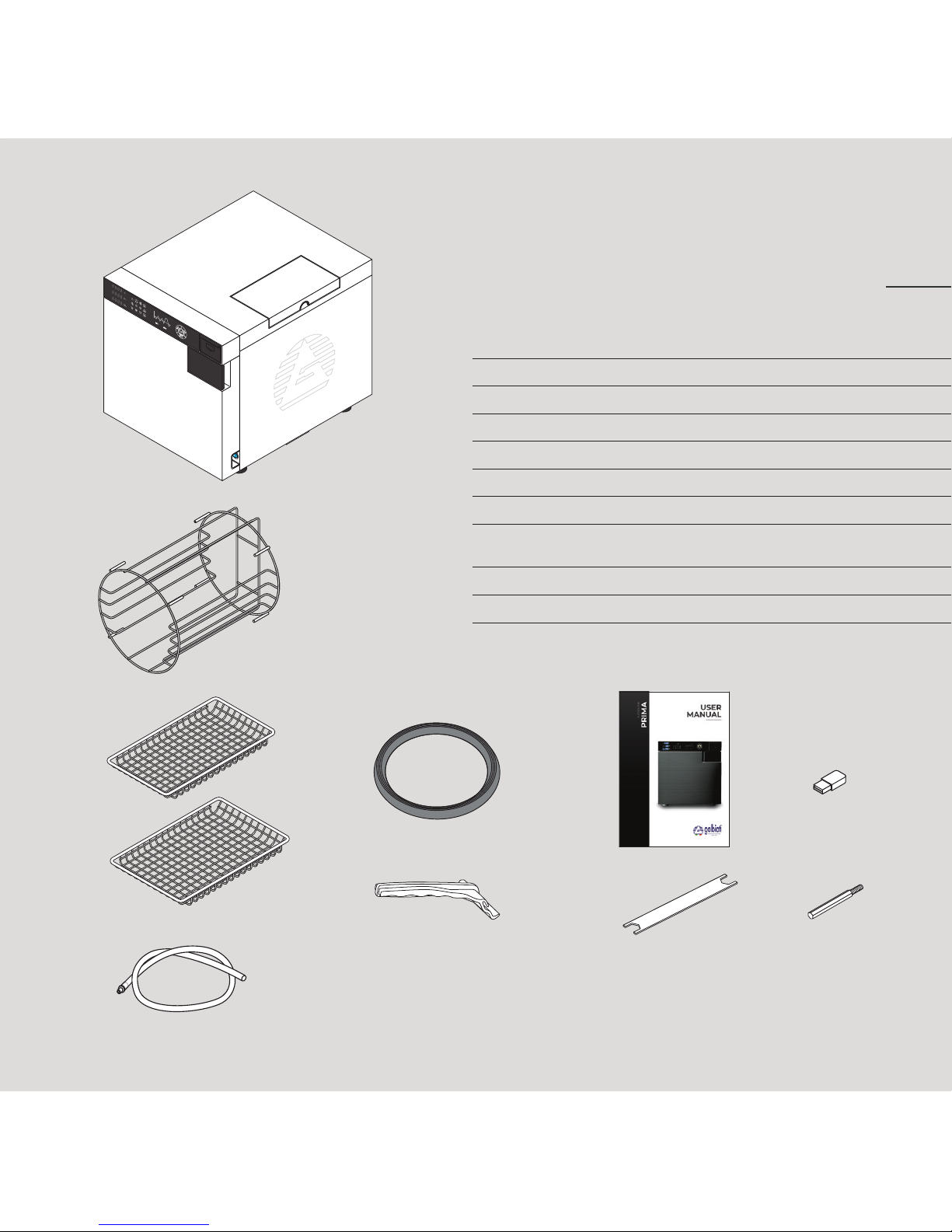

AUTOCLAVE PRIMA
ACCESSORIES
I
H
x1
x2
N. DESCRIPTION QUANTITY
A RACK (FOR TRAYS) 1 PIECE
B TRAYS 4 SET
C DRAINAGE PIPE 2 PIECES
D GASKET 1 PIECE
E INSTRUMENT FOR TRAYS 1 PIECE
F USER MANUAL 1 PIECE
G DOOR KEY FOR DOOR
REGULATION 1 PIECE
H USB KEY 1 PIECE
I SPACERS 2 PIECE

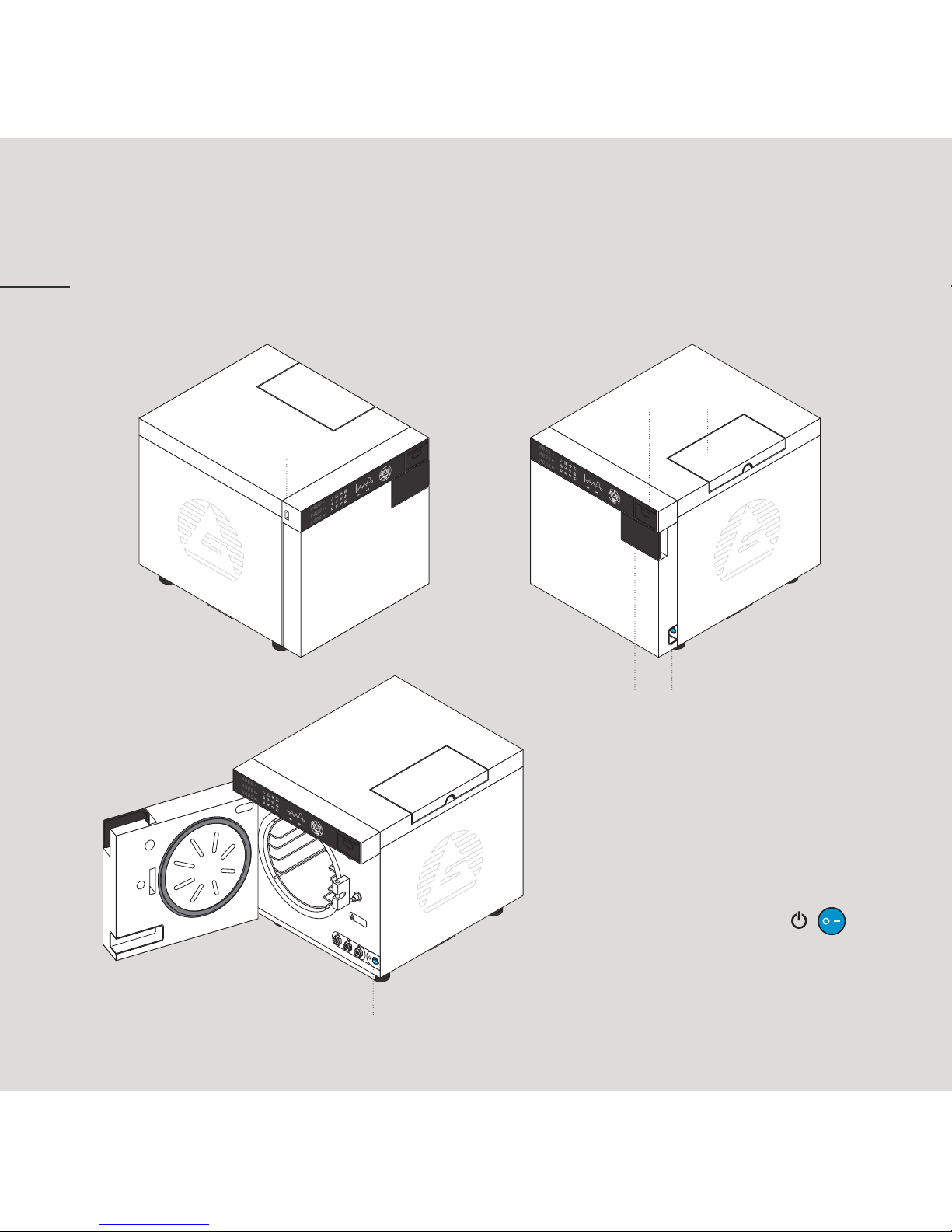

AUTOCLAVE PRIMA OVERVIEW
A. Function panel
B. Clean water tank
C. Printer for paper report
D. Black door handle
E. Blue starting button
F. USB port for digital reports
AB
F
C
D E
E
4
PRIMA

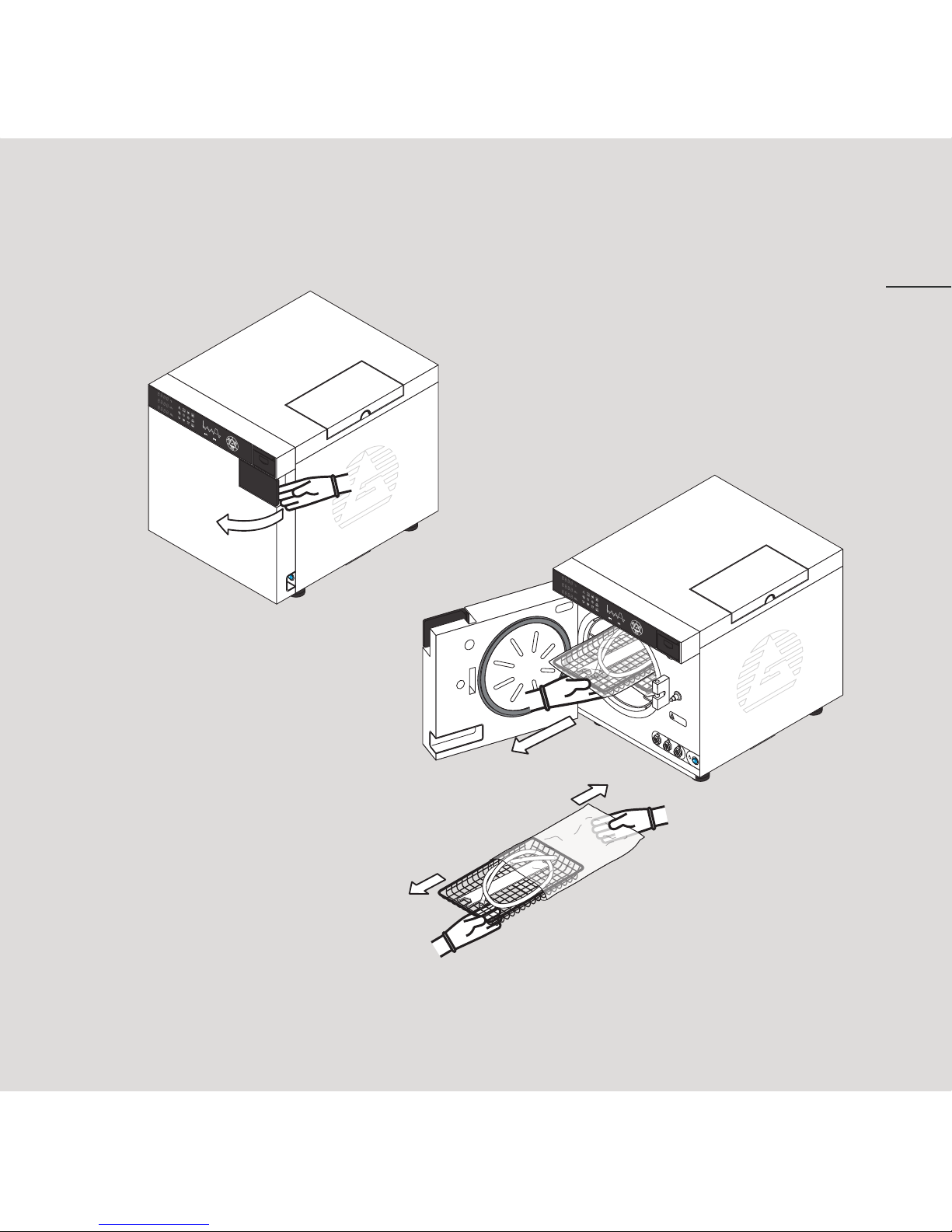

FIRST USE OF AUTOCLAVE
1. Open the door strongly
pulling the black handle.
2. Take out trays with
accessories from
the chamber.
3. Remove protective
plastic from trays
and given accessories.
1
2
3
5
FUNCTION PANEL
6
A. Shows chamber temperature during a cycle. Unit: °C degrees
B. Shows chamber pressure during a cycle. Unit: kPa
C. Shows sterilizer period of the cycle, length and warnings.
In case of anomalies, the corresponding error code will be shown here.
(See User manual, appendix 2, page 42).
D. Lighting signals panel:
E. sterilization programs.
F. Graphics of sterilization cycle trend.
FUNCTION BUTTONS
E F G
A
B
C
D
button for the choice of
sterilization programs
button for the choice
of test programs
button to confirm
the starting of the cycle
PRIMA
D. LIGHTING SIGNALS PANEL
7
Pipeline cleaning
and automatic water
filling lighting signals
Helix/B&D
and Vacuum
lighting signals
This signal indicates
that PRIMA
is a B class autoclave
This light is
on when the
clean water level
in the tank is low
This light is on when
the used water tank is full
This light is on when the
water quality is low

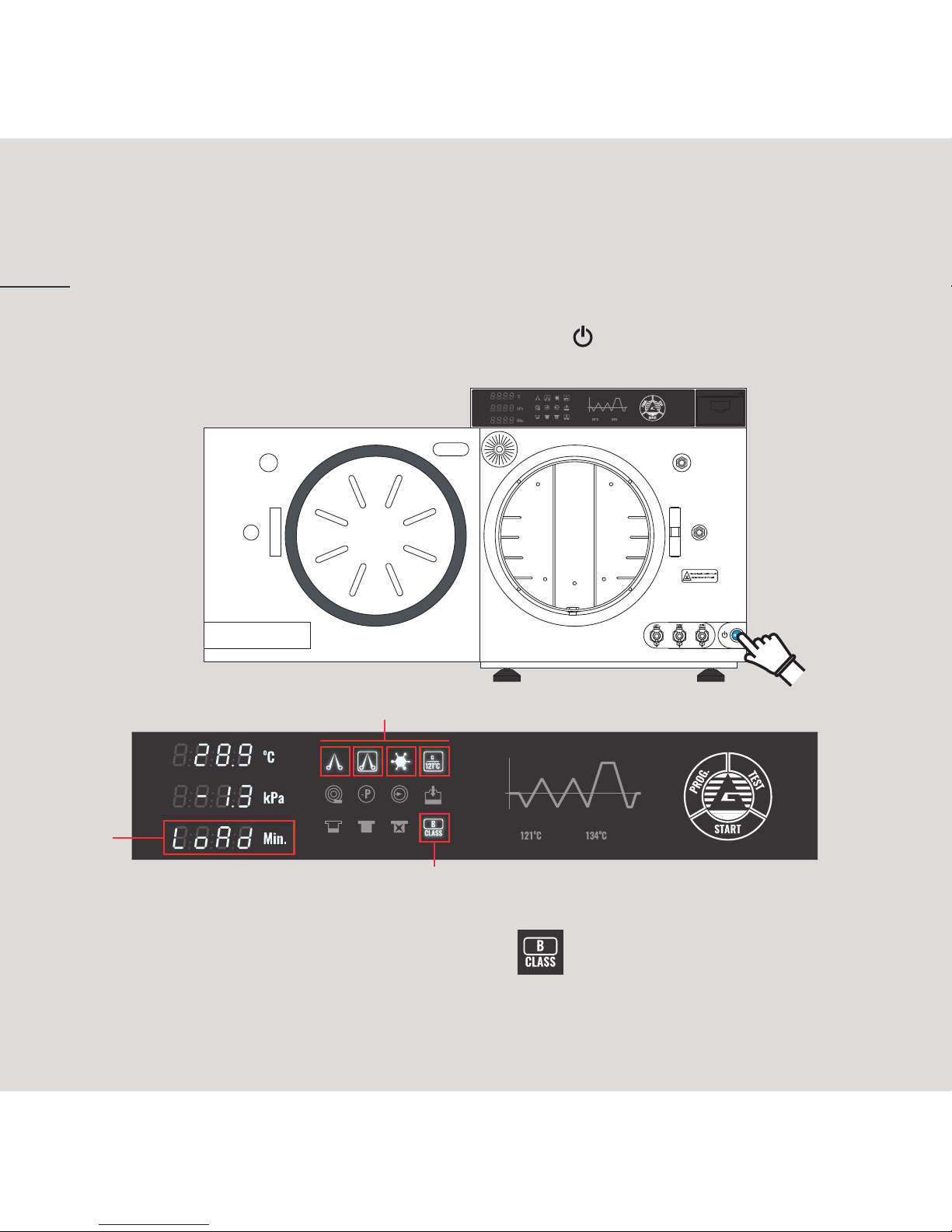

DAILY USE:
AUTOCLAVE START UP
8
II. When it starts, the display will always show the flashing writing «Load»¹
and the indicator of class B Prima autoclave ²will be lightening
accompanied by a short sound. Moreover, the indicator corresponding
to the last selected program will lighten on the display³.
I. Open the door and then press the starting button in the corner down
at right on the frontal side of sterilizer.
3
2
1

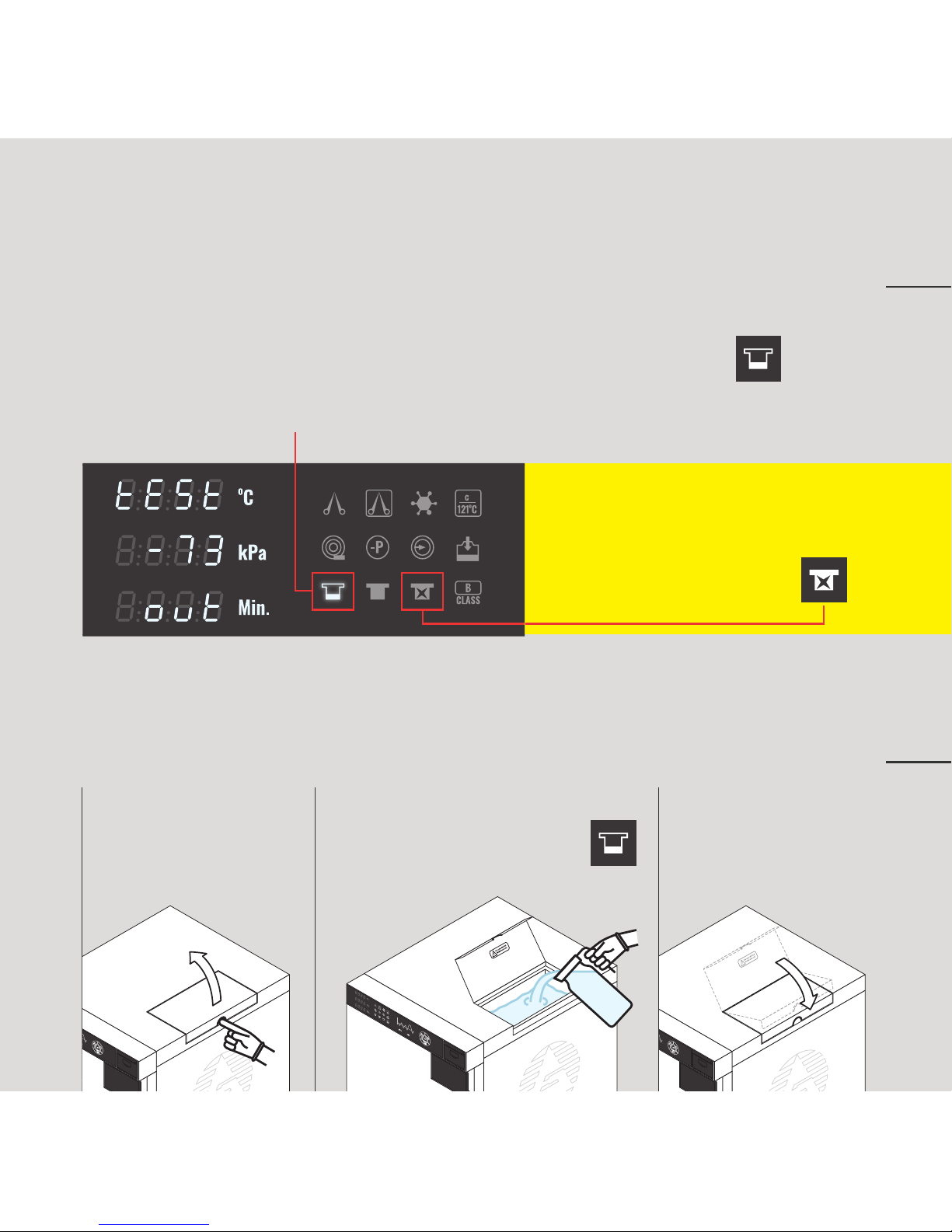

DISTILLED WATER FILLING
ADD DISTILLED WATER IN THE TANK
CAN BE DONE FOLLOWING TWO WAYS:
9
After switching on the autoclave, if water level in the tank is low the indicator will
lighten and an acoustic signal will follow in order to indicate lack of water. So if you want
to set up the sterilization cycle you’ll have to add distilled water before doing that.
STEP 1:
Open the tank cover
on the upper side of
the sterilizer at right.
STEP 3:
After pouring distilled
water, close the
tank cover.
STEP 2:
Pour manually distilled water
until the lighting indicator
turns off or when you hear
a short sound.
DISTILLED WATER FILLING
NOTE: Otherwise, an acoustic signal
will follow and the indicator
will lighten.
NOTE:
A. MANUALLY ADD:

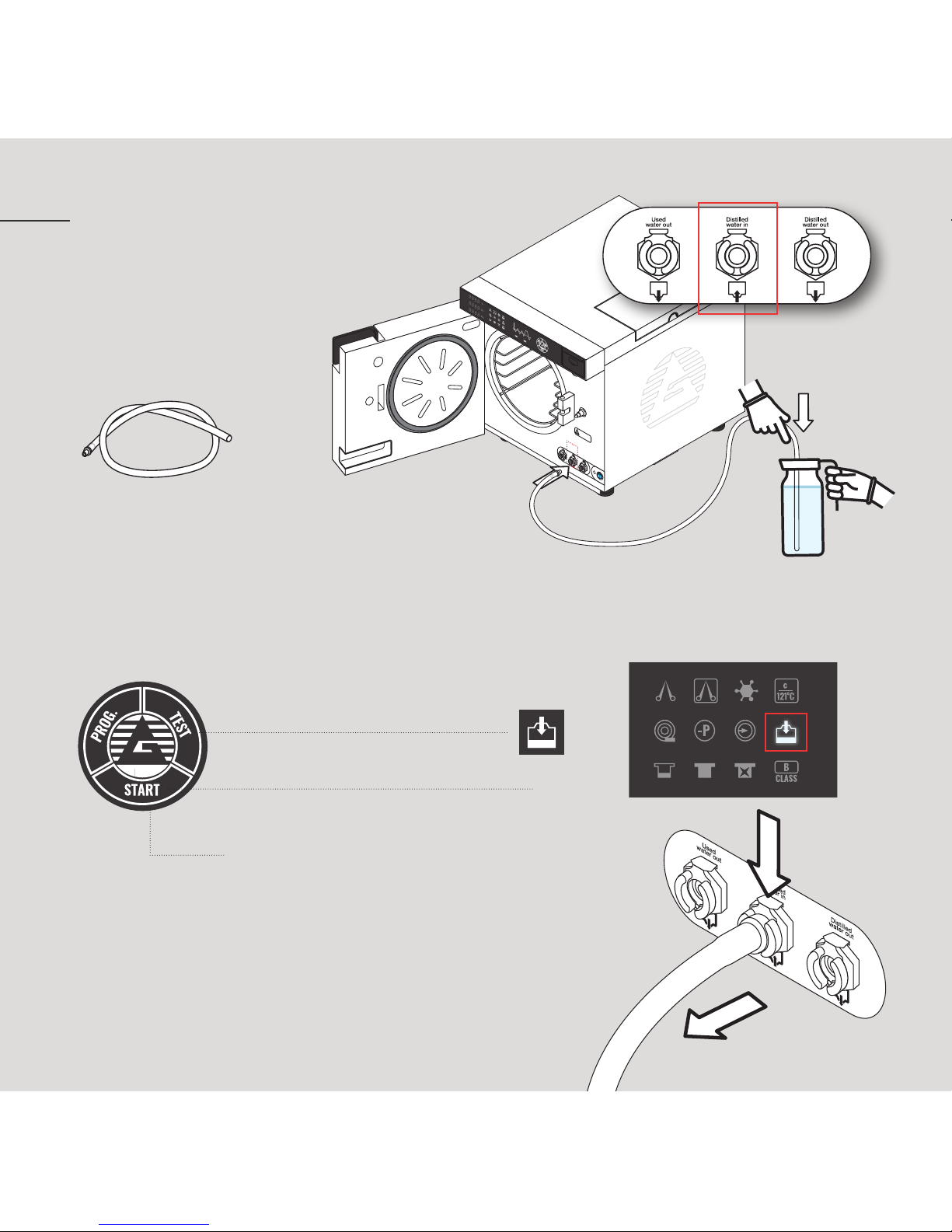

DISTILLED WATER FILLING
10
STEP 1:
Take the water tube
given with PRIMA.
STEP 2:
› Open the door.
› Connect the water tube to the “Distilled water in”
connector in the middle by entry connector.
› Put the other end of the tube in a tank with distilled water.
STEP 3:
STEP 4: 1- PUSH
2- PULL
STEP 5:
Water add by automatic suction has a length of 4
minutes, press again START button if you want to
interrupt automatic suction.
After adding water by automatic suction, remove the tube
from “Distilled water in” connector lightly pressing on
the top of connector and then take off the water tube.
B. ADD BY AUTOMATIC SUCTION:
Press 4 times TEST button until the indicator
«automatic water add» brightens
Then press START button to go on.
TANK USED WATER DRAIN
If during the sterilization cycle, the used water tank is full, the indicator
will lighten to advise you that the water needs to be drained from the tank.
To drain dirty water from the tank,
do the following actions:
STEP 1:
› Take the autoclave water tube.
STEP 2:
› Open the door.
› Connect the water tube to the “Used water out”
entry connector on the left.
› Put the other end of the tube in an empty tank
or in the available drain system.
NOTE:
PRIMA
11

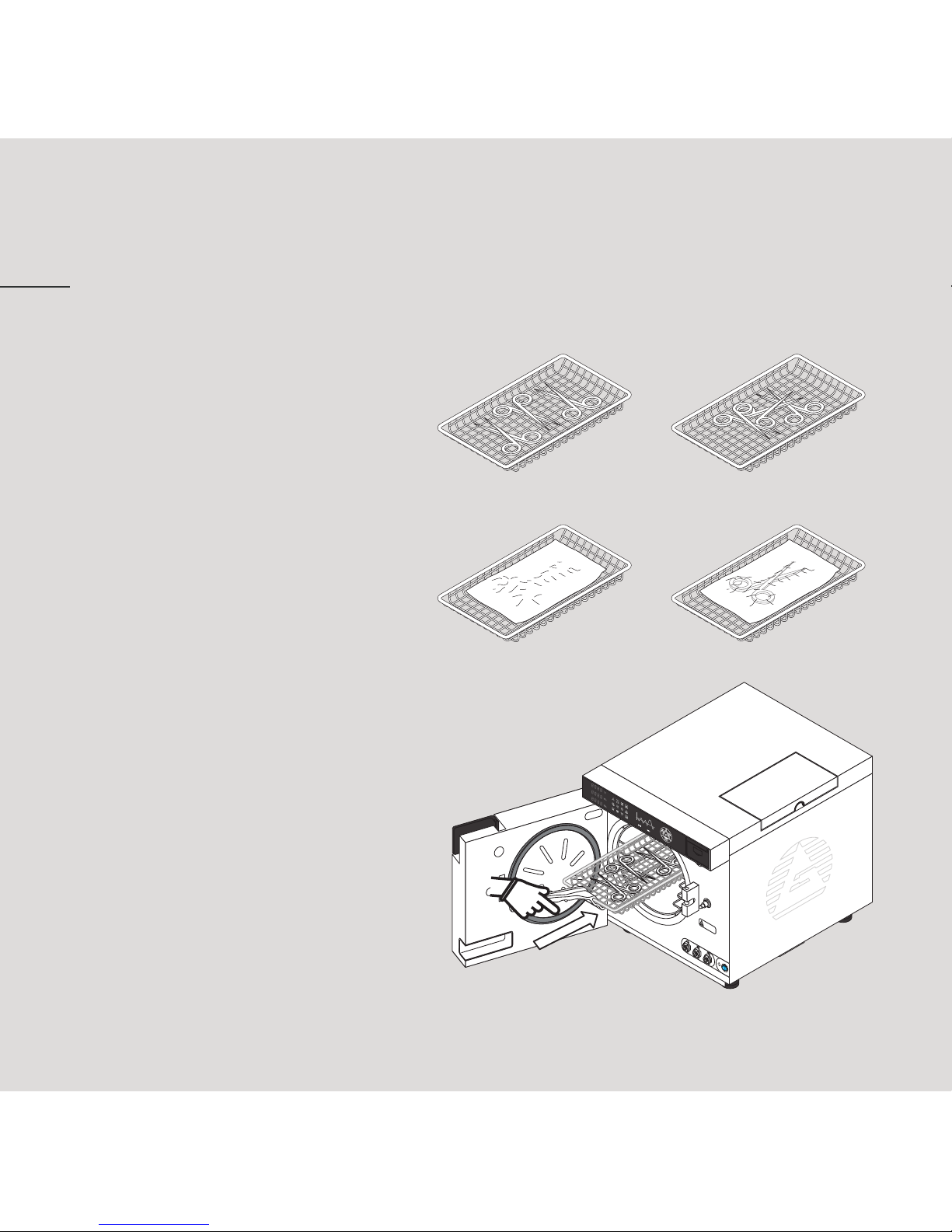

LOADING ARTICLES TO BE STERILIZED
ON THE TRAYS
12
1- Put the articles to be sterilized on
the trays so that stream could flow
homogeneously. Don’t place
the articles on top of each other.
(See user manual, page 30)
2- If tools are wrapped it’s better
to put them with paper side on
the top and don’t overload the trays.
3- Put the trays in the chamber pushing
them in the removal guides and
verify the tray is straight. Put the two
smaller trays in the top and down
guides and the two bigger trays in
the middle guides.It’s better to use
the “carry trays” tool to avoid burns.
NOTE:
Once the trays are in the chamber,
CLOSE THE DOOR.
OK! NO!
OK! NO!
PRIMA

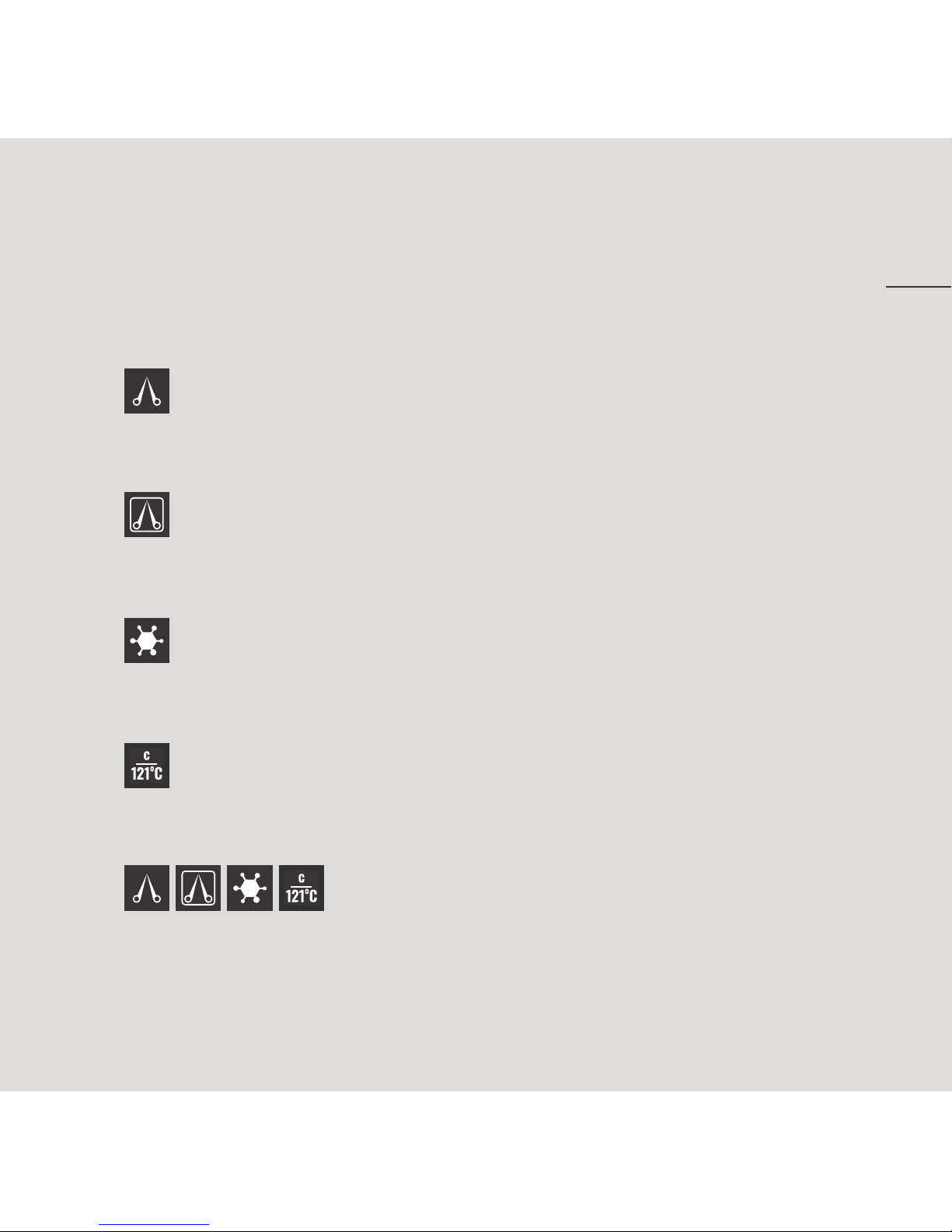

STERILIZATION PROGRAMS
13
STERILIZATION PROGRAMS (5 types):
A. Lighting signal indicating unwrapped sterilization program: 134°C/4 mins
for unwrapped tools, vacuum in 1 time, temperature: 134°C,
pressure: 210kPa, sterilization length 4mins, drying time 9 mins.
B. Lighting signal indicating wrapped sterilization program: 134°C/5 mins
for wrapped or handpieces, vacuum in 3 times, temperature: 134°C,
pressure: 210kPa, sterilization length 5 mins, drying time 9 mins.
C. Lighting signal indicating prion sterilization program: 134°C/18 mins,
for prions and virus, vacuum in 3 times, temperature: 134°C,
pressure: 210kPa, sterilization length 18mins, drying time 9 mins.
D. Lighting signal indicating porous sterilization program: 121°C/20mins,
for cotton, rubber or porous materials, vacuum in 3 times, temperature: 121°C,
pressure: 110kPa, sterilization length 20mins, drying time 18mins.
E. When all the 4 signals brighten the User sterilization program
is going to start: standard long cycle at 121°C with length of 40mins more or less.
SET UP STERILIZATION PROGRAM
14
1. To set up a sterilization program
press “PROG” button. When a
sterilization program has been set
up by “PROG.” button, its related
signal brightens. To change steri-
lization program go on pressing
“PROG” button until the chosen
signal program brightens.
2. Once the sterilization
program has been
selected, press “START”
button to confirm.
3. Once the program has been selected and started, a sound indicating door
safety closure will be heard and the sterilization program will start.
PRIMA
AT THE END OF THE STERILIZATION PROCESS
15
1. If the sterilization process is done
successfully, at the end of sterilization
cycle the writing “PASS” will light up on
the display. If not, the writing “Er” will
light up. In this case, please read the
user manual, page 38, appendix 4.
2. Please wait few minutes and open the door.
3. Pull out the trays by using
the removal tool
in order to avoid any burns.
INSTRUMENT
FOR TRAYS
16

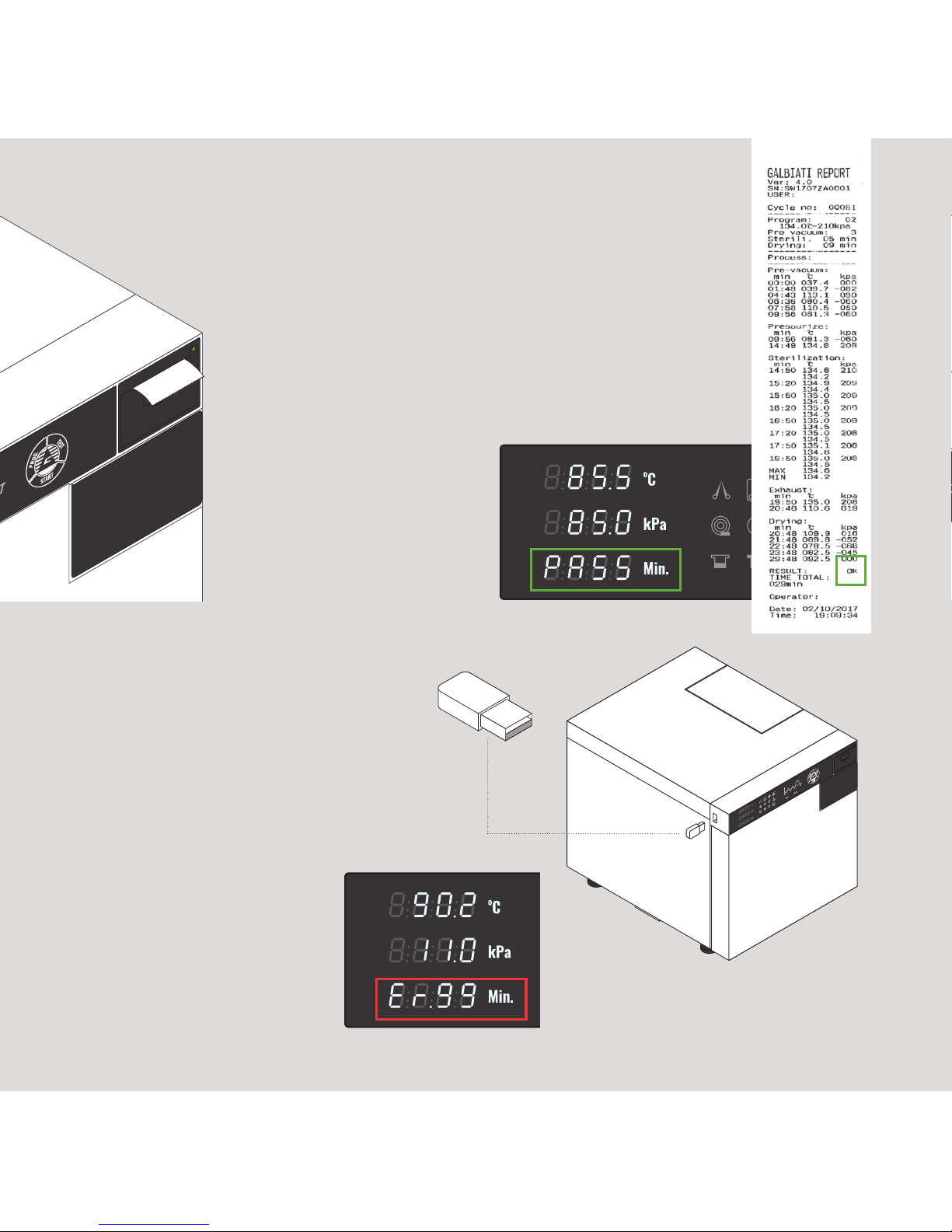

4. Autoclave provides two methods to
save the data of sterilization cycle:
A. Through PRINTED REPORT:
A the end of the cycle please pull
the printed report out from the printer.
B. Through DIGITAL REPORT:
- Remove the USB from its port
and connect the USB in the pc so
you can download the digital report.
If the writing “ERROR+ Code” displays on
the screen so it means the sterilization
cycle has been a negative ending.
Please read the user manual
and check the error code.
(See page 38, Appendix 4).
AT THE END OF THE STERILIZATION PROCESS
TEST PROGRAMS
FOR AUTOCLAVE FUNCTIONS
PIPELINE CLEANING PROGRAM
17
a. HELIX/B&D test lighting signal:
(see user manual, page 23)
› Press TEST button (1) and
select HELIX/B&D test program;
› Press START button (2) to go on.
NOTE: This is a forced water circulation process that clean pipes,
valves and steam generator. The time of the cycle is 1 minute.
Pipeline cleaning lighting signal:
› To start the pipeline cleaning program, press TEST button (1) until you select the
pipeline cleaning lighting signal;
› The pipeline cleaning lighting signal will shine on, so press START button (2) to go on.
b. VACUUM Test Lighting signal:
(see user manual, page 23)
› Press TEST button (1) until you
select VACUUM test program;
› Press START button (2) to go on.
b.a.
1
1
2
2
POST STERILIZATION CYCLE
18
› Once the sterilization cycle has finished and the working day is at the end, turn off
the machine using the switch on/off in the corner down at right on the frontal side
of the autoclave.
› Make sure to leave the door partially open to let the machine cool.
› If you want to set a new sterilization cycle do once again the procedure
previously described.
NOTE:
If “standby” mood or energy saving is on, NIGHT CYCLE, the machine automatically
switches off after 30 mins from the last sterilization cycle. This happens only if “Poer”
function has been activated during installation. (See manual).
PRIMA

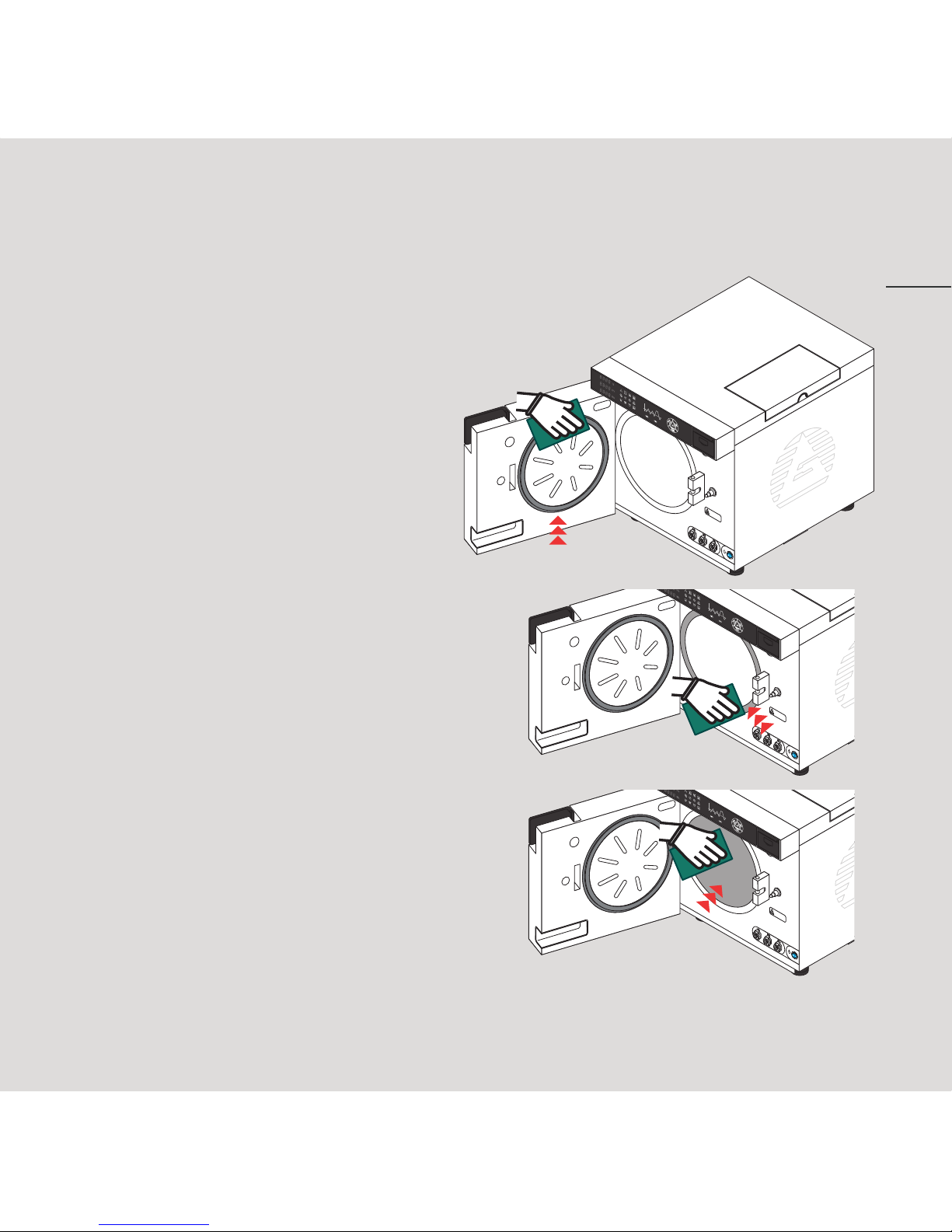

DAILY MAINTENANCE
19
A. Clean the door gasket everyday
with a clean, damp cloth.
Do not use abrasive cleaners on
the gasket or mating surface
of the chamber.
B. At least once a week, clean
chamber, trays and rack with
a clean, damp cloth.
C. Clean the mating surface
of the chamber with clean,
damp cloth.
D. Changing door gasket
(see user manual, page 33).
E. Changing bacteriological filter
(see user manual).
