INTRODUCTION
Thank you for choosing Gallo Acoustics
loudspeakers.
Please take the time to read and understand
this guide thoroughly before installing your
loudspeakers. This will ensure that you
achieve optimal performance without the
risk of causing damage to your speakers
or amplifier.
4
BOX CONTENTS
1 x ISOLATION RING 1 x MICRO LOUDSPEAKER
RUN-IN PERIOD
Your Gallo loudspeaker utilises proprietary
technologies that only reach their optimum
performance levels after a period of 60 - 80
hours of use. During this run-in process
the loudspeaker driver will loosen-up, the
patented S2 fill material will settle, and
your loudspeakers will develop the acoustic
characteristics that are our signature.

OPTIONAL ACCESSORIES
Available from your dealer, or directly from www.galloacoustics.com
5
WALL MOUNT
The Wall Mount is compatible with all Micro
and A’Diva loudspeakers, and is available in
Black, White and Stainless Steel finishes.
Speaker cable can pass through the
mount, allowing for a neat
installation.
IN-CEILING MOUNT
Specific versions of the In-Ceiling Mount are
available for Micro and A’Diva loudspeakers.
The outer ring can be painted to match either
the speaker finish or the ceiling colour,
adding to the appeal - furthermore,
the sound can be tailored to the
room by angling the speakers
towards the listening
position.
FLOOR STAND
The Micro Floor Stand is ideal for situations where
a suitable mounting position cannot be acheived
by wall or surface mounting. The stand is
available in Black, White and Stainless
Steel finishes. Speaker cable can be
hidden within the stem itself, so the
clean elegant look is not compromised.

INITIAL SET UP
Please ensure that your amplifier is turned
off before connecting the loudspeakers.
When connecting speaker cables to your
loudspeakers and amplifier, ensure that
correct polarity is observed - red (+) terminal
on the speaker to the red (+) terminal on your
amplifier, black (-) terminal on the speaker to
the black (-) terminal on your amplifier.
In either stereo or multi-channel systems,
Micro loudspeakers are designed to be used
in conjunction with a subwoofer, so the full
frequency image can be heard.
Gallo Acoustics subwoofers are specifically
designed to compliment the sound of your
loudspeakers and have built-in crossovers,
allowing full frequency control whilst
protecting the speakers.
6
AMPLIFIER
SPEAKER
TR-3D SUBWOOFER
SPEAKER
SPEAKERS
AV AMPLIFIER
TR-3D SUBWOOFER
AMPLIFIER
SPEAKER
TR-3D SUBWOOFER
SPEAKER
SPEAKERS
AV AMPLIFIER
TR-3D SUBWOOFER

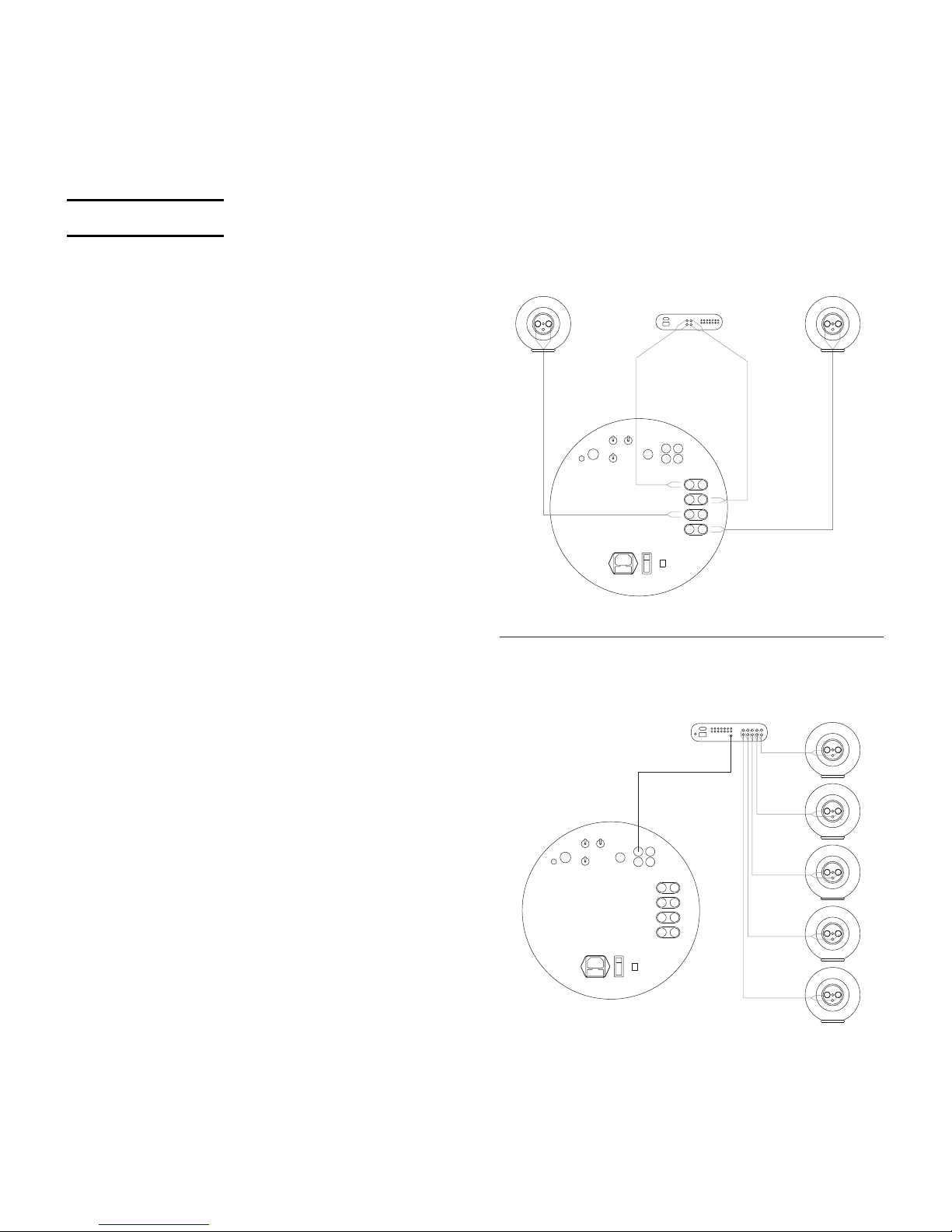

STERE0 AND 2.1
MULTI-CHANNEL

STEREO AND 2.1
When using Micro loudspeakers in a stereo
or 2.1 system, you must employ a suitable
crossover or filter to ensure that only
frequencies of 80Hz and above are sent to
the loudspeakers. Attempting to playback
lower frequencies can cause permanent
damage to the loudspeaker and invalidate
the warranty.
•Using speaker cables, connect the
speaker outputs on your stereo amplifier
to the high level inputs on the subwoofer.
•Run a second set of speaker cables from
the high level outputs on the subwoofer
to your Micro loudspeakers.
•On the subwoofer adjust the crossover to
around 100hz.
•When music is playing, you can adjust
the level control to match the subwoofer
and Micro loudspeaker volume.
Consult your subwoofer owner’s guide for
more detailed set up instruction.
7
MULTI-CHANNEL AND HOME CINEMA
When using a multi-channel surround
sound system, first ensure that you are
familiar with your amplifier’s functions, to
ensure that the correct mode and settings
are applied.
•Using speaker cables, connect the
speaker outputs from your AV Amplifier
to the Micro loudspeakers, ensuring that
each channel go to the relevant Micro
speaker.
•On the AV Amplifier, select a small
speaker setting, or manually set the
crossover point to approximately 100hz.
Consult both your subwoofer and AV Amplifier
owner’s guides for more detailed set up
instructions.

SUB
PLACEMENT OF SPEAKERS
The placement of loudspeakers within a
room can have a great effect on the sound
of the system - small changes can make
significant improvements.
•When speakers are placed on the
included Isolation Ring, ensure that they
sit near the front edge of the surface
to prevent any diffraction effect, where
the sound bounces off the surface itself.
•The distance from the listening position
to the loudspeakers should not be less
than the distance between the speakers.
•In a multi-channel system, place the
front channels about 1m to 2m apart
depending on the room size and
listening position.
•For the best possible performance, mount
the speakers at ear height - however in
most situations this is not possible,
instead angle the speakers towards the
listening position.
8

SPECIFICATIONS
Frequency Response 100hz to 18khz
Sensitivity 89 dB
Nominal Impedance 8 Ohms
Power Handling Crossover - 100 Watts
Crossover None
Driver 3” full range
Dimensions 10.2cm (4”) diameter sphere
Weight 795g
Cone Material Mical Polypropylene Compound
Enclosure Material Mild Steel/Stainless Steel
Warranty 5 years
WARNING
Care must be taken when installing, mounting or standing this product to walls, ceilings or
surfaces.
Appropriate fasteners must be used (where required) to ensure the safe installation of both
the speakers and mounts.
If you are in any way unsure of the correct installation, assembly or use then please consult
qualified sources before taking unnecessary risks.
The manufacturer, distributor or their agents cannot be held responsible for any injury as a
result of improper use or installation of this product.
