Safety guidelines
1· NEO-FiberLink-2
Safety guidelines
Please read the following safety guidelines attentively before you start running the
G&D product. The guidelines help avoid damage to the product and prevent possi-
ble injuries.
All persons using this equipment must be informed about these safety guidelines.
Observe all warnings or operating instructions put on the device or stated in this
operating guide.
, Avoid the risk of electric shock
To avoid the risk of electric shock, do not open the device or remove the covers.
If service is required, please contact our technicians.
, Disconnect the main power plug or the power supply before installation
Before installation, ensure that the device has been disconnected from the power
source. Disconnect the main power plug or the power supply of the device.
, Ensure constant access to the power plugs
Ensure during the installation of the devices that the power plugs remain accessible.
! Do not cover the ventilation openings
Ventilation openings prevent the device from overheating. Do not cover them.
! Avoid the risk of tripping over cables
Ensure that there is no risk of tripping over cables.
! Only use a grounded electrical outlet
Operate this device by using a grounded electrical outlet.
! Use only the provided G&D power pack
Operate this device with the provided G&D power pack or with the power packs
listed in the operating manual.
! Operate the device only in the intended area of application
This device has been designed for indoor use. Do not expose it to extreme cold,
heat or humidity.

Safety guidelines
NEO-FiberLink-2 · 2
Special advices for dealing with laser technology
The devices of the NEO-FiberLink series use components with laser technology
which comply with laser class 1.
They meet the requirements according to DIN EN 60825-1:2001-11, IEC 60825-1 as
well as U.S. CFR 1040.10 and 1040.11.
Mind the following advices when dealing with laser beams:
! Avoid eye contact with laser beam
Although class 1 laser are considered nonhazardous, direct eye contact should
be avoided. Do not stare into the beam or view directly with optical instruments.
! Always connect optical connections or cover them with protection caps
Optical connections of the Transmission socket as well as cable plugs must always
be covered with a connector or a protection cap.
! Only use G&D certified transmission modules
It is not allowed to use transmission modules that do not comply with laser
class 1 according to DIN EN 60825-1:2001-11. By applying such modules, the
compliance of the given instructions and recommendations for laser safety can-
not be guaranteed.
The guarantee of complying with all relevant instructions can only be given by
applying original components. The devices must therefore ony be operated
G&D certified transmission modules.
LASER CLASS 1
DIN EN 60825-1:2001-11 Complies with 21 CFR 1040.10 and 1040.11
Class 1 Laser Product

Introduction
3· NEO-FiberLink-2
Introduction
The transmitter and the receiver module of the NEO-FiberLink series increase the
range between two matrix switches (CATCenter NEO) within a matrix system to up
to 10,000 metres. The data between the two modules is transmitted via two single-
mode fibre optics.
For each NEO-FiberLink system two CPU ports of the master matrix switch are con-
nected to two CON ports of the slave matrix switch. Now two users can simultane-
ously access the computers connected to the slave matrix switch.
Both transmitter and receiver module can either be placed between the master and
the slave matrix switch (cascade level 1) or between the slave matrix switches of the
second cascade level.

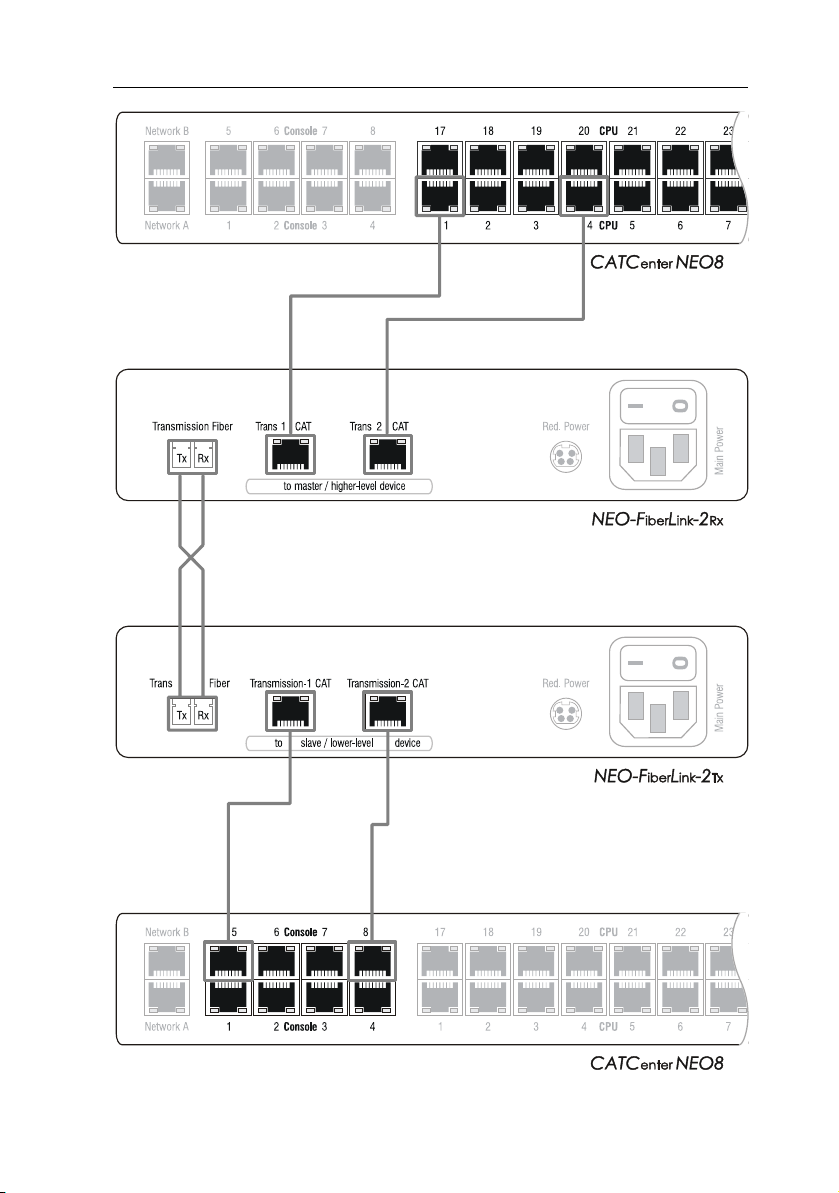

The figure on the right-hand side shows how to place the transmitter and receiver
module of the NEO-FiberLink series between two matrix switches.
Package contents
1 × transmitter module (NEO-FiberLink-2Tx)
1 × receiver module (NEO-FiberLink-2Rx)
2 × power cable (PowerCable-2 Standard)
1 × service cable (USB-Service-2)
1 × manual
NOTE: The package contents of device variants for rack mounting also contain a
rack mount set.

Package contents
NEO-FiberLink-2 · 4
Master
..
Slave
.

Installation
5· NEO-FiberLink-2
Installation
The transmitter and receiver module can either be placed between the master and
the slave matrix switch (cascade level 1) or between the slave matrix switches of the
second cascade level.
Connecting the transmitter module
(NEO-FiberLink-2Tx)
Place the transmitter module close to the slave matrix switch.
Transmission – Tx: Insert the LC plug of the fibre optics, which is available as acces-
sory. Connect the other end of the cable to the Transmission – Rx interface of the
receiver module.
Transmission – Rx: Insert the LC plug of the fibre optics, which is available as acces-
sory. Connect the other end of the cable to the Transmission – Tx interface of the
receiver module.
Transmission-1 CAT: Use a CAT5 (or better) twisted pair cable to connect these inter-
faces to one of the CON interfaces of the slave matrix switch.
Transmission-2 CAT: Use a CAT5 (or better) twisted pair cable to connect these inter-
faces to one of the CON interfaces of the slave matrix switch.
Red. Power: If necessary, connect the connection cable of the optional power pack to
this interface. Then connect a power cable to the power pack and a power outlet.
Main Power: Insert the supplied power cable and connect it to a power outlet.
ADVICE: Basic information regarding the cascading of a matrix switch is given in
the chapter Installing the expansion unit of the matrix switches’ installation manual.
Transmission-2 CATTransmission-1 CAT
to slave / lower-level device
Main Power
Red. Power
Class 1 Laser Product
Rx
Tx
Transmission Fiber

Start-up
NEO-FiberLink-2 · 6
Connecting the receiver module (NEO-FiberLink-2Rx)
Place the receiver module close to the slave matrix switch.
Transmission – Tx: Insert the LC plug of the fibre optics, which is available as acces-
sory. Connect the other end of the cable to the Transmission – Rx interface of the
receiver module.
Transmission – Rx: Insert the LC plug of the fibre optics, which is available as acces-
sory. Connect the other end of the cable to the Transmission – Tx interface of the
receiver module.
Transmission-1 CAT: Use a CAT5 (or better) twisted pair cable to connect these inter-
faces to a CPUinterface of the master matrix switch.
Transmission-2 CAT: Use a CAT5 (or better) twisted pair cable to connect these inter-
faces to a CPUinterface of the master matrix switch.
Red. Power: If necessary, connect the connection cable of the optional power pack to
this interface. Then connect a power cable to the power pack and a power outlet.
Main Power: Insert the supplied power cable and connect it to a power outlet.
Start-up
Turn on the master and the slave matrix switch as well as the transceiver and
receiver module of the NEO-FiberLink series.
Main Power
Red. Power
Transmission-1 CAT Transmission-2 CAT
to master / higher-level device
Rx
Tx
Transmission Fiber
Class 1 Laser Product

Status displays
7· NEO-FiberLink-2
Status displays
Both the transmitter and the receiver module provide different LEDs.
The LEDs on the front panel allow you to control the modules’ operating status at
any time
The Transmission interfaces at the back panels of the modules provide additional
LEDs that inform the user about the data connections.

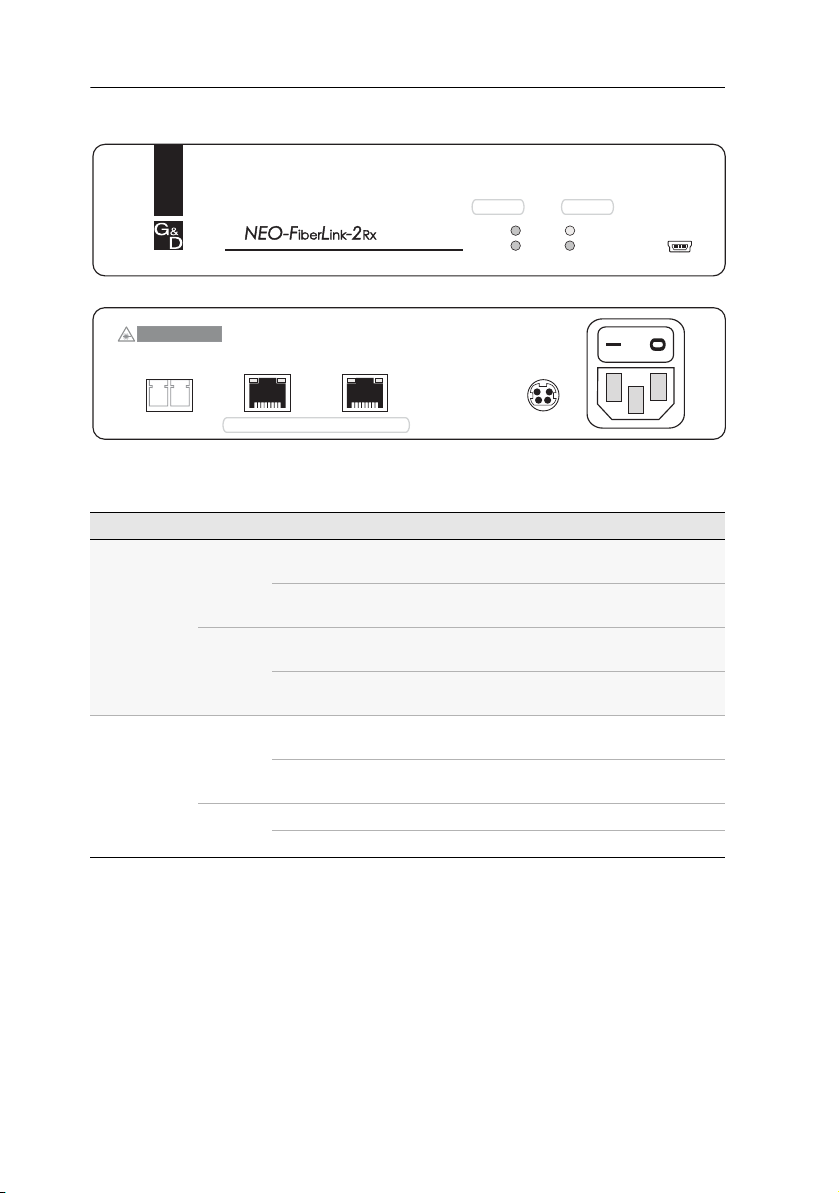

Transmitter module (NEO-FiberLink-2Tx)
Front panel
Section LED Status Meaning
Power Red. on The optional power pack is connected and supplies the
required voltage.
off The optional power pack is not connected, or the
connection to the mains could not be established.
Main. on The power pack is turned on and supplies the required
voltage.
off The power pack is not connected, or the connection to
the mains could not be established.
Status Trans. on Working data connection between transmitter and
receiver module.
off Interrupted data connection between transmitter and
receiver module
System blinking The transceiver module is ready for operation.
off The transceiver module is turned off.
Main
Red.
Power ServiceStatus
Trans.
System
Transmission-2 CATTransmission-1 CAT
to slave / lower-level device
Main Power
Red. Power
Class 1 Laser Product
Rx
Tx
Transmission Fiber

Status displays
NEO-FiberLink-2 · 8
Back panel
Section LED Status Meaning
Trans. 1 CAT yellow on The video signal is transmitted.
off No video signal is transmitted.
green on Working data connection between transmitter and
receiver module. Master and slave matrix switch are 
connected.
blinking Working data connection between transmitter and
receiver module. Master or slave matrix switch are not
connected.
Interrupted data connection between transmitter and
receiver module
off Working data connection between transmitter and
receiver module. Neither a master nor a slave matrix
switch is connected.
Trans. 2 CAT yellow on The video signal is transmitted.
off No video signal is transmitted.
green on Working data connection between transmitter and
receiver module. Master and slave matrix switch are 
connected.
blinking Working data connection between transmitter and
receiver module. Master or slave matrix switch are not
connected.
off Working data connection between transmitter and
receiver module. Neither a master nor a slave matrix
switch is connected.

Status displays
9· NEO-FiberLink-2
Receiver module (NEO-FiberLink-2Rx)
Front panel
Section LED Status Meaning
Power Red. on The optional power pack is connected and supplies the
required voltage.
off The optional power pack is not connected, or the
connection to the mains could not be established.
Main. on The power pack is turned on and supplies the required
voltage.
off The power pack is not connected, or the connection to
the mains could not be established.
Status Trans. on Working data connection between transmitter and
receiver module.
off Interrupted data connection between transmitter and
receiver module
System blinking The transceiver module is ready for operation.
off The transceiver module is turned off.
Main
Red.
Power ServiceStatus
Trans.
System
Main Power
Red. Power
Transmission-1 CAT Transmission-2 CAT
to master / higher-level device
Rx
Tx
Transmission Fiber
Class 1 Laser Product

Status displays
NEO-FiberLink-2 · 10
Back panel
Section LED Status Meaning
Trans. 1 CAT yellow on The video signal is transmitted.
off No video signal is transmitted.
green on Working data connection between transmitter and
receiver module. Master and slave matrix switch are 
connected.
blinking Working data connection between transmitter and
receiver module. Master or slave matrix switch are not
connected.
off Working data connection between transmitter and
receiver module. Neither a master nor a slave matrix
switch is connected.
Trans. 2 CAT yellow on The video signal is transmitted.
off No video signal is transmitted.
green on Working data connection between transmitter and
receiver module. Master and slave matrix switch are 
connected.
blinking Working data connection between transmitter and
receiver module. Master and slave matrix switch are not
connected.
off Working data connection between transmitter and
receiver module. There is only one master matrix switch
connected or neither a master nor a slave matrix switch
is connected.
The data connection betweentransmitter and receiver
module was interrupted.

Technical data
11 · NEO-FiberLink-2
Technical data
GENERAL FEATURES OF THE NEO-FIBERLINK SERIES
Video Resolution @ 60 Hz: max. 1920 × 1200 pixels
Video bandwidth: 180 MHz
Vertical frequency: 50 Hz to 180 Hz
Horizontal frequency: 30 kHz to 130 kHz
Audio Resolution: 24 bits
Refresh rate: 48 kHz
Bandwidth: 22 kHz
Data transmission
between modules: Interface: 1 × LC-Duplex socket
Transmission distance: max. 10,000 metres
Main power supply Type: internal power pack
Connection: 1 × IEC plug (IEC-320 C14)
Redundant
power supply
optional
Type: external power pack
Connection: 1 × Mini-DIN 4 socket (Power In)
Housing Material: anodised aluminium
Dimensions (W × H × D): 210 × 1U × 210 mm
Weight: approx. 1,2 kg
Operational environ-
ment Temperature: +5 to +40 °C
Air humidity: < 85%, non-condensing
Conformity CE, RoHS
TRANSMITTER MODULE | NEO-FIBERLINK-2TX
Interfaces Connection of the master
matrix switch:
2 × RJ45 interface
Connection of the
receiver module:
1 × LC-Duplex socket
Power consumption Main power supply: 100-240 VAC/60-50 Hz; 0,4-0,2 A
Redundant power supply: 12 VDC; 1.4 A
RECEIVER MODULE | NEO-FIBERLINK-2RX
Interfaces Connection of the slave 
matrix switch:
2 × RJ45 interface
Connection of the
transmitter module:
1 × LC-Duplex socket
Power consumption Main power supply: 100-240 VAC/60-50 Hz; 0,3-0,2 A
Redundant power supply: 12 VDC; 1,1 A

Notes
NEO-FiberLink-2 · 12

Guntermann & Drunck GmbH
Dortmunder Str. 4a
57234 Wilnsdorf
Germany
Phone [phone]
Fax [phone]
http://www.GDsys.de
[email protected]
A9200116
