Gardena RP 300 User manual

GARDENA
®
9 V RP 300 Art. 7836
WLP 300 S Art. 7839
WLP 300 B Art. 7840
DGebrauchsanweisung
Zimmerbrunnenpumpe / Wasserli htspiel-Pumpe 9 V
GB Operating Instructions
Indoor Fountain Pump / Water Light Jet Pump 9 V
FMode d’emploi
Pompe pour fontaines d’intérieur / Pompe pour jets d’eau ave é lairage 9 V
NL Gebruiksaanwij ing
Binnenshuis-fonteinpomp / Water- /li htspelpomp 9 V
SBruksanvisning
Pump för inomhusfontän / Fontän Pump med lampa 9 V
IIstru ioni per l’uso
Pompa per fontana da interni / Pompa per gio o di a qua e lu e 9 V
EManual de instrucciones
Bomba para fuentes interiores / Bomba para juego de agua on luz 9 V
PInstruções de manejo
Bomba para fontes interiores / Bomba para ja tos de água luminosos 9 V
DK Brugsanvisning
Springvandspumpe indendørs /terrasse / Springvandspumpe med lys 9 V

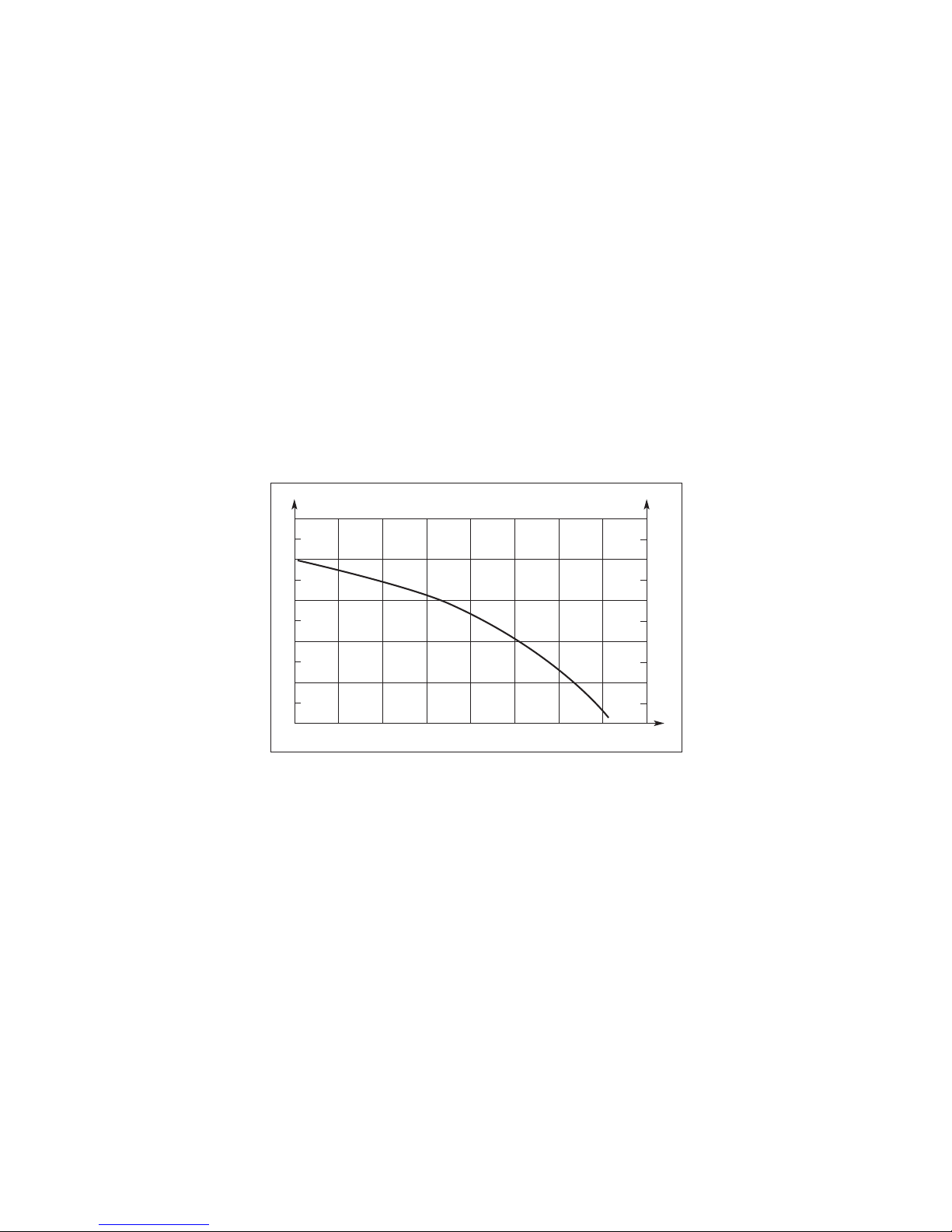

2
m
1,0
0,8
0,6
0,4
0,2
0
bar
0,10
0,08
0,06
0,04
0,02
01234 5678l/min

17
G
16
G
Attention
AGARDENA Indoor Fountain Pumps and Water Light Jet
Pumps have not been designed for constant use in the industrial
sector. Corrosive, easily combustible, aggressive or explosive
substances (e.g. petrol, petroleum, nitro thinner) as well as salt-
water or food / drinking water must not be pumped.
AFor Your Safety
The transformer should be operated via a residual current
device with a residual current rating of ≤30 mA (DIN VDE
0100-702 and 0100-738). Please ask your electrician for his
advice.
Mains power cables should not have a smaller cross-section
than a PVC cable of the designation H03 VV. Extension cables
must meet the requirements of DIN VDE 0620.
Before operating the pump, look to see if there is any damage
of the pump. A damaged pump must not be used. In case of
damage, please have the pump checked by our GARDENA
Service Centre or by an authorised electrician.
Operating the Pump
Mains power cables
Visual check
GARDENA
Indoor Fountain Pump RRPP330000,, 99VV
Water Light Jet Pump WWLLPP 330000 SS//WWLLPP330000 BB
Welcome to GARDENA aquamotion ...
Please read these operating instructions carefully and observe
the notes given. Use the instructions to familiarise yourself with the
equipment, the operating controls, their correct use, and the notes
on safety.
AFor safety reasons, children under 16 as well as persons not
familiar with these operating instructions should not use this
pump.
Keep these operating instructions in a safe place.
The Applications Range of your Pump
GARDENA Indoor Fountain Pumps and Water Light Jet Pumps
have been designed for private use around your house.
They are not designed for operating watering tools and systems.
The pumps are designed for indoor use only.
Intended purpose

19
G
18
G

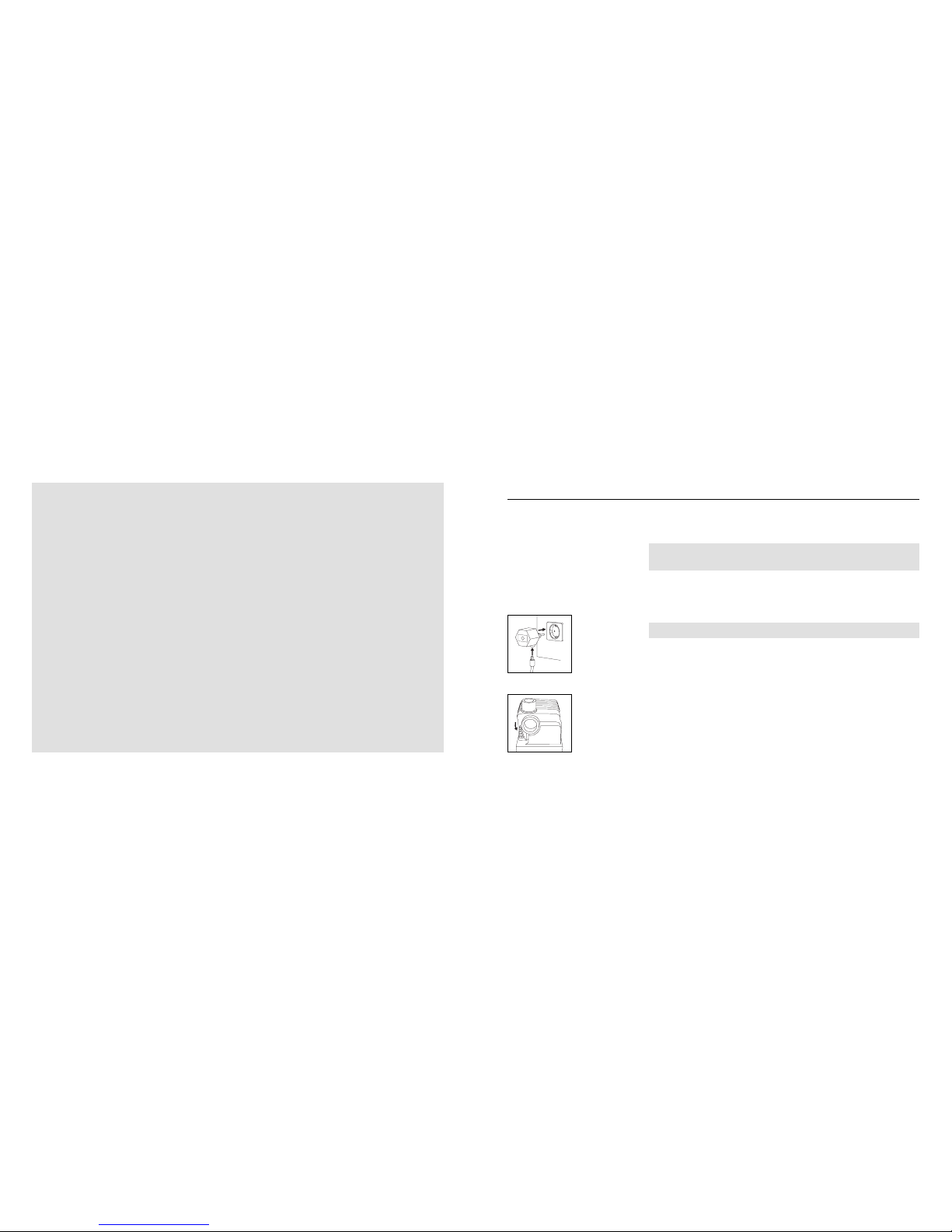

Operation
Before operation submerge the pump in the water. Take care that
the pump is positioned in a way that the casing is completely
immersed in water.
AThe foam filter at the bottom must not be covered up at the
side!
Please note the maximum submersion depth (see “Technical Data”).
Put the plug of the pump into the socket of the mains plug and
then the mains plug into a 230 V AC socket.
Caution! Pump will start immediately.
Adjust the volume according to your needs by turning the volume
control. (➔Turning anti-clockwise increases the volume)
Installing the pump
Caution: Submersion depth
Switching on the pump
Volume regulator
Check line voltage. Data indicated on the type plate must match
technical data of the mains supply.
The pump must not be operated when there are people in the
water.
Do not use the power cable to carry the pump or to pull the
plug. Protect the power cable from heat, oil and sharp edges.
Please unplug the pump after operation and before carrying out
any maintenance works.
The temperature of the liquid used must not be below 4°C or
above 35 °C.
Sand and other abrasive substances in the liquid cause in-
creased wear and reduce the output of the pump.
GARDENA pumps and plug connections have been designed
exclusively for the use with 9 V low voltage. When connected
to 230 V your life is at risk! Operate the pump only with the
delivered transformer.
Do not expose the transformer to direct sunlight.
Check line voltage
Do not operate pump
when people are in water
Do not use power cable
to carry the pump
Disconnect plug
Temperature of the liquid
used
Wear and reduced
output
Caution!
9 V low voltage
Do not expose the
transformer to sunlight

21
G

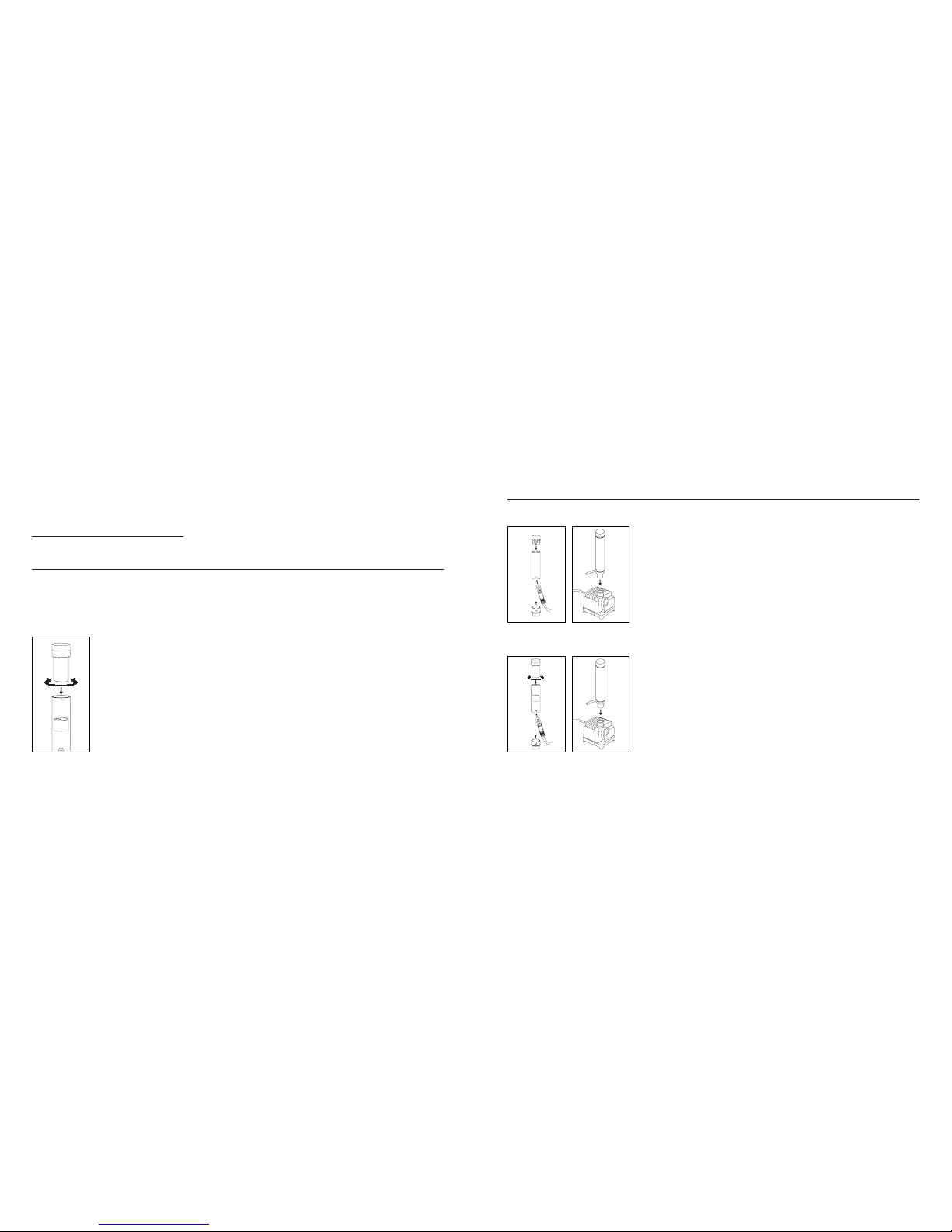

Dismantling of the Light Effect Jets
.Disconnect plug transformer!
.Remove the jet from the pump.
.Pull off the top section of the jet of the light base.
.Pull out the lamp.
.Assemble the components in reverse order of the dismantling.
➔While assembling take care that the cable of the lamp is
correctly inserted into the side slot!
Only 12 V halogen lamps of max. 5 watts may be used!
.Disconnect plug transformer!
.Take the jet out of the pump.
.Unscrew the jet from the light base.
.Pull off the bottom section of the light base.
.Pull out the lamp.
.Assemble the components in reverse order of the dismantling.
➔ While assembling take care that the cable of the lamp is
correctly inserted into the side slot!
Only 12 V halogen lamps of max. 5 watts may be used!
Water jet (WLP 300 S)
Light sphere (WLP 300 B)
Water jet (WLP 300 S)
Light sphere (WLP 300 B)
20
G
Avoid dry operation of the pump as dry running will produce
undesirable heat and destroy the pump.
Only for WLP 300 S and WLP 300 B
Control/ Setting of the Light Effect Jets
The light effects can be controlled with the volume control of
the pump (➔see “Operation”).
.Smaller diameters of light sphere:
Turn the light effect control anti-clockwise upwards
.Bigger diameters of light sphere:
Turn the light effect control clockwise downwards.
Avoid dry operation

23
G
22
G

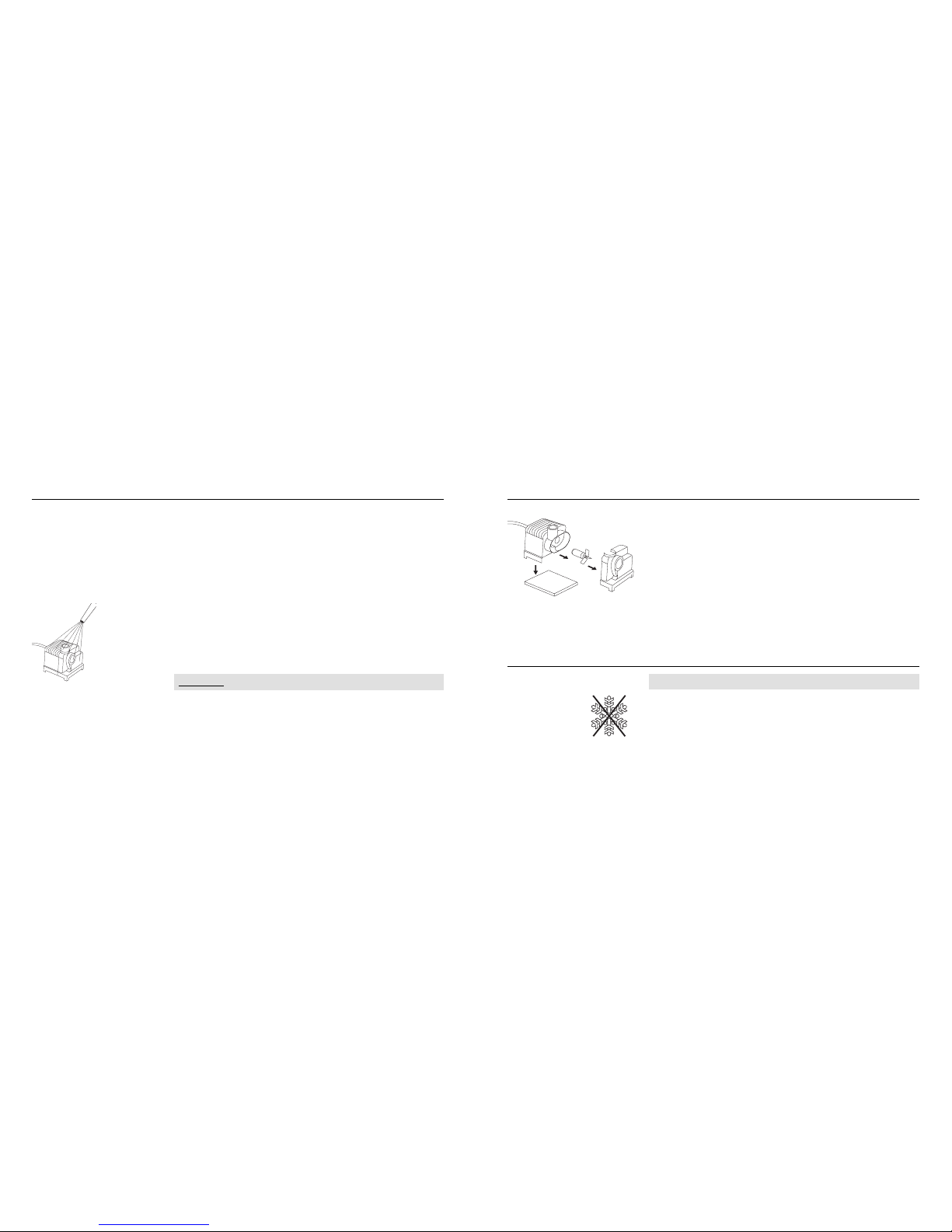

Dismantling
.Pull out the plug transformer!
.Remove the pump from the water.
.Dismantle the casing fittings as follows:
1. Pull down and remove the filter.
2. Push away the pump casing from the motor casing at the
pressure joint.
3. Pull the feed impeller out of the motor casing.
4. If necessary remove the volume control be moving it forwards.
.Afterwards re-assemble the fittings reversing the order and
direction in which they were dismantled.
Storage
AThe pump should be stored out of the reach of children.
1. Take the pump out of the water and store away from frost
before the first frost sets in.
2. Clean and check the pump carefully.
3. Store the pump in a container filled with water.
The mains plug must not be submerged.
22
Care Instructions
Take care that the pump is always completely submerged in water.
A lack of water can cause the feed impeller to turn in the wrong
direction.
➔Remedy:
Disconnect the plug transformer and fill the pump with water.
Then connect the plug again.
The filter should be completely clean!
How to clean:
.Pull out the plug transformer!
.Clean the pump and the filter with a water jet.
.Dismantle (and re-assemble afterwards) casing fittings and
clean the fittings inside carefully with water as described in the
paragraph “Dismantling”.
Information: Do not use any hard objects or strong detergents!
If the feed impeller becomes blocked, the pump should be cleaned
(see paragraph on “dismantling”).
Cleaning the filter
Blocked feed impeller
Where to store

25
G
24
G
Technical Data
Type RP 300, 9 V WLP 300 S WLP 300 B
Art. No. 7836 7839 7840
Rated power 14 W 14 W 14 W
Flow 300 l/h 300 l/h 300 l/h
Max. delivery head 0.7 m 0.7 m 0.7 m
Max. submersion depth 0.4 m 0.4 m 0.4 m
Power cable 1.5 m H03 VV 1.5 m H03 VV 1.5 m H03 VV
Fitting ∅13 mm (1/2”)∅13 mm (1/2”)∅13 mm (1/2”)
Max. media temperature 35 °C 35 °C 35 °C
Mains voltage 230 V 230 V 230 V
Frequency 50 Hz 50 Hz 50 Hz
Noise level LWA1) 48 dB(A) 48 dB(A) 48 dB(A)
1) Measuring method according to EN 60335-1
Information
If you have any problems with your pump, please contact our
Service or return the defective unit together with a short descrip-
tion of the problem – in case of guarantee, with a copy of the
receipt – postage paid to one of the GARDENA Service Centres
listed on the back of this leaflet.
We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our
units if it is due to improper repair or if parts exchanged are not
original GARDENA parts or parts approved by us, and, if the
repairs were not carried out by a GARDENA Service Centre or
an authorised specialist. The same applies to spare parts and
accessories.
Complaints/Repairs
Product liability

27
G
26
G
GARDENA guarantees this
product for 3 years (from date
of purchase). This guarantee
covers all serious defects
of the unit that can be proved
to be material or manufacturing
faults. Under warranty we will
either replace the unit or repair
it free of charge if the following
conditions apply:
.The unit must have been
handled properly and in
keeping with the require-
ments of the operating in-
structions. Neither the pur-
chaser nor a non-authorised
third party have attempted
to repair the unit.
Parts subject to wear (e.g.
feed impeller) are excluded
from this guarantee.
This manufacturer’s guarantee
does not affect the user’s exist-
ing warranty claims against the
dealer/seller.
In the event of a fault, please
send the defective unit together
with the receipt and a descrip-
tion of the fault, postage paid,
to one of the GARDENA
Service Centres on the back
of this page.
GuaranteeEU Certificate of Conformity
The undersigned
GARDENA Kress + Kastner GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm
hereby certifies that, when leaving our factory, the units indicated below are in accordance with the
harmonised EU guidelines, EU standards of safety and product specific standards.
This certificate becomes void if the units are modified without our approval.
Description of the units:
Indoor Fountain Pump /
Water Light Jet Pump
Types:
RP 300, 9 V /
WLP 300 S / WLP 300 B
Art. No. :
7836 / 7839 / 7840
EU directives:
Machinery Directive 98/37/EC
Electromagnetic Compatibility
89/336/EC
Low Voltage Directive
73/23/EC
Directive 93/ 68 /EC
Harmonised
European standards:
EN 292-1
EN 292-2
EN 60335-1
EN 60335-2-41
Year of CE marking:
1999
Ulm, 01.06.1999
Thomas Heinl
Technical Dept. Manager

115114
Greece
Agrokip G. Psomadopoulos & Co.
20, Lykourgou str.
Kallithea - Athens
Hungary
GARDENA Magyarország Kft.
Késmárk utca 22
1158 Budapest
Iceland
Heimilistaeki hf
Saetun 8
P.O. Box 5340
125 Reykjavik
Republic of Ireland
Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12
Italy
GARDENA Italia S.r.l.
Via Donizetti 22
20020 Lainate (Mi)
Japan
KAKUDAI Mfg. Co. Ltd.
1-4- 4, Itachibori Nishi-ku
Osaka 550
Luxembourg
Magasins Jules Neuberg
Grand Rue 30
Case Postale No. 12
Luxembourg 2010
Netherlands
MARKT (Holland) BV
Postbus 219
1380 AE Weesp
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
New Zealand
NYLEX New Zealand Limited
Private Bag 94001
South Auckland Mail Centre
10 Offenhauser Drive
East Tamaki, Manukau
Norway
GARDENA Norge A/S
Postboks 214
2013 Skjetten
Poland
GARDENA Polska Sp. z o.o.
Szymanów 9 d
05-532 Baniocha
Portugal
MARKT (Portugal), Lda.
Recta da Granja do Marquês
Edif. GARDENA
Algueirão
2725-596 Mem Martins
Russia / Россия
АО АМИДА ТТЦ
ул. Моcфилмовcкая 66
117330 Моcква
Singapore
Variware
Holland Road Shopping Centre
227-A 1st Fl., Unit 29
Holland Avenue
Singapore 1027
Slowenia / Croatia
Silk d.o.o. Trgovina
Brodišče 15
1236 Trzin
Deutschland
GARDENA Kress + Kastner GmbH
GARDENA Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen: (07 31) 490-123
Reparaturen: (07 31) 490-290
Argentina
Argensem S.A.
Venezuela 1075
(1618) El Talar - Buenos Aires
Australia
NYLEX Corporation Ltd.
25-29 Nepean Highway
P.O. Box 68
Mentone, Victoria 3194
Austria
GARDENA Österreich Ges. m.b.H.
Stettnerweg 11-15
2100 Korneuburg
Belgium
MARKT (Belgium) NV/SA
Sterrebeekstraat 163
1930 Zaventem
Brazil
M. Cassab
Av. das Nações Unidas, 20.882
Santo Amaro, CEP 04795-000
São Paulo - S.P.
Bulgar a / България
ДЕНЕКС ООД
бул. „Черни връх“ 43
София 1407
Canada
GARDENA Canada Ltd.
100, Summerlea Road
Brampton, Ontario
Canada L6T 4X3
Chile
Antonio Martinic Y CIA. LTDA.
Gilberto Fuenzalida 185 Loc.
Las Condes
Santiago de Chile
Costa Rica
Compania Exim
Euroiberoamericana S.A.
350 Sur del Automercado
Los Yoses
San Pedro
Cyprus
FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia
Czech Republic
GARDENA spol. s.r.o.
Ripská 20
62700 Brno
Denmark
GARDENA Danmark A /S
Naverland 8
2600 Glostrup
Finland
Habitec Oy
Martinkyläntie 52
01720 Vantaa
France
GARDENA France
Service Après-Vente
BP 50080
95948 ROISSY CDG Cedex
Great Britain
GARDENA UK Ltd.
27-28 Brenkley Way
Blezard Business Park
Seaton Burn
Newcastle upon Tyne NE13 6DS

South Africa
GARDENA South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686
Spain
ANMI Andreu y Miriam S.A.
Calle Pere IV, 111
08018 Barcelona
Sweden
GARDENA Svenska AB
Box 9003
20039 Malmö
Switzerland
GARDENA Kress + Kastner AG
Bitziberg 1
8184 Bachenbülach
Ukraine / Украина
АОЗТ АЛЬЦЕСТ
ул. Гайдара 50
г. Киев 01033
Turkey
Dost Dis Ticaret Mümessillik A.Þ.
Yali Mah. Turgut Pasa Cad.
No: 7 1/
Kartal - Ýstanbul
USA
GARDENA
3085 Shawnee Drive
Winchester, VA 22604
7836- 20.960.05 /0001
GARDENA Kress + Kastner GmbH
Postfach 27 47, D-89070 Ulm
http: //www.gardena.de
T3055116181E /Id.22245/07H
