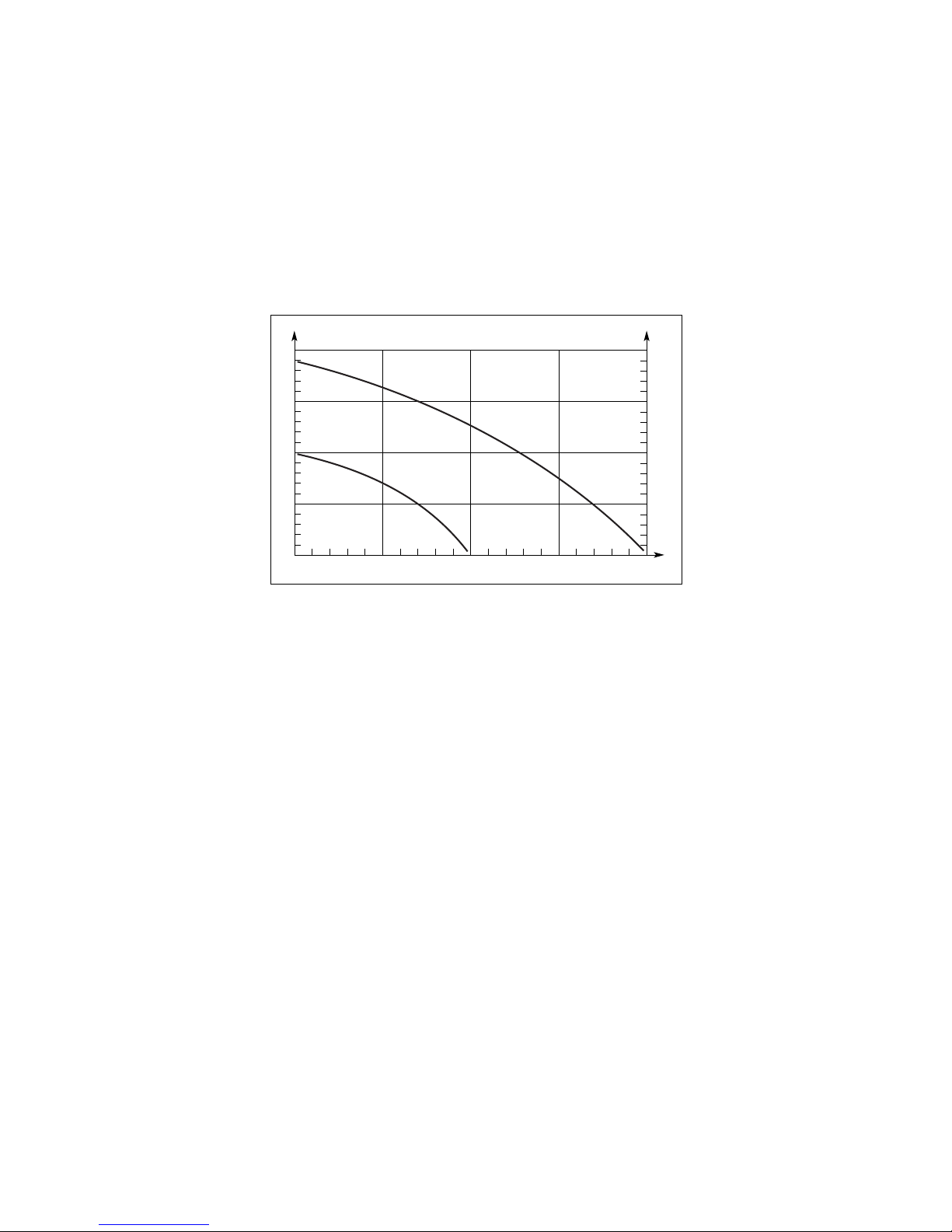

WP 600
WP 1200
m
2,0
1,5
1,0
0,5
0
bar
0,20
0,15
0,10
0,05
0 5 10 15 20 l/min

11
G
Intended purpose
Attention
GARDENA Fountain Pump
WP 600, 12 V / WP 1200, 12 V
Welcome to GARDENA aquamotion ...
Please read these operating instructions carefully and observe
the notes given.
Use the instructions to familiarise yourself with the equipment,
the operating controls, their correct use, and the notes on safety.
AFor safety reasons, children under 16 as well as persons
not familiar with these operating instructions should not use this
pump.
Keep these operating instructions in a safe place.
The Applications Range of Your Pump
GARDENA Fountain Pumps have been designed for private use.
They are not designed for operating watering tools and systems.
The pumps may be used indoors as well as outdoors. The same
applies to the transformers.
AGARDENA Fountain Pumps have not been designed for con-
stant use in the industrial sector. Corrosive, easily combustible,
aggressive or explosive substances (e.g. petrol, petroleum, nitro
thinner) as well as salt-water or food / drinking water must not
be pumped.
AFor Your Safety
The transformer should be operated via a residual current
device with a residual current rating of ≤30 mA (DIN VDE 0100-
702 and 0100-738). The pump must be placed on solid, even
ground. Please ask your electrician for his advice.
Mains power cables should not have a smaller cross-section
than a rubber sheathed cable of the designation H05 RNF.
Extension cables must meet the requirements of DIN VDE 0620.
In Austria power cables should correspond to ÖVE-EM 42,
T 2 (2000)/1979 § 22 according to § 2022.1. According to this
standard pumps used in swimming pools and ponds should
only be operated via an isolating transformer. Please contact
your electrician.
In Switzerland mobile appliances which are used outdoors,
must be connected via a residual-current device.
Before operating the pump, look to see if there is any damage
of the pump. A damaged pump must not be used. In case of
damage, please have the pump checked by our GARDENA
Service Centre or by an authorised electrician.
Operating the Pump
Mains power cables
For Austria
For Switzerland
Visual check

13
G
12
G
Adaptable lamps
Light / Fountain Nozzle
Remote control
Pond aeration
Filling the filter tank
with zeolith
Information
➔Example for application:
Underwater lighting of water jets and pond edges.
➔Products:
GARDENA Underwater Light Art. No. 7951
GARDENA
lightline Transformers
➔Example for application:
For installation in ponds and fountains.
➔Product:
GARDENA Light/Fountain Nozzle Art. No. 7953
➔Example for application:
For operating water jets from the comfort of your patio or
your living room.
➔Products:
GARDENA Remote Control Set Art. No. 7874
GARDENA Remote Control Socket Art. No. 7875
➔Example for application:
To aerate the pond.
➔Product:
GARDENA Pond Aerator Art. No. 7936
Zeolith fulfils the following functions:
.Filters the water (➔protection for the pump).
.Bonds with excessive nutrients and causes their decomposition
by bacteria (➔Ion exchange and the bonding of e.g. nitrate).
.Helps to keep the pond clean and maintain the biological
balance.
.Provides stability for the pump
GARDENA Zeolith, 1 l Art. No. 7914
GARDENA Zeolith, 5 l Art. No. 7915
Note:
To ensure the zeolith functions correctly, we recommend you
replace or clean it every 6 months (e.g. in salt water).
.Always unplug the pump first before working on it.
.Before assembling system extensions first unscrew the pre-
assembled cascade and if necessary also the telescopic tube
of the pump and then screw one of the water jets on again
(➔the ball-and-socket joint ensures that the water jet is
vertical).
.Follow the Safety and Assembly Information attached to the
operating instructions.
Applications:
Examples – System Extensions – Product Recommendations
➔Example for application:
Water jets may be integrated into water features.
Model Cascade Water Foaming Water Water- Cascade
Bell Jet Spray Fleur-de-Lis fall Rotating
Art. 7814 * 7816 7818 7820 7822 7823
No.
WP 600, 12 V 7850 ××××××–––
WP 1200, 12 V 7856 ××××××××××××
* contained in delivery volume
Check line voltage. Data indicated on the type plate must match
technical data of the mains supply.
The pump must not be operated when there are people in the
water.
Swimming pools and garden ponds should be designed accord-
ing to international and national design regulations. Please
consult a professional electrician.
Do not use the power cable to carry the pump or to pull the plug
out of the socket. Protect the power cable from heat, oil and
sharp edges.
Please unplug the pump after operation and before carrying out
any maintenance works.
The temperature of the liquid used must not be below 4°C or
above 35 °C.
Sand and other abrasive substances in the liquid cause in-
creased wear and reduce the output of the pump.
GARDENA pumps and plug connections have been designed
exclusively for the use with 12 V low voltage. When connected
to 230 V your life is at risk! Operate the pump only with the
delivered transformer.
Do not expose the transformer to direct sunlight.
Ensure that the transformer is positioned in a place safe from
flooding and at least 2 m away from the edge of the pond.
Please observe the local noise prevention regulations.
Check line voltage
Do not operate pump
when there are people
in the water
Swimming pools
and garden ponds
Do not use power cable
to carry the pump
Disconnect plug
Temperature of the liquid
used
Wear and reduced
output
Caution!
12 V low voltage
Do not expose the
transformer to sunlight
To place the transformer
Observe local noise
prevention regulations
Water jets for
26,5 mm (G 3/4) thread
connections

1
2
3
4
5
6
15
G
Cleaning the filter tank
Blocked feed impeller
.Example:
Hose pipe connection with the GARDENA light jet base
We recommend the use of a 3/4”(19 mm) GARDENA pond
hose pipe, Art. No. 7895, connected to with the GARDENA
“Profi”Maxi-Flow-System with Tap Connector (Art. No. 2801
and 2802) and the GARDENA “Profi”Maxi-Flow-System Hose
connectors (Art. No. 2817).
Care instructions
Filter tank and pump should be free from dirt particles!
How to clean:
.Pull the plug connections out of the transformer and disconnect
its power plug!
.Remove the pump from the water.
.If necessary remove the gravel.
.Clean the pump and the filter using a water jet.
.If there are deposits of dirt inside the pump then dismantle the
casing (➔➔see „Dismantling”) and carefully clean the interior
fittings with water.
Information: Do not use any hard objects or strong detergents!
If the feed impeller becomes blocked, the pump and the filter
should be cleaned (see above).

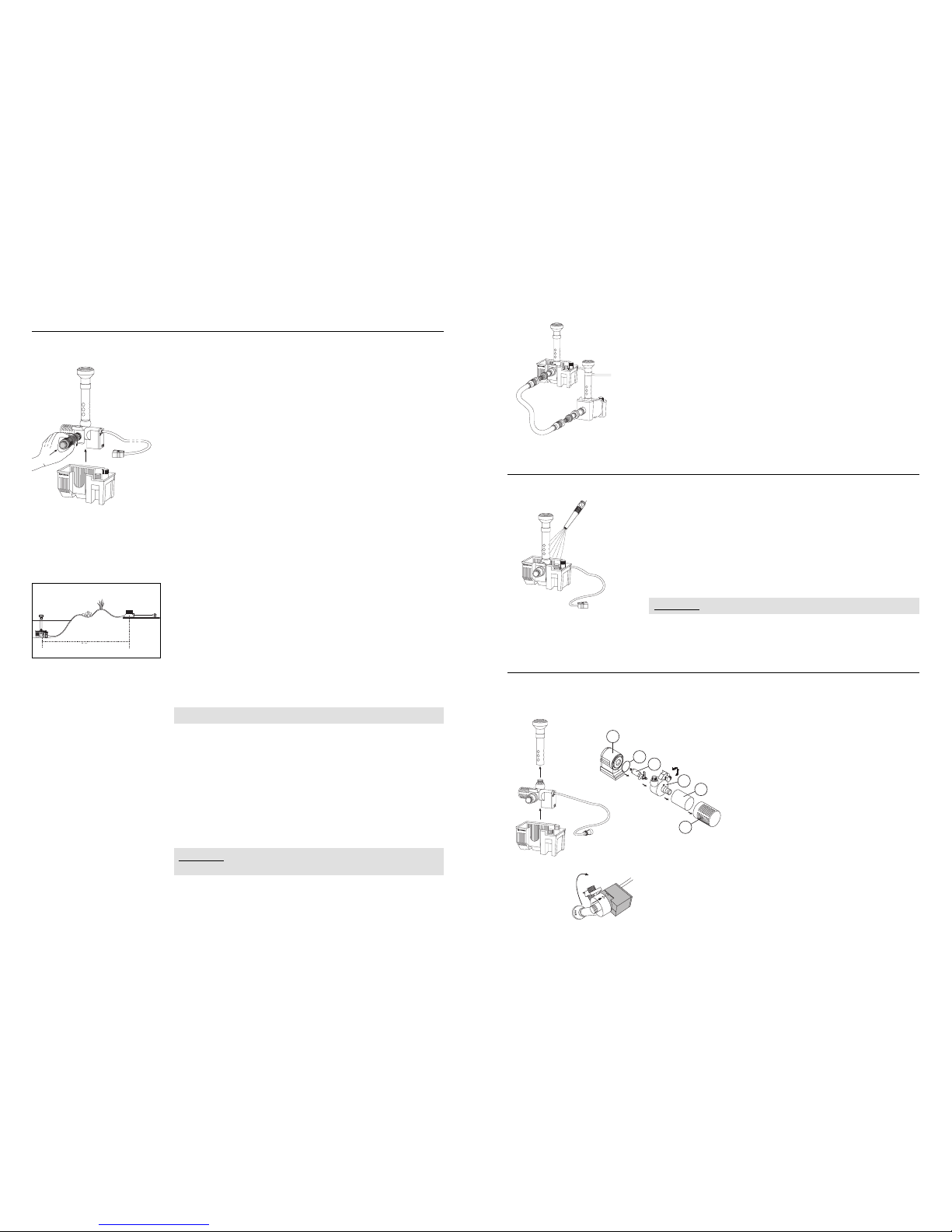

Dismantling
1. Pull the plug connections out of the transformer and disconnect
its power plug!
2. Remove the pump from the water.
3. If necessary remove the gravel.
4. Pull the pump pointing vertically upwards out of the filter tank.
5. Pull the suction filter casing 1for-
wards and remove it.
6. Remove the foam filter 2from the
suction piece of the pump.
7. Turn the pump casing 3to the left
to the limit stop and then pull it straight
towards the front and remove it!
Do not tilt!
8. Pull the feed impeller 4out of the
motor casing 6.
.Then assemble all the fittings reversing the order and direction
in which they were dismantled. Please take care that the seal
ring 5is properly re-fitted.
➔Make sure while assembling that you attach the pump casing
with the pressure joint being cated, press it firmly and then
turn it straight to the right.
➔Observe the markings.
14
G
Operation
1. Remove the pump from the filter basket and screw the regulator
supplied onto the second opening of the pump up to the limit
stop (➔max. delivery capacity on the vertical outlet). Then
replace the pump in the filter basket.
2. Put the pump on a stable base to ensure that the upper edge of
the filter tank is completely immersed in water.
Please note the maximum submersion depth (see “Technical Data”).
GARDENA
lightline Transformers are licensed for outdoor use.
.You may attach them to the ground or the wall.
.When attaching to the wall, please take care that the connection
sockets are pointing towards the ground.
.When attaching to the ground, please take care that the trans-
former is not exposed to direct rainfall or to a mechanical
hazard.
Put the plug connection into a free socket of the transformer
and connect the power cable of the transformer with a 230 V AC
socket.
ACaution! Pump will start running immediately!
Avoid dry operation of the pump as dry running will produce
undesirable heat and destroy the pump.
.Loosen the regulator by turning it anti-clockwise until you
achieve the desired water flow from the vertical pipe of the
fountain/ water feature.
.You may connect other terminals to the second outlet.
For example, a separately installed water jet may be operated
via the GARDENA light jet base, Art. No. 7886. If necessary
fix the light jet base with two screws.
Information:
This significantly reduces the volume of the vertical water jet.
.If the max. delivery capacity of the second outlet is to be used
then the vertical outlet should be closed with the end cap sup-
plied.
Installing the pump
Pay attention to
minimum water depth
Finding a location
for the transformer
Starting the pump
Avoid dry operation
Horizontal or
second outlet
2 m
2 m

17
G
16
G
EU Certificate of Conformity
The undersigned
GARDENA Kress + Kastner GmbH ·Hans-Lorenser-Str. 40 ·D-89079 Ulm
hereby certifies that, when leaving our factory, the units indicated below are in accordance with the
harmonised EU guidelines, EU standards of safety and product specific standards.
This certificate becomes void if the units are modified without our approval.
Description of the units:
Fountain Pumps
Type:
WP 600, 12 V / WP 900, 12 V
Art. No. :
7850 / 7856
EU directives:
Machinery Directive 98/37/EC
Electromagnetic Compatibility
89/336/EC
Low Voltage Directive
73/23/EC
Directive 93/ 68/ EC
Harmonised
European standards:
EN 292-1
EN 292-2
EN 60335-1
EN 60335-2-41
Year of CE marking:
1999
Ulm, 01.06.1999
Thomas Heinl
Technical Dept. Manager
Storage
AThe pump should be stored out of the reach of children.
1. Remove the pump from the pond and store away from frost
before the first frost sets in.
2. Clean and check the pump carefully.
3. Store the pump in a container filled with water.
The mains plug must not be submerged.
Information
If you have any problems with your Fountain Pump, please con-
tact our Service or return the defective unit together with a short
description of the problem –in case of guarantee, with the
warranty card duly completed and signed –postage paid to one
of the GARDENA Service Centres listed on the back of this leaflet.
We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our
units if it is due to improper repair or if parts exchanged are not
original GARDENA parts or parts approved by us, and, if the
repairs were not carried out by a GARDENA Service Centre or
an authorised specialist. The same applies to spare parts and
accessories.
Technical Data
Type WP 600, 12 V WP 900, 12 V
Art. No. 7850 7856
Rated power 5 W 15 W
Flow 10 l/min 20 l/min
Max. delivery head 1,0 m 1,8 m
Max. submersion depth 1.0 m 2.0 m
Power cable 10 m H05 RNF 10 m H05 RNF
Fitting 26.5 mm (G 3/4) 26.5 mm (G 3/4)
male thread male thread
Max. media temperature 35 °C35°C
Mains voltage 230 V 230 V
Frequency 50 Hz AC 50 Hz AC
Noise level LWA1) 48 dB(A) 48 dB(A)
1) Measuring method according to EN 60335-1
Complaints/ Repairs
Product liability
GARDENA guarantees this
product for 3 years (from date
of purchase). This guarantee
covers all serious defects
of the unit that can be proved
to be material or manufacturing
faults. Under warranty we will
either replace the unit or repair
it free of charge if the following
conditions apply:
.The unit must have been
handled properly and in
keeping with the require-
ments of the operating in-
structions. Neither the pur-
chaser nor a non-authorised
third party have attempted
to repair the unit.
Parts subject to wear (e.g.
feed impeller) are excluded
from this guarantee.
This manufacturer’s guarantee
does not affect the user’s exist-
ing warranty claims against the
dealer/seller.
In the event of a fault, please
send the defective unit together
with the receipt and a descrip-
tion of the fault, postage paid,
to one of the GARDENA
Service Centres on the back
of this page.
Guarantee
Where to store

59
✃
Garantiekarte Wasserspielpumpe WP 600, 12 V ❏
Warranty Card Fountain Pump
Bon de garantie Pompe pour jets d’eau WP 1200, 12 V ❏
Garantiekaart Waterspelpomp
Garantikort Fontän Pump Set
Certificato di garanzia Pompa per giochi d’acqua
Tarjeta de garantía Bomba para juegos de agua
Garantibevis Springvandspumpe
Wurde gekauft am: Händlerstempel
Was purchased on: Dealer’s stamp / Receipt
Achetée le (date et lieu d’achat) : Cachet du revendeur
Werd gekocht op: Stempel van de handelaar
Försäljningsdatum: Återförsäljarens stämpel
Data di acquisto: Timbro del rivenditore
Fecha de la compra: Sello del comerciante
Købsdato: Firmastempel
Beanstandung:
Reasons for complaint:
Défaut constaté:
Klacht:
Reklamation:
Difetto riscontrato:
Reclamación:
Reklamation:

Deutschland
GARDENA Kress + Kastner GmbH
GARDENA Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen: (07 31) 490-123
Reparaturen: (07 31) 490-290
Argentina
Argensem S.A.
Venezuela 1075
(1618) El Talar - Buenos Aires
Australia
NYLEX Corporation Ltd.
25-29 Nepean Highway
P.O. Box 68
Mentone, Victoria 3194
Austria
GARDENA Österreich Ges. m.b.H.
Stettnerweg 11-15
2100 Korneuburg
Belgium
MARKT (Belgium) NV/SA
Sterrebeekstraat 163
1930 Zaventem
Brazil
M. Cassab
Av. das Nações Unidas, 20.882
Santo Amaro, CEP 04795-000
São Paulo - S.P.
Bulgaria / България
ДЕНЕКС ООД
бул. „Черни връх“ 43
София 1407
Canada
GARDENA Canada Ltd.
100, Summerlea Road
Brampton, Ontario
Canada L6T 4X3
Chile
Antonio Martinic Y CIA. LTDA.
Gilberto Fuenzalida 185 Loc.
Las Condes - Santiago de Chile
Costa Rica
Compania Exim
Euroiberoamericana S.A.
350 Sur del Automercado
Los Yoses
San Pedro
Cyprus
FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia
Czech Republic
GARDENA spol. s.r.o.
Ripská 20
62700 Brno
Denmark
GARDENA Danmark A /S
Naverland 8
2600 Glostrup
Finland
Habitec Oy
Martinkyläntie 52
01720 Vantaa
France
GARDENA France
Service Après-Vente
BP 50080
95948 ROISSY CDG Cedex
Great Britain
GARDENA UK Ltd.
27-28 Brenkley Way
Blezard Business Park
Seaton Burn
Newcastle upon Tyne
NE13 6DS
Greece
Agrokip G. Psomadopoulos & Co.
20, Lykourgou str.
Kallithea - Athens
Hungary
GARDENA Magyarország Kft.
Késmárk utca 22
1158 Budapest
Iceland
Heimilistaeki hf
Saetun 8
P.O. Box 5340
125 Reykjavik
Republic of Ireland
Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12
Italy
GARDENA Italia S.r.l.
Via Donizetti 22
20020 Lainate (Mi)
Japan
KAKUDAI Mfg. Co. Ltd.
1-4-4, Itachibori Nishi-ku
Osaka 550
Luxembourg
Magasins Jules Neuberg
Grand Rue 30
Case Postale No. 12
Luxembourg 2010
Netherlands
MARKT (Holland) BV
Postbus 219
1380 AE Weesp
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
New Zealand
NYLEX New Zealand Limited
Private Bag 94001
South Auckland Mail Centre
10 Offenhauser Drive
East Tamaki, Manukau
Norway
GARDENA Norge A/S
Postboks 214
2013 Skjetten
Poland
GARDENA Polska Sp. z o.o.
Szymanów 9 d
05-532 Baniocha
Portugal
MARKT (Portugal), Lda.
Recta da Granja do Marquês
Edif. GARDENA
Algueirão
2725-596 Mem Martins
Russia / Россия
АО АМ ДА ТТЦ
ул. Моcфилмовcкая 66
117330 Моcква
Singapore
Variware
Holland Road Shopping Centre
227-A 1st Fl., Unit 29
Holland Avenue
Singapore 1027
Slowenia / Croatia
Silk d.o.o. Trgovina
Brodišče 15
1236 Trzin
South Africa
GARDENA South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686
Spain
ANMI Andreu y Miriam S.A.
Calle Pere IV, 111
08018 Barcelona
Sweden
GARDENA Svenska AB
Box 9003
20039 Malmö
Switzerland
GARDENA Kress + Kastner AG
Bitziberg 1
8184 Bachenbülach
Ukraine / Украина
АОЗТ АЛЬЦЕСТ
ул. Гайдара 50
г. Киев 01033
Turkey
Dost Diþ Ticaret Mümessillik A.Þ.
Yeþilbaðlar Mah. Baþkent
Cad. No. 26
endik - Ýstanbul
USA
GARDENA
3085 Shawnee Drive
Winchester, VA 22604
7850- 20.960.05/0001
GARDENA Kress + Kastner GmbH
Postfach 27 47, D-89070 Ulm
http: //www.gardena.de
T3055126181E / Id.22304/07H
