Gardenline GLS1401 Instruction Manual

GLS 1401; EX; UK
Electric Scarifier Artikel-Nr.: 3420465 Ident-Nr.: 01017

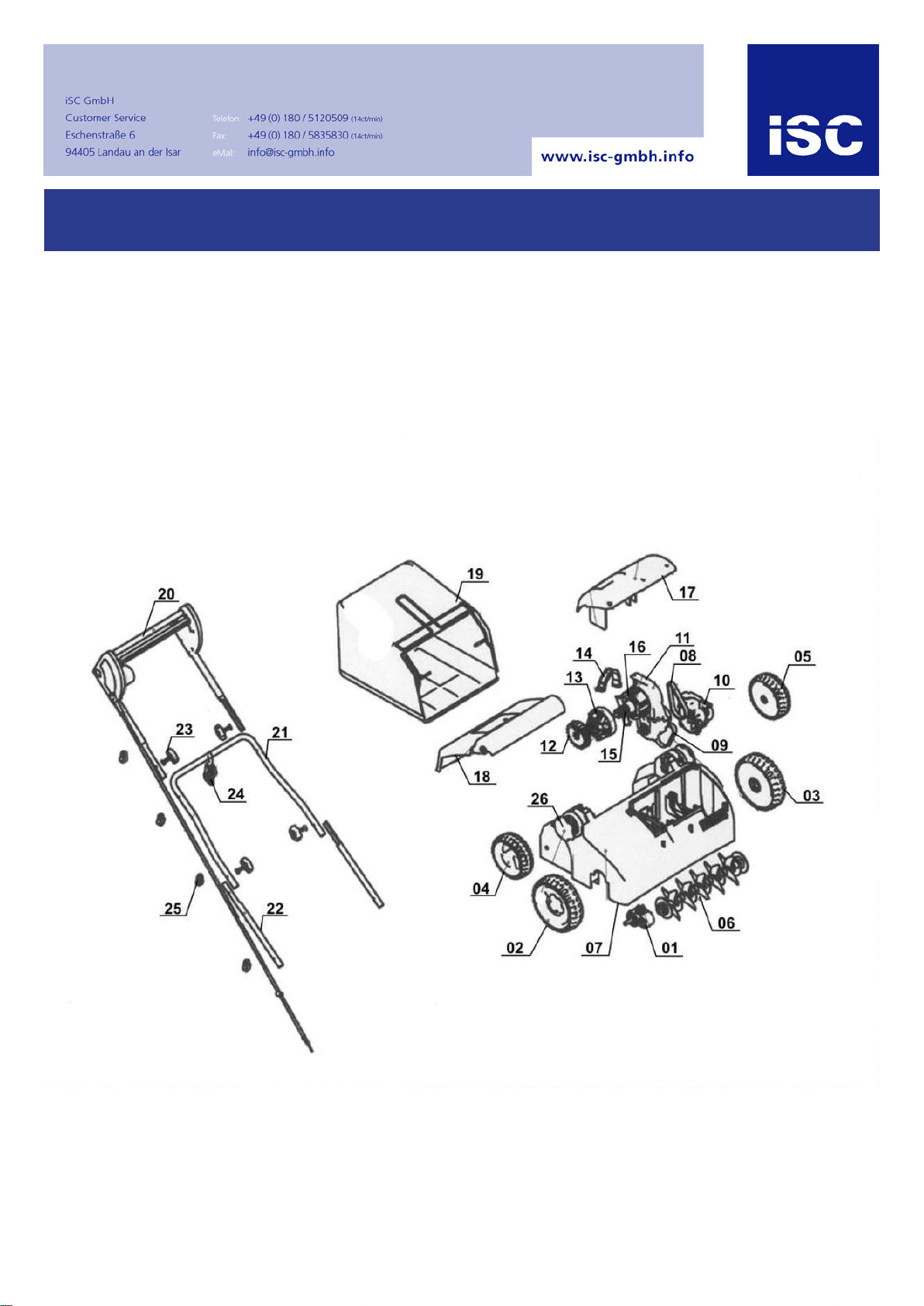

Komponenten / Ersatzteile
Position Artikel-Nr. Beschreibung
1 342045001001 Small feet
2 342045001002 Front wheel Assembly
3 342045001003 Front wheel Assembly
4 342045001004 Rear wheel
5 342045001005 Rear wheel
6 342045001006 claw roll Aufnahme 12 mm
7 342045001007 Main housing
8 342045001008 Belt 6PJ309
9 342045001009 Belt 6PJ299
10 342045001010 Gear case cover Getriebegehäuse
11 342045001011 Gear case
12 342045001012 Fan
13 342045001013 Motor Adaptor
14 342045001014 Motor Adaptor
15 342045001015 Armature
16 342045001016 Field
17 342045001017 Upper cover
18 342045001018 Rear cover
19 342045001019 Catch bag Assem
20 342045001020 upper handle with switch
21 342045001021 lower handle
22 342045001022 Handle lower
23 342045001023 Knob Assem
24 342045001024 Suspension plank
25 342045001025 Cord clip

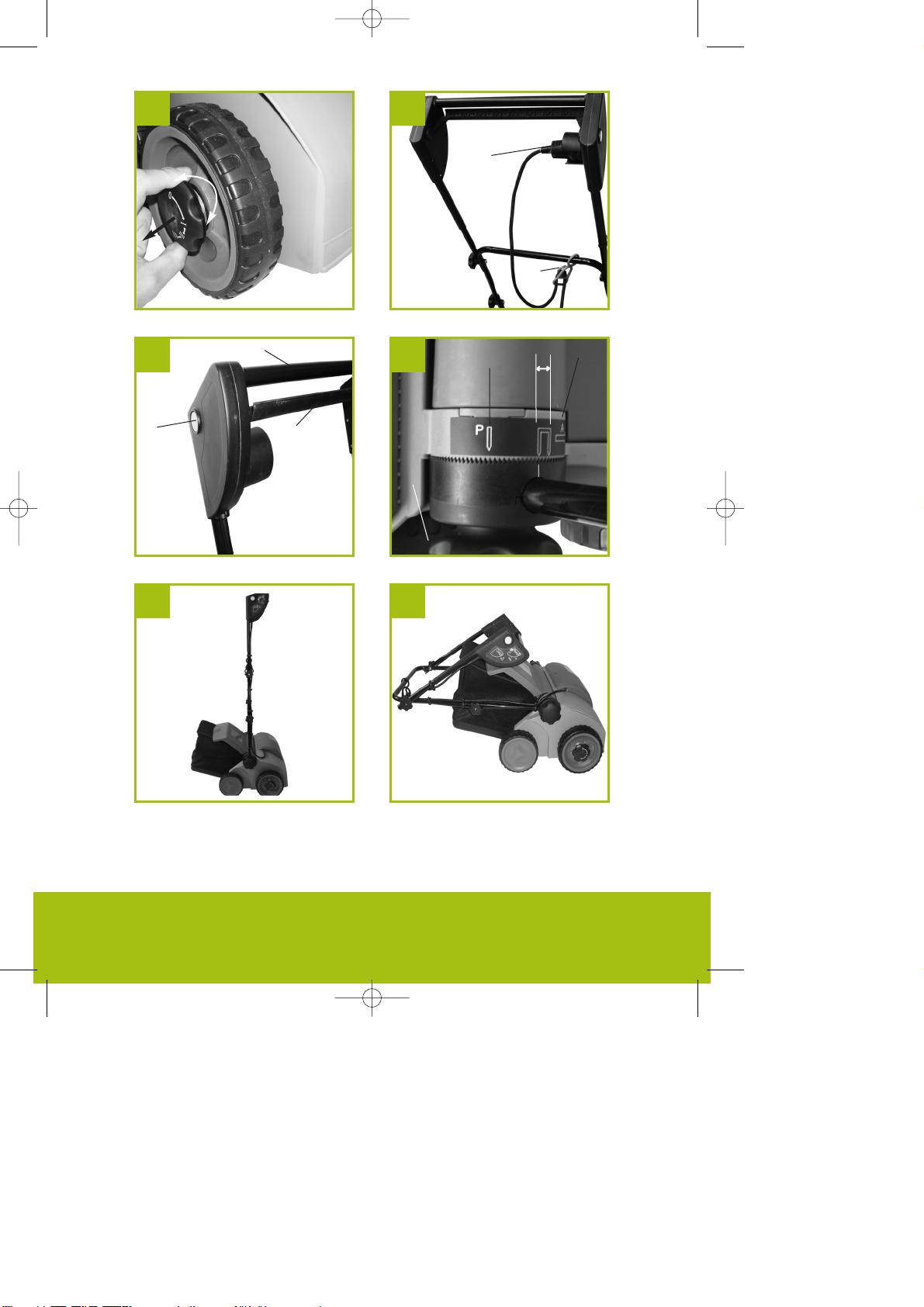

26 342045001026 Adjusting knob Assembly Einstellung
0 342045001027 screw for knob für Sterngriff / M8 x 80

ADJUSTABLE
HEIGHT SETTING
3/7/9mm
WORKING
WIDTH
33cm
1400 W 230 ~
50 Hz
Now you have purchased
a Gardenline®product
you can rest assured in the
knowledge that as well
as your 3 year parts and
labour warranty you have
the added peace of mind
of dedicated helplines.
GLS1401ELECTRIC
SCARIFIER
1400W ELECTRIC SCARIFIER
AFTER SALES SUPPORT
UK / N.IRELAND HELPLINE NO 0151 649 1500
REP. IRELAND HELPLINE NO 1890 946 244
MODEL NUMBER: 6396
MONTH ON SALE: 03/2008 36
THIS BOX INCLUDES:
• 1 x ELECTRIC SCARIFIER
• 1 x COLLECTION BAG
THE
POWER
GUIDE
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 1

02
HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
Contents
03 Introduction
04 General Information and Safety Instructions

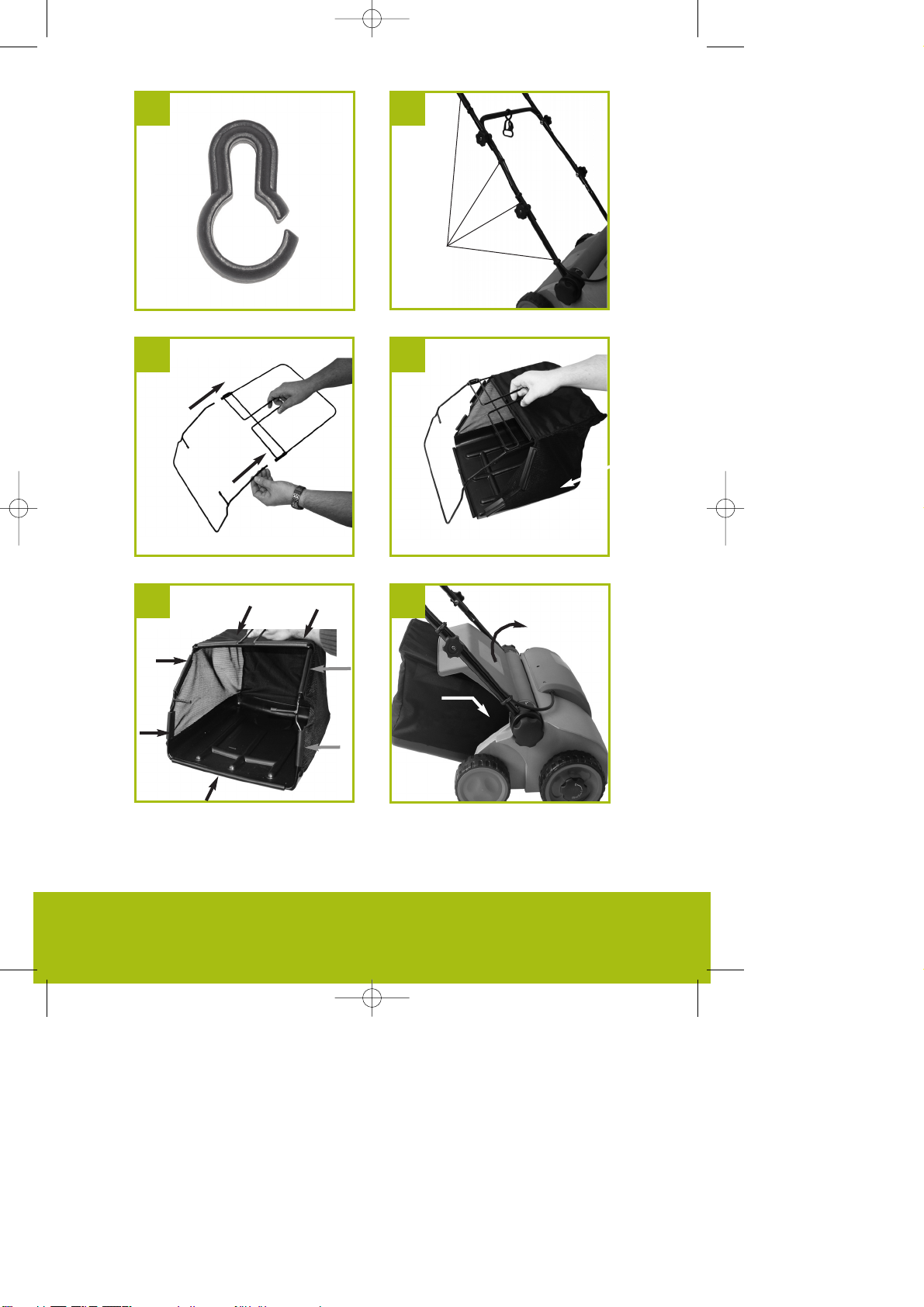

11 Assembly and Parts List
18 Getting Started
20 Features
21 Instructions
24 FAQ´s
25 Other Useful Information
Packaging
The unit is supplied in packaging to prevent its being
damaged in transit. This packaging is raw material and
can therefore be reused or can be returned to the raw
material system.
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 2

03
HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
Congratulations on choosing to buy a Gardenline®
product. By doing so you now have the assurance
and peace of mind that comes with purchasing a
product made by one of Europe’s leading
manufacturers.
All products brought to you by Gardenline®
are manufactured to the highest standards
of performance and safety, and, as part of our
philosophy of customer service and satisfaction,
are backed by our comprehensive 3 Year Warranty.
Great care has gone into the manufacture of this
product and it should therefore provide you with
years of good service when used properly. In the
event of product failure within its intended use
over the course of the first 3 years after date of
purchase, we will remedy the problem as fast
as possible once it has been brought to our
attention. In the unlikely event of such an
occurrence, or if you require any information
about the product, please contact us via our
helpline support services, details of which are
to be found both in this manual and on the
product itself.
Please fill in and return the Warranty Card to the
address provided.
We hope you will enjoy using your purchase for
many years to come.
Introduction 1
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 3

04
HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396

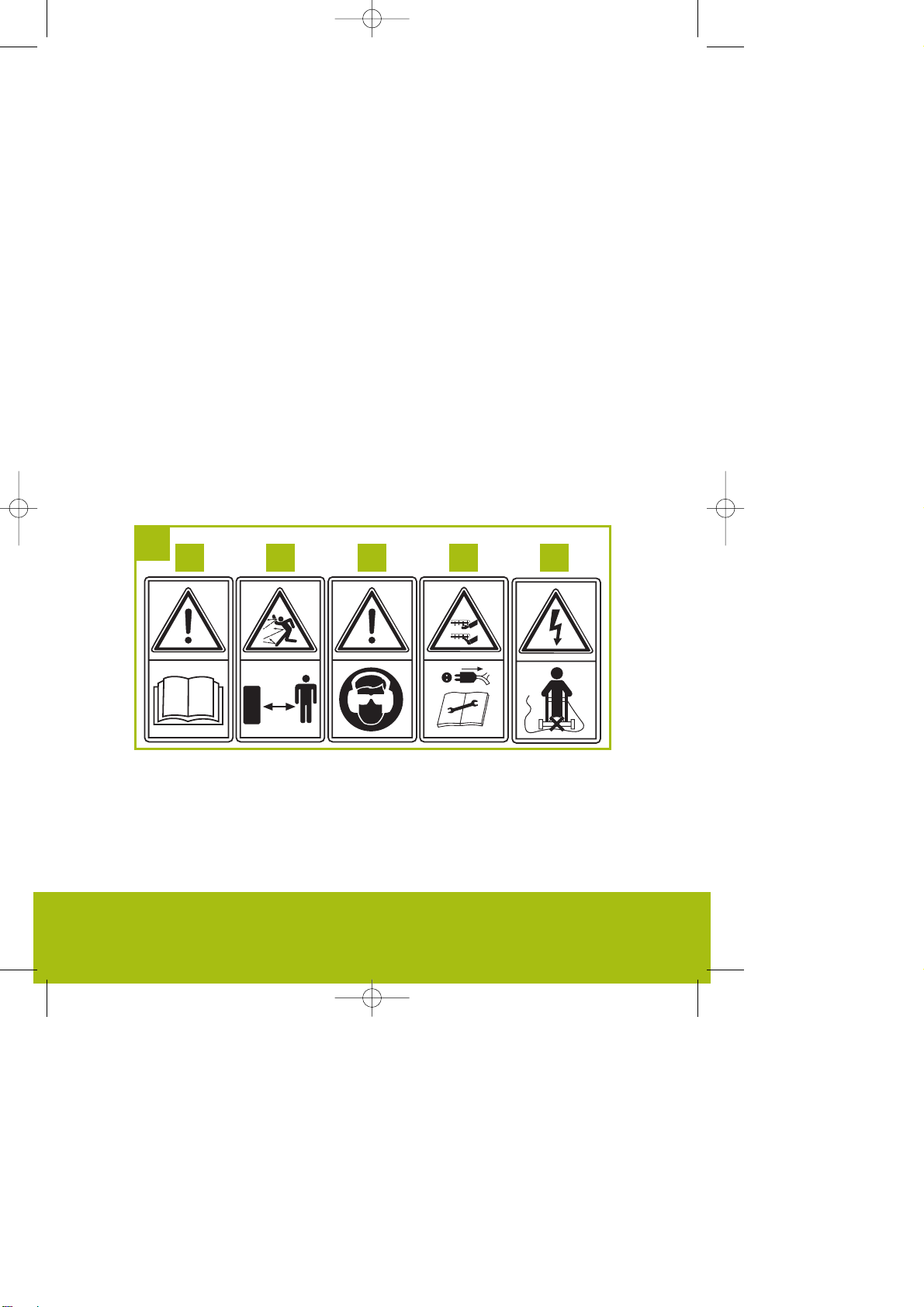

Safety Instructions
When using equipment, a few safety
precautions must be observed to avoid
injuries and damage:
Read the operating instructions carefully and comply
with them. It is important to consult these
instructions in order to acquaint yourself with the
unit, its proper use and safety regulations.
Keep this manual in a safe place, so that the
information is available at all times.
If you give the equipment to any other person, hand
over these operating instructions as well.
We accept no liability for damage or accidents which
arise due to non-observance of these instructions.
This electric scarifier is only designed to scarify grass.
Familiarize yourself with the operator controls and
proper operation of the equipment.
Improper operation of the electric scarifier can lead to
serious injuries.
General safety regulations
1 Never allow children or other persons who are not
familiar with the operating instructions to use the
scarifier. Contact your local governmental agency for
information regarding minimum age requirements for
operating the scarifier.
2
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 4

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
2 Always disconnect the power cable before carrying
out any checks, maintenance or repairs.
3 The person operating the scarifier is liable for any
damages sustained by third parties within the
machines´s working radius as a result of its use.
4 Work only in broad daylight or with suitable
artificial lighting.
5 Always check the machine for signs of damage
prior to using it.
6 Make sure that all the guards are fitted and that
they are in good working order.
7 Never use the machine when you are tired.
8 Switch off the motor and pull the power plug before
you carry out any checks, cleaning, maintenance or
other work on the scarifier, and whenever the scarifier
hits a foreign body.
9 Switch off the motor and disconnect the power
plug before you carry out any checks, cleaning,
maintenance or other work on the scarifier, and
whenever the scarifier hits a foreign body.
10 Before using the scarifier, always visually examine
the spike drum for excessive wear or damage.
11 It is imperative to follow the instructions when
fitting or dismantling the spike drum.
12 Examine the site where you want to use the scarifier
and remove all objects which could be struck and
thrown up. Foreign objects must be removed before
operation. Watch out for foreign objects during
operation. Watch out for any extension cables you
05
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 5

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
may be using to operate the scarifier. Keep power
cables away from the cutting unit.
13 Always wear sturdy, non-slip footwear and long
trousers while scarifying. Never scarify in bare
feet or when wearing light sandals.
14 Always use the scarifier with the ejector flap
closed, or with grass bag.
15 Never use the machine with damaged or missing
safety equipment, e.g. without deflector plates
and/or the grass collecting device.
16 Do not raise the scarifier when you start the motor.
17 Never move your hands or feet toward or under
any rotating parts. Keep clear of the ejector
opening at all times.
18 Slopes have to be scarified along the slope and
not up and down.
19 Do not use the scarifier on gradients exceeding 15 %.
20 Switch off the motor, pull out the power cable and
wait for the spike drum to come to a standstill
before you lift the scarifier for transporting.
21 Make sure there are no persons and particularly
no children or animals in the direct vicinity of the
scarifier while it is being used. Make sure that a
safety distance of 10 meters is observed.
22 Store the scarifier in a dry place that is inaccessible
to children.
23 Entrust repairs to the electrical parts of the
scarifier only to a qualified electrician.
06
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 6

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
24 The power cables used are not to be of a lighter
duty class than light rubber-insulated H07RN-F
in accordance with DIN 57282/VDE 0282 and
they must have a cross section of at least 1.5 mm 2.
The connection must be splash-proof. The
power cable must be fed through the stress-relief
clips and be plugged into the switch/plug block.
Before use, check the cable for damage and
signs of aging. Never use the scarifier with worn
or damaged cables. If the cable is damaged
while scarifying, pull the power plug immediately
and only then inspect the damage. Do not touch
the power cable until the plug has been pulled.
25 Do not tilt the scarifier when you start the motor
unless the scarifier must be raised off the ground
a little in order to start it. In the latter case, tilt the
scarifier as little as absolutely necessary and only
raise the side opposite the user.
26 Make sure that all nuts, bolts and screws are
tightened securely and that the machine is in
safe working condition.
27 If the scarifier strikes a foreign body, examine the
machine for signs of damage and carry out any
necessary repairs before restarting and
continuing to work with the scarifier.
28 Do not expose the scarifier to rain. The grass
should not be wet or very moist.
29 Always make sure that you have a solid footing
while working with the scarifier.
30 Operate the machine at a walking pace only.
07
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 7

08
HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
31 Be particularly careful when you change direction
on a slope.
32 Be particularly careful when you turn the scarifier
around or pull it toward yourself.
33 Stop the scarifier whenever it has to be lifted for
transporting over areas other than lawns and
whenever it has to be moved from or to the area
you want to scarify.
34 Carefully actuate the starter switch in accordance
with the manufacturer’s instructions. Make sure
your feet are far enough away from the spike
drum.
35 Never lift or carry the scarifier with the motor
running.
36 Switch off the motor and pull out the mains plug
before you leave the scarifier.
37 Allow the motor to cool down before you put the
machine in a closed room.
38 Switch the scarifier off and disconnect the power
cable before performing any adjustment or
cleaning work to the scarifier, and before check-
ng to see if the mains connection is entwinded or
damaged.
39 Socket couplers to connection elements must be
made from rubber, soft PVC or other thermo-
plastic material of equal rigidity or coated with
such material.
40 When scarifying, ensure that you avoid paths that
could restrict the free movement of the extension
cable.
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 8

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
41 Switch off the motor:
before you try to remove any obstructions or
blockages,
before performing any cleaning, checking or
adjustment work to the scarifier,
after running over an obstruction.
42 If the machine should start to vibrate unusually, it
must be checked immediately.
43 To prevent risk of fire, keep the motor free of
grass, leaves and moss at all times.
44 For safety reasons you should always replace
worn or damaged parts.
45 If the connecting line for the machine is
damaged, it must be replaced by the manufac-
turer or its after-sales service or similarly
trained personnel to avoid danger.
46 Safety equipment must not be removed or bypassed.
47 Make regular checks on the grass collecting
device for wear or damaged parts.
48 Wear hearing and eye protection while operating the
machine.
09
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 9

10
HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
Description of the warning logos
A = Important!
Read the directions for use before operating
the tool.
B = Keep other persons (and animals) away from
the danger zone.
C = Wear hearing and eye protection.
D = Sharp work tools - Do not cut your fingers or
toes! Switch off the device and pull the power
plug before engaging in any maintenance/
cleaning work or if the cable is tangled or
damaged. Keep the power cable away from the
cutting unit.
E = Keep the power cable away from the roller.
1A B C D E
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 10

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
Layout and items supplied
1. ON/OFF switch
2. Safety lock-off
3. Connector Plug
4. Cable strain-relief clamp
5. Top push bar
6. Bottom push bar
7. Push bar bracket
8. Scarifying depth
9. Grass basket
10. Ejector flap
11. Frame parts for grass basket
12. Cable clips
13. Fastening screws for push bar
Assembly and Parts List
11
3
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 11

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
12
햲
햳
햸
햴
햵
햶
햷
햻
햹
햺
햿
햾
햷
햸
햺
햵햾햿
햽
햶
2
3
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 12

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396 13
Assembling the equipment
The equipment is delivered unassembled. The grass
basket and the complete push bar must be assembled
and mounted before using the equipment. Follow the
operating instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the
equipment.
Fitting the push bar brackets (see Figs. 4 and 5)
Remove the star screw (Fig. 4/Item 1) and the pressure
plate (Fig. 4/Item 2)
Connect the push bar bracket (Fig. 4/Item 3) to the
fastening screw. Ensure that the curve in the tube
(Fig. 5/Item 1) is facing outside.
Now remount the pressure plate and tighten with the
star screw.
Important!
The identical tilt angle must be set for both push bar
brackets.
Fitting the lower push bar (see Fig. 6)
Slide the lower push bar (Fig. 6/Item 1) over the push
bar brackets. Do not forget to slide the stress-relief clip
(Fig. 6/Item 2) onto the tube beforehand.
Now screw the tubes together using the screws
supplied (Fig. 6/Item 3), the plastic sleeves
(Fig. 6/Item 4) and the star screw (Fig. 6/Item 5).
Fitting the upper push bar (see Fig. 7)
Position the upper push bar (Fig. 7) such that its holes
line up with the holes of the lower bar.
Now screw the tubes together using the screws
supplied (Fig. 7/Item 1), the plastic sleeves
(Fig. 7/Item 2) and the star screw (Fig. 7/Item 3).
Using the cable clips supplied (Fig. 8), attach the power
cable to the tubes of the push bars so that it is possible
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 13

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
14
to open and shut the ejector flap (Fig. 9/Item A).
Important! Please ensure that the ejector flap can be
opened and closed easily!
Adjusting the handlebar height (see Fig. 17)
Loosen the star screw (Fig. 17/Item 1) on both sides of
the scarifier by turning several revolutions. Now adjust
the handlebar to the desired height.
Important!
The height of the handlebar may be adjusted only within
the mark (Fig. 17/Item V) during operation.
Retighten the star screws.
Important!
The identical tilt angle must be set on both sides.
The push bar has a P and an A position (Fig. 17) in order
to save space during storage.
When the bar is moved to the P position, the scarifier
can be pushed into a corner (Fig. 18).
In the “A” position, the scarifier can be folded as shown
in Fig. 19 to take up even less space.
Assembling the grass basket (see Figs. 10 and -13)
Push both frame parts into each other (Fig. 10).
Pull the grass basket over the metal frame (Fig. 11).
Pull the rubber clips over the metal frame (Fig. 12).
To hang the grass basket on the scarifier you must lift
the ejector flap (Fig. 13/Item 10) with one hand and
with the other hand take hold of the grass bag by the
handle and hook it onto the scarifier from above (Fig.
13).
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 14

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396 15
Important!
Before you ever hook the grass basket to the scarifier
you must ensure that the motor is switched off and the
cutting unit is not rotating.
1
1
2
3
2
1
45
12
3
4
52
3
4
2
6
1
7
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 15

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
16
1
A
2
8 9
10 11
12 13
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 16

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396 17
1
2
1
2
1
3
2
A
PV
1
14 15
16
19
17
18
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 17

HELPLINE No. UK / N.IRELAND 0151 649 1500
REP. IRELAND HELPLINE NO 189 094 6244
Model Number: 6396
Getting Started
Adjusting the scarifier depth (see Fig. 14)
The scarifier depth is adjusted at both front wheels via
the adjustment mechanism. For this, pull out the
adjusting screw and turn the wheel to the left or right
into one of the available positions (0/I/II/III).
Important!
The scarifier depth must always be identically set on
both sides!
0 = drive/transport position
I = scarifier depth 3 mm
II = scarifier depth 7 mm
III = scarifier depth 9 mm
Starting up
Connect the machine’s power supply cable to the plug
(Fig. 15/Item 1) and secure the power cable with the
stress-relief clip (Fig 15/Item 2).
Important! To prevent accidental start-up of the
equipment, the push-bar (Fig. 16 / Item 1) is equipped
with a safety lock-off (Fig. 16 / Item 2) which must be
pressed before the lever switch (Fig. 16 / Item 3) can be
pressed. If the lever switch is released, the equipment
switches off.
Repeat this process several times so that you are sure
that the machine functions properly. Before you perform
any repair or maintenance work on the machine, ensure
18
4
Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 18
