Gardenline 31CC 4 STROKE User manual

31CC 4 STROKE
BRUSHCUTTER,
LINE TRIMMER
User Manual
Product
Info
www.powertoolsupport.com

QR codes take you where you want to go
quicky and easily
Whether you require product information, spare parts or accessories,
details on warranties or aftersales service, or if you want to watch
a product demonstration video, our QR codes will take you there in
no time at all.
What is a QR code?
A QR-code (QR=Quick Response) is a type of matrix that can be read
with a smartphone camera and that contains a link to a website or
contact details, for example.
Advantage: You are not required to manually enter a website address
or contact details.
How it works
To scan the QR code, all you need is a smartphone with QR codes reader
software and an Internet connection*. This type of software can be
downloaded for free from your smartphone’s app store.
Try it out now
Just scan the QR code with your smartphone and
find out more about the Aldi product you have
purchased*.
* Depending on your tarif you may be charged for the connection.
Product
Info
For Know How Videos, click on the
“Product Assistance” tab, then the
“How To Product Videos”link.

Contents
Pack contents /parts 2
Description of Symbols 3
General safety instructions 4
Additional Safety rules for Petrol products 7
Additional Safety Rules for Petrol Line Trimmers 8
Additional Safety Rules for Petrol Brushcutters 8
Parts List 10
Adding and Checking oil 12
General Assembly for use as a Line Trimmer or Brushcutter 14
Connecting the J handle to the Upper shaft 15
Fitting the Brushcutter / Line Trimmer Guard 18
Fitting & Adjusting the Double Strap Shoulder Harness 19
Fitting the Brushcutter Blade 20
Changing/Removing the Brushcutter Blade 21
Tips for Operation 22
Specic Assembly for use as a Line Trimmer 22
Fitting/Removing the Spool and Line assembly 23
Changing the line only on the Spool and Line assembly 25
Use of the Line trimmer 27
Advancing the line manually 27
Tips for operating the Line Trimmer / Tips for cutting 28
Feeding the line 29
Fuelling 30
Starting the Brushcutter / Line Trimmer 31
Stopping the Brushcutter/Line Trimmer/Maintenance and Cleaning 33
Air lter Fuel Filter / 34
Checking the spark plug, Servicing 35
Storage & Maintenance 36
Warranty / Environmental protection /
What your 3 year warranty means 36
Service Support / Accessories 37
Troubleshooting 38
Specications 39

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
4
Pack contents / parts
Congratulations on the purchase of your Gardenline® 31cc 4 Stroke
Brushcutter / Line Trimmer. When you open your packaging, first remove
all items and check there are no parts damaged or missing. If you find
anything wrong, do not operate the product until the parts have been
replaced or the fault has been rectified. Failure to do so could result in
serious personal injury.
IMPORTANT INFORMATION.
NOTE: This is a 4 stroke Brushcutter / Line Trimmer.

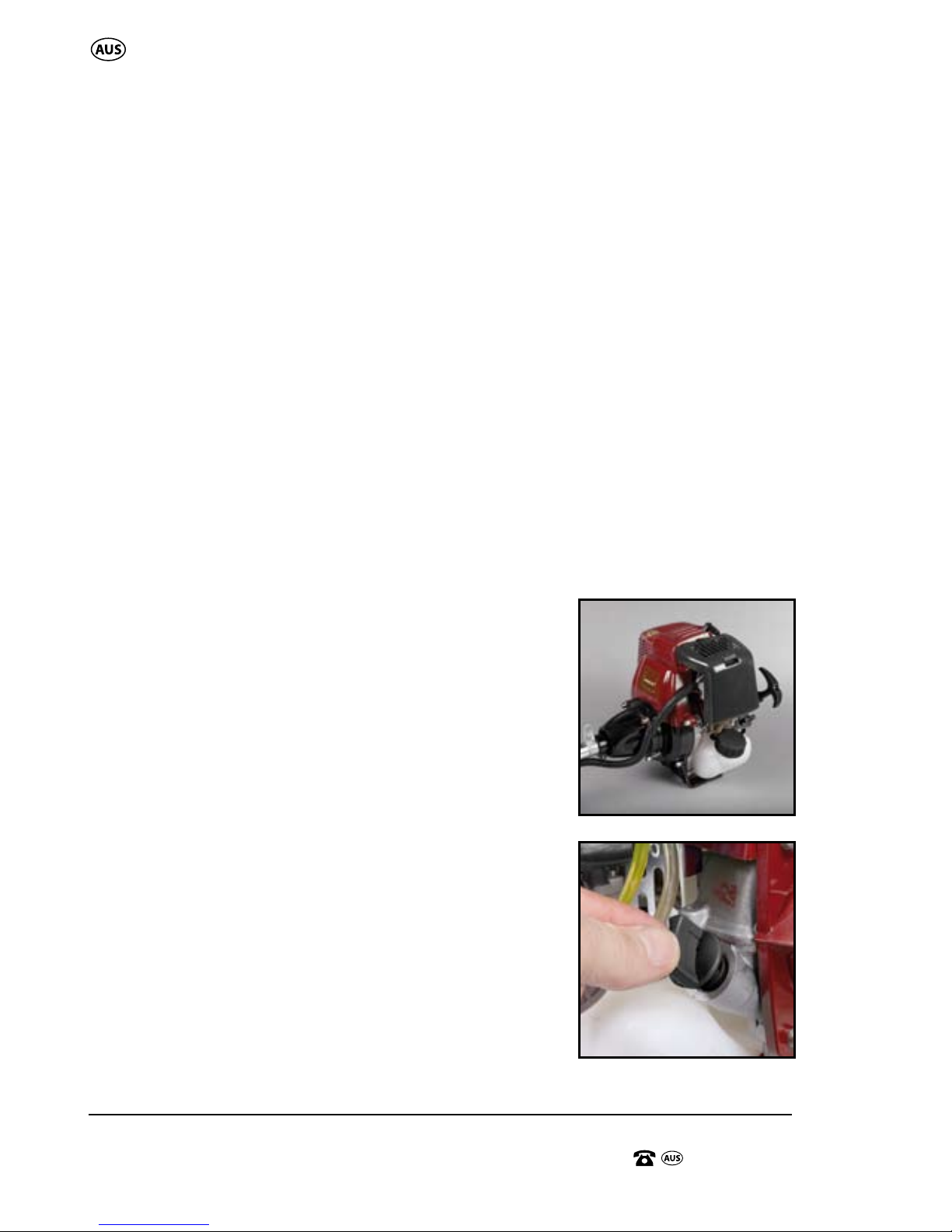

The motor MUST be filled with 60ml of SAE 10W/30
BEFORE starting. Fresh unleaded fuel must be used in this unit.
Do NOT use Ethanol based fuels. Do NOT mix oil with fuel.
Contents of carton

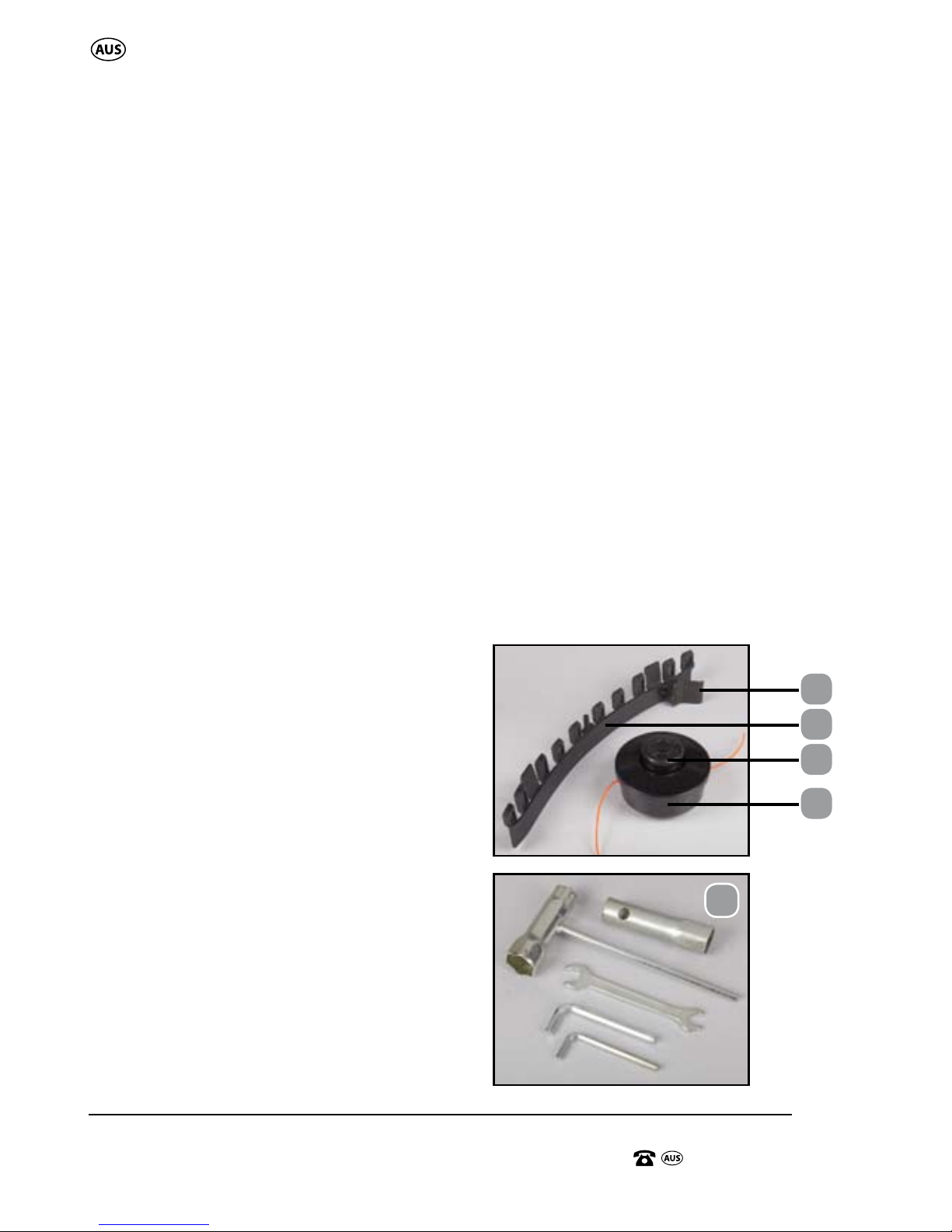

1 x Brushcutter Guard (Guard, clamp, 2 x screws + 4 x washers)
1 x 3T Brushcutter Blade
2 x Spool & Line Assembly (not fitted)
1 x Clip On Line Trimmer Guard Attachment
1 x J Handle
1 x Double Shoulder Strap Harness
1 x Spark Plug Tube Spanner
1 x Open Ended Spanner (10mm-8mm)
2 x Allen Key (5mm & 4mm)
1 x Blade Nut Spanner / Wrench
1 x Instruction Manual
1 x Warranty Card & details
2

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
3
Description of symbols
The instruction manual or rating plate on your product may show symbols.
These represent important information about the product or instructions
on its use.
Conforms to relevant standards for electromagnetic compatibility.
Wear hearing protection, eye protection and breathing protection.
Wear safety footwear.
Wear safety gloves.
Warning.
Read these instructions for use carefully.
Choke control
Start position (choke closed).
Run position (choke open).
Use at a distance of at least 15m from other people.
Thrown objects and rotating line can cause severe injury.
Do not operate the unit without the safety guard in place.
Keep away from rotating cutter.
Sharp blade on the safety guard, do not touch the cut off knife.
Explosive material.
Extremely hot surface. Do not touch a hot muffler, gear box or
cylinder, you may get burned. These parts get extremely hot from
operation and remain hot for a short time after the unit is turned off.
Do not put in water
Noise label rating 84dBA (taken at 7.5 metres)
you must wear ear protection at all times.

General safety warnings
Intended use of the 31cc 4 Stroke Brushcutter / Line Trimmer
NOTE: This product is for private domestic DIY use only.
It is not suitable for commercial or trade use.
This Line Trimmer has been designed for trimming lawn edges and
grass around shrubs and trees.
The Brushcutter has been designed for cutting and clearing grass,
thick weeds, vegetation and shrubs.
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result
in electric shock, re and/or serious injury.
The word power tool used in the following warnings and
throughout this manual refers to BOTH electrical power tools
and ALSO petrol driven power tools.
This unit may not be used by people (including children) with reduced
physical, sensory or mental capacities, with a lack of experience and without
the appropriate knowledge, unless they are supervised by someone who is
responsible for their safety or have been instructed by such a person with
regard to how the unit is to be operated. Children should be supervised to
ensure that they do not play with the device.
Save all warnings and instructions for future reference
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite
accidents. Rags, cloths, cord, string and similar items should never be left
around the work area.
b. Do not operate power tools in explosive environments, such as in the
presence of ammable liquids, gases, or dust. Power tools
create sparks, which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause the operator to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with grounded power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
4

b. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is increased risk of electric shock if your
body is grounded.
c. Do not expose power tools to rain or wet conditions. Water entering
a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Replace damaged cords immediately.
Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor reduces the risk
of electric shock.
f. To reduce the risk of electric shock, the manufacturer recommends the
use of a residual current of 30mA or less at all times.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious
personal injury.
a. Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat,
or hearing protection will reduce personal injures.
a. Prevent unintentional starting. Ensure the switch is in the“off”
position before connecting to power source and/or battery pack,
picking up or carrying the tool. Carrying power tools with your finger on
the switch or energising power tools that have the switch on
invites accidents.
a. Remove any adjusting key or wrench before turning the power tool on.
A wrench or key left attached to a rotating part of the power tool may result
in personal injury.
a. Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
a. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
a. If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
5

General safety warnings
4. Power tool use and care
a. Do not force the power tools. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
a. Do not use the power tool if the switch does not turn it“on” and
“o”. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
a. Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
a. Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the hands of
untrained users.
a. Maintain power tools with care. Check for misalignment or binding
of moving parts, breakage of parts and any other condition that may
affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained
power tools.
a. Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control.
a. Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working
conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous
situation.
6

Additional Safety Rules for Petrol Products
• Donotoperateinahazardouslocation.Suchareasincludewhere
there is a risk of explosion of petrol fumes, leaking gas or
explosive dust.
• Donotoperateinaconnedarea.Exhaustgases,smokeorfumes
could reach dangerous concentrations.
• Protectyourproduct.ThisBrushcutter/LineTrimmeris
NOT WEATHERPROOF and should not be exposed to direct sunlight,
high ambient temperature and damp, wet or high humidity
conditions.
• Donotsmokewhilerefuelling.Thisispotentiallydangerousasitmay
ignite the fuel and cause an explosion.
• Takecarenottospillfueloroil.WhenrefuellingtheBrushcutter/Line
Trimmer ensure that the motor has been switched off. Prevent the
spilling of fuel as this may also ignite with the hot motor.
Never refuel whilst the engine running.
• Checkforfuelleaks.Donotoperateifafuelleakisdetected.Wherea
fuel leak is detected, drain the tank of fuel and have the leak repaired.
• BecarefulwhereyoustoretheBrushcutter/LineTrimmer.Storethe
Brushcutter / Line Trimmer in a dry area away from flammable liquids.
• Keepyourdistance.TheBrushcutter/LineTrimmeremitsexhaust
fumes. Ensure bystanders keep a safe distance.
• Neverllfueltankindoors.Neverllfueltankwhenengineisrunning
or hot. Do not smoke when filling fuel tank.
 •Weargoggles
 •Wearearmus
 •Wearabreathingmask
7

Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290
Additional Safety Rules for Petrol Line Trimmers.
• FollowallsectionsoftheAdditionalSafetyRulesforPetrolProducts.
• Alwaysweargoggles,earmusandaduskmaskwhenusingtheLine
Trimmer.
• Onlyusethelengthanddiameterofnyloncuttinglineasdetailedin
this manual. Never use any other cutting material.
• NeverusetheLineTrimmerwithoutthesuppliedandcorrectly
fitted guard.
• Ensurethelinetrimmingbladeisingoodordertoensurethecorrect
length of cutting line is maintained.
• Keepbystandersatleast5metresawayfromtheoperatingtheLine
Trimmer.
• Duringoperation,alwaysholdtheLineTrimmerwithbothhands,
and make use of the Double Shoulder Strap Harness.
• Maintainarmfooting.Wearsuitablefullyenclosedfootwear.
• Alwaysturnothepetrolmotorwhenmakingadjustmentstothe
cutting head or line, when cleaning, or performing any maintenance
tasks.
• WhenoperatingtheLineTrimmer,beawareofthegroundwherethe
Line Trimmer is being operated. The cutting head and line is designed
to trim grass and similar undergrowth, and stones and foreign matter
should be avoided.
• Priortooperation,ensuretheassembledlineLineTrimmerischecked
for loose components and the operating controls of the trimmer.
Do not use the Line Trimmer if the controls are not in perfect working
order. Ensure all nuts, bolts and clamps are all tight.
Additional Safety rules for Petrol Brushcutters
WARNING: Extreme care must be taken when using blades to ensure
safe operation. Read the safety information for safe operation using
the blade.
• FollowallsectionsoftheAdditionalSafetyRulesforPetrolProducts.
• AlwaysholdBrushcutterwithbothhandswhenoperating.Usearm
grip on both handles.
• Maintainyourgripandbalanceonbothfeet.Positionyourselfsothat
you will not be drawn off balance by the kick-back reaction of the
cutting blade.
• Inspectandcleartheareaofanyhiddenobjectssuchasglass,stones,
concrete, fencing, wire, wood, metal, etc.
8

Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290
11
• Neverusebladesnearfootpaths,fencing,posts,buildingsorother
immovable objects.
• Neveruseabladeafterhittingahardobjectwithoutrstinspecting
it for damage. Do not use if any damage is detected.
• Theunitisusedasascythe,cuttingfromtherighttotheleftina
broad sweeping action from side to side.
• Alwaysweargoggles,earmusandaduskmaskwhenusingthe
Brushcutter.
• Onlyusebladeswithacuttingdiameterof255mmandaboresize
of 25.4 mm.
• OnlyusetheBrushcutterwiththecorrectlysuppliedandtted
Brushcutter guard.
• Keepbystandersaminimumof15metresfromtheoperationofthe
Brushcutter.
• Priortooperation,ensuretheassembledBrushcutterischeckedfor
loose components and the operating controls of the Brushcutter.
Do not use the Brushcutter if the controls are not in perfect working
order. Ensure all nuts, bolts and clamps are all tight.
• Checkthebladeiscorrectlyseatedandthebladenutistight.
• DONOTsubstitutethebladewithanyothertypesofbladeotherthan
that is detailed in this manual. DO NOT fit a saw blade to this product.
• Thisbrushcutteristtedwithacentrifugalclutch.Atidle,theblade
must not be rotating. Make a practice to always check the clutch is
correctly operating and at idle the blade does not rotate, and rotation
of the blade only occurs as the speed of the motor is increase from
manually operating the speed trigger.
Do NOT use the brushcutter if the blade at idle speed is rotating and
take it to an authorised service centre.
• Exerciseextremecautionwhenusingthe3Tbrushcutterbladewith
this unit. Blade thrust is the reaction which may occur when the
spinning 3T brushcutter blade contacts anything it cannot cut.
This contact may cause the 3T brushcutter blade to stop for an instant,
and suddenly “thrust” the unit away from the object that was hit.
This reaction can be violent enough to cause the operator to lose
control of the unit. Blade thrust may occur without warning if the
blade snags, stalls or binds. This is more then likely to occur in areas
where it is difficult to see the material being cut.
9

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
10
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290

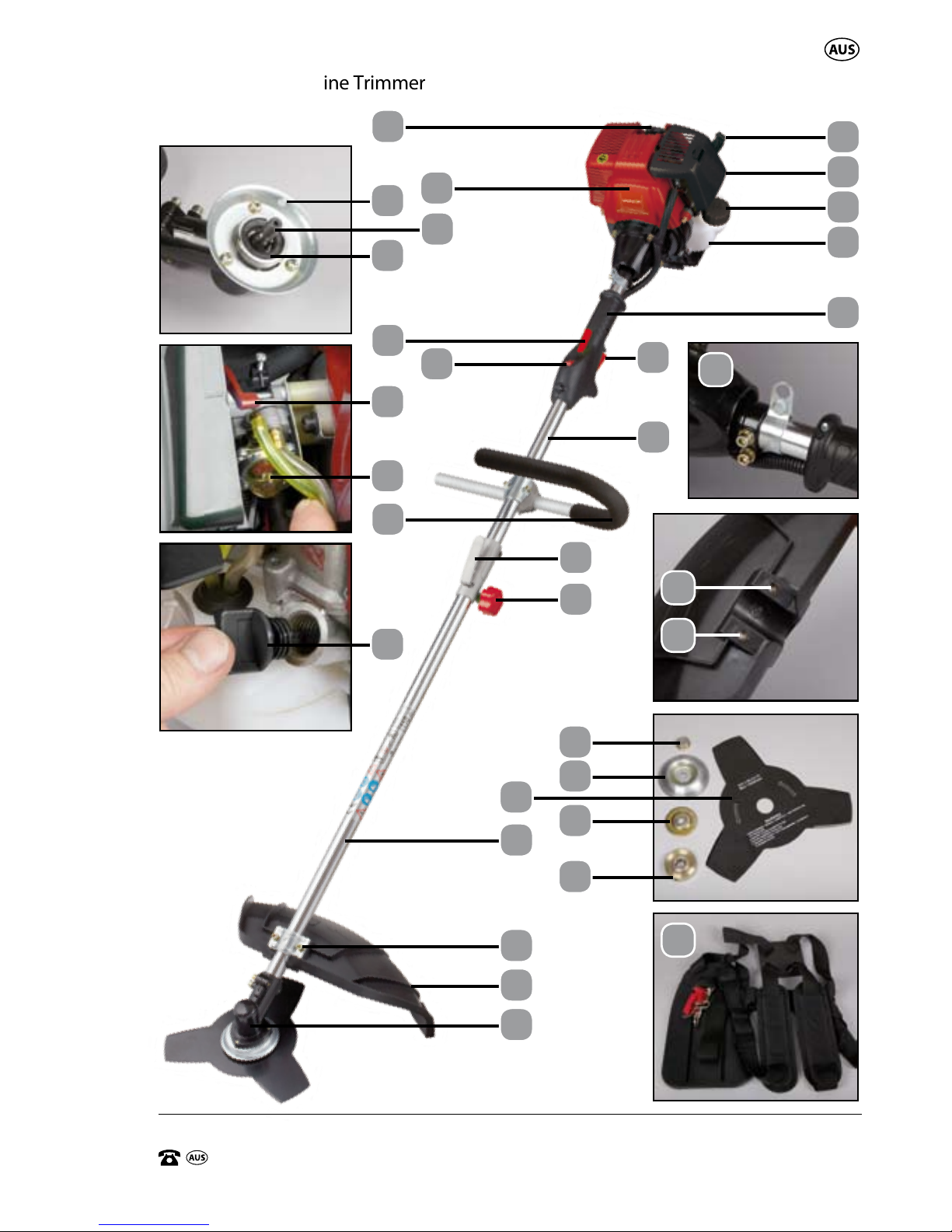

Parts List
1. Spark plug/spark plug cover
2. Recoil starter
3. Air filter cover
4. Motor housing
5. Fuel tank cap
6. Fuel tank
7. Main handle
8. Throttle trigger
9. Safety lever
10. On/Off switch
11. Upper shaft
12. J Handle
13. Shaft locating lever
14. Shaft locking knob
15. Lower shaft
16. Guard attachment clamp
(+2 x screws & washers)
17. Brushcutter guard
18. Lower shaft gearbox
19. Spindle lock entry hole
20. Spindle
21. Inner bush with spindle hole
22. Choke lever (Red lever)
23. Priming bulb
24. Oil reservoir/ dipstick
25. Screw holes for Brushcutter guard
26. Blade nut
27. Protector
28. 3T Brushcutter blade
29. Outer flange
30. Inner flange
31. Double shoulder strap harness
32. Cut off knife
33. Clip-on Line trimmer
guard attachment
34. Bump knob
35. Spool & Line Assembly
36. Assembly accessories
(1 x Spark plug tube spanner,
1 x Open ended spanner -
10mm-8mm,
2 x Allen key - 5mm & 4mm,
1 x Blade nut wrench)
37. Double shoulder strap
attachment point
38. Fuel tank bracket (not shown)
34
35
36
32
33

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290
11
12
26
27
28
29
30
1
4
10
9
15
14
13
16
6
5
3
2
8
7
17
18
37
25
25
31
20
21
19
23
22
24
11

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
12
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290
Operation of the Brushcutter / Line Trimmer
Adding and Checking the oil
IMPORTANT: The motor of this brushcutter / line trimmer is packed with NO
OIL in the motor. Prior to starting the motor, oil MUST be added to the oil
reservoir (24). Failure to add sufficient oil will result in damage to the motor
which is NOT covered under the warranty of the unit.
NOTE: This is a 4 stroke brushcutter / line trimmer. The motor sump MUST
be filled with 60mL of SAE 10W/30 BEFORE starting. Fresh unleaded fuel
must be used in this unit. Do not use ethanol based fuels.
Do NOT mix oil with fuel. Oil must be separately poured into the sump of
the motor as follows, and also the oil level MUST be checked every time the
line trimmer / brushcutter is used.
NEVER attempt to remove the oil dipstick (24) while the motor is running.
ENSURE the motor is not running when the oil level is being checked.
On a new unit, the motor needs to be filled with 60mL of SAE 10W/30
engine oil.
To initially fill with oil or to check the oil level,
follow the process below.
1. Lay the unit down so that the fuel tank bracket
(38) is resting on a secure surface, or on the
ground. Clean the area directly around the
oil reservoir (24). (Fig. A)
2. Clean the area directly around the oil dipstick
(24), and then fully remove/unthread the oil
dipstick in an anti clockwise direction.
3. On a new unit which has not previously been
filled with oil, Measure 60mL of SAE 10W/30 oil
and pour into the oil reservoir (24) where the
dipstick was removed.
4. Clean the dipstick portion of any oil residue
and then insert the dipstick fully into the motor,
however, DO NOT THREAD the dipstick into the
reservoir. Hold the dipstick in place for a few
second and then remove. (Fig B)
A.
B.

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290
13
5. Check the oil mark on the dipstick. It should be
approaching the top mark on the dipstick
(Fig C). Be careful not to overfill. (Fig D)
6. If the oil level is not close to the top oil mark line,
then add small amounts of oil and
repeat steps 3,4 & 5 until the oil level is
approaching the top oil mark on the dipstick.
DO NOT OVERFILL. Do Not EXCEED the upper
mark on the dipstick.
7. IMPORTANT: The motor should NEVER be
started if the oil level is below the low oil mark.
Always check the oil level before starting
ensuring the brushcutter / line trimmer is
positioned as per step 1 for checking.
8. When the oil level is at the upper oil level mark,
replace the dipstick and thread in the dipstick in
a clockwise direction until the dipstick is firmly in
place. The Sealing O ring on the shoulder of the
dipstick should be fully compressed when
the dipstick is firmly hand tightened.
C.
UPPER LOWER
MARK MARK
D.
DO NOT
OVER FILL

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
14
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290
User Instructions
General Assembly for use as a
Line Trimmer or Brushcutter

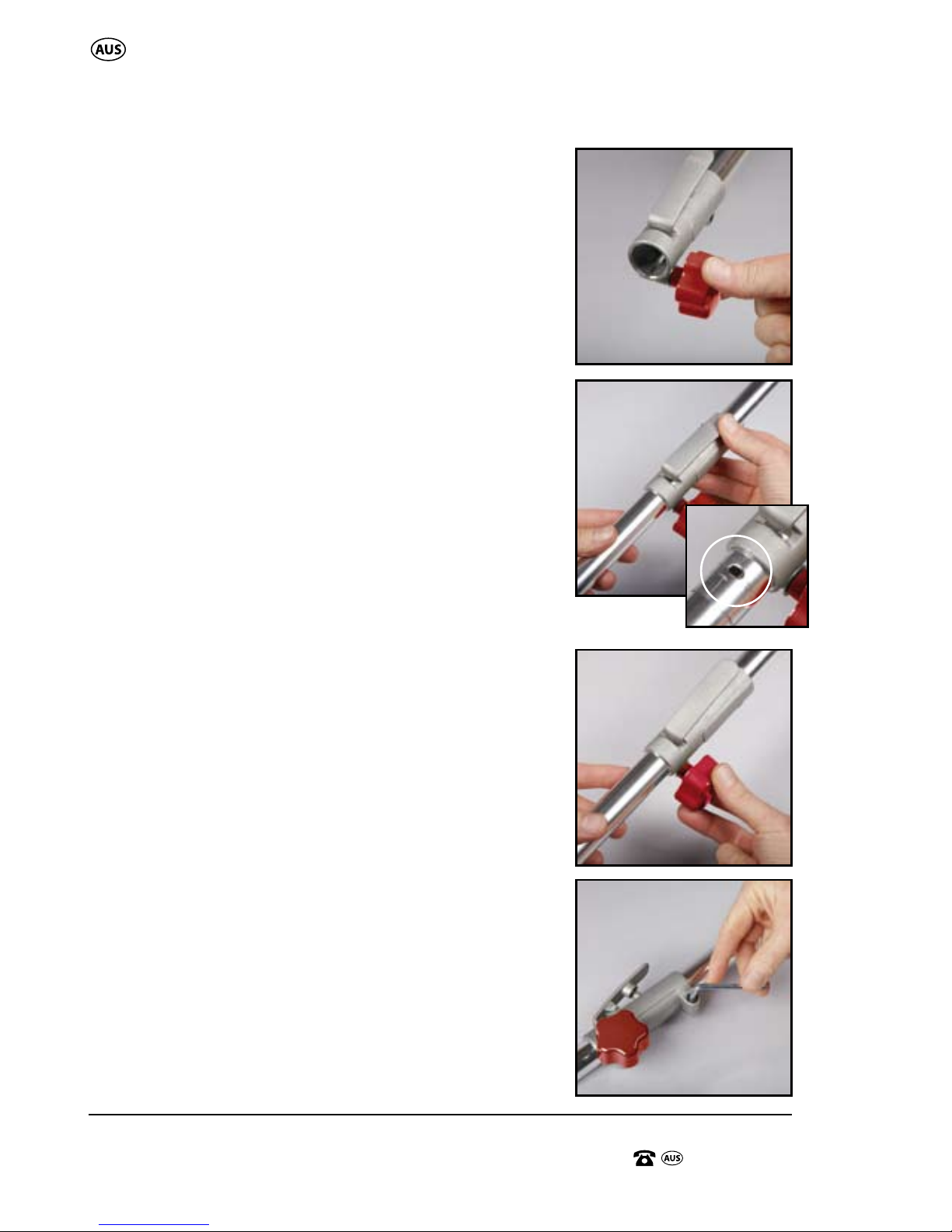

Connecting the Lower shaft
to the Upper shaft
1. Lay the unit down so that the fuel tank
bracket (38) is resting on a secure surface,
or on the ground.
2. Loosen the shaft locking knob (14). (Fig. E)
3. Whilst pushing down on the shaft locating lever
(13) as indicated by the word “PUSH”, insert the
lower shaft (15) into the upper shaft (11) joiner.
There is a small locating slot in the lower shaft.
When this slot enters the joiner, release the
locating lever (13). Continue to insert fully the
lower shaft. When fully inserted the tab on the
locating lever (13) should locate into the slot of
the lower shaft. If the shaft slot does not locate
into the locating lever tab, rotate the lower
shaft until the slot fully engages. You will hear a
click when it engages. (Fig. F)
NOTE: Ensure you check that the lower shaft
cannot be pulled outwards when the lever is
correctly engaged.
4. When the shaft is located, tighten the shaft
locking knob (14) to secure both shafts in place.
(Fig. G)
5. Using the 5mm supplied allen key (36), check
the screw on the underside / opposite side of
the locking lever is tight. (Fig. H)
E.
F.
G.
H.

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290
15

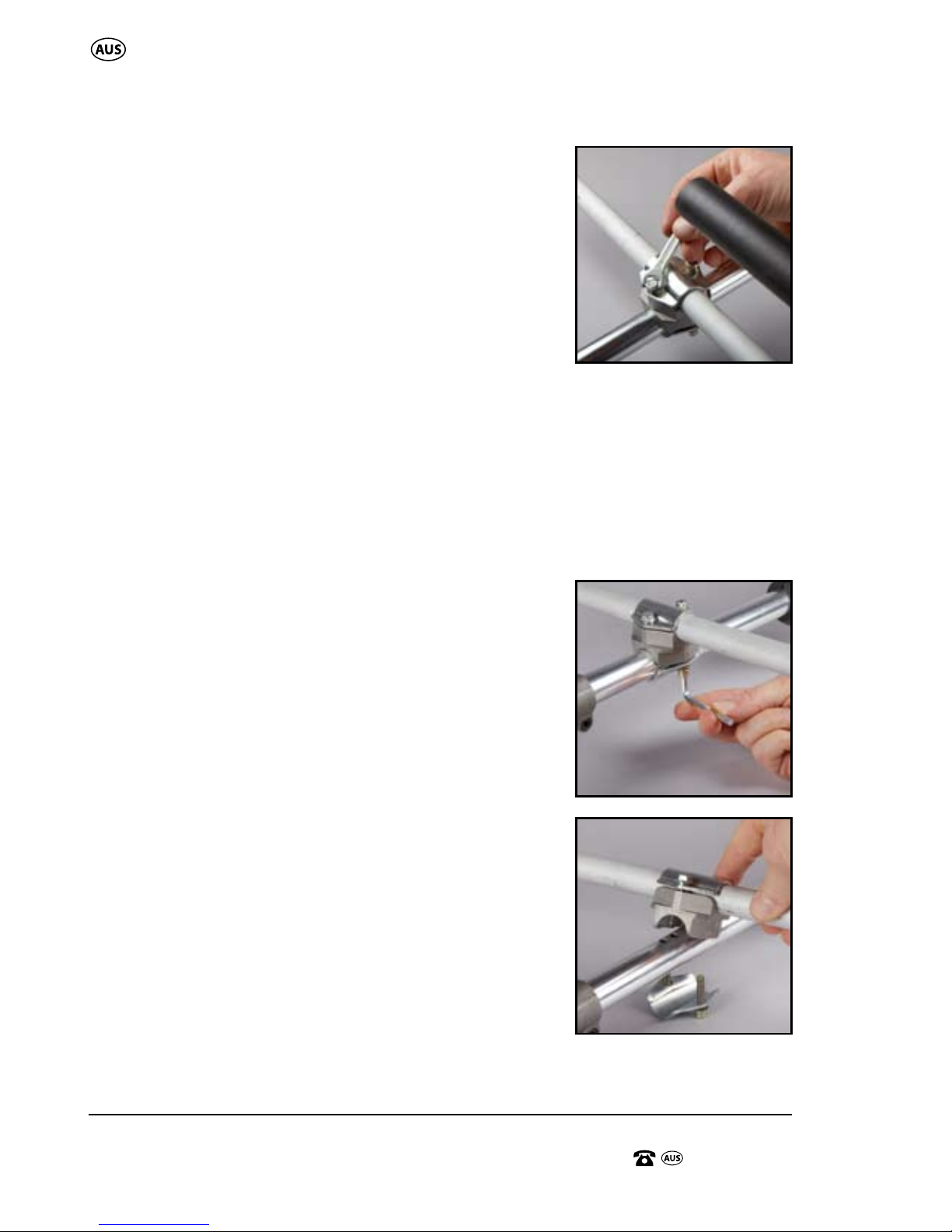

Connecting the J handle to the Upper shaft
WARNING. The J handle must be tted before use of this product.
This includes both combinations of the Brushcutter or the
Line Trimmer. Ensure the motor is NOT operating when tting
or adjusting the J handle.
1. Lay the unit down so that the fuel tank bracket (38)
is resting on a secure surface, or on the ground.
The J Handle clamp assembly has already been
located and fitted to the upper shaft (15).
Using the supplied 5mm allen key (36), and the
10mm open ended spanner (36), remove the
screws retaining the top clamp plate of the clamp
assembly. Remove the top clamp plate. (Fig I)
NOTE: The two screws retaining the top cover
plate are of a different length and MUST be
replaced in the same position. The longer screw
is t h e 1 0 mm H e x he a de d b ol t . (Fi g J )
2. The J handle (12) will sit in the recess of the
J handle clamp, but the locating screw in the
recess must locate in one of three holes in the
J Handle tube i.e select the length of the J handle
required and locate the J handle in the clamp
recess with the locating screw entering one of the
three holes in the J handle tube. (Fig K & L)
L .K .
I.
Hex head
screw
J.
Hex head
screw

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
16
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290
3. Re-fit the J handle clamp plate on top of the
J handle (12) and replace the screws through
the clamp plate and into the clamp. (Fig M)
Note: ensure the long hex headed screw is fitted
in the same position as was disassembled. The
longest screw should be the lower screw towards
the lower shaft. Both screws should be equally
tightened firmly on the clamp plate.
4. To change the length of the J handle (12),
repeat steps 1 – 4 above but locate the J handle in either of the other
two holes.
5. The J handle can also be moved up and down the shaft over a very short
and limited distance. There are two holes in the main shaft of which one
must locate on the locating screw on the J handle clamp.
Adjusting the J Handle up and down the Upper Shaft
1. Loosen the two clamp screws 6 full turns on the
underside of the clamp where the clamp plate
secures the clamp to the upper shaft (11), using
the supplied 5mm allen key and the 10mm open
ended spanner (36). (Fig N)
2. Lift the clamp so the location screw disengages
from the hole in the upper shaft (11). Move the
clamp to the second hole ensuring the location
screw locates into the second hole. (Fig O)
M.
N.
O.

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290
17
3. When the location screw has entered the location
hole, the under screws securing the clamp plate
can be tightened. Ensure the screws are equally
and firmly secured. (Fig P)
4. Check the clamp is firmly secured to the
upper shaft (11).
5. If you require further adjustment, the lower clamp
plate securing the clamp to the upper shaft (11)
can be fully removed and the clamp rotated
180°. Take note of the screws; there is one long
hex headed screw and one short screw, and they
need to be replaced in the same threaded hole in
the clamp. (Fig Q1/2)
6. Locate the locating screw in one of the location
holes in the upper shaft (11) and replace the
lower clamp plate and the two screws. (Fig R)
IMPORTANT: Ensure to replace the screws into
the clamp assembly in the same threaded hole.
There is one long screw and one short screw,
so ensure the screws are replaced as they
were removed.
7. Check the clamp if firmly secured to the
upper shaft.
IMPORTANT: Do NOT loosen both the J handle
clamp plate and the upper shaft j handle clamp
plate. Make the adjustments one at a time
ensuring the other is fully tightened before
attempting the other adjustment.
P.
Q1.
Q2 .
R .

Understanding and using these operating instructions
31cc Brushcutter / Line Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290 (toll free)
18
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
31cc Brushcutter / Line Trimmer
e-mail: [email protected]1800 909 909
MODEL: №. WLBCF310 • 08/2015 • 49290

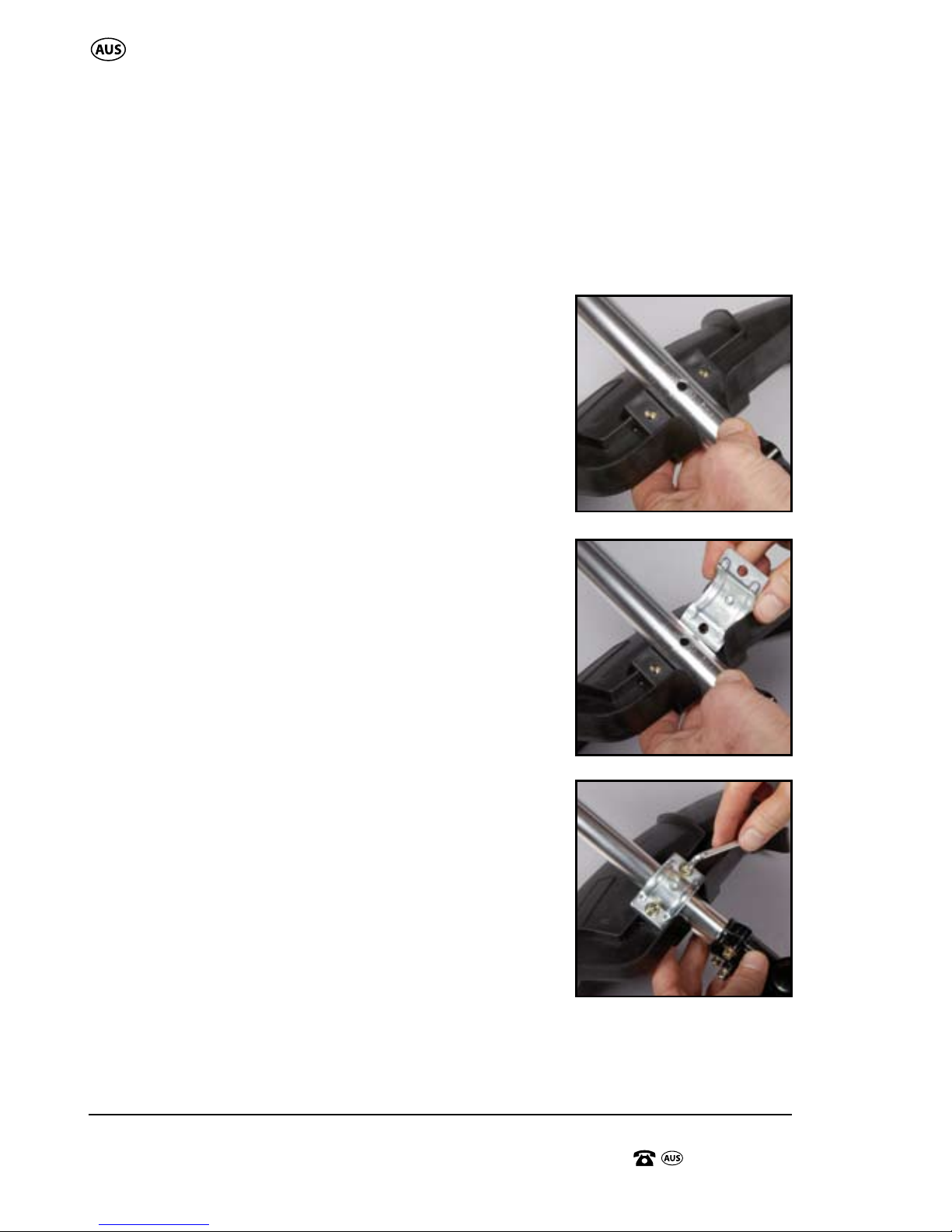

Fitting the Brushcutter / Line Trimmer Guard
Before using either the Brushcutter or Line Trimmer,
the Brushcutter Guard needs to be assembled.
1. Lay the unit down so that the fuel tank bracket (38) is resting on a secure
surface, or on the ground.
2. Place the brushcutter guard (17) on the
underside of the lower shaft (15) so that the
2 holes on the guard line up with the hole in
the lower shaft. (Fig. S)
3. Place the guard clamp on the top side of the
shaft lining up the 2 screw holes on the clamp
with the 2 screw holes on the brushcutter
guard (25). (Fig. T)
NOTE: There is a small dimple on the underside of
the guard clamp which when lined up correctly
will engage with the hole in the lower shaft.
4. Once the dimple is located, insert the 2 screws;
one on each side of the guard clamp, and using
the supplied 5mm allen key (36) tighten in a
clockwise direction until secure. (Fig. U)
If proceeding to use as the brushcutter, the 3T
brushcutter blade (28) needs to be assembled.
Refer to the“Fitting the Brushcutter Blade
instructions”(on page 20).
If proceeding to use the line trimmer, the clip-on
line trimmer guard attachment (33) and spool and
line assembly (35) requires assembly. Refer to the
“Fitting the Clip-on Guard Attachment to the Line
Trimmer”on page 22/23 and“Fitting the Spool
and Line assembly on the Line Trimmer”on page 23/24
for these instructions.
S.
U.
T.
