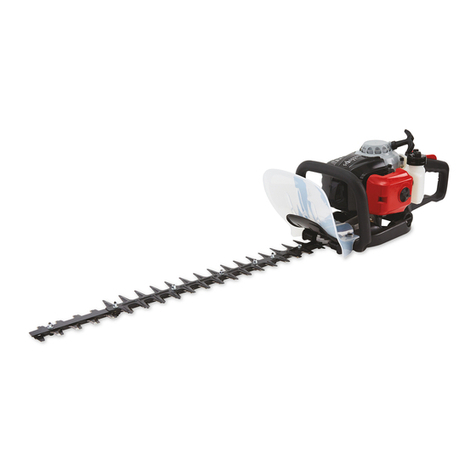

25CC 4 STROKE
PETROL HEDGE
TRIMMER

QR codes take you where you want to go
quicky and easily
Whether you require product information, spare parts or accessories,
details on warranties or aftersales service, or if you want to watch
a product demonstration video, our QR codes will take you there in
no time at all.
What is a QR code?
A QR-code (QR=Quick Response) is a type of matrix that can be read
with a smartphone camera and that contains a link to a website or
contact details, for example.
Advantage: You are not required to manually enter a website address
or contact details.
How it works
To scan the QR code, all you need is a smartphone with QR codes reader
software and an Internet connection*. This type of software can be
downloaded for free from your smartphone’s app store.
Try it out now
Just scan the QR code with your smartphone and
find out more about the Aldi product you have
purchased*.
* Depending on your tarif you may be charged for the connection.
Product
Info
For Know How Videos, click on the
“Product Assistance” tab, then the
“How To Product Videos”link.

Contents
Pack contents /parts 2
Description of Symbols 3
General safety instructions 4
Additional safety rules for Petrol Hedge Trimmers 6
Parts List 12
Assembly 14
Removing / Replacing the Blade Covers 14
Adding and Checking the oil 14
Fuelling 16
Starting the Hedge Trimmer - Starting A Cold Engine 17
Warm Start 20
A Flooded engine 20
Stopping the Engine / Emergency Stopping Procedure 20
Normal Stopping Method 21
Running in the engine 21
Operation of the Throttle Trigger – Adjusting the speed 21
The Operation of the Rear Rotating Handle 22
Use of the Petrol Hedge Trimmer 23
Using the Hedge Trimmer with the Trimmer on its side 25
Trimming Instructions 25
Blade Maintenance 26
Blade Lubrication 27
Greasing 27
Air Filter 27
Cleaning the Air Filter 28
Carburettor Adjustment 28
Spark Plug 28
Servicing 29
Fuel Filter 30
Storage and Maintenance after use 30
Removing a unit from storage 31
Warranty 32
Environmental protection 32
What your 3 year warranty means 33
Service Support 33
Accessories and after Sales/Service parts 33
Troubleshooting 34
Technical Specications 35

25cc 4 Stroke Petrol Hedge Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free)
4
Pack contents / parts
Congratulations on the purchase of your Gardenline® 25cc 4 Stroke Petrol
Hedge Trimmer. When you open your packaging, first remove all items
and check there are no parts damaged or missing. If you find
anything wrong, do not operate the product until the parts have been
replaced or the fault has been rectified. Failure to do so could result in
serious personal injury.
Intended use of the 25cc 4 Stroke Petrol Hedge Trimmer
NOTE: This product is for private domestic DIY use only.
It is not suitable for commercial, industrial or trade use.
This Hedge Trimmer has been designed for trimming, shaping,
and pruning hedges, shrubs and trees.
IMPORTANT INFORMATION.
NOTE: This is a 25cc 4 Stroke Petrol Hedge Trimmer.
The motor MUST be filled with 80ml of SAE 10W-30
BEFORE starting. Fresh unleaded fuel must be used in this unit.
Do NOT use Ethanol based fuels. Do NOT mix oil with fuel.
NOTE: First time users or inexperienced operators pay particular
attention to the operation of the Hedge Trimmer, including details of
starting and stopping and correct use of the Hedge Trimmer on pages
17 - 20, as well as the maintenance instructions on pages 26 - 30.

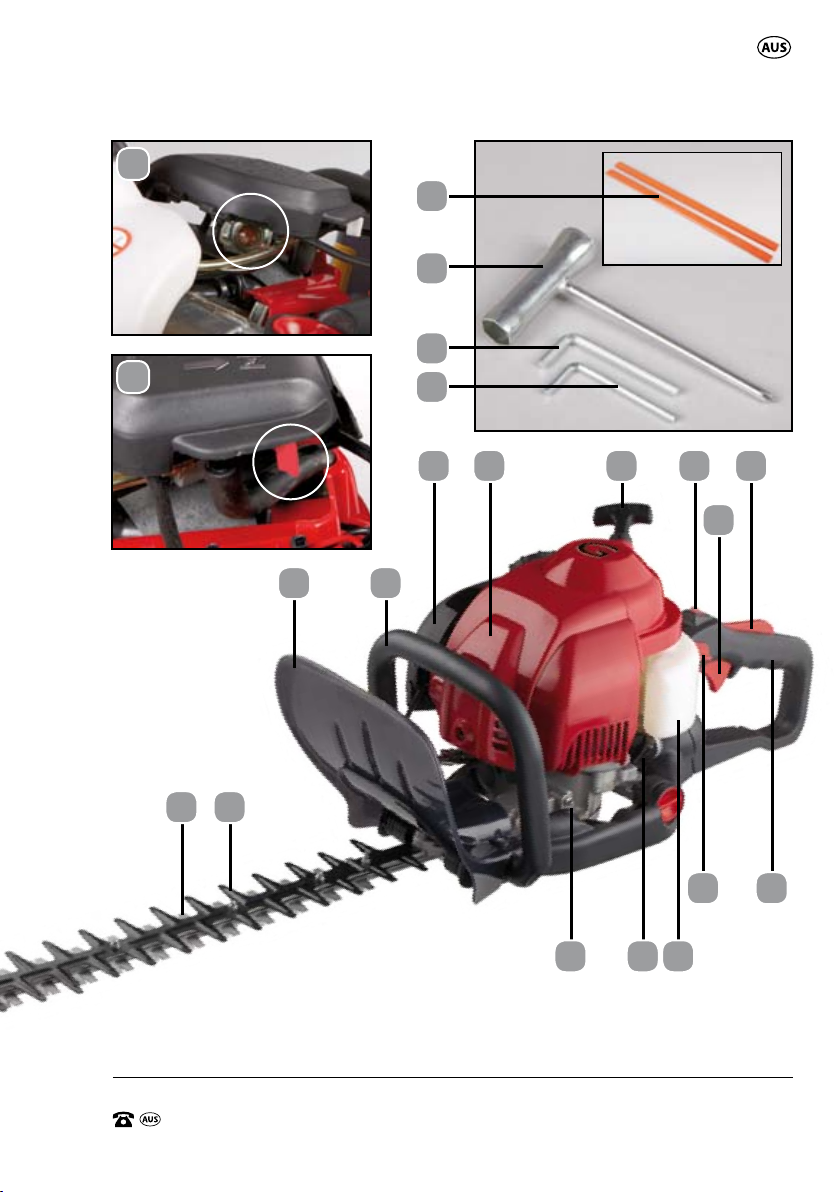

Contents of carton
2
1 x Hedge Trimmer
1 x Spark Plug Spanner /
Screwdriver Combination
1 x 4mm Hex Key
1 x 5mm Hex Key
1 x Instruction Manual
1 x Warranty Card & details
1 x Quick Start Guide

25cc 4 Stroke Petrol Hedge Trimmer
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. YR-HT250 • 08/2016 • 52742 (toll free)
3

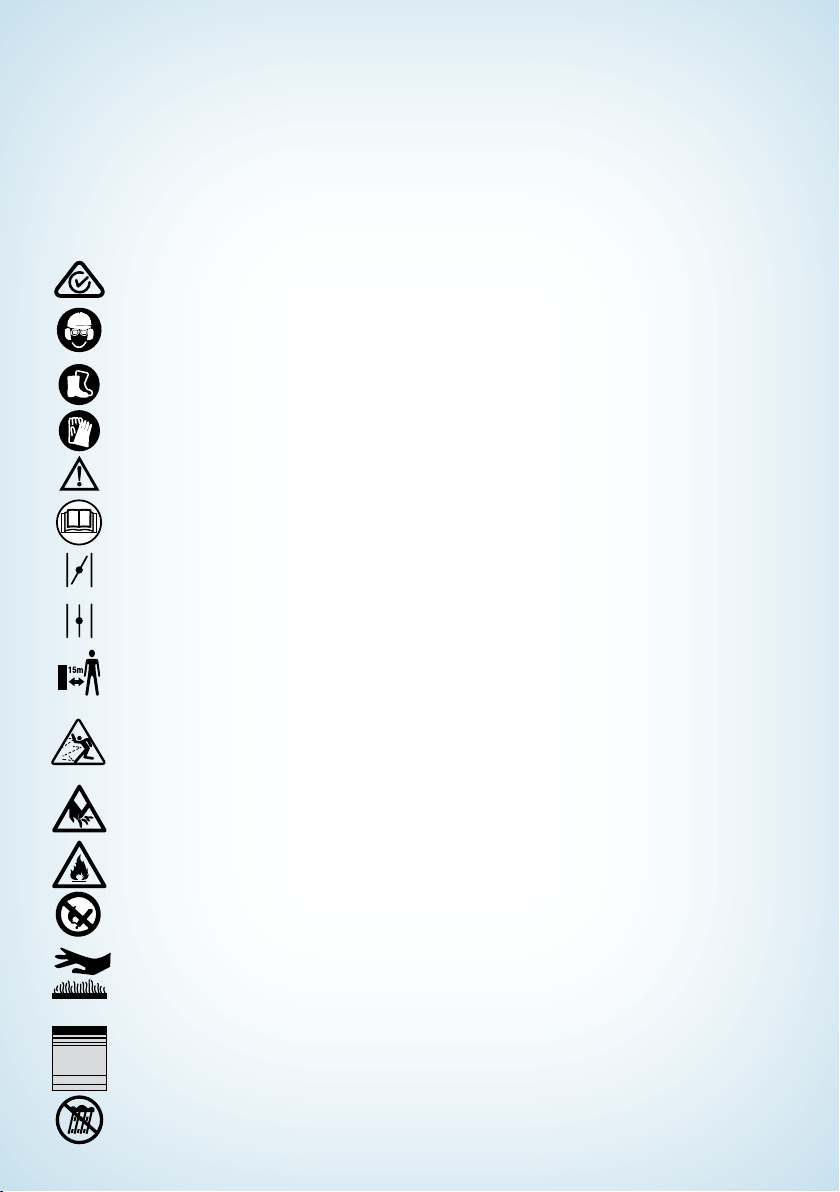

Description of symbols
The rating plate on your hedge trimmer may show symbols. These represent
important information about the product or instructions on its use.
Conforms to relevant standards for electromagnetic compatibility.
Wear hearing protection. Wear eye protection.
Wear headwear protection.
Wear safety footwear.
Wear safety gloves.
Warning.
Read these instructions for use carefully.
Choke control
Start position (choke closed).
Run position (choke open).
Use at a distance of at least 15m from other people.
Thrown objects and rotating line can cause severe injury.
Do not operate the unit without the safety guard in place.
Keep away from rotating cutter.
Keep hands away from moving parts.
Explosive material.
Extremely hot surface. Do not touch a hot muffler, gear box or cylinder,
you may get burned. These parts get extremely hot from operation and
remain hot for a short time after the unit is turned off.
Noise label rating 82dBA (taken at 7.5 metres).
You must wear ear protection at all times.
Keep out of the rain/wet.
NOISE dB
A
82

General safety warnings
Safety instructions
WARNING Read and understand all instructions. Failure to follow
all instructions listed below may result in electric shock, fire and/
or serious injury. The term“power tool”in all of the warnings below refers
to your mains-operated (corded) power tool, battery-operated (cordless)
power tool, or petrol operated power tool.
This unit may not be used by people (including children) with reduced
physical, sensory or mental capacities, with a lack of experience and
without the appropriate knowledge, unless they are supervised by
someone who is responsible for their safety or have been instructed by
such a person with regard to how the unit is to be operated. Children
should be supervised to ensure that they do not play with the device.
Non-skilled persons and first time users should read and understand the
full instruction manual before proceeding with use of the product or
recommended maintenance tasks.
Save these instructions
Work area
• Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
• Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
4

Personal safety
• Stay alert, watch what you are doing and use common sense when
• Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol, or medication. A moment of
inattention while operating power tools may result in serious personal
injury.
• Use safety equipment. Always wear eye protection. Safety equipment
such as a dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
• Remove any adjusting key or wrench before turning the tool on. A
wrench or a key that is left attached to a rotating part of the power tool
may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and
collection facilities ensure that these are connected and properly used.
Use of these devices can reduce dust-related hazards.
Personal safety
• Do not force the power tool. Use the correct power tool for your
application.
The correct power tool will do the job better and safer at the rate for
which it was designed.
• Do not use the power tool if the switch does not turn it on and o. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
• Turn tool o completely before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool.
5

Additional safety rules for
Petrol Hedge Trimmers
Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work
to be performed. Use of the power tool for operations different from
intended could result in a hazardous situation.
Service
• Have your power tool serviced by a qualied repair personnel using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
• Do not operate in a hazardous location. Such areas include where there
is a risk of explosion of petrol fumes, leaking gas or explosive dust.
• Do not operate in a conned area. Exhaust gases, smoke or fumes could
reach dangerous concentrations.
• Do not operate the hedge trimmer where power lines can cause a risk.
Be aware of overhead power lines.
• Protect your tool. This hedge trimmer is NOT WEATHERPROOF and
should not be exposed to direct sunlight, high ambient temperature and
damp, wet or high humidity conditions.
• Do not smoke while refuelling. This is potentially dangerous as it may
ignite the fuel and cause an explosion.
6

• Take care not to spill fuel. When refuelling the hedge trimmer ensure
that the motor has been switched off. Prevent the spilling of fuel as this
may also ignite with the hot motor. Never refuel whilst the engine is
running.
• Be careful where you store the hedge trimmer. Store the hedge trimmer
in a dry area away from flammable liquids.
• Keep your distance. The hedge trimmer emits exhaust fumes. Ensure
bystanders keep a safe distance.
• Ensure you add both fuel and 4 stroke oil prior to starting the engine.
80mL of SAE 10W/30 4 stroke oil MUST be added to the oil reservoir, and
450ml of fresh unleaded fuel (Do not use ethanol based fuels) must be
filled in the fuel tank. Failure to add sufficient 4 stroke oil/fresh unleaded
fuel will result in damage to the engine which is NOT covered under the
warranty of the hedge trimmer.
• Never ll fuel tank indoors. Never ll fuel tank when engine is running or
hot.
Do not smoke when lling fuel tank.
• Use only for pruning. This product is designed only for use in trimming
leaves and small branches. It must never be used for any other purpose
as doing so could result in unforeseen accidents and injuries.
• Keep hands and ngers well away from the blade.
• Wear work gloves, eye protection, ear protection, solid shoes and
trousers when using this hedge trimmer.
• Always grasp both handles when operating the unit.
• Ensure the hedge trimmer is switched o and is cool before cleaning
andmaintenance.
• If you are interrupted when operating the trimmer, switch o before
looking up.
• Never allow untrained users or children to use the trimmer.
• Use good quality air cooled 4-stroke engine oil. We recommend ALDI Full
Synthetic 4 stroke oil or equivalent.
• Keep all parts of your body away from the cutting blade. Do Not remove
cut material or hold material to be cut when blades are moving. Make
sure the switch is off and the motor is NOT running when clearing
jammed material.
7

AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1800 909 909
MODEL: №. YR-HT250 • 08/2016 • 52742
25cc 4 Stroke Petrol Hedge Trimmer
A moment of inattention while operating the hedge trimmer may result
in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade and motor
stopped. When transporting or storing the hedge trimmer, always fit the
cutter device covers. Proper handling of the hedge trimmer will reduce
possible personal injury from the cutter blade.
• Prior to cutting with the hedge trimmer, always check the area to be
cut for hidden objects. Be observant for fencing wire, Garden stakes, or
electrical cables. Ensure to remove any of these objects prior to starting.
• Do not use the hedge trimmer in poor weather conditions.
• Do not use the hedge trimmer in poor light.
• Always use both hands when operating the hedge trimmer, one on the
rear handle and the other on the front handle.
• Wear goggles
• Wear earmus
• Wear headwear protection
8
NOISE dB
A
82
