Garland ECO User manual
FORM # ICO ECO Tim Horton (Rev 5)
ECO / ICO MODELS
&
SPRITZER MODEL
TIM HORTON
Toll Free Phone, (US & Canada): (800) 427-6668
Toll Free Fax, (US & Canada): (800) 361-7745
http://www.garland-group.com
Page 2 FORM # ICO ECO Tim Horton (Rev 5)
Page 3FORM # ICO ECO Tim Horton (Rev 5)
ECO / ICO MODELS
&
SPRITZER MODEL
TIM HORTON
Contents:
ECO/ICO MODELS
ECO/ICO Manual Controls ......................................................................................................... Page 4
ECO/ICO Electronic Controls ..................................................................................................... Page 6
ECO/ICO Operational Components ......................................................................................... Page 10
ECO/ICO Door Components ................................................................................................... Page 14
ECO/ICO Oven Components ................................................................................................... Page 16

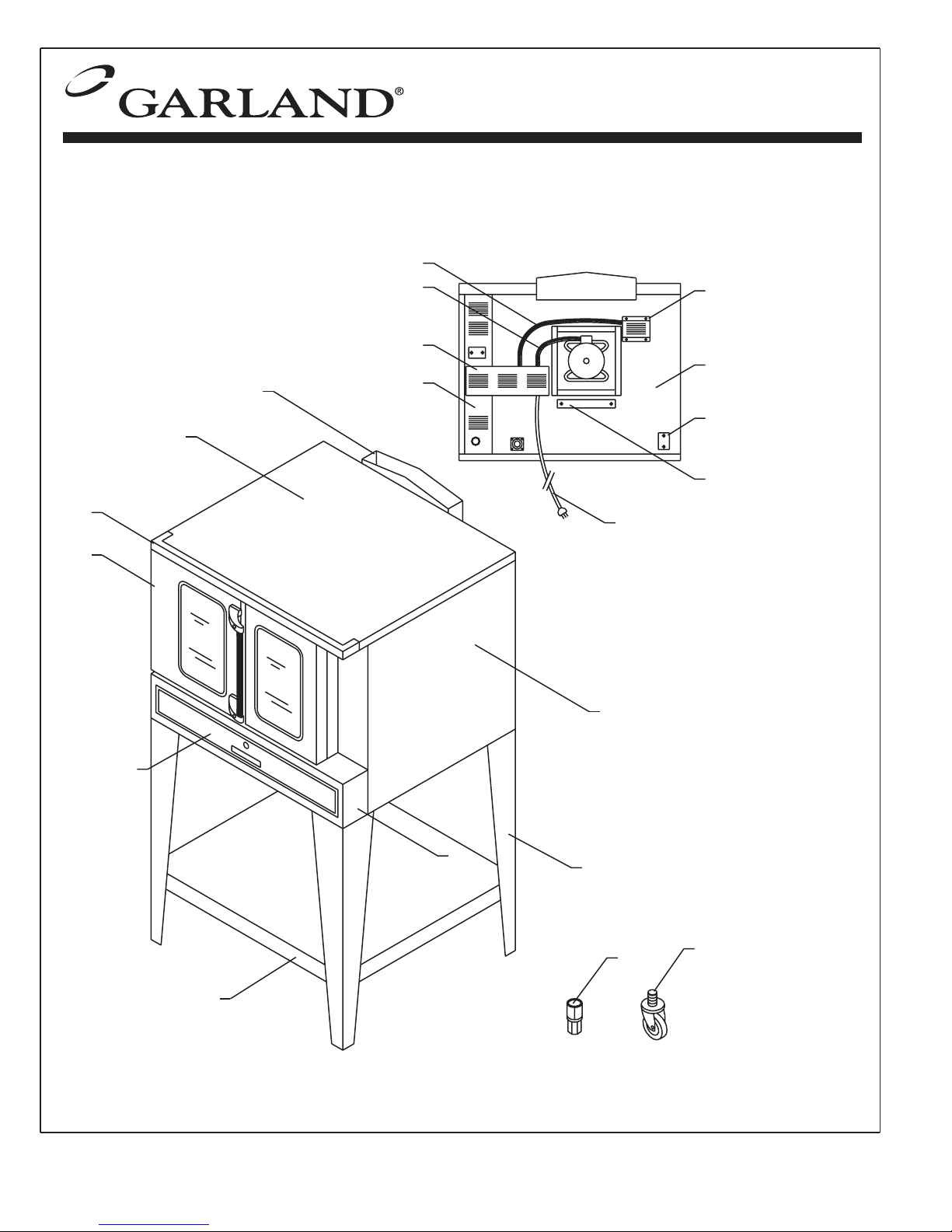

ECO/ICO Main Exterior ........................................................................................................... Page 18
SPRITZER MODEL TIM HORTON
ICO Spritzer Control Panel & Motor ......................................................................................... Page 22
ICO-G-10-M Gas Oven Components ....................................................................................... Page 24
ICO-E-10-M Electric Oven Components ................................................................................. Page 26
ICO Spritzer Back Parts .......................................................................................................... .Page 28
Service Bulletin......................................................................................................................... Page 30
Digital Photographs .................................................................................................................. Page 31
Revision History........................................................................................................................ Page 32
Page 4 FORM # ICO ECO Tim Horton (Rev 5)
40
10
400F
450F
500F
350F 300F
250F
200F
TEMP
0
30
3525
20
15
ON
OFF
POWER
55
50
45
COOK
DOWN
TIM
ER
OFF
60 0
5
COOL
ON
POWER
4
9
5
3
2
6
1
87
10
11
14
15
17/18
16
13

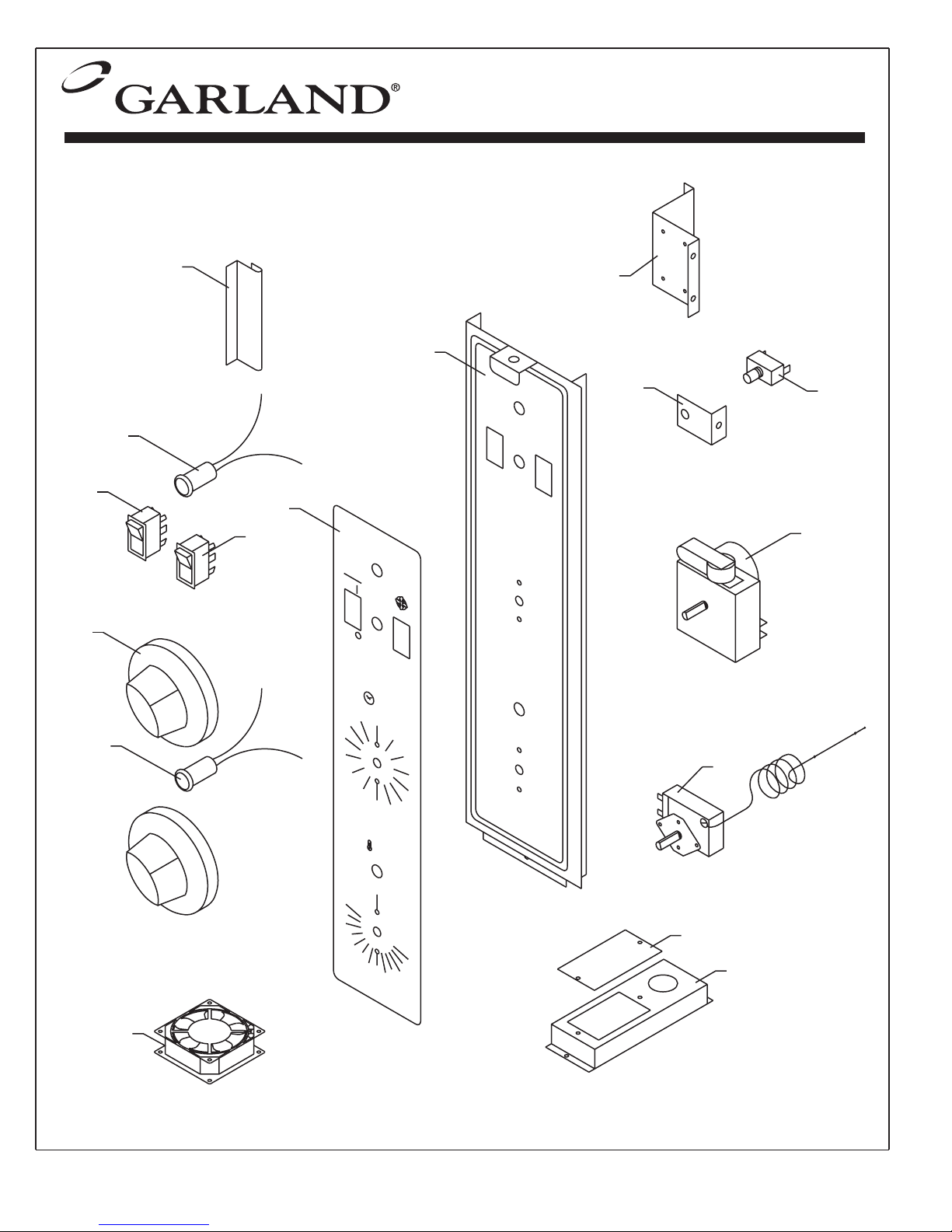

ICO/ECO
MANUAL CONTROL PANELS
POWER MODULE SECTION
MANUAL CONTROL
Manual Panel.dwg
Page 5FORM # ICO ECO Tim Horton (Rev 5)
GARLAND PARTS IDENTIFICATION
ECO/ ICO Control Panel
Manual Controls
ITEM PART # DESCRIPTION QTY DATE RANGE
(Table Below)
FROM UP TO
11657901 Control Panel, Manual 1 4-Jun-90 A,B,C,E
1719801 Control Panel 1 17-Nov-92 D
21657904 Overlay 2-Speed 1 4-Jun-90 A,B,C,D
1657902 GCI Overlay Man 1 Speed 1 4-Jun-90 F
3
1006489 Green Pilot Light 120V 1 A,B,C,E
1006493 Green Pilot Light 240V Export Use G01296-3 1 D
G01296-3 Pilot Green 1
4
1006496 Pilot Light Amber 115V 1 21-Dec-87 6-Nov-95 B
1270000 Pilot Light Amber 28V 1 6-Nov-95 B,E
1006498 Amber Pilot Light-Use G01296-2 1 D
G01296-2 Pilot Amber 1
5
1019207 Rocker Power Switch 3 Pos 2 Speed On/Off/On
1 13-Dec-83 A,B,C,D
1019203 Rocker Power Switch 2 Pos 1 Speed On/Off
1 E
6
1019209 Rocker Power Switch 2 Pos On/Off
1 31-Oct-83 A,B,C,D,E
7 G03053-1 Momentary Switch Push Button 1 A,B,C,D,E
8 1749201 Panel Restraining Bracket 1 23-Feb-93 ALL
9
G02716-1 Dial - (Universal) Small Shaft 2 B,C,D,E
1258200 Dial 1 A,B,C,D,E
1314121 Thermostat Dial Insert
Insert Blank Use G02725-21 2 B,C,D,E
1314117 Dial Insert 150F-550F / 65C-290C
Use G02725-17 1 D,E
10
1285700 Mallory Timer 1 hr 115V 50/60H
1 4-Oct-84 A,E
1285701 Mallory Timer 1 hr 240V 50/60H
1 4-Oct-84 B,C,D
1285600 Mallory 12Hr.Timer 115V 50/60H
1
1285601 Mallory 12 Hr Timer 230V
1
11 1032400 Thermostat (Use G02902-01) 1 A,B,C,D,E
12 1671100 Polar Fan 115V 1 5-Jun-94 A
1671101 Cooling Fan 208 / 240 V. 1 5-Jun-94 B,C,D
13* 1774402 Cooling Fan Bracket ALL
14 1280100 Terminal Box 1 15-Dec-92 B,C,D
15 1280101 Terminal Box Cover 15-Dec-92 B,C,D
16
1671100 Polar Fan 115V 120mm
1
1671101 Boxer Fan 230v 120mm
1
17 1300204 Control Panel Side Lt 1 7-Mar-94 E
18 1300203 Control Panel Side Rt. 1 7-Mar-94 E
19* 1266738 Wire Diagram 1 A
1266739 Wire Diagram D
20* 1779801 Transformer Mounting Bracket 1 9-Sep-94 B,C,D
21* 1030802 Transformer 208V 0.15 KVA (Hi Voltage Gas Units) 1 B
1030801 Transformer 240V 0.15 KVA (Hi Voltage Gas Units) 1 C,D
A 115V,60HZ,2 SPEED
B 208V,60 HZ,2 SPEED
C 240V/60 HZ,2 SPEED
D 240V,50HZ,2 SPEED
E 115V 1-SPEED
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
Page 6 FORM # ICO ECO Tim Horton (Rev 5)
0-24 HOUR
-
TIMER
++
140-500F
-
TEMP
HEA
T
OFF
ON
POWER
DOWN
COOL
COOK
4
8
5
3
2
1
11
17
10
9
6
13
14
16
12
7
15
19
18
ICO/ECO
ELECTRONIC CONTROL PANELS
POWER MODULE SECTION
ELECTRONIC CONTROL
Electronic Control.dwg
Page 7FORM # ICO ECO Tim Horton (Rev 5)
GARLAND PARTS IDENTIFICATION
ECO / ICO Control Panel
Electronic Controls
ITEM PART # DESCRIPTION QTY DATE RANGE
(Table Below)
FROM UP TO
1
1719897 Control Panel (Electronic) S/W 1 A,B,C,D,J
1719899 Control Panel (Electronic) S/W 1 17-Nov-92 I,K
1719898 Control Panel Cook/Hold S/W 1 17-Nov-92 E,F,G.H
2
1657712 Overlay 2 Button 2 Speed 1 A, B, C, D
1657714 GCI Overlay 2 But. 1 Speed 1 J
1657702 GCI Elec Overlay 2 But. 1 Speed 1 4-Jun-90 I
1657710 Overlay Cook “N” Hold 1 4-Jun-90 E,F,G,H
3 1270000 Pilot Light Amber 28V 1 A,B,C,D,E,F,G.H,I,J,K
4
1019207 Rocker Power Switch
3 Pos 2 Speed On/Off/On
1 A,B,C,D
1019203 Rocker Power Switch
2 Pos 1 Speed On/Off
1 E,F,G,H,I,J,K
5
1019209 Rocker Power Switch 2 Pos On/Off
1 A,B,C,D,E,F,G,H,I,J,K
6 1181000 Momentary Push Switch USE G03053-1 1 B,C,D,E,F,G,H,I,J,K
7 1749201 Panel Restraining Bracket 1 23-Feb-93 All Units
8
1720501 Time/Temp Knob
2 A, B, C, D, J
9007200 Knob
2 E,F,G,H,I,K
9
1517706
Gas/Electrical MCO Control NLA
Replaced by Kits
Part # 4518959 & 4518961
1 A, B, C, D, J
4518959 Controller Kit 208/240V Electric –
(Bulletin Page 30)
1 A, B, C, D, J
4518961 Controller Kit 215V Gas –
(Bulletin Page 30)
1 A, B, C, D, J
1517702 Controller 2 Key
1 I,K
1544800 Controller Cook “N” Hold
1 E,F,G,H
10
9006800 Sensor Probe 5”W/36”Teflon
1 A,B,C,D,E,F,G,H,I,J,K
11 1771601 Relay 120V 2 Pole 1 A,H
1771602 Relay 240V 2 Pole 1 B,C,D,J
12
1269800 Transformer - 24V 120V (USE G03559-1) 1 A,E,H,K
1030802 Transformer 208V 0.15 KVA
(Hi Voltage Gas Units) 1 B,F,I
1030801 Transformer 240V 0.15 KVA
(Hi Voltage Gas Units) 1 C, D,G,J
13 1516301 Ignition Module Nat 1 Natural Gas
1516300 Spark Module (Use 2152700) 1 Propane Gas
14 1774702 Mounting Bracket/Module 1 1-Sep-94 Natural/Propane Gas
15 1774701 Mounting Plate/Module 1 1-Aug-94 Natural/Propane Gas
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
A 2 KEY 115 VOLT 60HZ 2 SPEED
B 2 KEY 208 VOLT 60HZ 2 SPEED
C 2 KEY 240 VOLT 60 HZ 2 SPEED
D 2 KEY 240 VOLT 50 HZ 2 SPEED
E COOK/HOLD, 115V, 60HZ
F COOK/HOLD,208V, 60 HZ
G COOK/HOLD, 240V, 60 HZ
H 2 KEY 115 VOLT 60 HZ 1 SPEED
I 2 KEY 208 VOLT 60 HZ 1 SPEED
J 2 KEY 240 VOLT 60 HZ 1 SPEED
K 2 KEY 115V,60HZ 1-SPEED MOTOR
Page 8 FORM # ICO ECO Tim Horton (Rev 5)
GARLAND PARTS IDENTIFICATION
ECO / ICO Control Panel
Electronic Controls
ITEM PART # DESCRIPTION QTY DATE RANGE
(Table Below)
FROM UP TO
16 1671100 Polar Fan 115V 1 A,E
1671101 Cooling Fan 208 / 240 V 1 5-Jun-94 B,C,D,F,G,H,J
17 1774402 Cooling Fan Bracket 1 5-Jun-94 All Units
18 1280100 Terminal Box 1 15-Dec-92 B,C,D,F,G,H,I,J
19 1280101 Terminal Box Cover 1 15-Dec-92 B,C,D,F,G,H,I,J
20* 1519501 Wire Harness ECO/ICO Gas 1 A,B,C,D,J
21* 1518700 Female Housing Plug ECO 1 A,B,C,D,E,F,G,H,I,J
22* 1193900 Terminal Block - 3 Pole-Hi Voltage 1 24-Oct-94 B,C,D,F,G,H,J
23* 1779801 Transformer Mounting Bracket 1 24-Oct-94 B,C,D,F,G,H,J
24* 1266754 Wire Diagram 1 B, C
25* 1030023 Terminal 2 7-Feb-95 B,C,D,E,F,G,H,J
26* 1516600 Key Lock W/Backing Nut -T 1 E,F,G,H
27*
1266755 Wire Diagram 1 D
1544704 Wire Diagram 1 E
1544702 Wire Diagram 1 F,G,H
1266745 Wire Diagram 1 I
1266756 Wire Diagram 1 J
1266757 Wire Diagram 1 J
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
A 2 KEY 115 VOLT 60HZ 2 SPEED
B 2 KEY 208 VOLT 60HZ 2 SPEED
C 2 KEY 240 VOLT 60 HZ 2 SPEED
D 2 KEY 240 VOLT 50 HZ 2 SPEED
E COOK/HOLD, 115V, 60HZ
F COOK/HOLD,208V, 60 HZ
G COOK/HOLD, 240V, 60 HZ
H 2 KEY 115 VOLT 60 HZ 1 SPEED
I 2 KEY 208 VOLT 60 HZ 1 SPEED
J 2 KEY 240 VOLT 60 HZ 1 SPEED
K 2 KEY 115V,60HZ 1-SPEED MOTOR
Page 9FORM # ICO ECO Tim Horton (Rev 5)
NOTES
Page 10 FORM # ICO ECO Tim Horton (Rev 5)
26
18
25
3
5
2
24
17
18
13
27
25
5
26
15
3
2
19
21
22
20
10
11
12
28
41
6
23
14
16
25 19
9
31
7
8
41
6
ICO/ECO OPERATIONAL COMPONENTS
STANDING PILOT
SPARK IGNITION
Operational Components.dwg
Page 11FORM # ICO ECO Tim Horton (Rev 5)
GARLAND PARTS IDENTIFICATION
ECO/ ICO Operational Components
ITEM PART # DESCRIPTION QUANTITY DATE
ECO ICO FROM UP TO
1 1532600 Burner Pan (Use 1467200) 1 1 11-Jun-91 28-Jul-92
21265589 Burner/Air Shutter Assy 5 5 1-Jun-90
1467400 Burner 5 5 1-Jun-90
3 1467100 Cross Over Bracket (Use 1467600) 4 4
4 1265504 Crossover Angle GRC#G03065-1-9 2 2
51265548 Orifice Fitting #48 5 5
1265556 Orifice Fitting-Lp 5 5
61302197 Tail Pipe Assembly “Std” 1 1
1302196 Tail Pipe Assembly “Deep” 1
7 1589500 Pilot Bracket 1 1
8
1028297 Pilot Assembly Natural (.021)
1 1
1028296 Pilot Assembly Propane (.0115)
1 1 29-Mar-93
9
1019418 Thermocouple 18” Long (Screw-In Type)
1 1
10>
CK1758901 Pilot Assy-Use 1758901
Included Pilot & Pilot Bracket (Item 28)
1 1 11-Jun-93
CK1758902 Pilot Assy (Lp) Elec Ign
Included Pilot & Pilot Bracket (Item 28)
1 1 11-Jun-93
1466100 Flame Sensor
1 1 3-Aug-93
11 1666300 Rajh Adapter ECO 1 1 28-Mar-94
1030023 Terminal 1 1 28-Mar-94 7-Feb-95
12
1269703 Flame Sensor Cable
1 1
13 1028709 1/4” Alum. Tubing 8-1/2” Long 1 1
14 1026730 Elbow Street 1/8” 90 Degree 1 1 18-Dec-91
15
1027001 Auto Safety Valve 1/2 NPT
1 1
16
1027300 Gas Solenoid-Use G02965-1
1 1
17
1754901 Dual Valve Nat.
1 1 3-Aug-93
1754902 Dual Valve Lp
1 1 3-Aug-93
CK4540 ECO/ICO Mani Dual Valve Nat
1 1
CK4541 ECO/ICO Mani Dual Valve Lp
1 1
18 1265590 Manifold Assy W/Bracket 1 1
1265585 Manifold Assy. 1 1
19
1265900 Manual Shut Off Valve 3/4”NPT
1 1 3-Aug-93
20 1004849 Bell Reducer 3/4 TO 1/2 1
21 1004646 Black Nipple 1/2 x 4 Npt 1
22 1026733 1/2 NPT Street Elbow 90 Deg. 1 1 3-Aug-93
23 1026941 90 Deg. Union Elbow 1/2 x 1/2 1 1
24 1026903 Union 1/2 NPT “ 1 1 3-Aug-93
25 1038403 Reducer Bushing 3/4 x 1/2 2 2 3-Aug-93
26 1004640 Close Nipple 1/2” NPT x 1” Lg 3 3 3-Aug-93
1004687 Short Nipple 1
27 1004816 Pipe Coupling 1/2 x 1-1/2 1 1 18-Dec-91
28 1759101 Pilot Bracket 1 1 11-Jun-93
31
1019010 Pressure Regulator Natural
1 1 18-Dec-91
1019011 Regulator Prop. (Use 2127500)
1 1 18-Dec-91
32* 1004662 Black Nipple 3/4 x 2” “ 1 1 10-Jun-94
33* 1004821 3/4 Black Pipe Coupling x 1-5/8 “ 1 1 10-Jun-94
34*
1516397 Electric Spark Control Ass’y Natural
1 19-Jul-93
35* 1028718 1/4 O.D. Aluminum Tubing 1 1 3-Aug-93
36* 1516488 Burner Pakage Ass’y BSI G96 Natural
Included Items 5, 4, 3, 18, 1, 2 1 3-Aug-93
* NOT ILLUSTRATED
> Digital Photo At The End
RECOMMENDED STOCK PARTS
Page 12 FORM # ICO ECO Tim Horton (Rev 5)
GARLAND PARTS IDENTIFICATION
ECO/ ICO Operational Components
ITEM PART # DESCRIPTION QUANTITY DATE
ECO ICO FROM UP TO
37* 1516489 Burner Package Ass’y BSI G96 Propane
Included Items 5, 4, 3, 18, 1, 2 1 3-Aug-93
Burner Package Assemblies
1265599 Burner Assy, Nat-Use Ck1265599
1265598 Burner Assy,Lp-Use Ck1265598
CK4538 Burner Kit Nat ICO
CK4539 Burner Package Assy Lp
* NOT ILLUSTRATED
> Digital Photo At The End
RECOMMENDED STOCK PARTS
Page 13FORM # ICO ECO Tim Horton (Rev 5)
NOTES
Page 14 FORM # ICO ECO Tim Horton (Rev 5)
CHAIN
DOOR
SEALS
21
23
22
20
17
9
3
4
1
18
14
13
6
26
25
24
11
19
12
12
28
29
7
2
4
5
9
10
8
32 14
13
15
30
31
27
11
16
33
ICO / ECO RIGHT AND LEFT DOOR
COMPONENTS
REV. 0
Door Components.dwg
LEFT DOOR
RIGHT DOOR
Page 15FORM # ICO ECO Tim Horton (Rev 5)
GARLAND PARTS IDENTIFICATION
ECO/ ICO Right & Left Door Components
ITEM PART # DESCRIPTION QUANTITY DATE
ECO ICO FROM UP TO
1 1016700 Oven Door Handle Chrome 1 1
2 G3814-60L Oven Door Handle End 1 1
3 G3814-60R Oven Door Handle End 1 1
4 1016703 Door Handle Spacer 2 2 24-Dec-87
51011605 Left Door Panel W/Window 1 1
1011606 Left Door Panel Solid 1 1
6 1011707 Handle Spacer 2 2
7 1021904 Door Catch (Door) 1 1 14-Feb-85
8 1021902 Door Catch (Frame) 1 1 1-Jun-90
9 1010999 Oven Door Window (3/16” Glass) 1 1 27-Jun-00
10 1011895 Left Door Frame Weld Ass’y 1 1
11 1019701 Roller Pin 1 1
12 1302800 Upper Door Bearing Retainer 2 2
13 1010589 Hinge Bracket Ass’y W/Bearing 2 2
14 1011201 Steel Tubing Chrome Spacer 2 2
15 1011799 Left Door Liner W/Window Assy 1 1
1011798 Left Door Liner Solid Assy 1 1
16 8004004 Allen Head Screw 2 2
17 1011402 Right Door Panel Solid (Dependent Door) 1 1
1011403 Right Door Panel W/Window (Dependent Door) 1 1
18 1011897 Door Frame W/A With Cam-Solid (Dependent Door) 1 1
1011896 Door Frame Assy-Window (Dependent Door) 1 1
19 1011502 RT Door Liner Solid (Dependent Door) 1 1
1011599 RT Door Liner W/Window Assy (Dependent Door) 1 1
20 1014201 Connecting Left Door Rod - Short (Dependent Door Only) 2 2
21 1014200 Connecting Right Door Rod - Long (Dependent Door Only) 2 2
22 1021100 Roller Chain #40 (Dependent Door Only) 2 2
23 1015000 Turnbuckle 1/4-20 with 4” Take Up (Dependent Door Only) 2 2
24>
1019600 Door Micro Switch
1 1 3-Mar-99
1855601 Limit Switch Upper
2 3-Mar-99 11-Jun-99
1855603 High Temp Micro Switch
2 11-Jun-99
25 1533400 Micro Switch Cover 1 1
26>
1533800 Micro Switch Bracket 1 1 1-Mar-99
1905302 Micro Switch Bracket Full Size 1 1 1-Mar-99 11-Jun-99
1954502 Micro Switch Bracket 1 1 11-Jun-99
27
1581600 Top Door Seal-Use G03269R (3 Ft)
1 1
28
1581601 Pyrosil Fiberglass Side Oven Door Seal (Use G03269R)
2 2
29
1534500 Bottom Door Seal
1 1
30 1304201 Side Door Bracket S/S 1 2 17-Nov-92
31 1304202 Top & Bottom Door Bracket S/S 1 1
32 1719001 R/H Side Seal 1 1 17-Nov-92
33 1021299 Connecting Links #40 Components 4 4
35* CK1138 Door Chain Assy Comp
Included Items 29, 21,22, 23, 33 1 1
Burner Package Assemblies
1029279 L/H Door Assembly W/Window 1 1
1029277 L/H Door Assembly Solid
1029278 R/H Door Assembly Complete/Solid 1 1
1029276 R/H Door Assembly W/Window
* NOT ILLUSTRATED
> Digital Photo At The End
RECOMMENDED STOCK PARTS
Page 16 FORM # ICO ECO Tim Horton (Rev 5)

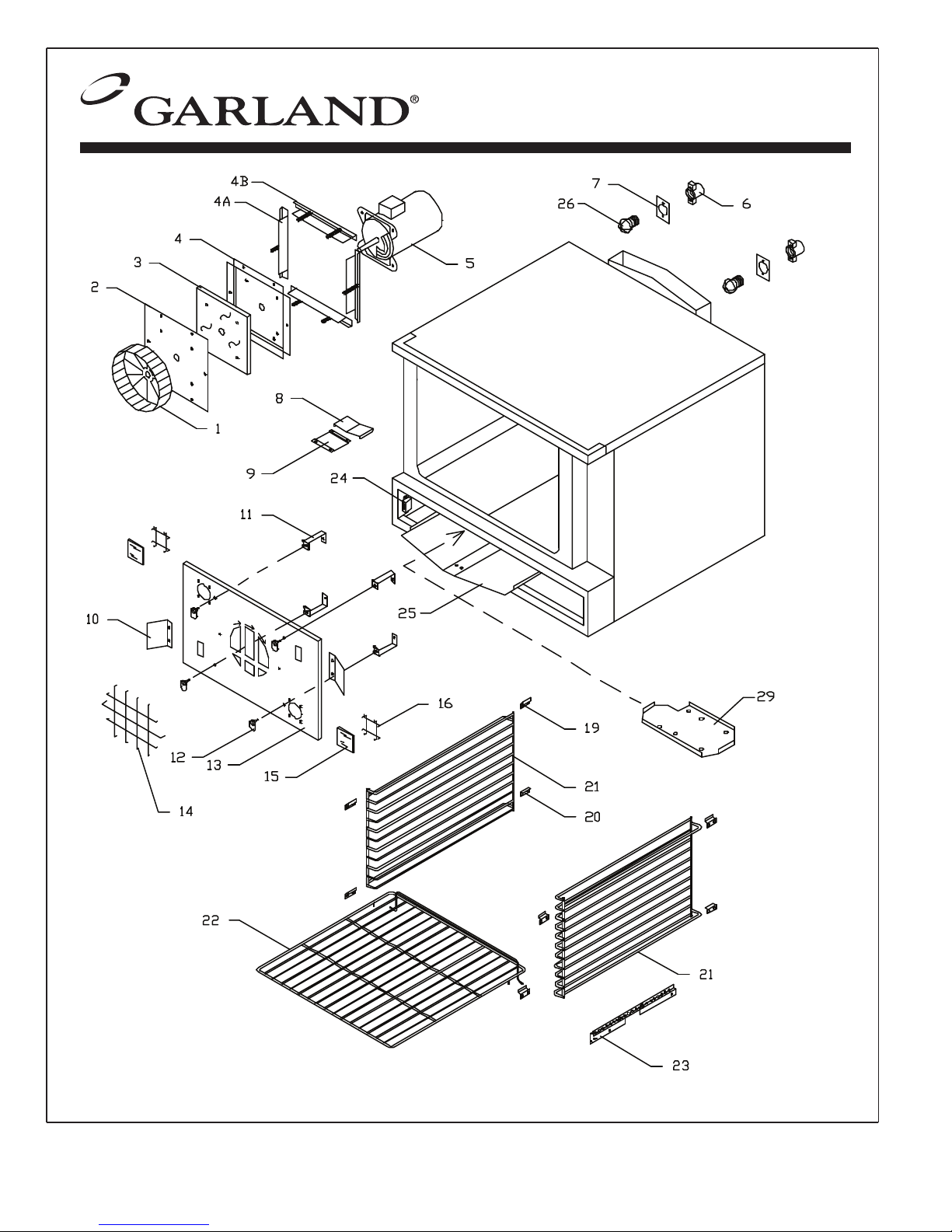

ICO/ECO OVEN COMPONENTS
Oven Components dwg
Page 17FORM # ICO ECO Tim Horton (Rev 5)
GARLAND PARTS IDENTIFICATION
ECO / ICO Oven Components
ITEM PART # DESCRIPTION QUANTITY DATE
ECO ICO FROM UP TO
1 1025302 Blower Wheel Ass’y. Nickel Plated Use G02952-01P 1 1
2 1011906 Motor Mount Plate CC 1 1
3 1012100 Motor Mount Marinite Xl 1 1
4 1012000 Motor Mount GG 1 1 21-Feb-91
4A 1012498 Motor Mount Brace Ass’y Side 2 2
4B 1012499 Motor Mount Brace Ass’y Top & Bot 2 2
5
1686703 Motor 1/2 HP, 115/230V, 1 Speed 1 1 12-Apr-91
1686701 Motor 1/2 HP, 115V, 2 Speed 1 1 12-Apr-91 6-Apr-00
1686711 Motor 3/4 HP, 115V, 2 Speed 1 1 6-Apr-00
1686702 Motor 1/2 HP, 230V, 2 Speed 12-Apr-91
1003099 Motor Assy- Use CK1003099
1003095 Motor Assy- Use CK1003095
6 1025800 Lamp Socket - Porcelain 2 2
7 1025900 Light Socket Gasket 2 2
8 1300900 Vent Slide Hsg 1 1
9 1300901 Vent Slide 1 1
10 1541000 Air Vane 2 2
11 1533700 Air Baffle Spacer 4 4 8-Feb-02
1533701 Air Baffle Spacer SS 4 4 8-Feb-02
12
1031901 Thumb Screw 4 4
8005000 1/4 Turn Pin 4 2
8005100 1/4 Turn Fastener Receptacle 4 4
13 1540999 Air Baffle 1 1 15-Sep-97
14 1014500 Blower Inlet Cover 1 1
15 9004800 Light Glass Cover 1 2
16 1534400 Glass Retainer 1 2
19 1317600 Rack Guide Clip 4 6
20 1317601 Rack Guide Hold Down Bracket 4 2
21 1315700 Oven Rack Guide Assembly Std 2
1315701 Rack Guide Assembly Deep 2
22 1012602 Std Oven Rack Use G02941-01-8P 5
1012700 Oven Rack 28X28 5
23 1015799 Capillary Tube Guard 1 1 11-Apr-88 17-Dec-98
1015799-P Capillary Tube Guard 1 1 17-Dec-98
24 1020101 Magnetic Catch 2 2
25
1013400 Fire Plate 1
1013401 Fire Plate Deep 1
1297199 Fire Plate Front Support 2 2
1265700 Fire Plate Support Angle 2 2
26 1026050 Light Bulb 50W-Use 1026051 2 2 12-Apr-95
1026051 Oven Bulb-Teflon 2 2 12-Apr-95
27* 1047301 Baffle Spacer Clips Bottom 2 2
28* 1047300 Baffle Spacer Clips - Side 2 2
29 1301600 Base Heat Shield
Between Item 25 And Top Combustion Chamber 1 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
Page 18 FORM # ICO ECO Tim Horton (Rev 5)
~
~
~
~
~
~
11
12
17
17
5
7
2
9
1
6
18
48
3
19
16
15
14
10
13
ICO/ECO MAIN EXTERIOR - GAS
REAR VIEW
REV. 0
Main Exterior.dwg
Page 19FORM # ICO ECO Tim Horton (Rev 5)
GARLAND PARTS IDENTIFICATION
ECO / ICO Main Exterior
ITEM PART # DESCRIPTION QUANTITY DATE
ECO ICO FROM UP TO
1
1300603 Main Top 1
1300602 Main Top 1
1300601 Top Panel Painted 1
1300600 S/S Top
2
1300504 Left & Right Body Side Black 1
1300505 Left & Right Body Side S/S 1
1300502 L/H Panel Painted 1 17-Nov-92
1300503 Side Panel-S/S 1 17-Nov-92
3
1300504 Left & Right Body Side Black 1
1300505 Left & Right Body Side S/S 1
1300506 R/H Side 1
1300507 S/S R/H Side Panel 1
1300503 Side Panel-S/S 1 17-Nov-92
1300508 Right Body Side ICO Painted (Deep) 1 17-Nov-92
1300509 Body Side R/H S/S (Deep) 1 17-Nov-92
4
1301899 Comb. Chamber-Use G02898-01-9 1 1 17-Nov-92
G02898-01-9 Combustion Chamber Front Assy 1 1 17-Nov-92
1721099 Combustion Chamber Front Assy 1 1 17-Nov-92
5 1301803 Combustion Chamber Door 1 1
6
1014099 Flue Collector Box Ass’y 1 1 8-Jul-91
Double Stack Flue
1015299 Top
1015205 Rear Flue Box-Bottom Deck
1015206 Flue Box Top-Bottom Deck
1015287 Riser
7
1684203 Lower Rack Support GG ECO 1
1684204 Lower Rack Support SS ECO 1
1684205 Lower Rack Supt. GG ICO 1
1684206 Lower Rack Support-S/S ICO 1
1756203 Lower Rack Supt GG ECO 1
1756204 Lower Rack 1
1756205 Lower Rack Support-GG ICO 1
1756206 Lower Rack Support-S/S 1
8
1684789 Leg Assembly 28” Black 4 4
1684788 S/S Leg Assy 4 4
1300793 Leg Assembly 8” Black 4 4
1300790 Leg Assembly 8” SS 4 4
1753299 28” Leg Std C/O 4 4
1753298 Leg Assy S/S 4 4
1753399 8” Oven Legs 4 4
1753398 Leg Assy Double Deck 4 4
9
1301100 Top Front Veneer 1 1
1302600 Side Top Veneer 2
1302601 Side Top Veneer 1
10 1014710 Main Back - CO GG 1 1 27-Feb-86
11 1015508 Rear Control Panel Section 1 1 27-Feb-86
12 1014813 Junction Box Bottom Deep 1 1 27-Feb-86
13 1014809 Light Box Cover 1 1
14 1046500 Rear Control Panel Patch GG 3 2 27-Feb-86
15 1032503 Element Hole Patch GG 1 1
16 1029501 8’ Long Power Supply Cord 1 1 23-Feb-88
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
Page 20 FORM # ICO ECO Tim Horton (Rev 5)
GARLAND PARTS IDENTIFICATION
ECO / ICO Main Exterior
ITEM PART # DESCRIPTION QUANTITY DATE
ECO ICO FROM UP TO
17
1029430 Flexible Conduit 3/8” x 30” 2 2 27-Jun-00 16-Mar-98
1028501 Bx Connector-Straight 3/8 2 2
1028500 Connector 3/8” 90 DEG. Romex 1 1 4-Mar-93
18 1236100 1-1/2 Square Foot Insert “ 4 4
19
1027500 Caster - Single Deck Only 2 2
1027501 Caster W/Break - Single Deck 2 2
1775102 Caster Insert - Single Deck Only
1302099 Caster Pad Weld Assy
1755999 Leg Base
1755998 Double Deck Caster Pad SS W/A
20*
9004500 NamePlate 1 3-Apr-87 1-Feb-99
3077100 Nameplate - Garland - 7-5/8 1 1-Oct-01
1959601 NamePlate Clip 2 8-Oct-01
21* 1716801 Term Tab .250 22-18Ga F Red 4 6-Apr-94
22* 1719299 Front Frame W/A 1 1 31-Jul-92
23* 1025402 Rear Casing Element Cover S/S 1 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
This manual suits for next models
2
Table of contents
Other Garland Accessories manuals
