FORM # 36E & 680 Fryers Parts (Rev 2)
GARLAND MODEL
36E & 680 FRYERS
Toll Free Phone, (US & Canada): [phone]
Toll Free Fax, (US & Canada): [phone]
http://www.garland-group.com

FORM # 36E & 680 Fryers Parts (Rev 2)Page 2

Page 3FORM # 36E & 680 Fryers Parts (Rev 2)
GARLAND MODEL
36E & 680 FRYERS
Contents:
Heavy Duty Fryers Models 36ES11, 36ES11-SF, 36ES11-BL AND 3611-SFBL ....................... Page 4
Heavy Duty Fryer ModeL 36ES21.............................................................................................. Page 8

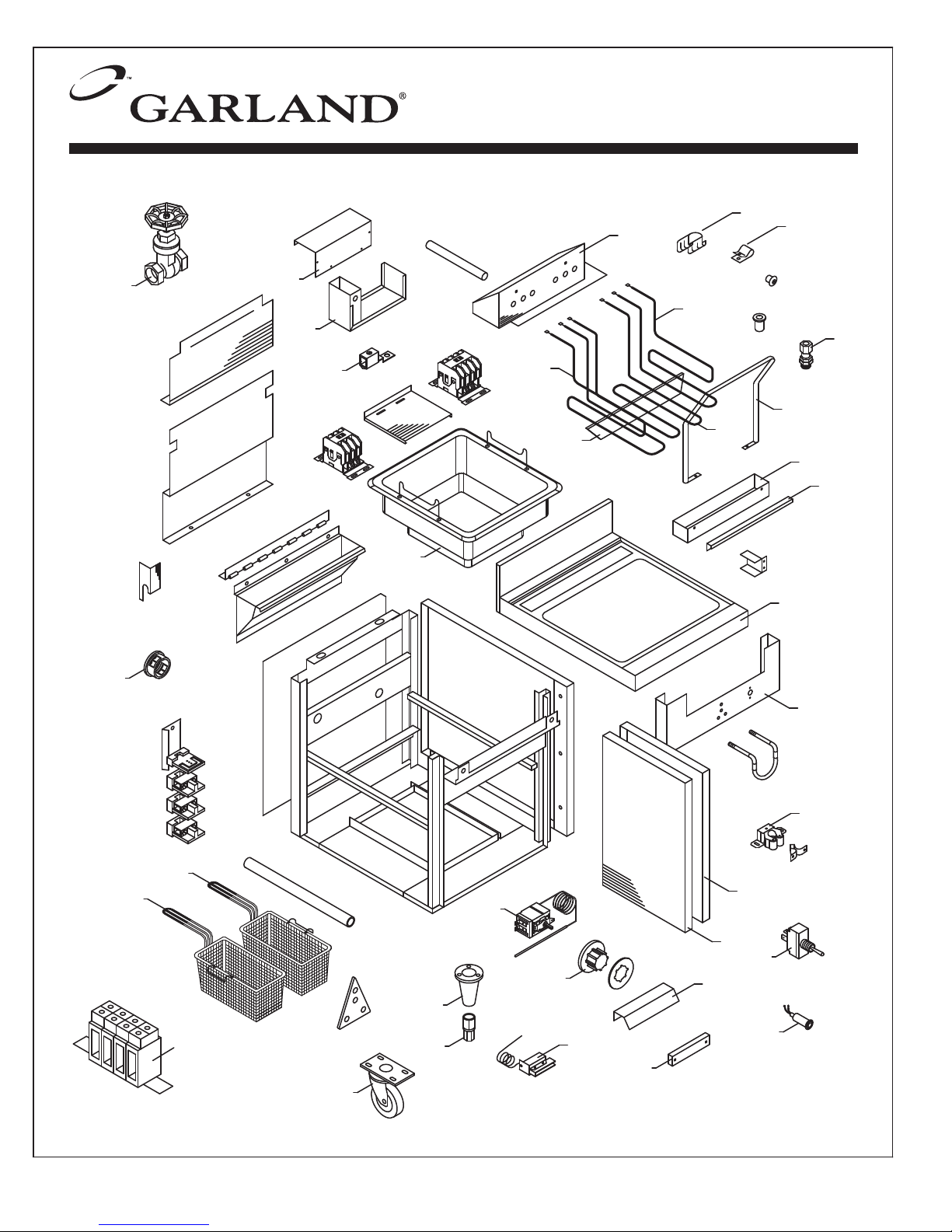

Restaurant Fryers Models 680-31F, 680-31FBL, 680-31SF AND 680-31SFBL ....................... Page 12

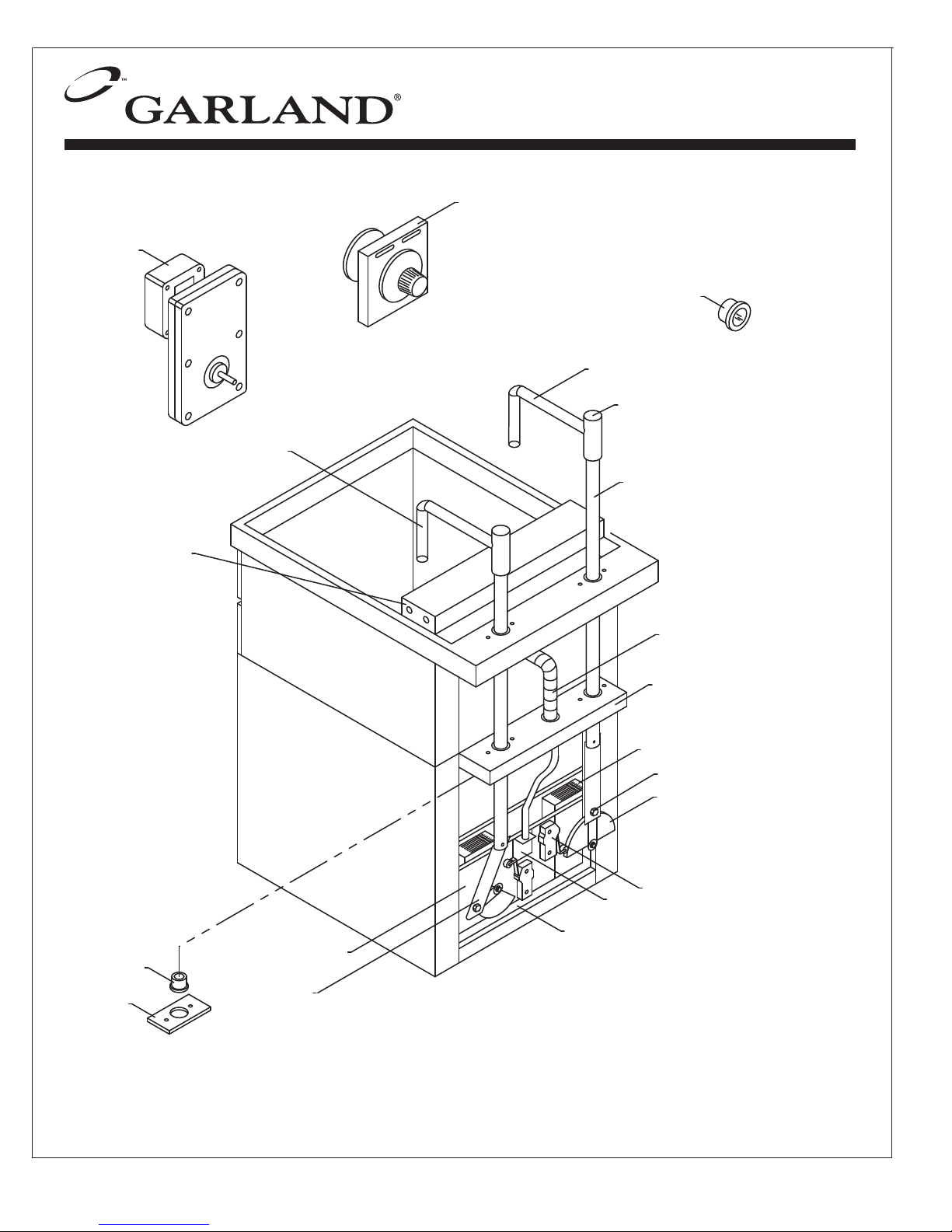

Basket Lift Fryers
Models 36ES11-BL, 36ES11-SFBL, 680-31FBL AND 680-31SFBL ........................................ Page 16

FORM # 36E & 680 Fryers Parts (Rev 2)Page 4
1
2
3
4
5
6
7
8
10
9
11
12
13
14
15
17
19
25
26
27
21
22
29
33
34
35 36
38
20
40
41
39
43
58
16
24B
24A
18
23
42
37
58
62
63
60
61
57
GARLAND
xx
xx
xx
xx

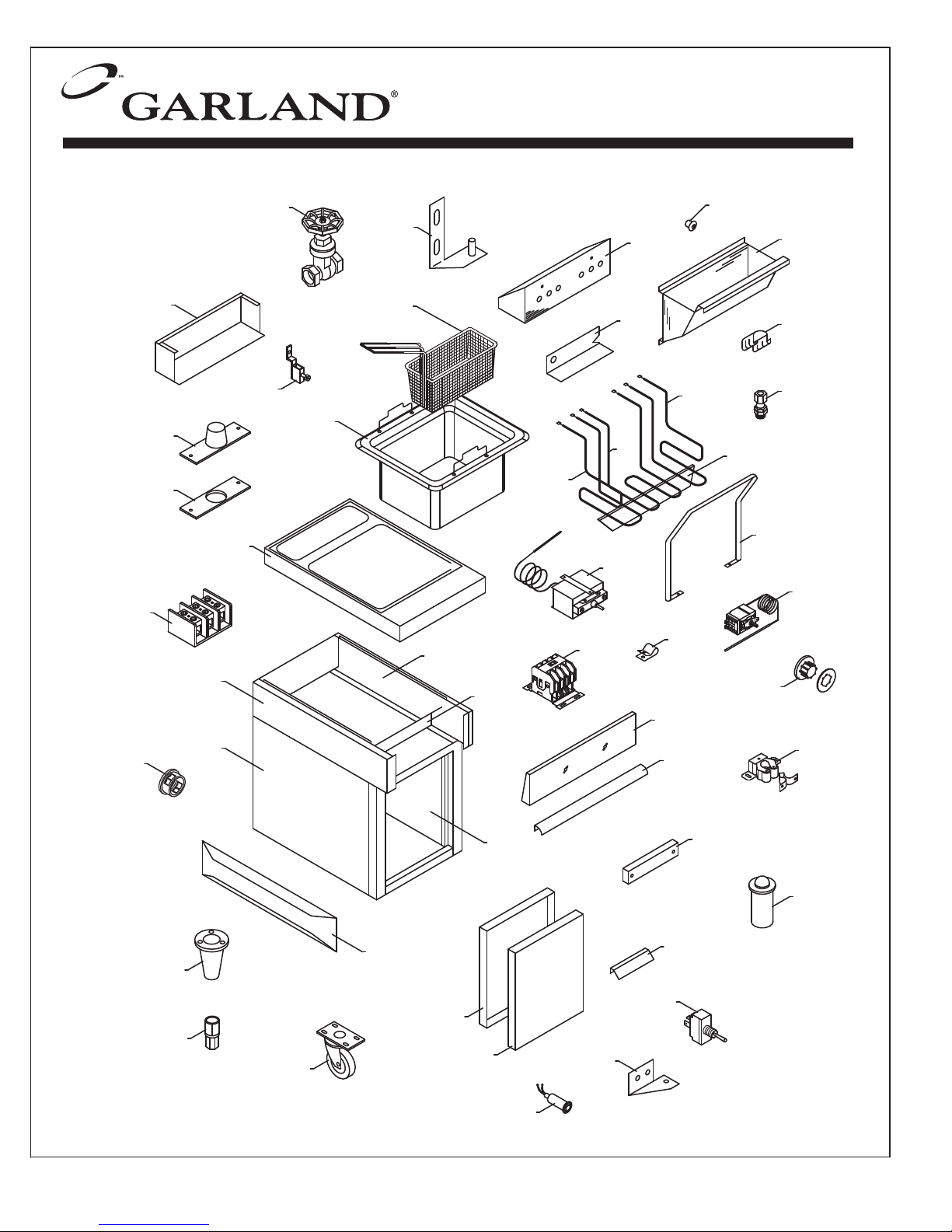

Heavy Duty Fryers.dwg
HEAVY DUTY FRYERS
MODEL:36ES11, 36ES11-SF,
36ES11-BL, 36ES11-SFBL

Page 5FORM # 36E & 680 Fryers Parts (Rev 2)
GARLAND PARTS IDENTIFICATION
Heavy Duty Fryers
Models 36ES11, 36ES11-SF, 36ES11-BL, 36ES11-SFBL
ITEM PART # DESCRIPTION
MODEL
QUANTITY
36ES11 36ES11-SF 36ES11-BL 36ES11-SFBL
1 1027600 Leg Retainer 6” (Std.) 4 4 4 4
2 1150502 Bullet Legs 4 4 4 4
31027800 Swivel Caster Less Brake 2 2 2 2
1027801 Swivel Caster C/W Brake 2 2 2 2
4 G01487-5 Heyco Bushing 1-5/16 ID 2 2 2 2
51211900 Control Panel 1 1
1211902 Control Panel 1 1
6 1685304 Drip Tray Handle 17 7/8 1 1 1 1
7 G01864-1 Toggle Switch 1 1 1 1
8G01296-2 Pilot Amber 1 1 1 1
G01296-1 Pilot Red 240V 1 1 1 1
9 G01894-01 Thermostat 2 Terminal 1 1 1 1
10
G02716-1 Dial - (Universal) Small Shaft
1 1 1 1
G02725-20 Dial Insert (OFF/200°F/375°F)
1 1 1 1
11 1637002 Main Contactor Pole 240V 2 2 2 2
12 1210900 Door Panel Rt - 18” 1 1 1 1
13 1210998 Door Liner Assembly 1 1 1 1
14 2671600 Catch-Double Roller #603-2G 1 1 1 1
15 2533900 Door Handle 1 1 1 1
16 1210800 Lower Door Hinge Rt 1 1 1 1
17 G01499-1 Ground Terminal 105A Large SLU-70 1 1 1 1
18
1193900 Terminal Block - 3 Pole-Hi Voltage
Up to January 1, 2001 1 1 1 1
2694801 Export/Domestic Terminal Block (4)
From January 1, 2001 1 1 1 1
19 1212299 Main Top Assembly 1 1 1 1
20 G02099-1 Element Lifting Handle Ni. PLT 1 1 1 1
21 F300 Clip-Tinnerman 2 2 2 2
22
1902918 Nameplate - GARLAND 7 3/4
Up to October 1, 2001 1 1 1 1
3077100 7-5/8” GARLAND Nameplate
From October 1, 2001 1 1 1 1
23
1092900 LCC Control
(Up to Dec. 31, 1973.) 1 1 1 1
1143900 LCH Safety Limit Control
(From Jan 1, 1974.) 1 1 1 1
24A 1116100 Boot Plate 1 1 1 1
24B 1116000 Fryer Boot Flush Mounted 1 1 1 1
25
G1551-1 Element R/H 208V, 4KW
1 1
G1551-3 Element R/H 240V, 4KW
1 1
G1551-9 Element R/H 440/480V, 4KW
1 1
G1551-11 Element R/H 208V, 4.5KW
1 1
G1551-13 Element R/H 240V, 4.5KW
1 1
G1551-15 Element R/H 440/480V, 4.5KW
1 1
26
G1550-1 Element Center 208V, 4KW
1 1
G1550-2 Element Center 240V, 4KW
1 1
G1550-5 Element Centre 440/480V, 4KW
1 1
G0476-01 Element Center 208V, 7KW
1 1
G0476-02 Element Center 240V, 7KW
1 1
G0476-03 Element Centre 440V/480V, 7KW
1 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

FORM # 36E & 680 Fryers Parts (Rev 2)Page 6
GARLAND PARTS IDENTIFICATION
Heavy Duty Fryers
Models 36ES11, 36ES11-SF, 36ES11-BL, 36ES11-SFBL
ITEM PART # DESCRIPTION
MODEL
QUANTITY
36ES11 36ES11-SF 36ES11-BL 36ES11-SFBL
27
G1551-2 Element L/H 208V, 4KW
1 1
G1551-4 Element L/H 240V, 4KW
1 1
G1551-10 Element L/H 440/480V, 4KW
1 1
G1551-12 Element L/H 208V, 4.5KW
1 1
G1551-14 Element L/H 240V, 4.5KW
1 1
G1551-16 Element L/H 440/480V, 4.5KW
1 1
28* G02504-460 Transformer 460V (High Voltage Only) 1 1 1 1
29 G02698-2 Basket Twin L/H 1 1
G02698-1 Basket Twin R/H 1 1
30* G01075-1-8 Twin Basket E18BL 10-31BL 2 2
31* G02699-1 Basket Single (Optional) 1 1
33 G02692-01-8P Frytank Assembly (Plated) W/Drain 1 1
G02692-02-8P Frytank Assembly (Plated) No Drain 1 1
34 G2941-1P Valve 1” Gate - Plated 1 1
35 1123511 Rotating Head Cover 1 1 1 1
36 1123597 Rotating Head Assembly 1 1 1 1
37 G02156-1 Rotating Head Latch Return 1 1 1 1
38 1123505 Stop Bracket 1 1 1 1
39 G1156-1 Straight Thru Fitting 6 6 6 6
40 G1570-1-9 Tie Bar Support 1 1 1 1
41 G1155-1 Black PVC Grommet #315-463 2 2 2 2
42 1333198 Hinge Bracket Assembly Lt 1 1 1 1
1333199 Hinge Bracket Assembly Rt 1 1 1 1
Units With Greater Than 48 Amperes
Require The Following After Serial # 089134
43 4519722 Tube Clamp 4 4 4 4
44* 1233599 Breaker Box Assembly 1 1 1 1
45*
1103303 (2) Pole Breaker 50 Amps
1 1
46
1103304 (3) Pole Breaker 50 Amps
1 1
47* 1193900 Terminal Block - 3 Pole-Hi Voltage 1 1 1 1
48* 1233503 Breaker Box Cover 1 1 1 1
49* 1233504 Breaker Box Mount Plate 1 1 1 1
50* 1028803 Heyco Bushing 1 3/4 Dia 2 2 2 2
51 1233800 Wire Way 1 1 1 1
52*
1130103 Fuse 208/240V - 20 Amps
2 2
53*
1130102 Fuse Holder (All Voltages)
2 2
54* 1094600 10” Filter Cone (G70) (Optional)
55* 1144300 Filter Basket Chrome Plated (Optional)
56* G0599-1-9 Frytank Cover (Optional)
57 1211200 Thermostat Housing
58 1211100 Wire Shield
59* 1212300 Flue Riser Back 18”
60 1198501 Burner Box Side Right
1198503 Burner Box Side Rt S/S
61 1198500 Burner Box Side Left
1198502 Burner Box Side Lt S/S
62 1210602 Body Side LT
1210603 Body Side LT SS
63 1210600 Body Side RT
1210601 Body Side RT SS
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 7FORM # 36E & 680 Fryers Parts (Rev 2)
NOTES

FORM # 36E & 680 Fryers Parts (Rev 2)Page 8
4
1
2
3
4
5
6
7
8
9
11
10
13
14
15
16
18
19
22
23
24
25
26
27
28
29
37
4
9
33
39
GARLAND
REV. 0
Heavy Duty Fryers 36ES21.dwg
HEAVY DUTY FRYER
MODEL: 36ES21
xx
xx
xx

Page 9FORM # 36E & 680 Fryers Parts (Rev 2)
GARLAND PARTS IDENTIFICATION
Heavy Duty Fryers
Model: 36ES21
ITEM PART # DESCRIPTION
MODEL
QUANTITY
36ES1
1 1027600 Leg Retainer 6” (Std.) 4
2 1150502 Bullet Legs 4
31027801 Swivel Caster C/W Brake 2
1027800 Swivel Caster Less Brake 2
4 2671600 Catch-Double Roller #603-2G 1
5 1211903 Control Panel 1
6 1212199 Main Top Assembly 1
7
1193900 Terminal Block - 3 Pole-Hi Voltage
Up to January 1, 2001 1
2694801 Export/Domestic Terminal Block (4)
From January 1, 2001 1
8
1143900 LCH Safety Limit Control
1
1143902 Stuffing Box #4650-002 1
9 G01499-1 Ground Terminal 105A Large SLU-70 1
10
G2455A2 Element Bottom 208V, 5.6KW
1
G2455A1 Element Bottom 240V, 5.6KW
1
1073796 Bottom Element 460V, 5.6 KW
1
11
G02697-A2 Top Element 208V, 4.8KW W/Clamps
3
G02697-A1 Top Element 240V, 4.8KW W/Clamps
3
1073896 Element 460V, 4.8KW
3
12* CK161 Tube Clamp Assembly Kit 8
13 G2470-1-9 Tie Bar Support 1
14 G01864-1 Toggle Switch 1
15 G01296-1 Pilot Red 240V 1
G01296-2 Pilot Amber 1
16 1637002 Main Contactor Pole 240V 2
17* G02504-460 Transformer 460V (High Voltage Only) 1
18 1073900 Regulating Thermostat 1
19
G02716-1 Dial - (Universal) Small Shaft
1
G02725-20 Dial Insert (OFF/200°F/375°F)
1
20* G2432-1 Basket R/H 1
21* G2432-2 Basket L/H 1
22 G2433A1 Screen Assembly Nickel 1
23 G2435-01-9 Frytank Assembly 1
24 G2452-1-9 Element Clamp 1
25 G2941-1P Valve 1” Gate - Plated 2
26 1210901 Door Panel Stainless Steel 1
27 1210996 Door Liner Assembly 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PART

FORM # 36E & 680 Fryers Parts (Rev 2)Page 10
GARLAND PARTS IDENTIFICATION
Heavy Duty Fryers
Model: 36ES21
ITEM PART # DESCRIPTION
MODEL
QUANTITY
36ES1
Units Rated At Greater Than 48 Amperes Require The Following:
28 1210800 Lower Door Hinge Rt
29 1685301 Drip Tray Handle 23 15/16
30* 1233597 Breaker Box Assembly 1
31* 1212499 Front Splash Assembly S/W 1
32* 1103304 (3) Pole Breaker 50 Amps 2
33
1193900 Terminal Block - 3 Pole-Hi Voltage
Up to January 1, 2001 1
2694801 Export/Domestic Terminal Block (4)
From January 1, 2001 1
34* 1233503 Breaker Box Cover 1
35* 1233504 Breaker Box Mount Plate 1
36* 1233800 Wire Way 1
37
1902918 Nameplate - GARLAND 7 3/4
Up to October 1, 2001 1
3077100 7-5/8” GARLAND Nameplate
From October 1, 2001 1
38* G2585-1-9 Frytank Cover (Optional) 1
39 2533900 Door Handle 1
40* 1212700 Door Catch Bracket 1
41* 1028503 3/4 Box Connector Straight
42* G01496-7 3/4” Anti-Short #3
43* 2572300 3/4 Aluminum Flex Conduit
* NOT ILLUSTRATED
RECOMMENDED STOCK PART
