Garmin HRM-Swim User manual

&
GAR
MIN
,~
HRM-Swim
TM
Instructions
.....
.
............................
2
Instructions
relatives
au
HRM-Swim
™
..............
8
HRM-Swim™
lstruzioni
....................................
15
HRM-Swim
TM
-
Anweisungen
..........................
22
lnstrucciones
de
HRM-Swim
TM
........
..
..............
30
lnstrw;oes
do
HRM-Swim
™
........
..
..................
37

HRM-Swim™ Instructions
See the Important Safety and Product
Information guide in the product box for product
warnings and other important information.
Sizing the Heart Rate Monitor
Before your first swim, take some time sizing
the heart rate monitor. It should be tight enough
to stay in place when pushing off the pool wall.
• Select a strap extender , and attach it to the
elastic end of the heart rate monitor.
The heart rate mon i tor comes with three
extender straps to fit different chest sizes.
TIP: The medium strap extender works for
most shirt sizes (from medium to extra-
large).
• Put on the heart rate monitor backward to
easily adjust the slider on the strap
extender .
•
Put on the heart rate monitor forward to
easily adjust the slider on the heart rate
monitor.
Putting On the Heart Rate Monitor
You should wear the heart rate monitor directly
on your skin , just below your sternum .
1 Select a strap extender for the best fit.
2 Wear the heart rate monitor with the
2
Garmin ' logo facing right-side up.
The hook G) and loop ( ~ ) connection
should be on your right side .
Instructions

3 Wrap the heart rate monitor around your
chest, and connect the strap hook to the
loop.
NOTE: Make sure the care tag does not
fold over.
4 Tighten the heart rate monitor so it is snug
around your chest, but not restrictive.
After you put on the heart rate monitor, it is
active, storing, and sending data.
Pairing the Heart Rate Monitor with
Your Device
Before you can pair the heart rate monitor with
your device, you must put on the heart rate
monitor.
Pairing is the connecting of ANT+ ® wireless
sensors, like your heart rate monitor, with a
Garmin ANT+ compatible device .
NOTE: The pairing instructions differ for each
Garmin compatible device. See your owner's
manual.
• For most Garmin compatible devices, bring
the device within 3m of the heart rate
Instructions
3

monitor
and
use
the
device
menu
to
pair
manually.
•
For
some
Garmin
compatible
devices,
bring
the
device
within
1
em
of
the
heart
rate
monitor
to
pair
automatically.
TIP:
Stay
10
m
away
from
other
ANT+
sensors
while
pairing.
After
you
pair
the
first
time
,
your
Garmin
compatible
device
automatically
recognizes
the
heart
rate
monitor
each
time
it
is
activated.
Heart
Rate
While
Swimming
The
heart
rate
monitor
records
and
stores
your
heart
rate
data
while
swimming.
Heart
rate
data
is
not
visible
on
compatible
Garmin
devices
while
the
heart
rate
monitor
is
underwater.
You
must
start
a
timed
activity
on
your
paired
Garmin
device
to
view
stored
heart
rate
data
later.
During
rest
intervals
when
out
of
the
water,
the
heart
rate
monitor
sends
your
average
and
maximum
heart
rate
for
the
previous
interval,
and
your
real-time
heart
rate
,
to
your
Garmin
device.
Your
Garmin
device
automatically
uploads
stored
heart
rate
data
when
you
save
your
timed
swim
activity.
Your
heart
rate
monitor
must
be
out
of
the
water
,
active,
and
within
range
of
the
device
(3
m)
while
data
is
uploaded.
Your
heart
rate
data
can
be
reviewed
in
the
dev
i
ce
history
and
on
your
Garmin
Connec
C
account.
Data
Storage
The
heart
rate
monitor
can
store
up
to
20
hours
of
data
in
a
single
activity.
When
the
heart
rate
4
Inst
ru
ct
io
ns

monitor
memory
is
full,
your
oldest
data
is
overwritten.
You
can
start
a
timed
activity
on
your
paired
Garmin
device,
and
the
heart
rate
monitor
records
your
heart
rate
data
even
if
you
move
away
from
your
device.
For
example,
you
can
record
heart
rate
data
during
fitness
activities
or
team
sports
where
watches
cannot
be
worn.
Your
heart
rate
monitor
automatically
sends
your
stored
heart
rate
data
to
your
Garmin
device
when
you
save
your
activity.
Your
heart
rate
monitor
must
be
active
and
within
range
(3m)
of
the
device
while
data
is
uploaded.

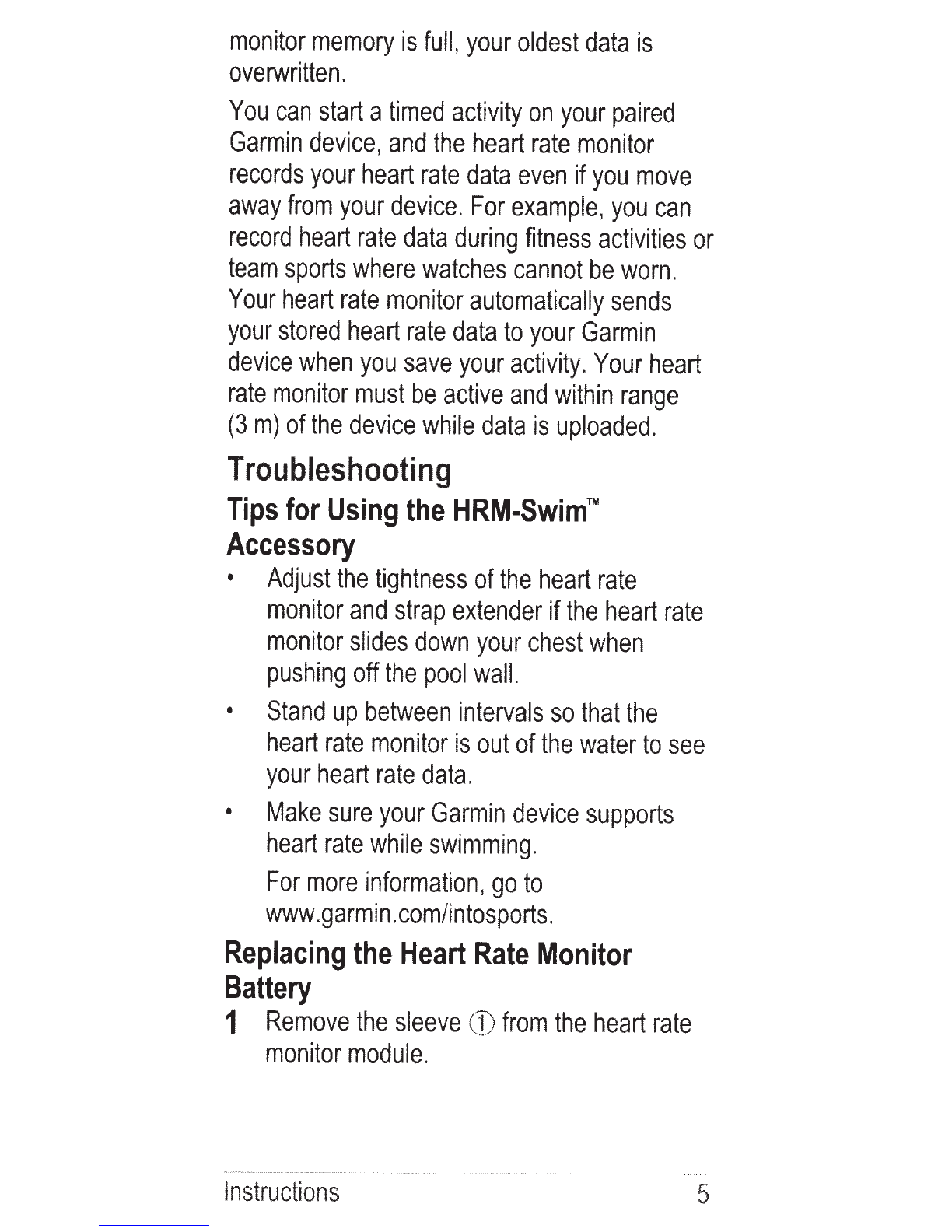

Troubleshooting
Tips
for
Using
the
HRM-Swim™
Accessory
•
Adjust
the
tightness
of
the
heart
rate
monitor
and
strap
extender
if
the
heart
rate
monitor
slides
down
your
chest
when
pushing
off
the
pool
wall.
•
Stand
up
between
intervals
so
that
the
heart
rate
monitor
is
out
of
the
water
to
see
your
heart
rate
data.
•
Make
sure
your
Garmin
device
supports
heart
rate
while
swimm
i
ng
.
For
more
information,
go
to
www
.
garmin
.
com/intosports.
Replacing
the
Heart
Rate
Monitor
Battery
1
Remove
the
sleeve
CD
from
the
heart
rate
monitor
module.
Instructions
5

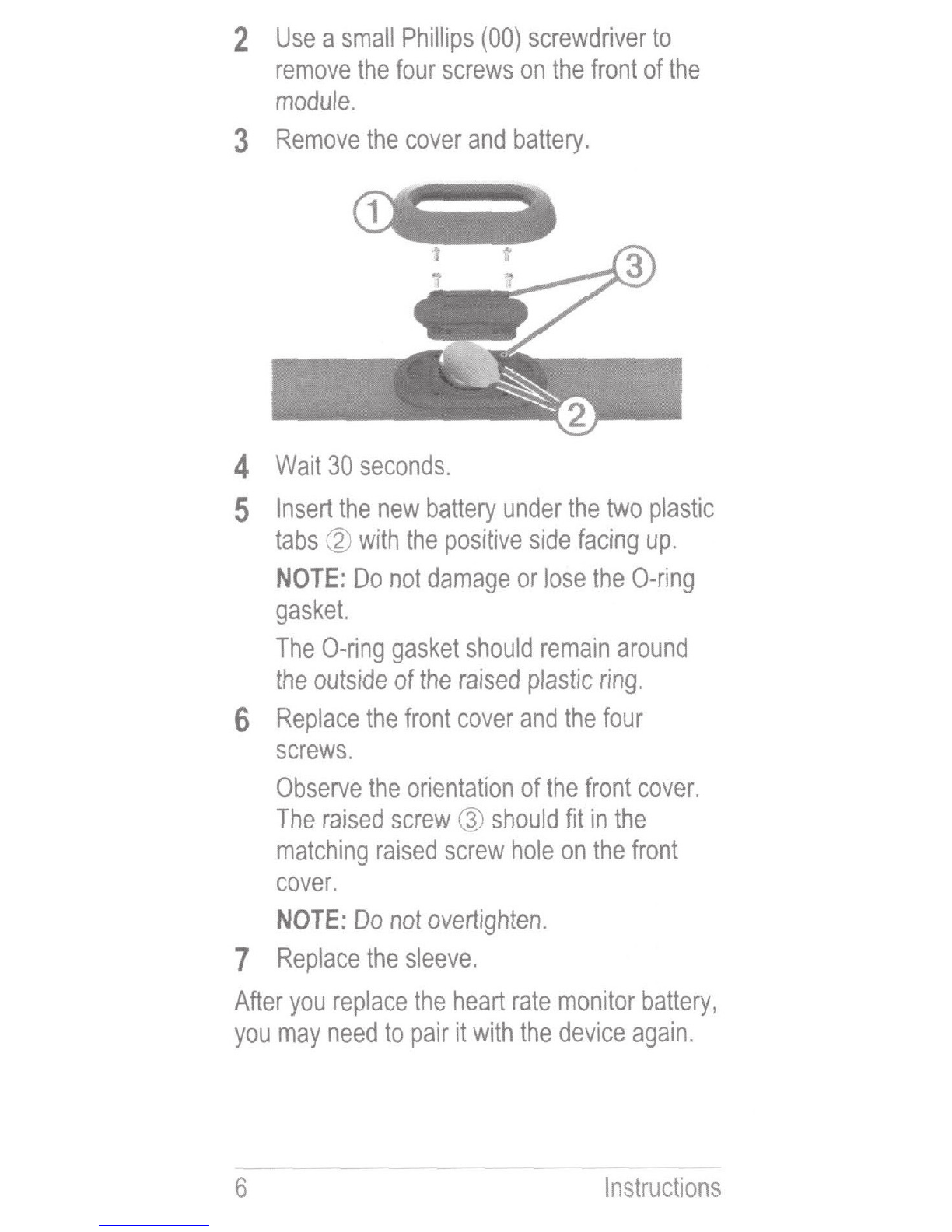

2 Use a small Phillips (00) screwdriver to
remove the four screws on the front of the
module.
3 Remove the cover and battery.
4 Wait 30 seconds.
5 Insert the new battery under the two plastic
tabs @ with the positive side facing up.
NOTE: Do not damage or lose the 0-ring
gasket.
The 0-ring gasket should remain around
the outside of the raised plastic ring.
6 Replace the front cover and the four
screws.
Observe the orientation of the front cover.
The raised screw ® should fit in the
matching raised screw hole on the front
cover.
NOTE: Do not overtighten.
7 Replace the sleeve.
After you replace the heart rate monitor battery,
you may need to pair it with the device again.
6 Instructions

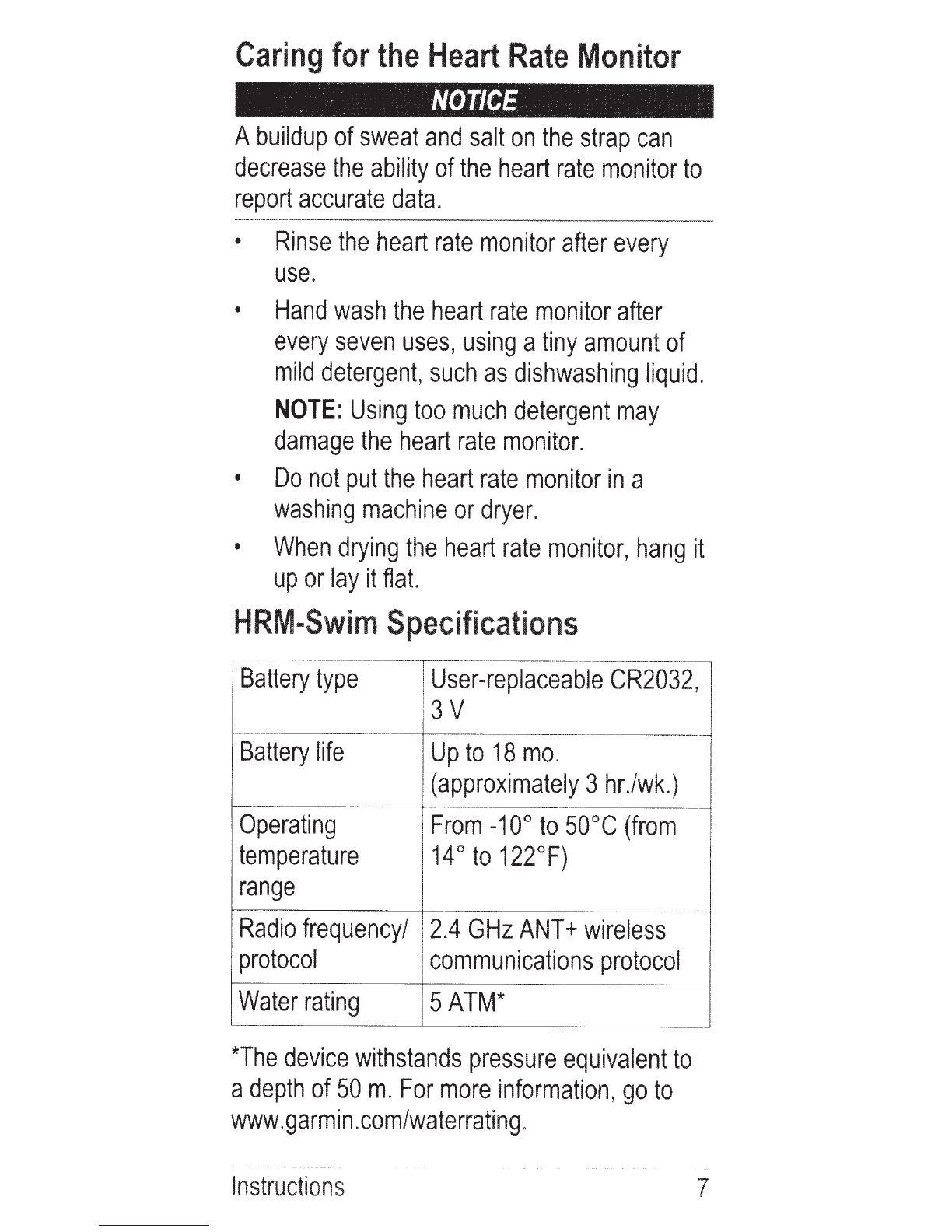

Caring
for
the
Heart
Rate
Monitor
NOTICE
A
buildup
of
sweat
and
salt
on
the
strap
can
decrease
the
ability
of
the
heart
rate
monitor
to
report
accurate
data.
•
Rinse
the
heart
rate
monitor
after
every
use
.
•
Hand
wash
the
heart
rate
monitor
after
every
seven
uses,
using
a
tiny
amount
of
mild
detergent,
such
as
dishwashing
liquid.
NOTE:
Using
too
much
detergent
may
damage
the
heart
rate
monitor.
•
Do
not
put
the
heart
rate
monitor
in
a
washing
machine
or
dryer
.
•
When
drying
the
heart
rate
monitor
,
hang
it
up
or
lay
it
fiat.
HRM
-S
wi
m
Specif
i
cat
io
ns
-··
sa
ttery
-ty-
pe
·
·-
-·-
--r
u-s·e-r=·
repla
-
ceable
-c
R2o
-
32
~
-
1
!3v
r---
---
-
--·
-
·--
·-
--
-
~
-
--
---·
--
---
-
----
--
---
- -
---
---·
-·
·--
-
Battery
life
1
Up
to
18
mo
.
~
!
(approximately
3
hr./wk.)
---
·
-·--
--+-
- ·
-·
--
------
Operating
!
From
-1
oo
to
50
°C
(from
temperature
l
14
o
to122
°
F)
I
range
I
Radio
frequency/
1
2.4
GHz
ANT+
wireless
protocol
I
communications
protocol
Water
rating
I5A
TM*
I
*The
device
withstands
pressure
equivalent
to
a
depth
of
50
m.
For
more
information
,
go
to
www.garmin.com/waterrat
i
ng
.
I
nstructions
7

Limited
Warranty
The
Garmin
standard
limited
warranty
applies
to
this
accessory.
For
more
information,
go
to
www.garmin.com/support/warranty.html.
Instructions
relatives
au
HRM-
Swim™
Consultez
le
guide
Informations
importantes
sur
le
produit
et
Ia
securite
indus
dans
l'emballage
du
produit
pour
prendre
connaissance
des
avertissements
et
autres
informations
importantes
sur
le
produit.
Reglage
de
Ia
courroie
du
moniteur
de
frequence
cardiaque
Avant
votre
premiere
seance
de
natation,
prenez
un
peu
de
temps
pour
regler
Ia
taille
de
Ia
courroie
du
moniteur
de
frequence
cardiaque.
Elle
doit
etre
suffisamment
serree
pour
rester
en
position
lors
des
coulees.
•
Choisissez
une
courroie
d'extension
et
attachez-la
a
l'extremite
en
plastique
du
moniteur
de
frequence
cardiaque.
Le
moniteur
de
frequence
cardiaque
est
vendu
avec
des
courroies
d'extension
de
trois
tailles
differentes,
pour
convenir
a
tous
les
gabarits.
ASTUCE
:
Ia
courroie
d'extension
de
taille
M
convient
a
Ia
plupart
des
utilisateurs
(tailles
de
tee-shirt
de
Ma
XL).
•
Positionnez
le
moniteur
de
frequence
cardiaque
dans
votre
dos
pour
ajuster
8
Instructions

Garmin , the Garmin logo, and ANT+ are trademarks of
Garmin Ltd . or its subs i diaries, registered in the USA and
other countries. HRM-Sw im ''" is a trademark of Garmin
Ltd. or its subsidiaries. These trademarks may not be
used without the express permission of Garmin.
This product is ANT+ certified . Visit www.thisisant.com
/directory for a list of compatible products and apps.
M/N : 802293
El numero de registro COFETEL!IFETEL puede ser
revisado en el manual a traves de !a siguiente pagina de
i nternet.
CE
2015 Garmin Ltd or its subsidiarie s
www. garmin. com/support
Pnnted in Ta i wan
April 2015
~
190-0176 5 -95 OA 12:&

CD
XXS-XS
,~ I -
·...__)
0
{
~I
© 2015 Garmin Ltd. or its subsidiaries
+
S-M
M-XL
XL-XXL
~\I,;

~ x1
. ...
~ x7
• t>
@
••
April2015
Printed in Taiwan
190-01765-97 _ OA

HRM-
Tri
™
Instructions
......................................
2
Instructions
relatives
au
HRM-
Trt
~
....
........
....
.
10
HRM-
Tri'M
lstruzioni
..........
.
........................
..
...
21
HRM-
Tr
rM
-
Anweisungen
......
.....
..
.
..
..
..
.........
.
30
lnstrucciones
de
HRM-
Tri
™
...
....
....
........
....
.....
40
lnstruc;6es
do
HRM-
Tr
rM
.......
.
..
.
..
.......
...
...
...
....
50

HRM-
Tri
™
Instructions
&WARNING
See
the
Important
Safety
and
Product
Information
guide
in
the
product
box
for
product
warnings
and
other
important
information.
Putting
On
the
Heart
Rate
Monitor
You
should
wear
the
heart
rate
monitor
directly
on
your
skin,
just
below
your
sternum.
It
should
be
snug
enough
to
stay
in
place
during
your
activity.
1
If
necessary,
attach
the
strap
extender
to
the
heart
rate
monitor.
2
Wet
the
electrodes
CI
on
the
back
of
the
heart
rate
monitor
to
create
a
strong
connection
between
your
chest
and
the
transmitter.
3
Wear
the
heart
rate
monitor
with
the
Garmin
logo
facing
right-side
up.
2
The
loop
(2)
and
hook
f3)
connection
should
be
on
your
right
side.
Instructions

4 Wrap the heart rate monitor around your
chest, and connect the strap hook to the
loop.
NOTE: Make sure the care tag does not
fold over.
After you put on the heart rate monitor, it is
active, storing, and sending data.
Pairing the Heart Rate Monitor with
Your Device
Before you can pair the heart rate monitor with
your device, you must put on the heart rate
monitor.
Pairing is the connecting of ANT+ @ wireless
sensors, like your heart rate monitor, with a
Garmin ANT+ compatible device.
NOTE: The pairing instructions differ for each
Garmin compatible device. See your owner's
manual.
• For most Garmin compatible devices, bring
the device within 3m of the heart rate
monitor and use the device menu to pair
manually.
• For some Garmin compatible devices, bring
the device within 1 em of the heart rate
monitor to pair automatically.
TIP: Stay 10 m away from other ANT+
sensors while pairing.
After you pair the first time, your Garmin
compatible device automatically recognizes the
heart rate monitor each time it is activated.
Running Dynamics
You can use your compatible Garmin device
paired with the HRM-TrirM accessory to provide
Instructions
3

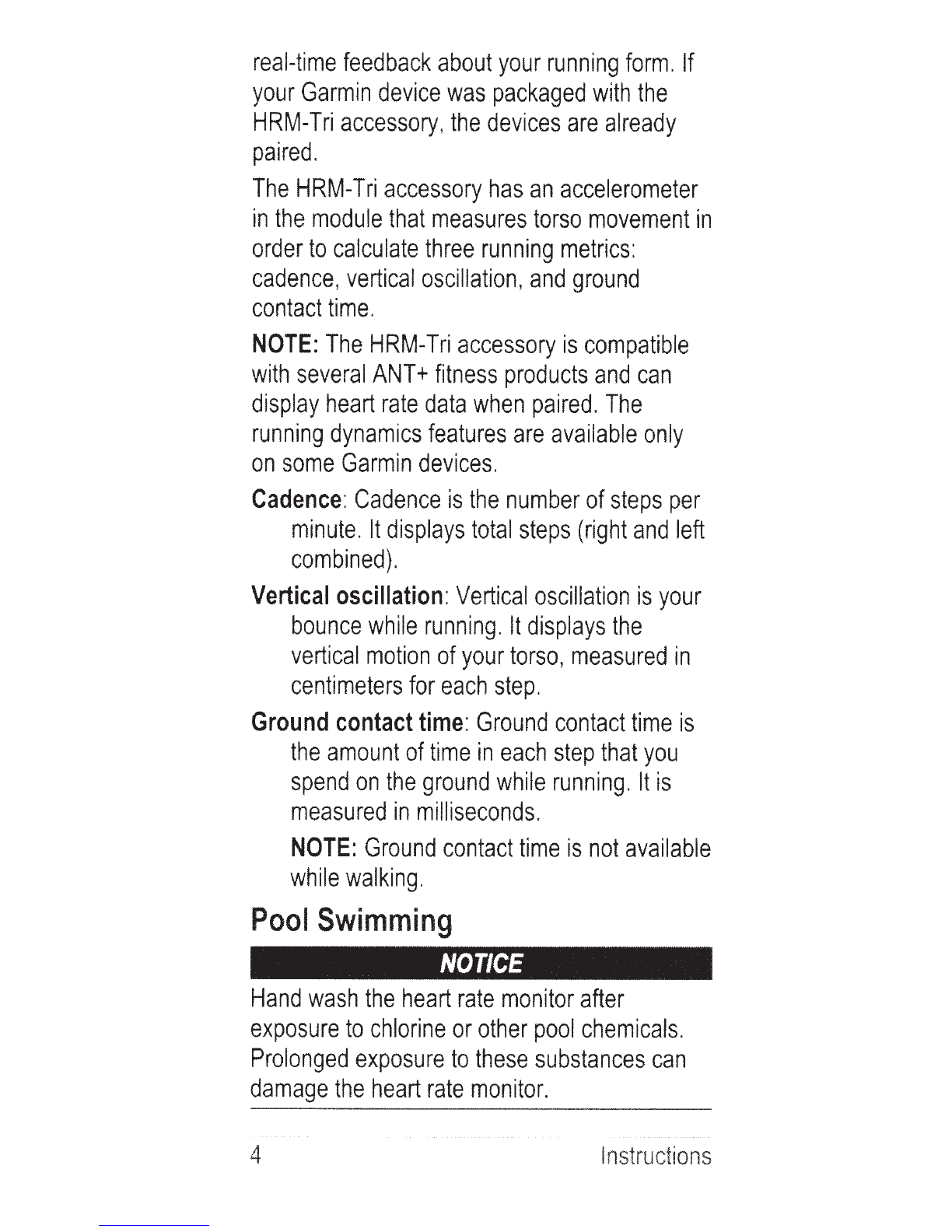

real-time feedback about your running form. If
your Garmin device was packaged wi th the
HRM- Tri accessory , the devices are already
paired.
The HRM-Tri accessory has an accelerometer
in the module that measures torso movement in
order to calculate three running metrics:
cadence, vertical oscillation, and ground
contact time.
NOTE: The HRM-Tri accessory is compatible
with several ANT+ fitness products and can
display heart rate data when paired. The
running dynamics features are available only
on some Garmin devices.
Cadence: Cadence is the number of steps per
minute. It displays total steps (right and left
combined) .
Vertical oscillation: Vertical oscillation is your
bounce while running. It displays the
vertical motion of your torso, measured in
centimeters for each step.
Ground contact time: Ground contact time is
the amount of time in each step that you
spend on the ground while running. It is
measured in milliseconds.
NOTE: Ground contact time is not available
while walking.
Pool Swimming
NOTICE
Hand wash the heart rate monitor after
exposure to chlorine or other pool chemicals.
Prolonged exposure to these substances can
damage the heart rate monitor.
4
Instruc t ions

The
HRM-Tri
accessory
is
designed
primarily
for
open
water
swimming,
but
it
can
be
used
occasionally
for
pool
swimming.
The
heart
rate
monitor
should
be
worn
under
a
swim
suit
or
triathlon
top
during
pool
swimming.
Otherwise
,
it
may
slide
down
your
chest
when
pushing
off
the
pool
wall.

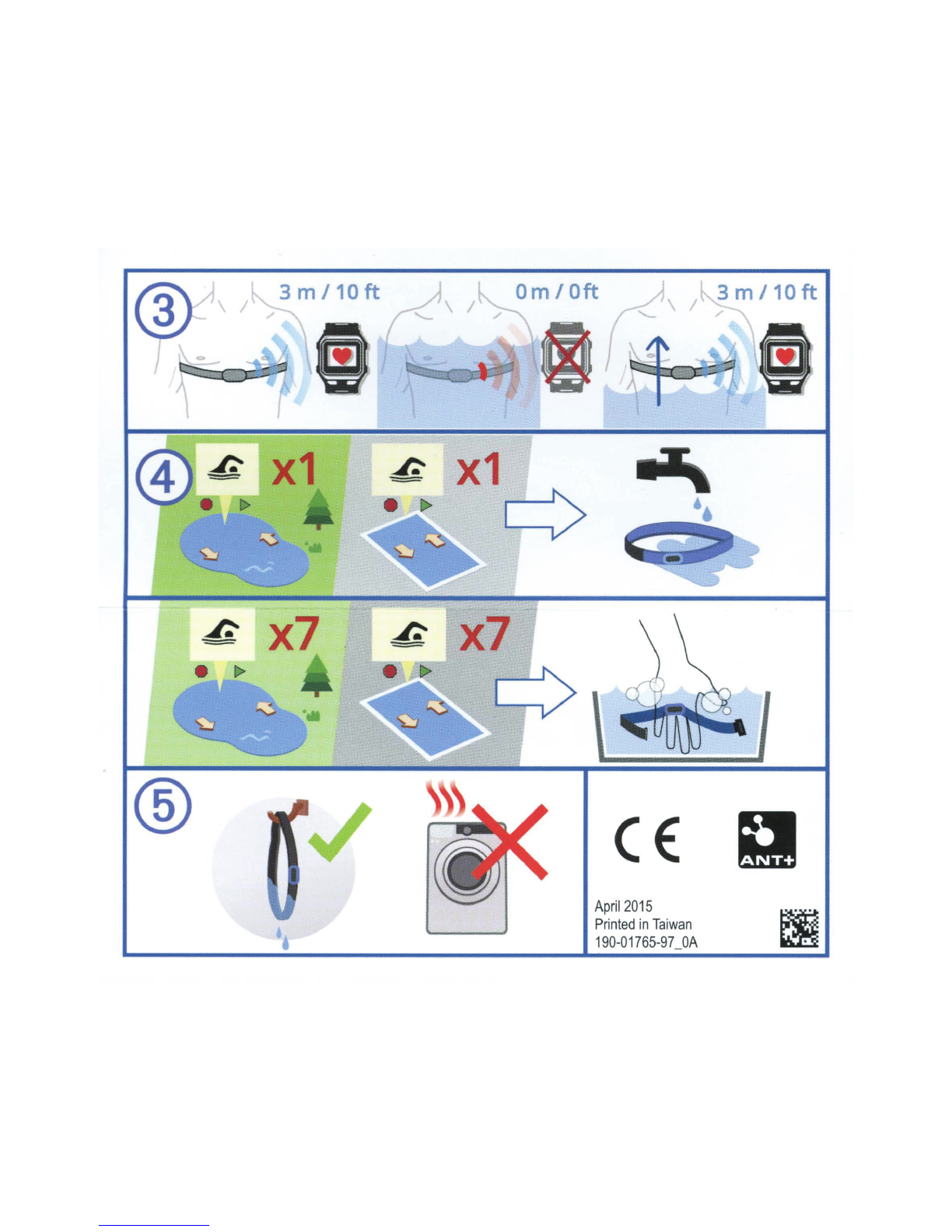

Heart
Rate
While
Swimming
The
heart
rate
monitor
records
and
stores
your
heart
rate
data
while
swimming.
Heart
rate
data
is
not
visible
on
compatible
Garmin
devices
while
the
heart
rate
monitor
is
underwater.
You
must
start
a
timed
activity
on
your
paired
Garmin
device
to
view
stored
heart
rate
data
later.
During
rest
intervals
when
out
of
the
water,
the
heart
rate
monitor
sends
your
average
and
maximum
heart
rate
for
the
previous
interval
,
and
your
real-time
heart
rate,
to
your
Garmin
device.
Your
Garmin
device
automatically
uploads
stored
heart
rate
data
when
you
save
your
timed
swim
activity.
Your
heart
rate
monitor
must
be
out
of
the
water,
active
,
and
within
range
of
the
device
(3
m)
while
data
is
uploaded.
Your
heart
rate
data
can
be
reviewed
in
the
device
history
and
on
your
Garmin
ConnecfM
account.
Data
Storage
The
heart
rate
monitor
can
store
up
to
20
hours
of
data
in
a
single
activity
.
When
the
heart
rate
monitor
memory
is
full,
your
oldest
data
is
overwritten.
You
can
start
a
timed
activity
on
your
paired
Garmin
device,
and
the
heart
rate
monitor
Instruct
i
ons
5

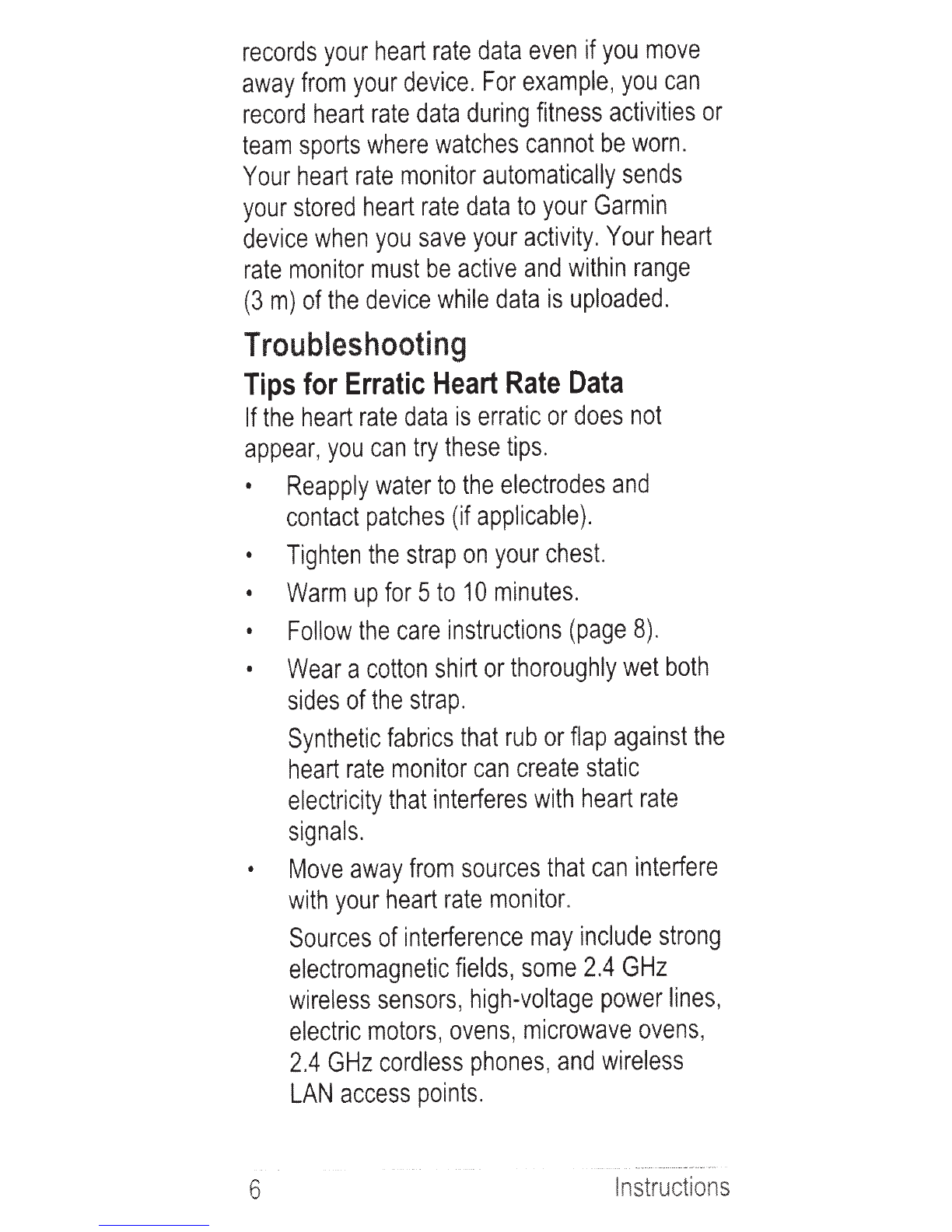

records
your
heart
rate
data
even
if
you
move
away
from
your
device.
For
example
,
you
can
record
heart
rate
data
during
fitness
activities
or
team
sports
where
watches
cannot
be
worn.
Your
heart
rate
monitor
automatically
sends
your
stored
heart
rate
data
to
your
Garmin
device
when
you
save
your
activity.
Your
heart
rate
monitor
must
be
active
and
within
range
(3m)
of
the
device
while
data
is
uploaded.
Troubleshooting
Tips
for
Erratic
Heart
Rate
Data
If
the
heart
rate
data
is
erratic
or
does
not
appear,
you
can
try
these
tips.
•
Reapply
water
to
the
electrodes
and
contact
patches
(if
applicable).
•
Tighten
the
strap
on
your
chest.
•
Warm
up
for
5
to
10
minutes.
•
Follow
the
care
instructions
(page
8).
•
Wear
a
cotton
shirt
or
thoroughly
wet
both
sides
of
the
strap
.
Synthetic
fabrics
that
rub
or
flap
against
the
heart
rate
monitor
can
create
static
electricity
that
interferes
with
heart
rate
signals.
•
Move
away
from
sources
that
can
interfere
with
your
heart
rate
monitor
.
6
Sources
of
interference
may
include
strong
electromagnetic
fields,
some
2.4
GHz
wireless
sensors,
high-voltage
power
lines
,
electric
motors,
ovens
,
microwave
ovens,
2.4
GHz
cordless
phones
,
and
wireless
LAN
access
points.
Instruct
i
ons

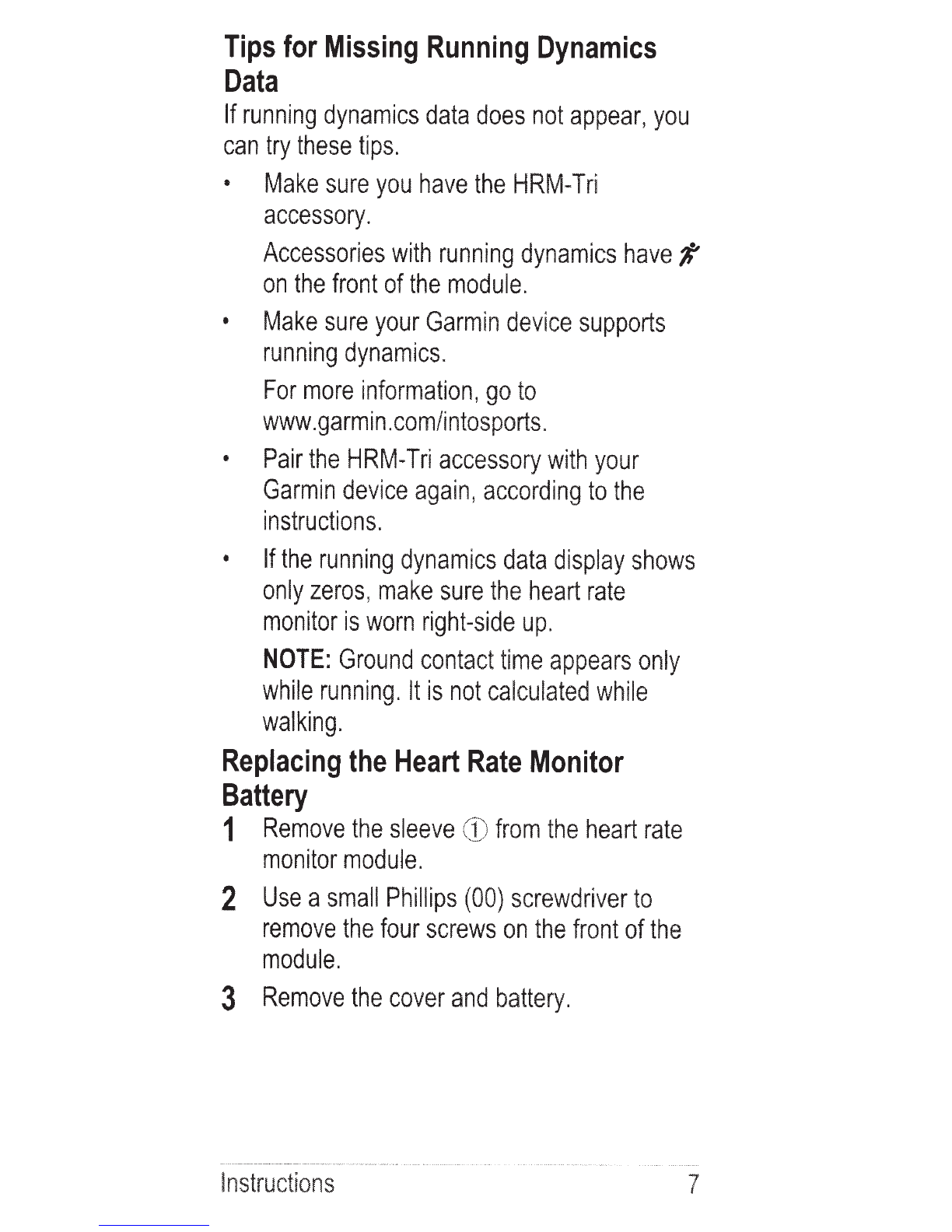

Tips
for
Missing
Running
Dynamics
Data
If
running
dynamics
data
does
not
appear
,
you
can
try
these
tips.
•
Make
sure
you
have
the
HRM-Tr
i
accessory.
Accessories
with
running
dynamics
have
#
on
the
front
of
the
module
.
•
Make
sure
your
Garmin
device
supports
running
dynam
i
cs.
For
more
information,
go
to
www.garmin
.
com/intosports.
•
Pair
the
HRM-Tri
accessory
with
your
Garmin
device
again,
according
to
the
instructions
.
•
If
the
running
dynamics
data
display
shows
only
zeros
,
make
sure
the
heart
rate
monitor
is
worn
right-side
up.
NOTE:
Ground
contact
ti
me
appears
only
while
runn
i
ng.
It
is
not
calculated
while
walking
.
Replacing
the
Heart
Rate
Monitor
Battery
1
Remove
the
sleeve
CD
from
the
h
eart
rate
monitor
module.
2
Use
a
small
Phillips
(00)
screwdriver
to
remove
the
four
screws
on
the
front
of
the
module.
3
Remove
the
cover
and
battery.
I
nstructions
7

4 Wait 30 seconds.
5 Insert the new battery under the two plastic
tabs CV with the positive side facing up.
NOTE: Do not damage or lose the 0-ring
gasket.
The 0-ring gasket should remain around
the outside of the raised plastic ring.
6 Replace the front cover and the four
screws.
Observe the orientation of the front cover.
The raised screw@ should fit in the
matching raised screw hole on the front
cover.
NOTE: Do not overtighten.
7 Replace the sleeve.
After you replace the heart rate monitor battery,
you may need to pair it with the device again.
Caring for the Heart Rate Monitor
NOTICE
A buildup of sweat and salt on the strap can
decrease the ability of the heart rate monitor to
report accurate data.
8
Instructions

•

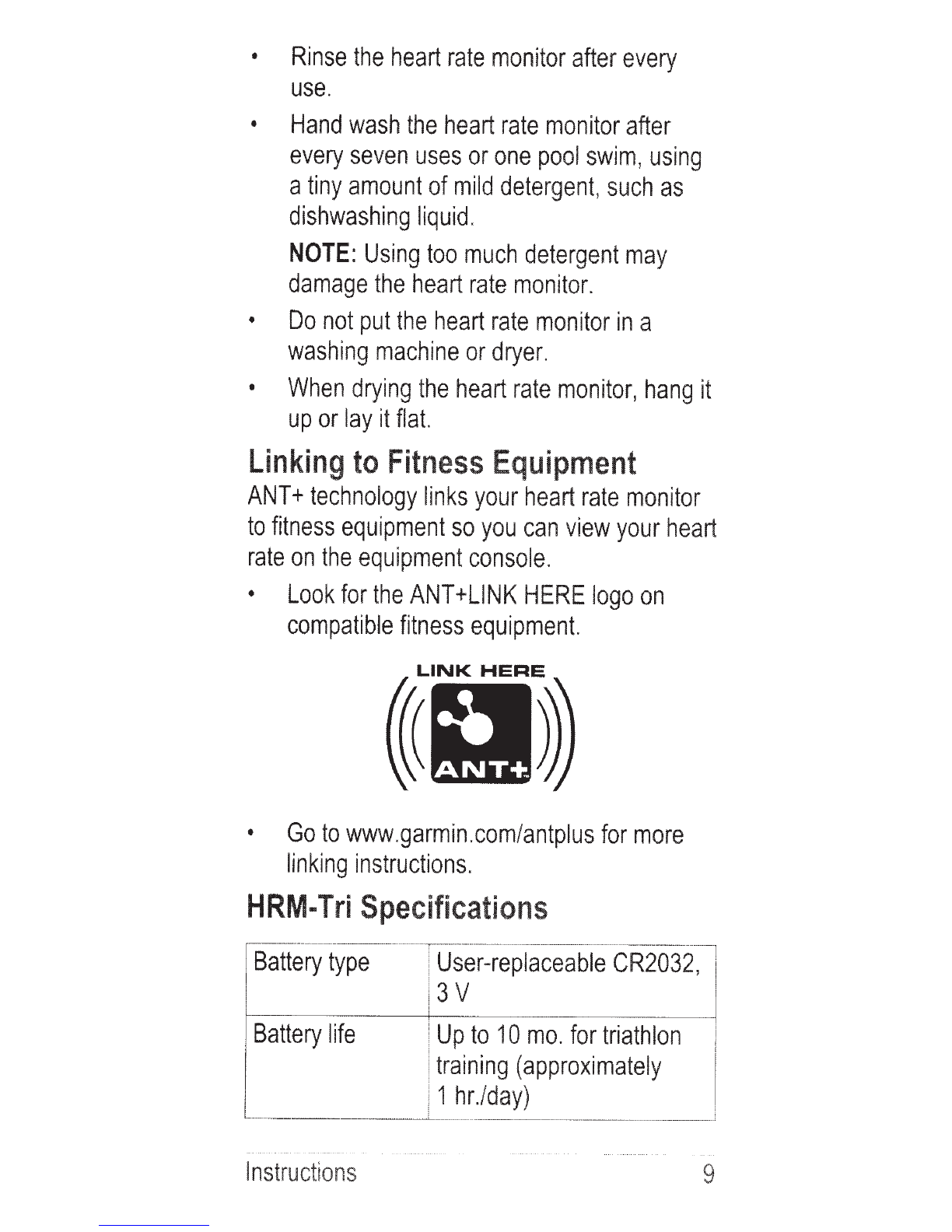

Rinse
the
heart
rate
monitor
after
every
use.
•
Hand
wash
the
heart
rate
monitor
after
every
seven
uses
or
one
pool
swim
,
using
a
tiny
amount
of
mild
detergent
,
such
as
dishwashing
liquid.
NOTE:
Using
too
much
detergent
may
damage
the
heart
rate
monitor.
•
Do
not
put
the
heart
rate
monitor
in
a
washing
machine
or
dryer.
•
When
drying
the
heart
rate
monitor,
hang
it
up
or
lay
it
flat.
Linking
to
Fitness
Equipment
ANT+
technology
links
your
heart
rate
monitor
to
fitness
equipment
so
you
can
view
your
heart
rate
on
the
equipment
console
.
•
Look
for
the
ANT
+LINK
HERE
logo
on
compatible
fitness
equipment.
LINK
HERE
•
Go
to
www.garmin.com/antplus
for
more
linking
instructions
.
HRM-
Tri
Spe
c
if
i
cat
ions
--·----·-···-
·
~,
·---·----·
·--·-
..
··
------
..
-·-
-·
---·-
-
·-····
---
]
Battery
type
1
User-replaceable
CR2032,
i3 v
,
Battery
life
i
Up
to
10
mo
.
for
triathlon
I
1
training
(approximately
: :1
hr./day)
L
______
______
___________
_
__
__
_j__
___
··-····
-·-·
··
···
·
-·-
--
-
---······
--
··-
·
---
-
-·
····
·-·-··
·
--
--
-
...1
..
·
·
~
·
.
I
ns
tru
cti
ons
9
