GAS MAD PB2 User manual

MAD
MADE TO PLAY LOUD
MAD
PB2-46 / PB2-48

WE PLAY LOUD!!
We know what you want. You want it LOUD, and that
is exactly what we do, what we live for. Vibrations,
gut-punches and straight up loud music - that’s what
makes us tick. We won’t dress up in fancy words or
claim to be something we’re not. We are the NO
BULLSH!T car audio brand!
Every single product with the GAS logo on it is born
out of passion, the same that has driven us for two
generations and that will keep us rolling up to your
neighbourhood, winning and pushing the limits for
many generations to come!
It’s up to you to choose your own level of loud, and if
you don’t like what we do that’s OK. You are welcome
back when you’ve had your first true GAS experience.
We don’t exclude, we don’t judge and we do not make
up any excuses for who we are.
We are GAS and we are proud to be LOUD!

TABLE OF CONTENT
SAFETY..................................................................................................
UNPACKING........................................................................................
DIMENSIONS..............................................................................................
SPECIFICATIONS.................................................................................
MAD PB2-46.....................................................................................
MAD PB2-48.....................................................................................
FEATURES.............................................................................................
Amplify your sound...........................................................................
Sound that’s loud and clear? Heck yeah!...........................................
Your music, supercharged................................................................
More is louder...................................................................................
Customize your madness.................................................................
HOW TO.........................................................................................................
Install pre-loaded enclosure.............................................................
TROUBLESHOOTING......................................................................................
No power/sound..............................................................................
Distortion....................................................................................
WARRANTY & DISPOSAL..............................................................................
THE GAS WORLD...........................................................................................
3
4
4
5
5
6
7
7
7
7
7
7
8
8
11
11
11
12
13

SAFETY
Make sure to pay attention to the instructions when you see this symbol:
Do not expose your new loaded enclosure to excessive damp or moisture. If the
enclosure/speaker is exposed it might result in electric failure, shock or damage to
the product. Servicing is required when the product has been damaged in any way
and/or doesn’t operate normally. Refer all servicing to qualified service personnel
only.
Keep the cables inside the vehicle separate from sharp edges or components that
may be affected or take damage. Follow the recommended cable sizes and always use
high quality cables and accessories. Even if you’re eager to put the enclosure to use –
take no shortcuts when installing the cables, make sure that all connectors are
protected and secured.
Do not drill any holes without checking what lies beneath, and don’t cut anything
without making sure that no important components risk being damaged.
To avoid potential injury from enclosure movements, the pre-loaded enclosure must
be securely fastened in the vehicle on a suitable location.
There is a first time for everything, if you need help - ask a friend or contact your local
GAS AUDIO POWER dealer/installer.
We want you to experience your product’s MAD sound, but we don’t want you to injure
yourself or others. Use common sense, respect high pressure levels and volume, and
follow your local laws and regulations.
3
PLAY LOUD & SAFE. Read through this information, follow the instruc-
tions and save the manual for future usage and reference.

UNPACKING
Unboxing your new MAD product is an experience, make sure that the enclosure and all the
accessories are included in the packaging:
Loaded enclosure
AST connectors
(2 pcs)
Manual
Screws
(12 pcs)
Brackets
(4 pcs)
4
DIMENSIONS
D
A
PB2-46
PB2-48
A
169 mm
B
260
C
200
D
951
E
190
F
90
233 300 233 1102 326 105 mm
Vented covers
(2 pcs)
C
B
E
F
MAD

SPECIFICATIONS
5
Below you’ll find the specifications that has been checked and tested in our workshop. The
specifications aren’t directly connected with the sound pressure in the vehicle, and
shouldn’t be used as the sole indicator for comparison with other enclosures. The MAD PB2
SPL enclosures are loaded with MAD PM2 midrange speakers and PT2 tweeters.
Component
Tweeter size
Nominal impedance
Power MAX
Freq. response
Voice Coil
Power RMS
SPL tweeter
1” (25mm)
4 Ohm
100W
2000-21000Hz
1" KSV
50W
Magnet HQ Ferrite
Component
Size
Enclosure material
Power MAX
Freq. response
Power RMS
Pre-loaded
SPL enclosure
4x6.5” (165mm)
2x1” (25mm)
MDF board
1000W
90-21000Hz
500W
MAD PB2-46
Nominal Impedance 2+2 Ohm
Sensitivity 97dB
MAD PT2-254 TWEETER
Cone Black matte
alu. diaphragm
Housing Aluminum
Capacitor 3.3uF MKT 250V
Woofer basket
Woofer suspension
Woofer magnet
Woofer spider
Steel
2R cloth surround
HQ Ferrite
Polycotton
Freq. response
Sensitivity
Power MAX
90-12 000Hz
94dB
200W
MAD PM2-64 WOOFER
Voice Coil 1.5" KSV
Component SPL midrange
Woofer size 6.5” (165mm)
Nominal impedance 4 Ohm
Power RMS 100W
Woofer cone Reinforced
pressed paper
Type
Slope
Cut off
Tweeter level
High pass
6 db
7000 Hz
N/A
MAD PB1 CROSSOVER

SPECIFICATIONS
6
Component
Size
Enclosure material
Power MAX
Freq. response
Power RMS
Pre-loaded
SPL enclosure
4x8” (200mm)
2x1” (25mm)
MDF board
1200W
70-21000Hz
600W
MAD PB2-48
Nominal Impedance 2+2 Ohm
Sensitivity 98dB
Woofer basket
Woofer suspension
Woofer magnet
Woofer spider
Steel
2R cloth surround
HQ Ferrite
Polycotton
Freq. response
Sensitivity
Power MAX
70-10 000Hz
95dB
250W
MAD PM2-84
Voice Coil 1" KSV
Component SPL midrange
Woofer size 8” (200mm)
Nominal impedance 4 Ohm
Power RMS 125W
Woofer cone Reinforced
pressed paper
Type
Slope
Cut off
Tweeter level
High pass
6 db
7000 Hz
N/A
MAD PB1 CROSSOVER
Component
Tweeter size
Nominal impedance
Power MAX
Freq. response
Voice Coil
Power RMS
SPL tweeter
1” (25mm)
4 Ohm
100W
2000-21000Hz
1" KSV
50W
Magnet HQ Ferrite
MAD PT2-254 TWEETER
Cone Black matte
alu. diaphragm
Housing Aluminum
Capacitor 3.3uF MKT 250V

7
FEATURES
AMPLIFY YOUR SOUND
We're all about being loud, but we also know you want that sound to be mind-blowingly
awesome. We've worked tirelessly on creating an ultra-smooth airflow slot port design for
our speaker enclosures. This cutting-edge design doesn't just crank up the volume, it
ensures your music comes out cleaner and more awesome than ever. So go ahead, blast
your tunes as loud as you want without sacrificing an ounce of quality.
SOUND THAT'S LOUD AND CLEAR? HECK YEAH!
Guess what? We've designed a midrange driver that's like your music's best friend. It's built
to handle your favorite music without missing a beat. And we get it – when you max out that
volume dial, you want your music to still sound incredible. That's why we added a special
copper ring to make sure the sound stays distortion-free. We care about your ears, and we
know you want to keep jamming without any worries.
YOUR MUSIC, SUPERCHARGED
Ever wondered what a top-notch tweeter can do? Brace yourself for the MAD PT2 horn
tweeter! The MAD PT2 is here to prove just how big a difference the right tweeter can make.
And guess what? Even the tweeter gets a boost with a copper ring. We're all about making it
sound LOUD and great at the same time.
MORE IS LOUDER
You know what's better than loud? LOUDER. We're here to make sure you can crank it up to
the fullest. Four MAD PM2 midrange drivers and the MAD PT2 horn, all hanging out in one
seriously cool enclosure. Ready to make some noise? It's your call – sit on the sidelines, or
step up and own the spotlight. If you're diving into the world of SPL, the PB2-64/84 is your
golden ticket.
CUSTOMIZE YOUR MADNESS
With the MAD PB1 enclosures, we unleashed something wild – the AST, Active Smart Termi-
nal. It was such an awesome feature that we added it to the MAD PB2 enclosures as well. By
unplugging the AST connector in the speaker terminal, you can hook up separate amplifiers
– one for the midrange speakers and one for the tweeters. That means crazy sound quality
and insane Sound Pressure Level. Are you up for the challenge? Say goodbye to the ordinary
and join the ranks of the sound revolution.

8
HOW TO
INSTALL PRE-LOADED ENCLOSURE
Since the enclosure is pre-loaded with MAD midrange speakers and tweeters, the installa-
tion is very simple. Just connect it with your amplifier and get ready to play LOUD! To take
your SPL setup to the next level, we’ve included a whole new feature, we’re calling it AST.
Active Smart Terminal.
Before installing your brand new pre-loaded enclosure, make sure that you have everything
you need. Have the right tools ready, and make sure that you have the necessary know-
ledge/skill to perform the installation properly. Preparation and knowledge is crucial!
with AST connector
(passive mode)
The AST feature is based on the idea to give you full power over
your SPL enclosure. The AST connector gives you the choice to
connect the woofers and tweeters, for a passive mode connection
to one amplifier. Or you can remove the connector, and connect
separate amplifiers to the midrange speakers and to the tweeters
for an active mode/setup (see the following page for setup
suggestions). This improves the sound quality and increases the
Sound pressure Level. To make your LOUD system even LOUDER!
without AST connector
(active mode)
When the AST connector is not in place, the tweeter’s built-in capacitor is still
active to protect them from noise issues such as DSP/amplifier failures that
could damage the tweeters.
2 Ohm 4 Ohm 2 Ohm

9
HOW TO
INSTALL PRE-LOADED ENCLOSURE
Use the appropriate settings on your amplifier/dsp when connected to your SPL enclosure.
If you remove the AST connector, you have several setting options you can use. Some
include active crossover settings and some are pure full range amplifier setups. See the
recommend crossover settings below.

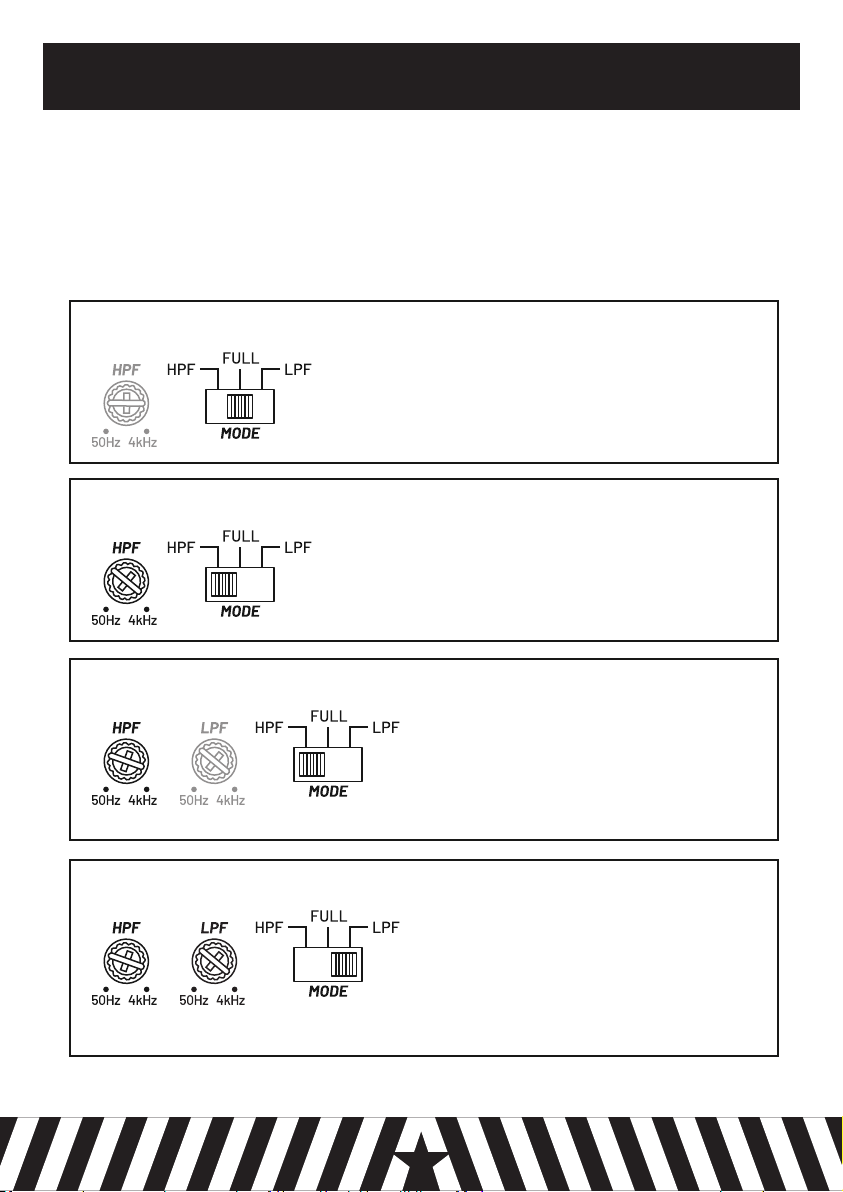

TWEETER AMPLIFIER (OPT. 1):
Set the switch to FULL, the internal passive cross over will used.
Benefit here is that you can use a full range amplifier without any
need for active filter. Compared to passive mode you can still
change the level/gain between woofer and tweeter as you use
different amplified channels.
TWEETER AMPLIFIER (OPT. 2):
Set high pass filter to 4kHz and the switch to HP/HPF mode. This
way your connected tweeters will have an extra protection below
the passive cross over point and the sound can be tailored toward
your own preferences depending on the chosen active filter
frequency. Both the passive and active crossover is in use with
option 2.
MIDRANGE/WOOFER AMPLIFIER (OPT. 1):
Set the high pass filter to 120Hz (PB2-46) or 100Hz
(PB2-48) and the switch to HP/HPF mode. Compared to
passive mode you can still change the level/gain
between woofer and tweeter as you use different
amplified channels. WARNING! Switch to FULL setting
or lowering your high pass crossover point can damage
your speakers and is not recommended.
MIDRANGE/WOOFER AMPLIFIER (OPT. 2):
Set HP/HPF to 120Hz (PB2-46) or 100Hz (PB2-48) and
the LP/LPF to 4 kHz. Set the crossover switch to
LP/LPF mode. This way your connected midrange/
woofers will play from 120/100Hz to 4 kHz and your
connected midrange/woofers will have a protection
below the chosen HP/HPF setting and the sound can be
tailored toward your own preferences depending on the
chosen LP/LPF filter frequency.

10
HOW TO
INSTALL PRE-LOADED ENCLOSURE
Make sure that the enclosure doesn’t move around while driving, use the included
mounting brackets and screws to securely fasten it in position.
Mount two brackets on each side of the enclosure.

11
TROUBLESHOOTING
NO POWER/SOUND
Check the enclosure/speakers to make sure it isn’t damaged. If not all speakers are playing,
make sure the AST connector is in place, or check cross over settings for both amplifiers. If
your pre-loaded enclosure doesn’t get any power, the most common issue is either in the
wiring or in the amplifier. Use a multimeter to measure the amplifier’s voltage on the +12V
terminal and the remote signal terminal. Make sure that you have a negative ground connec-
tion. Check the built-in fuse (if there is one) on the amplifier. If there’s no power coming
through – control the fuse on the power cable. If the fuse is intact you should check all of the
wiring to ensure cable integrity.
DISTORTION
Start by looking over the enclosure/speakers so there’s no damage or connection issue with
the wiring. Check the speaker cables to make sure that the polarity isn’t reversed on one
channel. Check the settings on the amplifier, make sure that the gain/level function is set
according to the amplifier’s instructions. If your amplifier has a boost function, lower its
effect or turn it off.
When all of the above has been tested/looked over, and all is as it should be but the pre-
loaded enclosure still has no power/sound or other problems, consult your local GAS AUDIO
POWER dealer/installer

12
This product is covered by warranty, depending on the conditions in the country where it’s
sold. If the pre-loaded enclosure is returned for service, please include the original dated
receipt (or a copy) with the product. Make sure that the enclosure is packaged properly and
secured, preferably in its original packaging.
This product has been granted with the CE certification mark to show that the product
follows the health, safety, and environmental protection standards for products sold
within the European Economic Area (EEA).
The crossed-out wheelie bin symbol means that the product, literature and packaging
included must be taken to separate collection at the end of their working life. Don’t
dispose of these products as unsorted municipal waste: take them for recycling. For
info on your nearest recycling point, check with your local waste authority.
GAS Audio Power products comply with the relevant pro-
visions of the RoHS Directive for the European Union. In
common with all Electrical and Electronic Equipment (EEE)
the product shouldn’t be disposed of as household waste.
Alternative arrangements may apply in other jurisdictions.
GAS Audio Power is a global partner of the European Mobile
Media Association, an organization that focus on promoting
the custom made mobile media installations to consumers.
WARRANTY & DISPOSAL

You’ve entered the world of GAS. We aim to please, and we’ve made sure to have products
made for you. No matter what stage of the LOUD-addiction you might find yourself in, there
is a GAS product to fill your need.
13
Just starting out? The MAD series is made to play LOUD
and to be the express lane to a no bullsh!t sound system
that will make sure everyone can hear you coming!
THE GAS WORLD
MAD
The MAX series holds products made to deserve the
center stage. Powerful, heavy duty and designed to be
noticed. We made NO COMPROMISES because we know
that you wouldn’t accept it.
MAX
The CMP series has been developed for the crucial
seconds when the dB-counter starts to tick. All CMP
products have hand-picked, high quality, COMPETITION
GRADE components and they are specially designed
to withstand an awesome amount of power.
CMP

THANKS FOR JOINING
GAS AUDIO POWER!
Winn Scandinavia AB reserves for possible typos, factual or numeric errors that may have been printed on
any products, package designs, user manuals and/or other included accessories.
GAS AUDIO POWER and SHAKY are registered trademarks by Winn Scandinavia AB and is
protected by relevant laws and jurisdictions such as Copyright and Trademark laws.
Winn Scandinavia AB ׀ Elementvägen 15, 70227 Örebro, Sweden ׀www.winnscandinavia.com
