Oontz Angle 3 Pro User manual

The Waterproof Bluetooth Speaker
Incredible Sound, Powerful Volume, 100 Foot Wireless Bluetooth Range
OontZ App for the OontZ Angle 3 Pro
Control the OontZ Angle 3 Pro Advanced Features
from your iPhone or Smartphone
User Guide

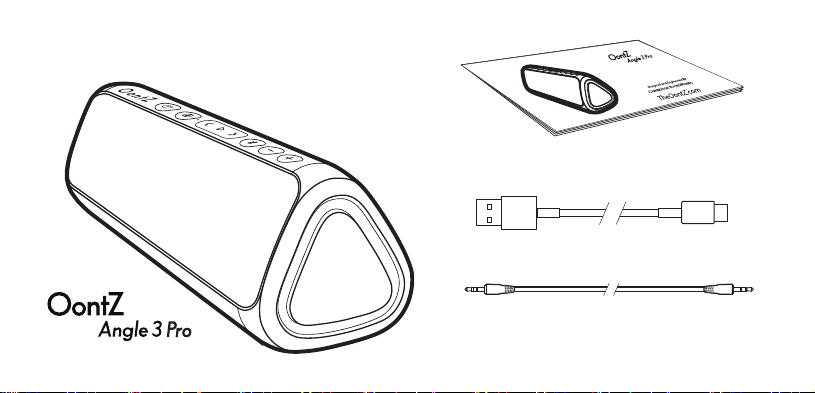

In the Package
USB Type C Charging Cable
User Guide
3.5mm Stereo Audio Cable
The Waterproof Bluetooth Speaker
Incredible Sound, Powerful Volume,100 Foot Wireless Bluetooth Range
OontZ App for the OontZ Angle 3 Pro
Control the OontZ Angle 3 ProAdvanced Features
from your iPhone or Smartphone
User Guide

Buttons, Built-in Mic, Lights, and Connectors
Battery Features and Charging the Battery
Turning On and Off
Pair & Connect with Your Device
IPX7 Water Resistance
Talk to Siri
To Play with Non-Bluetooth Devices Use a 3.5mm Stereo Audio Cable
OontZ Wireless Dual Stereo - Connect Two OontZ Angle 3 Pro Speakers Together
The OontZ App
Reset Function
Contacting Customer Support
Safety and Precautions
Table of Contents Pages
1 - 3
4 - 5
6
7 - 10
11
12
13
14 - 18
19 - 27
28
29
30 - 31

Buttons & Built-in Mic
Page 1
Important - The volume control on your device and the speaker work independently of each other.
To play the speaker at the loudest volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.
Important - Some apps may not support track back, track forward, or play/pause
Power Play/Pause Bluetooth
(Dual Function)
Volume Down
Volume Up
Track
Back
Track
Forward
Source
Switch between
Aux In
and Bluetooth
Built-in Mic
For use with Siri

Lights
Page 2
Power Button Light
Lit Red when charging
- Slowly flashing - battery is charging
- Solid - battery is fully charged
- Rapidly flashing indicates battery
charge is low
Bluetooth Button Light
Lit Blue when speaker is on:
- Flashing in Bluetooth pairing mode
- Solid connected to Bluetooth Device
Source Button Light
Lit Green when Aux In is the selected
the audio source
Play/Pause Button Light - Two Speakers
Lit White/Orange when speakers are in OontZ Wireless Dual Stereo
- With a second OontZ Angle 3 Pro speaker (sold separately) you can wirelessly
connect both speakers together to play with OontZ Wireless Dual Stereo.
- For OontZ Wireless Dual Stereo instructions please see page 14.
Play/Pause Button Light - Single Speaker
- Lit Green when connected to OontZ app
on iPhone or Smartphone

Connectors
AUX IN Jack
USB Type C
Charging
Connector
Page 3
- To access the connectors open the
rubber flap
- Pull the tab from the top, it is a snug fit as
part of the waterproofing
IMPORTANT:
- The rubber flap needs to be closed before
the speaker is exposed to water.
- The speaker is not water- resistant or
waterproof when the rubber flap is open.
Connectors under the Rubber Flap
Closing Rubber Flap
- Align the Rubber Flap directly over the
connector bay. Push the Rubber Flap
straight in until the edges are even with
the edges of the connector bay.
- Use for keeping your iPhone or
Smartphone charged while playing.
- Use to power your Echo Input.
- Output 5V - 1A
USB Power Bank

Page 4
Battery Features
Music Play Time
- Up to 15 hours on a full charge, at 2/3 volume.
- Louder volumes will reduce the battery play time.
- When using the USB Power Bank the play time will be reduced.
- The rechargeable battery comes with a partial charge and the speaker is ready to play.
- For maximum playtime, fully charge the battery.
- You can play while charging.
* Exception: certain devices, including the Amazon Echo Input, Amazon Echo Dot and Amazon Echo, disable the Power Saving Feature
and the speaker will remain on until you turn the power off.
Power Saving Feature
- When playing from battery power the OontZ Angle 3 Pro will turn off after 30 minutes of not playing audio to conserve the battery charge. *
- When plugged into a charging source the OontZ Angle 3 Pro will remain on until you turn the power off.
- You can continue to keep the speaker plugged into a charging source even when it is fully charged, keeping the speaker turned on and available.
Low Charge Remaining
- When the battery charge has less than 20% remaining the Power Button Light will begin flashing Red rapidly, the USB Power Bank will turn off
and the volume will decrease to preserve the remaining battery.
- To return to full volume follow the steps to charge the battery on Page 5.

Insert the larger end of the USB Type C Charging Cable into a USB wall charger for a Smartphone
or iPhone (USB wall charger* that is 5V 3A maximum) to charge the OontZ Angle 3 Pro battery.
* Only use a USB wall charger that is UL listed. A UL listed USB wall charger will have the logo printed on it.
Charging the Battery
Page 5
Insert the small end of the USB Type C Charging Cable into the Charging Connector as shown.
Charging Time - Up to 3 hours to fully charge a low battery.
Lit Red when charging:
- Slowly flashing battery is charging
- Solid battery is fully charged
Important: When the OontZ Angle 3 Pro is plugged in to a charging source with the USB Type C Charging Cable, never use
the speaker in the shower, bath, or near water, to prevent risk of electric shock.

Turning On and Off
Page 6
Bluetooth Button Light
- Flashing Blue in pairing mode
- Solid Blue your device has
connected with the OontZ Angle 3
Pro and is ready to play
- Press and Release the Power Button
- Power Button Light will turn Red for 3 seconds then
turn off
- Bluetooth Button Light will turn Blue
- Press and Hold Down the Power Button for 2 Seconds
- Bluetooth Button Light will turn off
Turn ON
Turn OFF

Turn ON your OontZ Angle 3 Pro
Flashing Blue Light
- The OontZ Angle 3 Pro is ready to pair and connect.
Solid Blue Light
- Your device has connected to the OontZ Angle 3 Pro and is ready to play.
- The OontZ Angle 3 Pro allows the last device it was connected with to automatically reconnect
with the speaker each time the speaker is turned on and that device is within range.*
The OontZ Angle 3 Pro can be connected to one device at a time.
- To pair and connect to a different device, you need to first disconnect the currently paired device.
- To disconnect the current device, press and hold down the Bluetooth button for 3 seconds.
- The Blue Light will begin flashing and the OontZ Angle 3 Pro is ready for the next device to pair and connect.
Pair & Connect with Your Device -- Step 1
Page 7
- Your device needs to be within 100 unobstructed feet of the OontZ Angle 3 Pro to pair and connect.
If there is an issue when connecting please move your device closer to the speaker, then pair and connect.
- When the charge is too low indicated by a flashing red light on the speaker, your device will not be able to connect with the speaker.
*Exception: certain devices may not automatically reconnect. When connected to an Amazon Echo device it will not automatically
reconnect. You will need to say to your Amazon Echo device, "Alexa, connect my speaker".

Pair & Connect with Your Device -- Step 2 --
Page 8
- Go to Settings > Bluetooth, check Bluetooth is on
- Select 'OontZ_Angle 3 Pro xxx' when it appears under DEVICES (xxx: 3 characters which are unique to your speaker)
- Your device will connect in a few seconds
- The Bluetooth Button Light will turn solid blue and there will be a quiet chime
- You can now play your audio wirelessly to your OontZ Angle 3 Pro
Note: Your Smartphone or Tablet instructions may vary
-- With Your iPhone, iPad, iPod, Smartphone, Tablet & Mobile Devices
-- With Your Apple Mac or Windows Laptop/Computer
For the pairing and connecting guide for your Apple Mac or Windows laptop/computer, please visit: TheOontZ.com/pairing.
Important - The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest
volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.

Page 9
Pair & Connect with Your Device -- Step 2 --
-- With Your Amazon Echo, Amazon Echo Dot or Amazon Echo Input
- Open the Alexa app
- Select your Amazon Echo device by pressing 'Devices' in the lower right corner of the screen.
- Press 'Echo & Alexa'
- Select your Amazon Echo device by pressing it
- Press 'Bluetooth Devices'
- Press 'Pair a New Device'
- Select the 'OontZ_Angle 3 Pro xxx' (xxx: 3 characters unique to your speaker) when it appears in the list of 'Available
Speakers'
- Alexa will announce: "Connected to OontZ_Angle 3 Pro xxx"
To connect the next time, turn on the OontZ Angle 3 Pro and say "Alexa, connect my speaker" or "Alexa, pair"
To pair and connect with the Amazon Echo, Amazon Echo Dot or Amazon Echo Input for the first time use the Alexa app.
For other Amazon Alexa devices please refer to their pairing and connecting instructions.

Page 10
Important Note: When the OontZ Angle 3 Pro is playing from battery power and connected to the Amazon Echo device, the
speaker will remain on and it will not automatically turn off after 30 minutes of not playing audio.
This will use up the battery charge.
We recommend to:
1) Keep the OontZ Angle 3 Pro plugged into a USB wall charger.
It can remain on and available to play from the Amazon Echo device.
- Or -
2) Turn off the OontZ Angle 3 Pro when you are done listening.
- Either turn off the speaker by pressing and holding down the power button for 2 seconds,
- or say "Alexa, disconnect my speaker" and the OontZ Angle 3 Pro will automatically turn off after 30 minutes.
- When you want to connect and play to the speaker again turn on the OontZ Angle 3 Pro and say "Alexa, connect my
speaker" or "Alexa, pair".
Pair & Connect with Your Device -- Step 2 --
-- With Your Amazon Echo or Amazon Echo Dot (continued)
For assistance with the Alexa app, contact Amazon's Customer Service.
Open the Alexa app and select Help & Feedback > Email Customer Service

Page 11
The OontZ Angle 3 Pro is Waterproof and it is IPX7 certified
The perfect speaker for listening to your favorite music in any environment
Perfect for taking to the lake, the beach, listening by the pool, listening in the shower
IPX7 means the OontZ Angle 3 Pro is WaterProof and can handle water spray or being splashed and can handle being partially or fully
submerged in water up to a maximum of 3 feet deep, for up to a maximum of 30 minutes
The rubber flap needs to be closed for the speaker to be waterproof and dustproof.
Important Safety Precaution: When the OontZ Angle 3 Pro speaker is plugged in to a charging source with the USB Type C
Charging Cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock.
IPX7 WaterProof

Page 12
- Press and Release the Bluetooth Button on the OontZ Angle 3 Pro
-Wait for about two seconds until you hear a "chime"
- After the "chime" talk to Siri through the mic on the OontZ Angle 3 Pro
- The response from Siri will then play through the
OontZ Angle 3 Pro, and may display information on your iPhone or iPad
Your iPhone or iPad needs to be on the latest version of iOS
Talk to Siri on your iPhone or iPad through the OontZ Angle 3 Pro
This feature works when connected to an iPhone or an iPad over Bluetooth.
To talk to Siri through the OontZ Angle 3 Pro

Page 13
- Plug one end of the included 3.5mm Stereo Audio Cable into the
AUX IN jack on the speaker.
- Press the Source Button and the Source Button light will turn
solid Green.
- Plug the other end of that 3.5mm Stereo Audio Cable into the
headphone jack on your device.
- Make sure both ends of the cable are fully inserted
- You are now ready to play.
Important: The Bluetooth on the OontZ Angle 3 Pro is disabled when the Source Button is pressed. To switch back to Bluetooth press
the Source Button and the OontZ Angle 3 Pro allows the last device it was connected to automatically reconnect with the speaker and
that device is within range.
Important Notes:
- Note: The rubber flap needs to be closed before the speaker is exposed to water. The speaker is not water-resistant or
waterproof when the flap is open.
- The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest volume,
set the volume on your device to maximum and raise the volume on the speaker to maximum.
Turn ON your OontZ Angle 3 Pro
To Play with Non-Bluetooth Devices Use the 3.5mm Stereo Audio Cable

Page 14
Play your music wirelessly through both speakers up to 100 feet apart*
*Placing the speakers on the ground or having walls or obstructions between the
speakers will significantly reduce the distance apart the two speakers can play together
OontZ Wireless Dual Stereo - Connect two OontZ Angle 3 Pro speakers together
Left Channel - Right Channel
for stereo separation
Left Channel Right Channel
Bluetooth
for playing music
Audio Cable
for playing the
audio from a video
or
Bluetooth
for playing music
Audio Cable
for playing the
audio from a video
or
Dual Stereo
for full stereo in separate areas
Full Stereo Full Stereo

Page 15
– Turn on both OontZ Angle 3 Pro speakers.
– Pair and Connect one of the speakers with your device. When connected the Bluetooth Button light will be lit Solid Blue.
This speaker will serve as the Play Control Speaker.
– The second speaker must not be connected to any device, its Bluetooth Button light needs to be flashing. If the second speaker has a
solid Blue Light it is connected to a device and you need to disconnect it by pressing and holding down the Bluetooth Button for 3
seconds until the Bluetooth Button light begins flashing.
- On the Play Control Speaker (speaker with solid Blue Light) press and hold down the Play/Pause button for 3 seconds until the
Play/Pause Button is flashing with a White Light and the speaker says “Dual Pairing”.
- After a few seconds both speakers Play/Pause Button will be lit with a solid White light. The Play Control Speaker will say “Left
Channel” and the second speaker will say “Right Channel”. The speakers will be connected together for Left Channel - Right Channel
and you are ready to play.
Connecting two OontZ Angle 3 Pro speakers together for Left Channel - Right Channel
You can also us the OontZ app to connect two OontZ Angle 3 Pro speakers together - See page 22 for instructions on using the OontZ app

Page 16
– Use the buttons on the Play Control Speaker for play/pause, track back, track forward, answer and end
phone calls. These controls are disabled on the second speaker when paired together.
– Use the Play Control Speaker for connecting to different audio devices via Bluetooth or AUX IN. The
Bluetooth and AUX IN are disabled on the second speaker when paired together.
– Speakerphone call audio will only play through the Play Control Speaker
Play Control Speaker Second Speaker
Two OontZ Angle 3 Pro Speakers connected for Left Channel - Right Channel
Lit Blue
Lit White Blue Light OFF
Lit White
Left Channel -
Right Channel

Page 17
Changing to Dual Stereo from Left Channel - Right Channel
Changing back to Left Channel - Right Channel from Dual Stereo
– To change back to Left Channel - Right Channel, press and hold down the Track Forward button on the Play Control Speaker for 3
seconds until the Play/Pause Button Lights turn from solid Orange to solid White on both speakers.
– The Play Control Speaker will say “Left Channel” and the second speaker will say “Right Channel” and you are ready to play.
Use Dual Stereo when placing the two speakers in different areas, and both speakers will play in full stereo.
– To set both speakers for Dual Stereo they must first be connected together for Left Channel - Right Channel (see page 15).
– With the speakers connected together for Left Channel - Right Channel, you can change the speakers to Dual Stereo.
–
To change to Dual Stereo, press and hold down the Track Forward button on the Play Control Speaker for 3 seconds until the
Play/Pause Button Lights turn from solid White to solid Orange on both speakers.
– Both speakers will say “Dual Stereo” and you are ready to play.
