Gasbike Ghost Racer User manual
Users Guide And Owner's Manual
THE INFORMATION IN THIS OWNER’S MANUAL IS IMPORTANT TO YOUR
SAFETY AND PROPER USE. READ THOROUGHLY BEFORE RIDING FOR THE
FIRST TIME.
Always wear a helmet, it could save your life.
WARNING
●Engine is Shipped Without Oil
●Make sure that the Bicycle selected has Adequate Brakes, Stopping is a Must.
●Installation Be done by a professional or mechanically inclined.
Failure to adhere to the directions in this guide could cause serious injury or
death. Failure to adhere to the directions in this guide could also stop the
bike from working correctly.
The information within this guide is vital. It has to be read by every rider prior
to riding a Ghost Racer bike for the very first time. Always follow the
directions and safety instructions outlined within this guide. This guide must
stay with the bike when the bike is transferred to some other owner. Don't
discard this operator's manual because it has to be reviewed by every rider
before their operation of the bike. If a minor is operating the bike, it's the
obligation of the minor's guardian to make certain that the minor
understands the information within this manual. Ghost Racer products aren't
intended to be used by minors. Check local law enforcement for bicycle
compliance along with all legalities. Legislation will differ from state to state
and county to county.
This guide includes the most recent product information available prior to
printing. You could see the latest version of the operator's guide online at
www.gasbike.net Thanks to product improvements or manufacturing
changes, there may be discrepancies between the information included in
this owner's manual and real product specifications. Ghost Racer by
GasBike.net reserves the right to make modifications to its products at any
time without any notice and with no obligation to create the exact same or
similar modifications to any vehicle previously sold or built.
1
Congratulations on the purchase of your Ghost Racer
bike.
We hope this bike will serve you well for years while having fun and Phat
moments. Ghost Racer by Gasbike.net is dedicated to providing you with
an exceptional experience. If you are not happy with your bike, don’t return
and our customer support team will assist you to the best of our abilities.
Owning and Operating a Gas Powered Bicycle requires Maintenance and
Service, the information in this manual will be understood best by our
customers who are mechanically inclined. If you ever have questions about
servicing or maintaining your Ghost Racer bike, reach out to GasBike.net
customer service for help and assistance. We want to provide the best Ride
and customer service experience possible.
Congratulations again and always wear a HELMET.
2
Table Of Contents
Laws and Regulations 4
Safety and Warnings 5
Assembly 7
Install The Motor 8
Install the Clutch 8
Install the Transmission 9
Mount Rear Wheel Sprocket 9
Connect Motor Chain 9

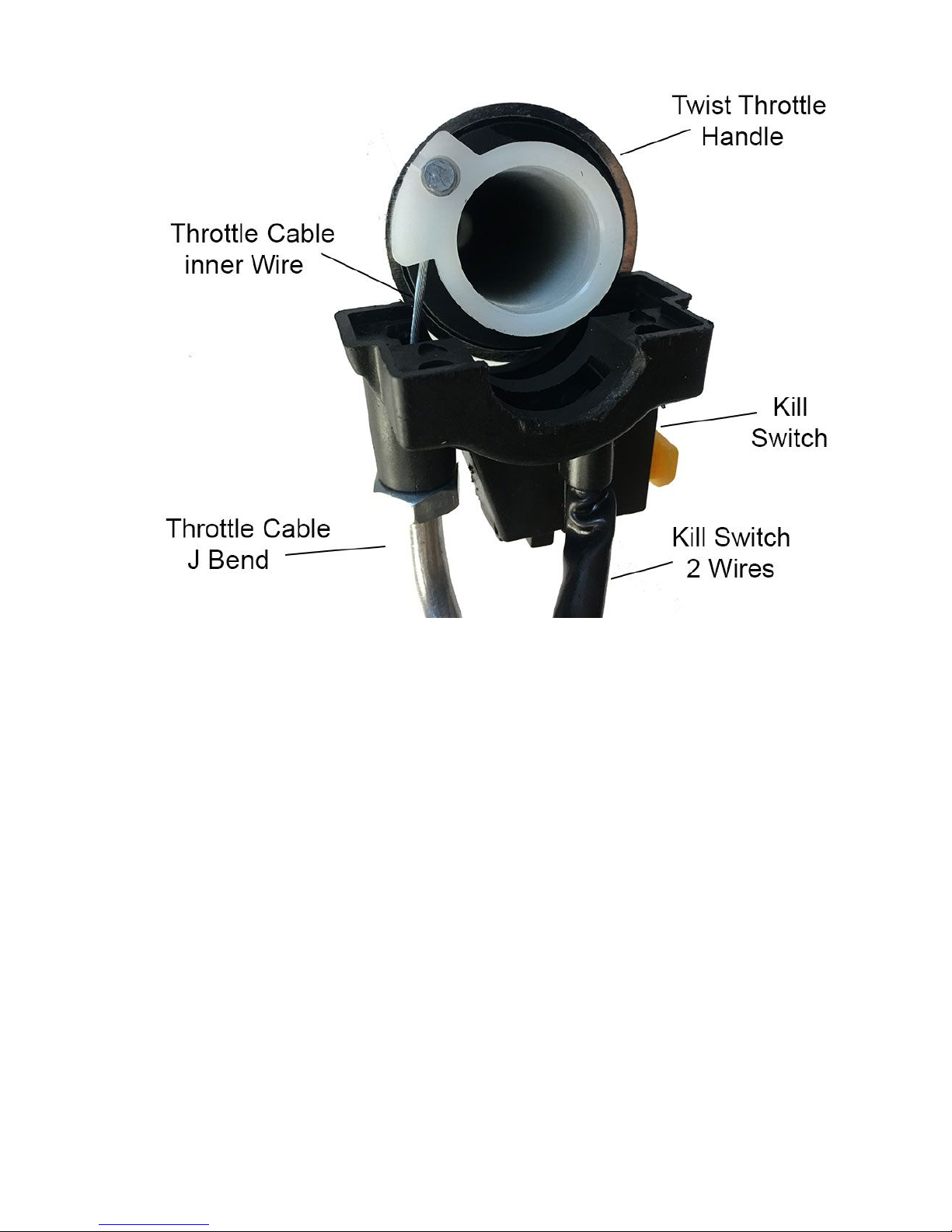

The Kill Switch Wiring 10

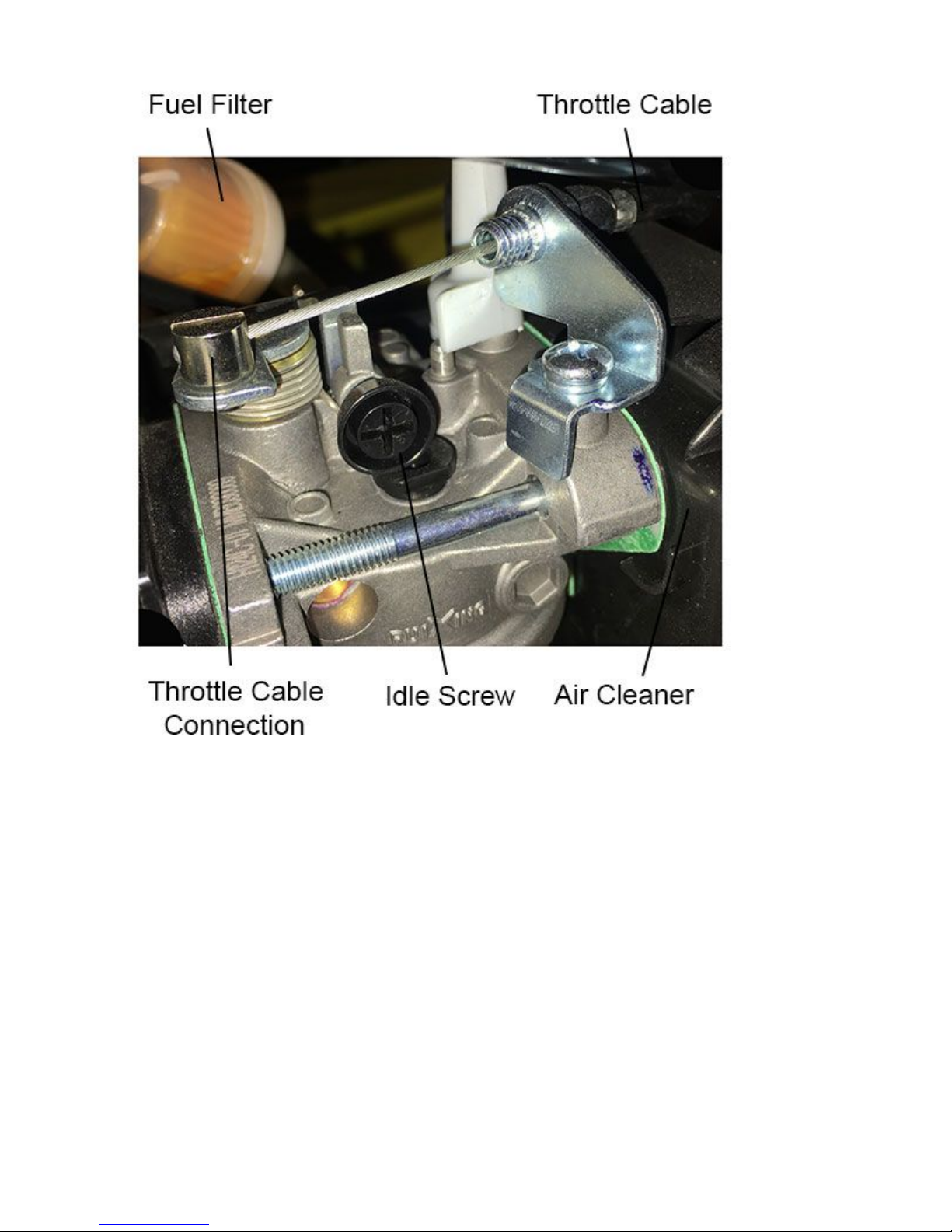

Connect the Throttle Cable to Carburetor 11
Wide Cranks 12
Install the Pedals 12
Maintenance Requirements 13
Maintenance / Fluids 14
Gasoline 14

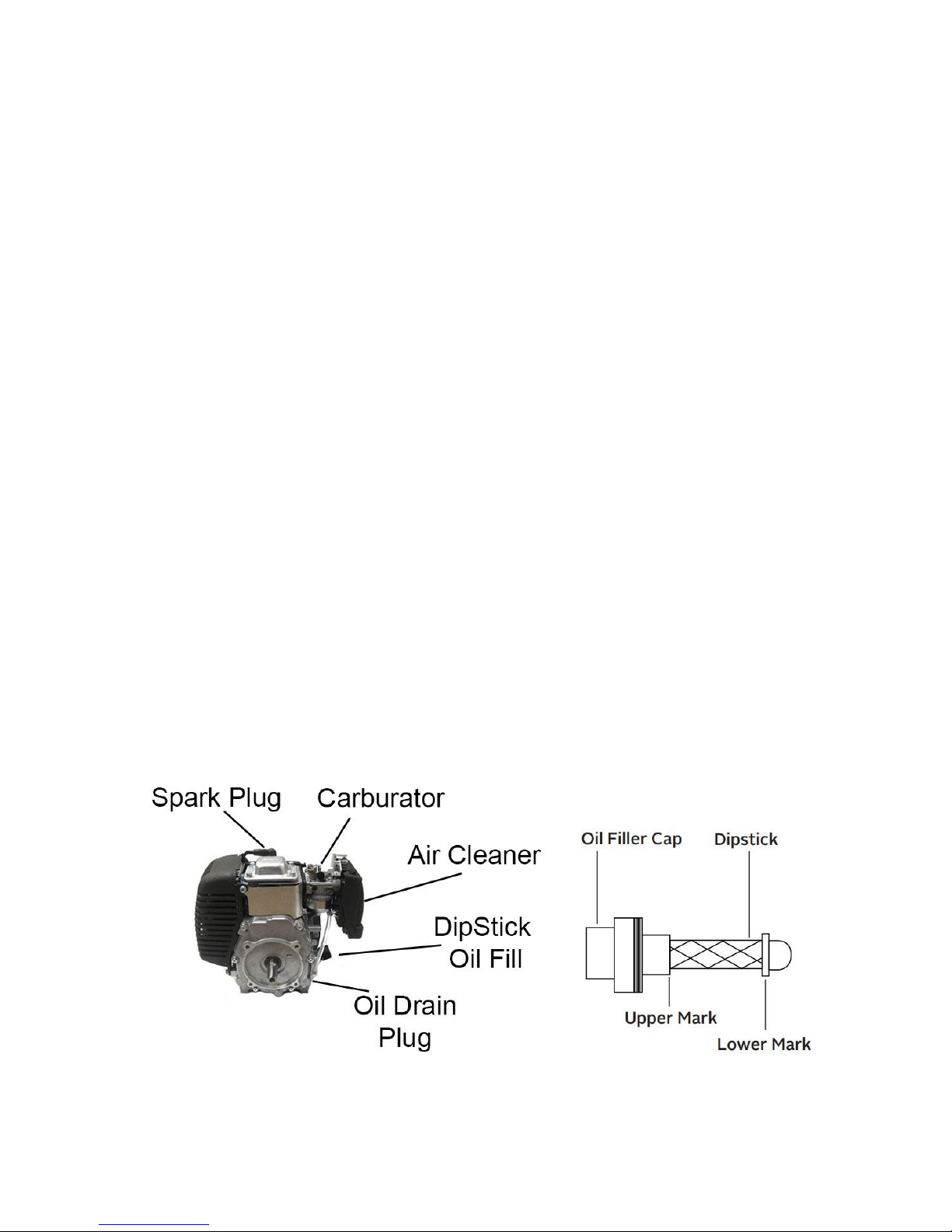

Engine Oil 14
Maintenance Procedures 17

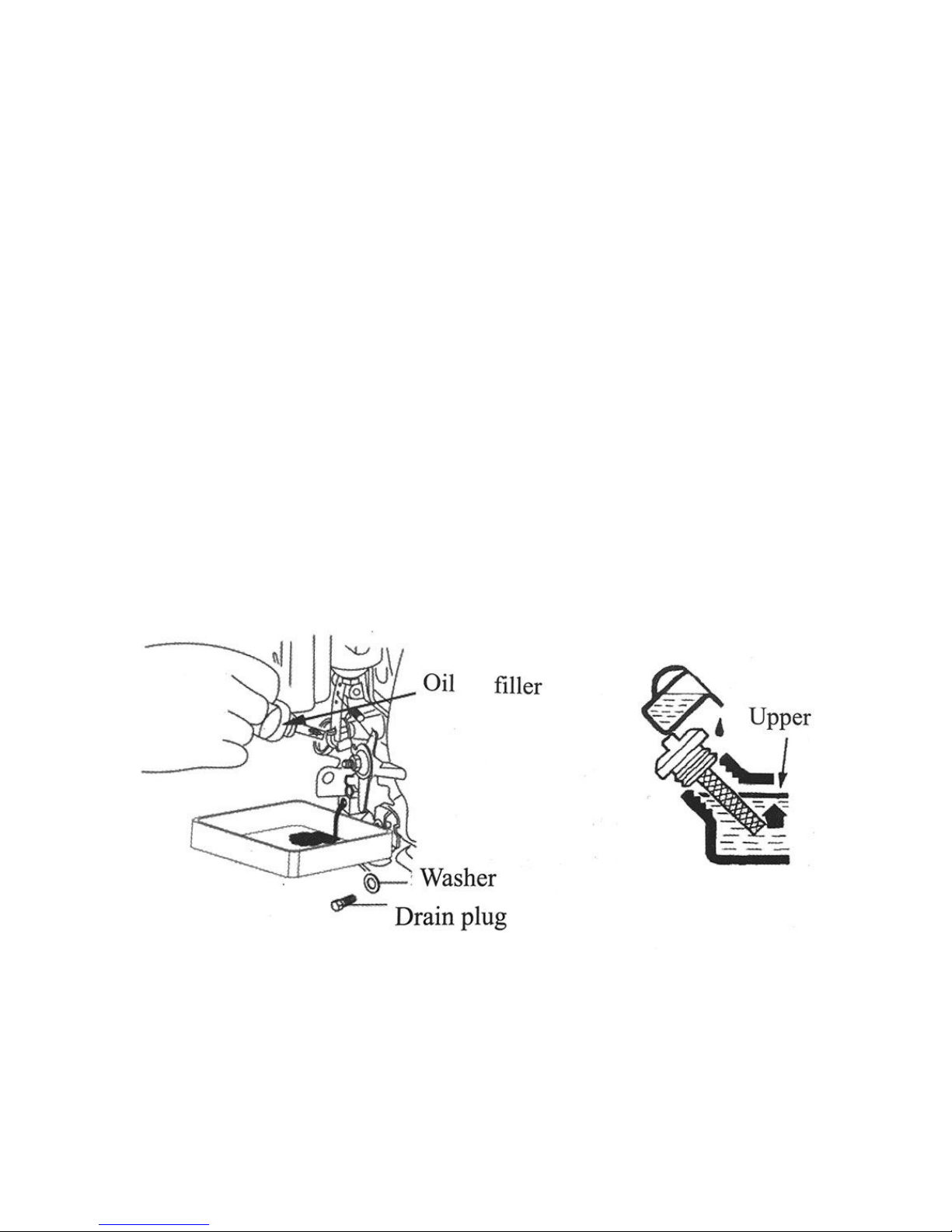

Changing Engine Oil 17
Cleaning and Servicing the Air Filter 18
Your First Ride - Starting and Stopping 19
Troubleshooting 21
Engine Will Not Start 21
Engine Not Running Good 22
LIMITED WARRANTY 23
Parts List 26
Engine Specs 27
Engine Parts List 28
3
Laws and Regulations
It's the duty of all riders of this Ghost Racer engine kit to be acquainted with
and fully comply with regulations, rules, and regulations governing the
operation of the Ghost Racer. Laws vary by jurisdiction. Ghost Racer by
Gasbike.net does not have any obligation or liability for those expenses to
comply with any applicable laws and regulations or to get bike damage or
human injury caused by an operator or owner's inability to adhere to all
applicable regulations and laws. These laws include, but Aren't limited to:
●Vehicle Operation Laws: It's illegal to run this off-road bike on public
roads, streets, and highways. It's illegal to run this bike under the
influence of alcohol or drugs, even on personal property. Other
automobile operation laws may apply in your region. Vehicle Title &
●Registration Laws: You might want to name or enroll your bicycle with
a couple of municipal or state government agencies. You're solely
responsible for titling or registering for your Ghost Racer and for all
associated expenses.
●Vehicle Modification Laws: Don't alter your bicycle or join aftermarket
accessories. Changes to the carburetor and drainage systems are a
breach of this regulation and therefore are subject to prosecution
from the Environmental Protection Agency. Modification will void any
guarantee covered by Ghost Racer by Gasbike.net.
●Vehicle Maintenance Laws: Consistently follow all appropriate vehicle
maintenance legislation, including, but aren't restricted to, legislation
regulating the disposal and handling of dangerous and flammable
materials like gas and oil.
Operating a Motorized bicycle involves some risk of injury. Buyer accepts
responsibility for any and all vehicle operation that may lead to personal
injury economic loss, social distress, other losses, costs and damages.
4
Safety and Warnings
The Ghost Racer bicycle has the capability to cause severe harm or death. Even though
the dangers related to riding a motorized bike can never be removed entirely, following
all of the directions found in this guide will decrease the possibility of injury to the
operator as well as others. Any riders of this Ghost Racer bike must always review and
adhere to the directions outlined within this guide. It's not feasible to warn the
motorized bike operator or owner of all probable dangers related to operating and
maintaining a Ghost Racer. All operators need to exercise good judgment in operating
and maintaining the motorized bicycle. Ghost Racer by Gasbike.net does not have any
obligation or liability for motorized bike injury or personal injury caused by an owner or
operator failure to safely operate or service the bikes.
●WARNING: Never let children under the age of 18 to ride the Ghost Racer bike.
The Ghost Racer by Gasbike.net is intended for riders that are 18 or older. Riders
younger than age 18 shouldn't operate the motorized bike.
●WARNING: Never let unsupervised or unqualified minors to ride on the bike. If the
operator of the Ghost Racer by Gasbike.net is a minor, the rider's protector is
responsible 1) for making sure the rider matches the physical and developmental
levels required to safely ride the bicycle and two ) for supervising the little while
he or she's riding the motorized bike.
●WARNING: Always wear protective safety gear whilst riding the Ghost Racer.
Protective safety equipment includes, but is not restricted to, a Department of
Transportation approved ab bike helmet with a chin strap, goggles, gloves, boots,
long riding pants with hip and knee pads, and a long sleeved riding jersey using
chest, elbow, and shoulder pads.
●WARNING: Always guard hair whilst riding the motorized bicycle. Loose hair has
the potential to get caught in the Ghost Racer. Always maintain hair tightly
fastened while operating the bike.
●WARNING: Never operate the bike under the influence of alcohol or drugs. The
usage of drugs or alcohol will inhibit the rider's capacity to security operate the
motorized bicycle.
●WARNING: Never run the Ghost Racer with a passenger. The Ghost Racer bike
was created for one rider at a time.
●WARNING: Never ride the Ghost Racer bike at night. The bicycle is not equipped
with lighting.
5
●WARNING: Never ride the Ghost Racer bicycle if it isn't in proper riding state.
Always inspect your aerodynamic bike before you journey to be certain it is in
appropriate riding state. In case you have any sign your aerodynamic bike isn't
functioning properly, quit riding instantly. Locate another procedure of transport.
As soon as you're back to security, check with the Maintenance Procedures and
Troubleshooting sections of the manual to support your aerodynamic bike.
●WARNING: Always practice good judgment whilst riding on the Ghost Racer bike.
It's the obligation of the owner of the motorized bike to utilize sound judgment in
the performance and application of the motor vehicle. Ride within your ability
level at rates that are comfortable. Be wary of possible dangers and hard terrain.
Exercise extra care in wet or muddy riding conditions. Always keep both feet and
hands onto the handlebars and pedals. Don't brake or speed while turning. Don't
try suggestions or stunts or move off jumps.
●WARNING: Never run the Ghost Racer within an enclosed area with inadequate
ventilation. The motorized bikes exhaust gas includes poisonous carbon dioxide
that can collect rapidly in an enclosed region and cause death or illness.
WARNING: Never alter the Ghost Racer or join aftermarket accessories.
Modifications and after-market accessories decrease the rider's capacity to ride
and control the aerodynamic bike securely. Ghost Racer by Gasbike.net isn't
responsible for any harm or harm due to any accessory.
●WARNING: Always execute the essential maintenance on your car or truck.
Attempting to do essential maintenance on your vehicle could lead to harm or
deadly injury to the operator or other people.
●WARNING: Always exercise caution whilst still servicing the Ghost Racer bike.
Doing most maintenance processes on the aerodynamic bike entails handling
potentially harmful and flammable materials like oil and gas. Recognize the
threat that harm could potentially happen as you're servicing your Ghost Racer
and consistently use good judgment. Wear the required protective equipment.
Keep cigarettes and fires from your Ghost Racer. If you're uncomfortable with all
the risks, consult with a Licensed Ghost Racer Service Center to execute
maintenance activities for you.
●WARNING: Never do maintenance on the automobile whenever it's running. To
decrease the probability of potential injury or burns from hot or moving parts,
constantly make certain that the engine stop button and the gas valve lever will
be equally at the off position prior to doing maintenance on your own
aerodynamic bike. Never touch any one of those Ghost Racer components while
the aerodynamic bike is operating.
●WARNING: Always wash hands after handling the Ghost Racer. Certain elements
of the item and bundle contain chemicals known to the State of California to
cause cancer, birth defects, or other reproductive harm.
6
Assembly
Now that your Ghost Racer is here, Let's put this bad dude together.
GasBike.net recommends a professional to assemble and check your
motorized bicycle.
First remove the Ghost Racer from the box and remove all zip ties and
plastic protective packaging.
Selecting a Bicycle
Picking the right bike is essential, must have room in the frame to
accommodate the engine. Also make sure that the bike has brakes capable
of stopping. We suggest front and rear hand brakes, disk brakes are
recommended. 2 Type of Frames are recommended, Beach cruiser bikes
and Mountain V frame bikes. The engine when installed with the mounting
plate will need at least 11” X 8” to install.
7
Install The Motor
Bolt the motor (#1) to the mounting plate (#6) loosely, then install on the
bike. The mount is designed to slide back and forth. Its best to slide the
motor as far forward and as low as possible to leave room for the
carburetor air filter, and allow access to the choke lever. Keep in mind that
the choke lever is plastic and could break, install with care. Tighten all bolts
when desired location is achieved.
Install the Clutch
Rotate engine so the keyway is facing up. Locate the keyed opening on the
clutch pack , place the Clutch (#3) on the shaft. Secure the clutch with the
bolts and washers.
8
Install the Transmission
Place the Transmission (#4) on the motor (#1) The clutch will fit in the big
hole, secure the transmission to the motor with the 4 bolts provided. Belt
tension can be adjusted by using the Belt tightening tool (#15) and tighten
the 4 bolts that secure the transmission gear to the transmission.
Mount Rear Wheel Sprocket
Can only be installed on a 36 spoke wheel.
The 9 Hole sprocket is probably the most
frustrating part of the installation, sometimes
it's best to do this first. Remove the rear
wheel. If the wheel has a coaster brake, the
brake arm will have to be removed. Take care
not to rotate the shaft as this will loosen the
bearing races. Now Grab your rear wheel
pineapple assembly (#7). Cut a slit between to
holes on the rubber doughnut, this one is
placed inside the wheel around the hub. Place
the 9 bolts in the sprocket first, then through the other rubber doughnut.
Install 3 Metal brackets, then washer, Lock washer and nut.
Connect Motor Chain
The 415 chain (#16) that connects the clutch off the rear wheel is 110 links
long, it may need to be cut to fit some bikes. Remove masterlink and wrap
the chain around the clutch 10 tooth gear and the rear wheel sprocket.
Measure and cut chain to size. Reinstall the 415 master link. Use the
supplied chain tension to remove any excess slack.
9
Install the Throttle and Kill Switch
Unscrew the two philips head screws on the throttle with the kill switch
(#13). Kill switch will split in two. Screw in the J bend part of the throttle
cable into the bottom of the kill switch and secure with the attached nut.
Route the inner wire through the kill switch so it can be hooked up to the
twist throttle handle. Place cable end in the handle like shown in the
picture. If the upper half of the kill switch has a secure nub, a hole will have
to be drilled into the handlebars to keep the throttle from twisting. Slide the
throttle on the bars and tighten the 2 screws.
The Kill Switch Wiring
The Kill switch (#13) will have 2 wires that come off the unit on the
handlebars. One wire will be used to ground out the motor. Wire under the
ground bolt on the motor. The other wire connects to the wire on the
motor. Color does not matter, either wire can be used.
10
Connect the Throttle Cable to Carburetor
Route the throttle cable from the handle to the left, the cable will enter from
the air cleaner side of the motor, usually a 180 degree turn. Route the inner
wire through the adjustable cable bracket on the carb (see picture above),
then run the cable end in the slot in the throttle cable connection.
11
Wide Cranks
Because of the width of the the motor the use of wide cranks is needed.
The cranks are a standard square taper bottom bracket. If the cranks that
came on the bike are one piece, a square taper bottom bracket will need to
be used (not included).
Install the Pedals
Pedals installed on the wide cranks provided in the kit use a 9/16” Pedal
size. The pedals will have a R or a L stamped on them, they indicate which
foot will touch it when seated on the bike. Screw the Right pedal on the the
side where your right foot would be, use a 15mm Wrench to tighten. Pedals
will always screw in a forward direction. Do the same with the left on the
left side.
12
Maintenance Requirements
Maintenance requirements are a normal part of owning and operating a
motorized bicycle. The operator of the Ghost Racer by Gasbike.net is
responsible for properly maintaining the vehicle and for understanding
when and how the motorized bicycle must be serviced. The exact timing in
which maintenance procedures must be performed will vary based on the
type of maintenance, riding conditions, and riding frequency. The
maintenance procedures outlined in this manual are simply guidelines for
how and when to perform basic maintenance procedures. Other than the
procedures referenced in this manual, there are many other more
complicated maintenance procedures which will need to be performed on
your Ghost Racer during your ownership of the product. Failure to properly
maintain your vehicle could prevent the motorized bicycle from operating
properly and could also result in harm or fatal injury to the rider or others.
Ghost Racer by Gasbike.net has no responsibility or liability for the costs to
properly maintain the vehicle (unless explicitly covered by warranty) or for
motorized bicycle damage or human injury resulting from an owner or
operator’s failure to service and maintain the Ghost Racer properly.
13
Maintenance / Fluids
Before your first ride, fluids will have to be added to the Ghost Racer (not
included).
Gasoline
Use only 87 or Higher octane pump gas. Do not use fuel additives, will void
your warranty. Do not fill tank all the way to the top, leave some room to
avoid splashing. Always add fuel when the motor is off, adding fuel to a
running motor could lead to harm or fire. Only add fuel to bike frame tank
only.
Engine Oil
Only check oil level when the motor is sitting level. Unscrew dipstick
remove, wipe and re-insert, check level. Add oil if necessary, do not overfill.
10w-30 motor oil is recommended for most all temperature use.
14
Maintenance Schedule
Scheduled inspection and adjustment of the engine is essential if a high
level of performance is to be maintained. Regular maintenance will also
provide a long service life, and help maintain vehicle safety. The required
service intervals and the kind of maintenance to be performed are
described in the tables below.
WARNING
●Shut off the engine before performing any maintenance.
●To prevent accidental start up, turn off the engine switch, Fuel Valve
and disconnect the spark plug.
●The engine should be serviced by your dealer unless the owner has
proper tools and service data and is mechanically qualified.
Maintenance Schedule
Task
Every
Use
1st 20
Hours
1 Month
Every 50
Hours
3 Months
Every 100
Hours
6 Months
Every 300
Hours
Yearly
Check Fuel Level
X
Check Oil
X
Check/Lube Chain
X
Check all Bolts for
Tightness
X
Check Brakes
X
Check Throttle
X
15
Maintenance Schedule
Task
Every
Use
1st 20
Hours
1 Month
Every 50
Hours
3 Months
Every 100
Hours
6 Months
Every 300
Hours
Yearly
Change Engine Oil
X
X
Check Air Cleaner
X
Clean Air Cleaner
X
Replace Air Cleaner
X
Check Spark Plug
Gap / Clean
X
Replace Spark Plug
X
Change Fuel Filter /
Clean Tank
X
Fuel Supply Line
X
16
Maintenance Procedures
Changing Engine Oil
A hot or warm engine will help drain the oil in the crankcase rapidly and
entirely. USe caution when working on a warm or hot engine.
●Remove the oil filler cap and drain plug to drain oil entirely
●Reinstall the drain plug and screw in securely.
●Make sure engine is level before filling.
●Fill engine with to specified level indicated on the dipstick.
●Reinstall the filler cap
Engine oil capacity is 0.3L and use the recommended oil 10w-30 (for most
moderate temperature areas.
Caution
extended contact with engine oil may cause skin cancer, wash hands
immediately after handling oil. Do not dump oil or discard in the trash.
17
Collect in a container and bring to a local recycling station, for the sake of
the environment.
Cleaning and Servicing the Air Filter
Wipe off any loose dirt before starting. Never Run Engine without the Air
Cleaner. Rapid engine wear will occur.
●Set the fuel valve on the engine to the off position.
●Press down on 2 tabs at the Upper Joint
●Remove Cover and Filter Element.
●Wash in non flammable solvents. Squeeze out any excess fluid.
●Reinstall The Cover.
18
Your First Ride - Starting and Stopping
Now here comes the really fun part, but before you get the wind in your
face, there is a couple of safety checks first.
Getting your Ghost Racer ready to ride
1. Check the bike over thoroughly, look for loose bolts, nuts, damage,
proper tire inflation, Tight handlebars. It's always a good idea to pedal
the bike around for a little bit to make sure the steering and brakes
function properly.
2. Make sure fuel and oil is at operating levels (see fuel and oil section)
3. Wear proper safety gear (D.O.T approved helmet, proper footwear,
eye protection, ect.). Wear proper clothing that would protect you
against any mishap.
Breaking in your Ghost Racer
To prolong and protect your new engine, break in your Ghost Racer. This
means to take it easy on it for the first 20 miles. Avoid using full throttle
and starting from a dead start, pedal a little at first, then gas it. This will
allow your motor to break in and extend its life.
Starting your Ghost Racer
After performing you complete bike inspection and putting on your safety
gear, it's time to ride.
1. Slide the Motor switch to run Position (if hooked up).
2. Slide the Choke lever to the Start position.
3. Make sure the fuel valve is open.
4. Using the pull start, in a smooth motion, Pull the ripcord multiple
times till the engine fires.
5. Slide the choke to the run position
19
Table of contents
