GCX VHRS User manual

DU-FLP-0004-97 Rev A 9/08/05 GCX Corp. Page 1 of 2
Installation Guide
Dual Flat Panel Keyboard Bracket for Variable Height Roll Stand (VHRS)
The purpose of this guide is to:
1. Describe attachment of Keyboard Bracket to VHRS Post.
2. Describe attachment of Dual Flat Panel Display Mounting Bar to Keyboard Bracket.
Parts Reference
The following parts and hardware are included with this installation kit (see photos for major parts – hardware not shown).
Tools Required: Phillips screwdriver (not provided), 5/32'' hex wrench (provided).
Attaching Keyboard Bracket to VHRS Post
1. Fasten Keyboard Bracket to 3-hole mounting pattern with three (3) #10-32 x 5/8'' FHMS.
Item # Description Qty
1 Keyboard Bracket, Dual Flat Panel 1
2 #10-32 x 5/8'' Flat Head Machine Screw (FHMS) 3
3 #10-32 x 5/8'' Socket Head Cap Screw (SHCS) 3
4 5/32'' Hex Wrench 1
Dual Flat Panel Keyboard Bracket
Keyboard Bracket
#10-32 x 5/8'' FHMS (3)
VHRS Post

DU-FLP-0004-97 Rev A 9/08/05 GCX Corp. Page 2 of 2
Attaching the Dual Flat Panel Display Mounting Bar and Keyboard Tray/Plate to the Keyboard Bracket

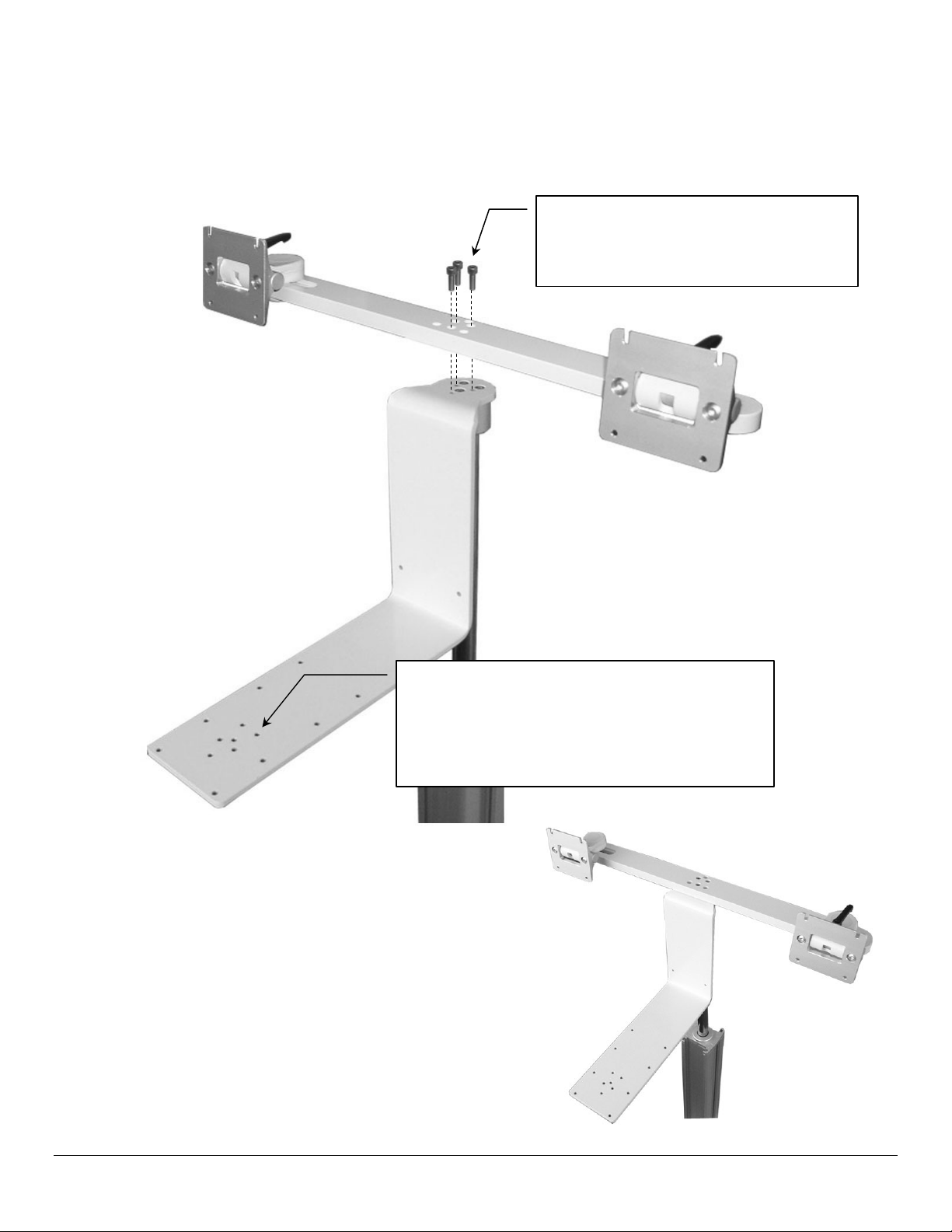

Hardware is provided in this installation kit for attaching the Dual Display Mounting Bar to the Keyboard Bracket. See
upper callout below for attachment of Display Mounting Bar.
See lower callout for Keyboard Tray/Plate information.
A
ttaching Keyboard Tray/Plate to Keyboard Bracket
Keyboard Tray or Plate is part of a separate installation
kit and is not included with the Dual Flat Panel Keyboard
Bracket. Please refer to the installation guide included
with the Keyboard Tray/Plate for attachment to this
Keyboard Bracket.
A
ttaching Dual Display Mounting Ba
r
Using the 5/32'' hex wrench provided, fasten
Display Mounting Bar to Keyboard Bracket with
three (3) #10-32 x 5/8'' SHCS.
