GE Interlogix Calibur CBR-PB3-WD User manual

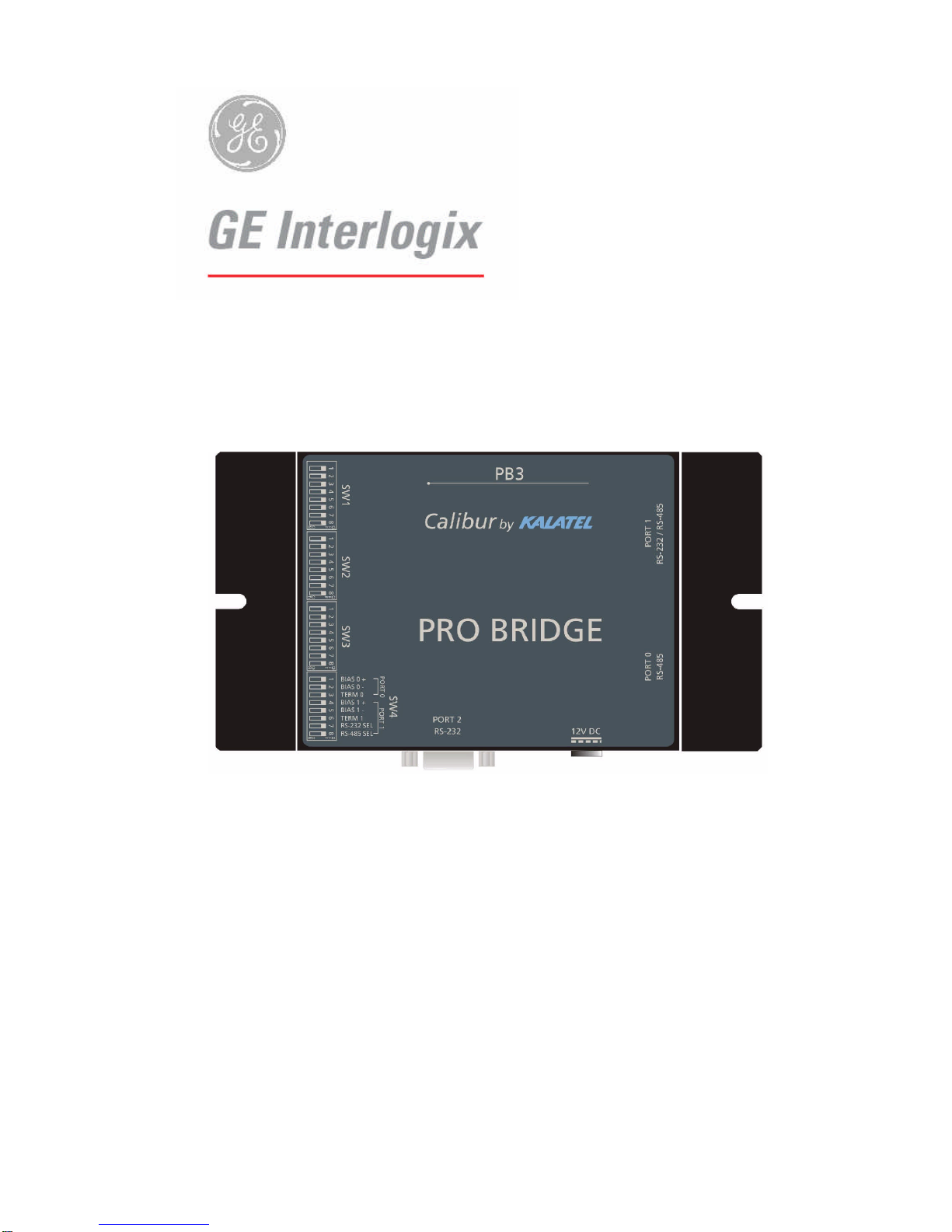

Kalatel CBR-PB3-WD ProBridge
Receipt Printer Interface
Product Overview & Installation Manual

Kalatel CBR-PB3-WD 20150-0261A
Warning!
To prevent fire and electronic shock, do not expose this product to rain or moisture.
The lightning flash with the arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence of
uninsulated “dangerous voltage” within the
products enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point, within an equilateral
triangle, is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product. !
Caution!
To prevent electric shock, do not remove cover. No user
serviceable components inside. Refer servicing to qualified
service personnel. !
Caution! Electrostatic-Sensitive Device!
Use proper CMOS and MOSFET handing precautions, including approved
grounded wrists straps, etc., to avoid damage to this unit or its internal
components, from electric discharge.
Warning!
This equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions in this manual, may cause
interference to radio communications. It has been tested and found to comply with the
limits for a Class A computing device pursuant to subpart J of part 15 of FCC rules which
are designed to provide reasonable protection against such interference when operated in
a commercial environment. This equipment has also been tested and found to comply with
the requirements for a CE Class A device and TUV safety standards.
Operation of this equipment in a residential area may cause interference, in which case the
user is required to take all measures that are necessary, at the user's expense, to correct
the interference.
Copyright Information
Software and/or firmware is furnished to the purchaser under a license for use on a single
system. Software and/or firmware included with this equipment are the sole proprietary
property of, confidential to, and copyrighted by Kalatel, Corvallis, Oregon, USA. The
software/firmware are not to be copied or disclosed in any manner without the express
written consent of Kalatel.
All information and specifications furnished by Kalatel are believed to be accurate and
reliable. No responsibility is assumed by Kalatel for neither its use nor any infringements of
rights of third parties that may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Kalatel.
The KALATEL™brand name and product model numbers are the property of Kalatel.
COPYRIGHT, 2003: The contents of this manual may not be copied or reproduced in any
manner or form without the prior written consent of Kalatel.

Kalatel CBR-PB3-WD 30150-0261A
Table of Contents
1CBR-PB3-WD ProBridge.................................................. 5
1.1 Kalatel CBR-PB3-WD Description......................................................5
1.2 Additional Equipment Provided by the Installer...................................5
1.3 Compatibility.....................................................................................5
1.4 Disclaimer.........................................................................................5
2Before You Begin ........................................................... 6
2.1 Installation Summary.........................................................................6
2.2 How to Use this Manual.....................................................................6
2.3 Kalatel Components:.........................................................................6
2.4 Installation Environment....................................................................7
2.5 Power...............................................................................................7
3ProBridge Diagram......................................................... 9
4Connection Diagram .................................................... 11
5Detailed Installation Steps .......................................... 13
5.1 PB3 Physical Installation.................................................................13
5.2 Configuring the PB3 for POS Interface.............................................14
6Special Functions ........................................................ 16
6.1 Display Memory..............................................................................16
6.2 Demo (Simulated Message) Mode...................................................16
6.3 Reset –Clear Memory ....................................................................17
7Troubleshooting........................................................... 19
8Text to Camera Address.............................................. 21
9Manual Switch Config.................................................. 23
9.1 Manual Dipswitch Settings Available................................................23
9.1.1 Baud Rate......................................................................................23
9.1.2 Protocol..........................................................................................24
10 HyperTerminal Setup ................................................... 26
10.1 Equipment Required .......................................................................26
10.2 Setting up the ProBridge for HyperTerminal Operation...................27
10.3 Manual HyperTerminal Configuration...............................................28
11 PB3-POS with DVMRe-CD/CS Units.............................. 31
11.1 DVMRe-CS/CD Setup.....................................................................31

Kalatel CBR-PB3-WD 40150-0261A
12 Cable Specifications.................................................... 33
13 Specifications .............................................................. 35
14 Warranty and Service .................................................. 36
14.1 Factory Service...............................................................................36
14.2 Warranty.........................................................................................36

Kalatel CBR-PB3-WD 50150-0261A
1CBR-PB3-WD ProBridge
1.1 Kalatel CBR-PB3-WD Description
The Kalatel CBR-PB3-WD is a specific ProBridge unit for interfacing the DVMRe
family of digital video multiplex/recorders Wayne Plus Receipt Printers (WP/RJ).
One CBR-PB3-WD is required per cash register. Where multiple cash registers
are connected to a single DVMRe unit, the individual CBR-PB3-WD’s are
interconnected via the PB3’s built-in RS-485 network.
1.2 Additional Equipment Provided by the
Installer
Installations requiring multiple CBR-PB3-WD units are interconnected via the
unit’s built-in RS-485 network, the installer will need to provide suitable length
RS-485 cable terminated with RJ-45 connectors.
1.3 Compatibility
The CBR-PB3-WD is compatible with the following DVMRe products:
DVMRe Type Software Version PPC Version
DVMRe-CD/CS V 3.07 (and above) V 3.07 (and above)
DVMRe-eZ V 3.20 (and above) V 3.14 (and above)
DVMRe-CT (Triplex) V 4.0 (and above) N/A
DVMRe-eZT (Triplex) V 4.03 (and above) N/A
StoreSafe Advanced V 4.06 (and above) N/A
To verify the software version in your unit, either note the display which identifies
the version when the unit boots-up,or view the version information by clicking the
About box in the unit’s menu system.
1.4 Disclaimer
The Kalatel ProBridge components identified within this document provide means
of capturing transaction text/data for use by the DVMRe family of digital video
recording/transmission products. The ProBridge components translate the data
into a usable format by the DVMRe and permits associating transaction data with
specific cameras. Kalatel assumes no responsibility for the amount and type of
information available, the operation, non-operation or erroneous operation of the
customer provided equipment the ProBridge connects to.

Kalatel CBR-PB3-WD 60150-0261A
2Before You Begin
2.1 Installation Summary
The basic steps to install the CBR-PB3-WD unit are:
1. Connect the PB3 to the Receipt Printer using the supplied cable. (If
more than two PB3 units are used, verify that proper termination is set
on each individual PB3 unit.
2. Connect the PB3 to the DVMRe-CT/eZT/StoreSafe unit using the
supplied cable (RJ45-to-RJ45). (If your unit is a DVMRe-CD/CS, the
required interconnect cable is also provided (RJ45-to-DB9 -see Section
11 for the specific requirements for the DVMRe-CD/CS).
3. On each PB3, set the Camera ID switches for each PB3 that is to be
associated with a specific camera.
4. Program the DVMRe unit to record in the way desired to meet your
specific sites.
2.2 How to Use this Manual
We recommend that at least the following pages be reviewed before attempting
an installation.
qProBridge 3 Diagram on page 9.
qConnection Diagram on page 11.
qInstallation & Configuration on pages 13-15.
2.3 Kalatel Components:
(1) CBR-PB3-WD ProBridge includes:
•(1) CBR-PB3-WD ProBridge unit.
•(1) P/N 4310-0034B: RJ45 to RJ45 cable. Connects the ProBridge to
RS-485 Network. This cableis 6’ in length.
•(1) P/N 4310-0047B: RJ45 to DB9F cable. Connects the ProBridge to
the DVMRe. This cable is 6’ in length.
•(1) P/N 4310-0078A: DB9F to DB9M to DB9F ‘Y’ cable. Connects the
ProBridge to the Electronic Cash Register (ECR) and the Receipt
Printer This cable is 6’ in length.
•(1) P/N 4010-0007: 12VDC 120VAC Power Supply or
(1) P/N 4010-0008: 12VDC 220VAC Power Supply.
•(1) P/N 0150-0261A: Product Overview and Installation Manual.

Kalatel CBR-PB3-WD 70150-0261A
2.4 Installation Environment
Power: Ensure that the installation site’s AC power is stable and within the rated
voltage of the external power supply. If the site’s AC power is likely to have
spikes or dips, use power line conditioning or an Uninterruptible Power Supply.
Temperature: Observe the unit’s ambient temperature specifications when
choosing a location for the unit. Extremes of heat or cold beyond the specified
operating temperature limits may cause the unit to fail. Do not install this unit on
top of other hot equipment.
Moisture: Do not expose the unit to rain or moisture. Moisture can damage
internal components. Do not install this unit near sources of water.
RS-232 Limitations: Cable length between the POS device and the ProBridge is
limited to 50’. Cable length between the ProBridge unit and the DVMRe is also
limited to 50’. If the supplied cables are replaced by custom made cables to
address distances between components, ensure the cable is manufactured to
ANSI standards for RS-232 communication.
RS485 Limitations: If multiple PB3 units are connected to a single DVMRe unit,
the distance between the first and last ProBridge unit is limited to 3,000 feet (RS-
485 communications).
2.5 Power
The ProBridge is furnished with a power supply (110 or 240 VAC). Do not use
any other power supply with this product. The manufacturer accepts no
responsibility for damage caused by the use of any other power supply.
Make sure installation is complete and all connections are made before applying
power to the unit.
4310-0007 120VAC Power Supply
Power Supply Input
Voltage: 120 Volt AC
Tolerance: ±10%
Frequency: 60 Hz
Power Supply Output
Voltage: 12 Volt DC
Current: 110mA
Power: 1.3 Watts
Connector: 2.1mm female barrel. Center Positive

Kalatel CBR-PB3-WD 80150-0261A
4310-0008 220VAC Power Supply
Power Supply Input
Voltage: 220 Volt AC
Tolerance: ±10%
Frequency: 50 Hz
Power Supply Output
Voltage: 12 Volt DC
Current: 110mA
Power: 1.3 Watts
Connector: 2.1mm female barrel. Center Positive

Kalatel CBR-PB3-WD 90150-0261A
3ProBridge Diagram
SW1
Dipswitch 1-8
Port 2
Connects to ECR
and Receipt Printer
Power Supply
Connector 12VDC
Port 1
RS232 Connection
to Triplex/DVMRe
or PC
Port 0
RS485 Network Bus
If multiple PB3s are
connected together
(use either connector)
SW2
Dipswitch 1-8
SW3
Dipswitch 1-8
SW4
Dipswitch 1-8

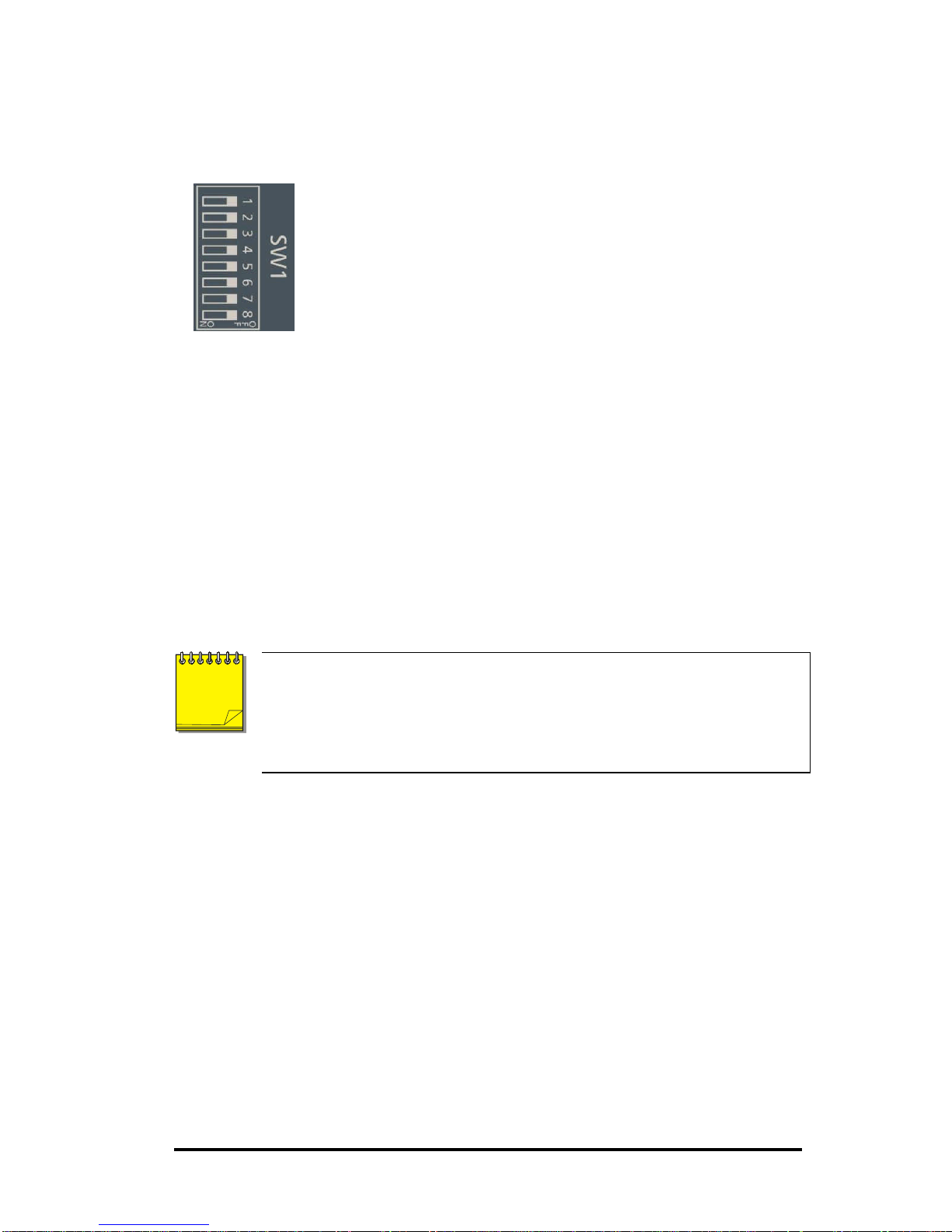

Dipswitch Position Legend
NOTE
Port 0 and Port 1 each have identical looping RJ45
connectors.

Kalatel CBR-PB3-WD 10 0150-0261A
Default (Factory) Dipswitch Settings
SW1 SW2 SW3 SW4
1Up 1Down 1Down 1Up
2Up 2Down 2Down 2Up
3Up 3Down 3Down 3Down
4Down 4Down 4Down 4Up
5Up 5Down 5Down 5Up
6Up 6Down 6Down 6Up
7Up 7Down 7Down 7Down
8Up 8Down 8Down 8Up
The default camera assignment is for the PB3’s transaction information to be
associated with Camera 1.
Important Switch Assignments
SW1 Dipswitch 1-4Special Functions (see Section 6)
Dipswitch 5-8Camera Assignment
SW2 Dipswitch 1 Reserved
Dipswitch 2-4Baud Rate
Dipswitch 5-8Protocol
SW3 Dipswitch 1-8Receipt Printer Device Select
SW4 Dipswitch 3 ProBridge Termination
