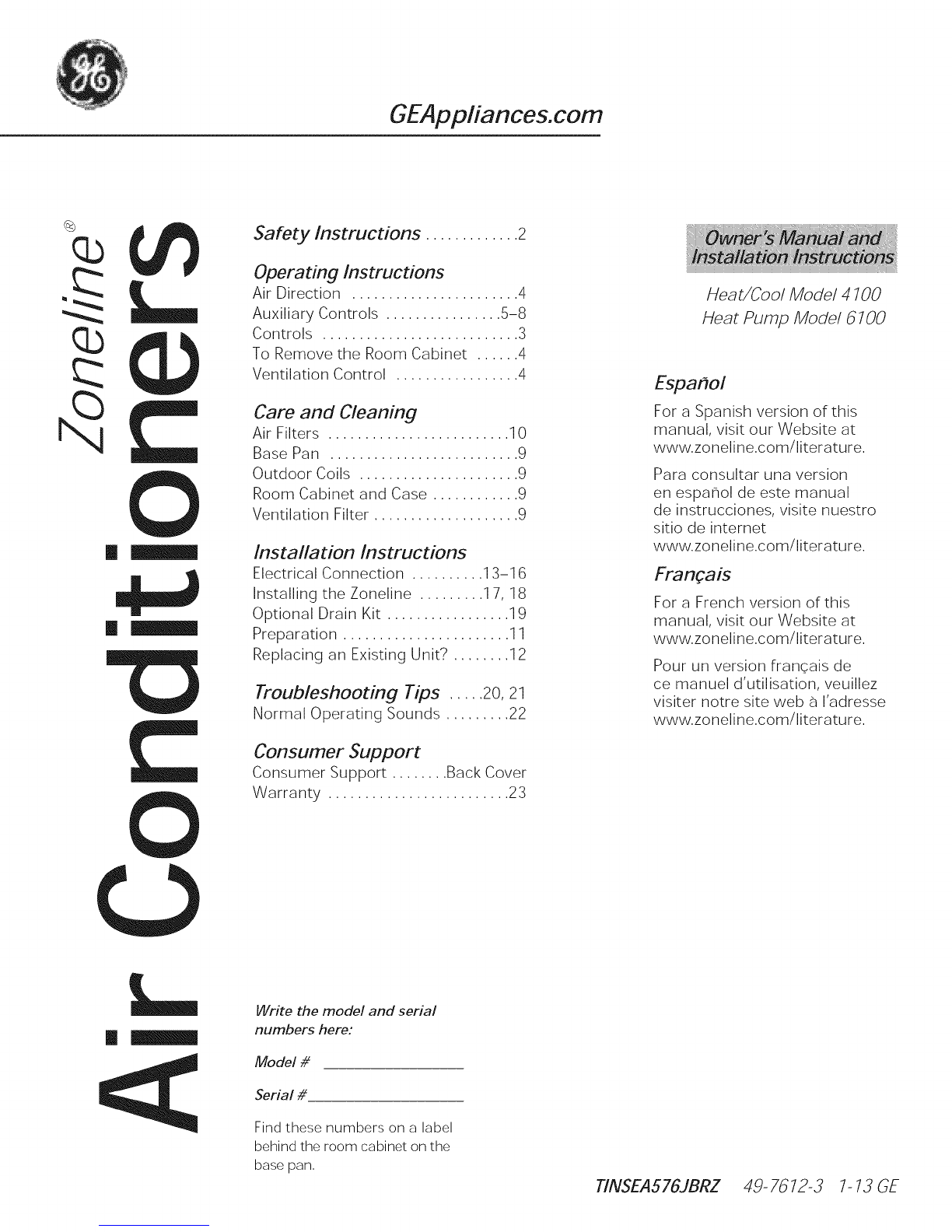

GE Zoneline 4100 User manual

GEAppliances.com
qJ
qJ
Safety Instructions ............. 2
Operating Instructions
Air Direction ....................... 4
Auxiliary Controls ................ 5-8
Controls ........................... 3
To Remove the Room Cabinet ...... 4
Ventilation Control ................. 4
Care and Cleaning
Air Filters ......................... 10
Base Pan .......................... 9
Outdoor Coils ...................... 9
Room Cabinet and Case ............ 9
Ventilation Filter .................... 9
Installation Instructions

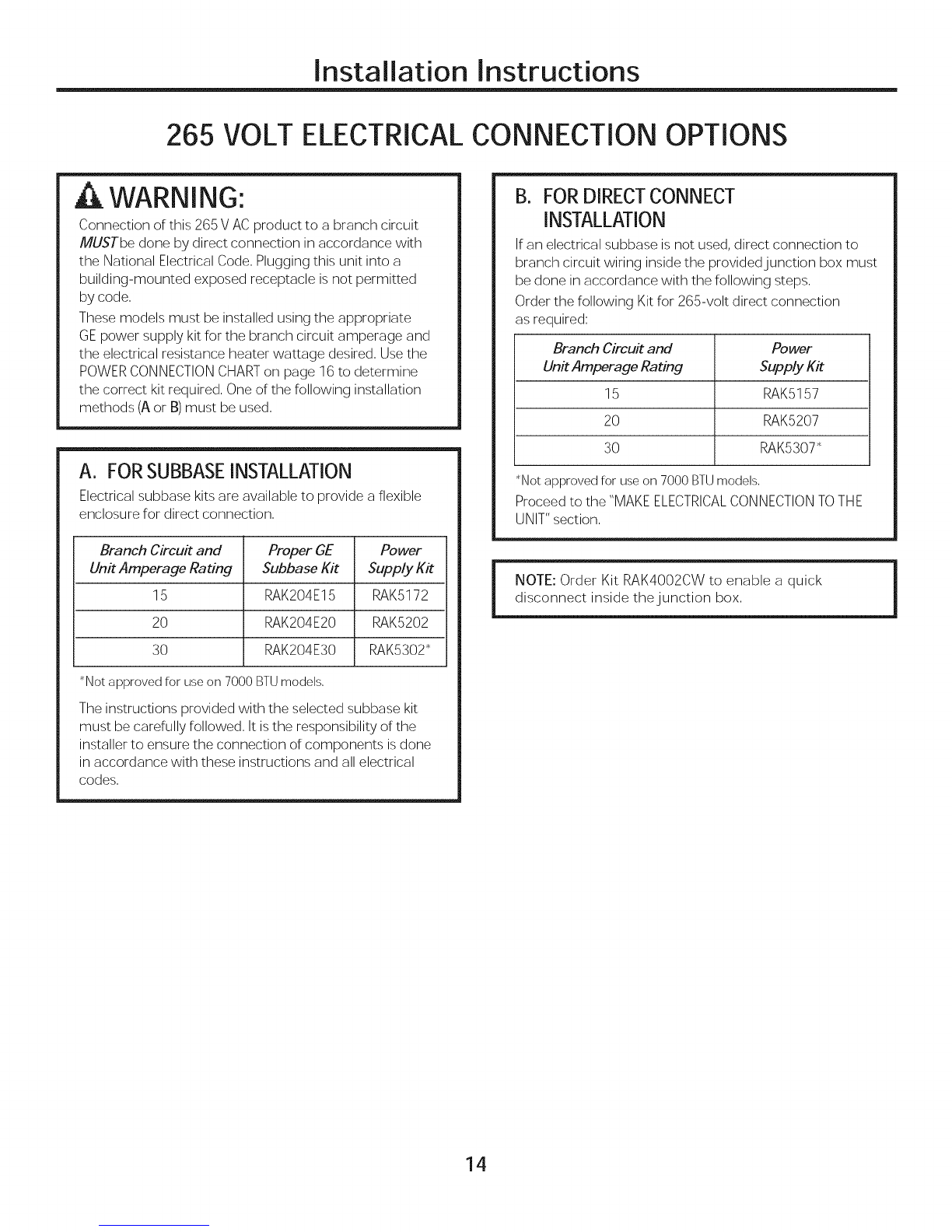

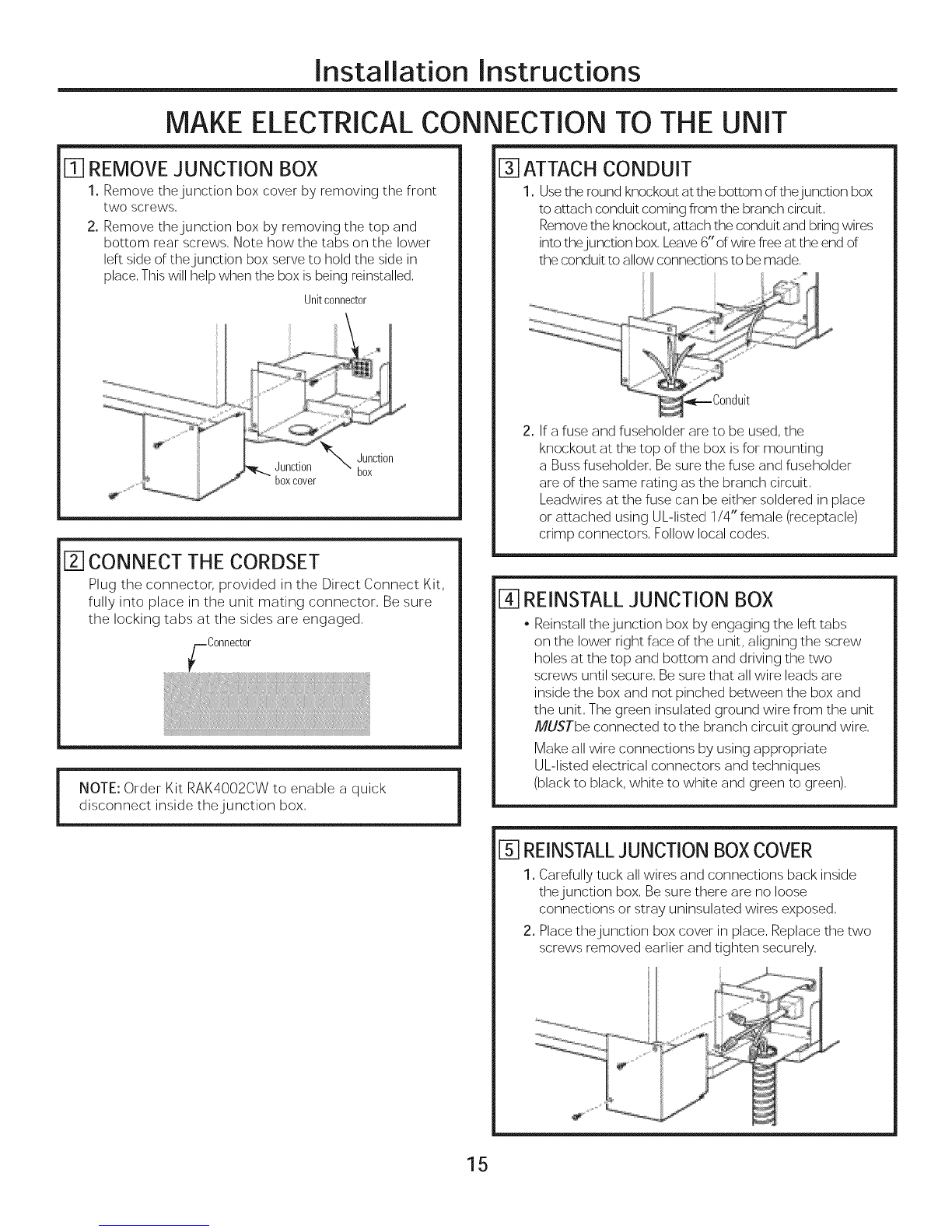

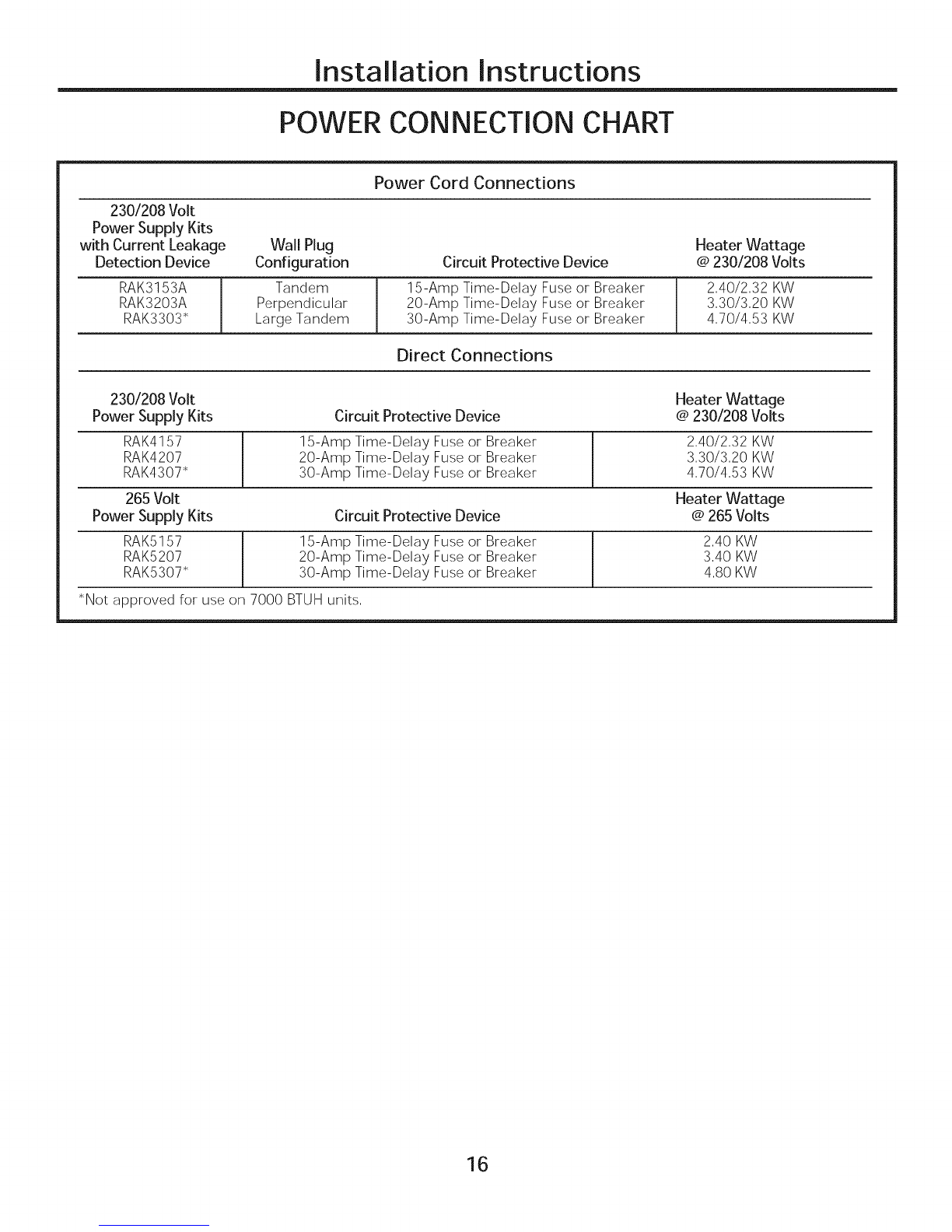

Electrical Connection .......... 13-16

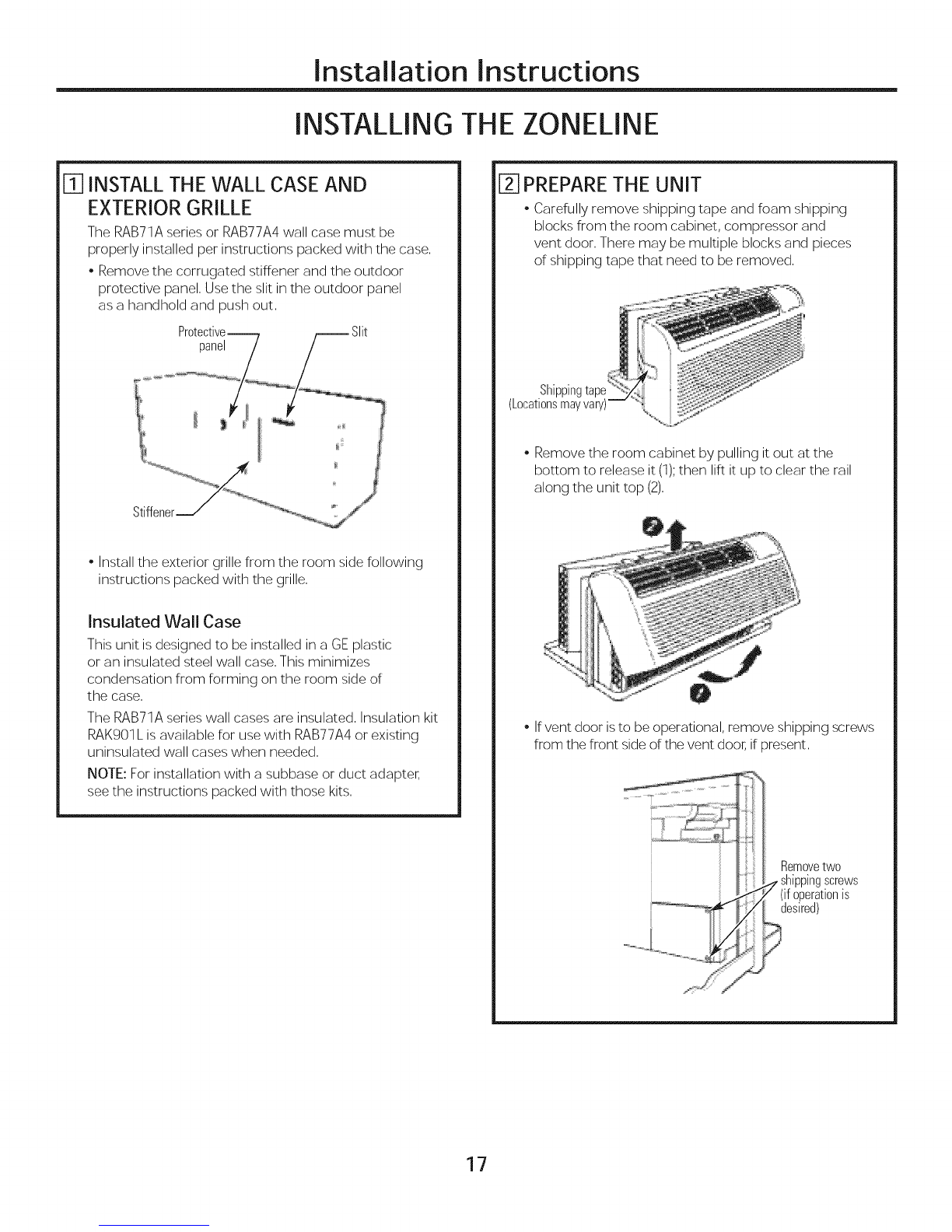

Installing the Zoneline ......... 17, 18
Optional Drain Kit ................. 19
Preparation ....................... 11
Replacing an Existing Unit? ........ 12
Troubleshooting Tips ..... 20, 21
Normal Operating Sounds ......... 22
Consumer Support
Consumer Support ........ Back Cover
Warranty ......................... 23
Heat/Cool Model 4700
Heat Pump Model 6700
Espa#oi
For a Spanish version of this
manual, visit our Website at
www.zoneline.com/literature.
Para consultar una version
en espahol de este manual
de instrucciones, visite nuestro
sitio de internet
www.zoneline.com/literature.
Frangais
For a French version of this
manual, visit our Website at
www.zoneline.com/literature.
Pour un version franqais de
ce manuel d'utilisation, veuillez
visiter notre site web a I'adresse
www.zoneline.com/literature.
I
Write the model and serial
numbers here:
Model #
Serial #
Find these numbers on a label
behind the room cabinet on the
base pan, TINSEA576JBRZ 49-7672-3 7-73GE

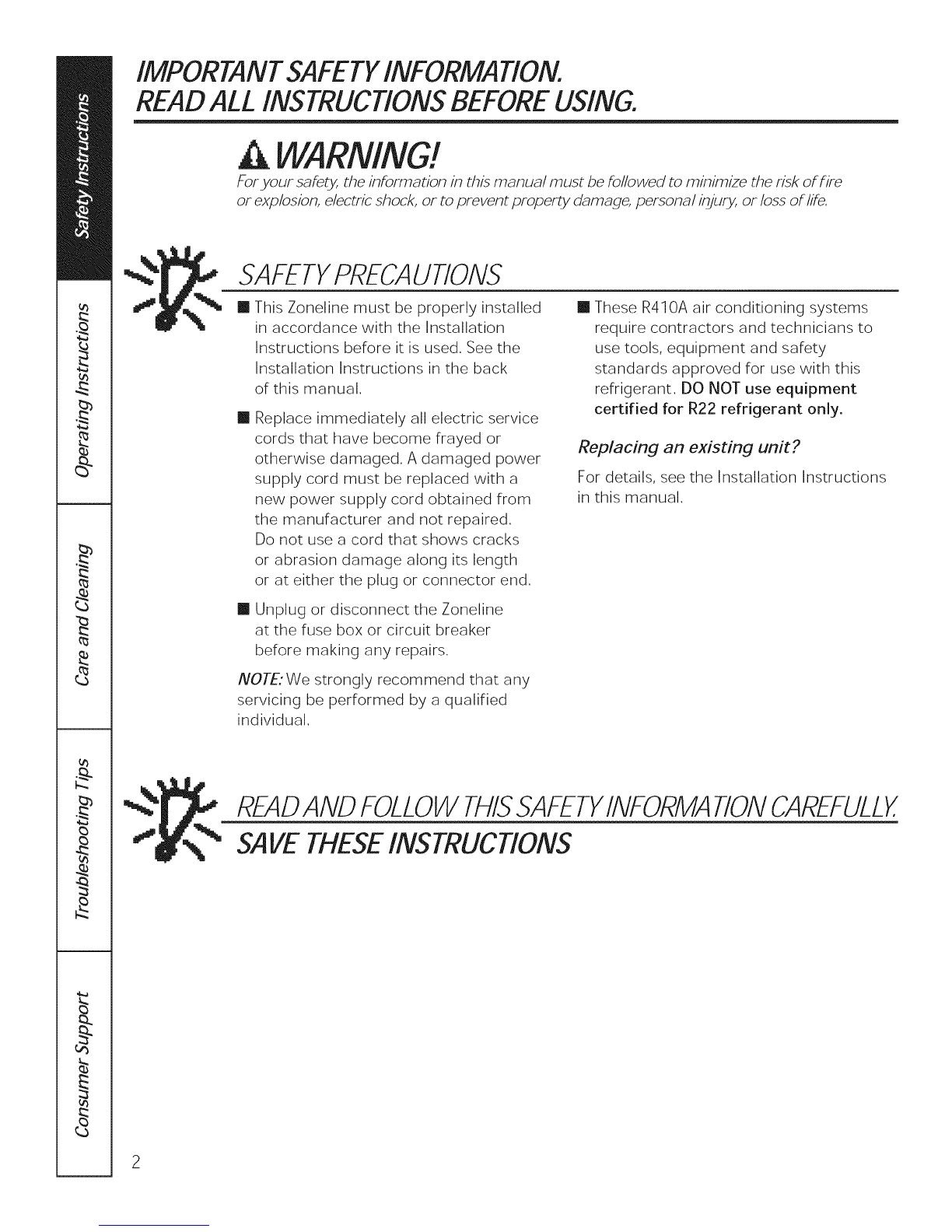

IMPORTANTSAFETYINFORMATiON.
READALL INSTRUCTIONSBEFOREUSING.
WARNING!
Foryour safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
SAFETYPRECAUTIONS
[]
[]
[]
This Zoneline must be properly installed
in accordance with the Installation
Instructions before it is used. See the
Installation Instructions in the back
of this manual.
Replace immediately all electric service
cords that have become frayed or
otherwise damaged. A damaged power
supply cord must be replaced with a
new power supply cord obtained from
the manufacturer and not repaired.
Do not use a cord that shows cracks
or abrasion damage along its length
or at either the plug or connector end.
Unplug or disconnect the Zoneline
at the fuse box or circuit breaker
before making any repairs.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
[] These R410A air conditioning systems
require contractors and technicians to
use tools, equipment and safety
standards approved for use with this
refrigerant. DO NOT use equipment
certified for R22 refrigerant only.

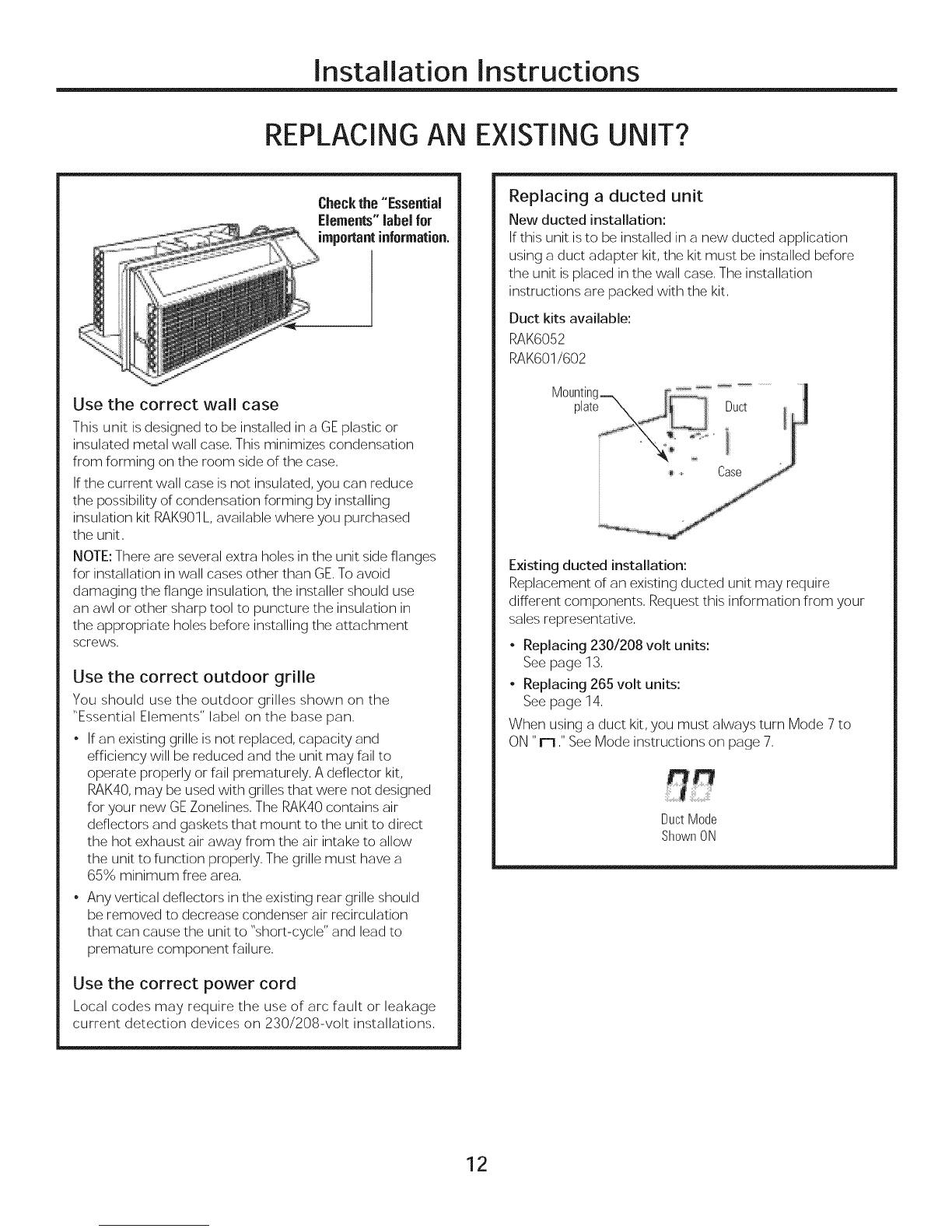

Replacing an existing unit ?
For details, see the Installation Instructions
in this manual.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY
SAVETHESEINSTRUCTIONS

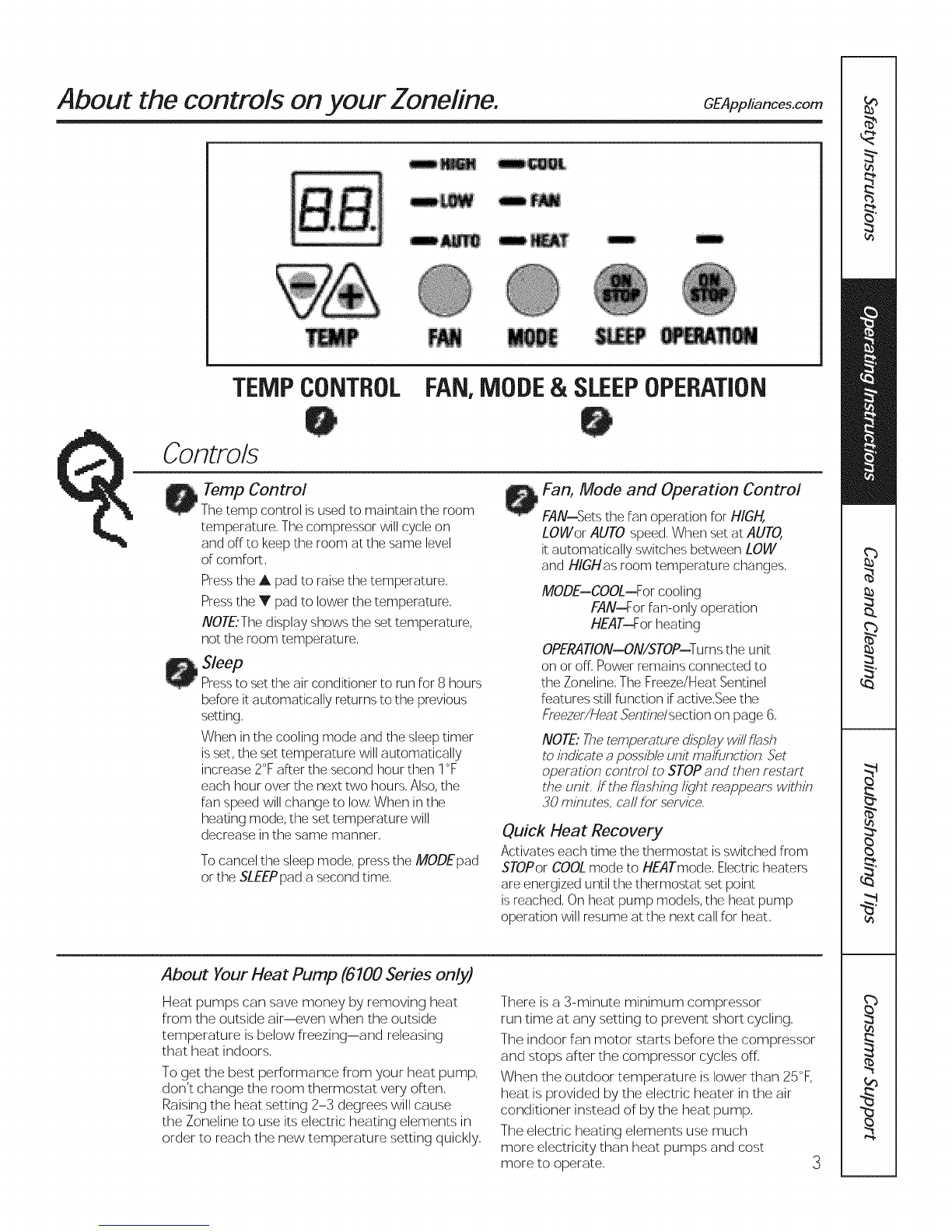

About the controls on your Zoneline. GEAppliances.com
TEMPCONTROL FAN,MODE& SLEEPOPERATION
Controls
Temp Control
The temp control is used to maintain the room
temperature. The compressor will cycle on
and off to keep the room at the same level
of comfort.
Pressthe A pad to raise the temperature.
Pressthe V pad to lower the temperature.
NOTE'The display shows the set temperature,
not the room temperature.
Sleep
Pressto set the air conditioner to run for 8 hours
before it automatically returns to the previous
setting.
When in the cooling mode and the sleep timer
is set, the set temperature will automatically
increase 2°F after the second hour then 1°F
each hour over the next two hours. Also, the
fan speed will change to low When in the
heating mode, the set temperature will
decrease in the same manner.
Tocancel the sleep mode, press the MODEpad
or the SLEEPpad a second time.
_Fan, Mode and Operation Control
FAN--Sets the fan operation for NIGH,
LOWor AUTO speed. When set at AUTO,
it automatically switches between LOW
and HIGHas room temperature changes.
MODE--COOL--For cooling
FAN--For fan-only operation
HEAT-For heating
OPERATION--ON/STOP--Turns the unit
on or off. Power remains connected to
the Zoneline. The Freeze/Heat Sentinel
features still function if active.See the
Freezer/Heat Sent#_dsection on page 6.
NOTE."Thetemperature dLsplayw%/flash
to indicate aposs/7_/eunit malfunction. Set
operation control to STOPand then restart
the unit. if the f/ash#_glight reappears w/th#_
30 m#_utes, ca# for service.
Quick Heat Recovery
Activates each time the thermostat is switched from
STOPor COOLmode to HEATmode. Electric heaters
are energized until the thermostat set point
is reached. On heat pump models, the heat pump
operation will resume at the next call for heat.
About Your Heat Pump (6100 Series only)
Heat pumps can save money by removing heat
from the outside air--even when the outside
temperature is below freezing--and releasing
that heat indoors.
To get the best performance from your heat pump,
don't change the room thermostat very often.
Raising the heat setting 2-3 degrees will cause
the Zoneline to use its electric heating elements in
order to reach the new temperature setting quickly.
There isa 3-minute minimum compressor
run time at any setting to prevent short cycling.
The indoor fan motor starts before the compressor
and stops after the compressor cycles off.
When the outdoor temperature is lower than 25°F,
heat is provided by the electric heater in the air
conditioner instead of by the heat pump.
The electric heating elements use much
more electricity than heat pumps and cost
more to operate, 3

Other features of your Zoneline.
Ventilation Control
NOTE: Two shipping screws must be removed
from the vent door before use, See the installation
instructions in the back of this manual, If_vou do not
plan to use the ventilation feature, leave these two
screws in place,
The ventilation control lever is located at
the middle left side of the Zoneline unit,
behind the room cabinet,
When set at the closed position, only the air
inside the room is circulated and filtered,
When set at the open position, some outdoor
air will be drawn into the room, This will reduce
the heating or cooling efficiency,
Energy Tip: Keep the vent control in the closed
position, The room air will be filtered and circulated,
Open
position
Ventcontrol
(shownin
middleposition)
Closed
position
Removetwo
screws
(ifoperation is
desired)
To Remove the Room Cabinet
Additional controls are located behind the
room cabinet,
Toremove: Pull out at the bottom to release it from
the tabs (1),Then lift up (2),
0
Toreplace: Place the tabs over the top rail (1),Push
inward at the bottom until it snaps into place (2),
Air Direction
To change the air direction, remove the room
cabinet, Remove the 7 louver screws that hold
the louver insert in place, Flip the louver insert 180°,
replace the screws and the room cabinet,
Louverscrews
Removethe roomcabinetandflip thelouver
inserttochangethe air direction.
< >. qiiI >.
i_ i!i
_> .........I..,_Y Default
position
4Louverscrews

Auxiliary controls onyour Zoneline.
Auxiliary Controls--Aux Set Button
The auxiliary set controls are located behind
the room cabinet, below the control panel,
Remove the room cabinet, See the To Remove
the Room Cabinet section,
GEAppliances.corn
AuxiliarySet Button
AccessCover
The owner is responsible for ensuring the auxiliary
controls are set to the desired function, There are 9
different modes that can be set using the auxiliary
set button, To change modes, press AUXSET("AU"
appears on the display), Press the mode button on
the control pad until the first digit in the display
shows the number corresponding to the mode you
are choosing and the correct HEAT/COOL LEDis lit,
Pressthe up or down arrow (shown in the second
digit of the display) to make the mode setting
selection where applicable, Press the AUXSET
button to confirm the selection,
RFirst Digit
I _ 'Z4[
BLoad
Shedding
Sentinel
_ ConstantFan
temperature
Limit _ Hgt]]
ClaSS2Mode
_'_ Duct Mode
AH I2R Mode(AZ61 Only)
Boost Heat
(AZ61 Ortly)
USecond Digit
Press A /v
_,_ -Cycle// _''_ -Continue
-Off /,, f-4 -On
u
COOL HEAT
O; 80F_85F o: 60F°65F
1: 64F=85F 1: 60F-70F
t 2: 66F=85F 2: 60F-72F
3: 68F=85F 3: 60F-74F
4 70F=85F 4: 60F-76F
\\ 5: 72F-85F 5: 60FWSF
\ 6: 74F-85F 6: 60F-80F
"\ 7: 76F=85F 7: 60F-85F
_ On
P..I -off ,,' -
/
_J
[ MODE 1 [ Smart Fan--Cooling/Heating
The default setting for Mode 1 is as follows:
Cooling: Continuous (ON)
Heating: Cycle (OFF)
Press MODEuntil a 1 appears in the first digit of the
display for Smart Fan cool mode, The COOL LED
light on the main control will be on, To change to
heat mode, press MODEagain, The HEATLED light
on the main control will be lit, Pressthe down arrow
to set the indoor fan to cycle on/off when the unit is
heating or cooling "U ," Pressthe up arrow to set
the indoor fan to run continuously" 1-1,"This is
shown in the second digit of the display, Press AUX
SETto confirm your selection and exit AUXSET
mode, or press MODEto continue setting other
functions,
*Note: In cyclic cooling mode, the indoor fan will activate occasionally to
verify airtemperature in the room, In cyclic heating mode, the fan will
continue to operate for 90seconds after the heating function has stopped in
order to increase unit efficiency,
-- HIGH
-- LOW
-- AUTO
Cooling- Cycle_
r_ HIGH
-- LOW
-- AUTO
Cooling- Continuous
-- HIGH
-- LOW
-- AUTO
Heating- Cycle_
r_ HIGH
.... -- LOW
{ : -- AUTO
Heating- Continuous
_COOL
-- FAN
-- HEAT
_COOL
-- FAN
-- HEAT
--COOL
-- FAN
HEAT
--COOL
-- FAN
HEAT
[ MODE 2 Load Shedding (Central Desk Control)
The default setting for Mode 2 is OFF,
Thisfeature isactive only ifthe unit isconnected to a
CDCand the CDC has control, Press MODEuntil a 2
appears in the first digit of the display for Load
Shedding mode, Pressthe down arrow for OFF"u" or
the up arrow for ON "rl ,"This is shown in the second
digit of the display, When this mode ison, only the
indoor fan can be turned ON or OFFwith the unit
controls, When this mode is off, all operation isdisabled
except Heat/Freeze Sentinel (Mode 3),PressAUXSETto
confirm your selection and exitAUXSETmode, or
press MODEto continue setting other functions,
Load
Shedding
OFF
Load
Shedding
ON
5

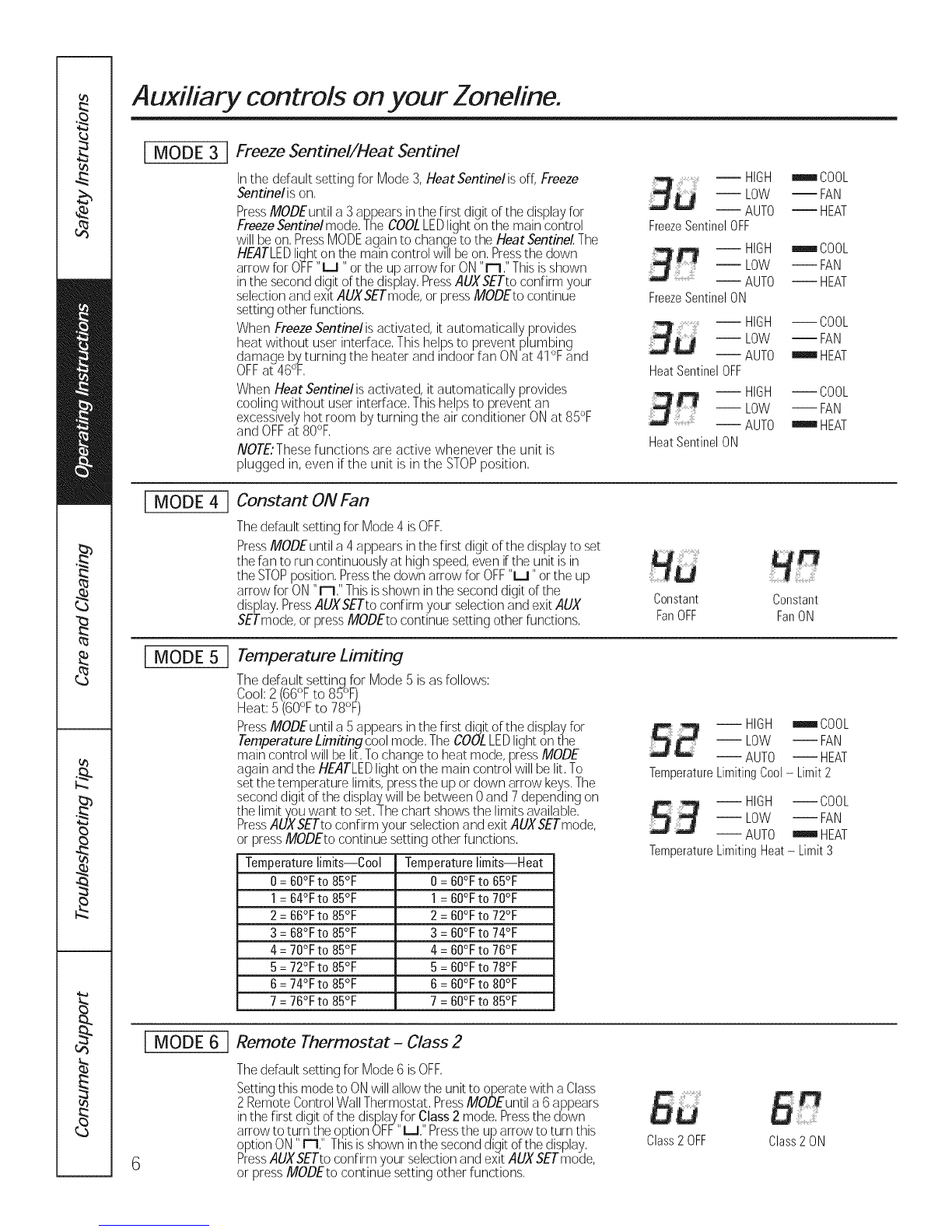

Auxiliary controls onyour Zoneline.
I MODE 3 I
[ MODE 4
[ MODE 5
[ MODE 6
Freeze Sentinel/Heat Sentinel
Inthe default setting for Mode 3,HeatSentinelis off, Freeze
Sentinel is on,
PressMODEuntil a 3appears in the first digit of the display for
FreezeSentinel mode,/he COOLLEDlight on the main control
will be on, PressMODEagain to change to the HeatSentineZ The
HEATLEDlight on the main control will be on, Pressthe down
arrow for OFF"LJ "or the up arrow for ON "r'l," Thisisshown
in the second digit of the display, PressAUXSETto confirm your
selectionand exit AUXSETmode, or pressMODEto continue
setting other functions,
When FreezeSentinel is activated, it automatically provides
heat without user interface, This helps to prevent plumbing
damage by turning the heater and indoor fan ON at 41°F and
OFFat 46%,
When Heat Sentinel is activated, it automatically provides
cooling without user interface, This helps to prevent an
excessively hot room by turning the air conditioner ON at 85°F
and OFFat 80°F,
NOTE:These functions are active whenever the unit is
plugged in, even if the unit is in the STOPposition,
-- HIGH _ COOL
-- LOW -- FAN
--AUTO --HEAT
FreezeSentinelOFF
-- HIGH "" COOL
-- LOW -- FAN
--AUTO --HEAT
FreezeSentinelON
--HIGH --COOL
-- LOW -- FAN
-- AUTO "" HEAT
HeatSentinelOFF
--HIGH --COOL
-- LOW -- FAN
-- AUTO "" HEAT
HeatSentinelON
Constant ON Fan
Thedefault setting for Mode 4 isOFF,
PressMODEuntil a 4 appears in the first digit ofthe display to set
the fan to run continuously at high speed,even ifthe unit is in
the STOPposition, Pressthe down arrow for OFF"u" or the up
arrow for ON "r'-I," Thisisshown inthe second digit of the
display, PressAUXSETto confirm your selection and exitAUX
SETmode, or pressMODEto continue setting other functions,
Constant Constant
FanOFF FanON
Temperature Limiting
The default settinq for Mode 5 isas follows:
Cool: 2 (66% to 85"°F)
Heat: 5 (60% to 78%)
PressMODEuntil a 5 appears in the first digit ofthe display for
Temperature Limiting cool mode, TheCOOLLEDlight on the
main control will be lit, To change to heat mode, pressMODE
again and the HEATLEDlight on the main contro/will be lit, To
setthe temperature limits,pressthe up or down arrow keys,The
second digit ofthe displa#_willbe between 0 and 7 depending on
the limit you want to set,/he char showsthe limits available,
PressAL1XSETtoconfirm your selection and exitAUX SETmode,
or pressMODEto continue setting other functions,
Temperaturelimits--Cool Temperaturelimits--Heat
0=60°Fto 85°F 0 =60°Fto 65°F
1=64°Fto 85°F 1=60°Fto 70°F
2=66°Fto 85°F 2 =60°Fto 72°F
3 =68°Fto 85°F 3 =60°Fto 74°F
4 =70°Fto 85°F 4 =60°Fto 76°F
5=72°Fto 85°F 5 =60°Fto 78°F
6=74°Fto 85°F 6 =60°Fto 80°F
7 =76°Fto 85°F 7 =60°Fto 85°F
_2 -- HIGH _COOL
-- LOW -- FAN
--AUTO --HEAT
TemperatureLimitingCool- Limit2
HIGH --COOL
99 -,0w
: --AUTO _HEAT
TemperatureLimitingHeat- Limit3
Remote Thermostat- Class 2
Thedefault setting for Mode 6 isOFF,
Settingthis mode to ONwill allow the unit to operate with a Class
2 RemoteControl WallThermostat, PressMODEuntil a6 appears
in the first digit of the display for Class2 mode, Pressthe down
arrow to turn the option OFF"LJ," Pressthe up arrow to turn this
option ON "r-I," Thisis shown inthe second digit of the display,
PressAUXSETto confirm your selectionand exit AUZ SETmode,
or press MODEto continue setting other functions,
Class2OFF Class2 ON

GE,4ppliances.com
[ MODE 7 IDuctMode
The default setting for Mode 7is OFF,
Thissetting is used when the unit is installed usinga
duct adapter kit, Ifthe unit is ducted, the Duct Mode
needs to be set to ON,This increases the fan speed to
ensure proper circulation,
PressMODEuntil a 7 appears in the first digit of the
display, Pressthe up or down arrow keys to set this
switch to OFF"LJ" or ON "rs ,"This isshown in the
second digit of the display, PressAUXSETto confirm
your selection and exit AUXSETmode,
For Model AZ6100, press MODE to continue setting
other functions, Pressing MODEon Model AZ4100 will
return you to AUXSETmode and an "AU"will appear in
the display,
DuctMode OFF DuctModeON
[ MODE 8 All-Electric Heat (AZ6100 only)
The default setting for Mode 8is OFF,
Thiselectric heat option functions only on the 6100
model, When this option isON "r'l," heat pump
operation is locked out, causing the unit to provide
only electric resistance heat,
TosetAll-Electric Heat option, press MODEuntil an 8
appears in the first digit of the display, Pressthe up or
down arrow keysto set this switch to OFF"u" or
ON "r s," This isshown in the second digit of the display,
PressAUXSETto confirm your selection and exitAUXSET
mode,or pressMODEto continue settingother functions,
All-Electric
HeatOFF All-Electric HeatON
[ MODE 9 Heat Boost (AZ6100 only)
Thedefault setting for Mode 9 isOFF,
When Heat Boost isON and outer temperatures are
between 25°Fand 46°F,heat pump only operation is
locked out, This setting isused to provide supplementary
heat to the heat pump operation by electric resistance
heat in conditions where the heat pump-only operation
is not sufficient to maintain a consistent, comfortable
room temperature, NOTE:Temperature Boostoption
should not be usedwith remote thermostat operation,
Thiswill cause the unit to switch to resistance heat when
the outdoor temperature is46°F,
Toset Heat Boost, pressMODEuntil a 9 appears in the
first digit of the display, Pressthe up or down arrow keys
to setthis switch to OFF" LJ" or ON "r'l ,"This isshown
in the second digit ofthe display, PressAUXSETto
confirm your selection and exitAUXSETmode,
9U 92
HeatBoostOFF HeatBoostON
Auxiliary Controls-- Terminal Connections
Theauxiliary controls are located behind the room
cabinet beneath the access cover,
r-_ Turn off and unplug the unit,
F_ Removethe room cabinet, Seethe ToRemovethe
Room Cabinetsection,
]Remove the screw from the access cover,
Tomake wiring connections, insert the wires into the
bottom ofthe terminals and tighten screws securely,
"_ fter all
replace
The owner isresponsible for making all connections and
setting the appropriate AUXSETmode,
ACAUTION:
Improper wiring may damage the Zonelineelectronics,
No common busing ispermitted, Damage or erratic
operation may result, Aseparate wire pair must be run
from eachseparate controlling switch to each individual
Zoneline,
desired connections have been made, _ it
the access cover and room cabinet,
_Cover _ _ _ _ _
3@@8£@/_ ,x_

Auxiliary controls onyour Zoneline.
External Fan (Obtained locally)
When connected, an auxiliaryor external fan can be
controlled with the indoor fan motor on the Zoneline,
Connections provide 24V ACto energize a remote relay,
turning on the external fan,
Central Desk Control
When connected, the unit can be turned ONor OFFwith
aswitch located at the Central Control Panel,A separate
wire pair must be run from each separate controlling
switch to each individual Zoneline,
Referto MODE2 on page 5 for fan setting options,
Remote Thermostat
When connected to a remote thermostat, the indoor air
temperature sensing isshifted from the unit to the
remote thermostat, For this reason,the units will operate
slightly differently when connected to a remote
thermostat, Thefollowing chart shows the unit operation
when connected to a remote thermostat,
NOTE'TheClass2 Mode setting (Mode6) must be set to
ON"r-l" for the unit to operate with a Class2Remote
Wall Thermostat, (Seethe installation instructions
supplied with the remote thermostat and Mode
instructions on page 7,)
Class2ShownON
IMPORTANT:The Zonelinethermostat
connections provide 24VAConly,
Ifusing a digital/electronic wall thermostat, you must set
it to the 24 V ACsetting,Seethe Installation Instructions
for the wall thermostat,
CAUTION:
Damage to a wall thermostat or to the Zoneline
electronics can result from improper connections, Special
care must be used in connecting the wires, No line
voltage connections should be made to any circuit,
Isolateall wires in building from line voltage,
Feature Heat Pump ElectricHeat
Indoor Frost Control Yes Yes
FreezeSentinel Yes Yes
AutoFan Speed No No
E!ectronic Tem£erature L!mit!ng No No
Switch to Resistance Heat Based Determined by N/A
OnIndoor Temperature Remote Thermostat
Switch to Resistance Heat Based Yes N/A
OnOutdoorTemperature
ReverseCycle Defrost Yes N/A
Simultaneous Resistance Heat No N/A
with Heat Pump
Resistance Heat Lockout Yes N/A
"Smart Fan" Fan Cycle Fan ON/AUTOSet On FanON/AUTOSet On
Remote Thermostat RemoteThermostat
Central Desk Control Yes Yes
8

Care and cleaning.
Room Cabinet and Case
Turn the Zoneline off and disconnect the
power supply, To clean, use water and a mild detergent,
Do not use bleach or abrasives, Some commercial
cleaners may damage the plastic parts,
Outdoor Coils
The coils on the outdoor side of the Zoneline should
be checked regularly, If they are clogged with dirt
or soot, they may be professionally steam cleaned,
You will need to remove the unit from the wall
sleeve to inspect the coils, The dirt buildup occurs
on the fan side of the outdoor coil,
Coils
Grille
Cleanthe outsidecoilsregularly.
Base Pan
In some installations, dirt or other debris may be
blown into the unit from the outside and settle in
the base pan (the bottom of the unit),
In some areas of the United States, a naturally
occurring "gel-like" or "slime-like" substance may be
seen in the base pan,
Check it periodically and clean, if necessary,
Ventilation Filter
Ifthe vent door is open, access requires the remow_l
of the unit from the wall sleeve, Clean the vent filter
twice a year or as required,
Turn the Zoneline off and unplug before cleaning,
Removetwo
shippingscrews
(ifoperationis
desired)
Toclean the vent filter:
IMPORTANT."
This filter is not removable, Trying to remove this
filter will damage the unit,
m Use a vacuum to remove debris from the filter,
m Use a damp rag to wipe down the filter and
surrounding area after vacuuming,
9

Care and cleaning.
Tomaintain optimum performance, clean the filters at least every 30 days.
Air Filters
Toremove the air filters:
Dirty filter--Needs cleaning Clogged filter--Greatly
reduces cooling, heating
and airflow
Turn the Zoneline off before cleaning.
The most important thing you can do to maintain
the Zoneline isto clean the filter at least every
30 days, Clogged filters reduce cooling, heating
and air flow,
Keeping these filters clean will,"
mlDecrease cost of operation,
mlSave energy,
mlPrevent clogged heat exchanger coils,
mlReduce the risk of premature component failure,
Toclean the air filters:
Vacuum off the heavy soil,
mlRun water through the filters from the
back side,
il Dry thoroughly before replacing,
NOTE'The air filters are interchangeable
and will fit in either the right or left side,
Pullup_
2Airfilters
To replace the air filters:
Pushdown
CAUTION:oonotoperatethe
Zoneline without the filters in place. Ira filter
becomes torn or damaged, it should be replaced
immediately.
Operating without the filters in place or with
damaged filters will allow dirt and dust to reach
the indoor coil and reduce the cooling, heating,
airflow and efficiency of the unit,
Replacement filters are available from your
salesperson, GEdealer, GEService and Parts
Center or authorized Customer Card _'servicers,
10

Installation
Instructions Zoneline Air Conditioners
BEFOREYOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT- Save these instructions for
local inspector's use,
•IMPORTANT- Observea,governing
codes and ordinances,
• Note to Installer -Be sure to leave these
instructions with the owner,
• Note to Owner -Keep these instructions for
future reference,
• Proper installation is the responsibility of the installer,
• Product failure due to improper installation is not
covered under the Warranty,
AIR CONDITIONER BREAK-IN PERIOD
NOTE - As with any mechanical device with moving parts,
this unit will have a wear-in period, AFTER INSTALLATION,
this unit should be operated for 48 hours to achieve
optimum efficiency,
TOOLS YOU WILL NEED
Phillipsscrewdriver
IMPORTANTELECTRICAL
SAFETY-READCAREFULLY
CAUTION:
*Follow the National Electrical Code (NEe) or local
codes and ordinances.
*For personal safety, this Zoneline must be properly
grounded.
*Protective devices (fuses or circuit breakers)
acceptable for Zoneline installations are specified
on the nameplate of each unit.
, Do not use an extension cord with this unit.
*Aluminum building wiring may present special
problems--consult a qualified electrician.
*When the unit is in the OFF position, there is
still voltage to the electrical controls.
*Disconnect the power to the unit before
servicing by:
1 Removing the power cord (if it has one) from
the wall receptacle.
OR
2 Removing the branch circuit fuses or turning
the circuit breakers off at the panel.
ZONELINE COMPONENTS
Appearance may vary,
Exteriorgrille/
Wallcase_J
---Zoneline unit
cabinet_
-Power supplyIdt_
Shippedwith the Zonelineunit
_ Checkthe "EssentialElements"list onthe unitlocatedonfront of thebasepan
11

Installation Instructions
REPLACING AN EXISTING UNIT?
Checkthe "Essential
Elements"label for
importantinformation.
Use the correct wall case
This unit is designed to be installed in a GEplastic or
insulated metal wall case, This minimizes condensation
from forming on the room side of the case,
If the current wall case is not insulated, you can reduce
the possibility of condensation forming by installing
insulation kit RAK901L, available where you purchased
the unit,
NOTE: There are several extra holes in the unit side flanges
for installation in wall cases other than GE,To avoid
damaging the flange insulation, the installer should use
an awl or other sharp tool to puncture the insulation in
the appropriate holes before installing the attachment
screws,
Use the correct outdoor grille
You should use the outdoor grilles shown on the
"Essential Elements" label on the base pan,
*If an existing grille is not replaced, capacity and
efficiency will be reduced and the unit may fail to
operate properly or fail prematurely, A deflector kit,
RAK40, may be used with grilles that were not designed
for your new GEZonelines, The RAK40 contains air
deflectors and gaskets that mount to the unit to direct
the hot exhaust air away from the air intake to allow
the unit to function properly, The grille must have a
65% minimum free area,
*Any vertical deflectors in the existing rear grille should
be removed to decrease condenser air recirculation
that can cause the unit to "short-cycle" and lead to
premature component failure,
Use the correct power cord
Local codes may require the use of arc fault or leakage
current detection devices on 230/208-volt installations,
Replacing a ducted unit
New ducted installation:
If this unit isto be installed in a new ducted application
using a duct adapter kit, the kit must be installed before
the unit is placed in the wall case, The installation
instructions are packed with the kit,
Duct kits available:
RAK6052
RAK601/602
Mounting_
plate Duct
,, Case
Existing ducted installation:
Replacement of an existing ducted unit may require
different components, Request this information from your
sales representative,
* Replacing 230/208 volt units:
See page 13,
* Replacing 265 volt units:
See page 14,
When using a duct kit, you must always turn Mode 7 to
ON "n ,"See Mode instructions on page 7,
DuctMode
ShownON
12

Installation Instructions
230/208 VOLT ELECTRICAL CONNECTION OPTIONS
HOW TO CONNECT
1. Remove the room cabinet.
2. Connect to electrical power.
3. Review the following steps for applicable supply
voltages.
4. Reinstall the room cabinet.
POWER CORD
CONNECTION
A power supply kit with LCDImust be used to supply power
to the Zoneline unit, The appropriate kit isdetermined by
the voltage, the means of electrical connection and
the amperage of the branch circuit,
Power supply kit
Connections of 208 or 230-volt circuits may be with a
power supply kit or ajunction box kit.
All wiring, including installation of the receptacle, must
be in accordance with the NEC and local codes,
ordinances and regulations. Codes require the use of
an arc fault or leakage current detection device on the
power cord except direct connect. Be sure to select the
correct cord for your installation.
Tandem Perpendicular
15Amp. 20Amp. Large Tandem 30 Amp.
230/208-v01treceptacleconfiguration.
Branch Circuit and Proper GE Power Cord
Unit Amperage Rating with LCDI Device
15 RAK3153A
20 RAK3203A
30 RAK3303*
*Not approved for use on 7000 BTU models.
Power cords may include an arc fault interruption
or a leakage current detection interruption device.
A test and reset button is provided on the plug case
or the inline case. The device should be tested on
a periodic basis by first pressing the TEST button
and then the RESET button. If the TEST button does
not trip or if the RESET button will not stay engaged,
discontinue use of the Zoneline and contact a
qualified service technician.
ELECTRICALSUBBASE
CONNECTION
230/208-volt models may be installed using one
of the following electrical subbases:
Branch Circuit and Proper GE
Unit Amperage Rating SubbaseKit
15 RAK204D15P
20 RAK204D20P
30 RAK204D3OP*
_Notapprovedforuseon7000BTUmodels,
Electrical subbases provide an enclosure for direct
connection or enclosed receptacles. The subbase kit
includes the power cord.
The instructions provided with the selected subbase kit
must be carefully followed. It is the responsibility of the
installer to ensure the connection of components is done
in accordance with these instructions and all electrical
codes.
13
DIRECTCONNECTION
Order the following Kit for 230/208-volt direct
connection as required:
Branch Circuit and Power Supply Power
Unit Amperage Rating Accessory Supply Kit
15 RAK4OO2A RAK4157
20 RAK4OO2A RAK4207
30 RAK4OO2A RAK4307*
_Not approved for use on 7000 BTU models.
Skip to the "MAKE ELECTRICALCONNECTION TO THE UNIT"
section.

Installation Instructions
265 VOLT ELECTRICAL CONNECTION OPTIONS
,& WARNING:
Connection of this 265 V AC product to a branch circuit
MUSTbe done by direct connection in accordance with
the National Electrical Code, Plugging this unit into a
building-mounted exposed receptacle is not permitted
by code,
These models must be installed using the appropriate
GEpower supply kit for the branch circuit amperage and
the electrical resistance heater wattage desired, Use the
POWER CONNECTION CHARTon page 16 to determine
the correct kit required, One of the following installation
methods (A or B) must be used,
A. FORSUBBASEINSTALLATION
Electrical subbase kits are available to provide a flexible
enclosure for direct connection,
Branch Circuit and Proper GE Power
Unit Amperage Rating Subbase Kit Supply Kit
15 RAK204E15 RAK5172
20 RAK204E20 RAK5202
30 RAK204E30 RAK5302*
*Not approved for use on 7000 BTU models,
The instructions provided with the selected subbase kit
must be carefully followed, It isthe responsibility of the
installer to ensure the connection of components is done
in accordance with these instructions and all electrical
codes,
i
B. FOR DIRECTCONNECT
INSTALLATION
If an electrical subbase is not used, direct connection to
branch circuit wiring inside the provided junction box must
be done in accordance with the following steps,
Order the following Kit for 265-volt direct connection
as required:
Branch Circuit and Power
UnitAmperage Rating Supply Kit
15 RAK5157
20 RAK5207
30 RAK5307*
_Notapproved foruseon7000BTUmodels,
Proceedto the "MAKEELECTRICALCONNECTIONTOTHE
UNIT"section,
NOTE:Order Kit RAK4OO2CWto enable a quick
disconnect inside the junction box, i
14

Installation Instructions
MAKE
IT1REMOVEJUNCTION BOX
1. Remove the junction box cover by removing the front
two screws.
2. Remove the junction box by removing the top and
bottom rear screws. Note how the tabs on the lower
left side of the junction box serve to hold the side in
place.This will help when the box is being reinstalled.
Unit connector
ELECTRICAL CONNECTION TO THE UNIT
[_ ATTACH CONDUIT
1. Usethe round knockout at the bottom of the junction box
to attach conduit coming from the branch circuit.
Remove the knockout, attach the conduit and bring wires
into thejunction box. Leave 6" of wire free at the end of
the conduit to allow connections to be made.
[
ndu_t
_ Juncti0n
box
Junction
boxcover
D CONNECT THE CORDSET
Plug the connector, provided in the Direct Connect Kit,
fully into place in the unit mating connector. Be sure
the locking tabs at the sides are engaged.
i NOTE: Order Kit RAK4OO2CW to enable a quick
i
disconnect inside the junction box. !
2. If a fuse and fuseholder are to be used, the
knockout at the top of the box is for mounting
a Buss fuseholder. Be sure the fuse and fuseholder
are of the same rating as the branch circuit.
Leadwires at the fuse can be either soldered in place
or attached using UL-listed 1/4" female (receptacle)
crimp connectors. Follow local codes.
REINSTALL JUNCTION BOX
*Reinstall the junction box by engaging the left tabs
on the lower right face of the unit, aligning the screw
holes at the top and bottom and driving the two
screws until secure. Be sure that all wire leads are
inside the box and not pinched between the box and
the unit. The green insulated ground wire from the unit
MUSTbe connected to the branch circuit ground wire.
Make all wire connections by using appropriate
UL-listed electrical connectors and techniques
(black to black, white to white and green to green).
D REINSTALLJUNCTION BOXCOVER
1. Carefully tuck all wires and connections back inside
the junction box. Be sure there are no loose
connections or stray uninsulated wires exposed.
2. Place the junction box cover in place. Replace the two
screws removed earlier and tighten securely.
15

Installation Instructions
POWER CONNECTION CHART
230/208Volt
Power SupplyKits
withCurrentLeakage
DetectionDevice
RAK3153A [
RAK3203A
RAK3303_
Power Cord Connections
Wall Plug
Configuration
Tandem ]
Perpendicular
Large Tandem
Circuit Protective Device
15-Amp Time-Delay Fuse or Breaker
20-Amp Time-Delay Fuse or Breaker
30-Amp Time-Delay Fuse or Breaker
Heater Wattage
@230/208 Volts
2,40/2,32 KW
3,30/3,20 KW
4,70/4,53 KW
Direct Connections
230/208 Volt
PowerSupply Kits
RAK4157 [
RAK4207
RAK4307_
265Volt
Power Supply Kits
RAK5157
RAK5207
RAK5307•
Circuit Protective Device Heater Wattage @230/208 Volts
15-Amp Time-Delay Fuse or Breaker
20-Amp Time-Delay Fuse or Breaker
30-Amp Time-Delay Fuse or Breaker
2,40/2,32 KW
3,30/3,20 KW
4,70/4,53 KW
Circuit Protective Device Heater Wattage @ 265 Volts
i 15-Amp Time-Delay Fuse or Breaker
20-Amp Time-Delay Fuse or Breaker
30-Amp Time-Delay Fuse or Breaker
_Not approved for use on 7000 BTUH units,
2,40 KW
3,40 KW
4,80 KW
16

Installation Instructions
INSTALLING THE ZONELINE
[-i-1INSTALLTHE WALL CASEAND
EXTERIORGRILLE
The RAB71A series or RAB77A4 wall case must be
properly installed per instructions packed with the case,
* Remove the corrugated stiffener and the outdoor
protective panel, Use the slit in the outdoor panel
as a handhold and push out,
*Install the exterior grille from the room side following
instructions packed with the grille,
Insulated Wall Case
This unit is designed to be installed in a GEplastic
or an insulated steel wall case, This minimizes
condensation from forming on the room side of
the case,
The RAB71A series wall cases are insulated, Insulation kit
RAK901 Lis available for use with RAB77A4 or existing
uninsulated wall cases when needed,
NOTE: For installation with a subbase or duct adapter,
see the instructions packed with those kits,
[-2]PREPARE THE UNIT
*Carefully remove shipping tape and foam shipping
blocks from the room cabinet, compressor and
vent door, There may be multiple blocks and pieces
of shipping tape that need to be removed,
I_ Ni .... .
Shippingtape !:;,_;_
(Locationsmayvary) _" 'f
*Remove the room cabinet by pulling it out at the
bottom to release it (1);then lift it up to clear the rail
along the unit top (2),
O
*Ifvent door is to be operational, remove shipping screws
from the front side of the vent door, if present,
Removetwo
screws
(ifoperationis
desired)
17

Installation Instructions
INSTALLING THE ZONELINE (cont.)
[] INSTALLTHE UNIT INTO THE
WALL CASE
Slide the unit into the wall case and secure with four
screws through the unit flange holes,
NOTE: There are several extra holes in the unit side
flanges for installation in wall cases other than GE,
To avoid damaging the flange insulation, the installer
should use an awl or other sharp tool to puncture the
insulation in the appropriate holes before installing the
attachment screws,
[_] REPLACETHE ROOM CABINET
Reinstall the room cabinet by hooking the top over
the rail along the unit top (1),then pushing it in at
the bottom (2),
18

Installation Instructions
OPTIONAL--DRAIN KITINSTALLATION
Dry Air 25 Series models are designed to improve dehumidification by 25%. Since more moisture will be removed from
the air, there is a greater possibility that water will drip from the wall case than with a standard unit. To prevent this
water from dripping onto external building walls, we recommend the use of RADIO Drain Kit.
External Drain
See the Installation Instructions
in the RADIO kit. ..__ _.__
-_-_ ...... _ ._I_ _Alternate:
--. ,_.". .... I/ /I /6"long, l/2"O.D, stralght
_-' I/ _ /coppertube
' !
\_. i- u_"_ _ _.:--..-..
_. _ Squaredrainholes f '_ '_'
. ,... Neoprene sponge gasket /
"". _ Steelmounting plate
' "_" "_ _--Type "A"screwformetalcaseor
Type"B"screwformoldedcase
Internal Drain
See the Installation Instructions in
the RADIO kit,
Steel mounting plate
[_' _.,_---Type "A"screwformetalcaseor
Type"B"screwformoldedcase
19

Before you call for service...
qTroubleshooting hps
S_ve time and money./Review the charts on the
following pages first and you may not need to cJ for
_serv/ce.
Problem Possible Causes What To Do
Zoneline does The unit is • Make sure the Zoneline plug is pushed completely
not start unplugged, into the outlet,
The power cord is not • Remove the room cabinet and make sure that the
firmly attached, yellow connector on the end of the power cord is
firmly engaged,
The fuse is blown/circuit • Check the house fuse/circuit breaker box and replace
breaker is tripped, the fuse or reset the breaker,
The unit is waiting for • This is normal, The Zoneline will start again after
the compressor overload it resets,
protector to reset.
Power failure.
The current interrupter
device is tripped.
• Ifpower failure occurs, set the mode control to STOR
When power is restored, set the mode control to the
desired setting,
• There is a protective time delay (up to 3 minutes) to
prevent tripping of the compressor overload, For this
reason, the unit may not start normal heating or cooling
for 3 minutes after it isturned back on,
• Press the RESETbutton located on the power cord plug
or the box near the plug,
• If the RESETbutton will not stay engaged, discontinue use
of the Zoneline and contact a qualified service technician,
Zoneline does not cool Indoor airflow • Make sure there are no curtains, blinds or furniture
orheatas itshould is restricted, blocking the front of the Zoneline,
Burning odor at the start
of heating operation
Outdoor airflow is
restricted or recirculated. • Make sure the rear grille is not restricted, This can
cause the unit to cycle off due to the compressor
overload protector,
• Outdoor grille must have a minimum of 65% free area,
Non-GE grilles may be too restrictive for proper
performance, Consult your salesperson for assistance,
The temp control may • Turn the control to a lower or higher setting,
not be set properly. NOTE."Thetemperature limiter may be limiting the
temperature range,
The air filter is dirty. • Clean the filter at least every 30 days,
See the Operating instructions section,
The room may have • When the Zoneline isfirst turned on you need to
been hot or cold. allow time for the room to cool down or warm up,
Outdoor air is • Set the vent control to the closed position,
entering the room.
Dust is on the surface
of the heating element. • This can cause a "burning" odor at the beginning of the heating operation, This odor should quickly fade,
2O
