GE AZ61H15EAD Original instructions

TINSEA576JBRZ  
7?<;27A7<;3?@
)%83303()0
)%89143()0
Owner’s anual and
Installation Instructions
GEAppliances.com
Write the model and serial
numbers here:
odel # __________________
Serial # ____________________
Find these numbers on a label
behind the room cabinet on the
base pan.
$32)0-2)?
Safety Instructions . . . . . . . . . . . . .2
Operating Instructions
Air Direction . . . . . . . . . . . . . . . . . . . . . . .4
Auxiliary Controls . . . . . . . . . . . . . . . .5–8
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .3
To Remove the Room Cabinet . . . . . .4
Ventilation Control . . . . . . . . . . . . . . . . .4
Care and Cleaning
Air Filters . . . . . . . . . . . . . . . . . . . . . . . . .10
Base Pan . . . . . . . . . . . . . . . . . . . . . . . . . .9
Outdoor Coils . . . . . . . . . . . . . . . . . . . . . .9
Room Cabinet and Case . . . . . . . . . . . .9
Ventilation Filter . . . . . . . . . . . . . . . . . . . .9
Installation Instructions
Electrical Connection . . . . . . . . . .13–16
nstalling the Zoneline . . . . . . . . .17, 18
Optional Drain Kit . . . . . . . . . . . . . . . . .19
Preparation . . . . . . . . . . . . . . . . . . . . . . .11
Replacing an Existing Unit? . . . . . . . .12
Troubleshooting Tips . . . . .20, 21
Normal Operating Sounds . . . . . . . . .22
Consumer Support
Consumer Support . . . . . . . .Back Cover
Warranty . . . . . . . . . . . . . . . . . . . . . . . . .23
Español
For a Spanish version of this
manual, visit our Website at
www.zoneline.com/literature.
Para consultar una version
en español de este manual
de instrucciones, visite nuestro
sitio de internet
www.zoneline.com/literature.
Français
For a French version of this
manual, visit our Website at
www.zoneline.com/literature.
Pour un version français de
ce manuel d’utilisation, veuillez
visiter notre site web à l’adresse
www.zoneline.com/literature.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
I PORTANT SAFETY INFOR ATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
36=3967%*)8=8,)-2*361%8-32-28,-71%29%01978&)*3003;)(831-2-1->)8,)6-7/3**-6)
36)<4037-32)0)'86-'7,3'/368346):)284634)68=(%1%+)4)6732%0-2.96=3603773*0-*)
■This Zoneline must be properly installed
in accordance with the nstallation
nstructions before it is used. See the
nstallation nstructions in the back
of this manual.
■Replace immediately all electric service
cords that have become frayed or
otherwise damaged. A damaged power
supply cord must be replaced with a
new power supply cord obtained from
the manufacturer and not repaired.
Do not use a cord that shows cracks
or abrasion damage along its length
or at either the plug or connector end.
■Unplug or disconnect the Zoneline
at the fuse box or circuit breaker
before making any repairs.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
■These R410A air conditioning systems
require contractors and technicians to
use tools, equipment and safety
standards approved for use with this
refrigerant. $#$(B@33>B7=:3;A
13?A747324<?&?34?753?/;A<;9F
Replacing an existing unit?
For details, see the nstallation nstructions
in this manual.
 #! 
"  # !#
SAVE THESE INSTRUCTIONS
2

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
About Your Heat Pump (6100 Series only)
Heat pumps can save money by removing heat
from the outside air—even when the outside
temperature is below freezing—and releasing
that heat indoors.
To get the best performance from your heat pump,
don’t change the room thermostat very often.
Raising the heat setting 2–3 degrees will cause
the Zoneline to use its electric heating elements in
order to reach the new temperature setting quickly.
There is a 3-minute minimum compressor
run time at any setting to prevent short cycling.
The indoor fan motor starts before the compressor
and stops after the compressor cycles off.
When the outdoor temperature is lower than 25°F,
heat is provided by the electric heater in the air
conditioner instead of by the heat pump.
The electric heating elements use much
more electricity than heat pumps and cost
more to operate.
About the controls on your Zoneline. GEAppliances.com
3286307
Temp Control
The temp control is used to maintain the room
temperature. The compressor will cycle on
and off to keep the room at the same level
of comfort.
Press the ▲pad to raise the temperature.
Press the ▼pad to lower the temperature.
NOTE: The display shows the set temperature,
not the room temperature.
Sleep
Press to set the air conditioner to run for 8 hours
before it automatically returns to the previous
setting.
When in the cooling mode and the sleep timer
is set, the set temperature will automatically
increase 2°F after the second hour then 1°F
each hour over the next two hours. Also, the
fan speed will change to low. When in the
heating mode, the set temperature will
decrease in the same manner.
To cancel the sleep mode, press the ODE pad
or the SLEEP pad a second time.
Fan, ode and Operation Control
FAN—Sets the fan operation for HIGH,
LOW or AUTO speed. When set at AUTO,
it automatically switches between LOW
and HIGH as room temperature changes.
ODE—COOL—For cooling
FAN—For fan-only operation
HEAT—For heating
OPERATION—ON/STOP—Turns the unit
on or off. Power remains connected to
the Zoneline. The Freeze/Heat Sentinel
features still function if active.See the
6))>)6)%8)28-2)0 section on page 6.
NOTE: ,)8)14)6%896)(-740%=;-00*0%7,
83-2(-'%8)%4377-&0)92-81%0*92'8-32)8
34)6%8-32'32863083STOP %2(8,)26)78%68
8,)92-8*8,)*0%7,-2+0-+,86)%44)%67;-8,-2
1-298)7'%00*367)6:-')
Quick Heat Recovery
Activates each time the thermostat is switched from
STOP or COOL mode to HEAT mode. Electric heaters
are energized until the thermostat set point
is reached. On heat pump models, the heat pump
operation will resume at the next call for heat.
TEMP CONTROL FAN, MODE & SLEEP OPERATION
3

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Ventilation Control
NOTE: ;37,-44-2+7'6);71978&)6)13:)(
*6318,):)28(336&)*36)97)))8,)278%00%8-32
27869'8-327-28,)&%'/3*8,-71%29%0*=39(3238
40%28397)8,):)28-0%8-32*)%896)0)%:)8,)7)8;3
7'6);7-240%')
The ventilation control lever is located at
the middle left side of the Zoneline unit,
behind the room cabinet.
When set at the closed position, only the air
inside the room is circulated and filtered.
When set at the open position, some outdoor
air will be drawn into the room. This will reduce
the heating or cooling efficiency.
Energy Tip: Keep the vent control in the closed
position. The room air will be filtered and circulated.
Air Direction
To change the air direction, remove the room
cabinet. Remove the 7 louver screws that hold
the louver insert in place. Flip the louver insert 180°,
replace the screws and the room cabinet.
Remove the room cabinet and flip the louver
insert to change the air direction.
4
Other features of your Zoneline.
To Remove the Room Cabinet
Additional controls are located behind the
room cabinet.
To remove: Pull out at the bottom to release it from
the tabs (1). Then lift up (2).
To replace: Place the tabs over the top rail (1). Push
inward at the bottom until it snaps into place (2).
Vent control
(shown in
middle position)
Open
position
Closed
position
Louver screws
Louver screws
Default
position
Remove two
shipping screws
(if operation is
desired)

Auxiliary controls on your Zoneline. GEAppliances.com
Auxiliary Controls—Aux Set Button
The auxiliary set controls are located behind
the room cabinet, below the control panel.
Remove the room cabinet. See the 3)13:)
8,)331%&-2)8 section.
The owner is responsible for ensuring the auxiliary
controls are set to the desired function. There are 9
different modes that can be set using the auxiliary
set button. To change modes, press AUX SET (“AU”
appears on the display). Press the mode button on
the control pad until the first digit in the display
shows the number corresponding to the mode you
are choosing and the correct HEAT/COOL LED is lit.
Press the up or down arrow (shown in the second
digit of the display) to make the mode setting
selection where applicable. Press the AUX SET
button to confirm the selection.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
Smart Fan—Cooling/Heating
The default setting for Mode 1 is as follows:
Cooling: Continuous (ON)
Heating: Cycle (OFF)
Press ODE until a 1 appears in the first digit of the
display for Smart Fan cool mode. The COOL LED
light on the main control will be on. To change to
heat mode, press ODE again. The HEAT LED light
on the main control will be lit. Press the down arrow
to set the indoor fan to cycle on/off when the unit is
heating or cooling " ." Press the up arrow to set
the indoor fan to run continuously " ." This is
shown in the second digit of the display. Press AUX
SET to confirm your selection and exit AUX SET
mode, or press ODE to continue setting other
functions.
8
Auxiliary et Button
Access Cover
Cooling – Cycle*
Heating – Cycle*
Cooling – Continuous
Heating – Continuous
"$
HIGH COOL
LOW FAN
AUTO HEAT
HIGH COOL
LOW FAN
AUTO HEAT
HIGH COOL
LOW FAN
AUTO HEAT
HIGH COOL
LOW FAN
AUTO HEAT
Load Shedding (Central Desk Control)
The default setting for Mode 2 is OFF.
This feature is active only if the unit is connected to
a CDC and the CDC has control. Press ODE until a
2 appears in the first digit of the display for Load
Shedding mode. Press the down arrow for OFF "
" or the up arrow for ON " ." This is shown in the
second digit of the display. When this mode is on,
only the indoor fan can be turned ON or OFF with
the unit controls. When this mode is off, all
operation is disabled except Heat/Freeze Sentinel
(Mode 3). Press AUX SET to confirm your selection
and exit AUX SET mode, or press ODE to continue
setting other functions.
Load
hedding
OFF
Load
hedding
ON
"$
5
*Note: n cyclic cooling mode, the indoor fan will activate occasionally to
verify airtemperature in the room. n cyclic heating mode, the fan will
continue to operate for 90seconds after the heating function has stopped in
order to increase unit efficiency.

6
Auxiliary controls on your Zoneline.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Remote Thermostat – Class 2
The default setting for Mode 6 is OFF.
Setting this mode to ON will allow the unit to operate with a Class
2 Remote Control Wall Thermostat. Press ODE until a 6 appears
in the first digit of the display for 9/@@ mode. Press the down
arrow to turn the option OFF " ." Press the up arrow to turn this
option ON " ." This is shown in the second digit of the display.
Press AUX SET to confirm your selection and exit AUX SET mode,
or press ODE to continue setting other functions.
Class 2 OFF Class 2 ON
"$
Constant ON Fan
The default setting for Mode 4 is OFF.
Press ODE until a 4 appears in the first digit of the display to set
the fan to run continuously at high speed, even if the unit is in
the STOP position. Press the down arrow for OFF " " or the up
arrow for ON " ." This is shown in the second digit of the
display. Press AUX SET to confirm your selection and exit AUX
SET mode, or press ODE to continue setting other functions.
Constant
Fan OFF
Constant
Fan ON
"$

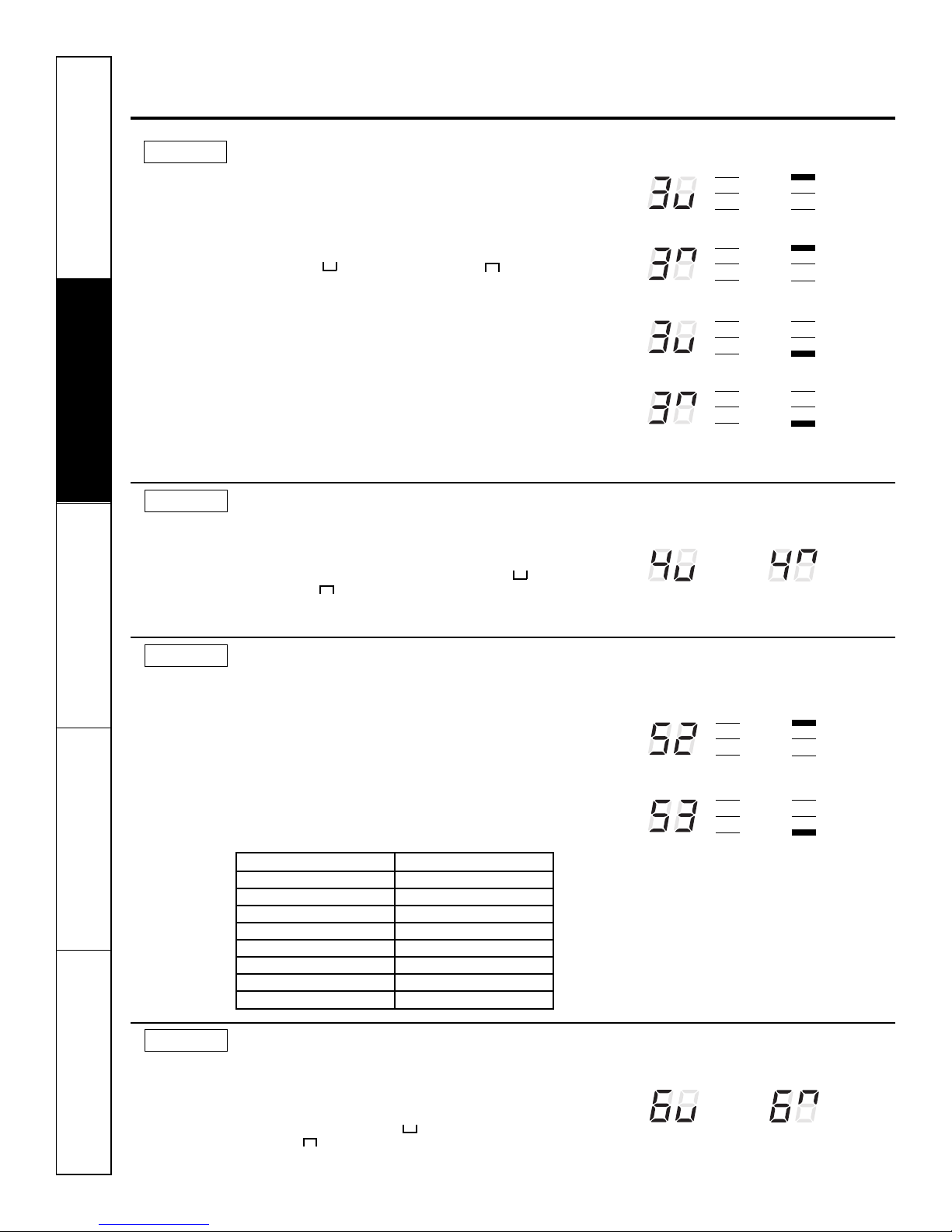

Freeze Sentinel/Heat Sentinel
n the default setting for Mode 3, Heat Sentinel is off, Freeze
Sentinel is on.
Press ODE until a 3 appears in the first digit of the display for
Freeze Sentinel mode. The COOL LED light on the main control
will be on. Press MODE again to change to the Heat Sentinel. The
HEAT LED light on the main control will be on. Press the down
arrow for OFF " " or the up arrow for ON " ." This is shown
in the second digit of the display. Press AUX SET to confirm your
selection and exit AUX SET mode, or press ODE to continue
setting other functions.
When Freeze Sentinel is activated, it automatically provides
heat without user interface. This helps to prevent plumbing
damage by turning the heater and indoor fan ON at 41ºF and
OFF at 46ºF.
When Heat Sentinel is activated, it automatically provides
cooling without user interface. This helps to prevent an
excessively hot room by turning the air conditioner ON at 85ºF
and OFF at 80ºF.
NOTE: These functions are active whenever the unit is
plugged in, even if the unit is in the STOP position.
Freeze entinel OFF
Heat entinel OFF
Freeze entinel ON
Heat entinel ON
"$
HIGH COOL
LOW FAN
AUTO HEAT
HIGH COOL
LOW FAN
AUTO HEAT
HIGH COOL
LOW FAN
AUTO HEAT
HIGH COOL
LOW FAN
AUTO HEAT
Temperature Limiting
The default setting for Mode 5 is as follows:
Cool: 0 (60ºF to 85ºF)
Heat: 7 (60ºF to 85ºF)
Press ODE until a 5 appears in the first digit of the display for
Temperature Limiting cool mode. The COOL LED light on the
main control will be lit. To change to heat mode, press ODE
again and the HEAT LED light on the main control will be lit. To
set the temperature limits, press the up or down arrow keys. The
second digit of the display will be between 0 and 7 depending on
the limit you want to set. The chart shows the limits available.
Press AUX SET to confirm your selection and exit AUX SET mode,
or press ODE to continue setting other functions.
Temperature Limiting Cool – Limit 2
Temperature Limiting Heat – Limit 3
"$
HIGH COOL
LOW FAN
AUTO HEAT
HIGH COOL
LOW FAN
AUTO HEAT
Temperature limits—Cool Temperature limits—Heat
0 = 60°F to 85°F 0 = 60°F to 65°F
1 = 64°F to 85°F 1 = 60°F to 70°F
2 = 66°F to 85°F 2 = 60°F to 72°F
3 = 68°F to 85°F 3 = 60°F to 74°F
4 = 70°F to 85°F 4 = 60°F to 76°F
5 = 72°F to 85°F 5 = 60°F to 78°F
6 = 74°F to 85°F 6 = 60°F to 80°F
7 = 76°F to 85°F 7 = 60°F to 85°F

The default setting for Mode 8 is OFF.
This electric heat option functions only on the 6100
model. When this option is ON " ," heat pump
operation is locked out, causing the unit to provide
only electric resistance heat.
To set All-Electric Heat 348-32,
press ODE until an 8
appears in the first digit of the display
. Press the up or
down arrow keys to set this switch to OFF " " or
ON " ." This is shown in the second digit of the display.
Press AUX SET to confirm your selection and exit AUX SET
mode, or press ODE to continue setting other functions.
The default setting for Mode 9 is OFF.
When Heat Boost is ON and outer temperatures are
between 25ºF and 46ºF, heat pump only operation is
locked out. This setting is used to provide supplementary
heat to the heat pump operation by electric resistance
heat in conditions where the heat pump-only operation
is not sufficient to maintain a consistent, comfortable
room temperature. NOTE: Temperature Boost option
should not be used with remote thermostat operation.
This will cause the unit to switch to resistance heat when
the outdoor temperature is 46ºF.
To set Heat Boost, press ODE until a 9 appears in the
first digit of the display. Press the up or down arrow keys
to set this switch to OFF " " or ON " ." This is shown
in the second digit of the display. Press AUX SET to
confirm your selection and exit AUX SET mode.
GEAppliances.com
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
External Fan
Central Desk Control
Common
White - Heater
Yellow - Compressor
Black - Solenoid (AZ61 only)
Green - High Speed Fan
Green - Low Speed Fan
Red - 24 V AC only
EXT
FAN
CDC
24 VAC R
FAN LO G
FAN HI G
REV VAL B
COMP Y
AUX HEAT W
COMMON C

Duct ode
The default setting for Mode 7 is OFF.
This setting is used when the unit is installed using a
duct adapter kit. f the unit is ducted, the Duct Mode
needs to be set to ON. This increases the fan speed to
ensure proper circulation.
Press ODE until a 7 appears in the first digit of the
display. Press the up or down arrow keys to set this
switch to OFF " " or ON " ." This is shown in the
second digit of the display. Press AUX SET to confirm
your selection and exit AUX SET mode.
For Model AZ6100, press ODE to continue setting
other functions. Pressing ODE on Model AZ4100 will
return you to AUX SET mode and an “AU” will appear in
the display.
Duct Mode OFF Duct Mode ON
"$
All-Electric Heat (AZ6100 only)
All-Electric
Heat OFF
All-Electric
Heat ON
"$
Heat Boost (AZ6100 only)
Heat Boost OFF Heat Boost ON
"$
7
Auxiliary Controls—Terminal Connections
The auxiliary controls are located behind the room
cabinet beneath the access cover.
Turn off and unplug the unit.
Remove the room cabinet. See the 3)13:)8,)
331%&-2)8 section.
Remove the screw from the access cover.
To make wiring connections, insert the wires into the
bottom of the terminals and tighten screws securely.
After all desired connections have been made,
replace the access cover and room cabinet.
The owner is responsible for making all connections and
setting the appropriate AUX SET mode.
CAUTION:
mproper wiring may damage the Zoneline electronics.
No common busing is permitted. Damage or erratic
operation may result. A separate wire pair must be run
from each separate controlling switch to each individual
Zoneline.
5
4
3
2
1
Access Cover

8
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Auxiliary controls on your Zoneline.
External Fan (Obtained locally)
When connected, an auxiliary or external fan can be
controlled with the indoor fan motor on the Zoneline.
Connections provide 24 V AC to energize a remote relay,
turning on the external fan.
Central Desk Control
When connected, the unit can be turned ON or OFF with
a switch located at the Central Control Panel. A separate
wire pair must be run from each separate controlling
switch to each individual Zoneline.
Refer to MODE 2 on page 5 for fan setting options.
Remote Thermostat
When connected to a remote thermostat, the indoor air
temperature sensing is shifted from the unit to the
remote thermostat. For this reason, the units will operate
slightly differently when connected to a remote
thermostat. The following chart shows the unit operation
when connected to a remote thermostat.
NOTE: The Class 2 Mode setting (Mode 6) must be set to
ON " " for the unit to operate with a Class 2 Remote
Wall Thermostat. (See the installation instructions
supplied with the remote thermostat and Mode
instructions on page 7.)
I PORTANT: The Zoneline thermostat
connections provide 24 V AC only.
f using a digital/electronic wall thermostat, you must set
it to the 24 V AC setting. See the nstallation nstructions
for the wall thermostat.
CAUTION:
Damage to a wall thermostat or to the Zoneline
electronics can result from improper connections. Special
care must be used in connecting the wires. No line
voltage connections should be made to any circuit.
solate all wires in building from line voltage.
Class 2 hown ON
Feature Heat Pump Electric Heat
In oor Frost Control Yes Yes
Freeze Sentinel Yes Yes
Auto Fan Spee No No
Electronic Temperature Limiting No No
Switch to Resistance Heat Base Determine by N/A
On In oor Temperature Remote Thermostat
Switch to Resistance Heat Base Yes N/A
On Out oor Temperature
Reverse Cycle Defrost Yes N/A
Simultaneous Resistance Heat No N/A
with Heat Pump
Resistance Heat Lockout Yes N/A
“Smart Fan” Fan Cycle Fan ON/AUTO Set On Fan ON/AUTO Set On
Remote Thermostat Remote Thermostat
Central Desk Control Yes Yes

Care and cleaning.
Base Pan
n some installations, dirt or other debris may be
blown into the unit from the outside and settle in
the base pan (the bottom of the unit).
n some areas of the United States, a naturally
occurring “gel-like” or “slime-like” substance may be
seen in the base pan.
Check it periodically and clean, if necessary.
Ventilation Filter
*8,):)28(336-734)2%'')776)59-6)78,)6)13:%0
3*8,)92-8*6318,);%0070)):)0)%28,):)28*-08)6
8;-')%=)%636%76)59-6)(
9628,)$32)0-2)3**%2(92409+&)*36)'0)%2-2+
To clean the vent filter:
I PORTANT:
This filter is not removable. Trying to remove this
filter will damage the unit.
■Use a vacuum to remove debris from the filter.
■Use a damp rag to wipe down the filter and
surrounding area after vacuuming.
Outdoor Coils
The coils on the outdoor side of the Zoneline should
be checked regularly. f they are clogged with dirt
or soot, they may be professionally steam cleaned.
You will need to remove the unit from the wall
sleeve to inspect the coils. The dirt buildup occurs
on the fan side of the outdoor coil.
Clean the outside coils regularly.
Room Cabinet and Case
Turn the Zoneline off and disconnect the
power supply.
To clean, use water and a mild detergent.
Do not use bleach or abrasives. Some commercial
cleaners may damage the plastic parts.
Coils
Grille
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
9
Remove two
shipping screws
(if operation is
desired)

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
10
31%-28%-2348-1914)6*361%2')'0)%28,)*-08)67%80)%78):)6=(%=7
Air Filters
Turn the Zoneline off before cleaning.
The most important thing you can do to maintain
the Zoneline is to clean the filter at least every
30 days. Clogged filters reduce cooling, heating
and air flow.
Keeping these filters clean will:
■Decrease cost of operation.
■Save energy.
■Prevent clogged heat exchanger coils.
■Reduce the risk of premature component failure.
To clean the air filters:
■Vacuum off the heavy soil.
■Run water through the filters from the
back side.
■Dry thoroughly before replacing.
NOTE: The air filters are interchangeable
and will fit in either the right or left side.
To remove the air filters:
To replace the air filters:
CAUTION:Do not operate the
Zoneline without the filters in place. If a filter
becomes torn or damaged, it should be replaced
immediately.
Operating without the filters in place or with
damaged filters will allow dirt and dust to reach
the indoor coil and reduce the cooling, heating,
airflow and efficiency of the unit.
Replacement filters are available from your
salesperson, GE dealer, GE Service and Parts
Center or authorized Customer Care®servicers.
Dirty filter—Needs cleaning Clogged filter—Greatly
reduces cooling, heating
and airflow.
FRONT
FRONT
Pull up
Push down
2 Air filters
Care and cleaning.
