GE AHL05 Operating instructions

Safety Instructions............. 2,3
Operating Instructions
Controls..............................4
Care and Cleaning
AirFilter ..............................5
OutdoorCoils.........................5
Installation Instructions......6–10
Troubleshooting Tips ............11
Normal Operating Sounds ............11
Consumer Support
Warranty for Customers
intheU.S.A...........................13
Consumer Support ...................14
49-7711 08-13 GE
AHL05
AHR05
Owner’s Manual and
Installation Instructions
Write the model and serial numbers here:
Model # _________________________
Serial # __________________________
Find these numbers on a label on the side of
the air conditioner.
Air Conditioners
GEAppliances.com
Room
In Canada, contact us at:
www.GEAppliances.ca

2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric
shock or personal injury.
Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly
and pull straight out from the receptacle.
Replace immediately all electric service
cords that have become frayed or otherwise
damaged. A damaged power supply cord
must be replaced with a new power supply
cord obtained from the manufacturer and
not repaired. Do not use a cord that shows
cracks or abrasion damage along its length
or at either the plug or connector end.
Turn the unit OFF and unplug your air
conditioner before cleaning.
 GE does not support any servicing of the
air conditioner. We strongly recommend
that you do not attempt to service the air
conditioner yourself.
For your safety…do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
 All air conditioners contain refrigerants,
which under federal law must be removed
prior to product disposal. If you are getting
rid of an old product with refrigerants, check
with the company handling disposal about
what to do.
 If the receptacle does not match the plug,
the receptacle must be changed out by a
qualified electrician.
 These R410A air conditioning systems
require contractors and technicians to
use tools, equipment and safety standards
approved for use with this refrigerant.
DO NOT use equipment certified for
R22 refrigerant only.
SAFETY PRECAUTIONS
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
For personal safety, this appliance must be
properly grounded.
DO NOT use an adapter plug with this
appliance.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock
hazard from this appliance.
Power cord includes a current interrupter device.
A test and reset button is provided on the plug
case. The device should be tested on a periodic
basis by first pressing the TEST button and
then the RESET button while plugged into the
outlet. If the TEST button does not trip or if the
RESET button will not stay engaged, discontinue
use of the air conditioner and contact a qualified
service technician.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to
have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be plugged
into its own individual electrical outlet which has
a voltage rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
See the Installation Instructions, Electrical
Requirements section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY

3
GEAppliances.com
WARNING!
USE OF EXTENSION CORDS
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY .
SAVE THESE INSTRUCTIONS
RISK OF FIRE. Could cause serious injury or
death.
DO NOT use an extension cord with this
Window Air Conditioner.
DO NOT use surge protectors or multi-outlet
adaptors with this Window Air Conditioner.

4
About the controls on the air conditioner
Features and appearance will vary.

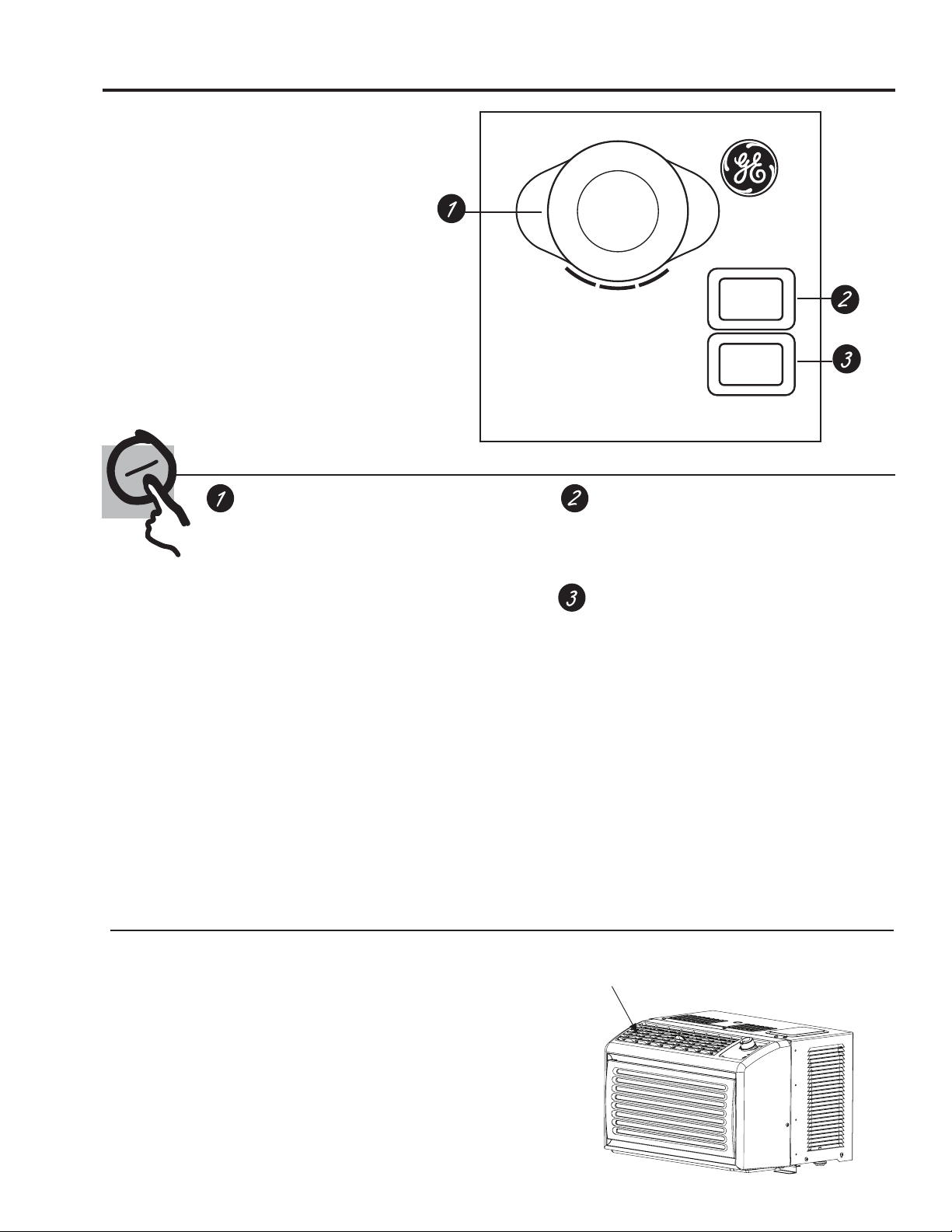

Controls

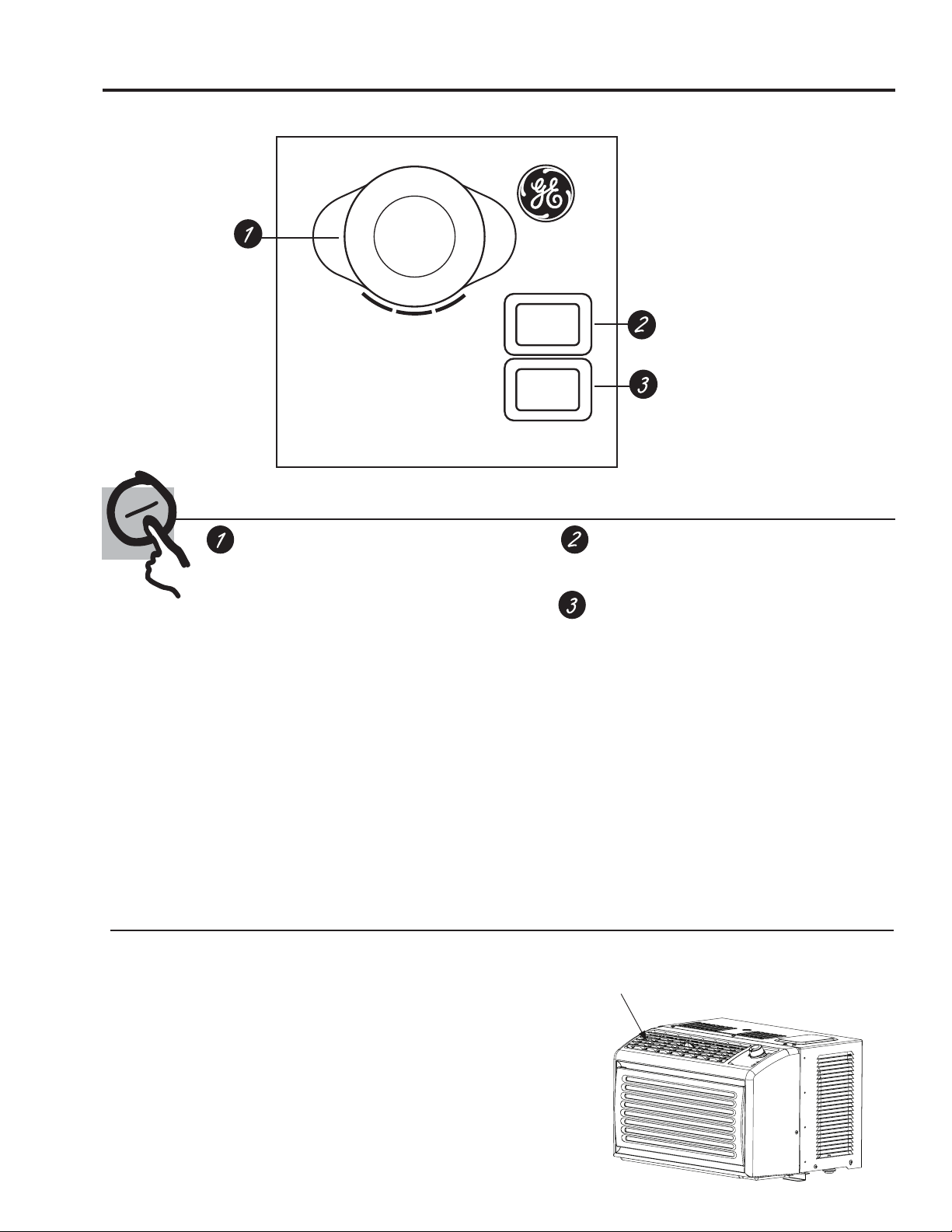

Temperature Control
Setting determines how much cooling is
provided. High Cool provides the most cooling
and Low Cool provides the least.
Fan Only turn off the cooling.
NOTE: If you move the Temperature control
from a cool setting to OFF or to a fan setting,
wait at least 3 minutes before switching back to
a cool setting.
Cooling Descriptions
)RU1RUPDO&RROLQJ³Select High Cool or Low
Cool.
For Maximum Cooling³6HOHFWHigh Cool with the
FAN SPEED set to HI.
For Quieter and Nighttime Cooling³6HOHFWLow
Cool with the FAN SPEED set to LOW.
Fan Speed
The fan speed button can be set on HI or LOW.
In both cooling mode and fan only mode.
Power
Turns the unit on or off.
Speed
Fan
Only
Power
Low High
Cool
Wait 3 Min
Before Restarting
Cool
Fan
Air Direction
Use the lever to adjust the air direction left and right
only. lever is in middle

Care and Cleaning the air conditioner GEAppliances.com
5
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged with
dirt or soot, they may be professionally cleaned.
Turn the air conditioner off and remove the plug from
the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not use
bleach or abrasives.
Grille and Case
Air Filter

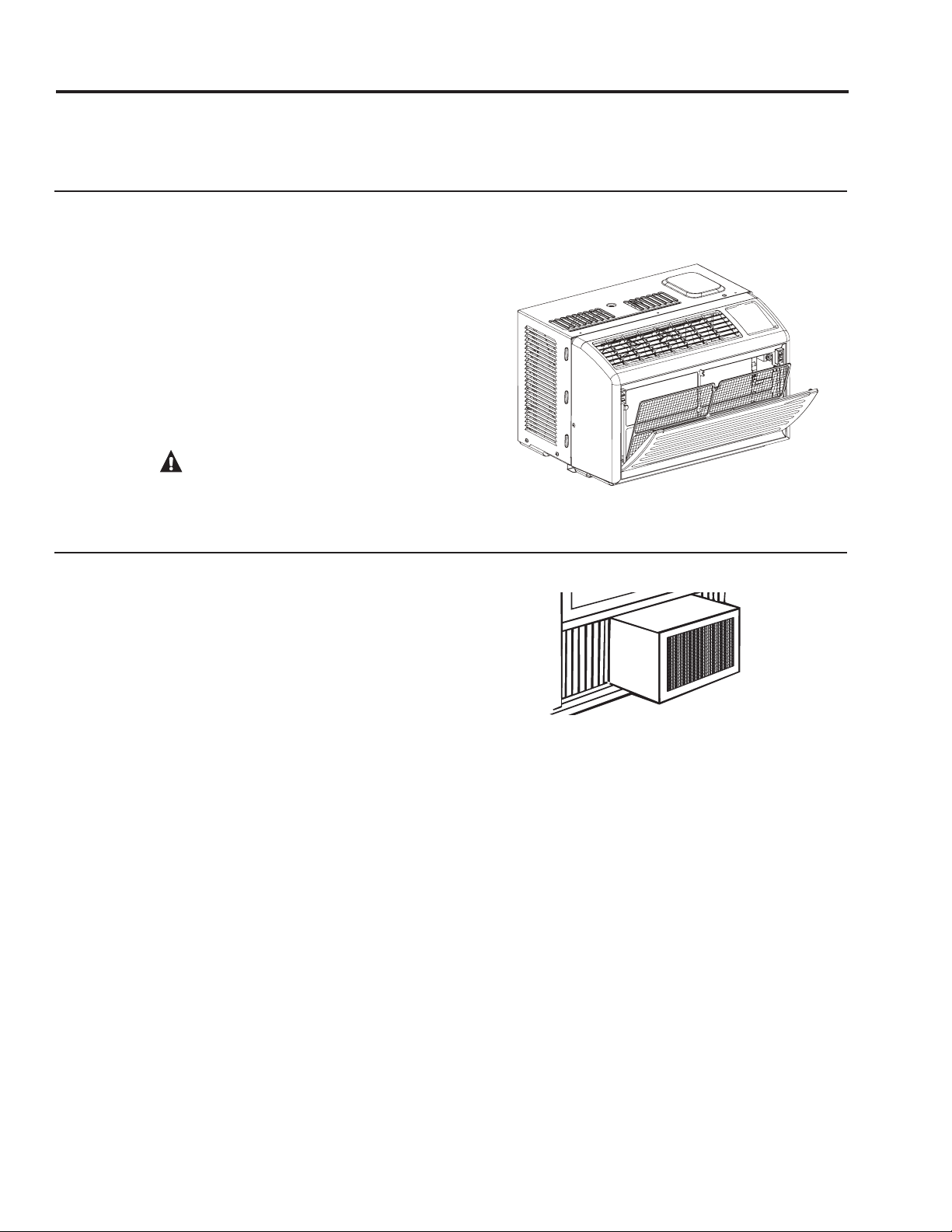

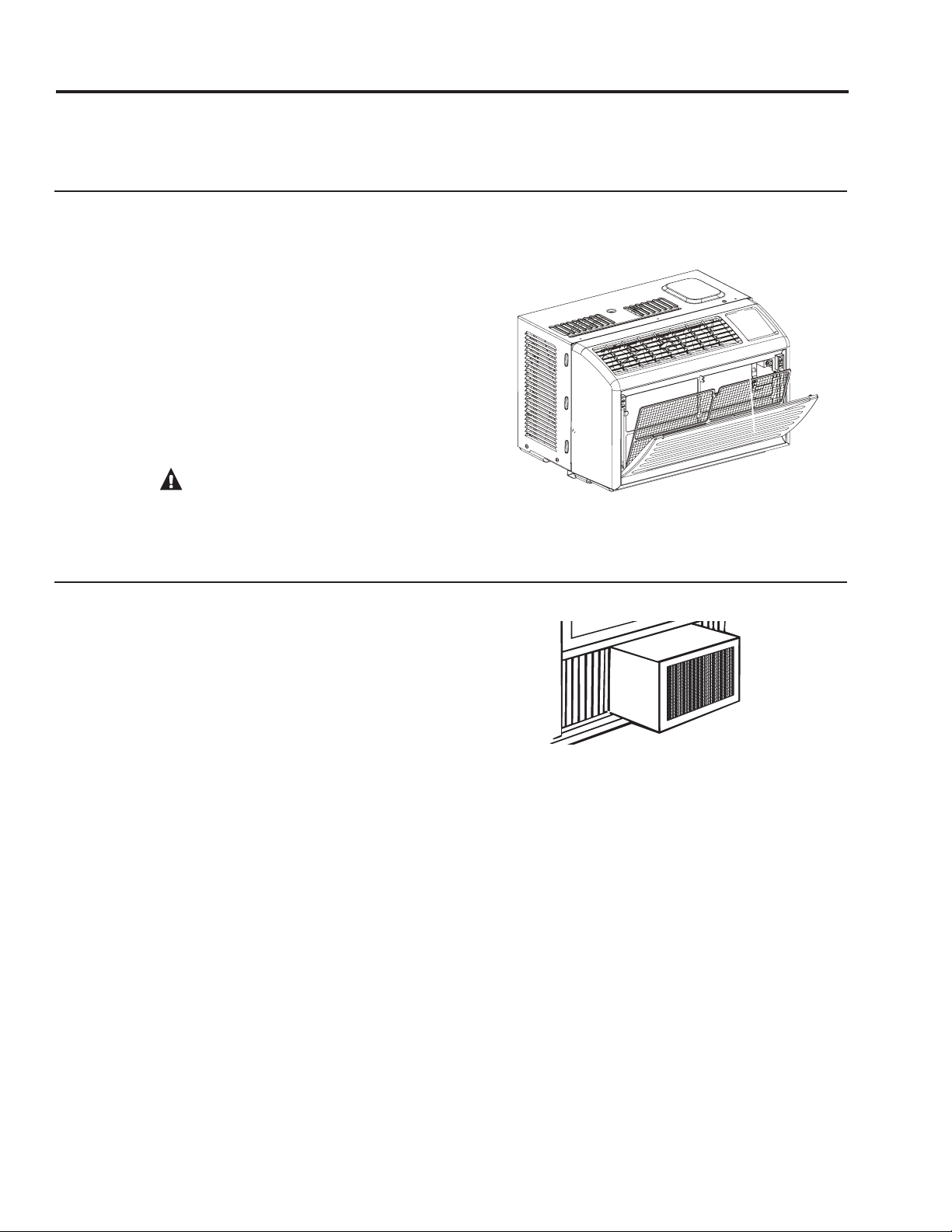

The air filter behind the front grille should be checked
and cleaned at least every 30 days or
more often if necessary.
To remove:
Open the inlet grille by pulling downward on the tabs
at the top upper corners of the inlet grille until the
grille is in a 45º position. Remove the filter.
Clean the filter with warm, soapy water. Rinse and let
the filter dry before replacing it. Do not clean the filter
in a dishwasher.
CAUTION:DO NOT operate the air
conditioner without a filter because dirt and lint will
clog it and reduce performance.

BEFORE YOU BEGIN
Read these instructions completely
and carefully.
tIMPORTANT —Save these instructions
for local inspector’s use.
tIMPORTANT —Observe all governing
codes and ordinances.
t Note to Installer – Be sure to leave these
instructions with the Consumer.
t Note to Consumer – Keep these instructions for
future reference.
t Skill level – Installation of this appliance
requires basic mechanical skills.
t Completion time – Approximately 1 hour
t We recommend that two people install
this product.
t Proper installation is the responsibility
of the installer.
t Product failure due to improper installation is not
covered under the Warranty.
t You MUST use all supplied parts and use proper
installation procedures as described in these
instructions when installing this air conditioner.
Installation
Air Conditioner
Instructions
Some models require a 115/120-volt AC,
60-Hz grounded outlet protected with a
15-amp time-delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall outlet you
plan to use is only a 2-prong outlet,
it is your responsibility to have it replaced with
a properly grounded 3-prong wall outlet.
Some models require 230/208-volt AC,
protected with a time-delay fuse or circuit
breaker. These models should be installed on
their own single branch circuit for best
performance and to prevent overloading
house or apartment wiring circuits, which
could cause a possible fire hazard from
overheating wires.
ELECTRICAL REQUIREMENTS
CAUTION:
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
Do not change the plug on the power cord of this air
conditioner.
Aluminum house wiring may present special
problems—consult a qualified electrician.
Power cord includes a current interrupter
device. A test and reset button is provided on the
plug case. The device should be tested on a periodic
basis by first pressing the TEST button and then the
RESET button while plugged into the outlet. If the
TEST button does not trip or if the RESET button will not
stay engaged, discontinue use of the air conditioner
and contact a qualified service technician.
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca
6

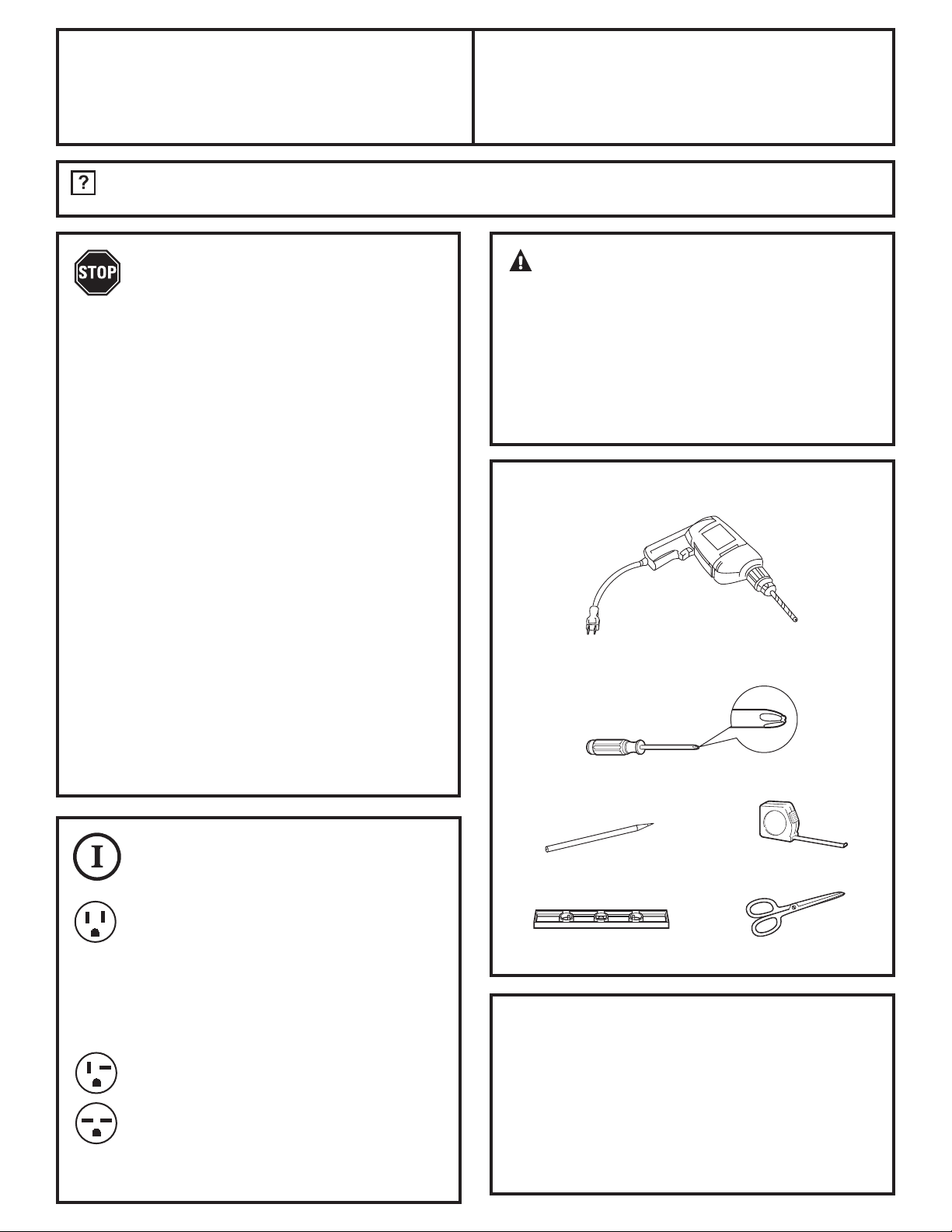

TOOLS YOU WILL NEED
Phillips head screwdriver
Ruler or tape measure
Pencil
Level Scissors or knife
Drill and 1/8” drill bit

7
Installation Instructions
Type A screws (3)
Side curtains (2)
Foam seal
Top channel
Air
conditioner
Window lock bracket (3)

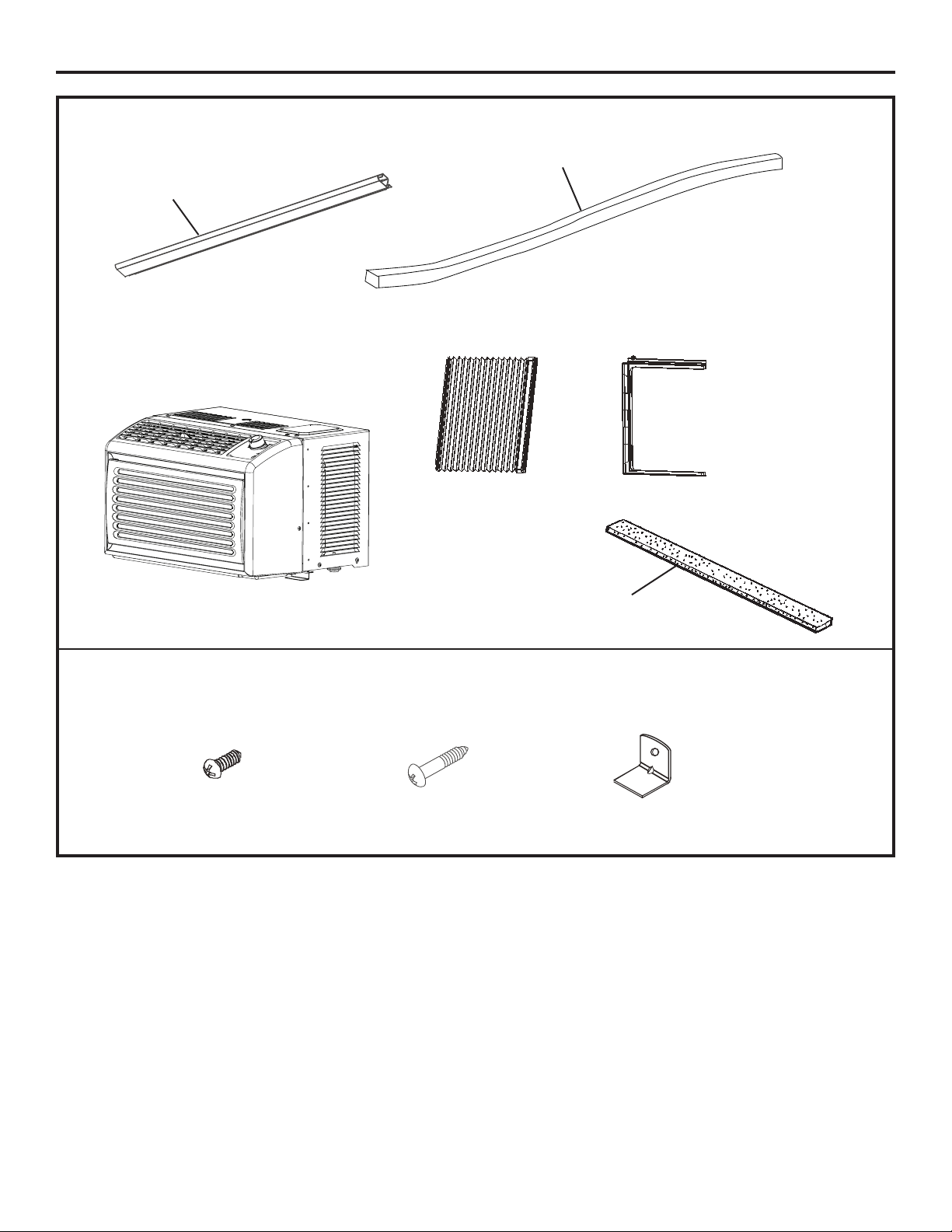

PARTS INCLUDED
(Appearance may vary)
Side curtains frames (2)
Type B screws (7)
Bottom seal

8
STORM WINDOW REQUIREMENTS
A storm window frame will not allow the air
conditioner to tilt toward the outside, and will keep it
from draining properly.
To adjust for this, attach a piece of wood to the sill.
WOOD PIECES
WIDTH: 2”
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the sill to make it 1/2” higher than
the top of the storm window frame or the vinyl
frame.
Attach securely with nails or screws provided by the
installer.
Installation Instructions

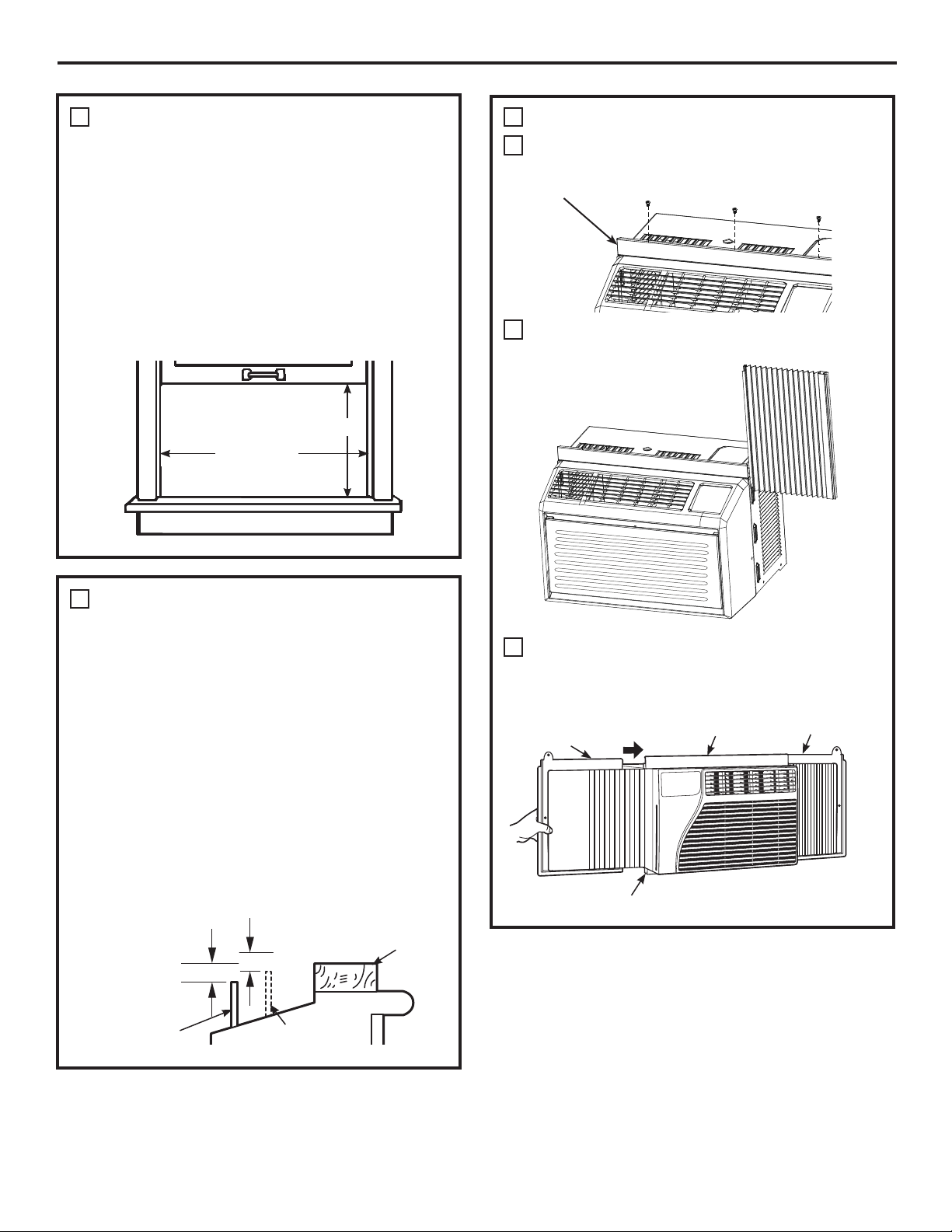

WINDOW REQUIREMENTS
tThese instructions are for a standard double-hung
window. You will need to modify them for other types
of windows.
tThe air conditioner can be installed without the
side curtain if needed to fit in a narrow window.
See the window opening dimensions.
tAll supporting parts must be secured
to firm wood, masonry or metal.
tThe electrical outlet must be within reach of the
power cord.
tFollow the dimensions in the table and illustration
for your model.
1
2
1/2” higher
than storm
window
frame
Storm window
frame
Wood
Sill
1/2” higher
than vinyl frame
(on some windows)
Vinyl frame
(With side curtain)
12” 3/8”
23 1/4”- 36”

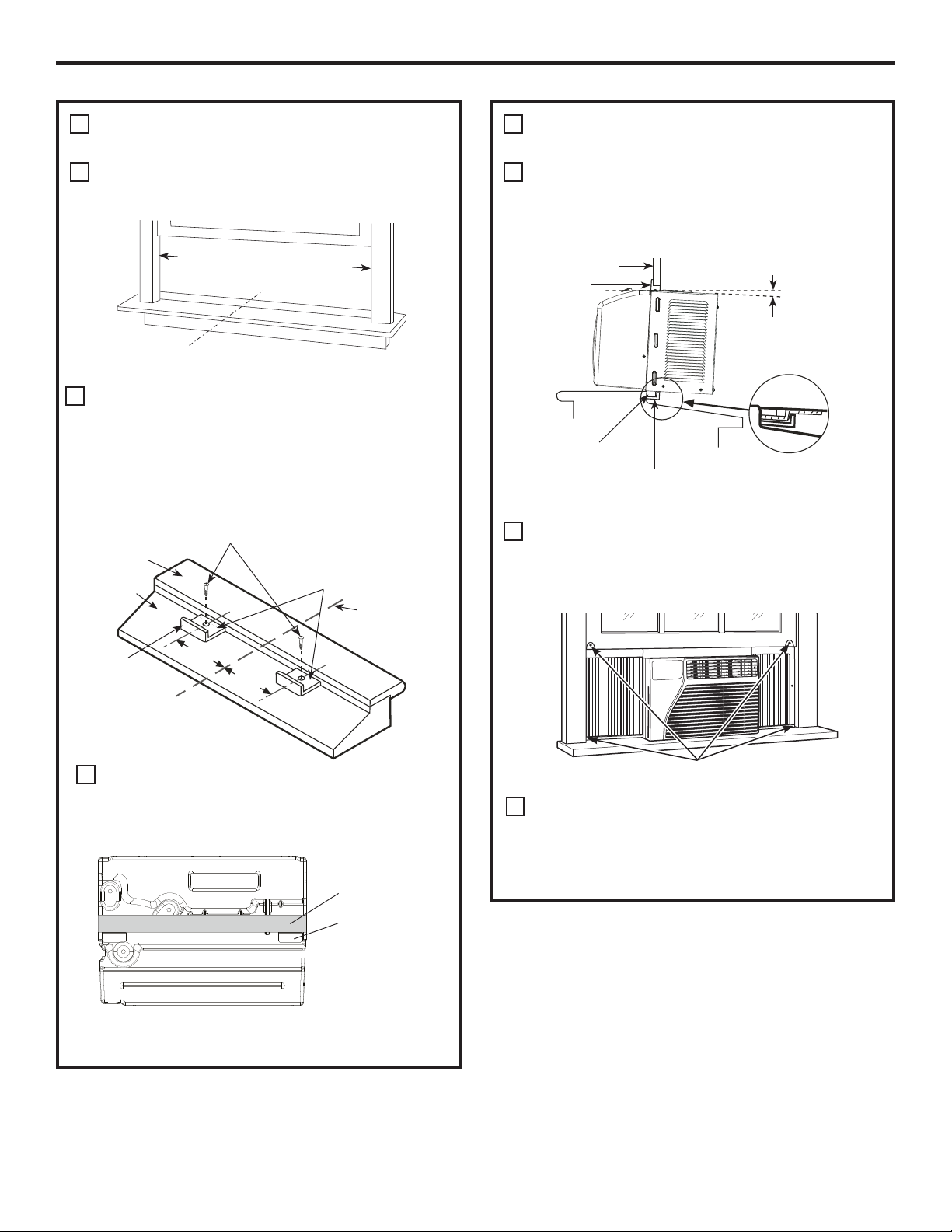

PREPARE THE AIR CONDITIONER
Install the top mounting rail with 3 Type A
screws from the outside of the case.
Slide curtain panel into side rails.
Slide left and right side curtain frames into top
and bottom mounting rail. Make sure curtain
snaps into place.
3
A
B
Top mounting rail
C
Top left Top right
Top mounting rail
Bottom mounting rail

9
Installation Instructions
6
A
INSTALL THE AIR CONDITIONER
IN THE WINDOW
Set the air conditioner in the window so that
is centered. Place the air conditioner so that
front edge of the bottom mounting rail is
against the back edge of the sill.
BBring the window down so that the front
edge of the top mounting is in front of the
window. Make sure that that air conditioner
is level or tilting slightly to the outside.
CExtend the curtain panels until they fill the
window. Mark the location of the holes in
each corner. Use the drill and 1/8” drill bit to
drill pilot holes. Use 4 type B screws to to
secure the side panels in place.
Type B screws
About 1/4”
Bottom guide
Window frame
Top channel
Window lock
bracket
5
A
PREPARING THE WINDOW FOR
INSTALLATION
Measure the width of the window opening and
mark the center line on the inside windowsill.
Width of window opening
Center line
BInstall the window lock bracket behind the
inner windowsill, with the short side of window
lock. Use 2 type B screws provided.
The window lock bracket helps hold unit
securely in place. Be sure to place window
lock bracket edge flush against back or inner
sill.
7.5”
7.5”
Window lock
brackets
Center line
Inner sill
Outer sill
Short side
Type B screws
CRemove backing on bottom seal. Place seal,
adhesive side down, on the bottom of the air
conditioner behind the bottom mounting rail.
Bottom Seal
Bottom
mounting rail
Front

7

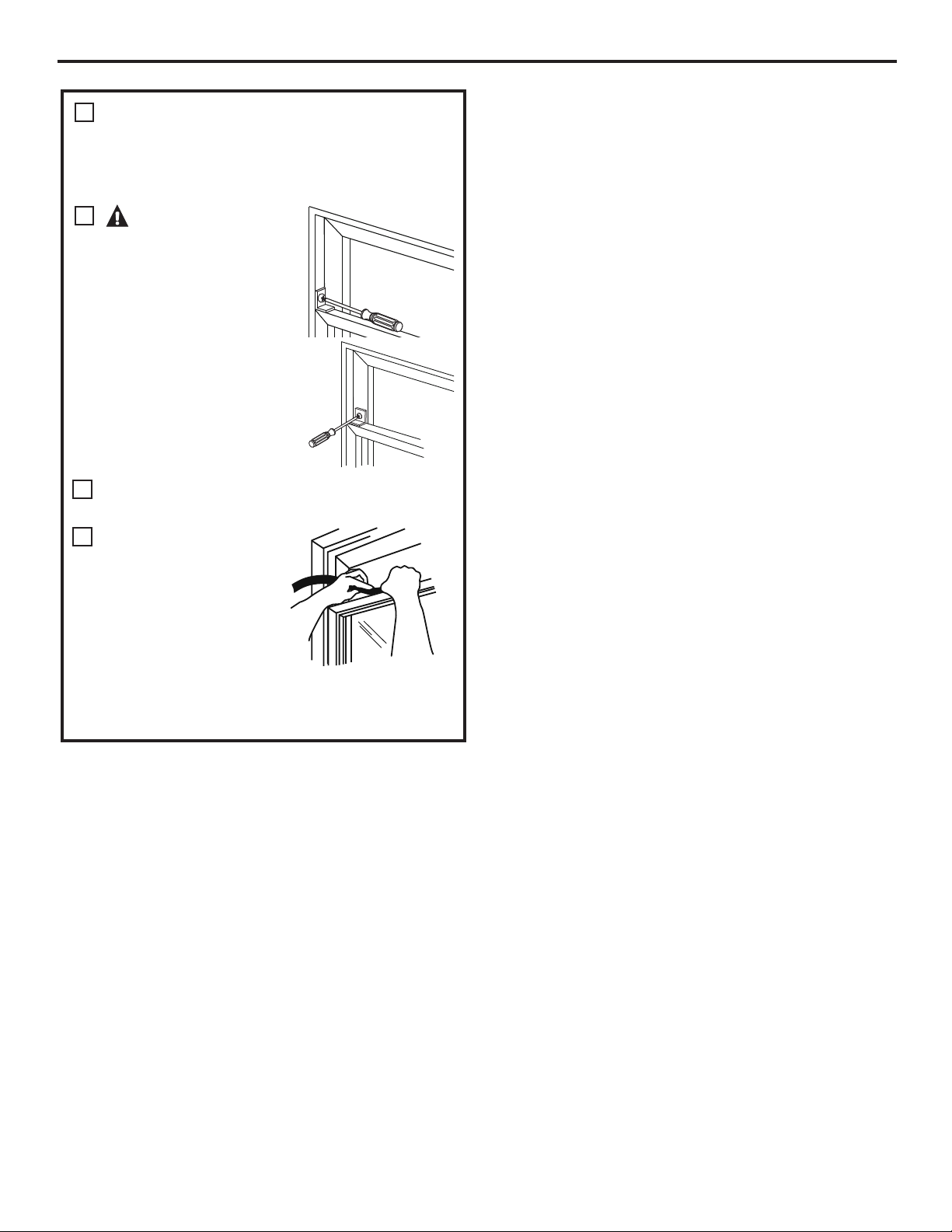

INSTALL SUPPORT BRACKET AND
FOAM TOP WINDOW GASKET
Use type B screw to install the window lock
bracket on top of bottom window.
Cut the foam top window gasket to the window
width.
Stuff the foam between
the glass and the
window to prevent
air and insects from
getting into the room.
NOTE: If the gasket supplied does not fit your
window, obtain appropriate material locally to
provide a proper installation seal.
ACAUTION:
To prevent broken glass or
damage to windows, on
vinyl or other similarly
constructed windows,
attach the window locking
bracket to the window side
jamb with one Type B
screw.
B
C
Wood
Vinyl
Installation Instructions
10

Troubleshooting Tips.
Normal Operating Sounds
 You may hear a pinging noise caused by
water being picked up and thrown against the
condenser on rainy days or when the humidity
is high. This design feature helps remove
moisture and improve efficiency.
 You may hear the thermostat click when the
compressor cycles on and off.
 Water will collect in the base pan during
high humidity or on rainy days. The water
may overflow and drip from the outdoor side
of the unit.
 The fan may run even when the compressor
does not.
Problem Possible Causes What To Do
Air conditioner The air conditioner tMake sure the air conditioner plug is pushed
does not start is unplugged. completely into the outlet.
The fuse is blown/circuit tCheck the house fuse/circuit breaker box and replace
breaker is tripped. the fuse or reset the breaker.
Power failure. tThe unit will automatically restart in the settings last
used after the power is restored.
tThere is a protective time delay (approximately
3 minutes) to prevent tripping of the compressor
overload. For this reason, the unit may not start
normal cooling for 3 minutes after it is turned
back on.
The current interrupter tPress the RESET button located on the power cord plug.
device is tripped. tIf the RESET button will not stay engaged, discontinue
use of the air conditioner and contact a qualified
service technician.
Air conditioner does Airflow is restricted. tMake sure there are no curtains, blinds or furniture
not cool as it should blocking the front of the air conditioner.
The temp control may 7XUQWKHWHPSHUDWXUHNQREWRDKLJKHUQXPEHU
not be set correctly.
The air filter is dirty. tClean the filter at least every 30 days.
See the Care and Cleaning section.
The room may have been hot. tWhen the air conditioner is first turned on, you need
to allow time for the room to cool down.
Cold air is escaping. tCheck for open furnace registers and cold air returns.
Cooling coils have iced up. tSee “Air conditioner freezing up” below.
Air conditioner Ice blocks the air flow tOn models with control knobs, set the mode control at
freezing up and stops the air conditioner High Fan or High Cool with the Temp at 1 or 2.
from cooling the room.
Water drips outside Hot, humid weather. tThis is normal.
Water drips indoors The air conditioner is not tFor proper water disposal, make sure the air conditioner
tilted to the outside. slants slightly from the case front to the rear.
Water collects in Moisture removed from air tThis is normal for a short period in areas with little
base pan and drains into base pan. humidity; normal for a longer period in very humid areas.
11

NOTES:
12

13
*($LU&RQGLWLRQHU³2QH<HDU/LPLWHG:DUUDQW\ (For customers in the U.S.A.)
For The Period Of: We Will Replace:
One Year Replacement unit for any product which fails due to a defect in materials or workmanship.
From the date of the The replacement unit is warranted for the remainder of your product’s original one-year
original purchase warranty period.
ŶCustomer instruction. This owner’s manual provides
information regarding operating instructions and
user controls.
ŶImproper installation, delivery or maintenance. If you
have an installation problem, or if the dehumidifier is
of improper dehumidification capacity, contact your
dealer or installer. You are responsible for providing
adequate electrical, plumbing and other connecting
facilities.
ŶFailure of the product resulting from modifications to
the product or due to unreasonable use, including failure
to provide reasonable and necessary maintenance.
ŶReplacement of house fuses or resetting of circuit
breakers.
ŶFailure due to corrosion on models not corrosion-
protected.
ŶDamage to the product caused by improper power
supply voltage, accident, fire, floods or acts of God.
ŶIncidental or consequential damage caused by possible
defects with this dehumidifier.
ŶDamage caused after delivery.
What Is Not Covered:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within the USA.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Exclusion of implied warranties: Except where prohibited or restricted by law, there are no warranties,
whether express, oral or statutory which extend beyond the description on the face hereof, including
specifically the implied warranties of merchantability or fitness for a particular purpose.
Warrantor: General Electric Company. Louisville, KY 40225
Staple your receipt here.
Proof of the original purchase date is
needed to make a warranty claim.
ŶProperly pack your unit. We recommend using the
original carton and packing materials.
ŶReturn the product to the retail location where it
was purchased.
ŶInclude in the package a copy of the sales receipt or
other evidence of date of original purchase. Also print
your name and address and a description of the defect.
(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSODFHPHQW
as provided in this Limited Warranty. Any implied warranties, including the implied warranties of
merchantability or fitness for a particular purpose, are limited to one year or the shortest period
allowed by law.
In Order to Make a Warranty Claim:

14
Consumer Support.
GE Appliances Website In the U.S.A.: GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
or even order parts on-line. In Canada: www.GEAppliances.ca
Real Life Design Studio In the U.S.A.: GEAppliances.com
*(VXSSRUWVWKH8QLYHUVDO'HVLJQFRQFHSW³SURGXFWVVHUYLFHVDQGHQYLURQPHQWVWKDWFDQEHXVHGE\
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical
and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design
ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.
GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Parts and Accessories In the U.S.A.: GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. GE does not support
any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air
conditioner yourself.
Customers in Canada should consult the yellow pages for the nearest Mabe service center,
or call 1.800.561.3344.
Contact Us In the U.S.A.: GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3

Instrucciones de Seguridad... 2,3
Instrucciones de Funcionamiento
Controles.............................4
Cuidado y Limpieza
BobinasExteriores ....................5
FiltrodeAire..........................5
Instrucciones de Instalación. 6–10
Consejos para Solucionar
Problemas.........................11
Sonidos Normales de
Funcionamiento .....................11
Soporte al Cliente
Garantía para Clientes en EE.UU ......13
SoportealCliente....................14
49-7711 08-13 GE
Manual del Propietario e
Instrucciones de Instalación
Escriba los números de modelo y de serie
aquí:
Nº de Modelo _____________________
Nº de Serie _______________________
Estos números se encuentran en una
etiqueta al costado del acondicionador de
aire
Acondicionadores de aire
GEAppliances.com
Para Sala
En Canadá, comuníquese con nosotros
en: www.GEAppliances.ca
AHL05
AHR05

2
INFORMACIÓN IMPORTANTE DE SEGURIDAD.LEA TODAS LAS
INSTRUCCIONES ANTES DE USAR.
¡ADVERTENCIA!
Para su seguridad, siga las instrucciones de este manual a fin de minimizar riesgos de incendio,
descargas eléctricas o heridas personales.
Use este electrodoméstico sólo para su
propósito original, como se describe en el
Manual del Propietario.
Este acondicionador de aire se debe instalar
de forma apropiada de acuerdo con las
Instrucciones de Instalación antes de ser
usado.
Nunca desenchufe su acondicionador de aire
empujando el cable de corriente. Siempre tome
su enchufe de manera firme y empuje el mismo
hacia afuera del receptáculo.
Reemplace de inmediato todos los cables del
servicio de electricidad pelados o con cualquier
tipo de daño. Un cable del servicio de corriente
que esté dañado deberá ser reemplazado
por uno nuevo provisto por el fabricante, y
no deberá ser reparado. No use un cable con
cortaduras o abrasión sobre su extensión o en
cualquiera de sus enchufes o extremos.
Coloque la unidad en OFF (Apagado) y
desenchufe el acondicionador de aire antes de
usar el mismo.
 GE no suministra servicio técnico para el
acondicionador de aire. Recomendamos
enfáticamente que no intente reparar el
acondicionador de aire usted mismo.
Para su seguridad... no acumule ni use
materiales combustibles, gasolina u otros
vapores o líquidos inflamables cerca de éste u
otro electrodoméstico.
 Todos los acondicionadores de aire contienen
refrigerantes, los cuales de acuerdo con la ley
federal se deben quitar antes de deshacerse
del producto. Si se deshará de un producto
antiguo con refrigerantes, consulte a la
compañía a cargo sobre cómo deshacerse del
mismo.
 Si el receptáculo no coincide con el enchufe, el
cambio del mismo deberá ser realizado por un
electricista calificado.
 Estos sistemas de acondicionadores de
aire R410A requieren que los contratistas y
técnicos utilicen herramientas, equipamiento
y estándares de seguridad aprobados
para su uso con este refrigerante. NO use
equipamiento certificado sólo para refrigerante
R22.
PRECAUCIONES DE SEGURIDAD
Nunca, bajo ninguna circunstancia, corte o elimine
el tercer cable (tierra) del cable de corriente. Para
su seguridad personal, este electrodoméstico debe
estar adecuadamente conectado a tierra.
NO use un enchufe adaptador con este
electrodoméstico.
El cable de corriente de este electrodoméstico
contiene un enchufe de 3 cables (conexión a tierra)
que se conecta a un tomacorriente de pared
estándar de 3 cables (conexión a tierra) para
minimizar la posibilidad de riesgos de descargas
eléctricas por parte del mismo.
El cable de corriente incluye un interruptor de
corriente. Se brinda un botón de evaluación y
reinicio en la caja del enchufe. El dispositivo deberá
ser evaluado en forma periódica, presionando
primero el botón TEST (Evaluar) y luego RESET
(Reinicio) mientras se encuentre enchufado al
tomacorriente. Si el botón TEST (Evaluar) no se
activa o el botón RESET (Reinicio) no permanece en
su posición, deje de usar el acondicionador de aire y
comuníquese con un técnico calificado del servicio.
Contrate a un electricista calificado para que
controle el tomacorriente y el circuito eléctrico
para asegurar que el enchufe esté correctamente
conectado a tierra.
En caso de contar con un tomacorriente de pared
de 2 cables, es su responsabilidad y obligación
reemplazarlo por un tomacorriente de pared de 3
cables correctamente conectado a tierra.
El acondicionador de aire debería estar siempre
conectado a un enchufe específico con un índice de
voltaje equivalente al que figura en su etiqueta de
características técnicas.
Esto garantiza el mejor funcionamiento y además
previene la sobrecarga de los circuitos del hogar, lo
cual podría ocasionar riesgos de incendio debido al
recalentamiento de cables.
Para conocer los requisitos específicos de la
conexión eléctrica, consulte las Instrucciones de
Instalación, Requisitos Eléctricos.
CÓMO CONECTAR LA ELECTRICIDAD

3
GEAppliances.com
¡ADVERTENCIA!
USO DE PROLONGADORES
LEA Y SIGA ESTA INFORMACIÓN DE SEGURIDAD CUIDADOSAMENTE.
GUARDE ESTAS INSTRUCCIONES
RIESGO DE INCENDIO. Podría ocasionar
lesiones graves o la muerte.
NO use un prolongador con este
Acondicionador de Aire de Ventana.
NO use protectores contra picos de corriente ni
adaptadores para múltiples tomacorrientes con
este Acondicionador de Aire de Ventana.

4
Acerca de los controles en el acondicionador de aire
Las funciones y la apariencia podrán variar.
Controles
Control de Temperatura
La configuración determina el nivel de frío
provisto. High Cool (Frío Alto) provee la mayor
cantidad de frío y Low Cool (Frío Bajo) provee la
menor cantidad.
Fan Only (Sólo Ventilador) apaga el frío.
NOTA: Si mueve el control de Temperatura de
un ajuste de refrigeración a OFF (Apagar) o a
un ajuste del ventilador, espere por los menos 3
minutos antes de volver a activar un ajuste de
refrigeración.
Descripciones de Refrigeración
3DUDXQ1LYHOGH)UtR1RUPDO³Seleccione High
Cool (Frío Alto) oLow Cool (Frío Bajo).
Para un Nivel de Frío Máximo³6HOHFFLRQHHigh
Cool (Frío Alto) con la configuración FAN SPEED
(Velocidad del Ventilador) en HI (Alto).
3DUDXQD5HIULJHUDFLyQ0iV6XDYH\1RFWXUQD³
Seleccione Low Cool (Frío Bajo) con FAN SPEED
(Velocidad del Ventilador) en LOW (Bajo).
Velocidad del Ventilador
El botón de velocidad del ventilador se puede
configurar en HI (Alto) o LOW (Bajo). Se puede
configurar en el modo de refrigeración o sólo
ventilador.
Encendido
Enciende o apaga la unidad.
Dirección del Aire
Use la palanca para ajustar la dirección del aire hacia
la izquierda o la derecha únicamente. La palanca está en el medio
Speed
Fan
Only
Power
Low High
Cool
Wait 3 Min
Before Restarting
Cool
Fan

Cuidado y Limpieza del acondicionador de aire GEAppliances.com
5
Bobinas Exteriores
Las bobinas del lado exterior del acondicionador
de aire se deberán controlar de forma regular. Si se
encuentran atascadas con tierra u hollín, deberán ser
limpiadas por un profesional.
Apague el acondicionador de aire y retire el enchufe
del tomacorriente antes de limpiar.
Para limpiar, use agua y un detergente suave. No use
blanqueadores ni abrasivos.
Parrilla y Caja
Filtro de Aire
El filtro de aire que se encuentra detrás de la rejilla
frontal se debe revisar y limpiar por lo menos cada 30
días o con una frecuencia mayor, si fuera necesario.
Para retirar:
Abra la rejilla de entrada empujando hacia abajo
las lengüetas en las esquinas superiores de la rejilla
de entrada, hasta que la rejilla se encuentre en una
posición de 45º. Retire el filtro.
Limpie el filtro con agua caliente y jabón. Enjuague y
deje secar el filtro antes de su reemplazo. No limpie el
filtro en un lavavajillas.
PRECAUCIÓN: NO utilice el
acondicionador de aire sin un filtro, ya que la suciedad
y las pelusas producirán atascamientos y reducirán su
funcionamiento.

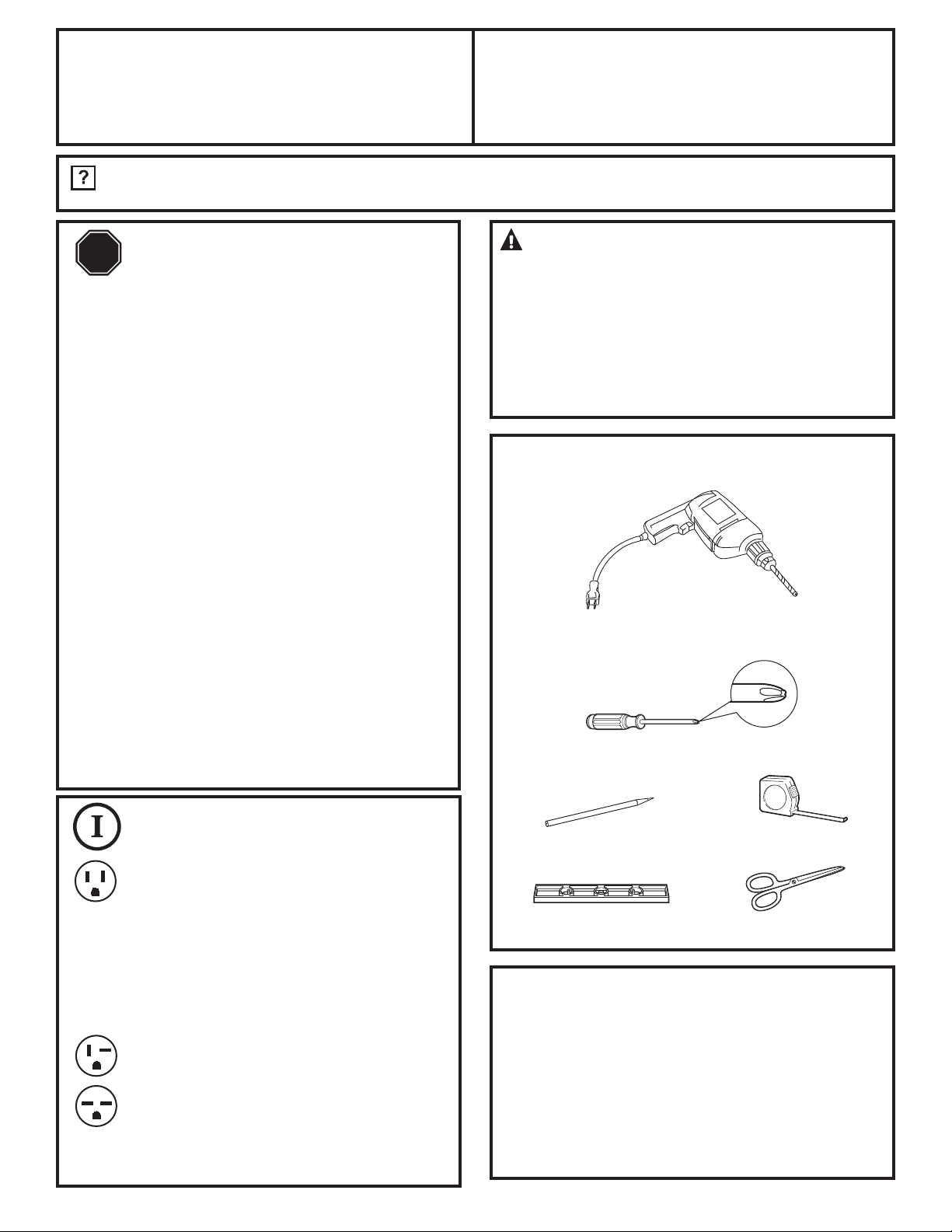

ALTO ANTES DE COMENZAR
Lea estas instrucciones en su totalidad y
atentamente.
tIMPORTANTE —Conserve estas
instrucciones para uso del inspector local.
tIMPORTANTE —Cumpla con todos los
códigos y ordenanzas gubernamentales.
t Nota para el Instalador – Asegúrese de que el
Comprador conserve estas instrucciones.
t Nota para el Comprador – Conserve estas
instrucciones para referencia futura.
t Nivel de habilidad – La instalación de este
dispositivo requiere un nivel básico de
habilidades mecánicas.
t Tiempo de instalación – Aproximadamente 1
hora.
t Recomendamos que el producto sea instalado
por dos personas.
t La correcta instalación del producto es
responsabilidad del instalador.
t Si se producen fallas en el producto debido
a una instalación inadecuada, la Garantía no
cubrirá las mismas.
t Al instalar este acondicionador de aire, DEBERÁ
usar todas las piezas suministradas y seguir los
procedimientos de instalación adecuados, como
se describe en estas instrucciones.
Instrucciones
Acondicionad
de Instalación
or de aire
Algunos modelos requieren un tomacorriente
con conexión a tierra de 115/120-volt AC,
60-Hz protegido con un fusible de retraso de
15 amperes o un disyuntor
El enchufe con conexión a tierra de 3 patas reduce
la posibilidad de una descarga eléctrica. En caso de
contar con un tomacorriente de pared de 2 cables, es
su responsabilidad y obligación reemplazarlo por un
tomacorriente de pared de 3 cables correctamente
conectado a tierra.
Algunos modelos requieren CA de 230/208
voltios, protegido con un fusible de retraso o
un disyuntor. Estos modelos deberán ser
instalados en sus propios circuitos
independientes para un mejor rendimiento y
para evitar sobrecargas en los circuitos de
cableado de la casa o departamento, los
cuales podrían ocasionar riesgos de incendio
por el sobrecalentamiento de cables.
REQUISITOS ELÉCTRICOS
PRECAUCIÓN:
Nunca, bajo ninguna circunstancia, corte o elimine el
tercer cable (tierra) del cable de corriente.
No cambie el enchufe del cable de corriente de este
acondicionador de aire.
Los cables de aluminio para casas pueden presentar
problemas especiales – consulte a un electricista
calificado.
HERRAMIENTAS NECESARIAS
Destornillador Phillips
Regla o cinta de medición
Lápiz
Nivel Tijeras o cuchillo
El cable de corriente incluye un interruptor de corriente.
Se brinda un botón de evaluación y reinicio en la
caja del enchufe. El dispositivo deberá ser evaluado
en forma periódica, presionando primero el botón
TEST (Evaluar) y luego RESET (Reinicio) mientras
se encuentre enchufado al tomacorriente. Si el
botón TEST (Evaluar) no se activa o el botón RESET
(Reinicio) no permanece en su posición, deje de usar el
acondicionador de aire y comuníquese con un técnico
calificado del servicio.
¿Preguntas? Llame al 800.GE.CARES (800.432.2737) o visite nuestro sitio web en: GEAppliances.com
6
Taladro y broca de 1/8”
